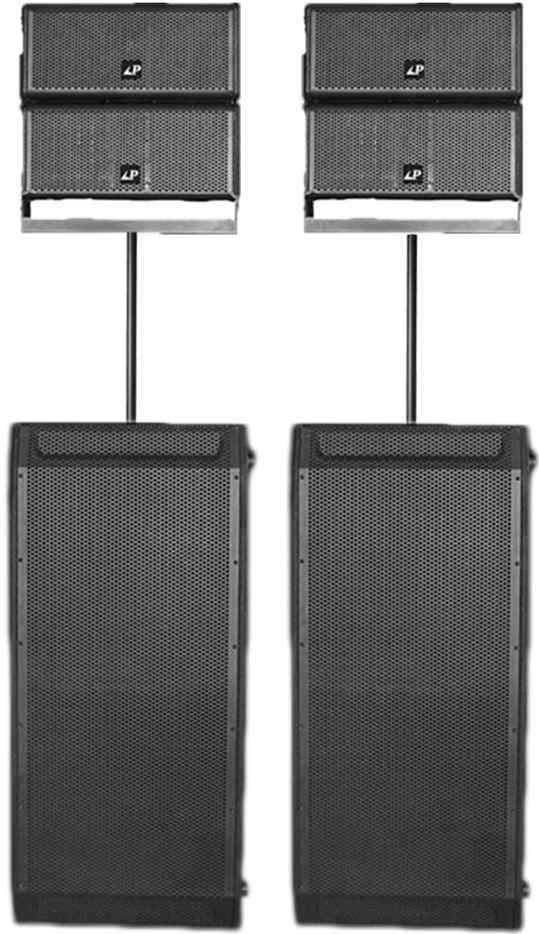

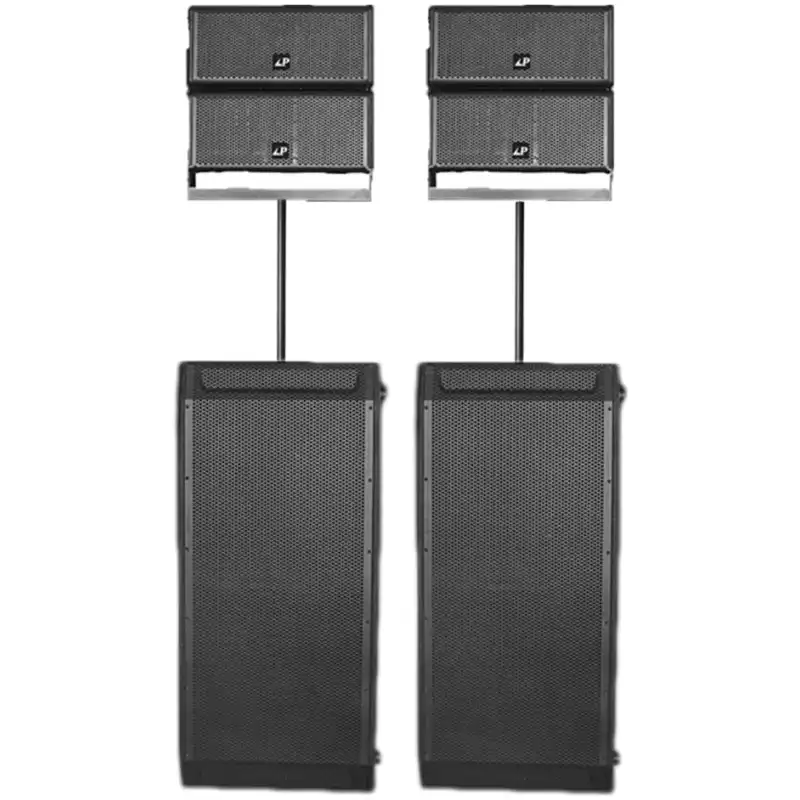

Lane Pro X-Array 18-282 Active PA Speaker Combo

The Lane Pro X-Array 18-282 is a powerful active PA speaker combo designed for medium to large events, DJs, churches, rental companies, schools, and live performances. Featuring a high-output 18-inch active subwoofer paired with dual 8-inch top speakers, the system delivers deep bass, clean midrange, and wide-dispersion coverage. With a built-in amplifier, DSP control, multiple input options, and rugged construction, the X-Array 18-282 provides a complete, plug-and-play sound solution for indoor and outdoor events.

Key Features

• Complete active PA combo with 18″ powered subwoofer + dual 8″ top speakers

• High-power Class-D amplifier module

• DSP presets for Live / Music / Speech / Flat (varies by batch)

• Dual 8″ top cabinets with wide horizontal coverage

• 18″ subwoofer for strong low-frequency extension

• 2-channel mixer with Mic/Line inputs

• Bluetooth audio streaming (batch dependent; can confirm with box photo)

• Integrated pole-mount system

• Heavy-duty cabinets with metal grille protection

• Ideal for DJs, church services, school events, parties, small bands, and outdoor functions

Technical Specifications

System

System Type: Active PA combo system
Configuration: 1 × 18″ active subwoofer + 2 × 8″ passive/active satellite tops
Amplifier Type: Class-D
Total System Power: approx. 500–1000 W peak (depending on batch)
DSP Modes: Live, Speech, Music, Flat (typical)
Inputs: XLR/Jack combo (Mic/Line), RCA stereo
Output: XLR line out / speaker link

Subwoofer

Driver Size: 18 inches
Frequency Response: approx. 40 Hz – 150 Hz
Enclosure Type: Ported
Construction: Heavy-duty wood or composite (batch dependent)

Top Speakers

Configuration: Dual 8″ LF drivers + 1″ HF driver per satellite
Frequency Range: approx. 80 Hz – 18 kHz
Dispersion: Wide-coverage design

Additional Features

• Bluetooth (if included in your batch)

• Clip/limit protection

• Thermal protection

• Signal/Power LEDs

• 35 mm pole mounts
