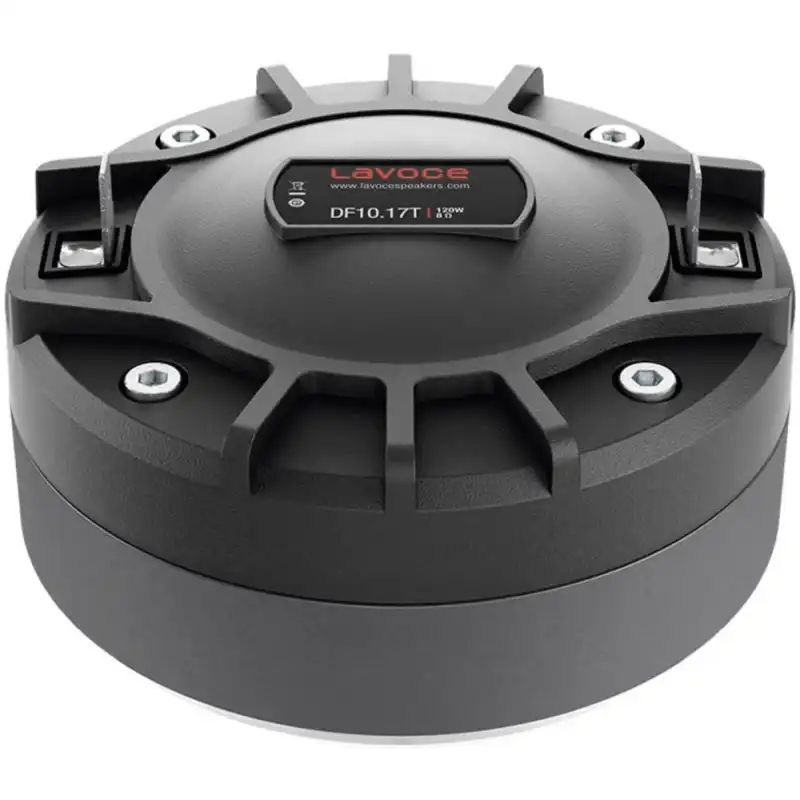

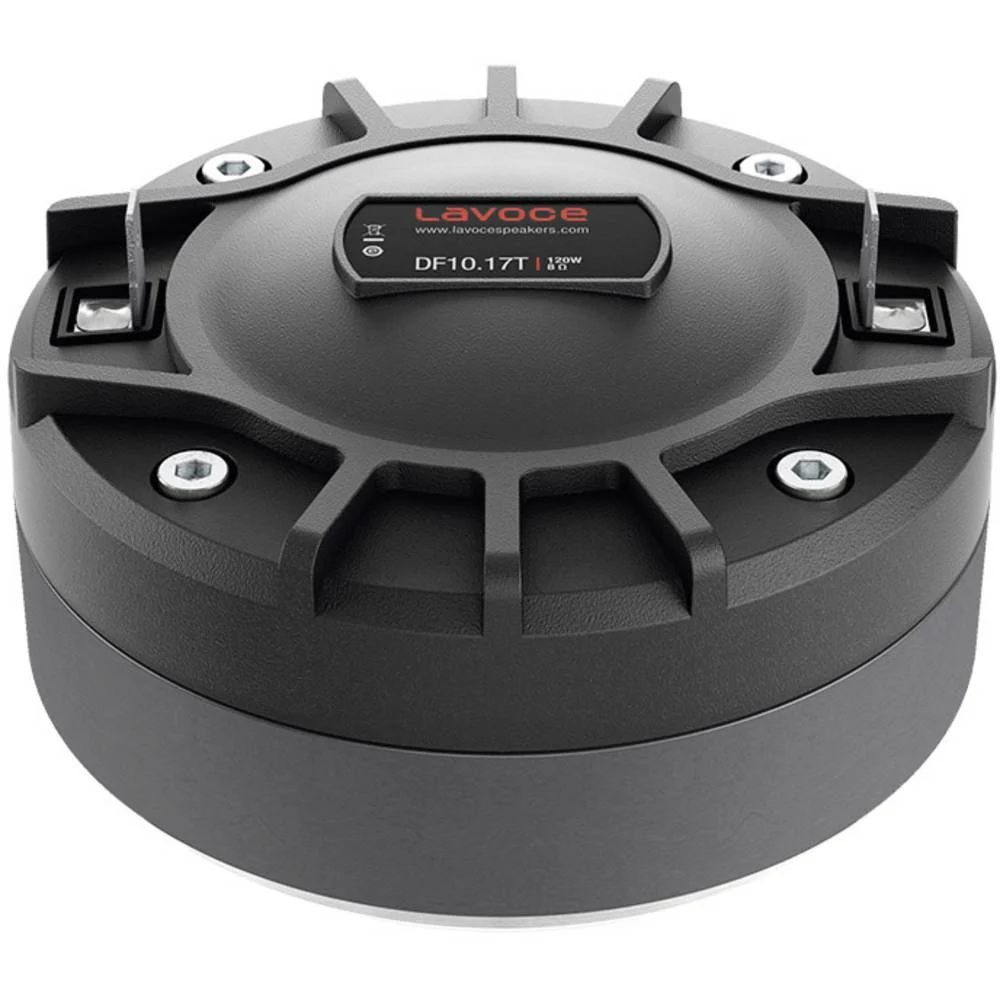

Lavoce DF10.17T Compression Driver

The Lavoce DF10.17T is a high-efficiency 1-inch compression driver engineered for professional 2-way PA systems, portable speakers, and stage monitors. Built with a titanium diaphragm, high-temperature voice coil, and precision phase plug, it delivers crisp, detailed high-frequency performance with excellent durability and smooth response.

Ideal for upgrading or replacing HF drivers in 8”, 10”, 12” and 15” PA cabinets.

Key Features

• 1” exit high-frequency compression driver

• 1.7″ (44 mm) voice coil

• Titanium diaphragm for clarity and durability

• Ferrite magnet motor

• Smooth and extended HF response

• High sensitivity and strong power handling

• Fits standard 1″ bolt-on horns

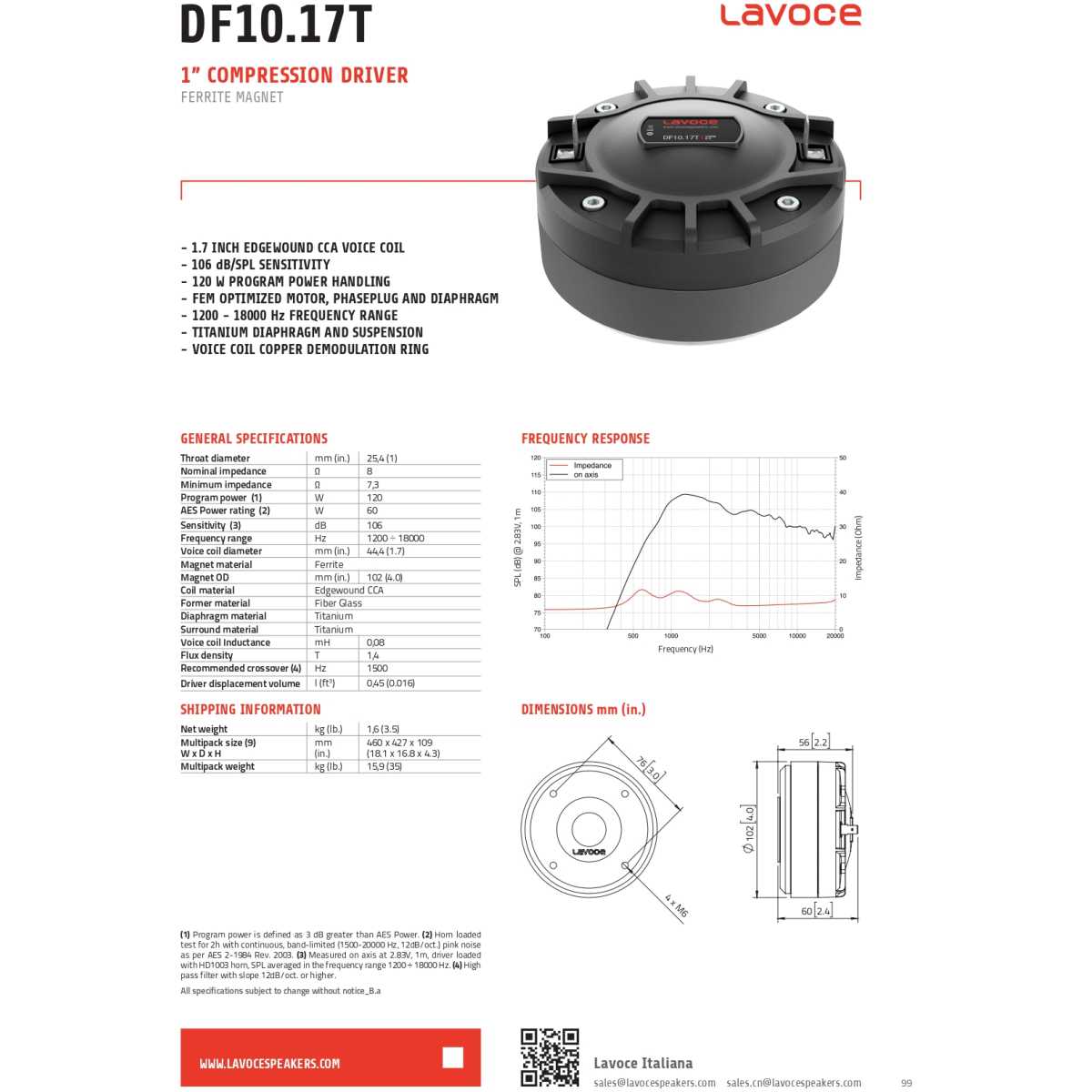

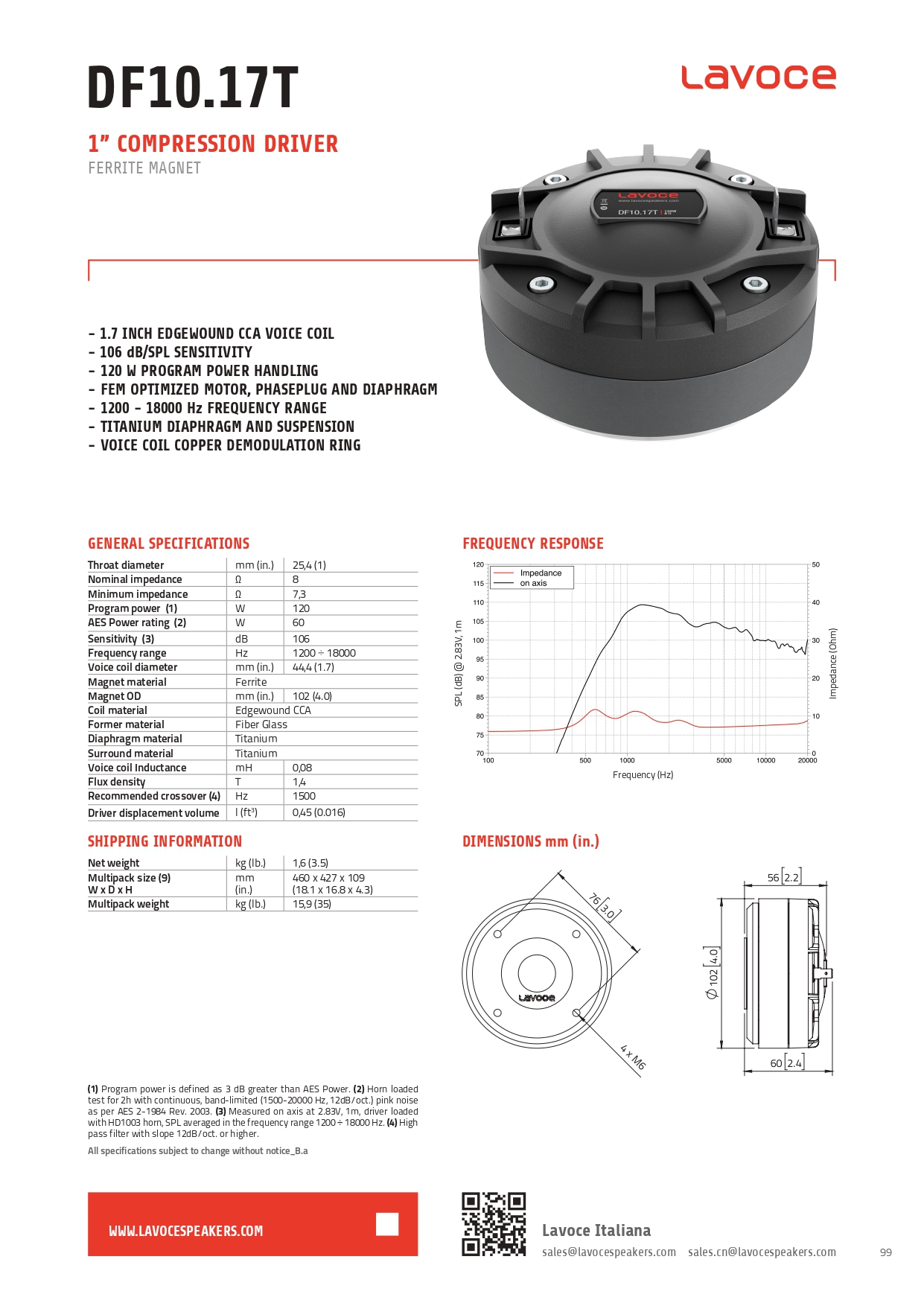

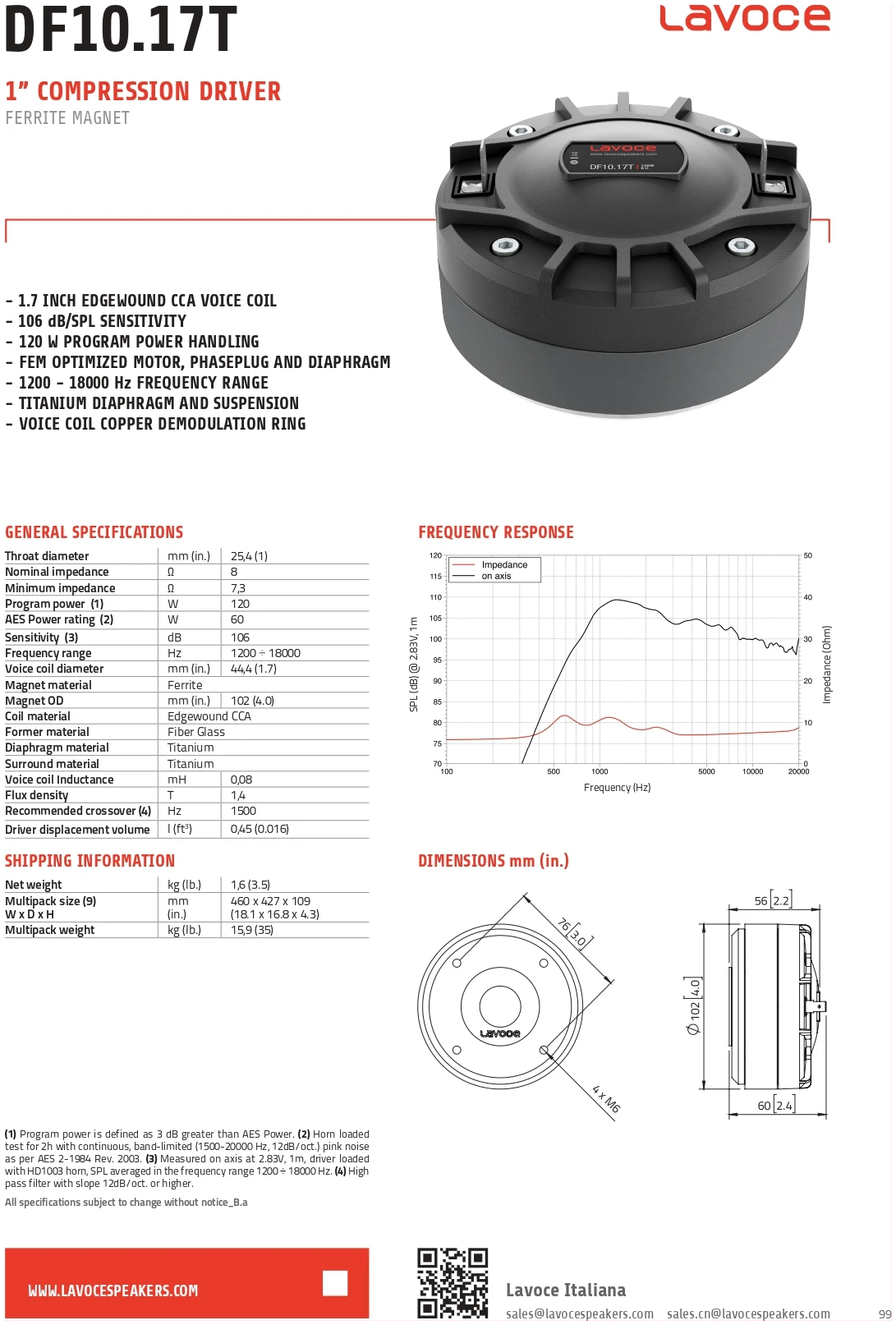

Technical Specifications

Driver Details

• Exit Throat: 1 inch (25.4 mm)

• Voice Coil Diameter: 44 mm (1.7″)

• Diaphragm Material: Titanium

• Phase Plug: Radial

• Voice Coil Former: Polyimide

• Magnet Type: Ferrite

Power Handling

• AES Power: 40W AES

• Program Power: 80W

• Peak Power: 160W

Performance

• Nominal Impedance: 8 Ohms

• Sensitivity: 107 dB (1W/1m)

• Frequency Range: 1.2 kHz – 20 kHz

• Recommended Crossover:

  • 1.6 kHz @ 12 dB/oct minimum

  • 2.0 kHz recommended for higher power systems

Mounting

• Mount Type: Bolt-on

• Bolt Pattern: Standard 3-bolt

• Fits most 1” horn flares
