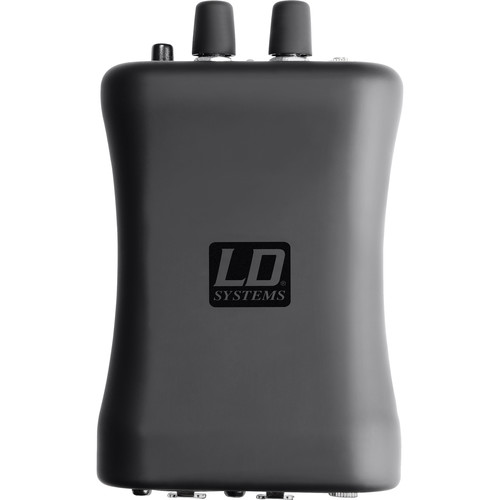

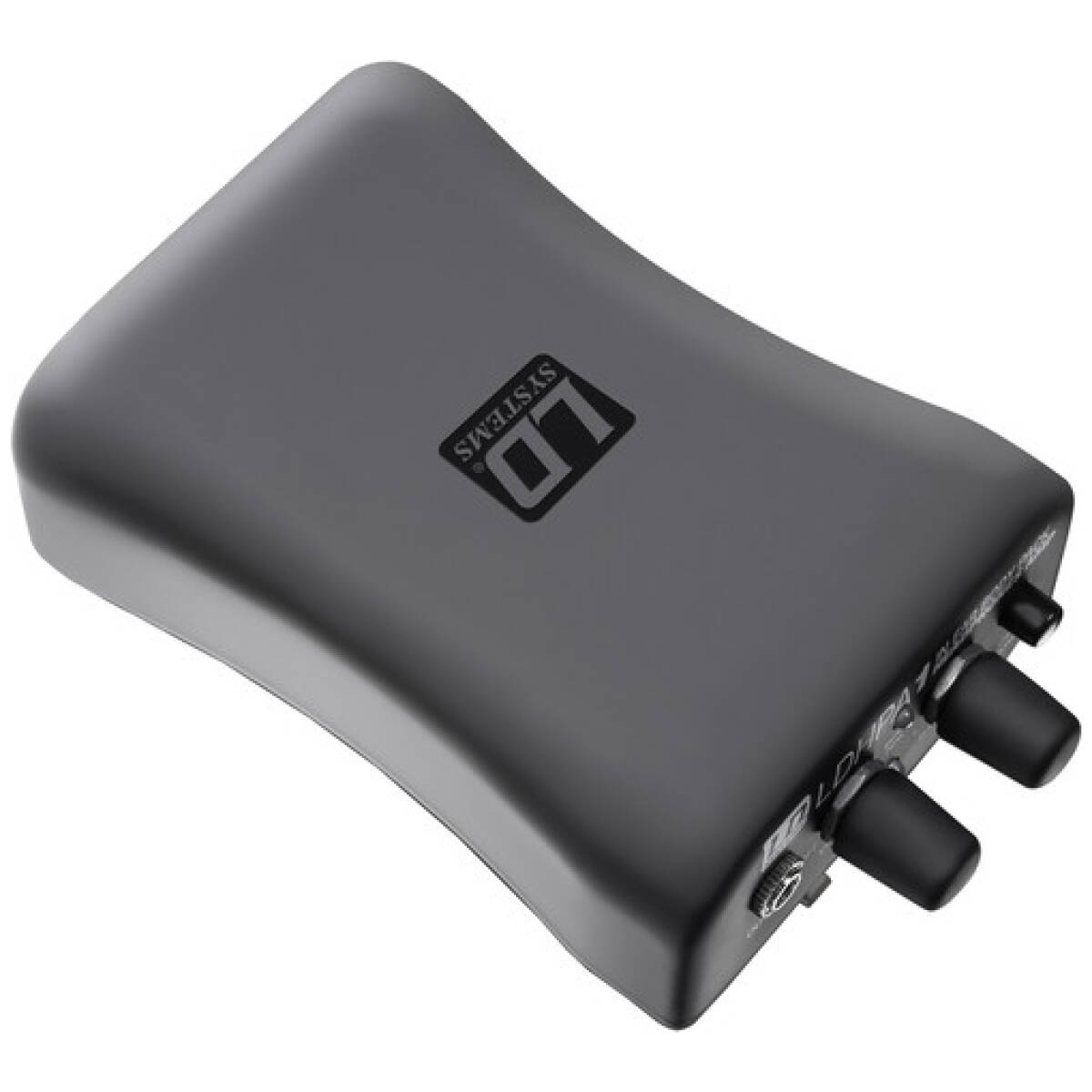

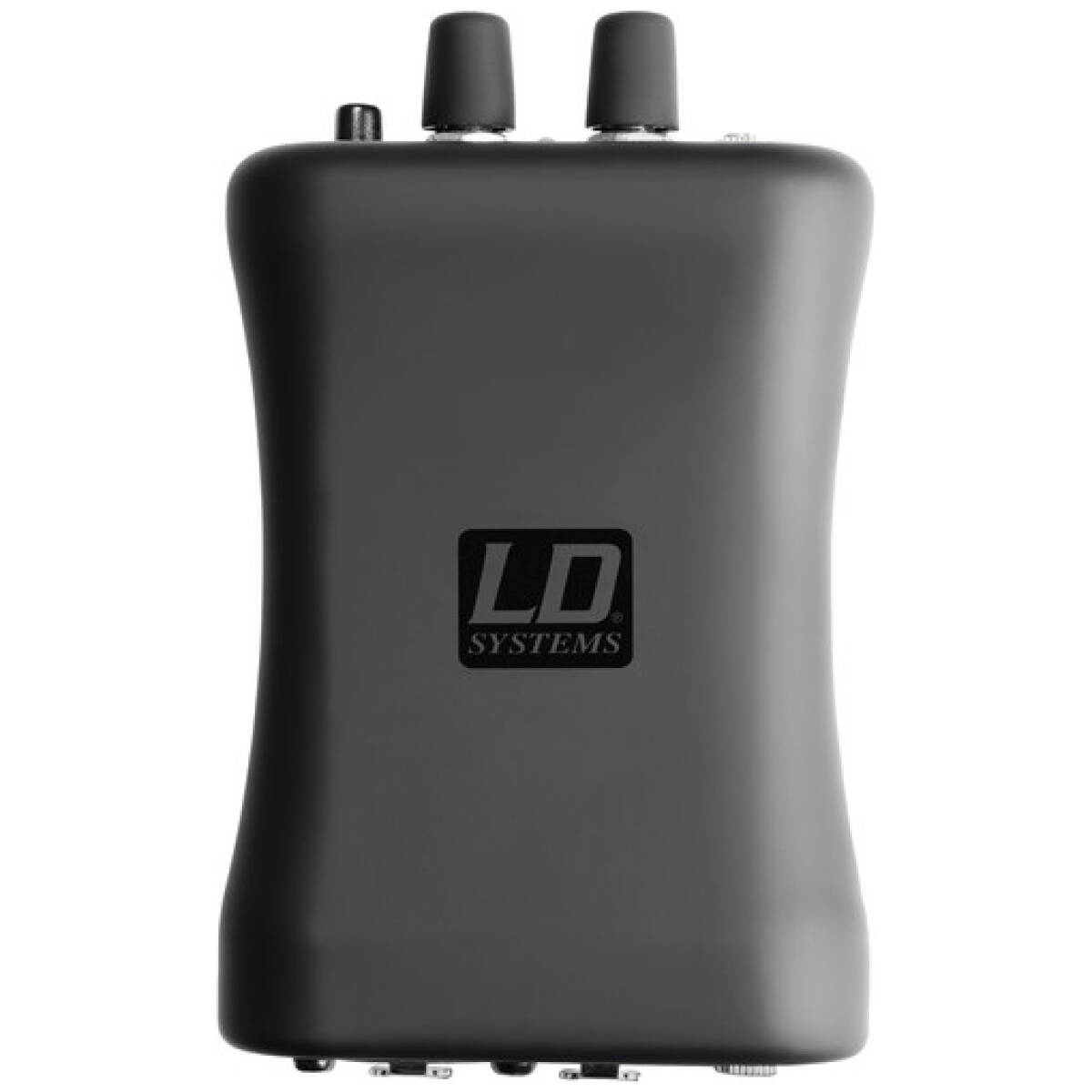

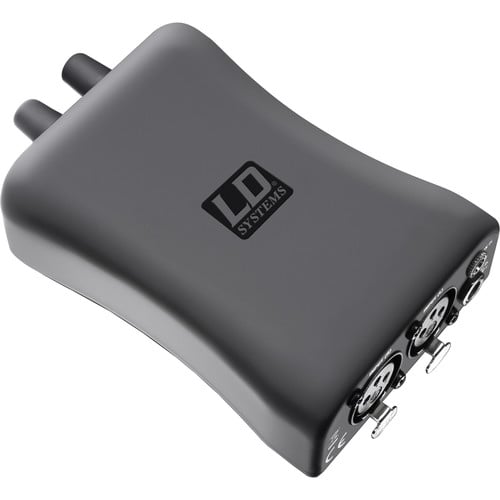

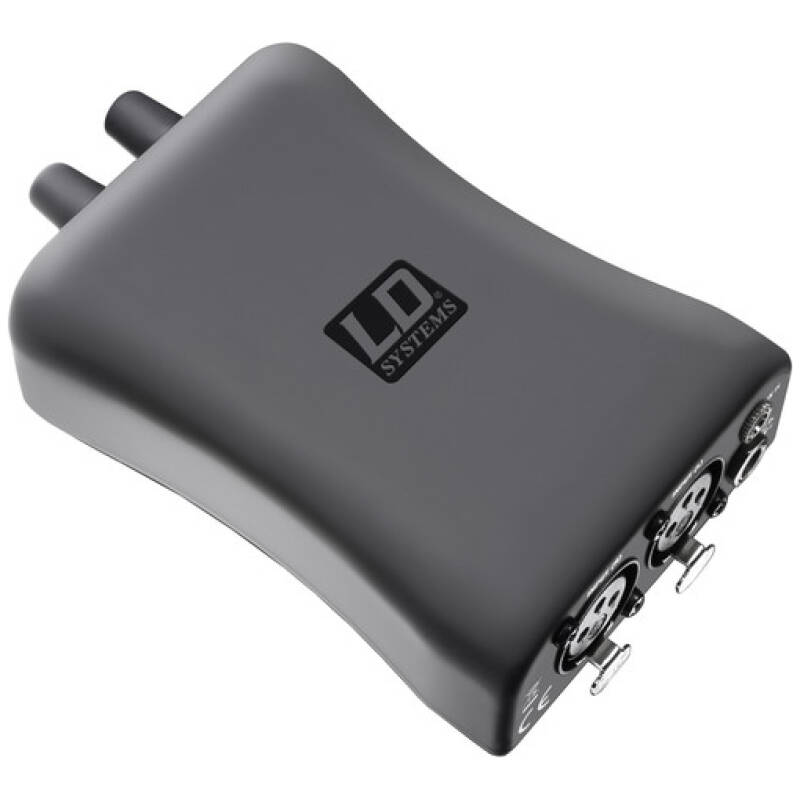

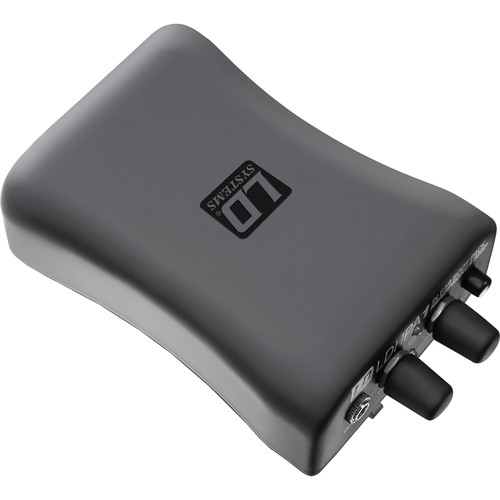

The black HPA 1 by LD Systems is a headphone amplifier with high-power output for use in stage, studio, and home recording applications. It is an ideal solution for wired in-ear monitoring, and the compact design is ergonomically shaped with a rugged plastic housing. The HPA 1 has a soft-touch surface and a belt clip that can attach to the talent during a performance.

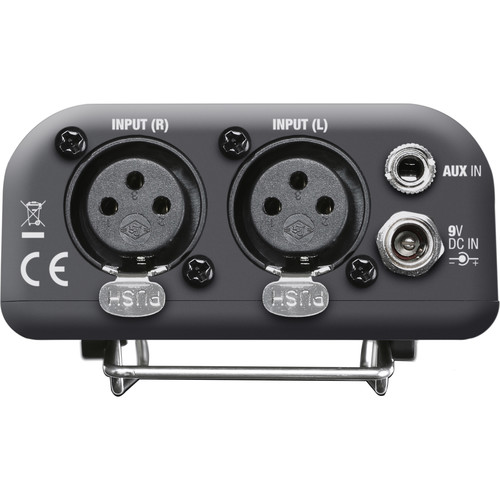

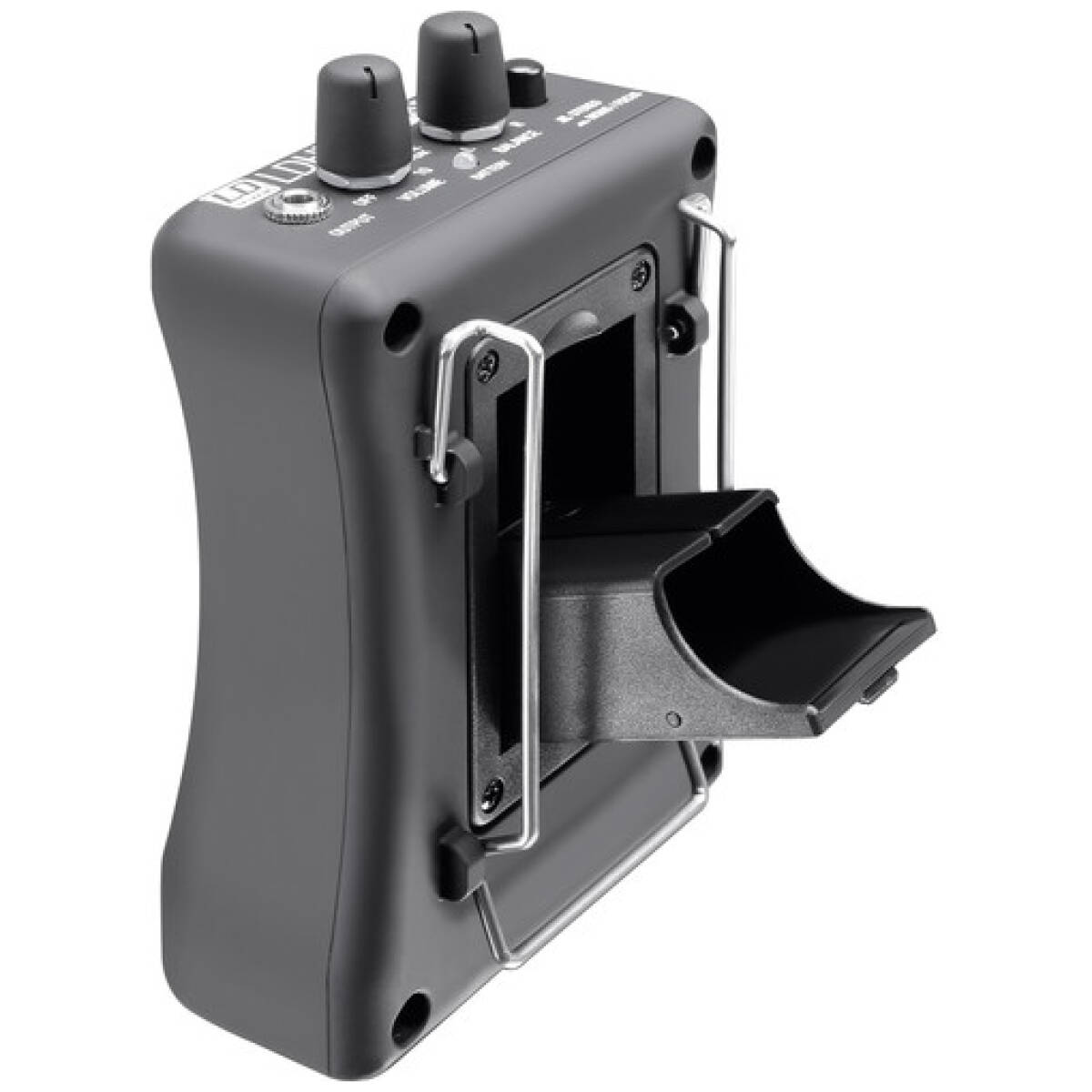

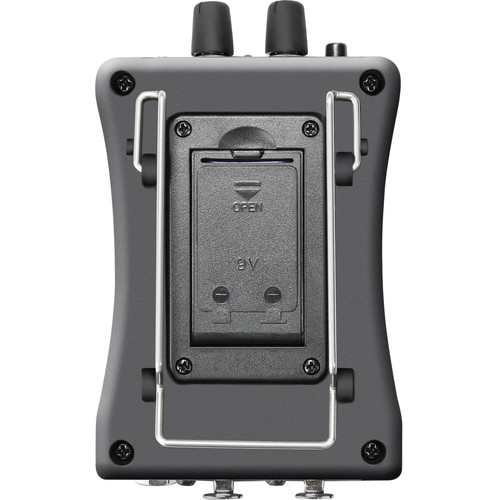

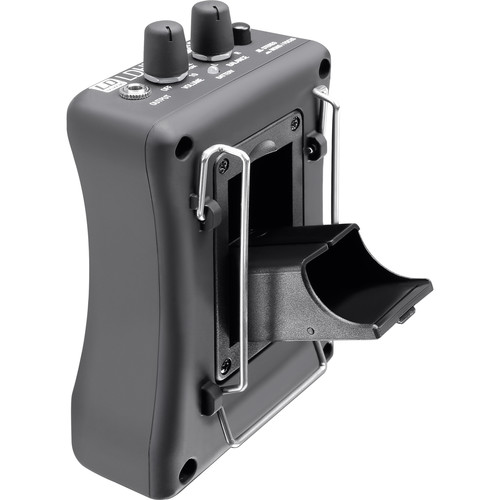

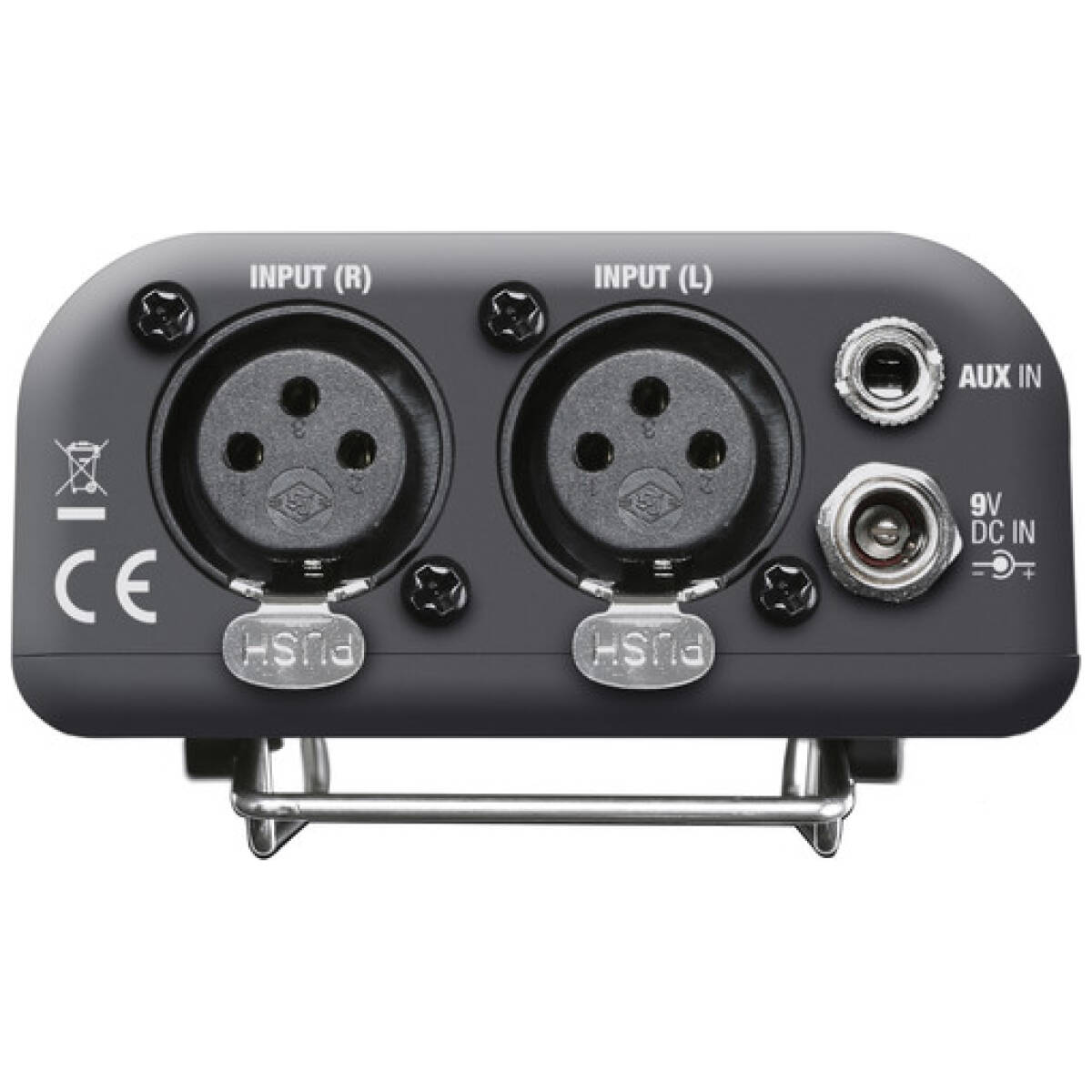

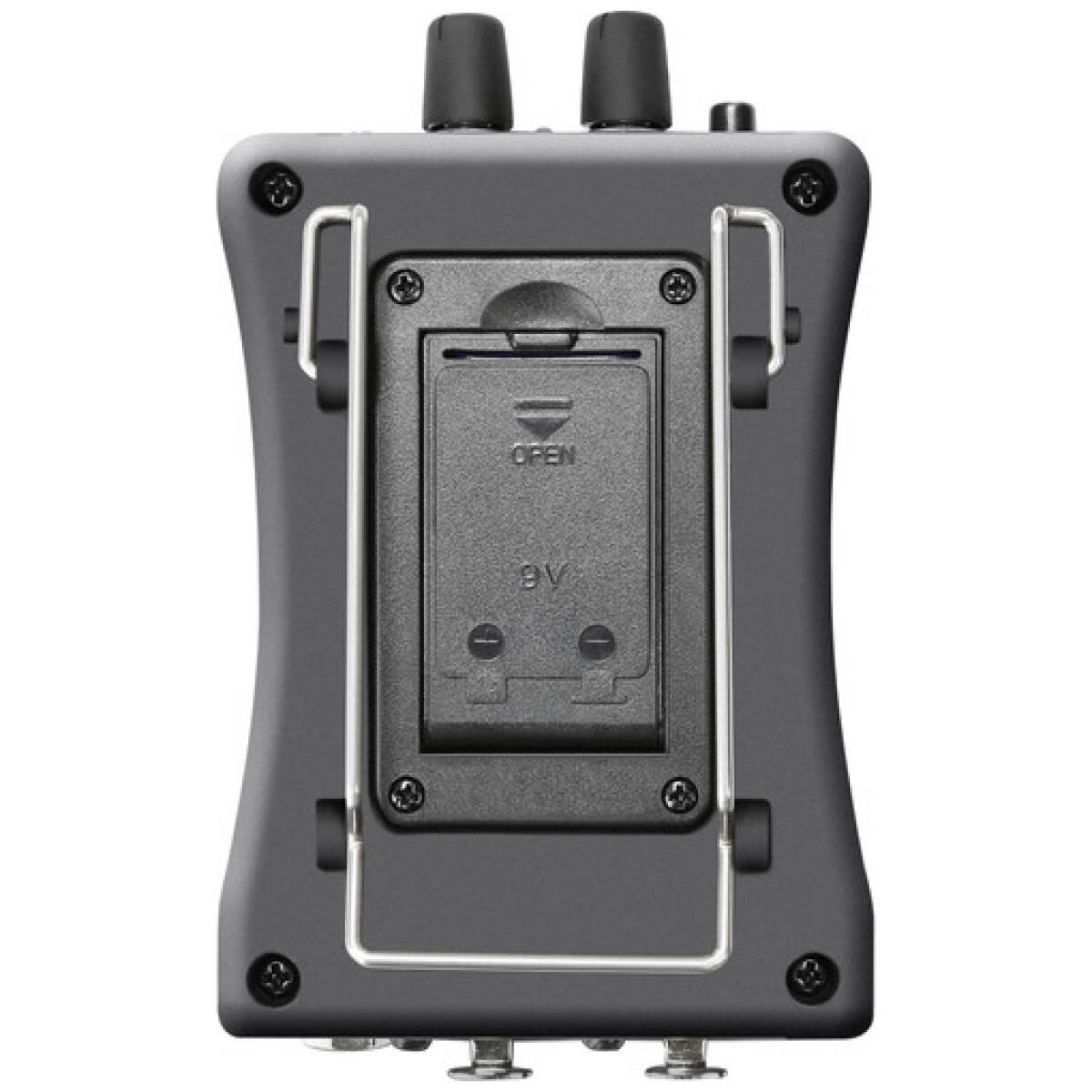

It has locking XLR connectors for the stereo signal L/R input and a 3.5mm stereo AUX input, which can be used for playback or click. A 3.5mm stereo jack is provided as a headphone output. It has a push-button switch to select between a summed mono or stereo signals. The HPA 1 provides a built-in limiter that can give you protection against feedback and an optimal playback signal. The headphone amplifier is lightweight and can operate for up to 12 hours using a 9V battery (not included) or a 9 VDC power supply (available separately).
Key Features
- Compact Headphone Amplifier
- Ideal for Wired In-Ear Monitoring
- Balanced XLR Inputs
- 3.5mm Aux Input for Playback
- Volume and Balance Controllers
- Built-In Limiter and Feedback Protection
- Soft-Touch Surface Housing

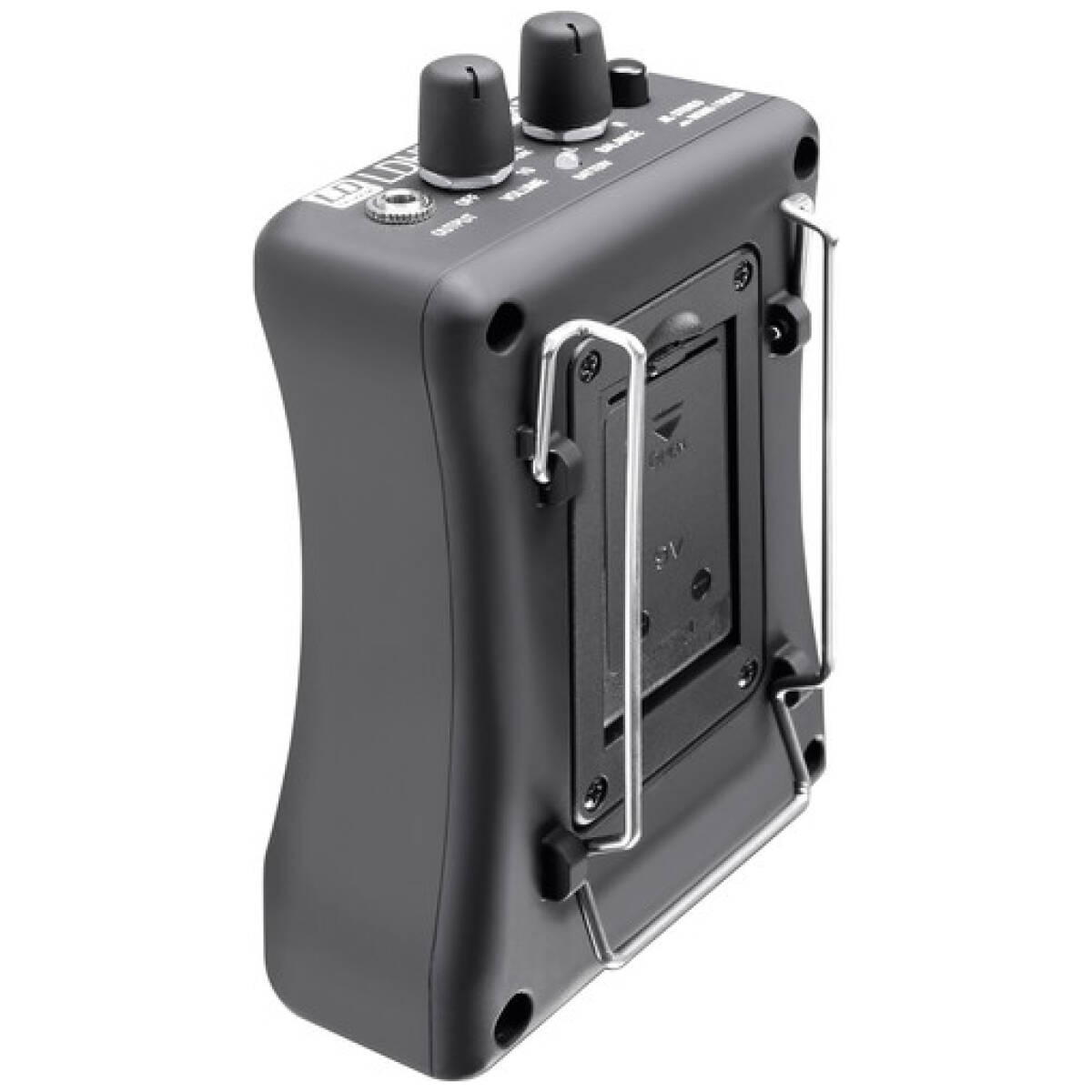

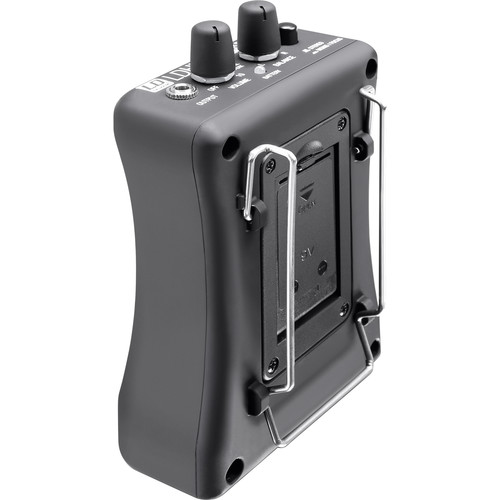

- Belt Clip for On-Body Operation
Input Connection Type
2 x XLR-F (Balanced)
1 x 1/8″ / 3.5 mm Stereo Jack (AUX In)
Input Impedance
XLR: 6 kOhms
AUX: 10 kOhms
Input Sensitivity
XLR-F: 3 dBu
AUX: -6 dBV
Protection Circuits
Audio Limiter, Max Input Leveling, Power OFF, Mute Relay
Headphone Output
1/8″ / 3.5 mm TRS
Power Output
2 x 1.65 Vrms
Minimum Impedance
16 Ohms (per Channel)
Frequency Response
20 Hz to 40 kHz
THD
0.04%

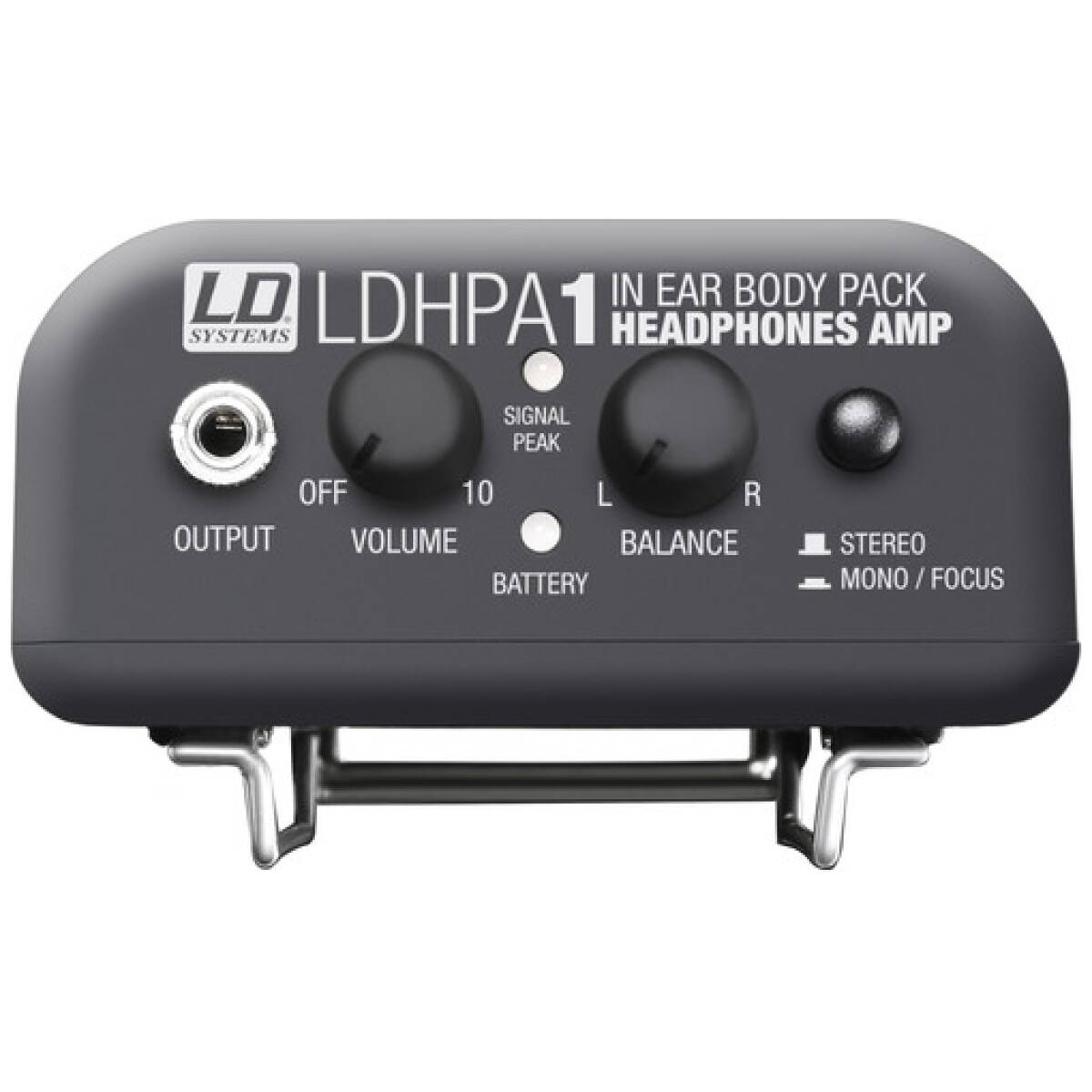

Controls

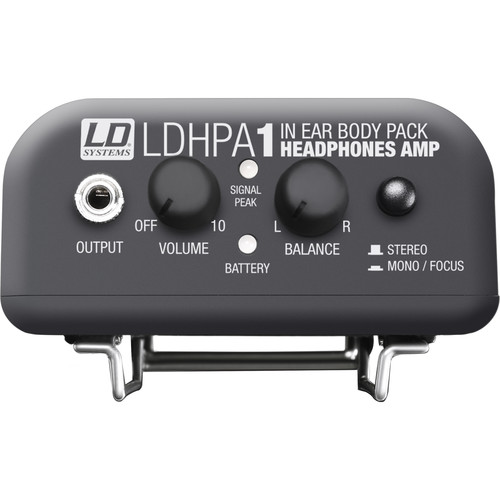

Balance L/R, Power/Volume, Stereo/Mono (Focus) Switch
Indicator LEDs
Battery (Low Battery, Red), Peak (Amber), Power LED (Power ON, Green), Signal (Green)
Operating Voltage
9 V Battery
9 VDC Power Supply
Current Draw
Nominal 0.07 A
Maximum 0.15 A
Material of Construction
Plastic
Cabinet Construction
Soft-Touch Plastic
Dimensions
3.1 x 1.6 x 5.3″ / 80 x 42.5 x 133 mm
Weight
5.4 oz / 155 g
