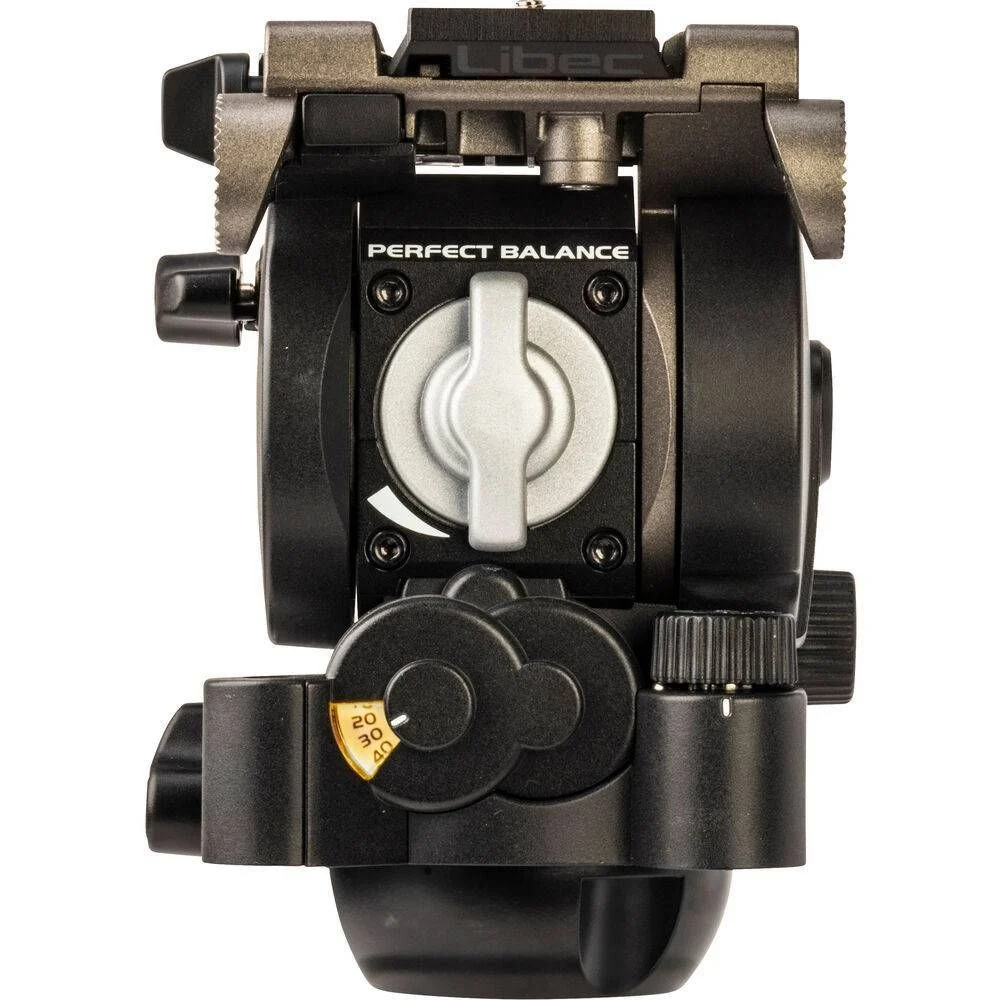

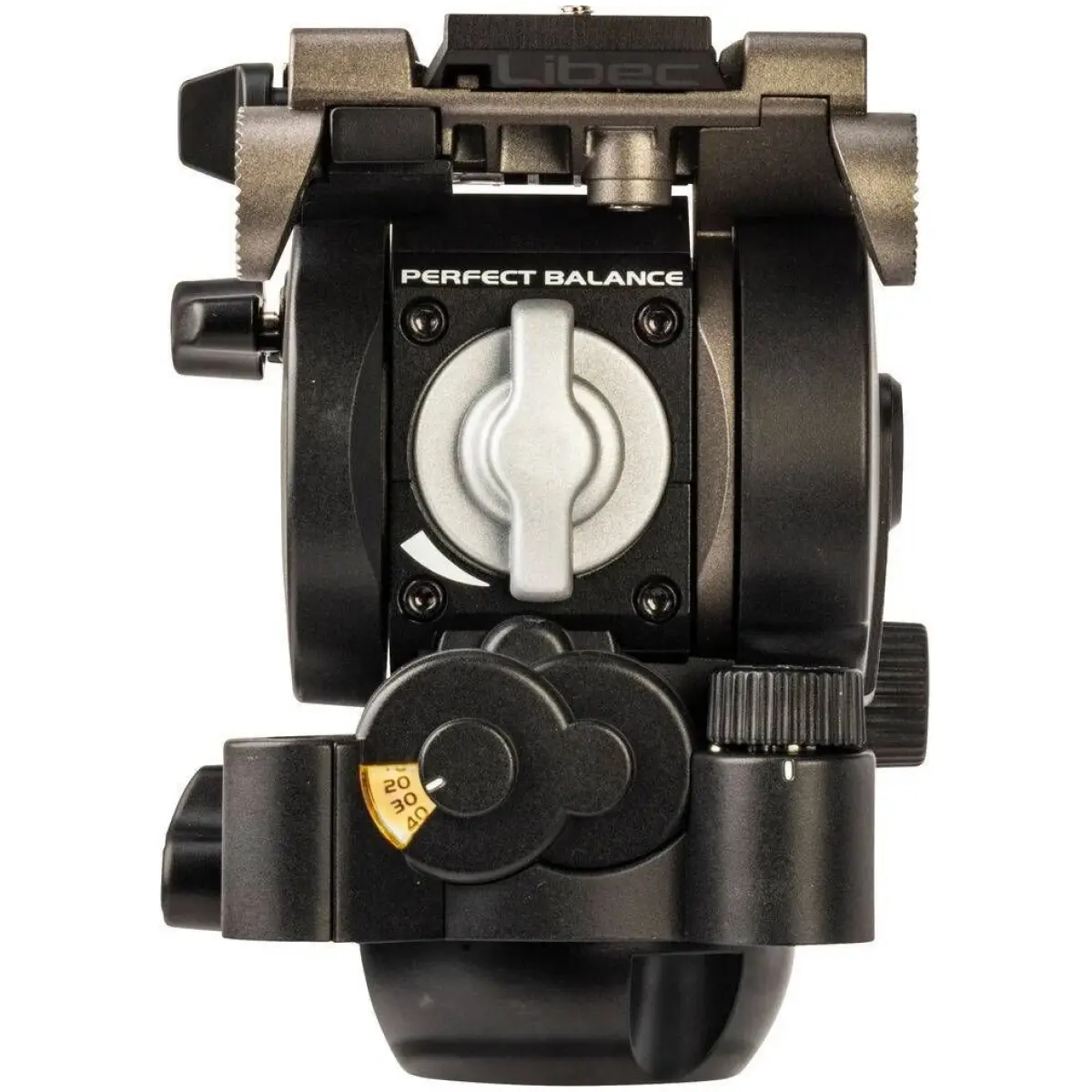

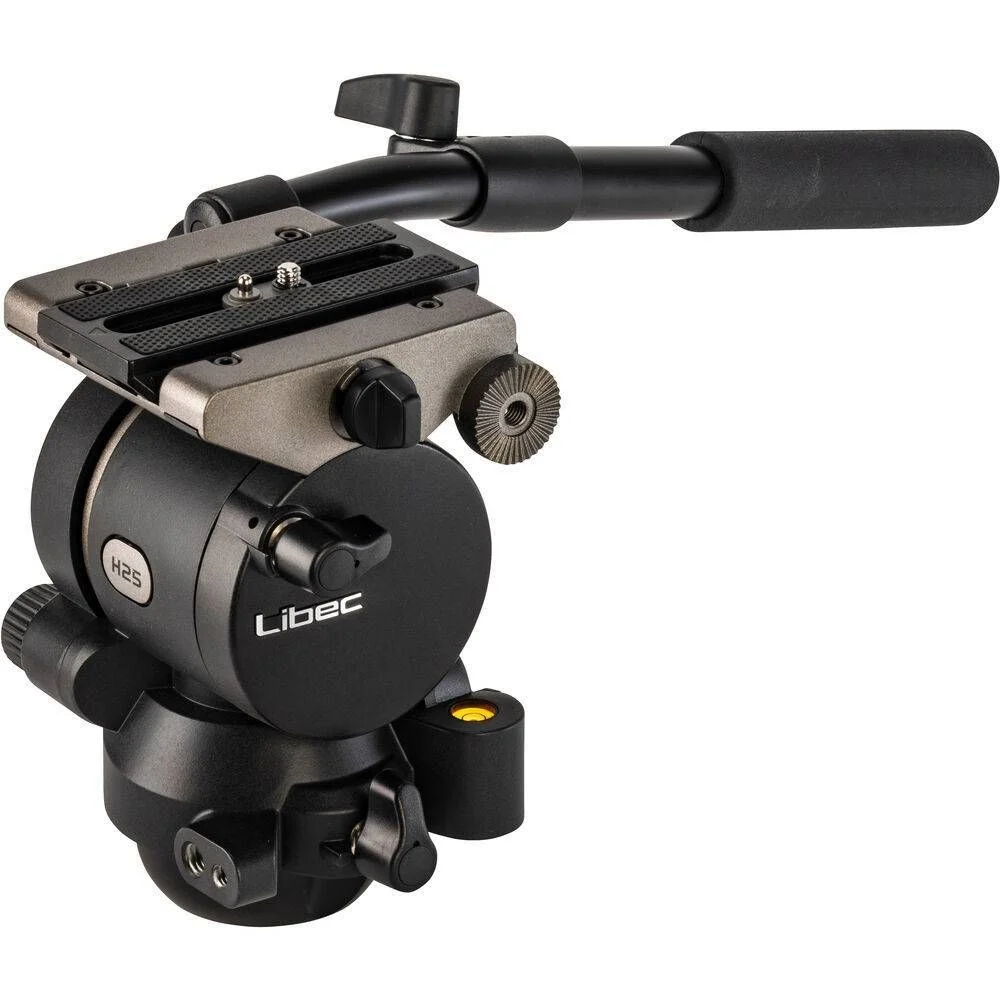

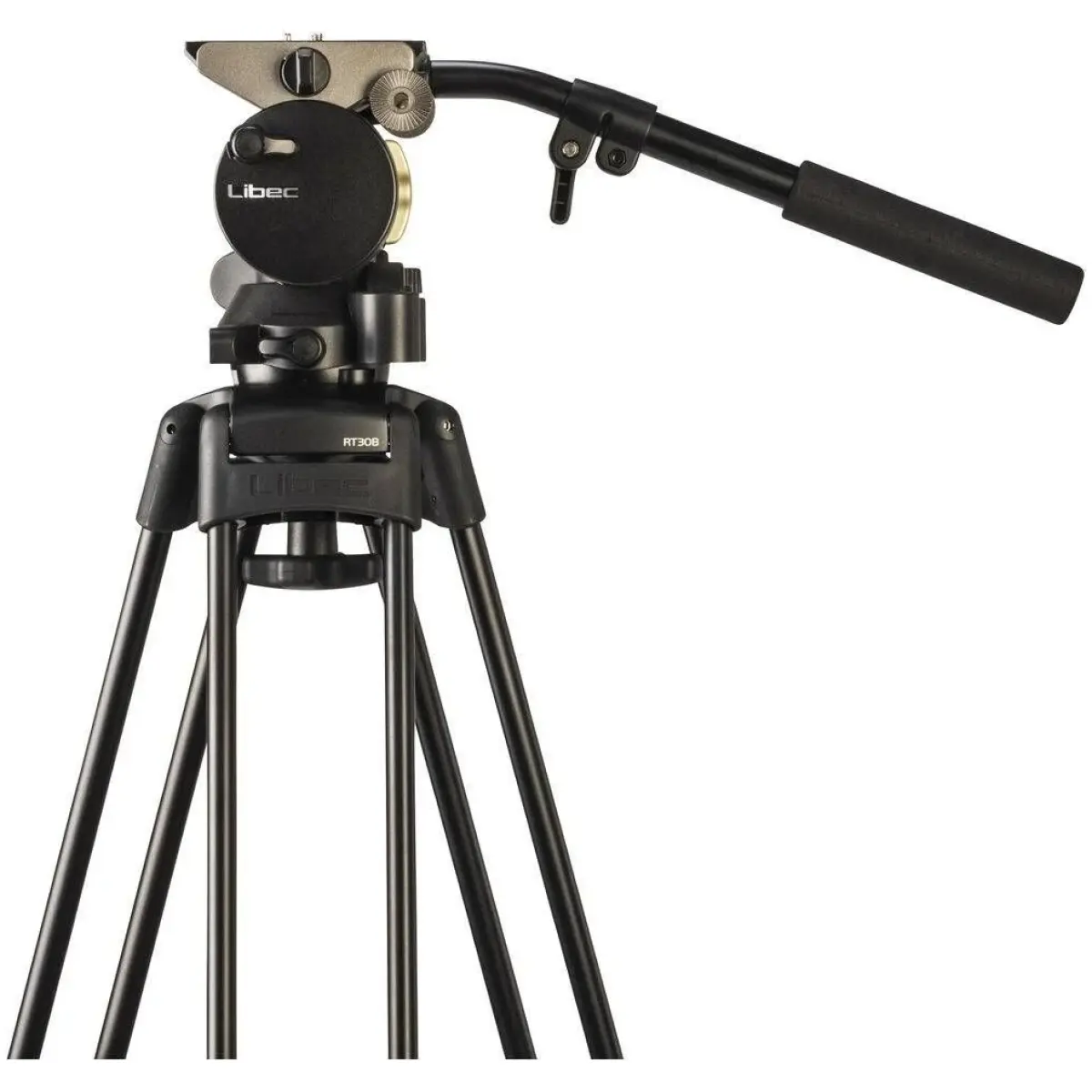

Libec H25 75mm Ball And Flat Base Video Head With A PH-6B

Integrate a fluid head into your tripod configuration with various adjustment features using this H25 75mm Ball and Flat Base Video Head with Pan Handle from Libec. An included pan handle makes for easy movement up and down or side to side. Independent pan and tilt adjustments make movements intuitive and smooth. The H25 head has a load capacity of 11 lb and an adjustable counterbalance range of 3.7 to 9.9 lb.

Your camera is secured via a 1/4″-20 screw and locating pin, and additional 3/8″-16 and 1/4″-20 screws are included for further attachments. An illuminated bubble level ensures your configuration is level when mounted onto tripod legs. The H25 is compatible with Manfrotto or Sachtler heads.

• 75mm Ball and Flat Base
• 11 lb Load Capacity
• 3.7 to 9.9 lb Counterbalance Range
• 1/4″-20 Mounting Screw with Locating Pin
• 1/4″-20 & 3/8″16 Threads
• For Use with Manfrotto & Sachtler Heads
• Pan Handle
• Illuminated Bubble Level

Specs

Camera Plate Features
Sliding Balance Plate
Camera Mounting Screw
1 x 1/4″-20 Male with Locating Pin
Base Mount
75 mm Half Ball
Flat Base
Load Capacity
11 lb / 5 kg
Camera Plate Features
Sliding Balance Plate
Camera Mounting Screw
1 x 1/4″-20 Male with Locating Pin
Balance Plate Sliding Range
1.2″ / 30 mm
Base Mount
75 mm Half Ball
Flat Base
Counter Balance
Continuous (3.7 to 9.9 lb / 1.7 to 4.5 kg)
Center of Gravity
3.9″ / 100 mm
Included Pan Handle Length
10.8″ / 275 mm
Bubble Level
1 x Illuminated
Accessory Mounting
1/4″-20 Female Thread
3/8″-16 Female Thread
Drag Control
Tilt: Stepped 3-Step
Pan: Stepped 3-Step
Drag Type
Fluid
Vertical Tilt
+90° to -70°
Independent Pan Lock
Yes
Independent Tilt Lock
Yes
Load Capacity
11 lb / 5 kg
Operating Temperature
-8 to 92°F / -40 to 60°C
Weight
6.2 lb / 2.8 kg
