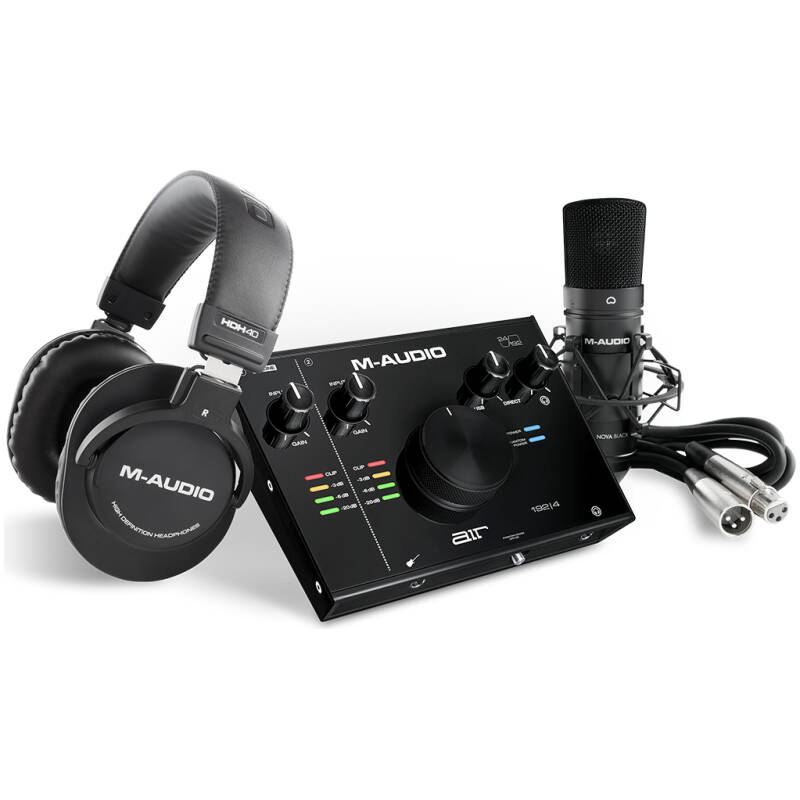

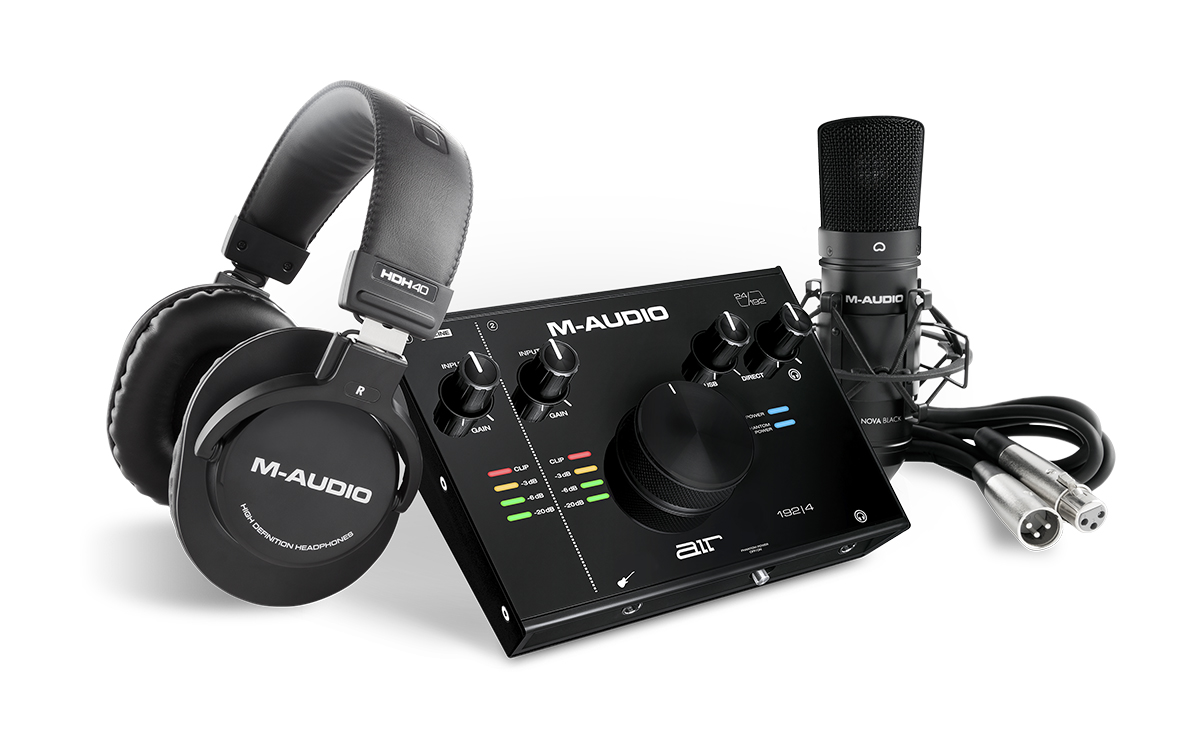

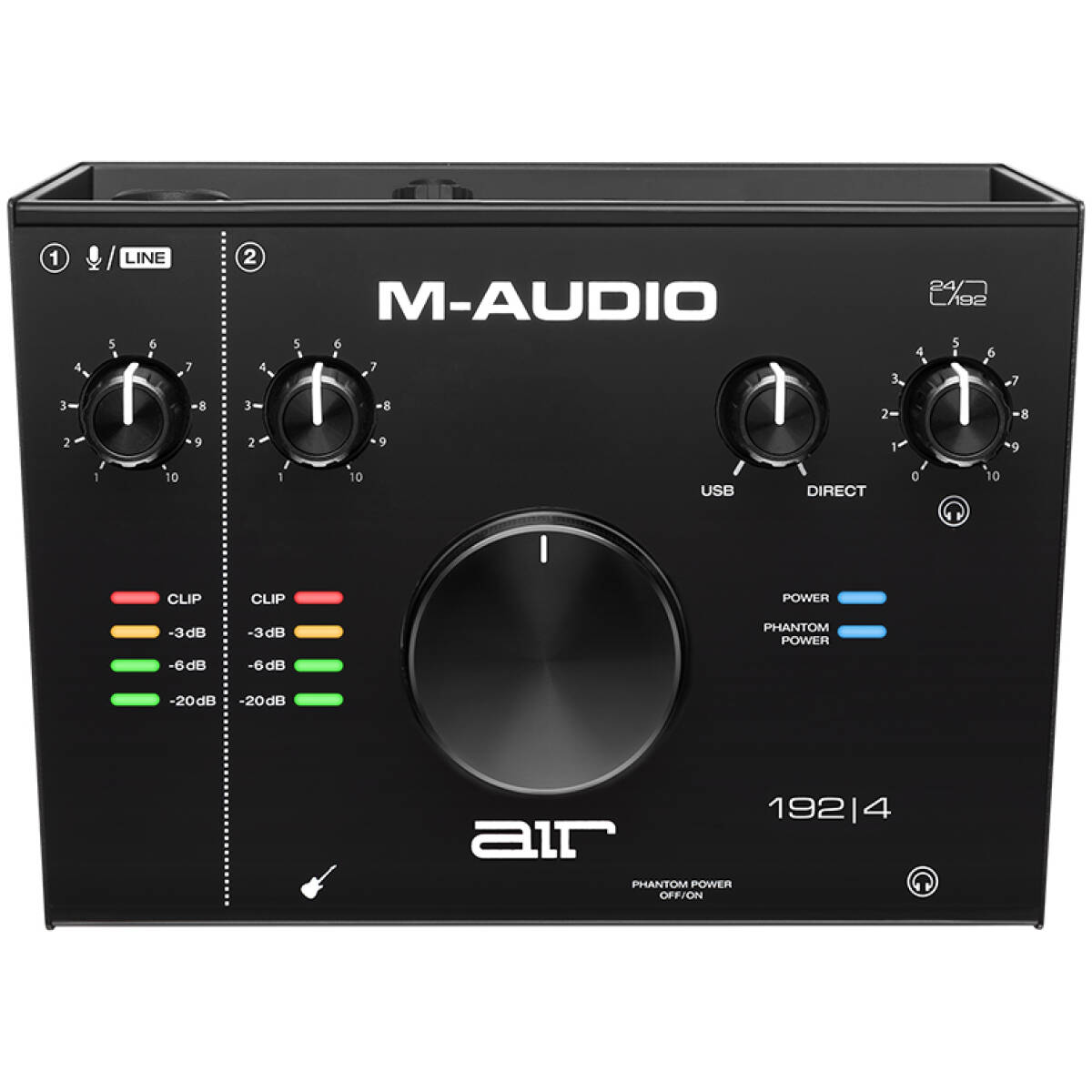

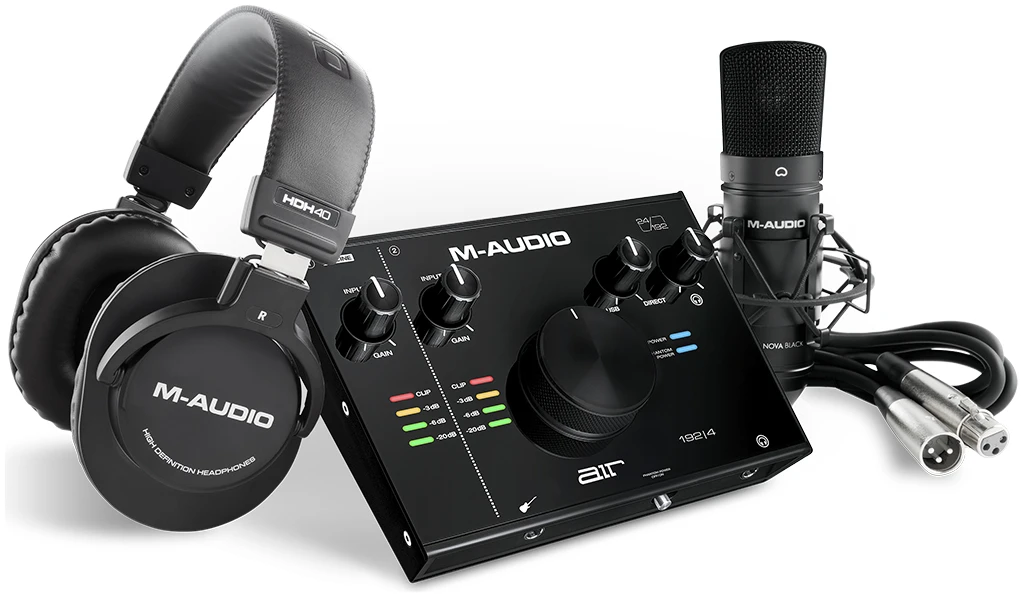

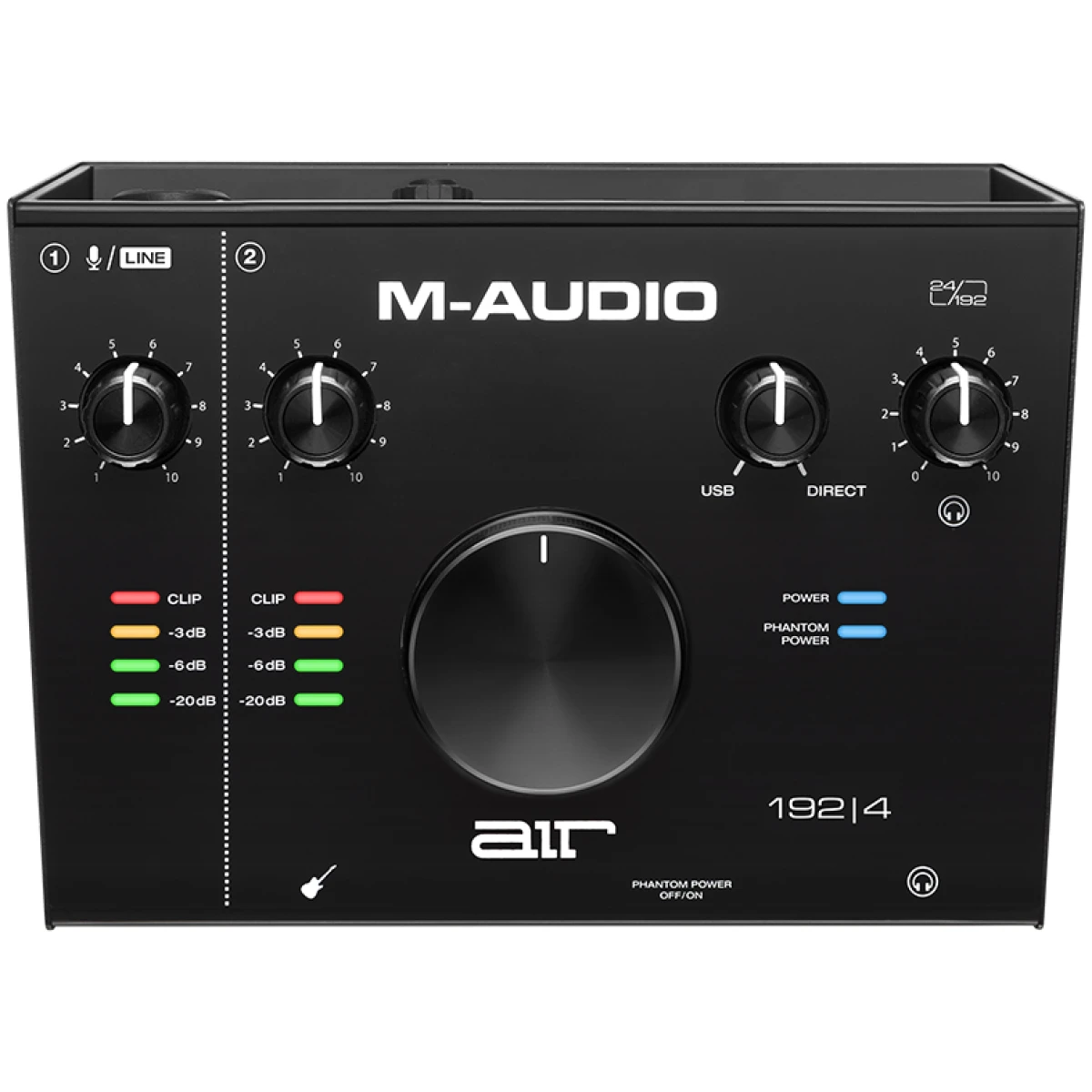

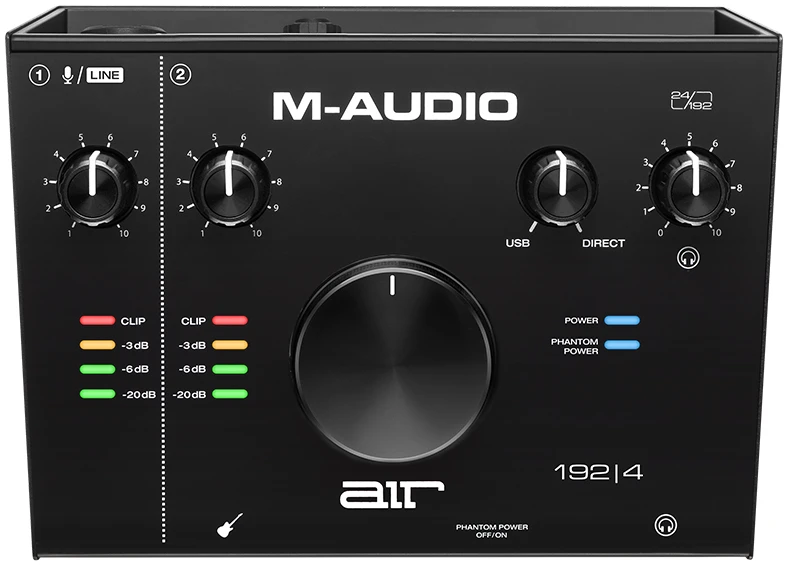

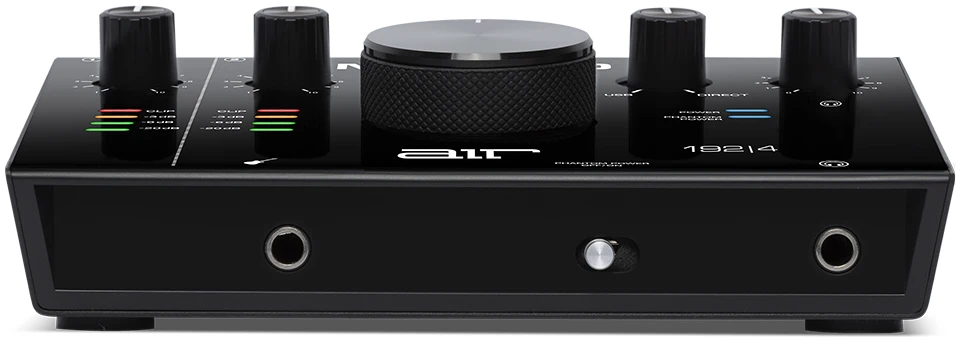

M-Audio AIR 192|4 Vocal Studio Recording Bundle

Name: M-Audio AIR 192|4 Vocal Studio Recording Bundle - A1 Sound
Brand: M Audio
SKU: AIR192X4SPRO
Price: 5399.00 ZAR
Availability: InStock

SKU: AIR192X4SPRO Brand: M Audio

R5 399,00

Add to compare

20 People watching this product now!

Description

Key Features

- 24-bit/192kHz resolution for professional recording and monitoring
- Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
- Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality

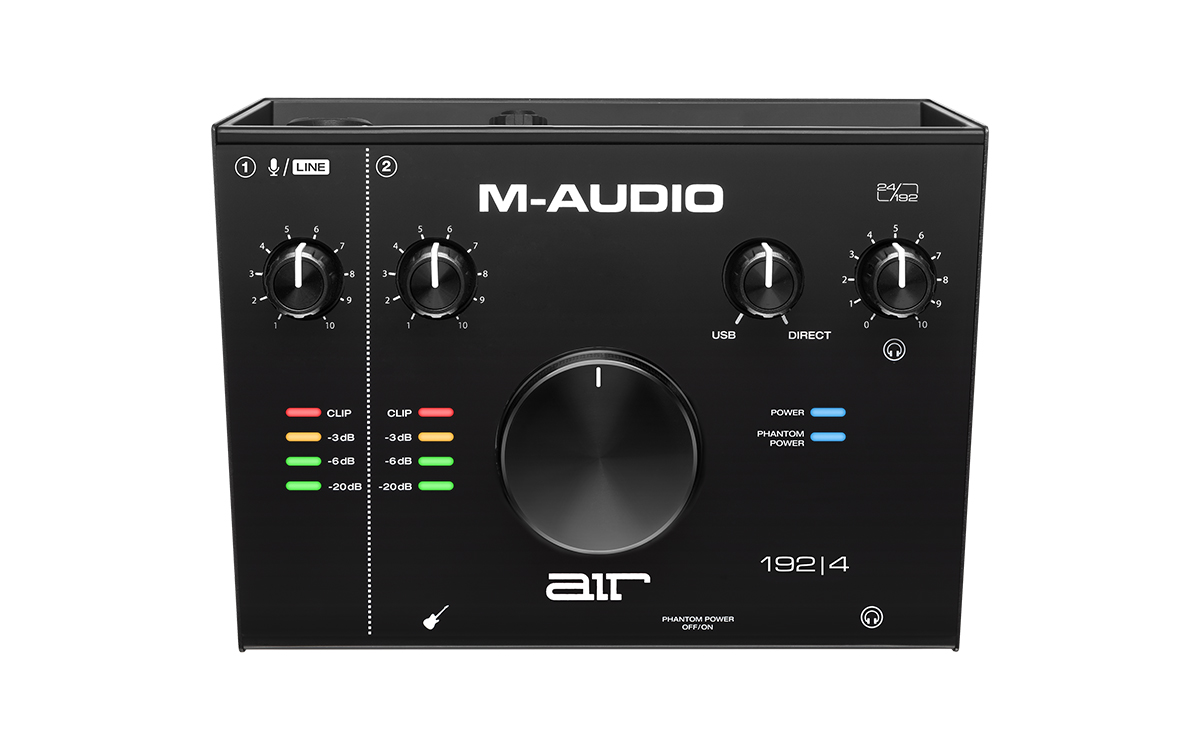

- VU LED meters for dialing in the perfect level

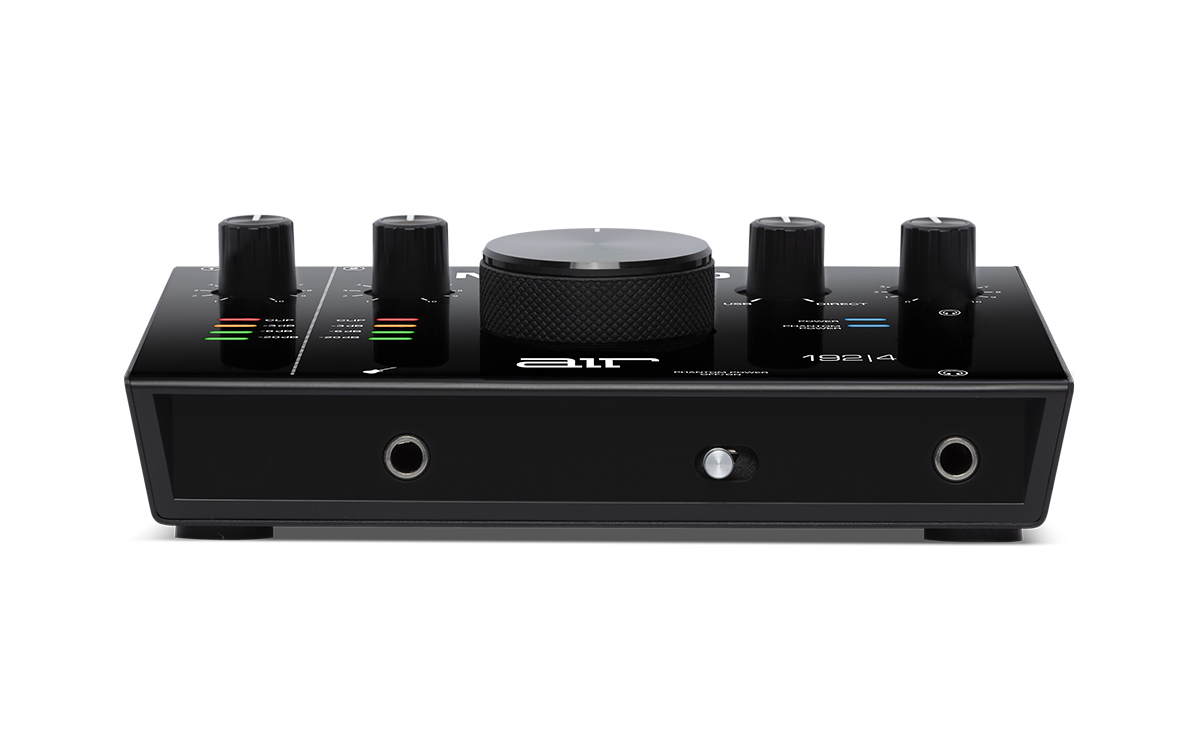

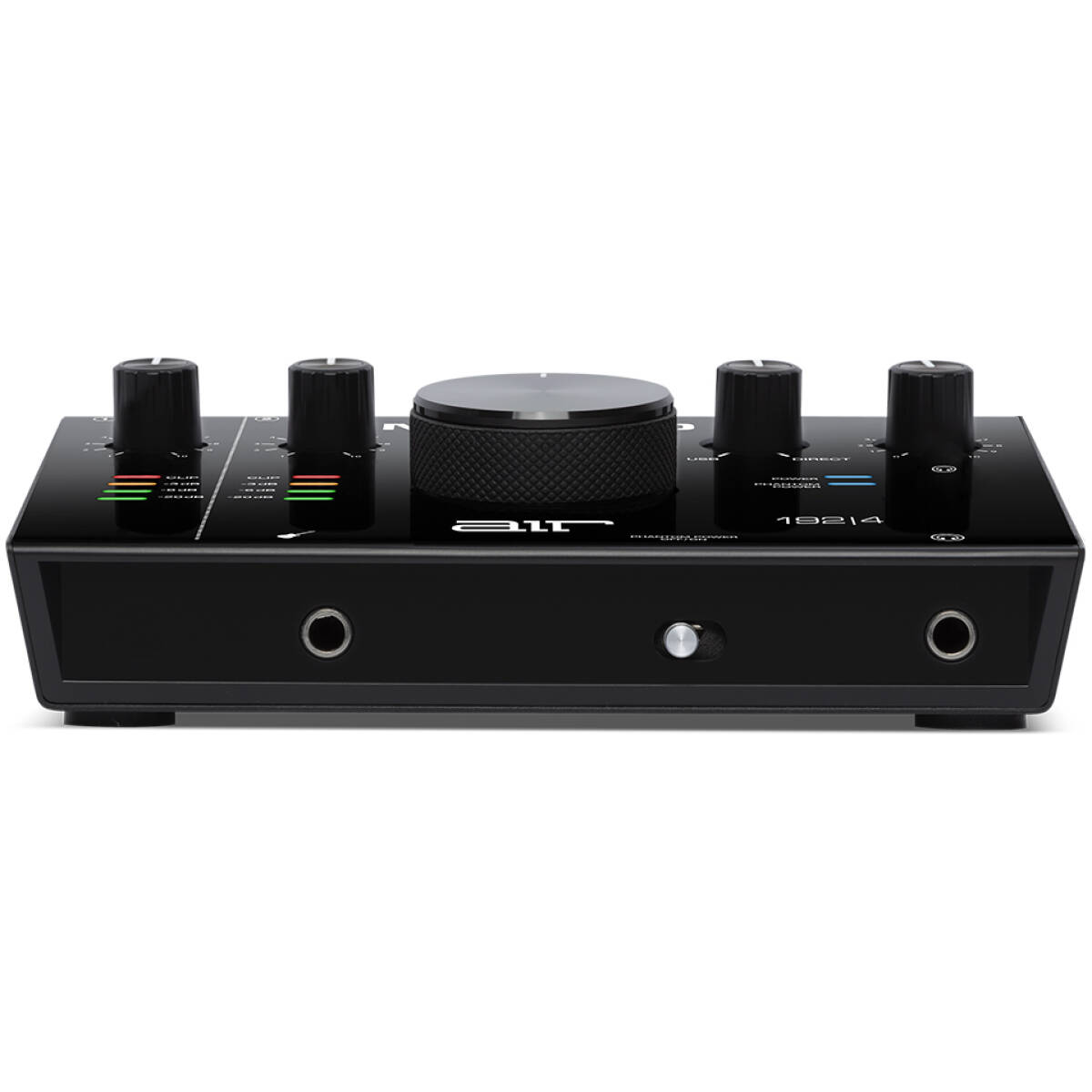

- (1) XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available
- Stereo ¼” outs; ¼” headphone out with independent level control
- Rugged metal chassis; large central control for easy volume adjustment
- USB/Direct knob for balancing between the input signal and the computer signal
- NOVA Black condenser microphone
- HDH40 monitoring headphones

*Round trip latency is dependent on buffer settings, and computer hardware

Specifications

All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice.

Minimum System Requirements

macOS: 10.8 Class Compliant

PC: Windows 7, Windows Driver

Standard USB 2.0 or USB-C Port

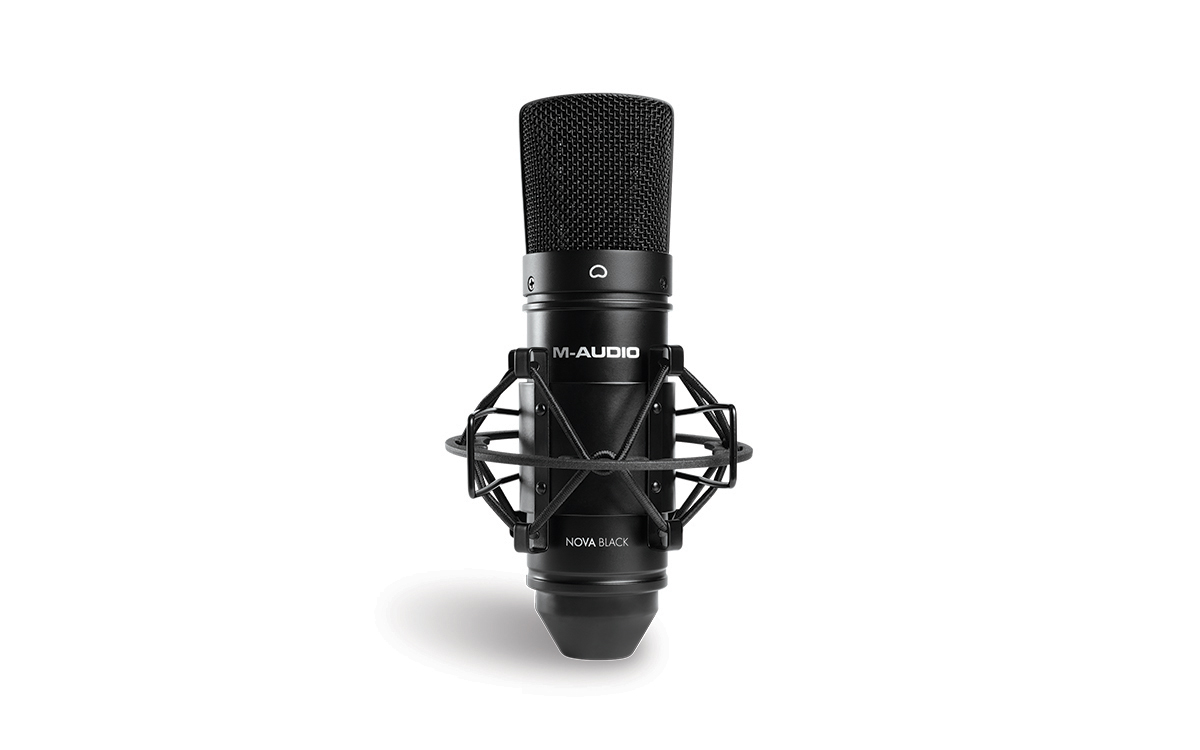

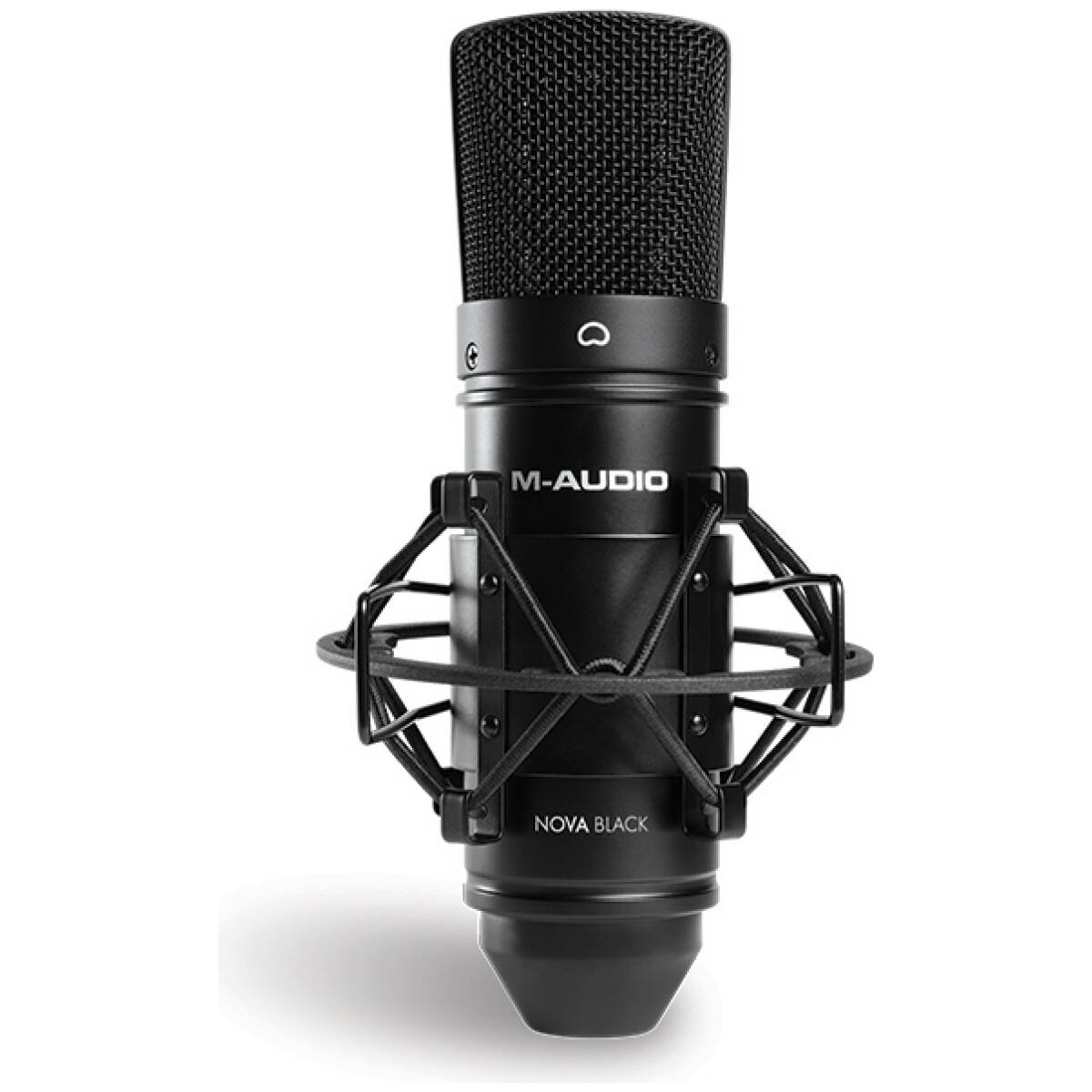

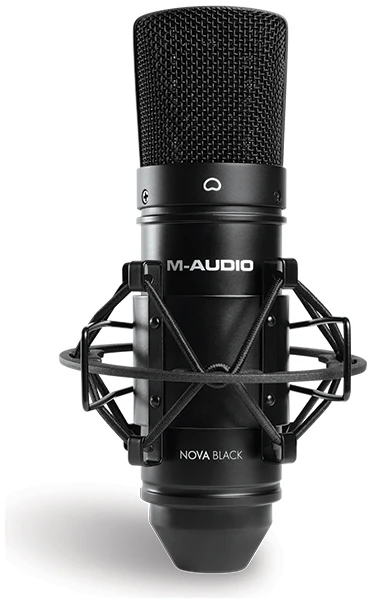

NOVA Black Microphone
Type	Back Electret condenser microphone
Element	18 mm pure aluminum diaphragm capsule
Polar Pattern	Cardioid
Frequency Response	20 Hz – 20 kHz
Sensitivity	-38 dB (0 dB = 1 V/Pa @ 1 kHz)
Rated Impedance	200Ω
Maximum SPL	136 dB
Phantom Power Required	+48 V
S/N Ratio	77 dB
Current Consumption	3 mA

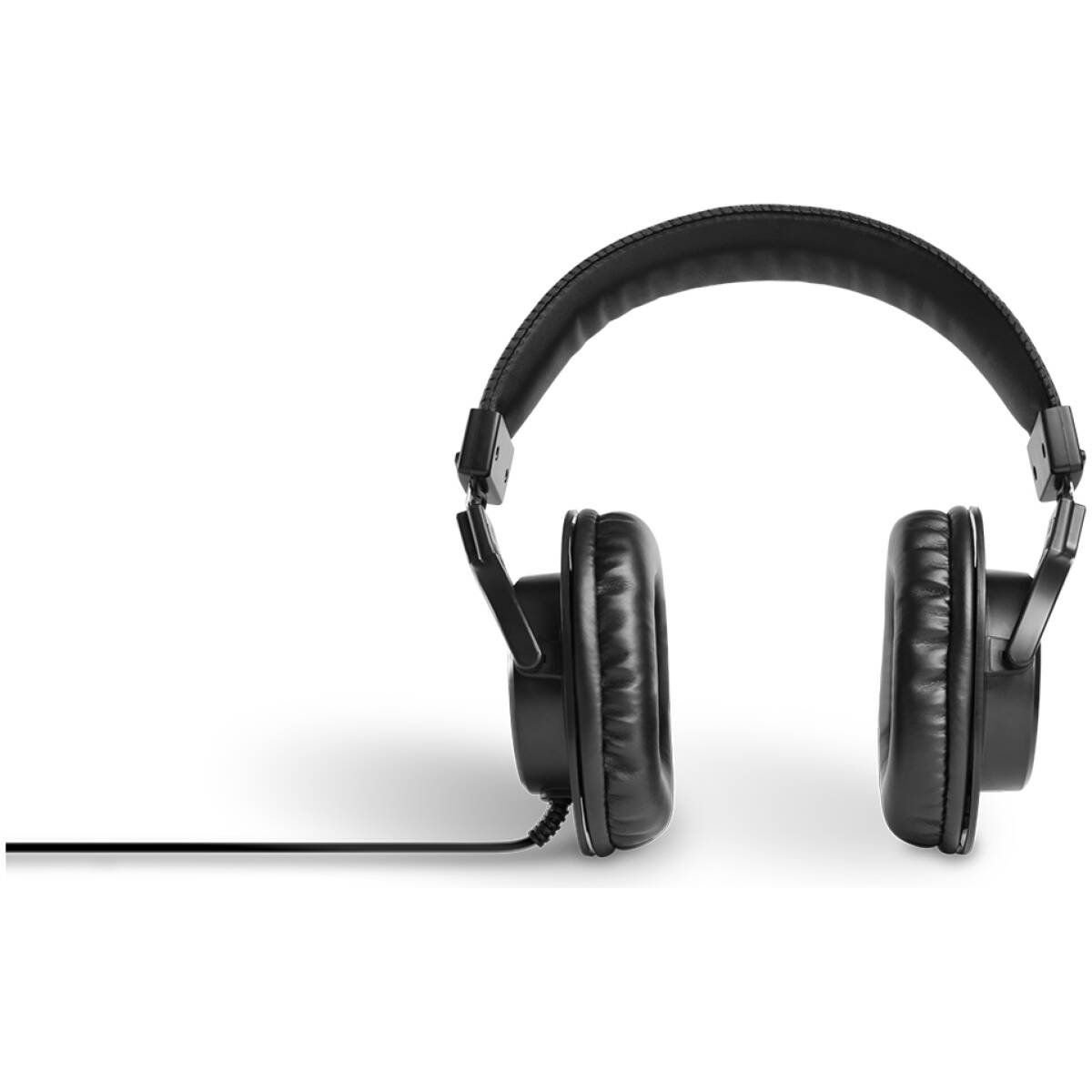

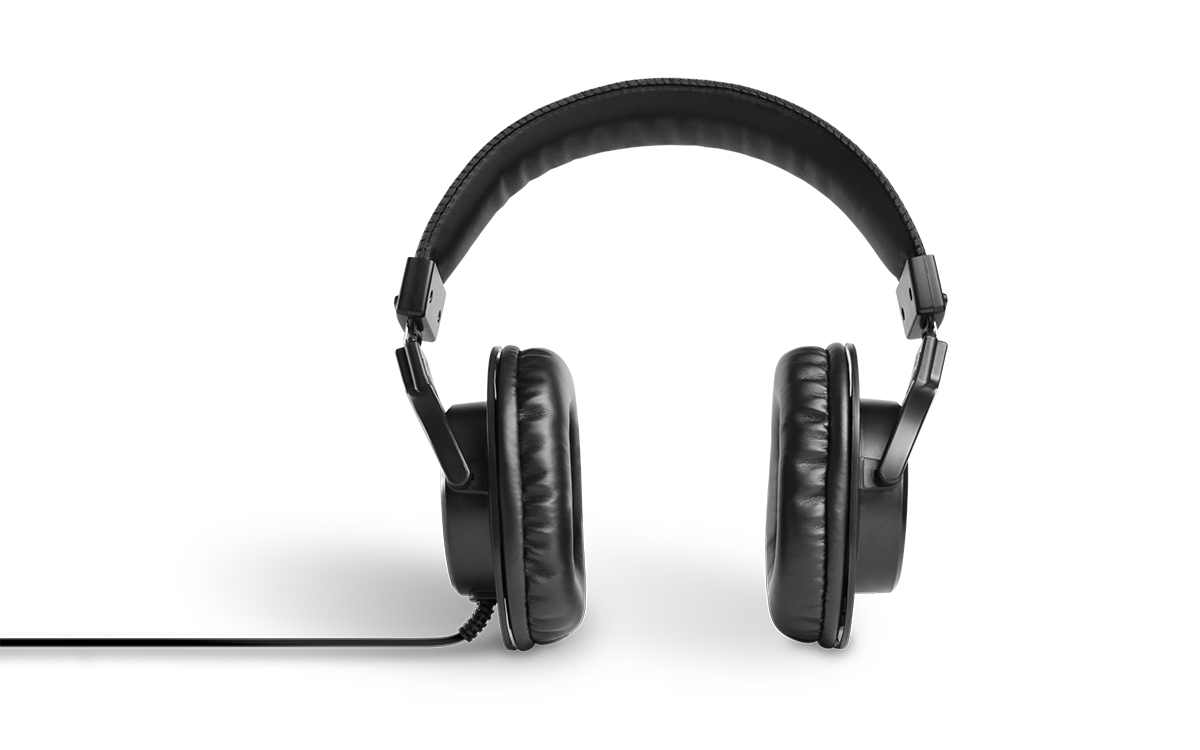

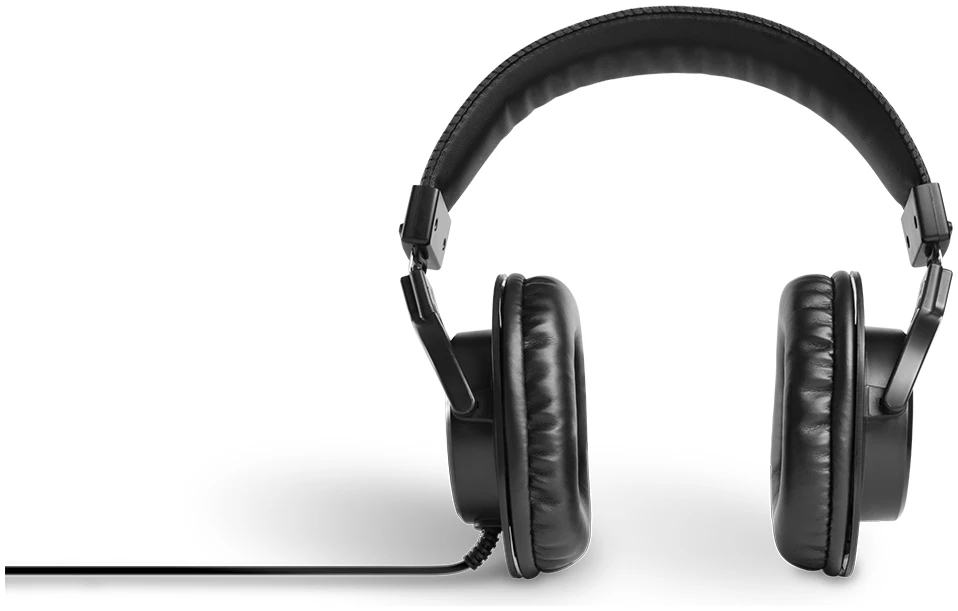

HDH40 Headphones
Acoustic Design	Dynamic, Closed
Driver	40 mm, neodymium
Frequency Response	15 Hz – 22 kHz
Sensitivity	95 dB ±3 dB
Rated Impedance	32Ω
Earpad	Leatherette
Cable Length	9.8 ft. / 3 m

Mic Input 1 (balanced XLR)
Frequency Response	20 Hz – 20 kHz (+0.1 dB)
Dynamic Range	104 dB (A-weighted)
Signal-to-Noise Ratio	104 dB (+1.0 dBu, A-weighted)
THD+N	0.003%
Preamp EIN	-128 dBu (max gain, 150 Ω source, A-weighted)
Max Input Level	+1.5 dBu
Gain Range	55 dB

Line Input 1 (balanced 1/4″ [6.35 mm] TRS)
Frequency Response	20 Hz – 20 kHz (+0.05 dB)
Signal-to-Noise Ratio	101 dB (1 kHz, +4 dBu, A-weighted)
THD+N	0.003%
Max Input Level	16 dBu
Gain Range	55 dB

Inst Input 2 (unbalanced 1/4″ [6.35 mm] TS)
Frequency Response	20 Hz – 20 kHz (+0.05 dB)
Dynamic Range	100 dB (A-weighted)
Signal-to-Noise Ratio	102 dB (+ 4 dBu, A-weighted)
THD+N	0.004%
Max Input Level	6 dBu
Input Impedance	1 MΩ
Gain Range	24 dB

Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS)
Frequency Response	20 Hz – 20 kHz (+0.06 dB)
Dynamic Range / Signal-to-Noise Ratio	102 dB (A-weighted)
THD+N	0.005%
Max Output Level	+7 dBu (1 kHz, -1 dBFS)
