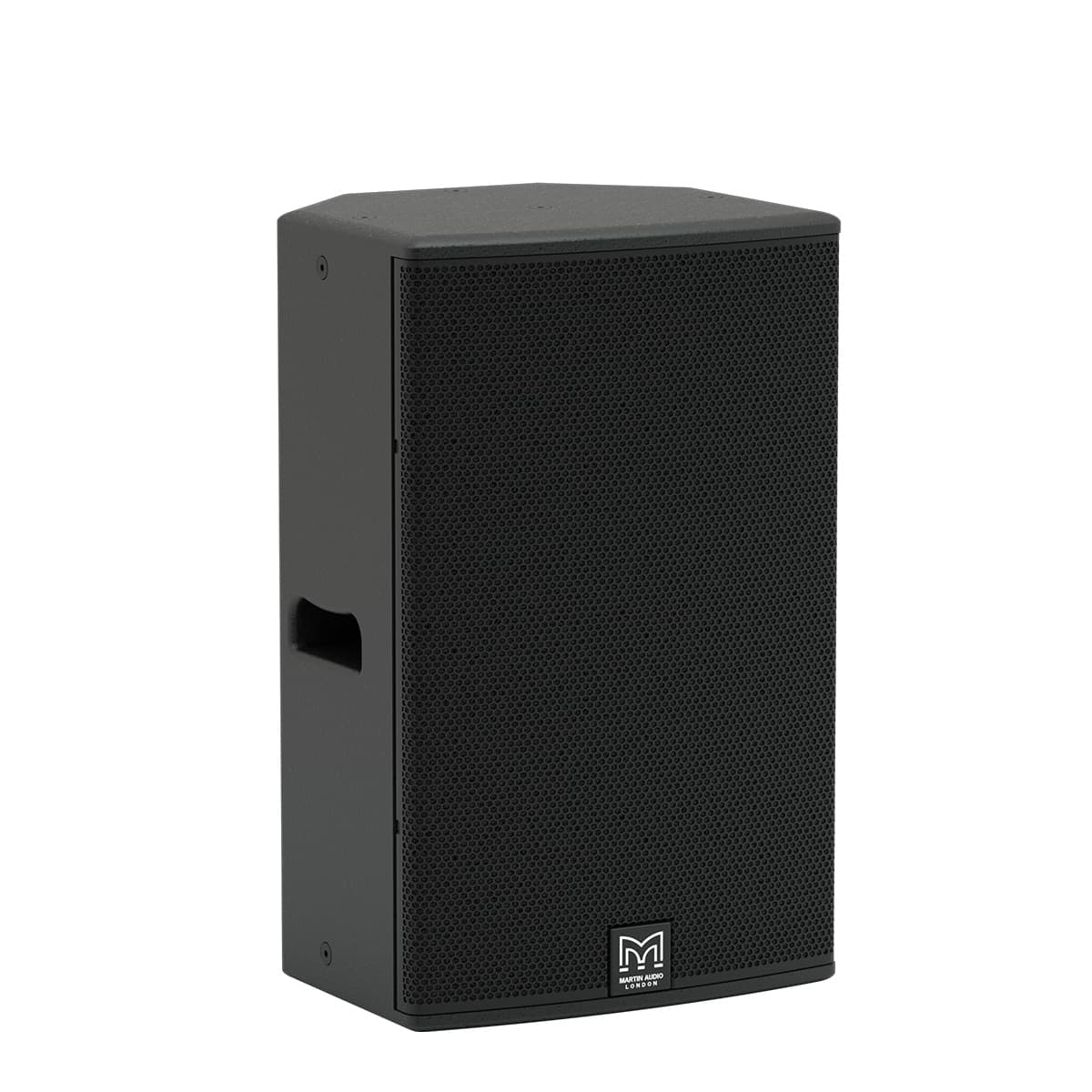

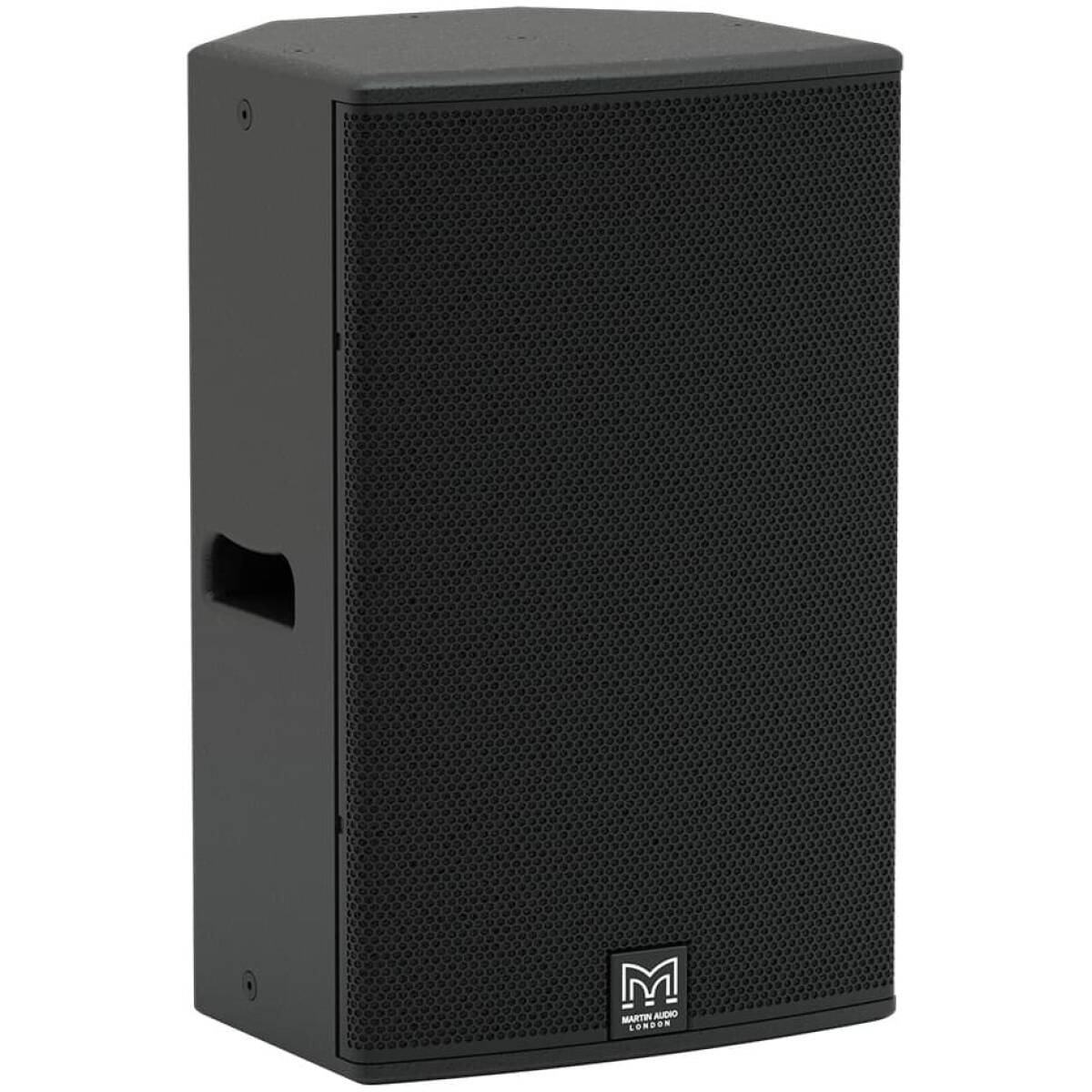

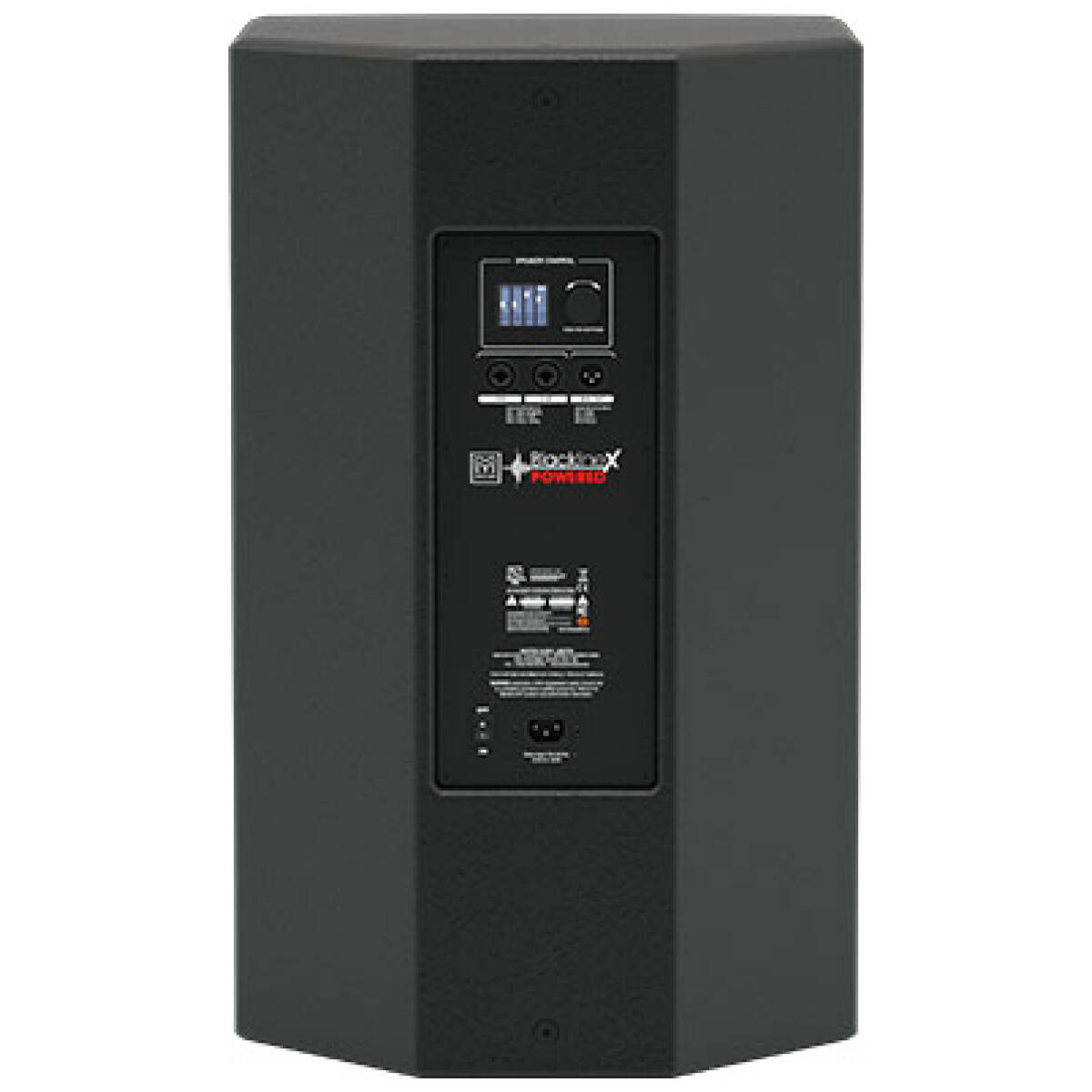

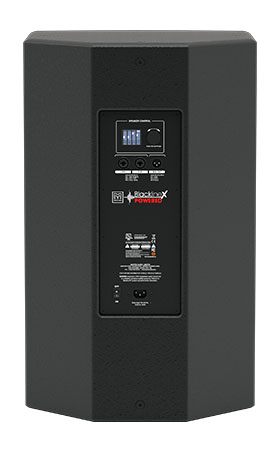

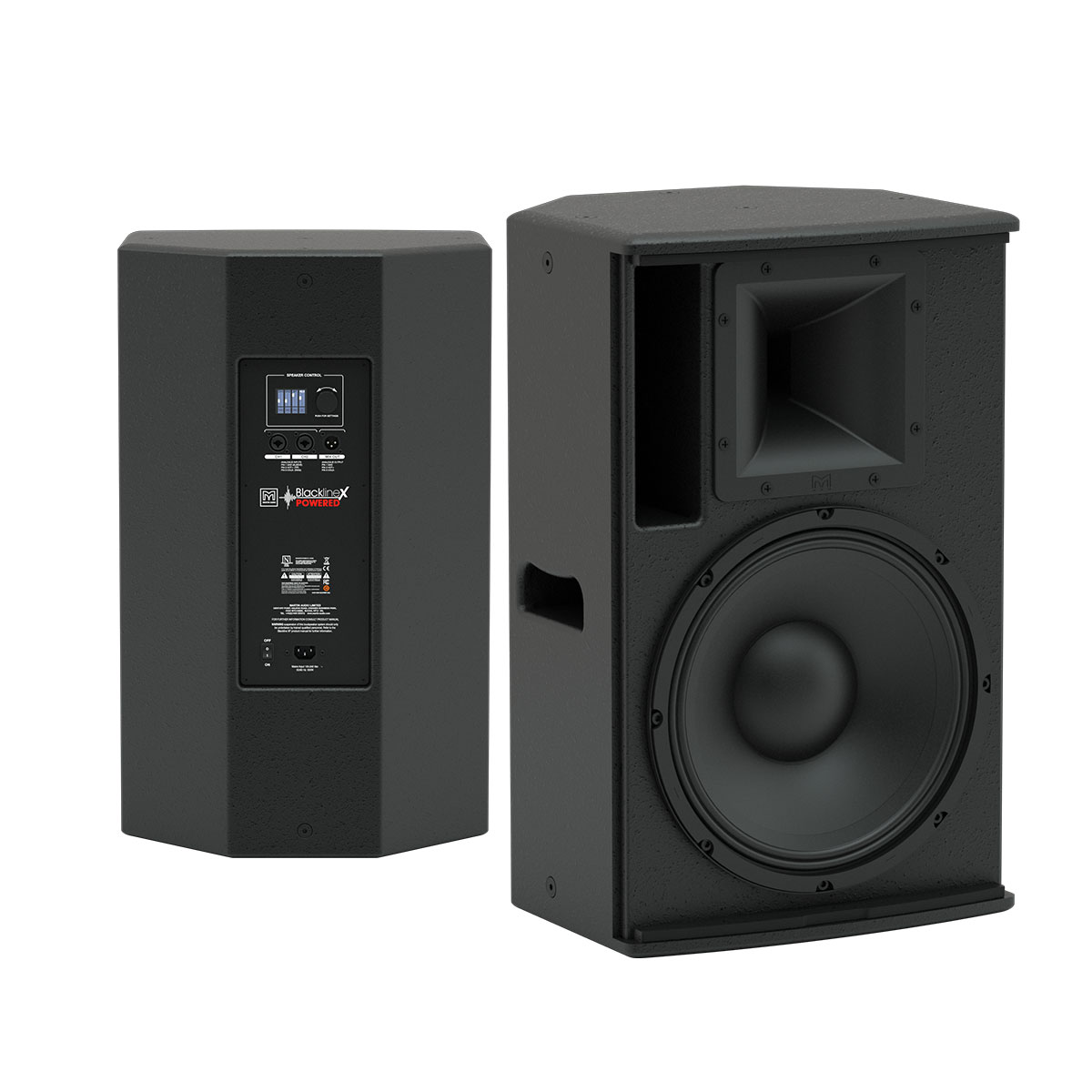

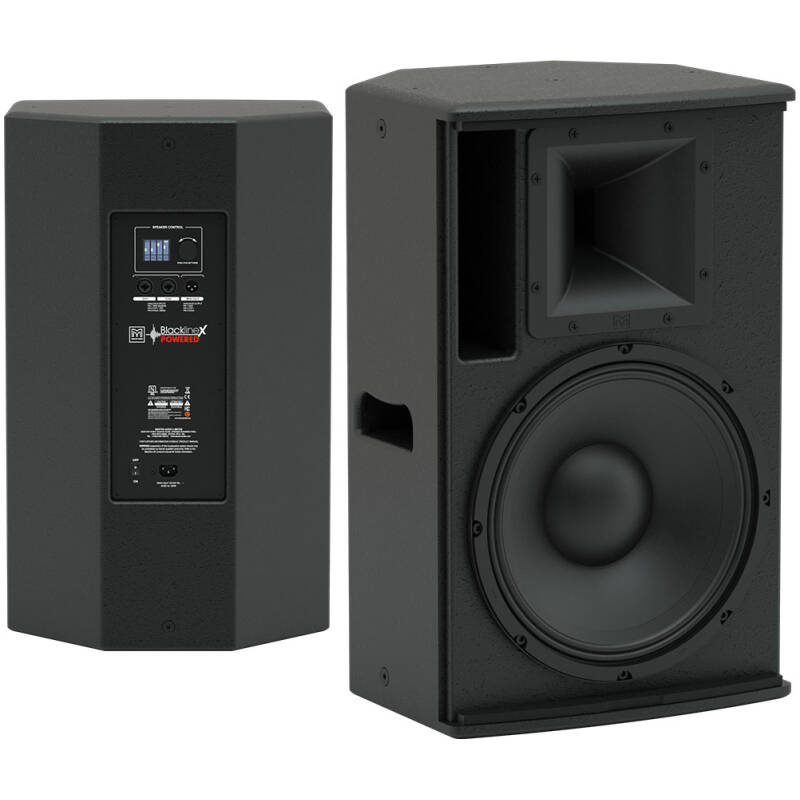

The XP12 is a compact, powered, two-way system designed by leading acoustic engineers. It can be used either as a stand- alone system, stage monitor or in conjunction with the XP118 powered subwoofer.
Features
- Compact self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)
- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection
- Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing presets
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn
- Vertical and horizontal mounting options
- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles
- Mounting options include pole-mount, wall bracket and flying inserts
Applications
- Portable Sound Reinforcement
- Live Music Clubs
- Nightclubs, Bars and Restaurants
- Corporate AV
- Hotels and Casinos
- Mobile DJ’s
- Weddings and Parties
- HoW Installations
- Rehearsal Studios
Specification
| Acoustics | |
| TYPE | Compact self-powered two-way system |
| FREQUENCY RESPONSE (5) | 62Hz – 20kHz ±3dB, -10dB @ 50Hz |
| DRIVERS |
|
| MAXIMUM SPL (9) | 122dB continuous, 128dB peak |
| DISPERSION (-6dB) | 80° H x 50° V (user-rotatable) |
| CROSSOVER | 2.3kHz active, 24dB/octave |
| Module Audio In/Out |
|
| INPUT CONNECTORS | 2 x female XLR/ 1⁄4” jack combo |
| MIC/LINE INPUT IMPEDANCE | 8 kΩ balanced |
| 1⁄4” JACK TS INPUT IMPEDANCE | 1 MΩ unbalanced |
| MIX OUTPUT CONNECTOR | 1 x male XLR |
| MIX OUTPUT IMPEDANCE | 600Ω balanced |
| Internal Processing | |
| Input channel EQ | 3-band on each channel plus HPF (Ch1/2) |
| Speaker EQ | 3 speaker mode/voicing presets |
| Protection | LF and HF Peak and RMS limiting, amplifier thermal protection |
| Amplifier Module | |
| TYPE | 2 channel switch-mode, class D |
| PEAK OUTPUT POWER | 1300W total 1000W LF, 300W HF |
| AVERAGE EFFICIENCY | 89% |
| COOLING | External convection cooled |
| MAXIMUM AMBIENT TEMPERATURE | 35°C (95°F) for full output |
| Power Supply | |
| TYPE | Switch-mode, fixed frequency with PFC |
| AC INPUT OPERATING RANGE | 100-240V ~ AC, 50 – 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 550W Max |
| MAINS CONNECTOR | 3-pin IEC |
| Mechanical | |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| FITTINGS | 17 x M8 inserts, pole-mount socket, 2 x pocket handle |
| DIMENSIONS | (W) 358mm x (H) 574mm x (D) 318mm (W) 14.1in x (H) 22.6in x (D) 12.5in |
| WEIGHT | 18kg (40lbs) |
