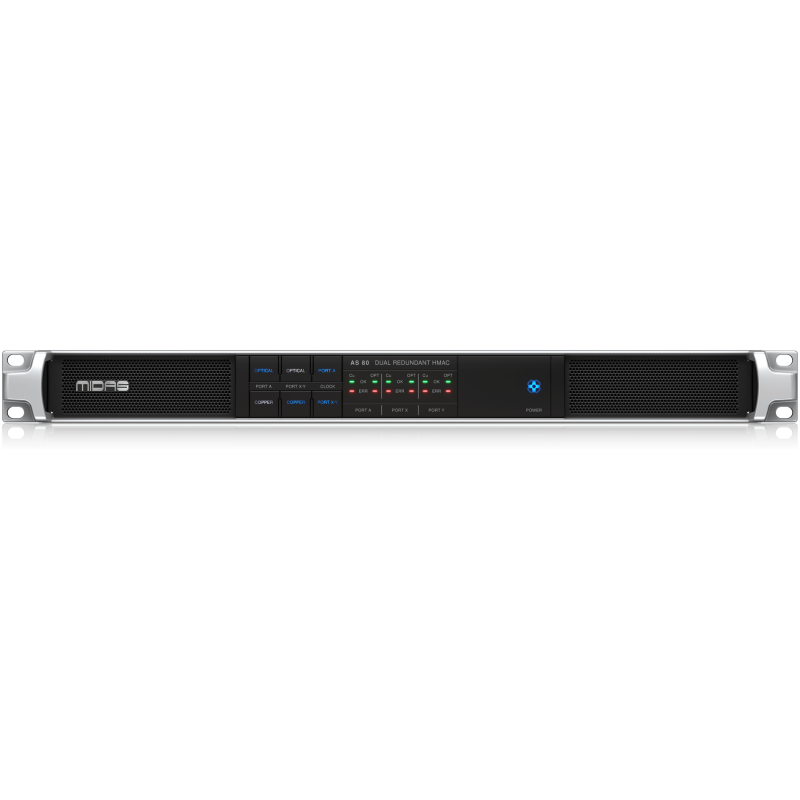

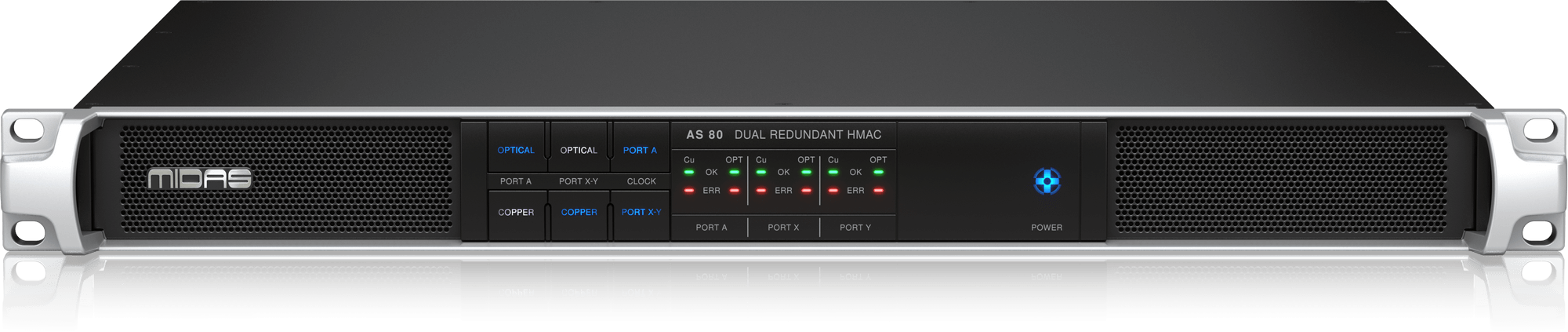

- Single HyperMac to dual HMAC converter for running dual redundant 1 GBit connections
- Up to 192 bidirectional channels at 96 kHz
- Dual redundant auto-ranging universal switch-mode power supply
- Compact and rugged design
- 1U rackmountable design
- Clocked from incoming HMAC ports
- Connection redundancy status available from connected console indicating cable state
- Industry standard RJ-45 connectors used for AES50 ports and copper snake connection
- Industry standard dual-fibre optical connector used for optical fibre snake connection
Specification

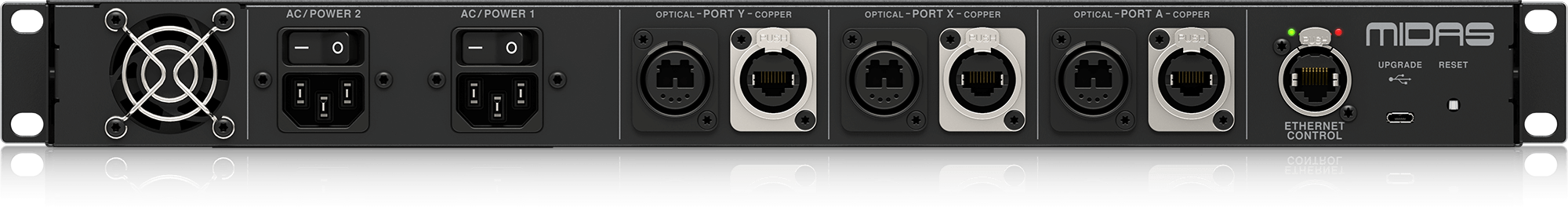

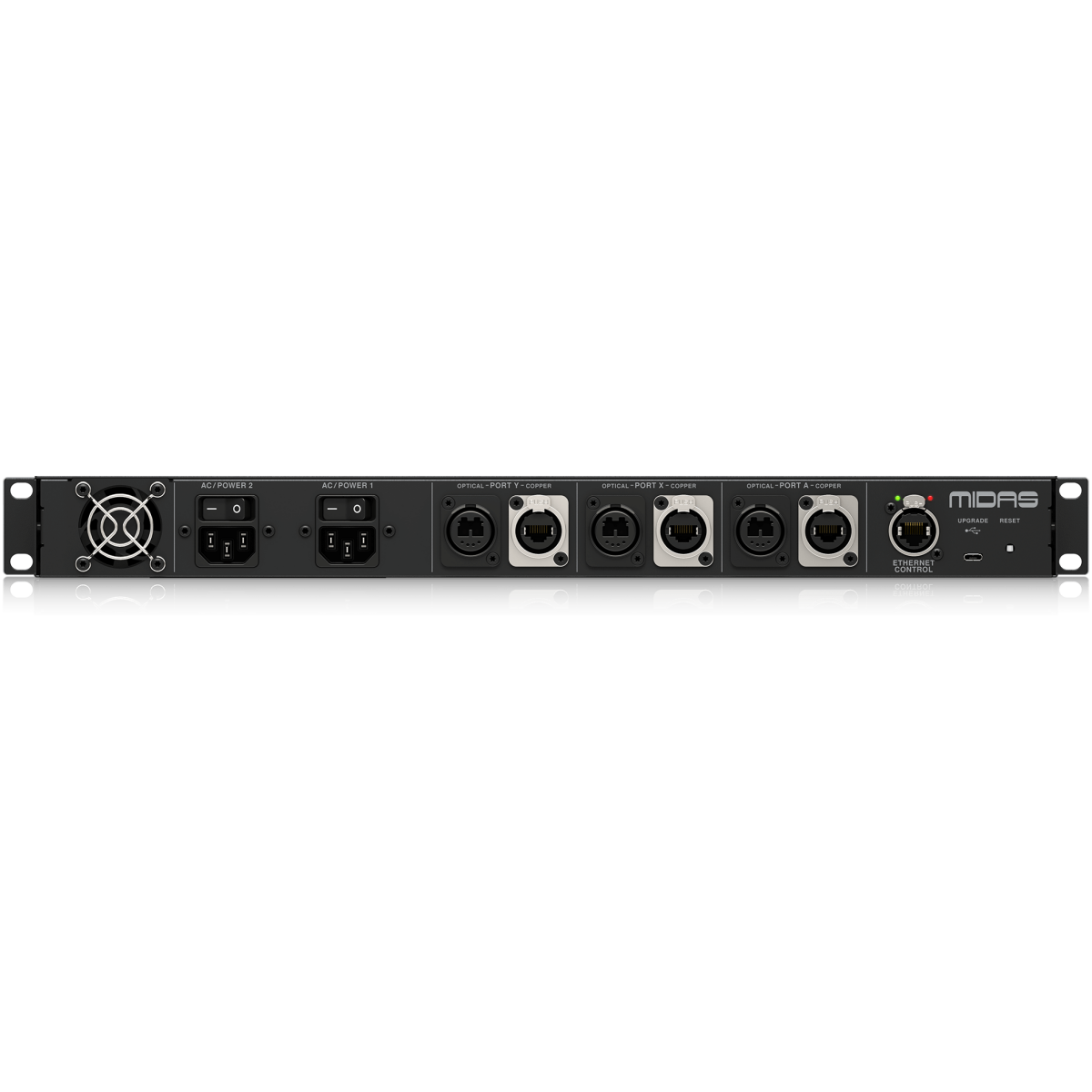

Connectors
| Snake ports copper | 3 x RJ45 HyperMAC |
| Snake ports optical | 3 x optical multi mode |
| Ethernet control | 1 x Ethernet control port for RJ45 connector |
| Upgrade port | 1 x Micro USB |
Power Requirements
| Mains power inlet | 2 x 3-pin IEC switched connector |
| Power consumption | 25 W x 2 |
| Voltage | 100 VAC to 240 VAC ±10% |
Physical
| Dimensions (H x W x D) | 44 x 483 x 436 mm (1.7 x 19 x 17.2″) |
| Net Weight | 5.1 kg (11.2 lbs) |
| Shipping Weight | 7.1 kg (15.6 lbs) |
Temperature Range
| Operating temperature range | 41 to 113°F (5 to 45°C) |
| Storage temperature range | -4 to 140°F (-20 to 60°C) |
