- Dual redundant HyperMAC to 8 redundant AES50 SuperMAC converter
- Up to 192 bidirectional channels at 96 kHz
- Dual redundant auto-ranging universal switch-mode power supply
- Compact and rugged design
- 2U rackmountable design
- Clocked from incoming AES50 or HyperMAC ports
- Connection redundancy status available from connected console indicating cable state
- Industry standard RJ45 connectors used for AES50 ports and copper snake connection
- Industry standard dual-fibre optical connector used for optical fibre snake connection
Architecture
| HyperMAC / AES50 Converter | 2 In / 16 Out (Dual redundancy) |
| Channels | 192 at 96 KHz |
Connectivity

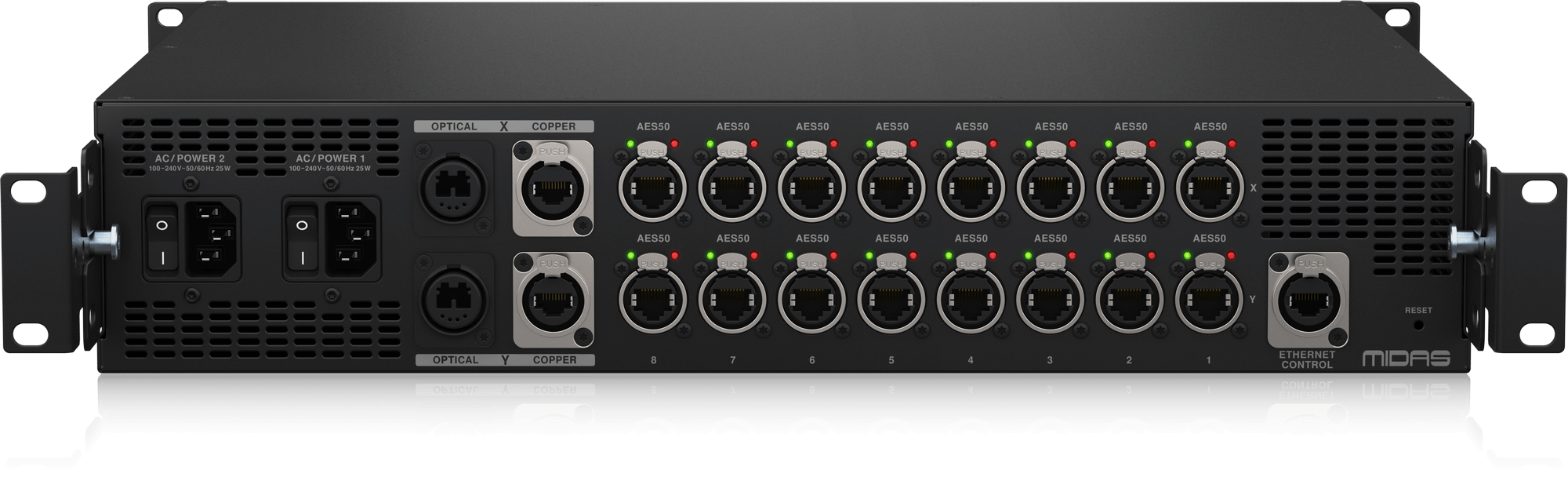

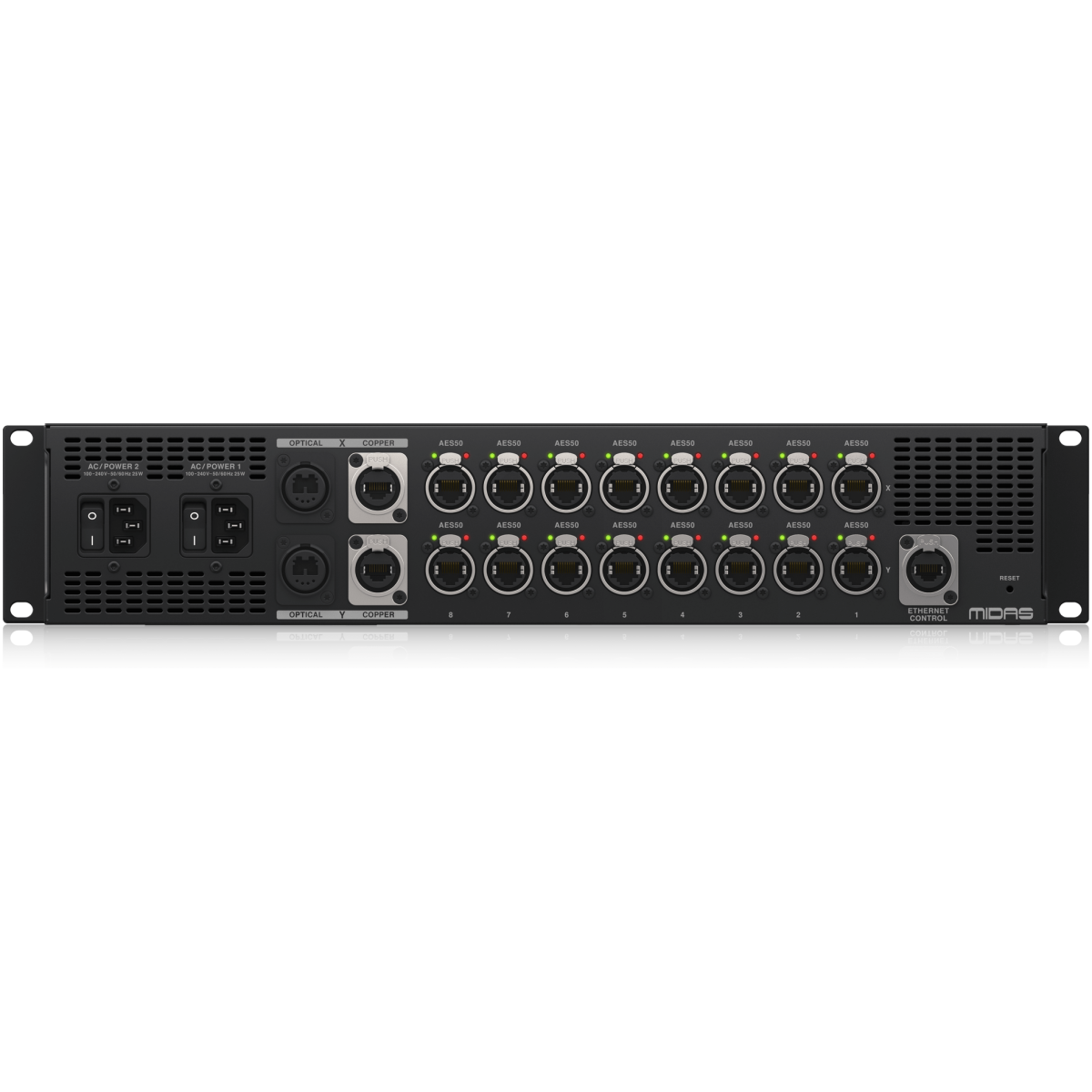

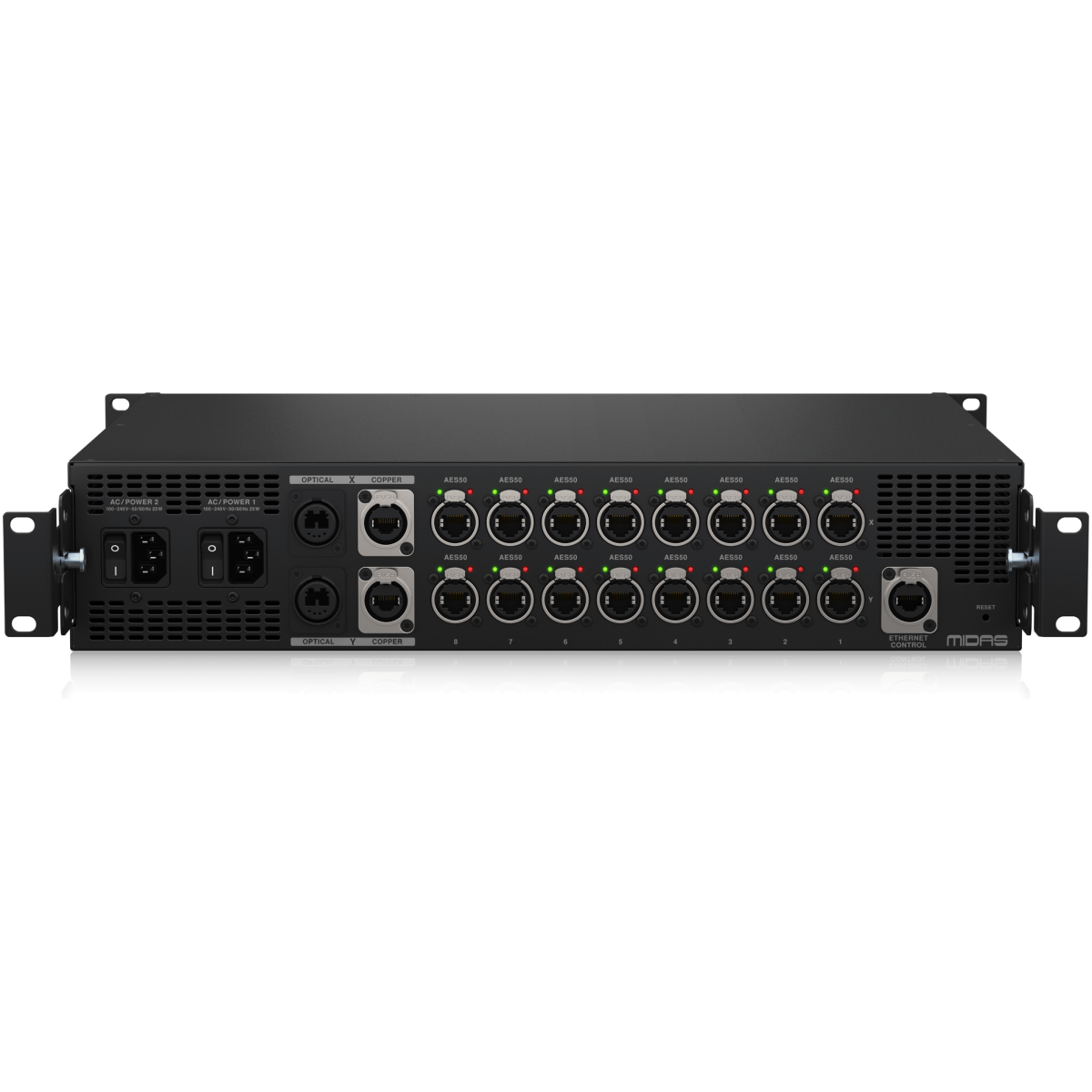

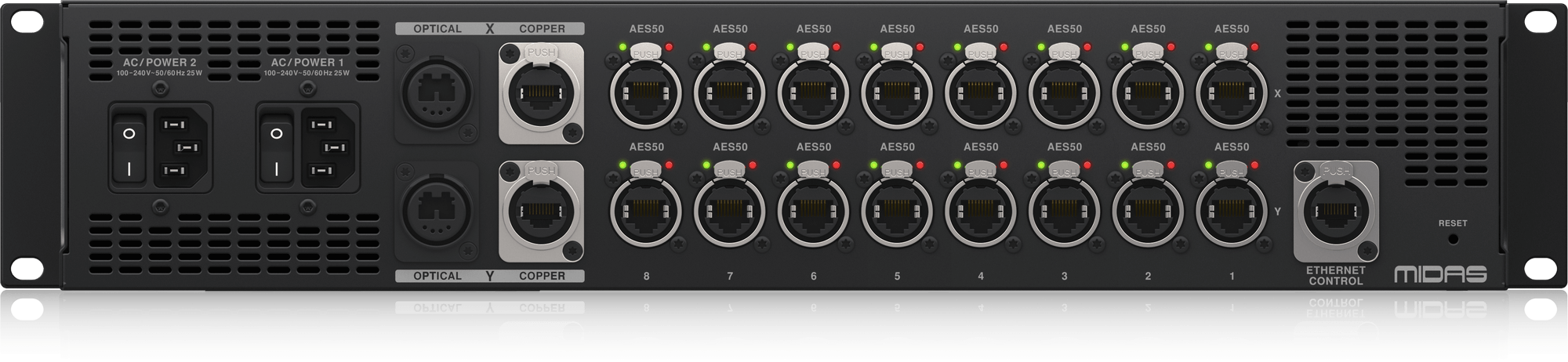

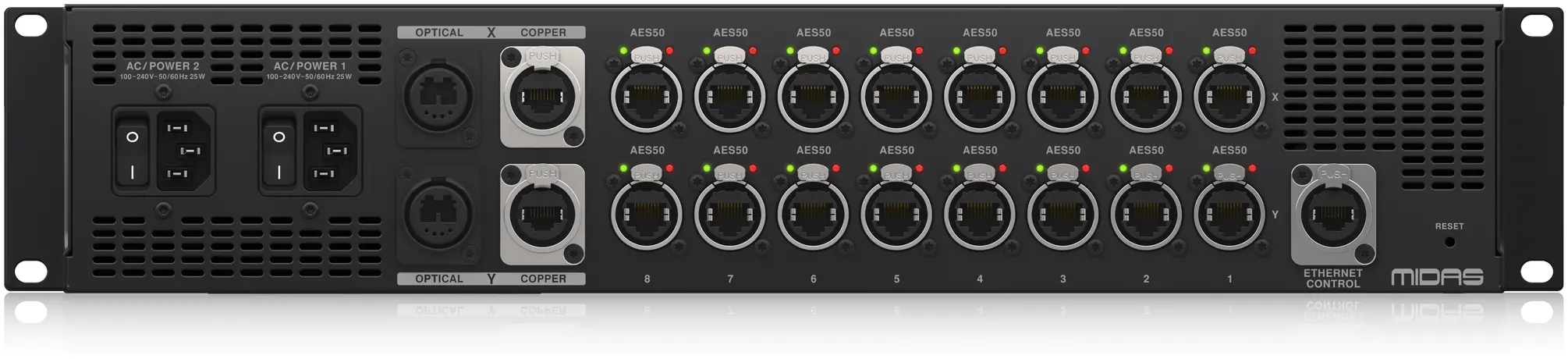

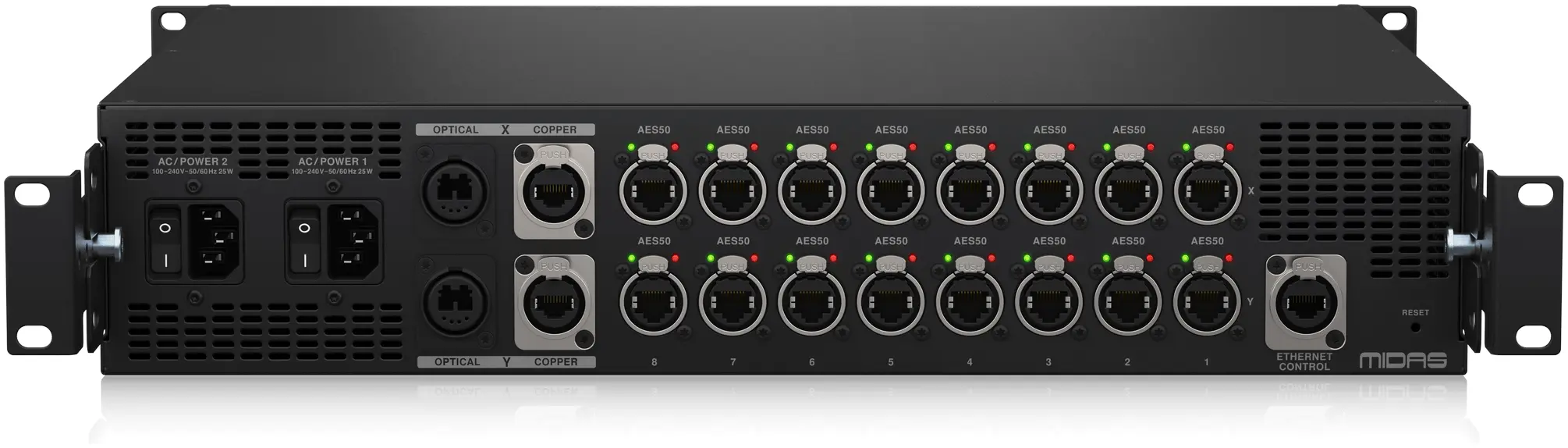

| Power switches | 2 x rocker on rear panel |
| Power Inlets | 2 x IEC C13 on rear panel |

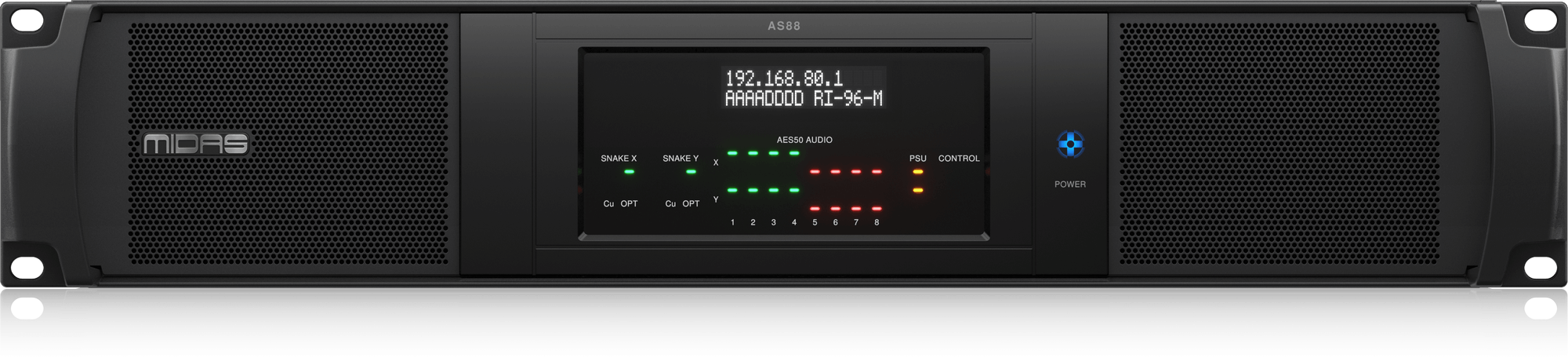

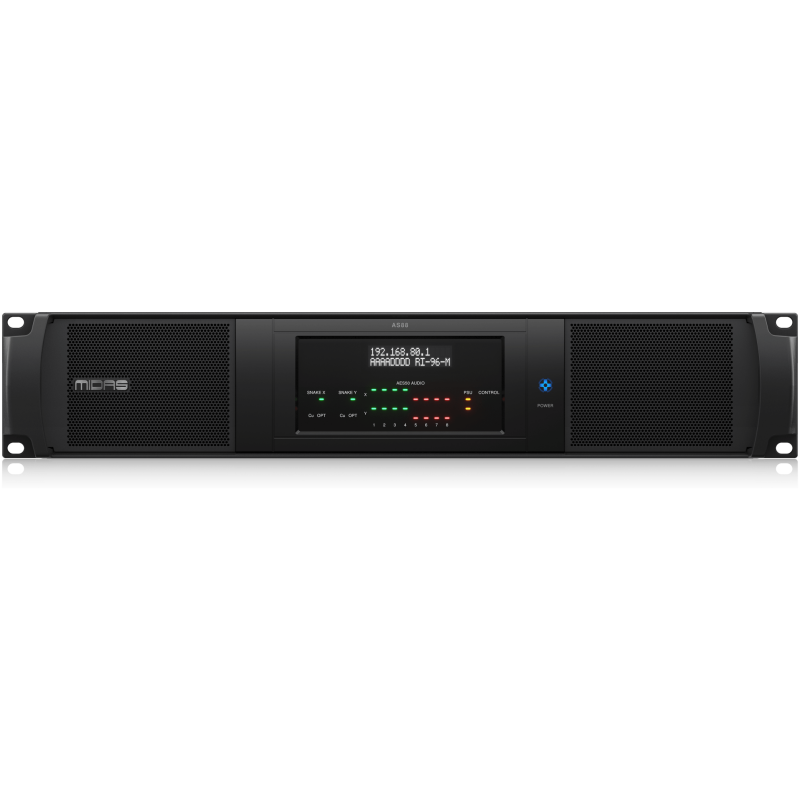

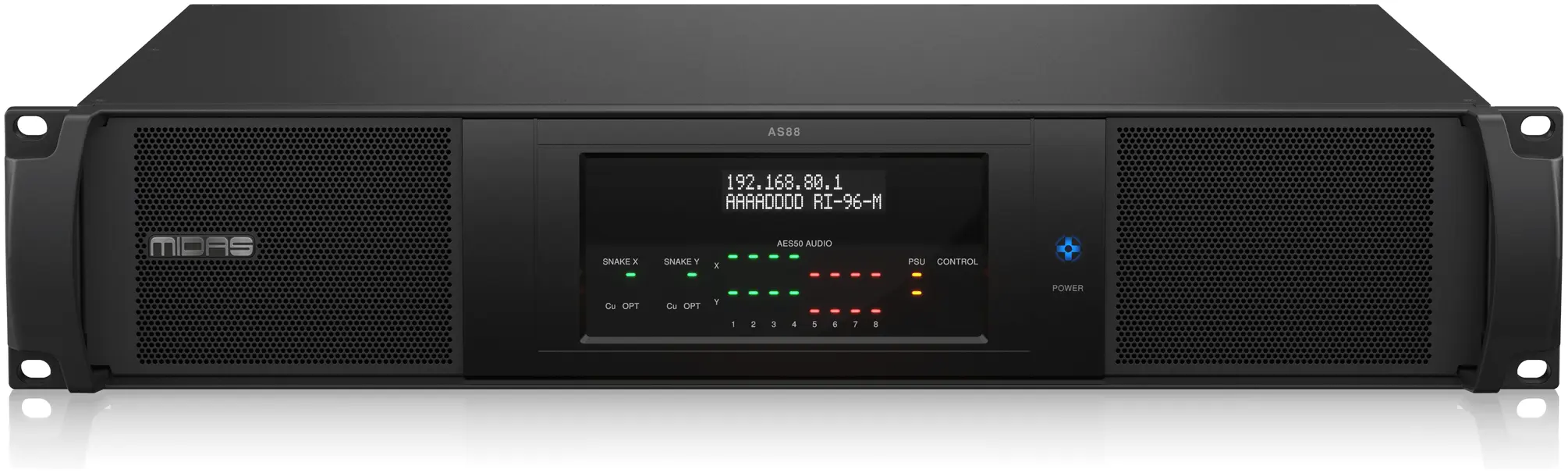

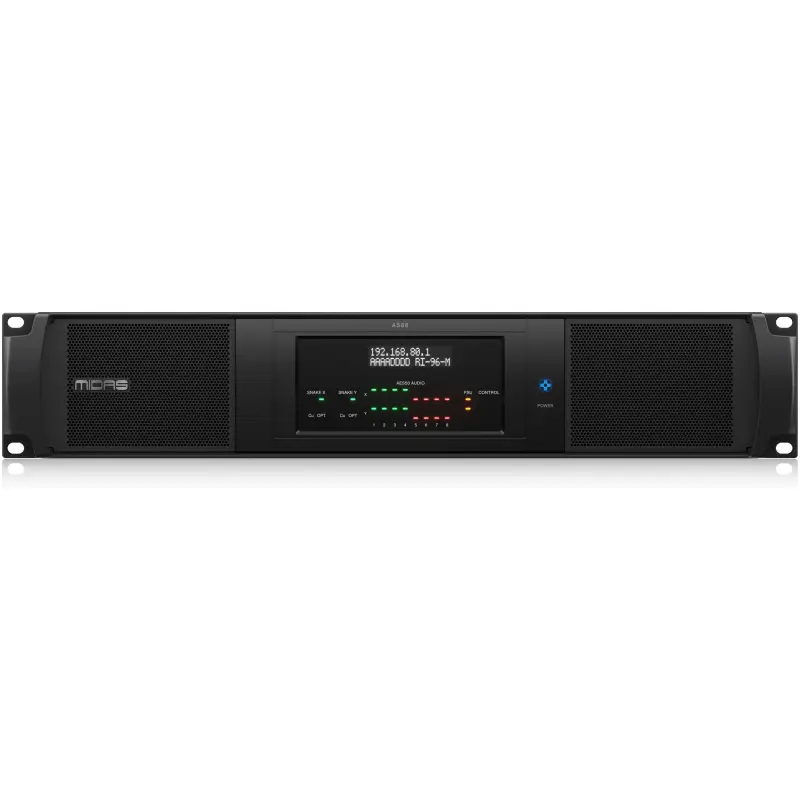

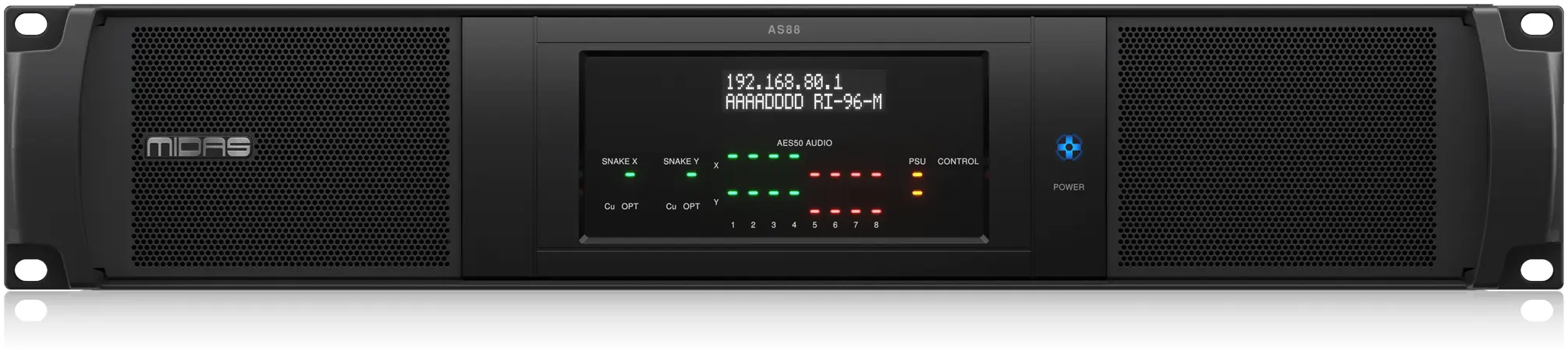

| Power indicator | Blue LED on front panel |
Inputs
| HyperMAC Optical | 2 x standard connector on rear panel |
| HyperMAC Copper | 2 x standard connector on rear panel |
| Ethernet | RJ45 connector on rear panel |
Outputs
| AES50 | 16 x RJ45 socket on rear panel |
Controls
| Factory Reset | Pushbutton on rear panel |
Display
| 2 x 20 character |
LEDs
| Snake X status | 2 x green / 2 x red |
| Snake Y status | 2 x green / 2 x red |
| PSU status | 2 x green / 2 x red |
| AES50 status | 16 x green / 16 x red |
| Ethernet status | 1 x green |
Power Requirements
| Voltage | 100 – 240 V 50 / 60 Hz AC |
| Power consumption | 2 x 25 W maximum draw (Dual redundancy) |
Physical
| Standard Operating Temperature | 5° C – 45° C (41° F – 113° F) |
| Dimensions (H x W x D) | 88 x 440 x 483 mm (3.46 x 17.32 x 19.01″) |
| Weight | 6.59 kg (14.53 lbs) |
