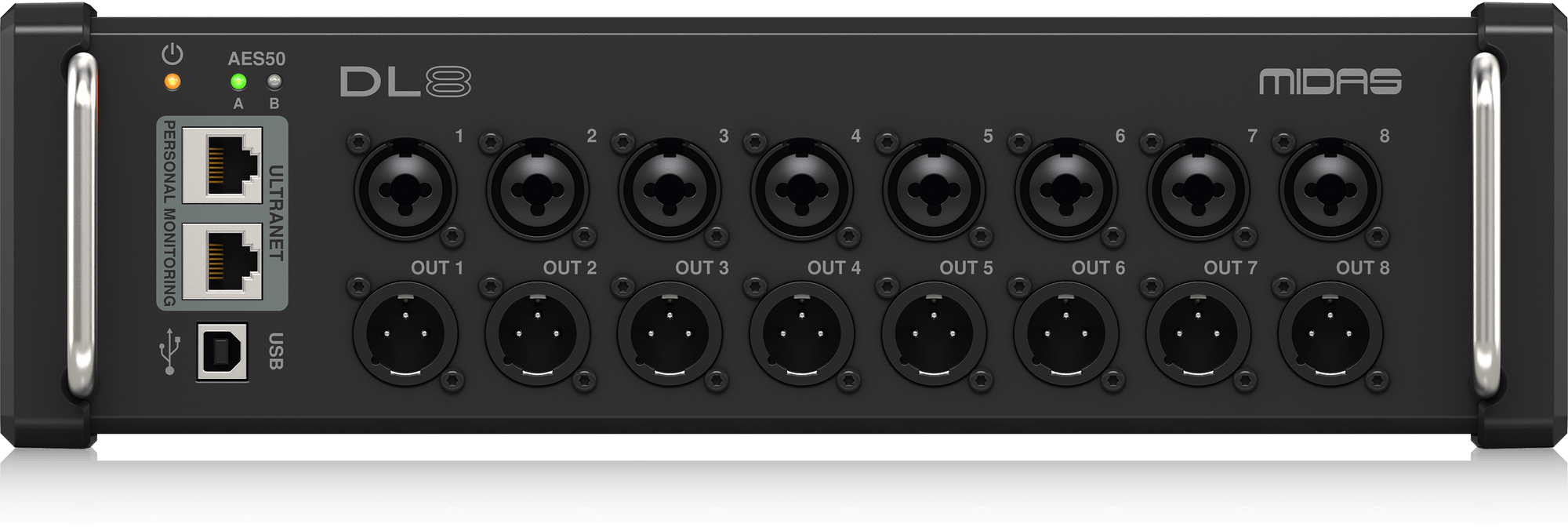

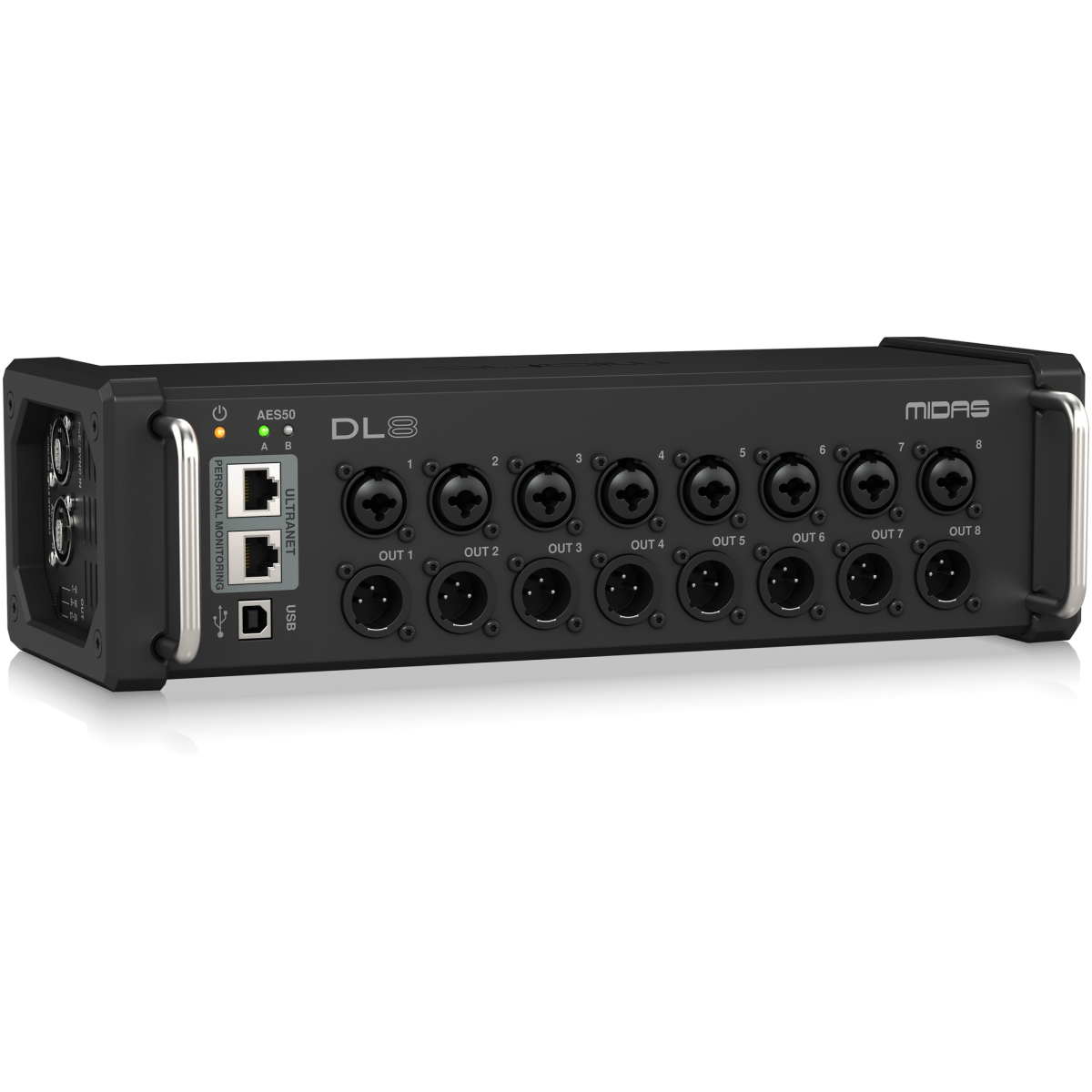

Midas DL8 – 8-Channel AES3 Output Stage Box

Name: Midas DL8 – 8-Channel AES3 Output Stage Box - A1 Sound
Brand: Midas
Price: 12560.00 ZAR
Availability: InStock

Brand: Midas

R12 560,00

11 People watching this product now!

8 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
8 electronically balanced low impedance line level outputs
Powered via AES50 PoE from compatible Midas hubs, or from internal switched mode power supply
ULTRANET distribution hub for powered connection of 2 personal monitoring mixers
Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

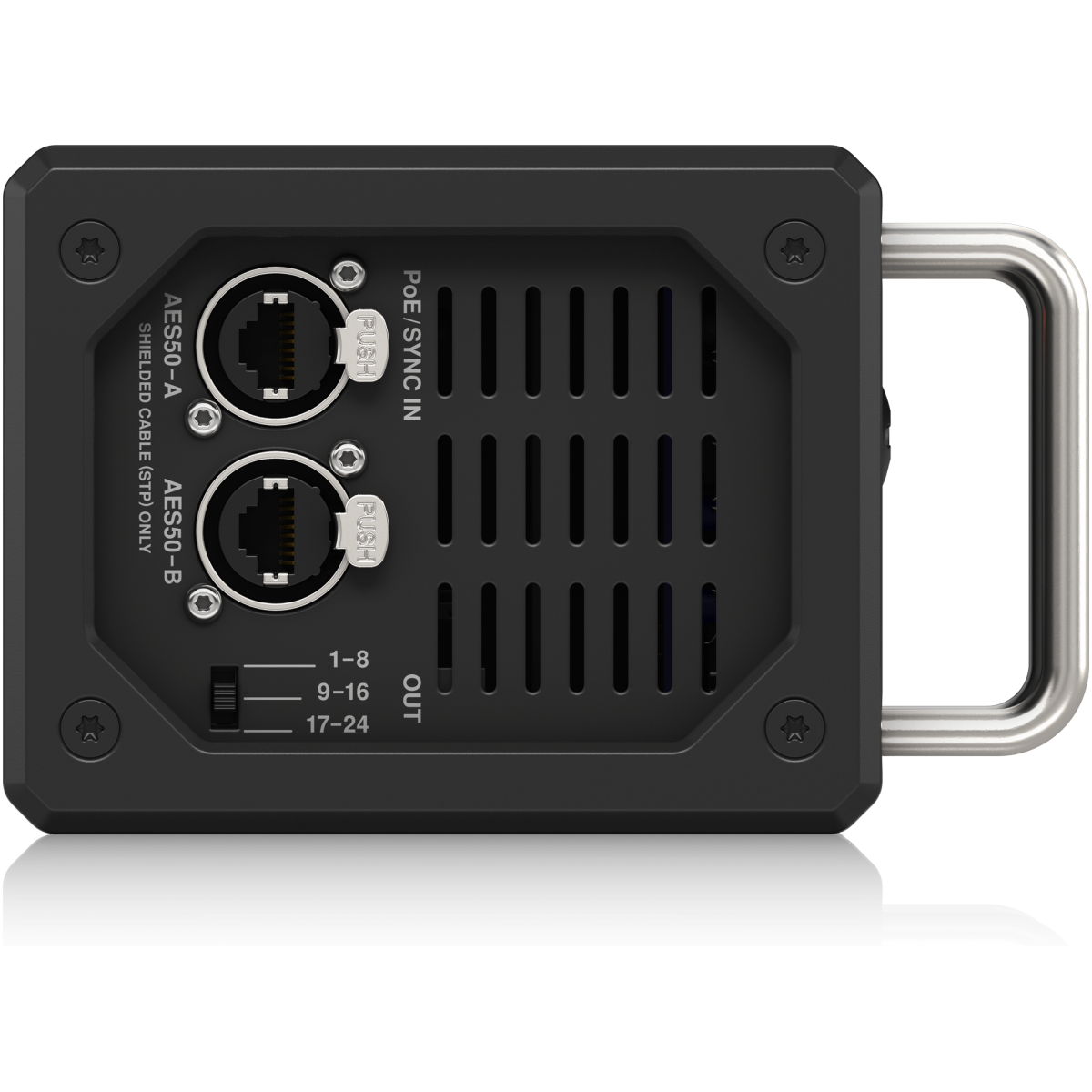

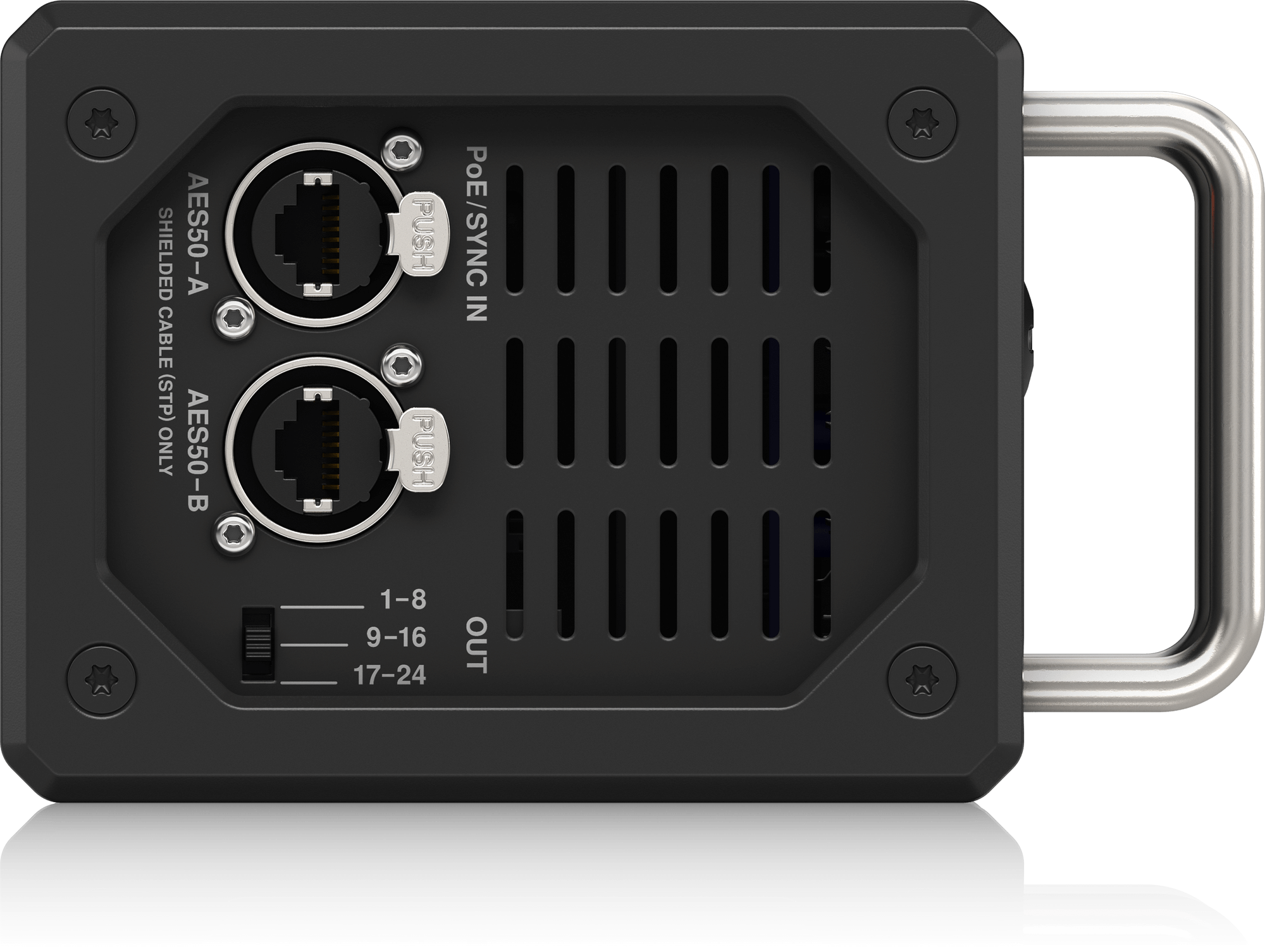

Dual AES50 SuperMAC ports for cascading additional stageboxes—no merger or router required

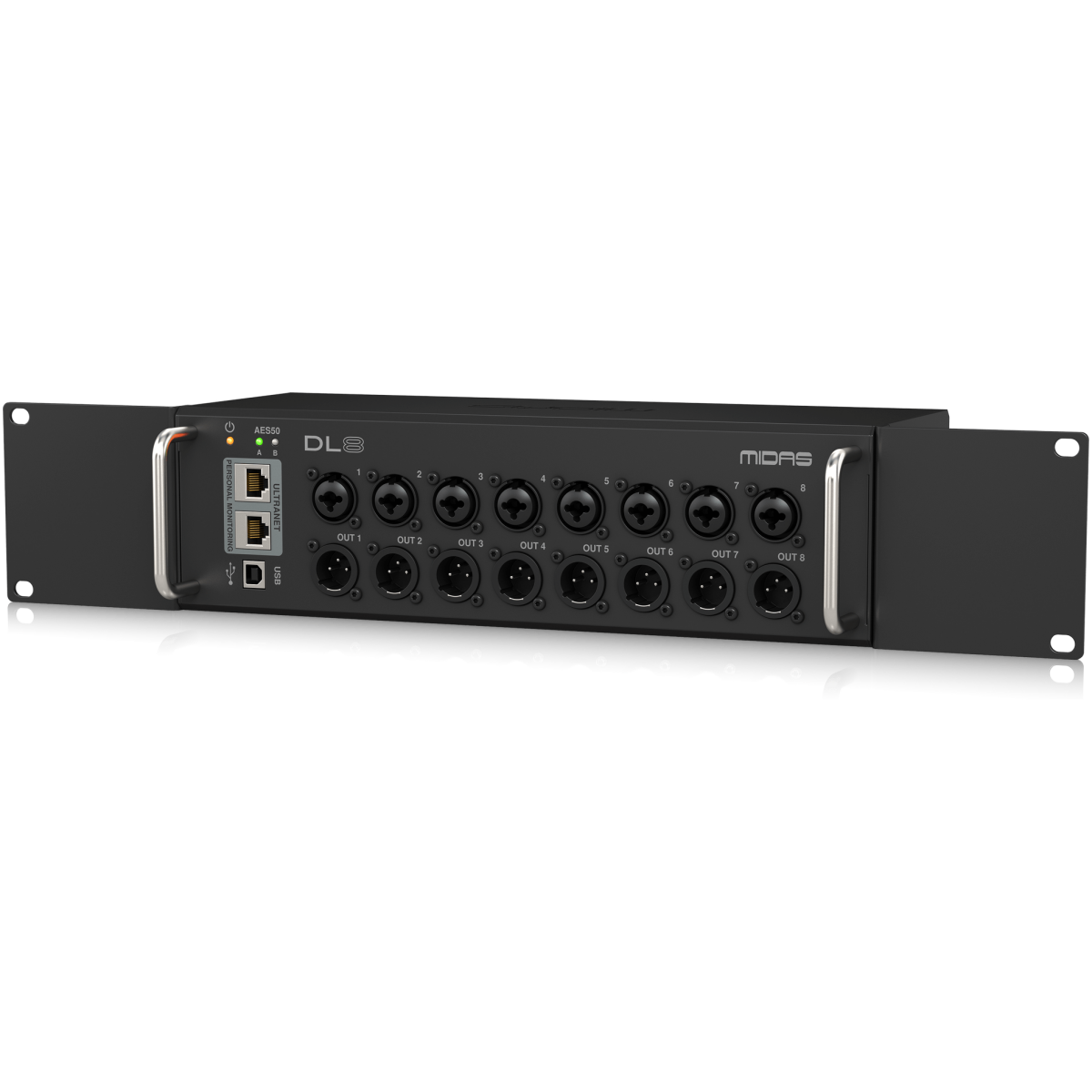

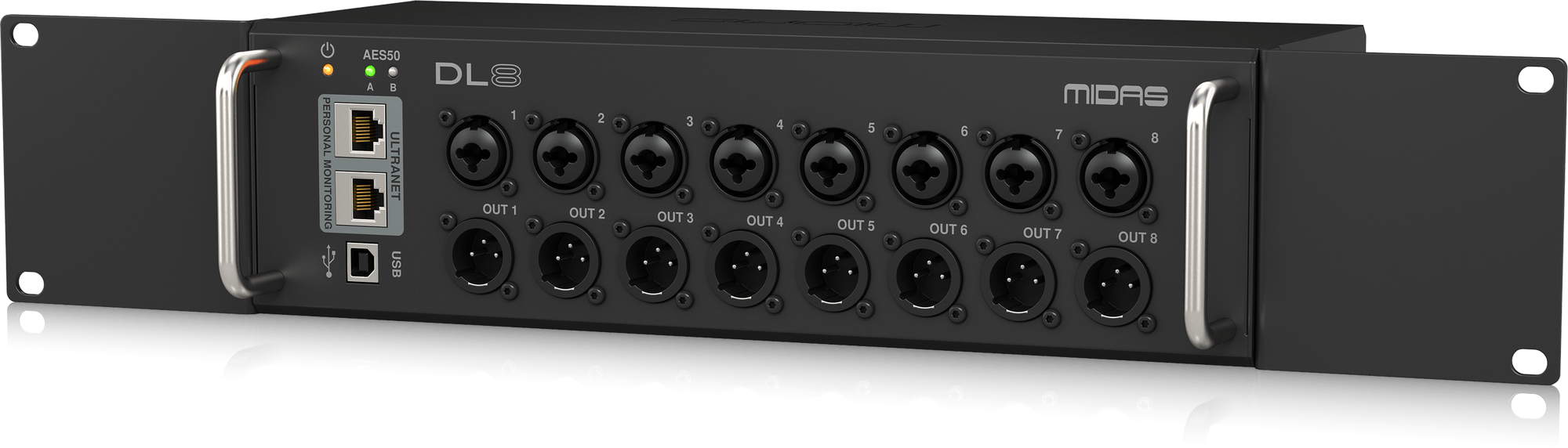

Rack ears and protection bumpers included for installed and on-stage applications
Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
Features industry standard RJ-45 AES50 network ports
Rugged chassis for durability in portable applications

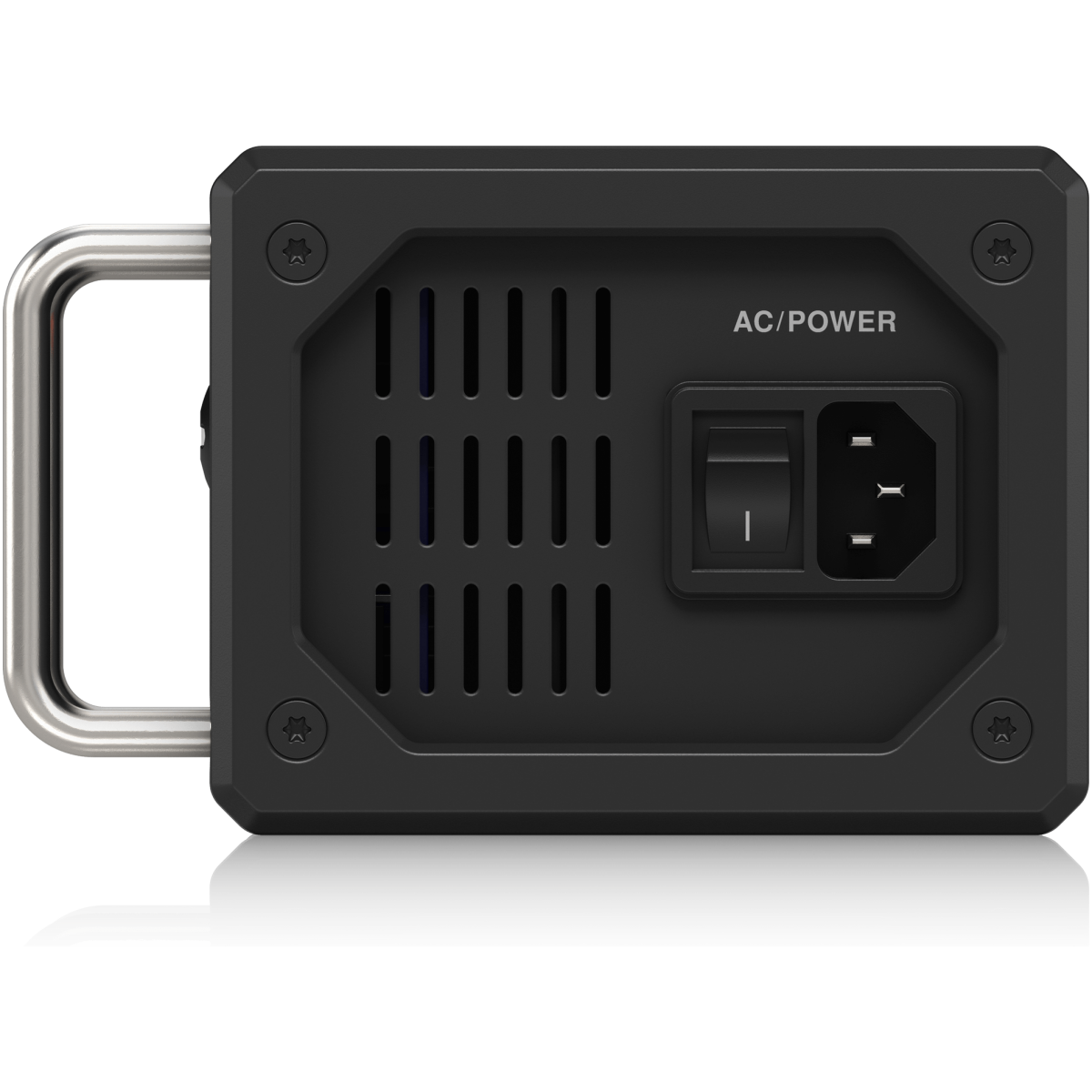

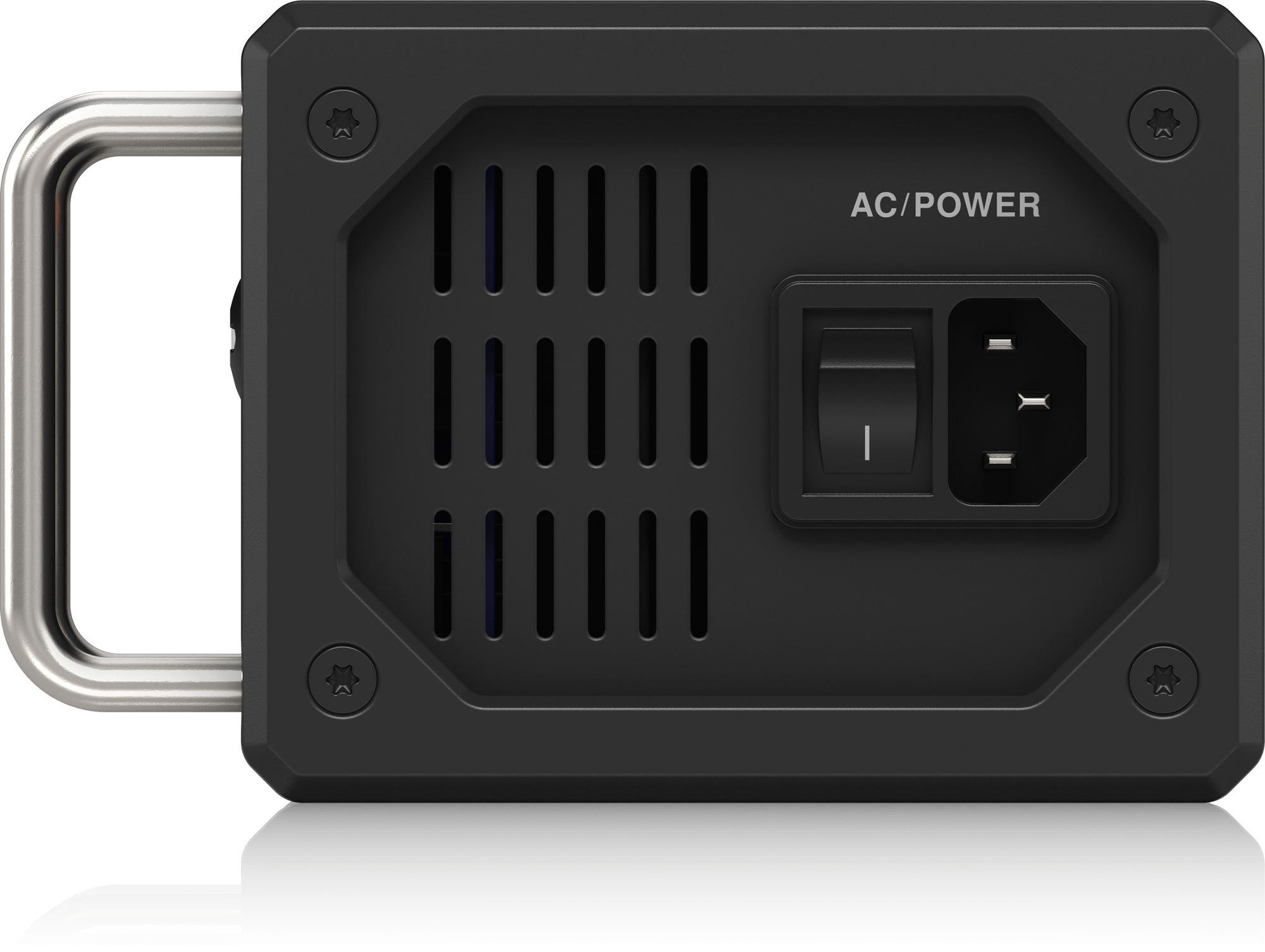

Auto-ranging universal switch-mode power supply

A/D-D/A conversion	24-bit @ 44.1 / 48 kHz, 114 dB dynamic range (A-weighted)
Networked I/O latency (stagebox in > console processing* > stagebox out)	1.1 ms

Programmable mic preamps, designed by Midas, balanced XLR/TRS combo	8
Line outputs, balanced XLR	8
ULTRANET outputs, RJ45 (power supplied for Behringer P16-M personal mixers)	2
AES50 port, SuperMAC networking, Industry standard RJ-45	2
USB port for system updates, type B	1

Mic input impedance XLR jack, unbal. / bal.	5 kΩ / 10 kΩ
THD + noise, 20 dB gain, 0 dBu out	< 0.006%, unweighted
Phantom power, switchable per input	+48 V
Equivalent input noise level, XLR (input shorted)	-125 dBu, unweighted
CMRR, XLR, @ 20 dB gain (typical)	>75 dB

Frequency response @ 48 kHz sample rate	10 Hz – 22 kHz, 0 dB to -1 dB
Dynamic range, analog mic in to analog out (typical)	106 dB, 22 Hz to 22 kHz, unweighted
A/D dynamic range, mic preamp to converter (typical)	109 dB, 22 Hz to 22 kHz, unweighted
D/A dynamic range, converter and output	108 dB, 22 Hz to 22 kHz, unweighted
Crosstalk rejection @ 1 kHz, adjacent channels	100 dB
Non clip maximuminput level, XLR	+23 dBu
Line input impedance TRS jack, unbal. / bal.	5 kΩ / 10 kΩ
Non clip maximum input level, TRS	+23 dBu

Output impedance, XLR, unbal. / bal.	50 Ω / 100 Ω
Output level, XLR, nom. / max.	+21 dBu
Residual noise level, XLR	-88 dBu, 22 Hz to 22 kHz, unweighted

AES50 SuperMAC networking @ 48 or 44.1 kHz, 24-bit PCM	2 x 48 Channels, bidirectional
AES50 SuperMAC cable length, CAT5 shielded**	< 80 m recommended
ULTRANET networking @ 48 or 44.1 kHz, 22-bit PCM	2
ULTRANET cable length, CAT5 shielded	< 75 m
ULTRANET phantom power for P16-M personal mixers	2 powered outputs
