- Active DI box with high headroom design and +48 V phantom power for extended dynamic range
- Fully transformer-isolated design ensures electrical separation between PA and stage equipment

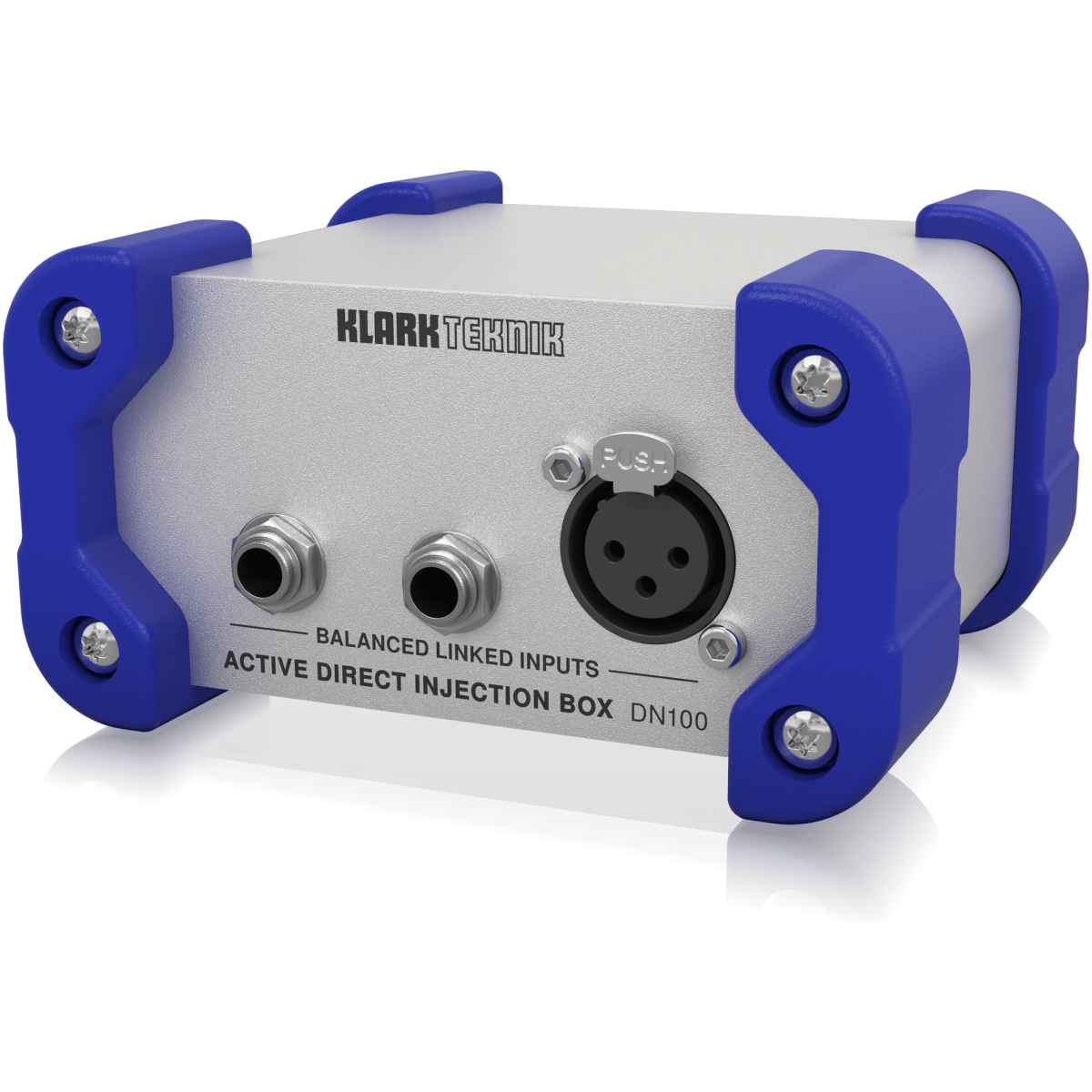

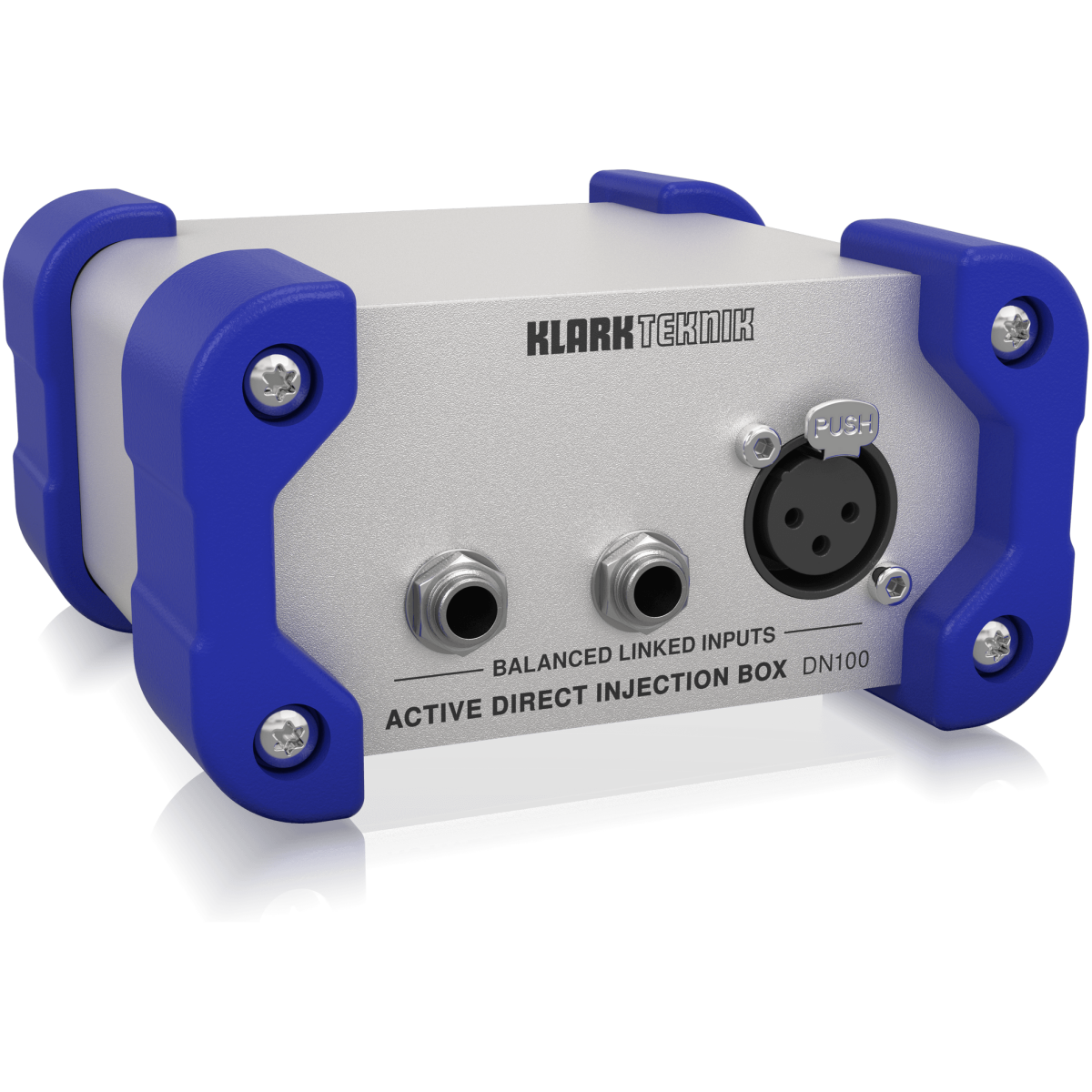

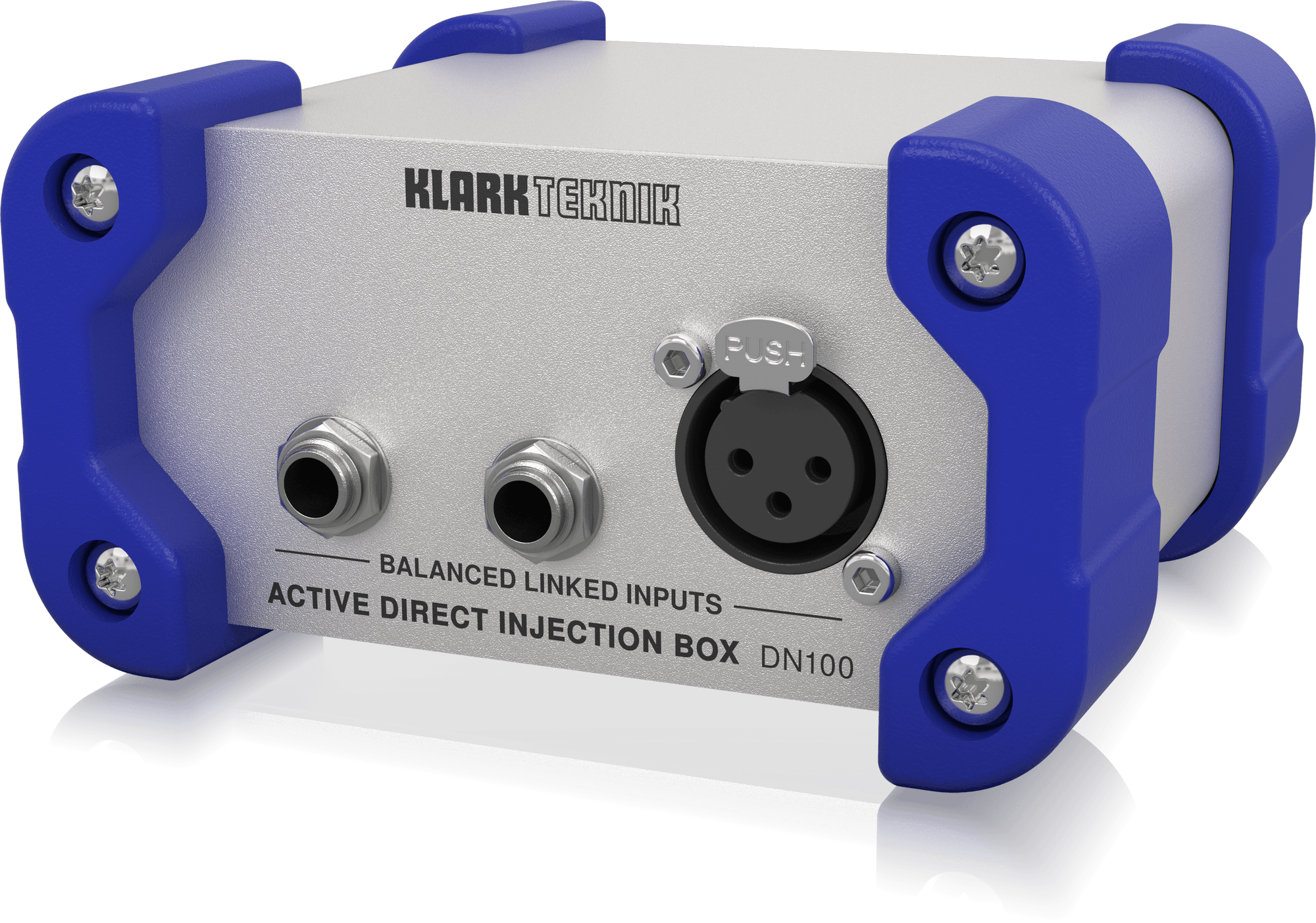

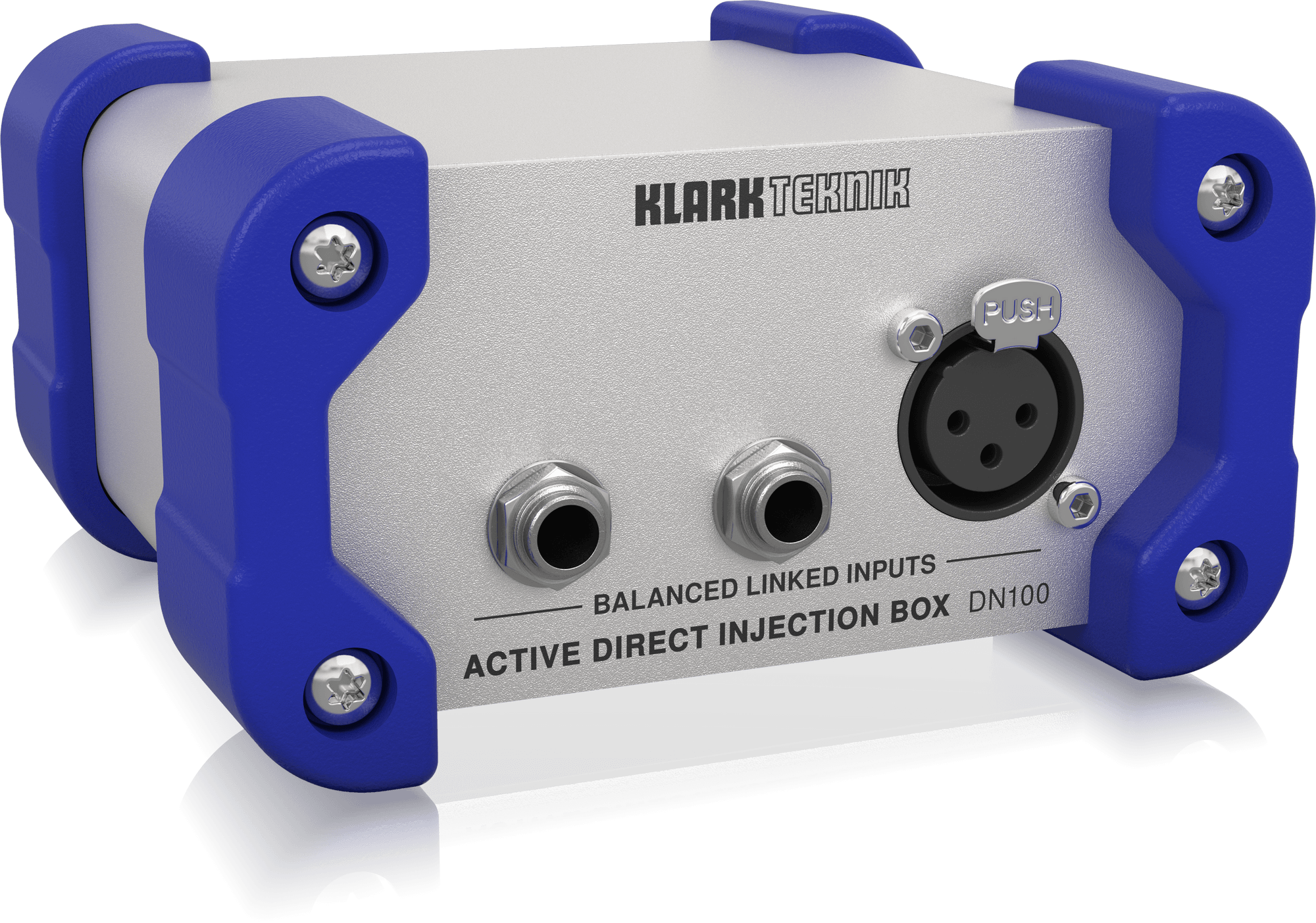

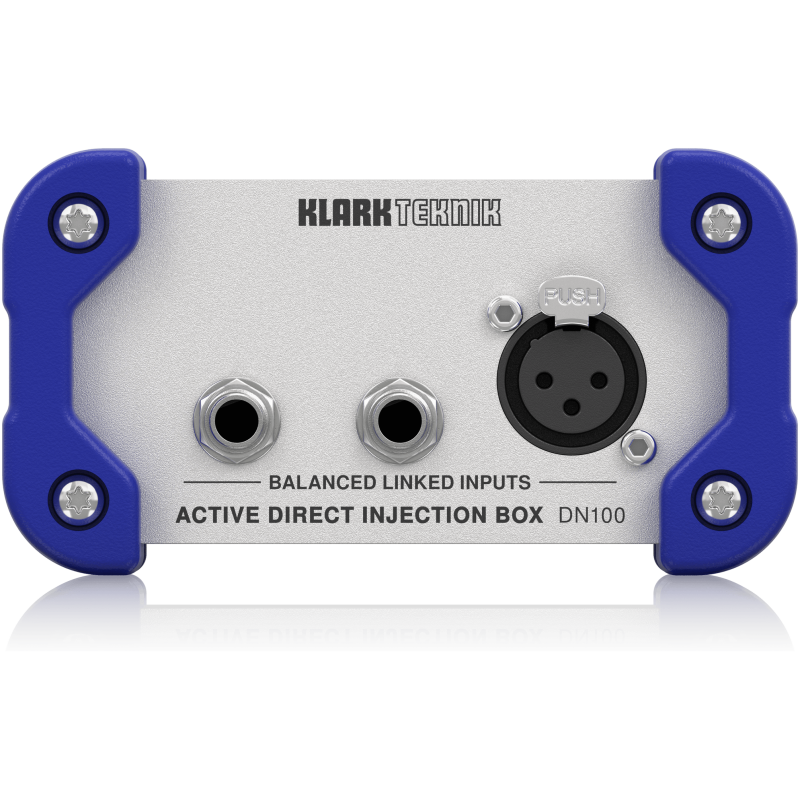

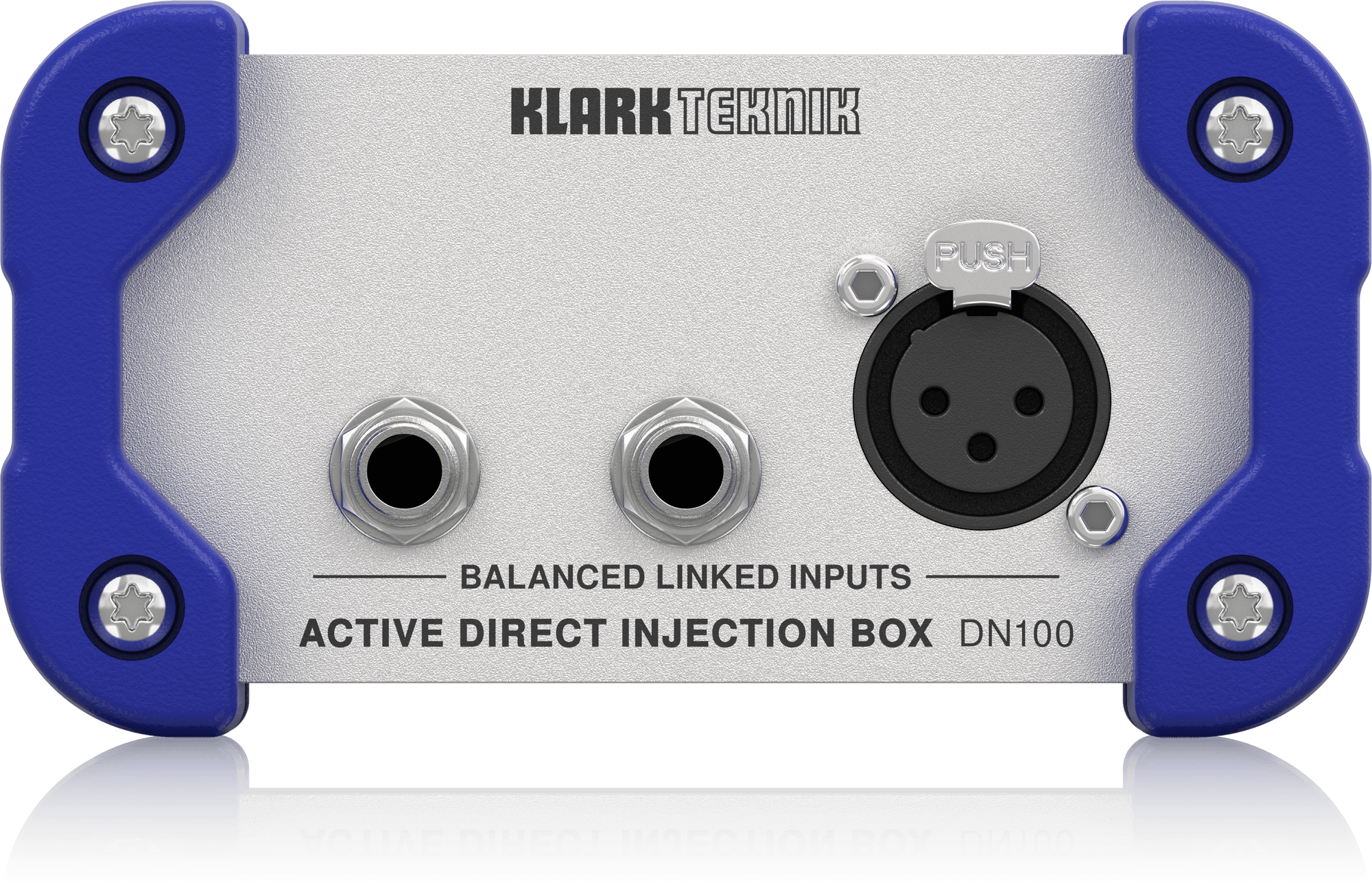

- Balanced line input on industry standard XLR and high impedance input and link output on 1/4″ TRS connectors

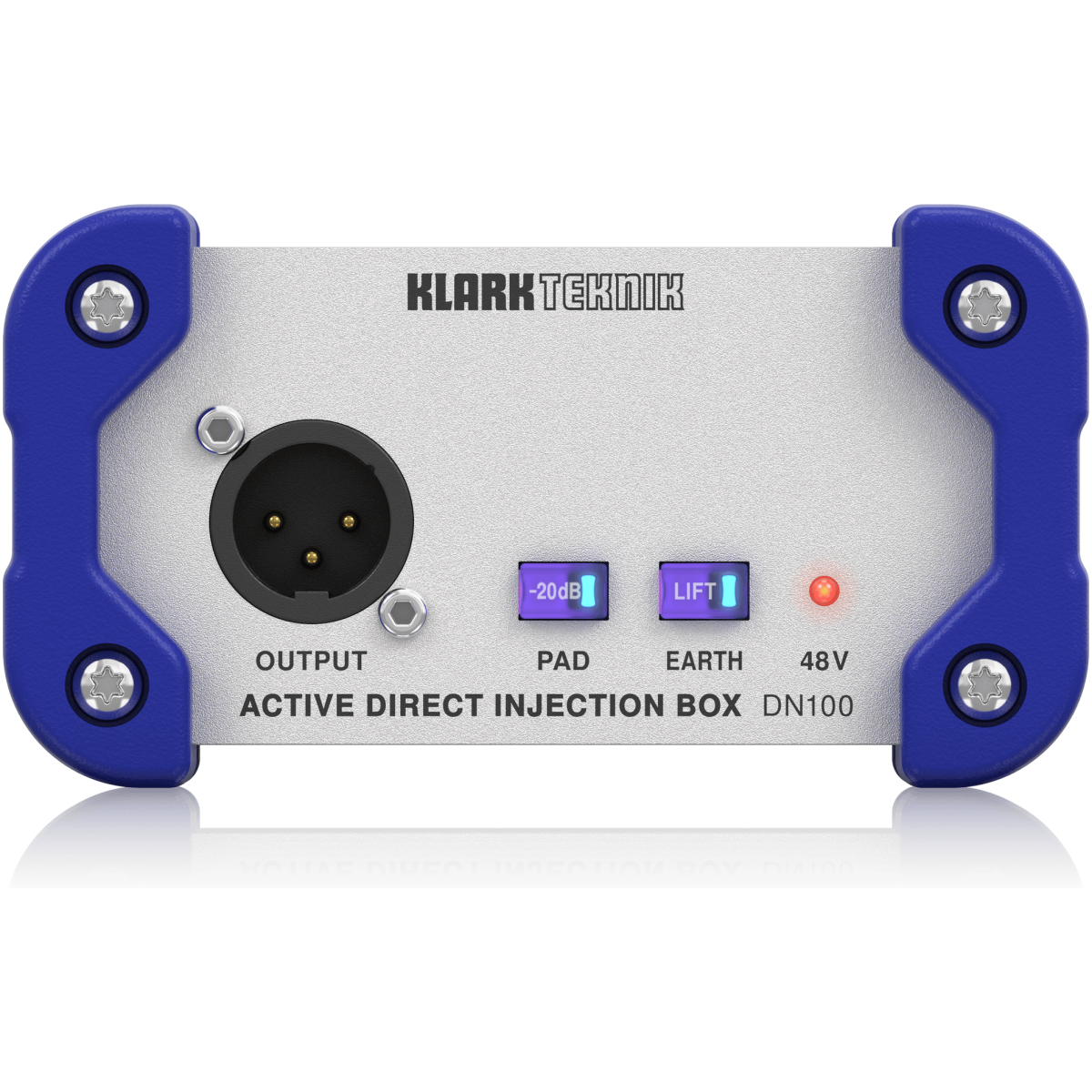

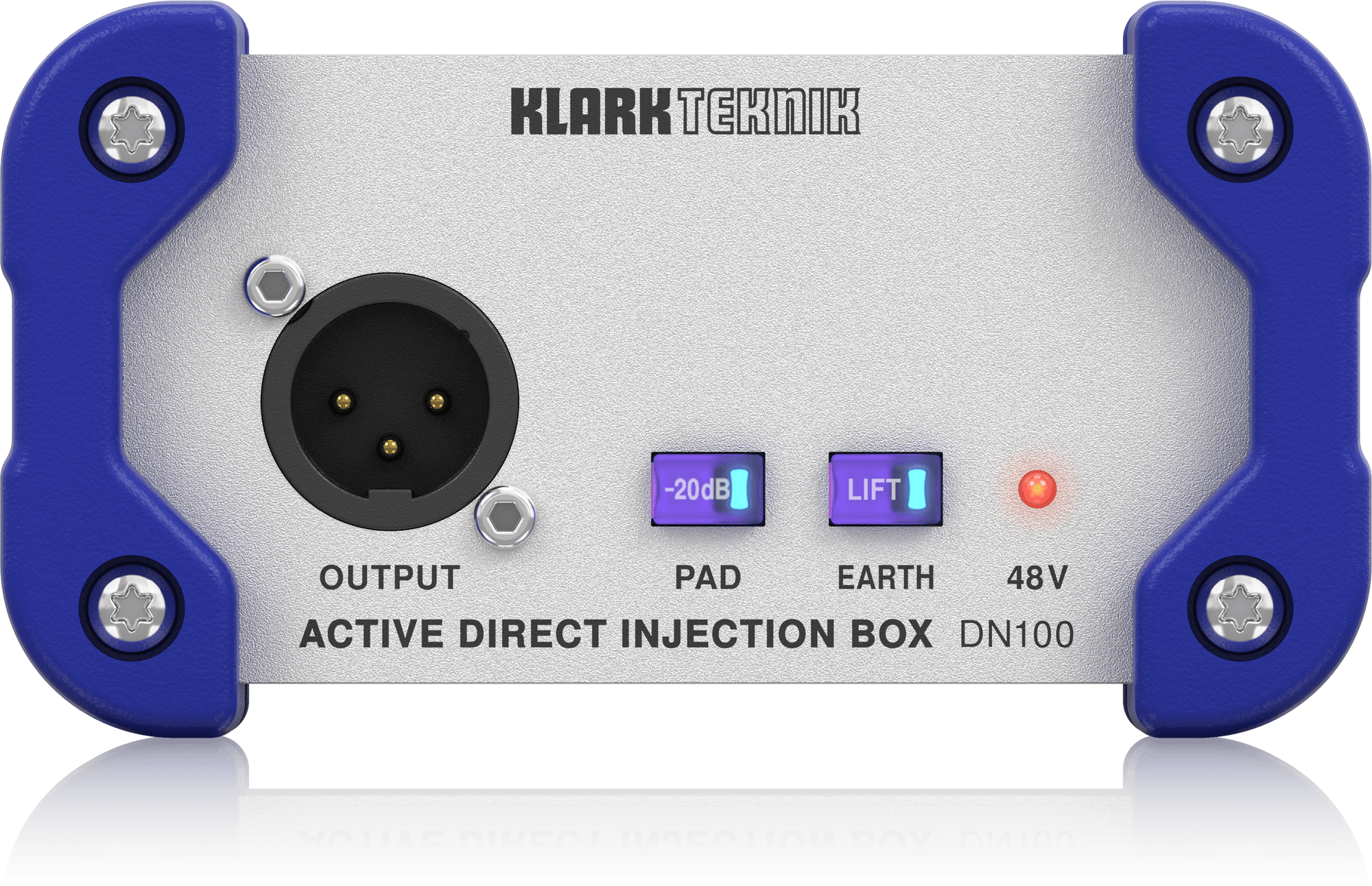

- 20 dB input pad and earth lift switches
- Aluminium extrusion casing with protective rubber corners
- Compact and rugged design
Specification
Inputs
| Connectors | 2 x 1/4″ TRS and 3-pin XLR linked in parallel |
| Impedance | 1 MΩ nominal, balanced or unbalanced, 20 kΩ (XLR only) |
| Max input level | 35 dBu (with pad enabled) |
| Attenuator | 20 dB pad |
Outputs
| Connector | 3-pin XLR |
| Impedance | 50 Ω |
| Max output level | 15 dBu with 10 kΩ load |
| Min load | 600 Ω |
System
| Noise | -103 dBu, 22 Hz to 22 kHz unweighted,
with input terminated by 10 kΩ resistor |
| Frequency response | 20 Hz to 20 kHz, ±1 dB, 10 kΩ load |
| Distortion (THD + N) | Typically <0.005% @ 1 kHz, +10 dBu |
Power Requirement
| Voltage | +48 V phantom |
| Current consumption | <10 mA |
Physical
| Dimensions | 118 x 63 x 112 mm (4.7 x 2.5 x 4.4″) |
| Weight | (4.7 x 2.5 x 4.4″) Weight 0 |
