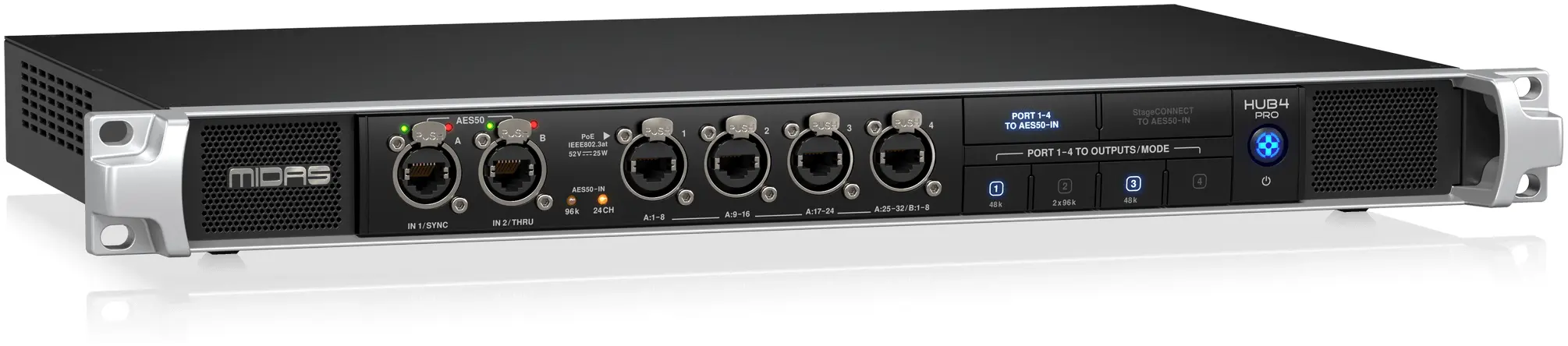

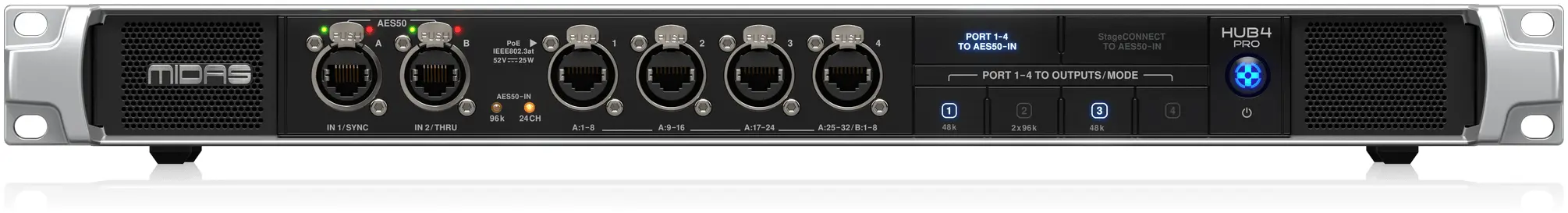

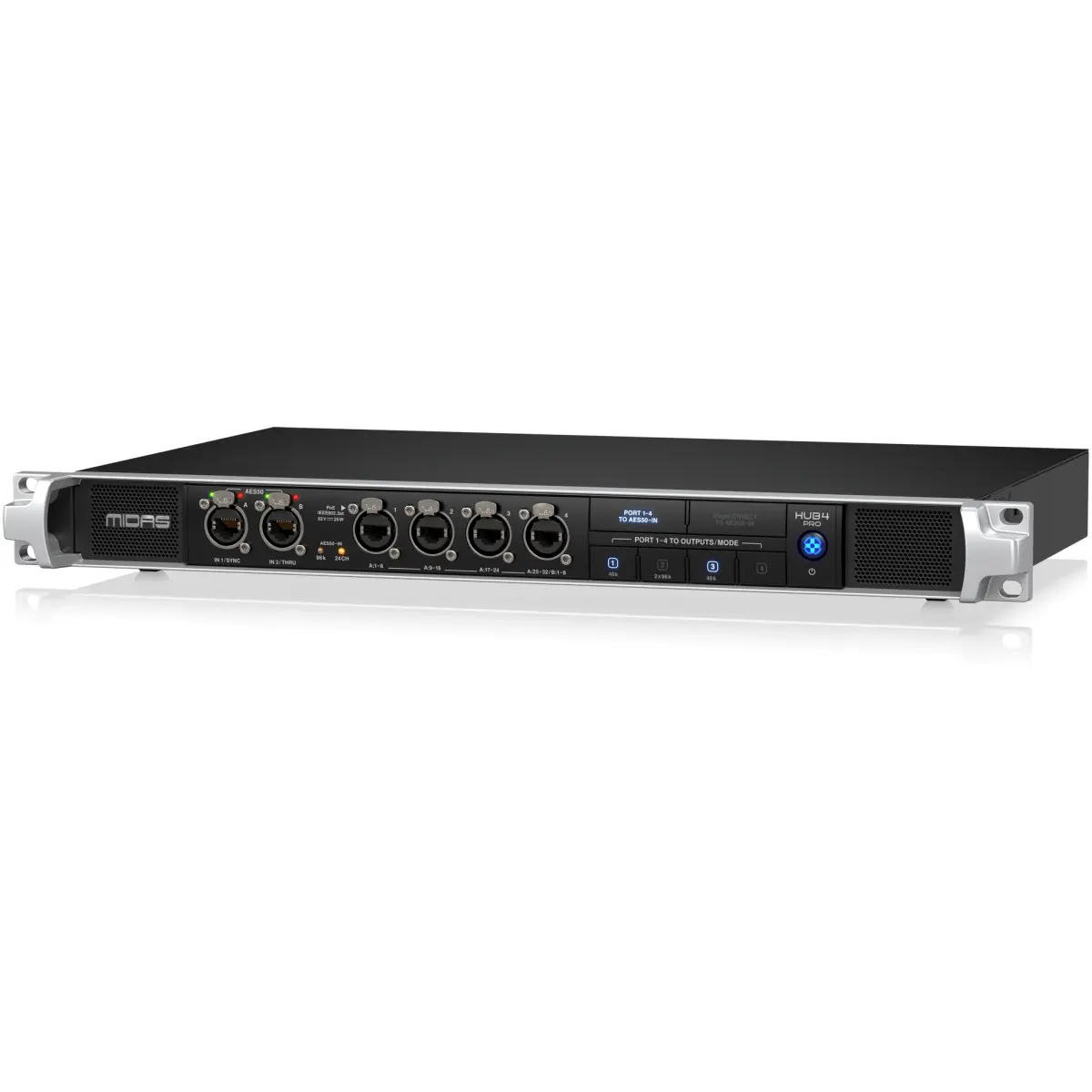

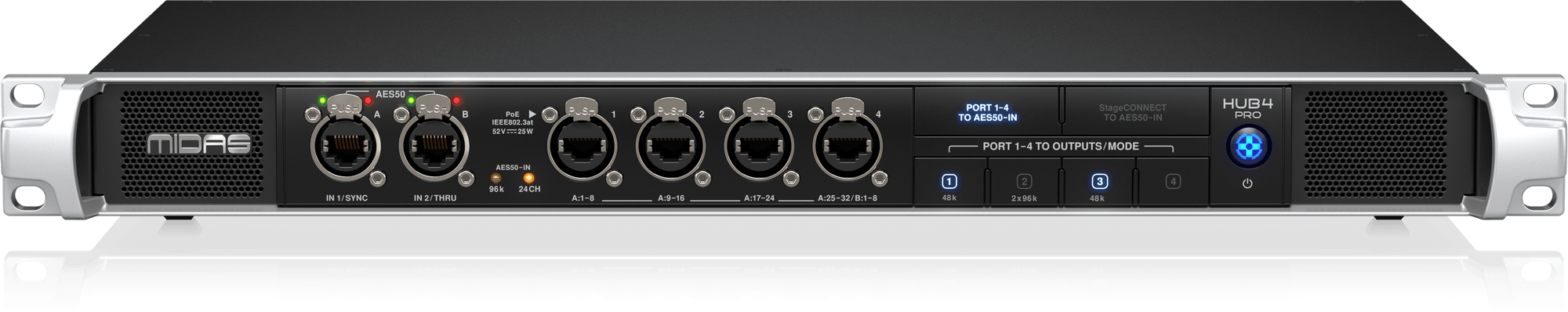

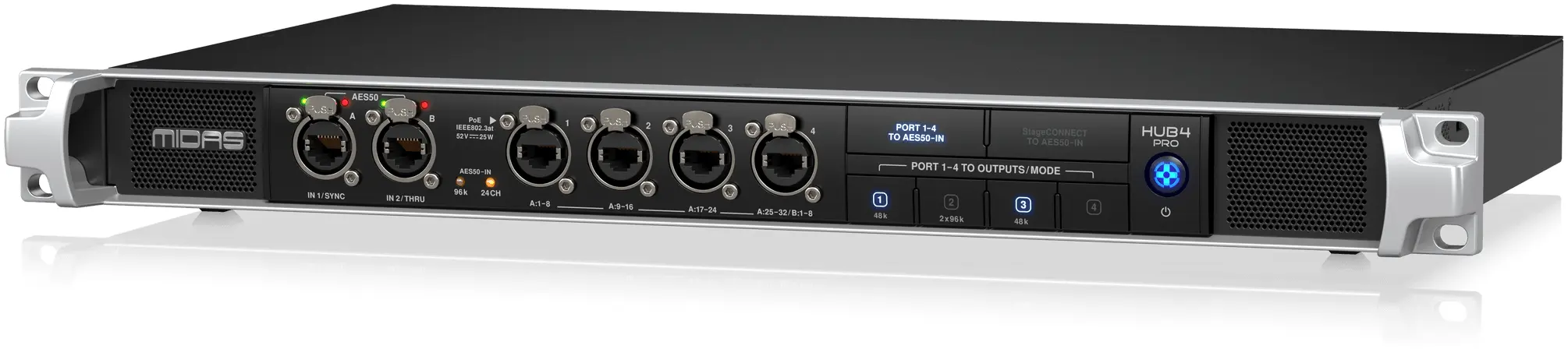

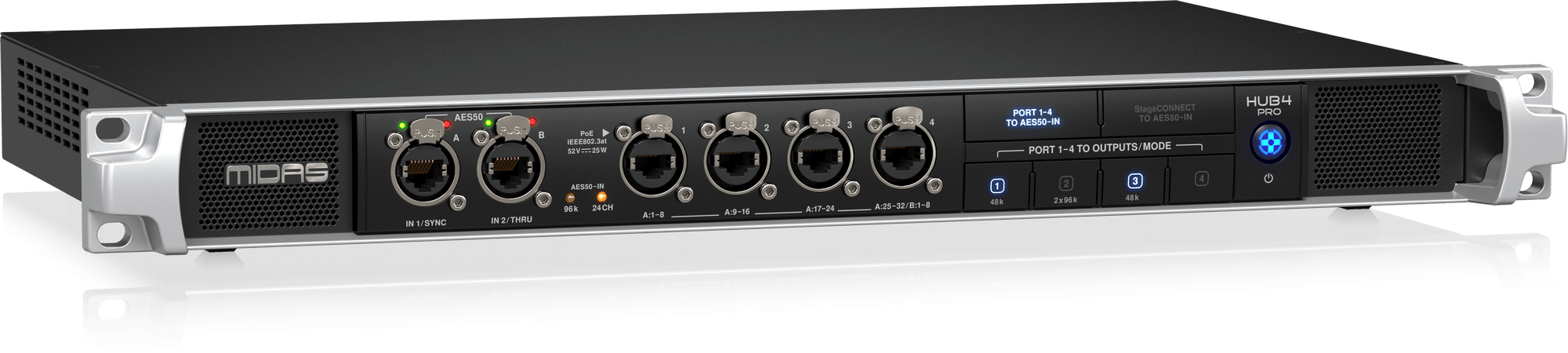

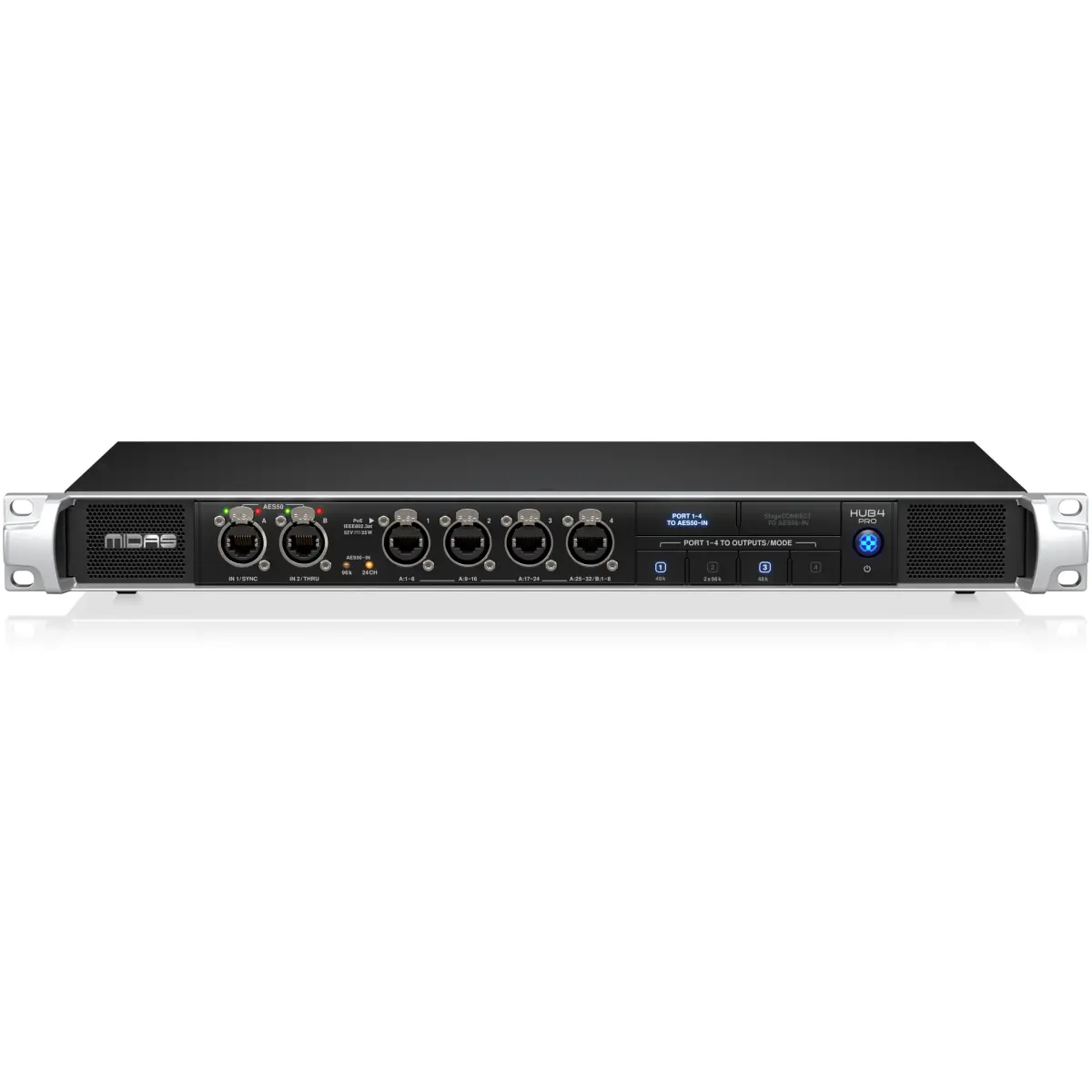

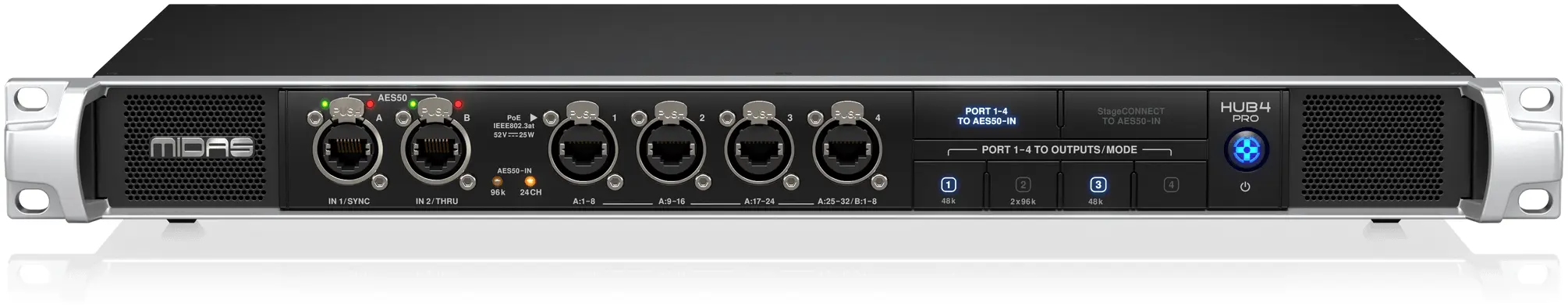

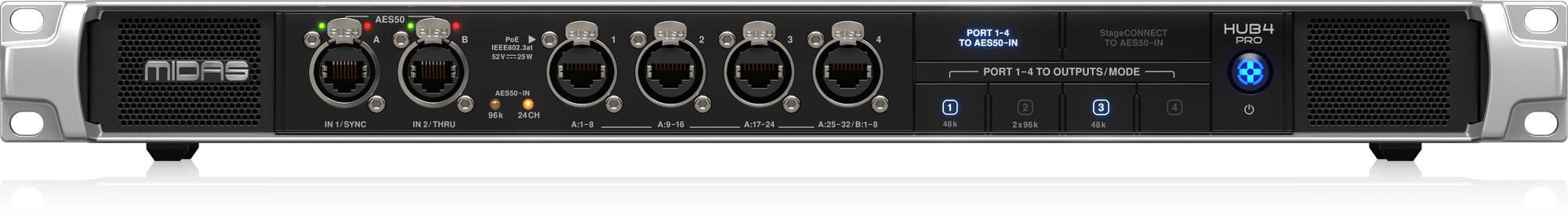

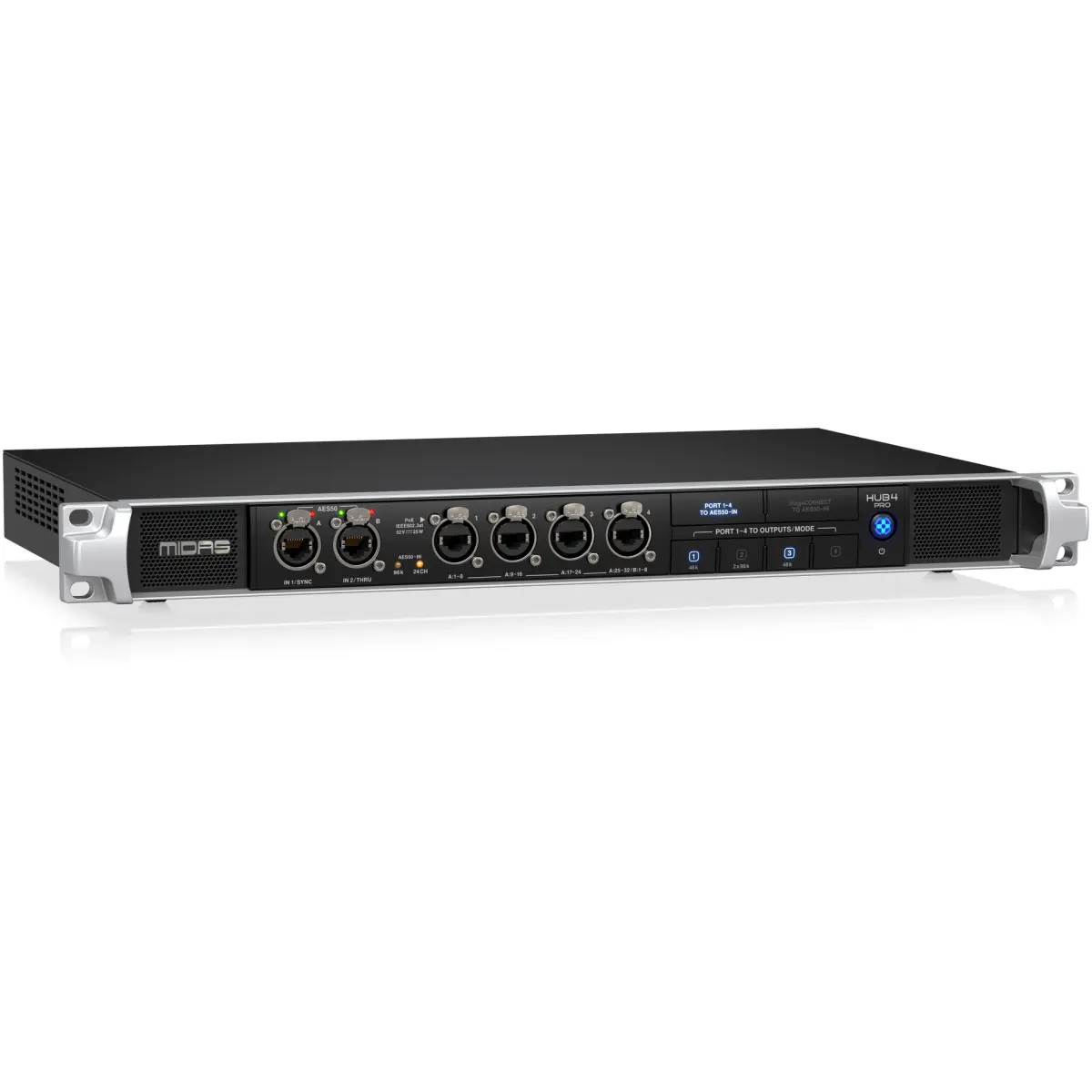

HUB4 PRO
The HUB4 PRO is the essential multi-tool in any stage rack, providing analogue and digital outputs for various applications and offering reliable performance for seamless integration into diverse audio setups.
The HUB4 PRO allows a more streamlined and customisable monitoring experience, with front panel buttons and 16 balanced analogue outputs for sending 4×2 personal stereo mixes from DP48 to IEM transmitters in the side rack. It also allows collecting audio from 4 of the brand-new Midas DL8 Stage Box, which can be connected and powered from ports 1-4.
Ensuring reliable connections is key for the transmission of multiple channels in any setting, the HUB4 PRO features industry-standard RJ45 AES50 network ports and remote operation via shielded CAT5e cables. With a versatile and adaptive power supply, the HUB4 PRO can be used globally, and it has a rugged 1U chassis making it extremely durable for travel.
Specification
Digital Input/Output
| AES50 | 2 x RJ-45 |
| Hubs | 4 x RJ-45 |
| StageCONNECT | 1 x 3 pin XLRM |

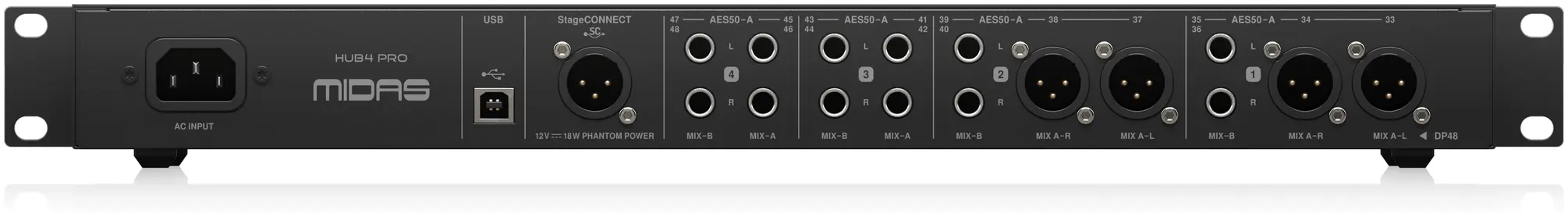

Analog Outputs
| Outputs 1 | 2 x 6.35 mm TRS jack 2 x 3 pin XLRM |
| Outputs 2 | 2 x 6.35 mm TRS jack 2 x 3 pin XLRM |
| Outputs 3 | 4 x 6.35 mm TRS jack |
| Outputs 4 | 4 x 6.35 mm TRS jack |
| Output Impedance | 100 Ω |
| Maximum output level | +21.5 dBu |
USB
| Class compliant USB 2.0 Type B |
Controls
| Buttons | Port 1 – 4 to AES50 In StageCONNECT to AES50 In / Update Port 1 to Outputs 1 / 48 KHz Port 2 to Outputs 2 / 96 kHz x 2 Port 3 to Outputs 3 / 96 kHz x 1 Port 4 to Outputs 4 Power on/off |
LED Indicators
| 96 kHz 24 Channel Power On |
