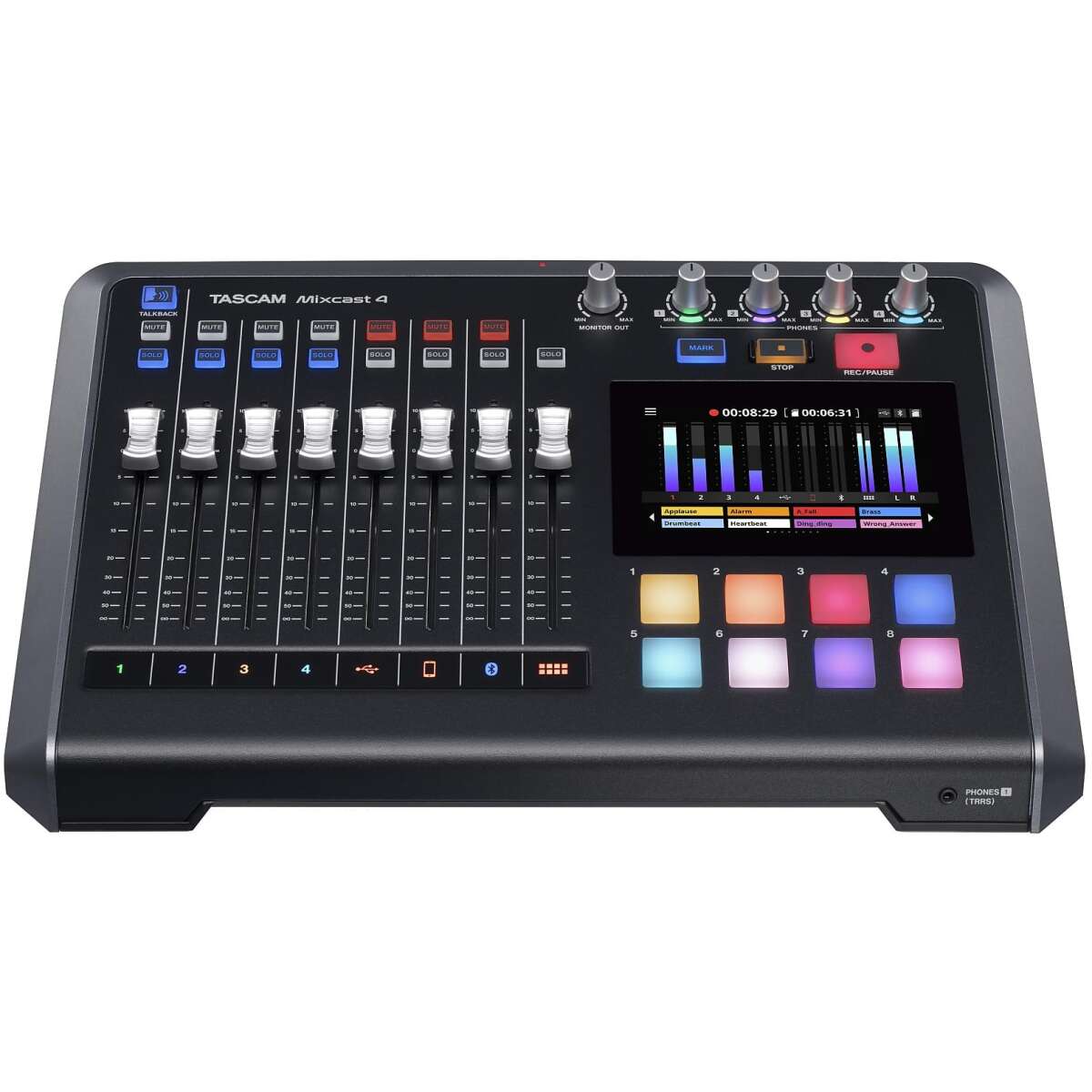

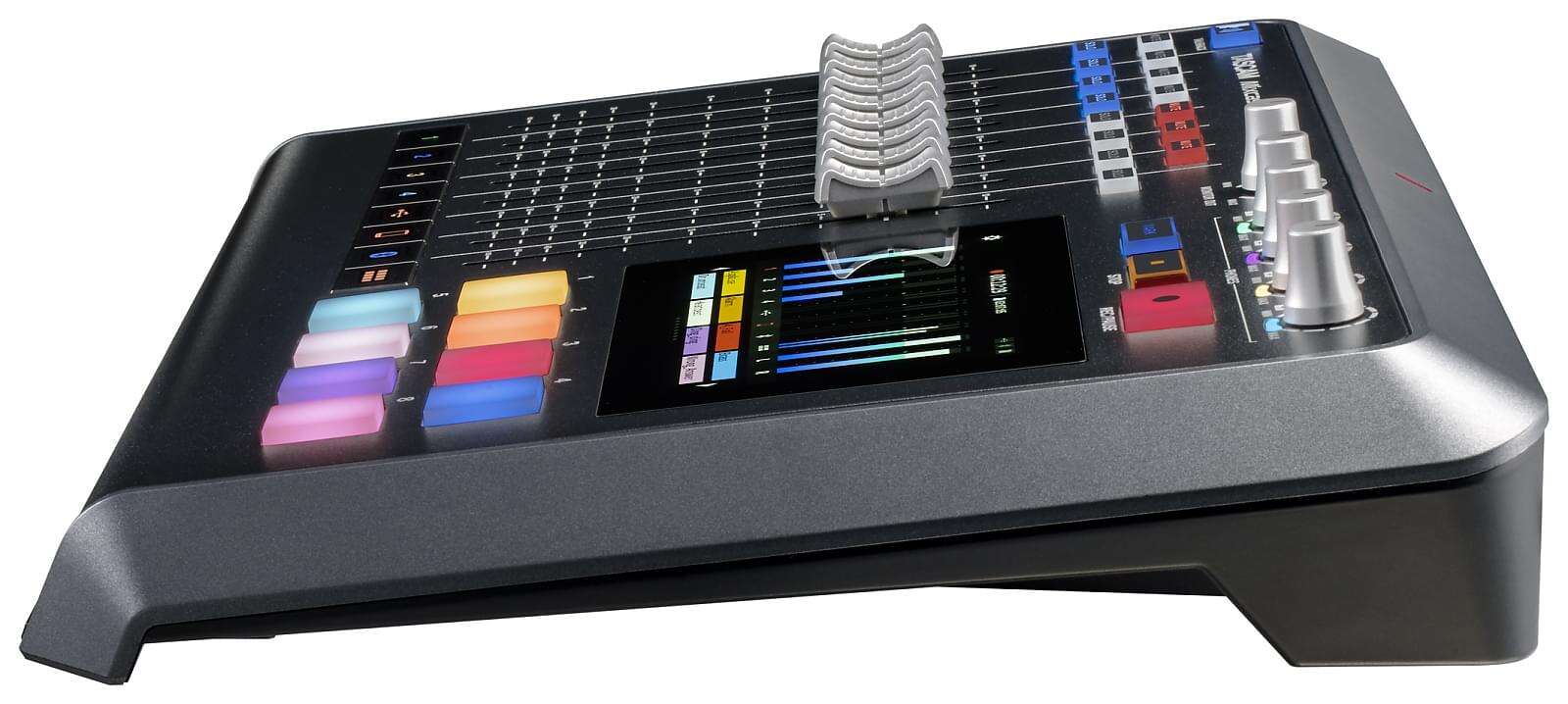

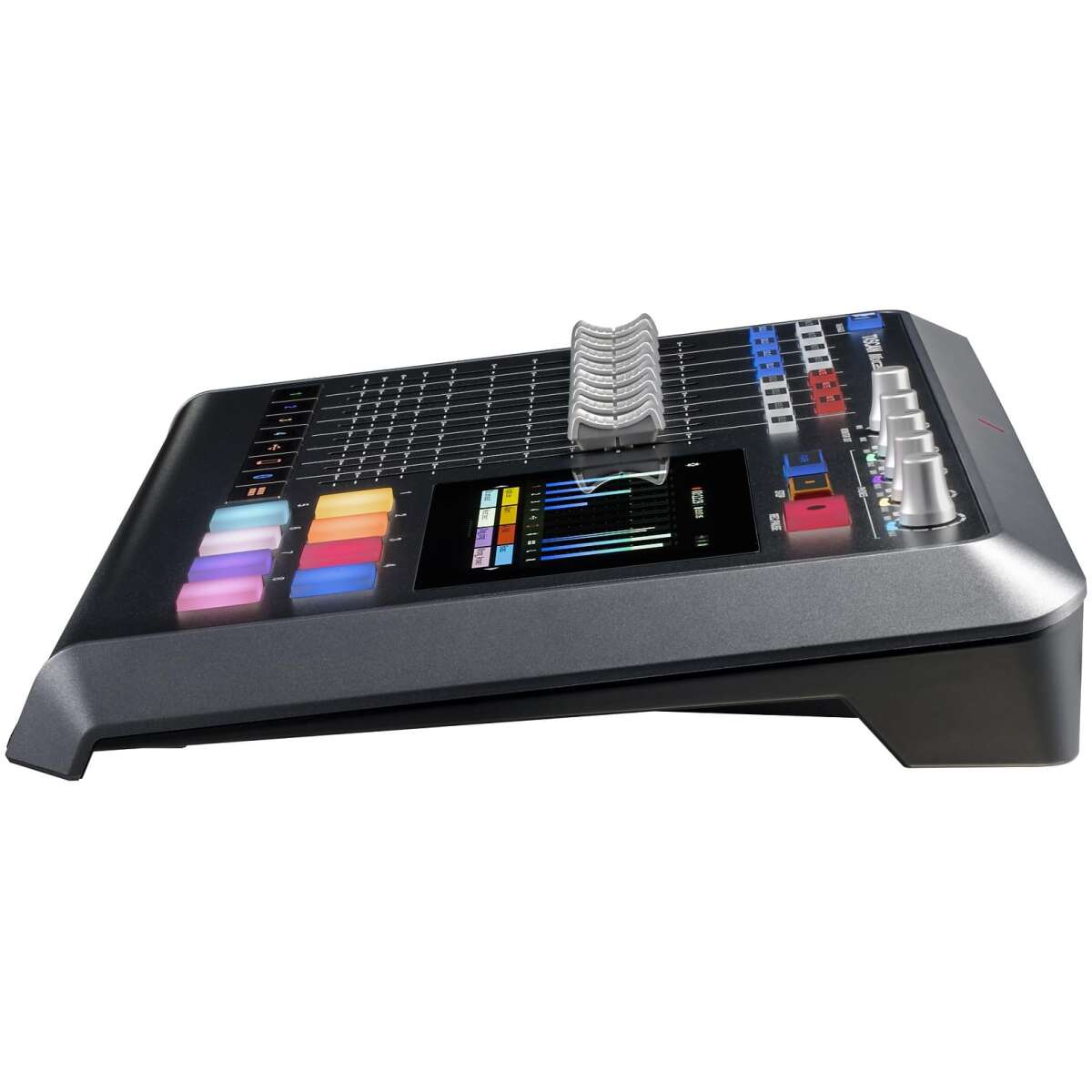

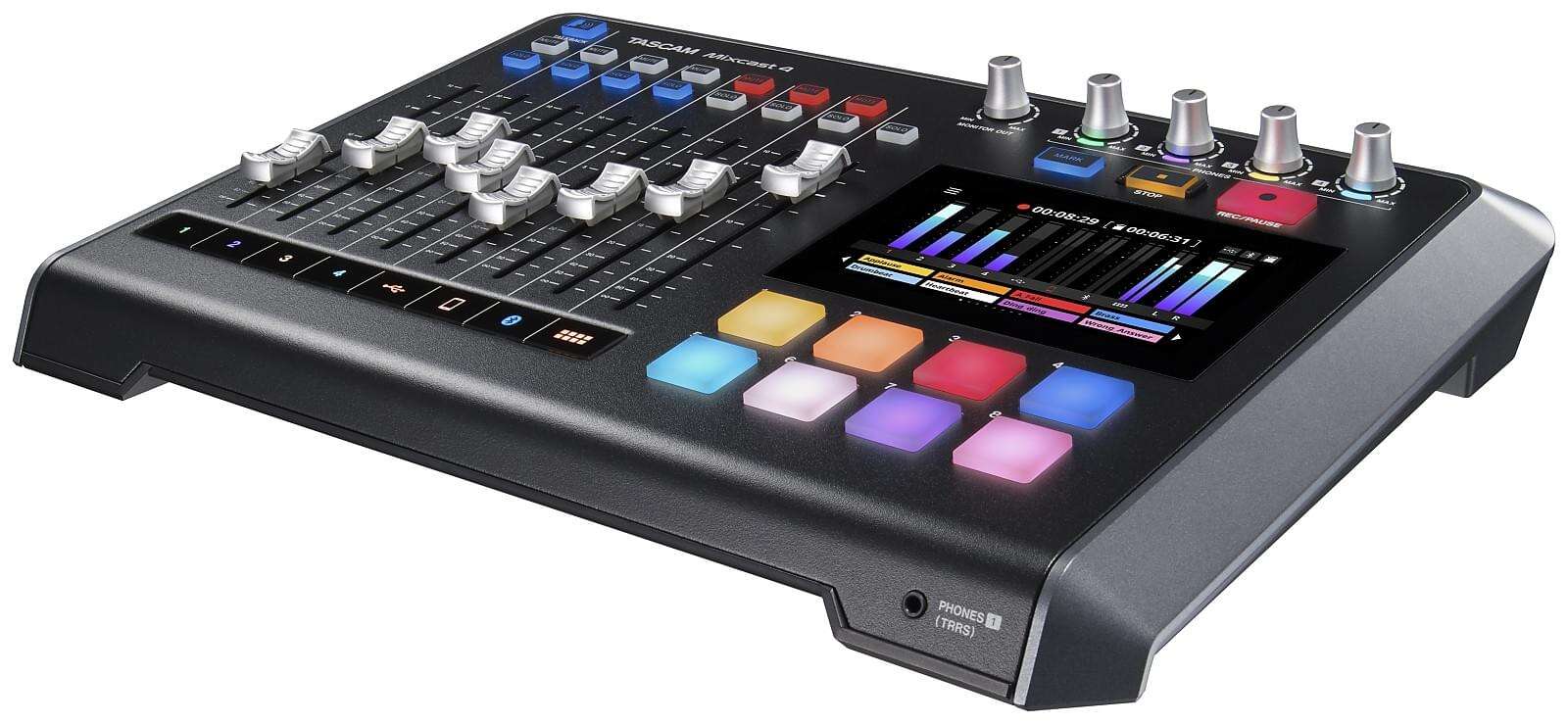

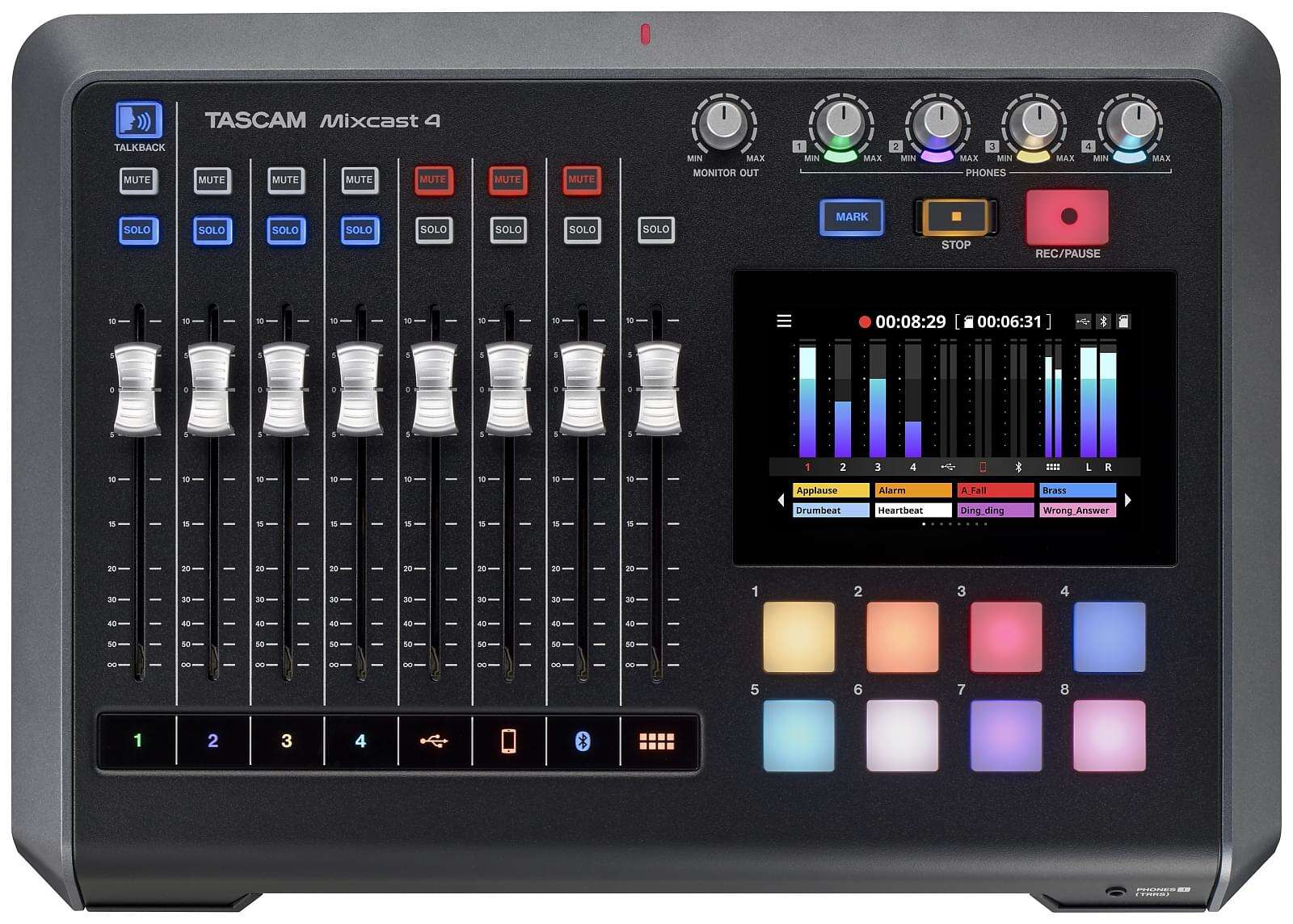

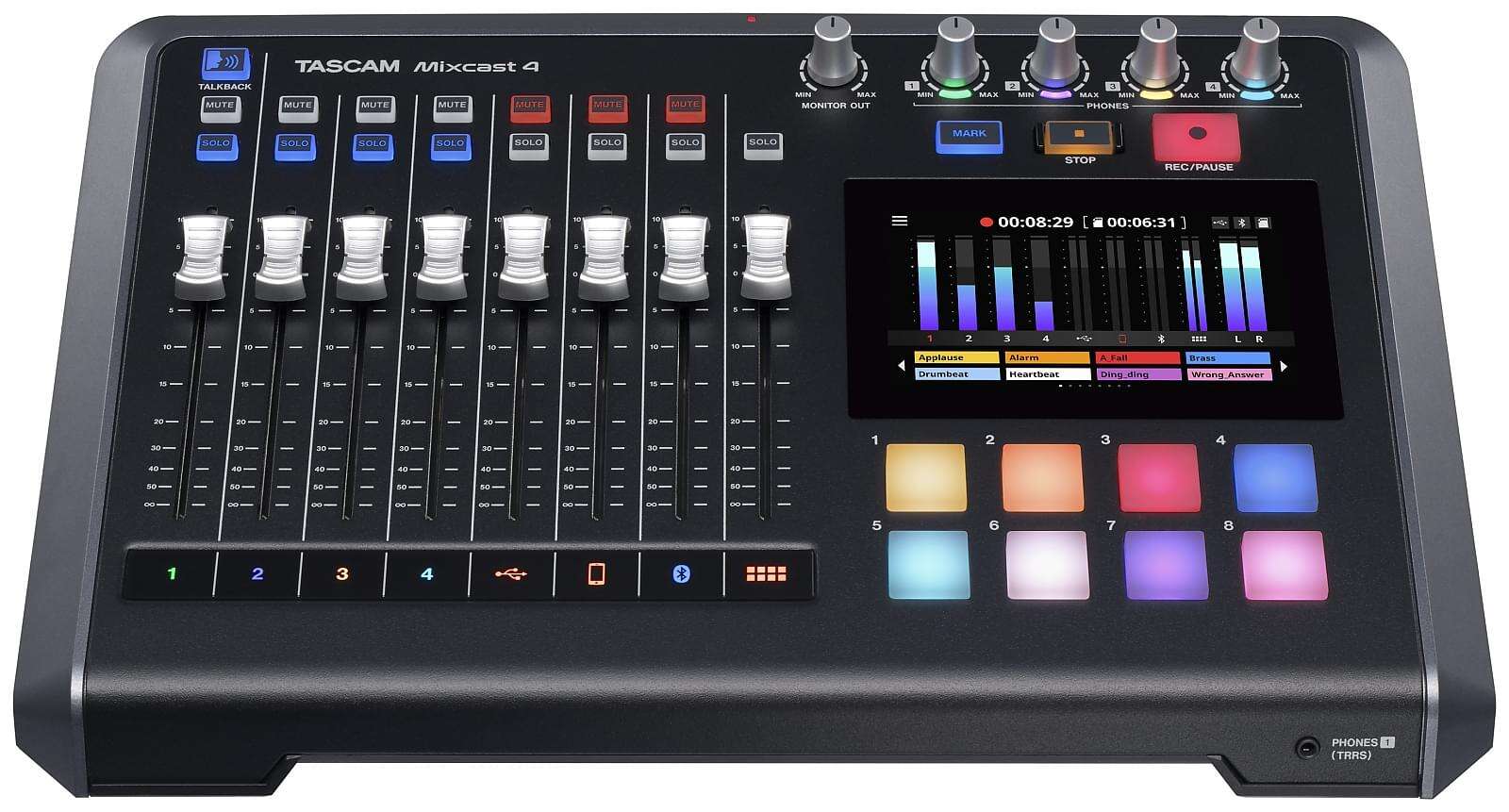

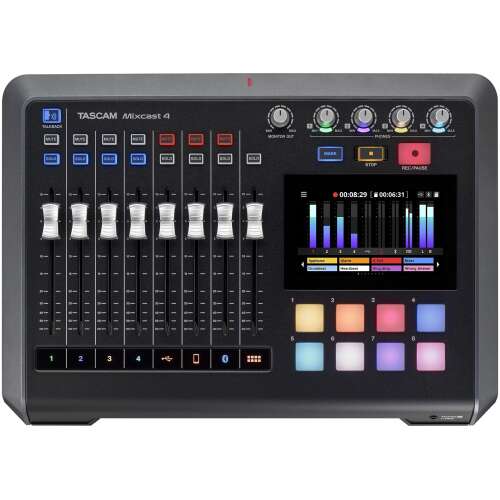

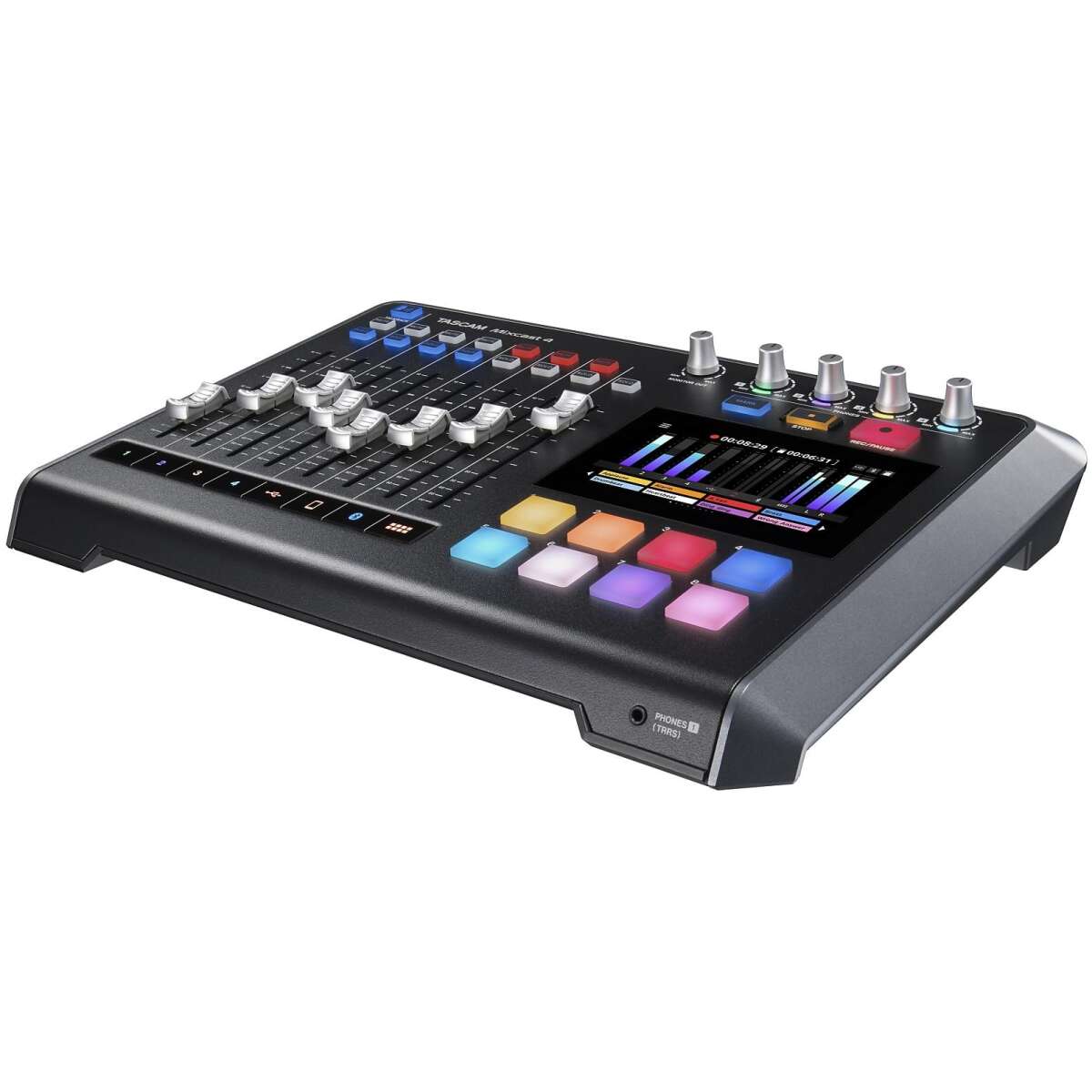

Tacsam Mixcast 4 Content Production Station

The Tascam Mixcast 4 is an all-in-one podcast mixer, multitrack recorder, USB audio interface and live-streaming console. It provides everything needed to record professional podcasts, interviews, voice-overs and online content without requiring a computer.

Key Features

• Four XLR/TRS microphone inputs
• Up to seven-person podcast production using microphones, USB, Bluetooth and TRRS connections
• Four independently controlled headphone outputs
• Large 5-inch colour touchscreen
• Records up to 14 tracks directly to an SD card
• 14-input/2-output USB audio interface
• Eight customisable sound pads with eight banks
• Auto-mixing for consistent microphone levels
• Built-in compression, equalisation and reverb
• Voice effects and sound-effect triggering
• Bluetooth audio and wireless call connectivity
• TRRS connection for smartphones and headsets
• Mix-minus function prevents echo during remote calls
• Dedicated channel faders
• Includes Tascam Podcast Editor software

Recording

• Recording format: WAV/BWF
• Resolution: 24-bit/48 kHz
• Maximum recording tracks: 14
• Stereo recording: Supported
• Storage media: SD, SDHC and SDXC cards
• Maximum supported card capacity: 512 GB

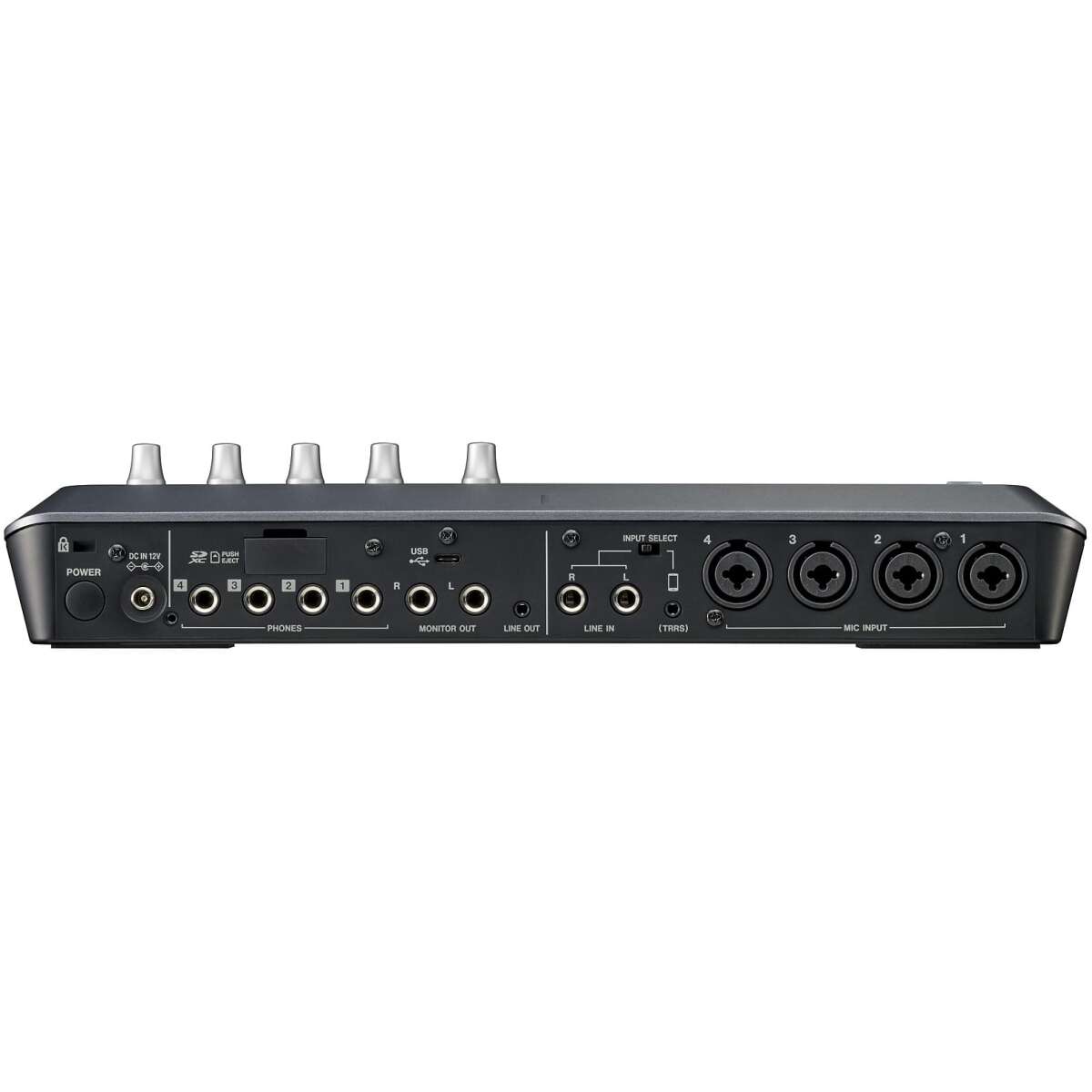

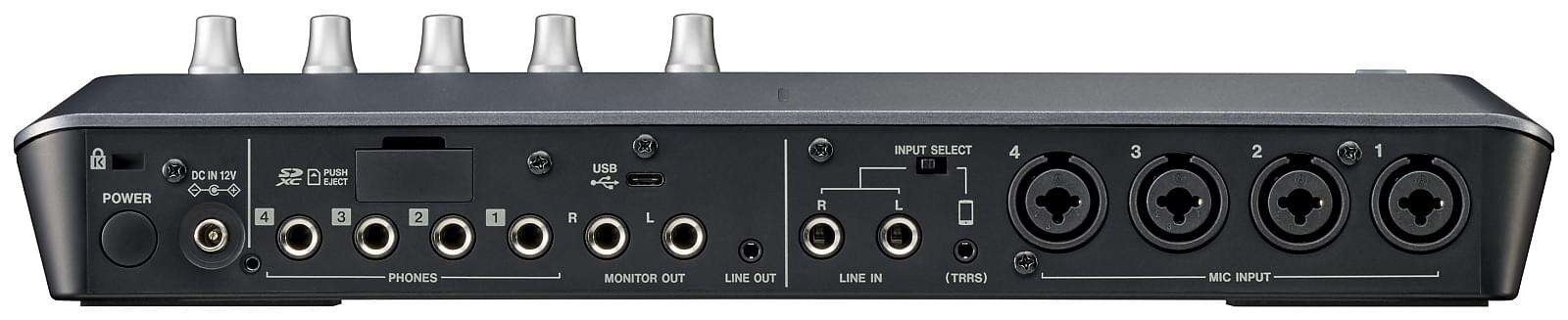

Inputs

• Four balanced XLR/TRS combination microphone inputs
• 3.5 mm TRRS headset input
• 3.5 mm TRRS smartphone input
• Two balanced 6.3 mm TRS line inputs
• Bluetooth audio input
• USB audio input
• Phantom power available for condenser microphones
• Microphone gain range: 66.5 dB

Outputs

• Four 6.3 mm stereo headphone outputs
• 3.5 mm TRRS headset output
• Two balanced 6.3 mm TRS monitor outputs
• 3.5 mm stereo line output
• USB Type-C connection

Audio Performance

• Frequency response: 20 Hz–20 kHz, ±0.3 dB
• Signal-to-noise ratio: 101 dB
• Equivalent input noise: –125 dBu or lower
• Total harmonic distortion: 0.003%
• Crosstalk: 95 dB or higher
