Monacor EDL-42HQ PA Hi-Fi Wall and Ceiling Speaker

Monacor EDL-42HQ PA Hi-Fi Wall and Ceiling Speaker

Name: Monacor EDL-42HQ PA Hi-Fi Wall and Ceiling Speaker - A1 Sound
Brand: Monacor
SKU: EDL-42HQ
Price: 950.00 ZAR
Availability: InStock

SKU: EDL-42HQ Brand: Monacor

R950,00

Compare

18 People watching this product now!

Description

EDL-42HQ

PA hi-fi wall and ceiling speaker, 15 W

100 V transmission technology or 8 Ω operation
Power taps: 100 V (8/4/2/1 W)
2-way version with coaxial dome tweeter
10 cm (4″) bass speaker with waveguide and 20 mm (3/4″) silk dome
Excellent sound characteristics
Supplied with 2 stylish protective metal grilles for an individual look
Protective grille to be magnetically attached
For a wall thickness/ceiling thickness from 8 to 30 mm

Technical specifications EDL-42HQ

EDL-42HQ
Impedance (Z)	8 Ω
Transmission technology	100 V or low-impedance
Frequency range	70-20,000 Hz
Resonant frequency (fs)	70 Hz
Power rating (RMS)	15 W (8 Ω)8/4/2/1 W (100 V)
Peak music power output (MAX)	30 W
SPL	85 dB/W/m
Max. rated SPL	96 dB

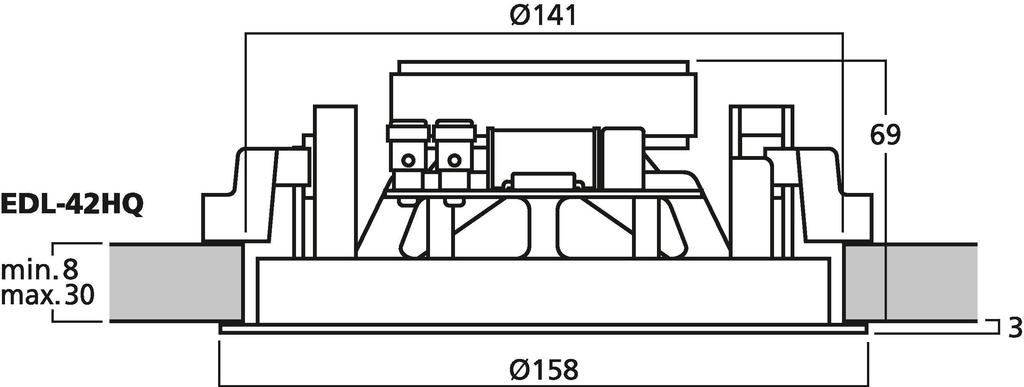

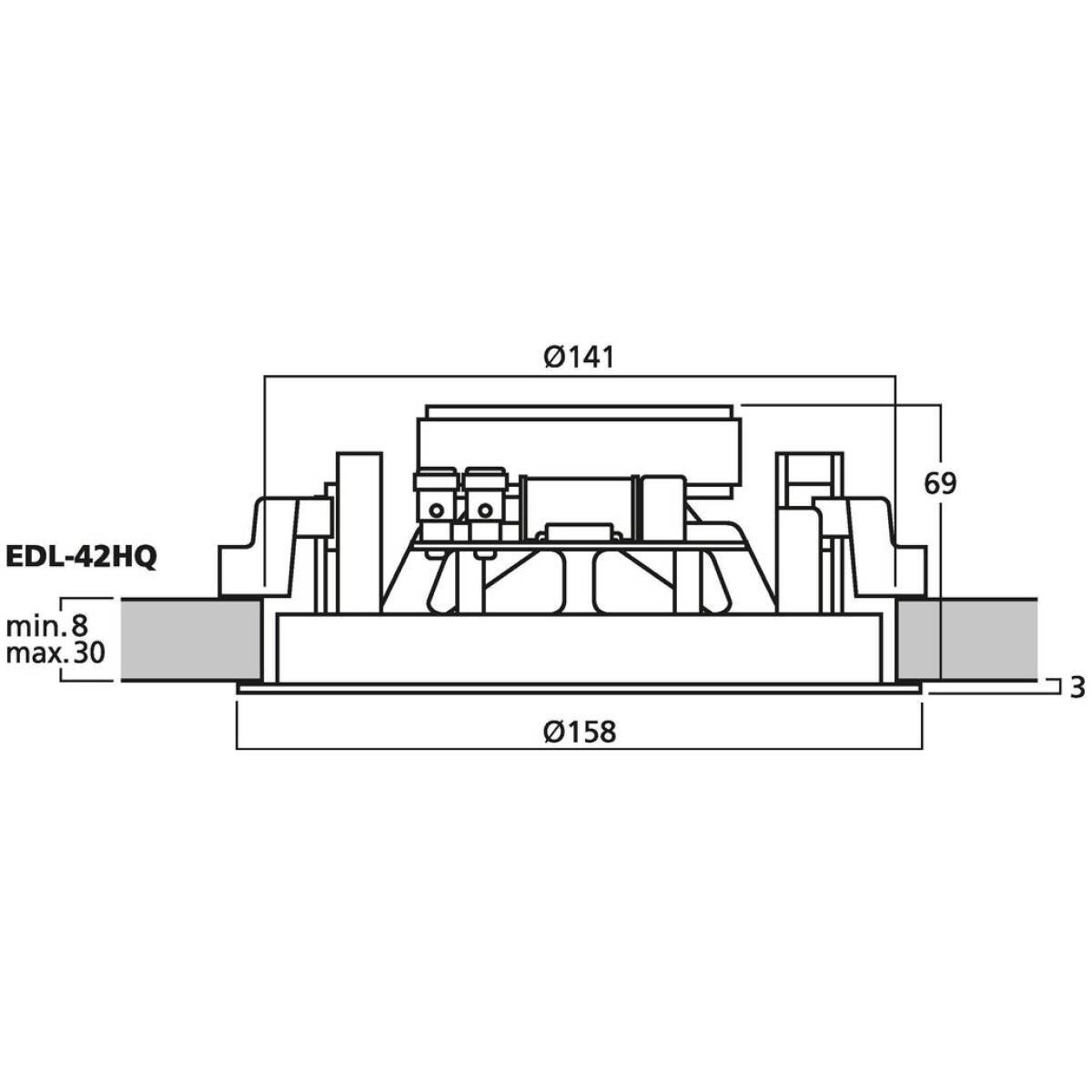

Mounting cutout	Ø 141 mm
Mounting depth	70 mm
Dimensions	Ø 158 mm x 72 mm
Outside diameter	Ø 158 mm
Width	Ø 158 mm
Height	Ø 158 mm
Depth	70 mm
Colour	white
Admiss. ambient temp.	0-40 °C
Weight	0.930 kg
Packing unit	1
Type of speaker	100
Packaging dimensions (W x H x L)	0.174 x 0.085 x 0.174 m
Gross weight	1.08 kg
Net weight	0.945 kg
