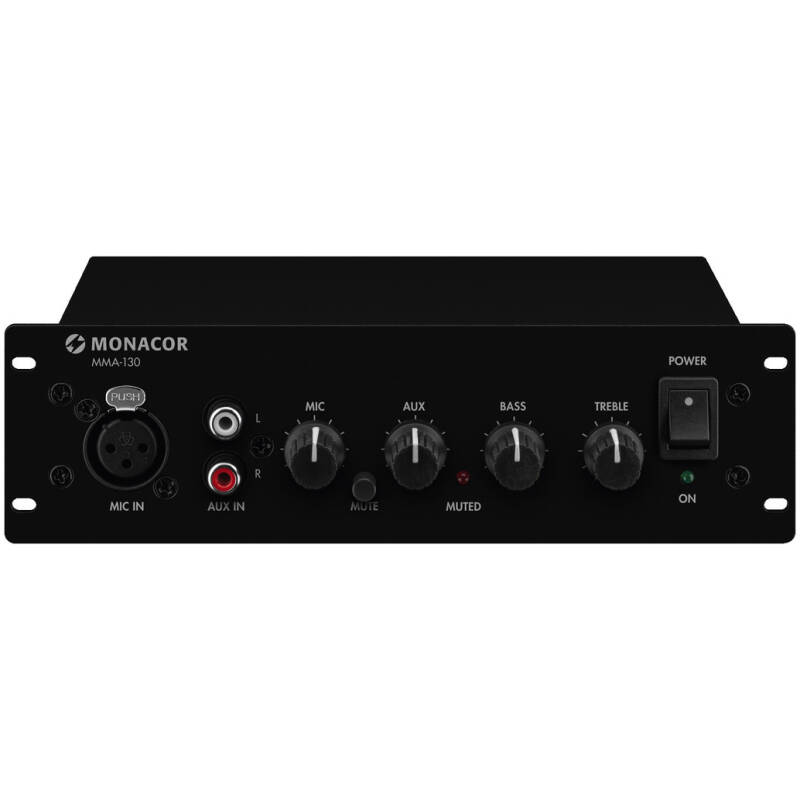

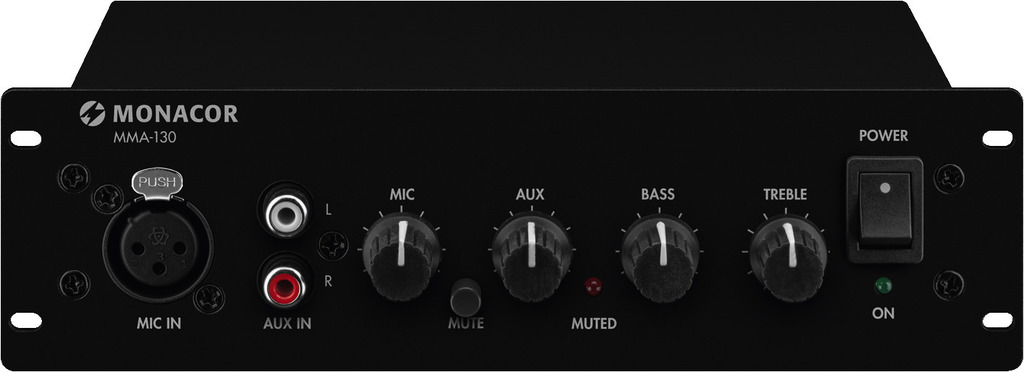

Monacor MMA-130 Mixing Amplifier
Monacor MMA-130 Mixing Amplifier - Image 2
Monacor MMA-130 Mixing Amplifier - Image 3

Monacor MMA-130 Mixing Amplifier

R1 670,00

×

Beat The Price Request

Got a lower price elsewhere? Share the link or an official quote with us, and we'll do our best to match or beat it!

AttributeValue
Number of Channels2
Power Output at 8 Ohms Per Channel:30 W
Power Output at 4 Ohms Per Channel:15 W
Power Output at 2 Ohms Per Channel:7,5 W
Bridge Mode PowerNot Specified
Amplifier Class:D
Shipping Weight:0,9 Kg
Compare
15 People watching this product now!

Description

MMA-130
The MMA-130 is a mono class D mixing amplifier with 30 W (8 Ω). The device has been developed in-house according to the specifications of a globally operating crane manufacturer and thus is perfectly matched to the application in the crane operator’s cabin. The MMA-130 is used for the crane operator’s announcements made to people within the pivoting range of the crane.
The compact dimensions of the amplifier which are matched to the dimensions of a standard slot in a motor vehicle and the voltage supply of DC 12-24 V allow for a wide range of additional applications.
The temperature range from -25 °C to +50 °C required for the area of application can easily be realised due to the selected components.
Mono class D PA mixing amplifier,
30 W/8 Ω.
  • 1 microphone input and 1 line input, adjustable
  • Line input each on the front panel and rear panel
  • Bass and treble controls
  • Mute switch
  • LED indication for mute and operation
  • Standard mounting dimensions (suitable for slots in motor vehicles)
  • Power supply: DC 12-24 V

Technical specifications MMA-130

MMA-130
Peak output power 30 W
Power rating 30 W
Power rating at 4 Ω 15 W
Power rating at 8 Ω 30 W
Channels 2
Inputs 1.9 mV/560 Ω (mic),220 mV/4.8 kΩ (line)
Frequency range 20-20,000 Hz
Equalizer bass ± 12 dB
Equalizer treble ± 12 dB
THD < 0.11%
Power supply DC 12-24 V/1.5 A
Admiss. ambient temp. -25 °C to +50 °C
Width 200 mm
Height 56 mm
Depth 125 mm
Weight 724 g

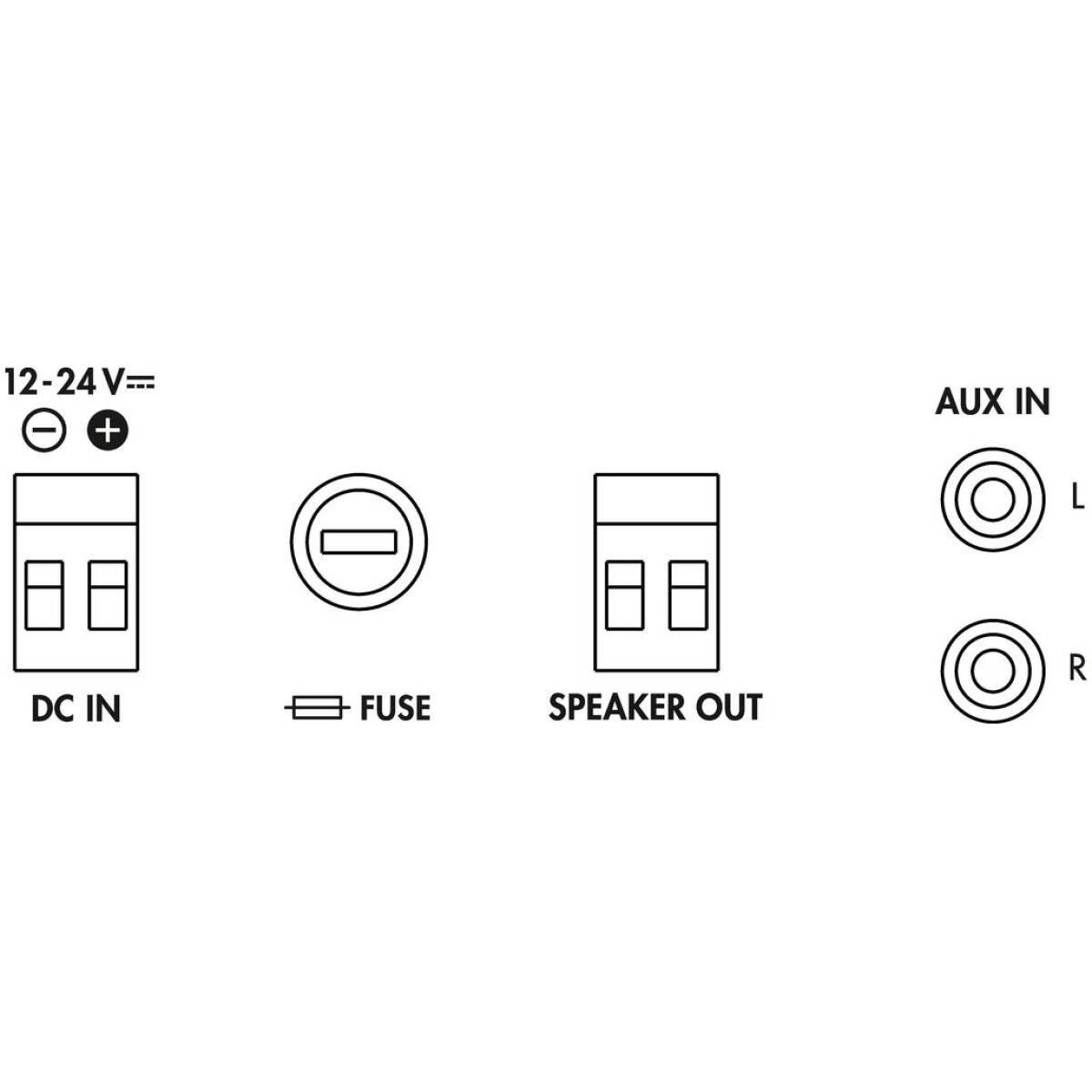

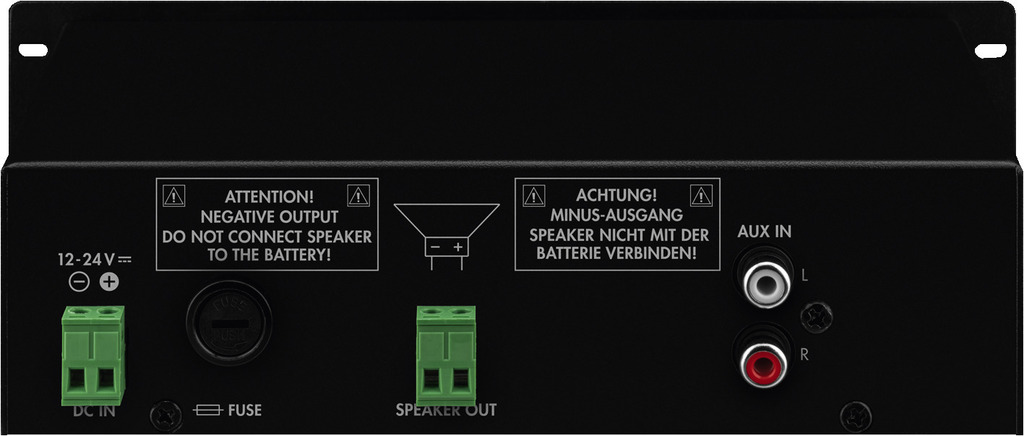

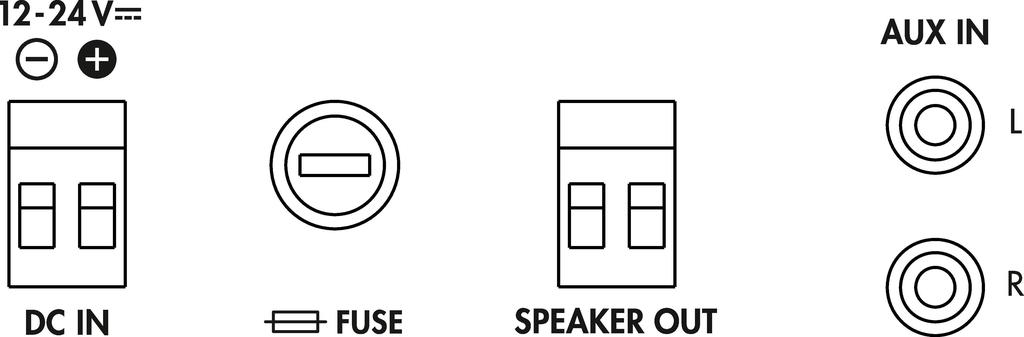

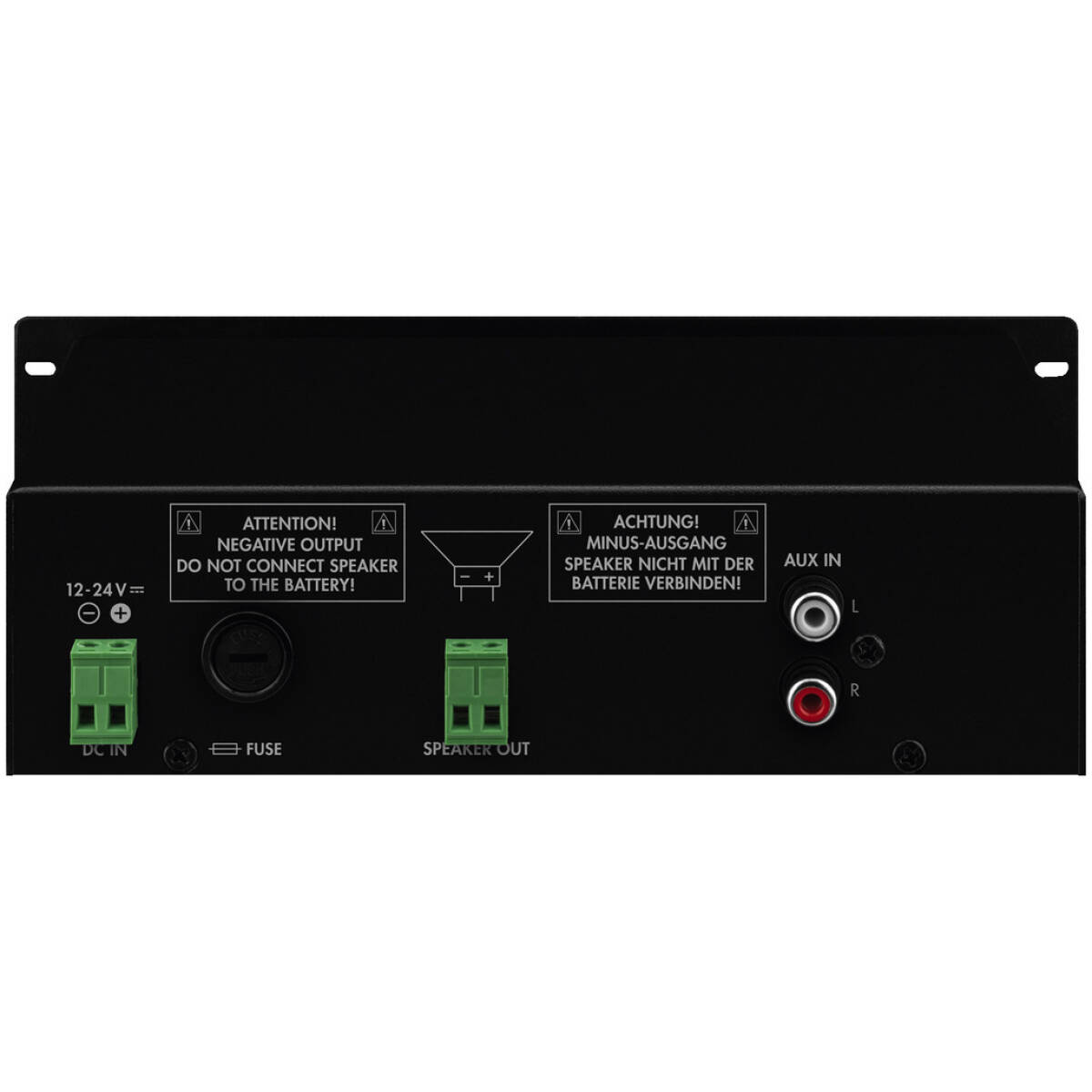

Connections 1 x XLR (mic input),2 x RCA L/R (line input),

1 x 2-pole plug-in screw terminal (speakers)


Packaging dimensions (W x H x L) 0.2 x 0.055 x 0.125 m
Gross weight 0.936 kg
Net weight 0.724 kg
MMA-130
EAN code 4007754276695
Net weight 0.724 kg
