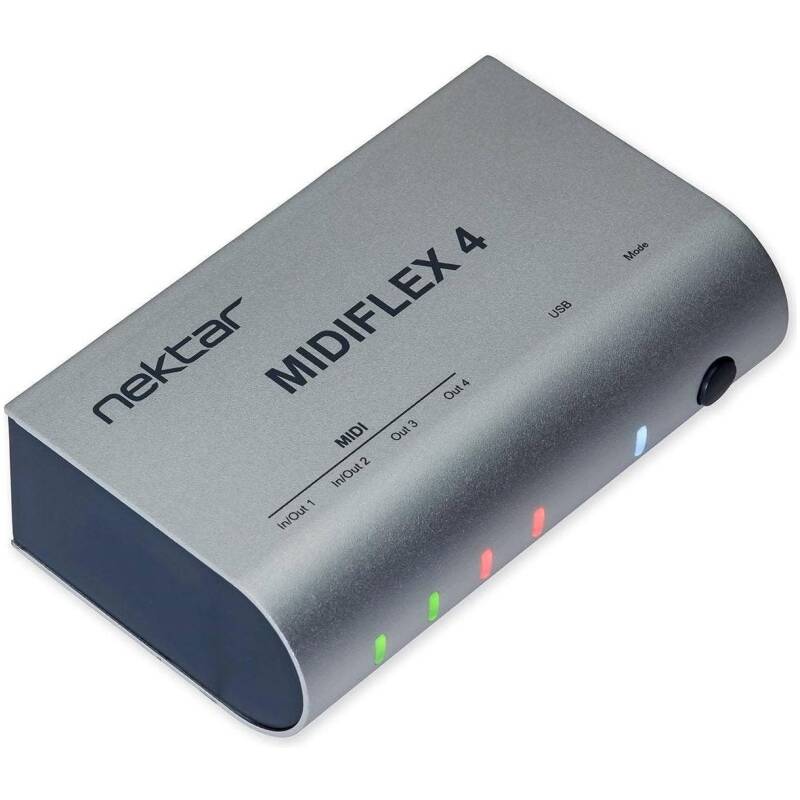

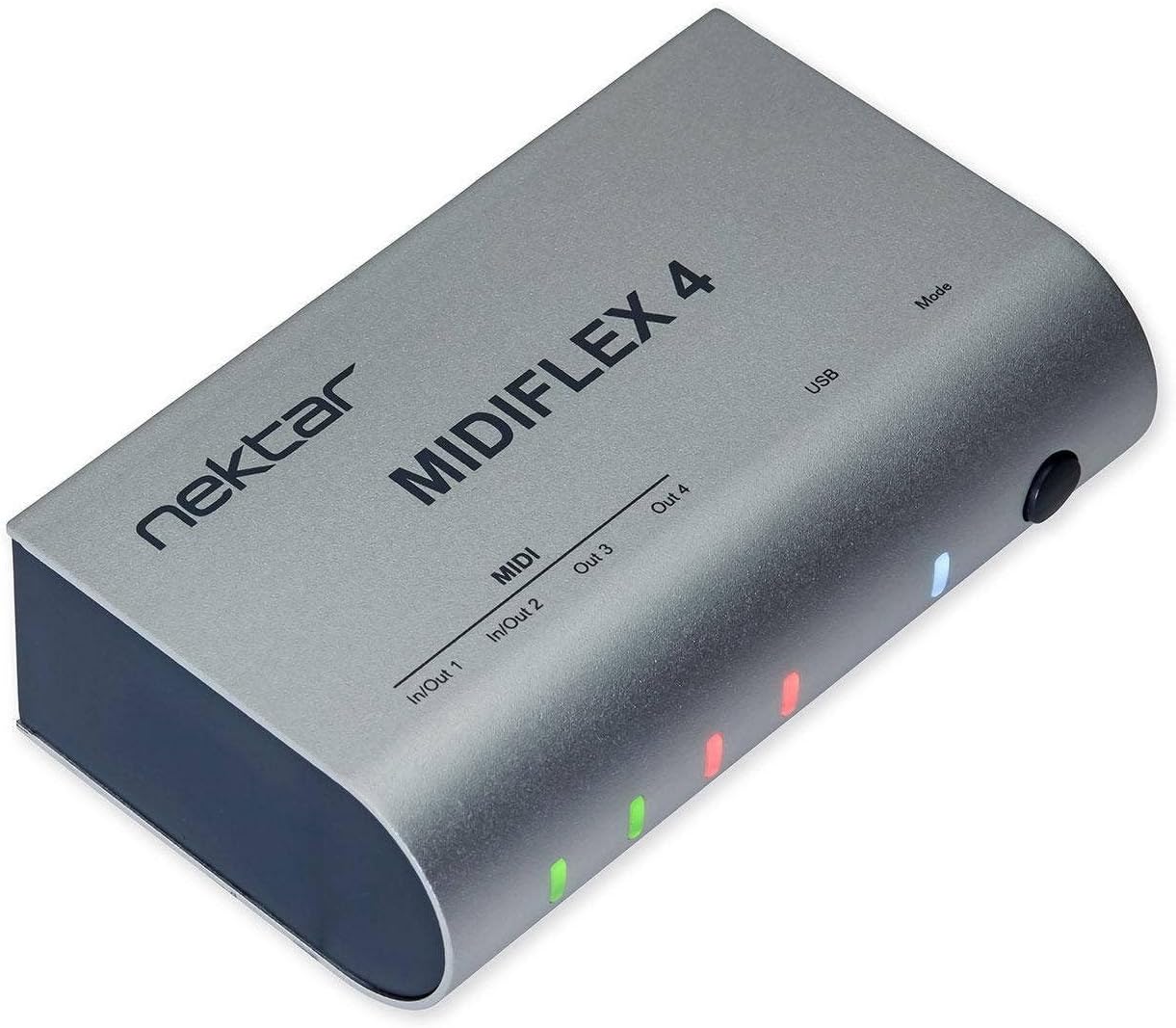

NEKTAR MIDIFLEX 4 USB MIDI Interface

The Nektar MIDIFLEX 4 USB MIDI interface brings flexible MIDI connections to any MIDI setup on MacOS, Windows or iOS. The 4 MIDI ports can be configured as 1 in / 3 out, 2 in / 2 out or 4 out interface – and if you need even more ports, simply connect another MIDIFLEX 4 to expand your MIDI power!

No driver required: The MIDIFLEX 4 is USB class-compliant, so setup is practically instant! Simply connect the MIDIFLEX 4 to your computer and the ports become available in your DAW software’s MIDI settings.

Automatic port detection: Even better, MIDIFLEX 4 also automatically detects if a MIDI In- or Output is connected and displays the setting with its MIDI port LED indicators. So just connect your external MIDI gear and let MIDIFLEX do the rest. The 4 LEDs indicate if a port is configured as In- or Output.

Expand your ports with multiple units: We know that it’s never enough – if you need more ports, simply connect another MIDIFLEX 4 for more ports!  For instance with 3 MIDIFLEX 4, you could build a system with 4 MIDI Ins and 8 MIDI Outs! And if that’s still not enough, you could always add another one…

SPECIFICATIONS

• USB class-compliant MIDI interface
•  4 configurable MIDI Ports: 1 in / 3 out, 2 in / 2 out, 4 out
• Automatic MIDI in-/output detection
• Multiple MIDIFLEX4 units can be used at the same time to expand the number of MIDI ports
• 2-1 MIDI merge or 1-3 MIDI split box in stand-alone mode (requires optional USB power supply)
• Aluminum housing with 4 port status LEDs, 1 power LED and mode button
• Powered by USB or optional external standard USB power supply
• Includes standard USB cable and Bitwig 8-Track software license card
• Works with any MIDI music software on OS X, Windows and Apple iOS
• Connections: 4 x MIDI DIN socket, 1 x USB B plug
• Dimensions: 11,1 cm (L) x 6,5 cm (D) x 3,3 cm (H)
• Weight: 180 gr(*= requires Nektar DAW Integration)
