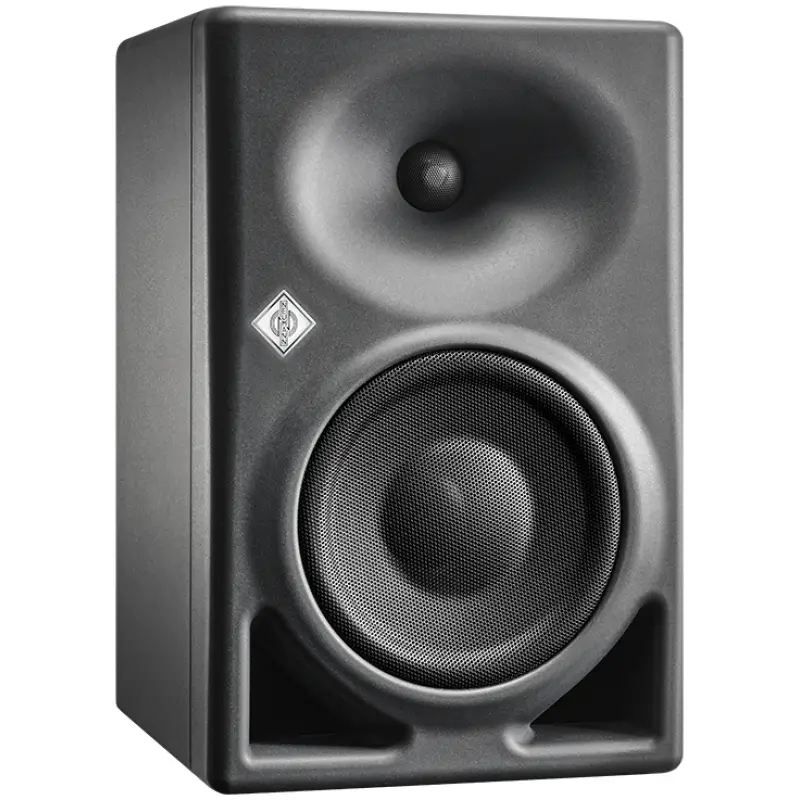

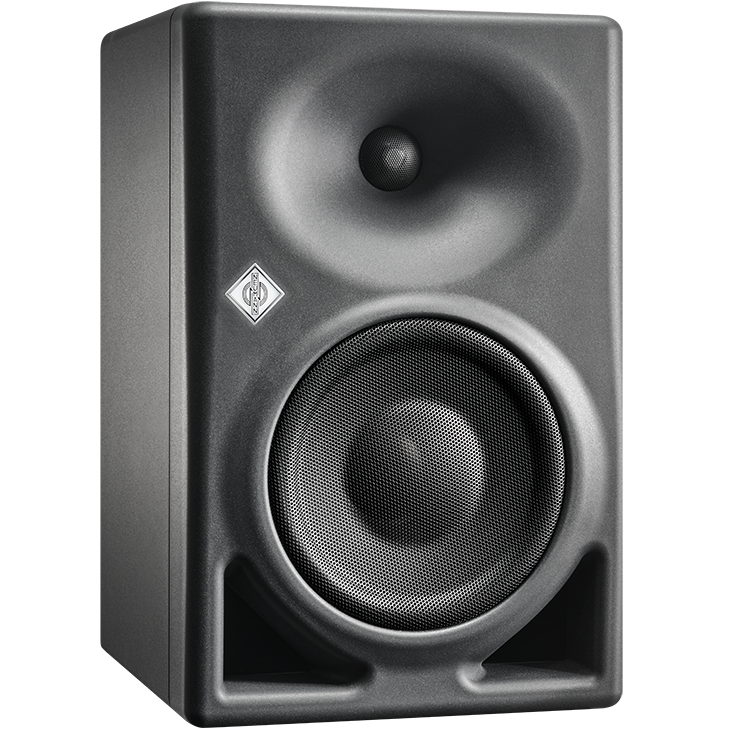

Neumann KH 150 EU/KC Studio Monitor

The Neumann KH 150 EU/KC is a premium two-way bi-amplified DSP-controlled studio monitor designed for uncompromising accuracy in modern production spaces. It combines the legendary Neumann engineering heritage with cutting-edge digital signal processing to deliver outstanding precision, deep low-end extension, and superior room integration capabilities.

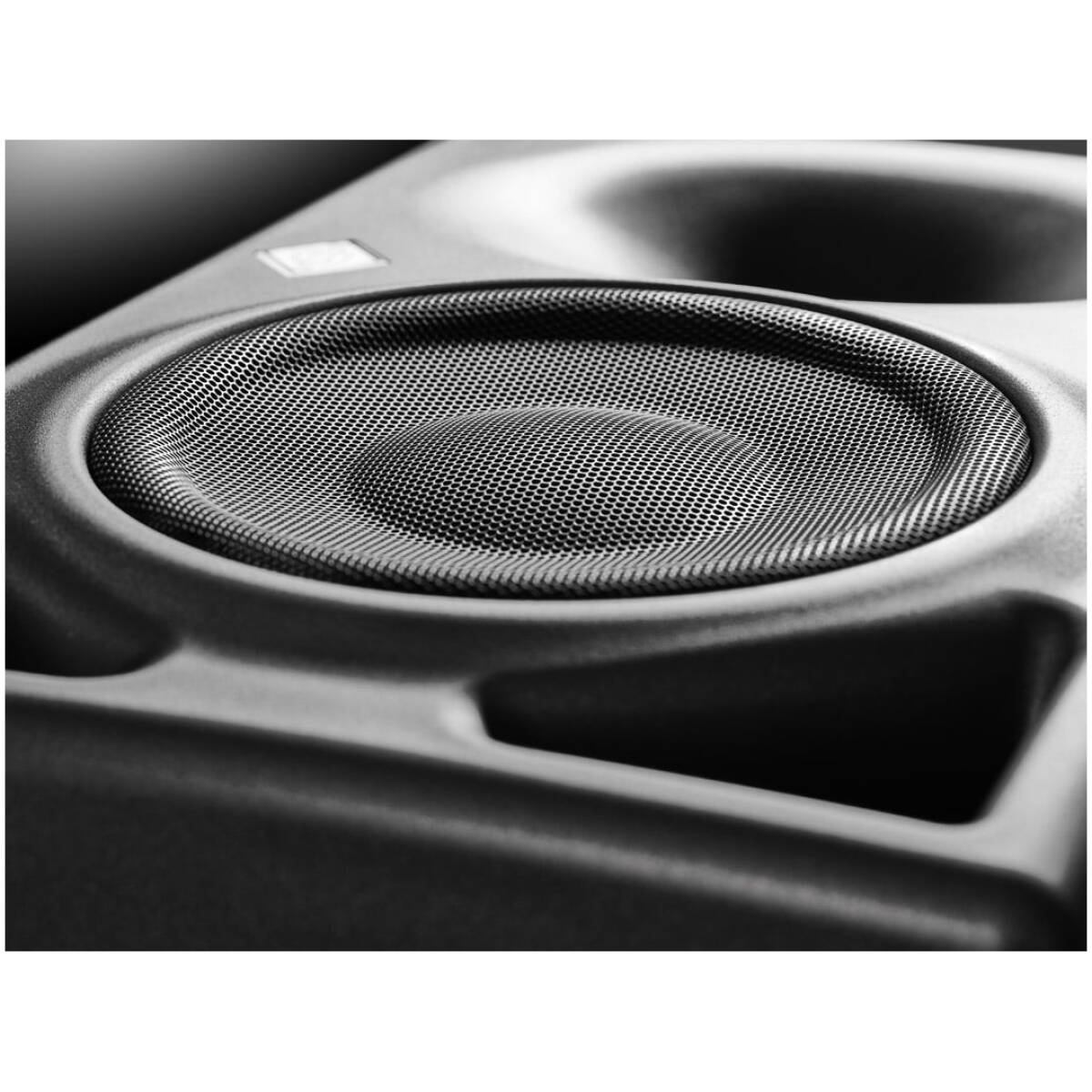

Equipped with a 6.5″ composite sandwich cone woofer and 1″ titanium fabric dome tweeter, each powered by dedicated Class-D amplifiers (145 W LF / 100 W HF), the KH 150 achieves remarkable clarity and headroom. Its DSP-based electronics allow for phase-linear crossovers, delay alignment, and seamless integration with the Neumann MA 1 Automatic Monitor Alignment System for acoustic calibration.

The EU/KC version features AES67 network audio compatibility (supporting Dante® and Ravenna standards), making it ideal for networked studio infrastructures. A precisely engineered Mathematically Modelled Dispersion™ (MMD™) waveguide ensures a wide sweet spot and consistent imaging, while the die-cast aluminum cabinet minimizes resonance for clean, distortion-free performance.

Key Features:

• 2-way bi-amplified DSP-powered nearfield monitor (single unit)

• AES67 network audio interface (EU/KC version) – Dante® and Ravenna compatible

• Compatible with Neumann MA 1 Automatic Monitor Alignment system

• 6.5″ woofer and 1″ tweeter with 145 W + 100 W Class-D amplification

• Frequency response: 39 Hz – 21 kHz (±3 dB)

• Maximum SPL (pair, 1 m): 118 dB

• Phase-linear DSP crossover for exceptional imaging

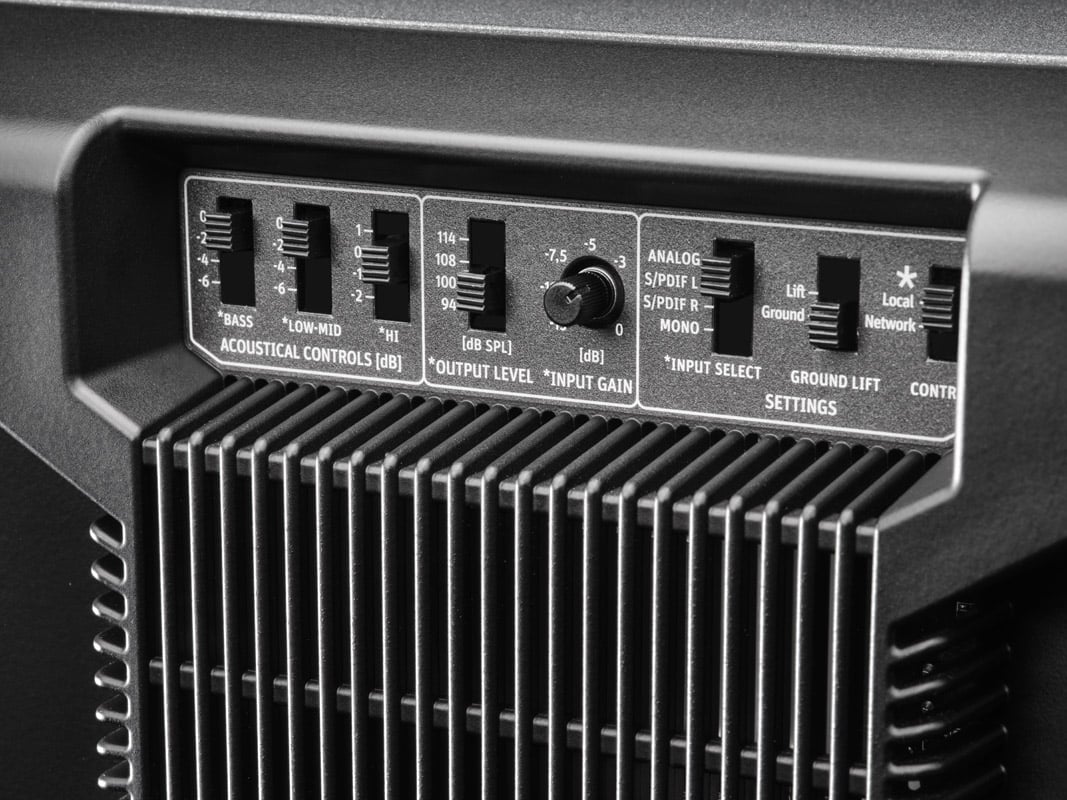

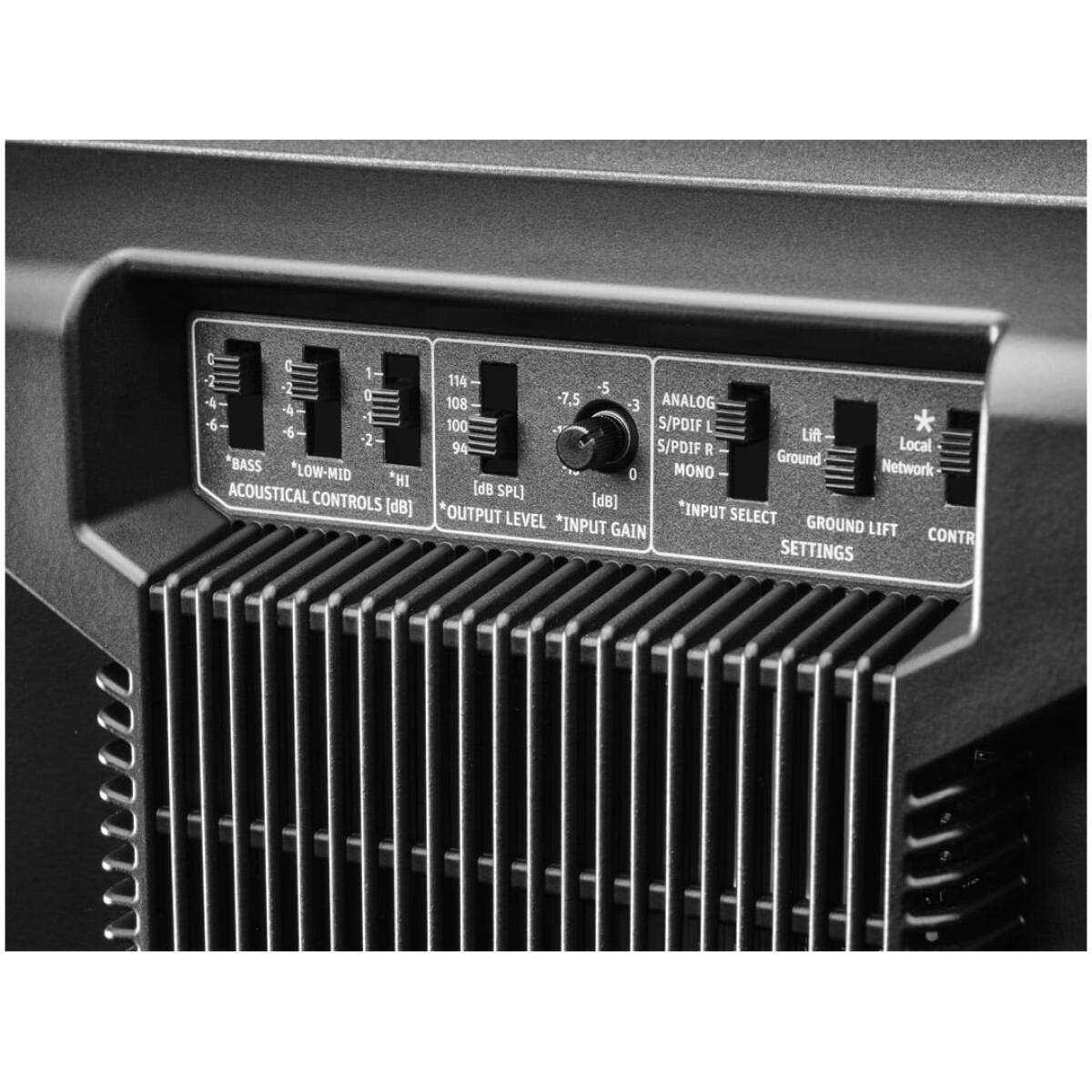

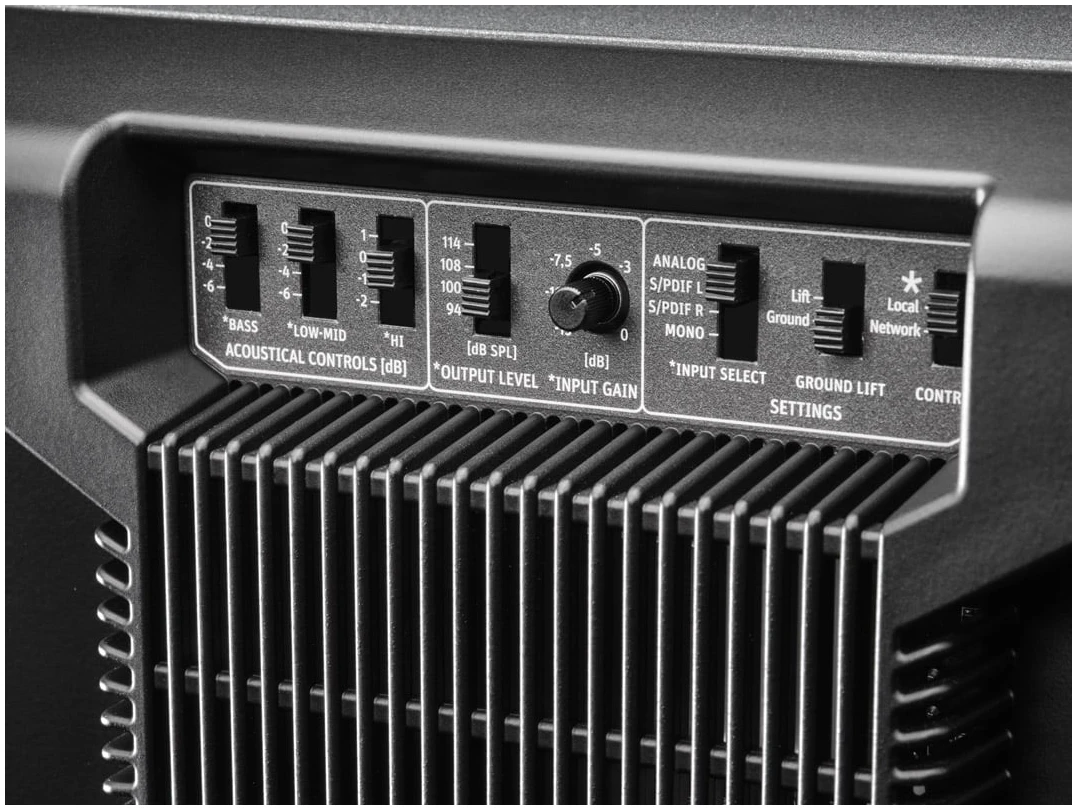

• Rear-panel EQ and delay settings for room adaptation

• Universal 100–240 V AC operation

• Rugged aluminum cabinet with integrated mounting points

• Finish: Anthracite

Specifications:

• Type: 2-way active DSP-powered nearfield monitor

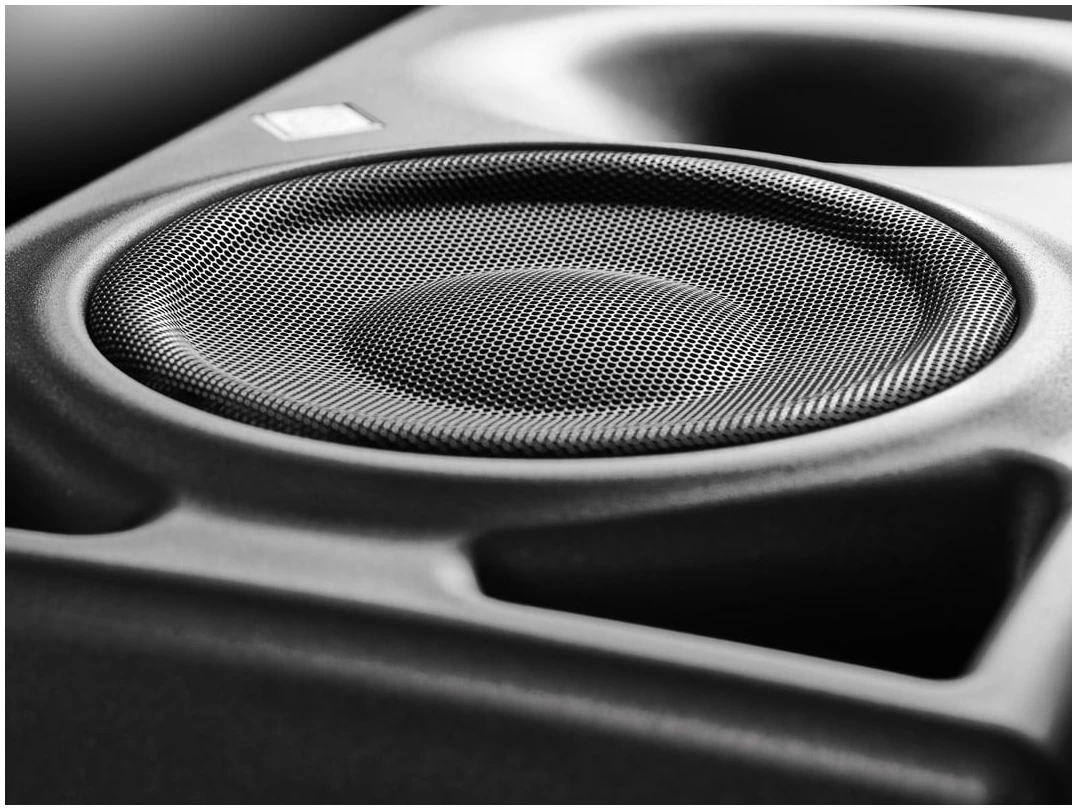

• Woofer: 165 mm (6.5″)

• Tweeter: 25 mm (1″) titanium fabric dome

• Amplifier Power: 145 W LF / 100 W HF

• Frequency Response: 39 Hz – 21 kHz (±3 dB)

• Max SPL: 118 dB (pair, 1 m)

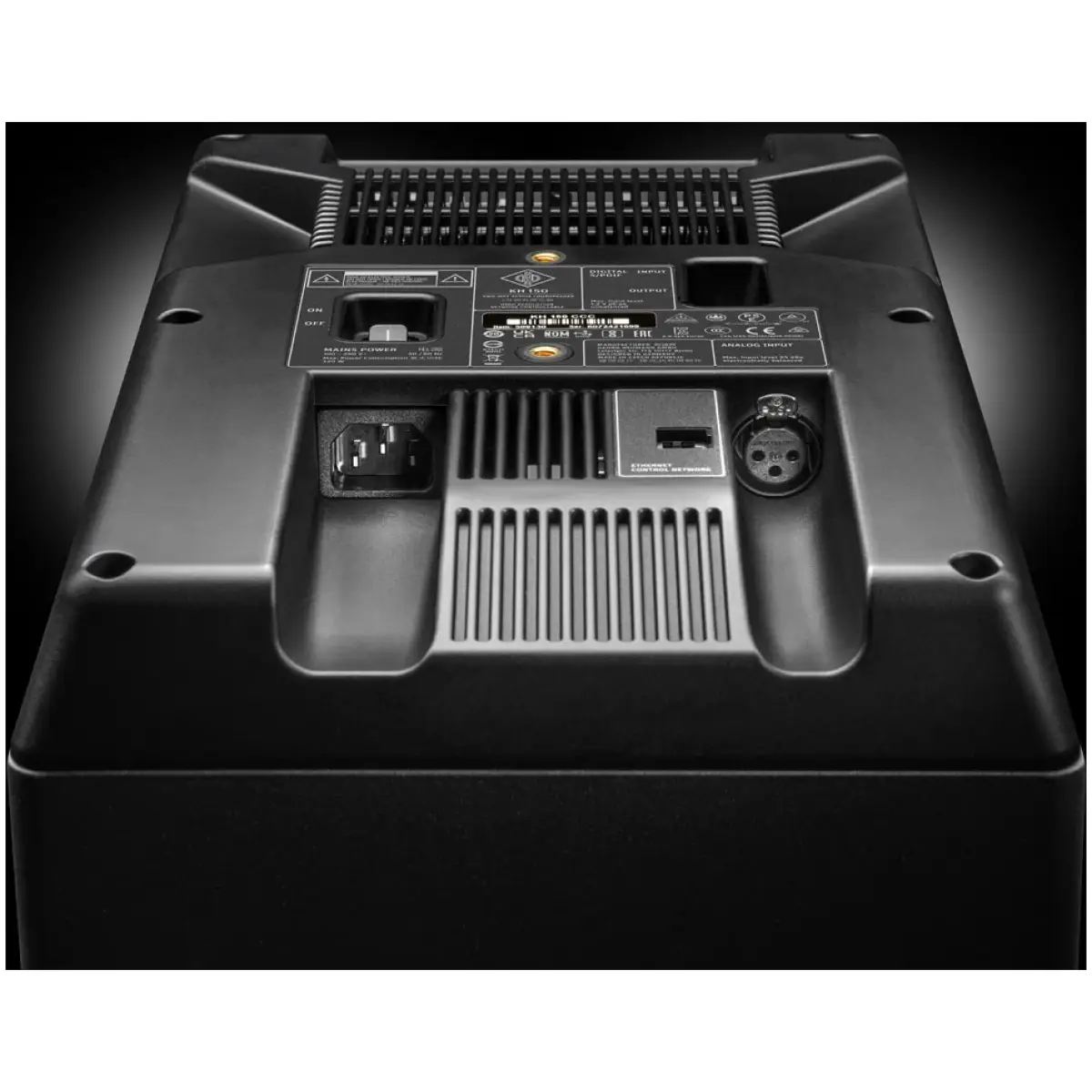

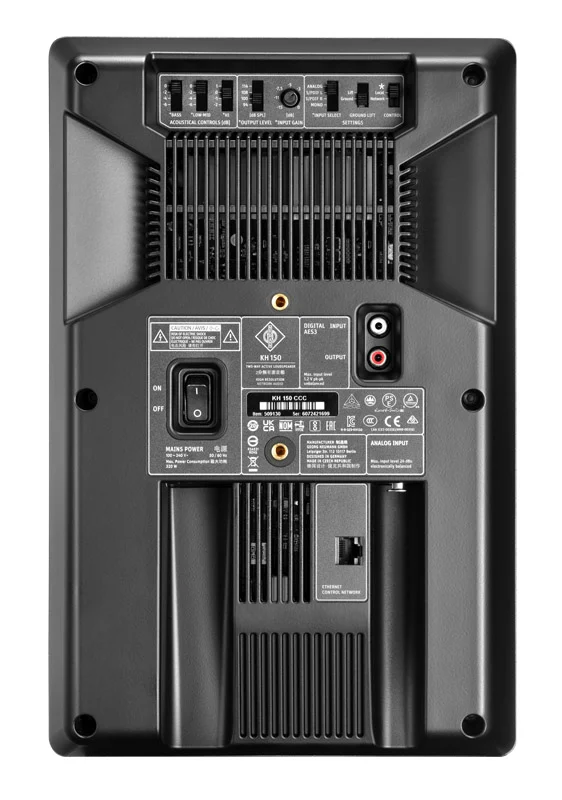

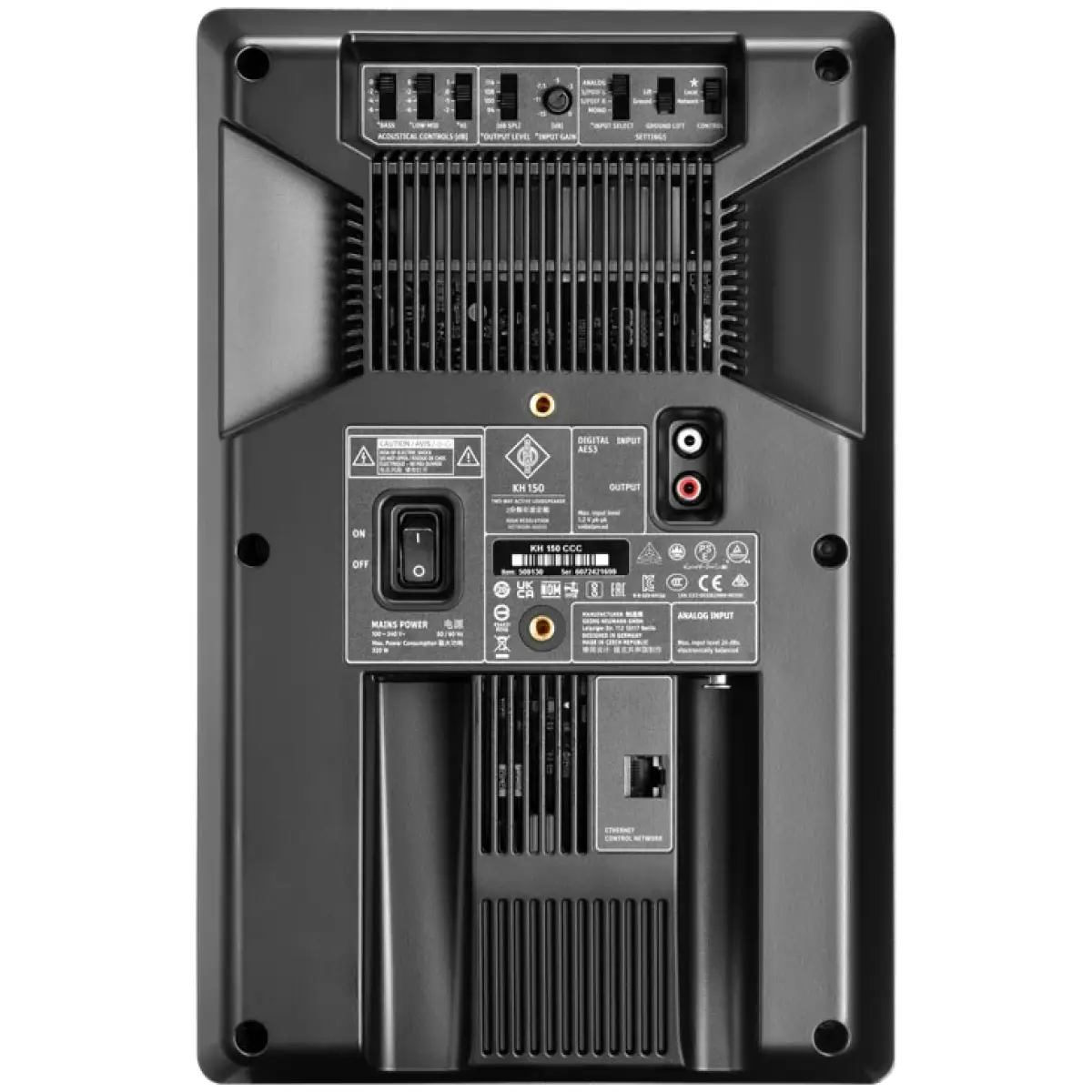

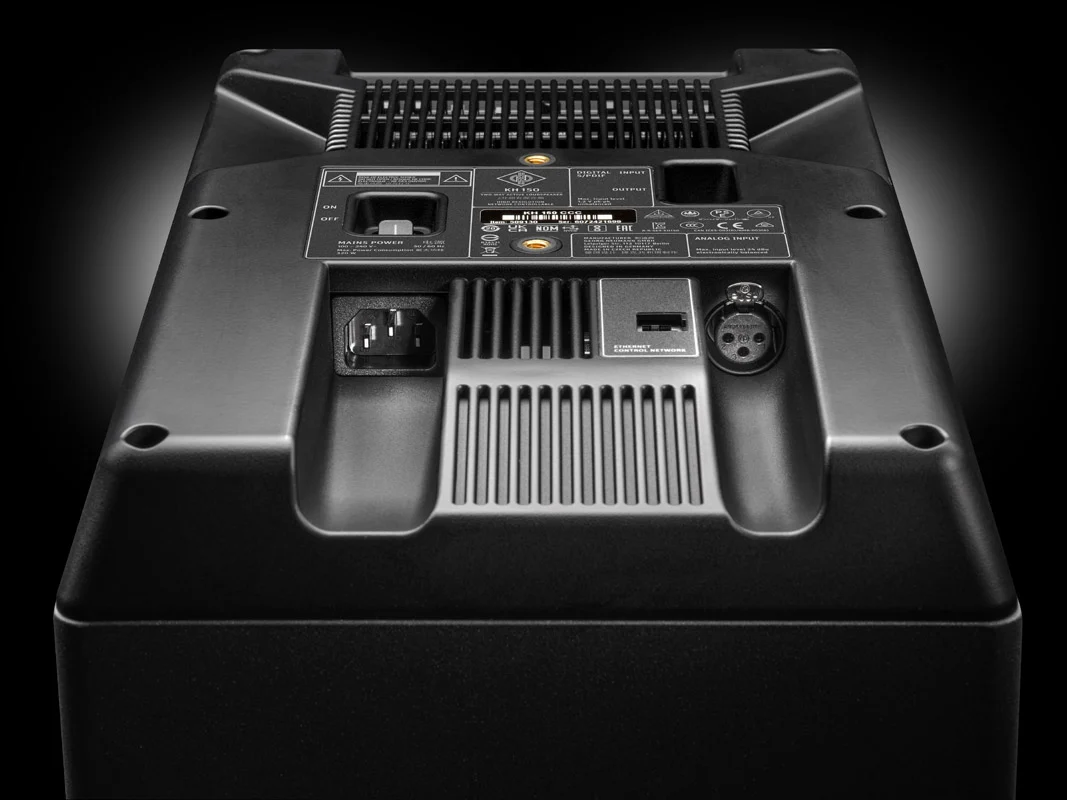

• Inputs: Analog XLR / AES67 (Dante & Ravenna compliant)

• Mains Voltage: 100–240 V AC, 50/60 Hz
