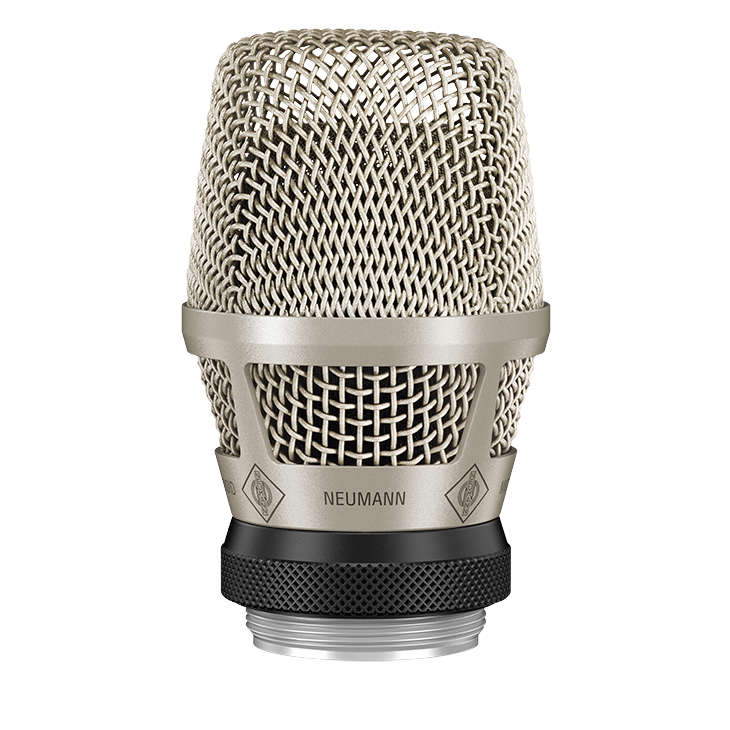

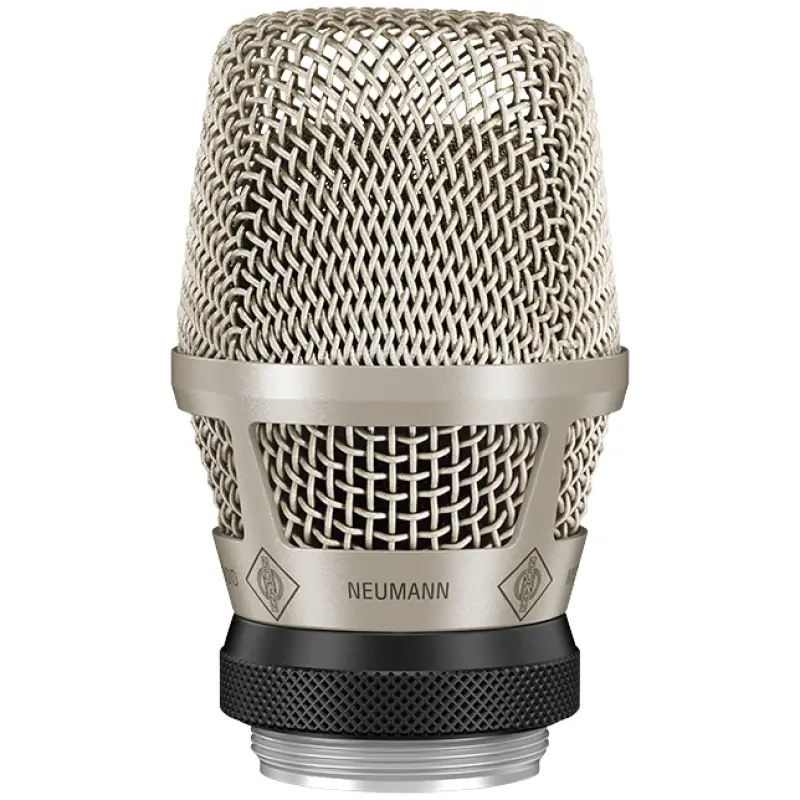

The Neumann KK 105 U is a supercardioid condenser microphone capsule designed to deliver Neumann’s renowned studio sound to the stage through Sennheiser wireless systems. Based on the legendary Neumann KMS 105 vocal microphone, it provides the same detailed, transparent sound and superior vocal presence — now available for wireless use.
Optimized for live performance, the KK 105 U features a smooth frequency response, high gain before feedback, and low handling noise. Its supercardioid pattern ensures focused sound pickup and outstanding isolation, even in challenging acoustic environments. The integrated pop protection system and rugged metal grille make it ideal for touring, worship, and broadcast applications.
Key Features:
-
True condenser capsule with supercardioid polar pattern
-
Studio-grade sound with open, natural vocal reproduction
-
Based on the Neumann KMS 105 design
-
Frequency response: 40 Hz – 20 kHz
-
High feedback rejection and excellent off-axis performance
-
Low handling noise and integrated pop protection
-
Compatible with Sennheiser SKM 100 / 300 / 500 G4, SKM 6000 / 9000, and EW-D / EW-DX transmitters
-
Rugged nickel-finished metal housing
-
Designed and manufactured in Germany
Specifications:
-
Transducer Type: Externally polarized condenser
-
Polar Pattern: Supercardioid
-
Frequency Response: 40 Hz – 20 kHz
-
Sensitivity: 2.8 mV/Pa (–51 dBV/Pa)
-
Equivalent Noise Level: 18 dB(A)
-
Maximum SPL: 150 dB (for 0.5% THD)
-
Dynamic Range: 132 dB (A-weighted)
-
Connector Interface: Standard Sennheiser wireless capsule thread (for SKM handhelds)
