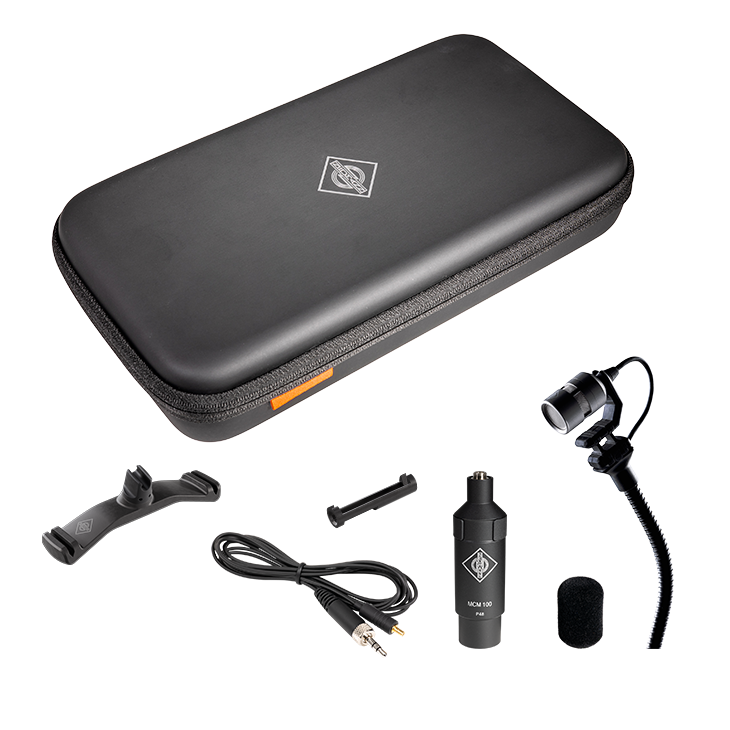

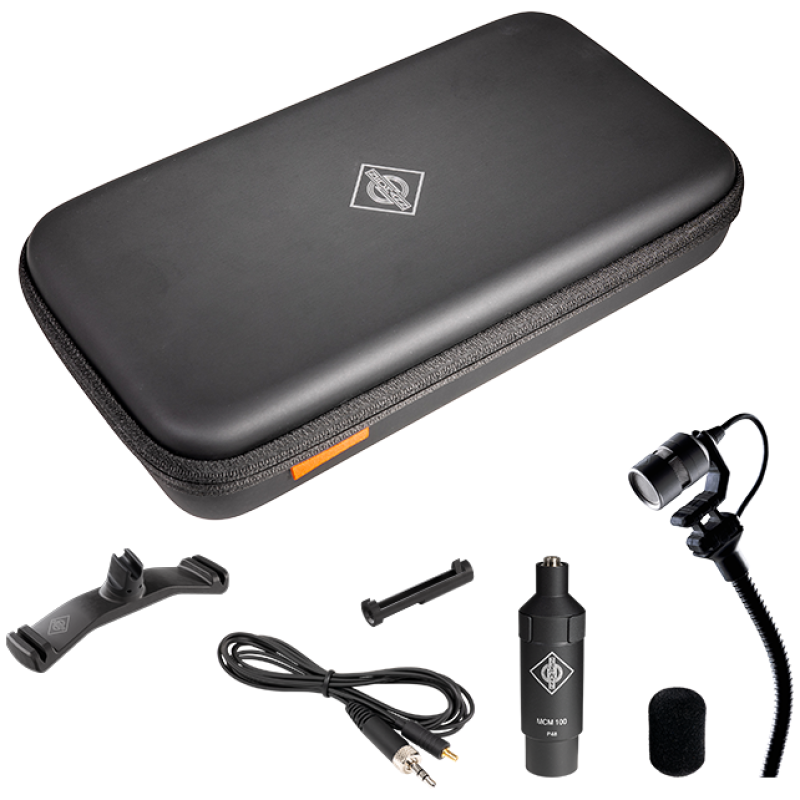

The Neumann MCM 114 Set Double Bass is a premium miniature condenser microphone system designed specifically for double bass and similar large string instruments. It combines the KK 14 cardioid capsule, SH 150 gooseneck, and the MC 3 rib clip, delivering rich, natural low-frequency response with exceptional detail, isolation, and stability.
Engineered as part of the Neumann Miniature Clip Mic (MCM) modular system, this set brings Neumann’s world-class studio sound to stage performance, broadcast, and recording. The MC 3 clip mounts securely to the bass rib without damaging the instrument’s finish and allows precise positioning of the microphone.
Key Features
-
Studio-grade KK 14 true condenser capsule with 20 Hz – 20 kHz frequency response
-
Designed for double bass, with full-bodied tone and accurate transient capture
-
Handles SPL levels up to 152 dB, ideal for both arco and pizzicato playing styles
-

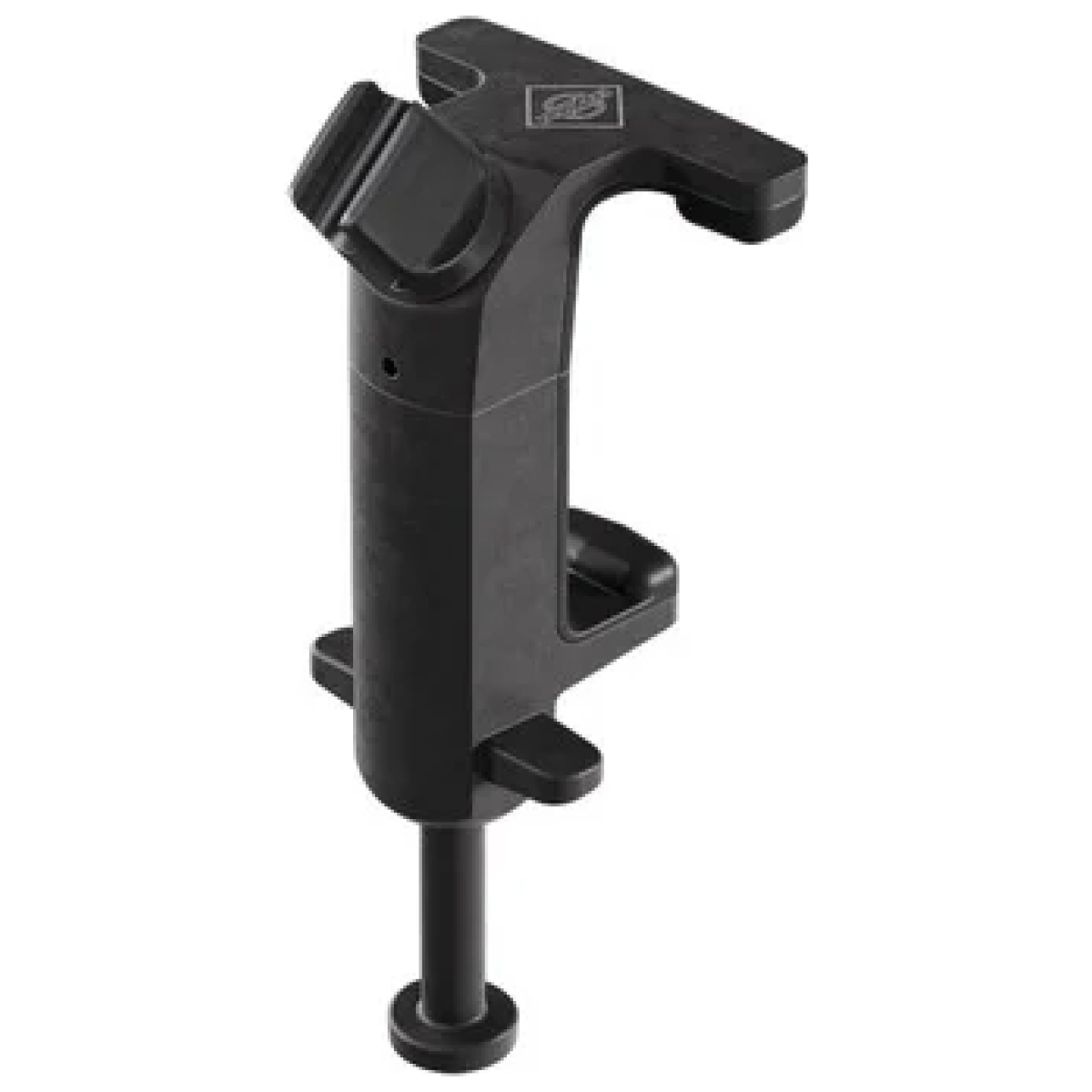

MC 3 rib clip attaches securely to the instrument without scratches or vibration transfer
-
SH 150 flexible gooseneck enables precise placement near the f-hole or bridge area
-
Modular system—capsule, cable, gooseneck, and clip are all interchangeable
-
Compatible with Neumann MCM 100 output stage and most wireless transmitters
-
Ultra-low self-noise (23 dB A) and high sensitivity (3.6 mV/Pa) for pristine clarity
Technical Specifications
Microphone Type: True condenser
Polar Pattern: Cardioid
Frequency Response: 20 Hz – 20 kHz
Sensitivity: 3.6 mV/Pa
Equivalent Noise Level: 23 dB (A)
Maximum SPL (THD < 0.5 %): 152 dB
Rated Impedance: 50 Ω
Connector Type: 3.5 mm locking / mini XLR / LEMO (depending on cable)
Power Supply: Wireless bodypack or Neumann MCM 100 output stage
Operating Temperature: 0 °C – 40 °C
