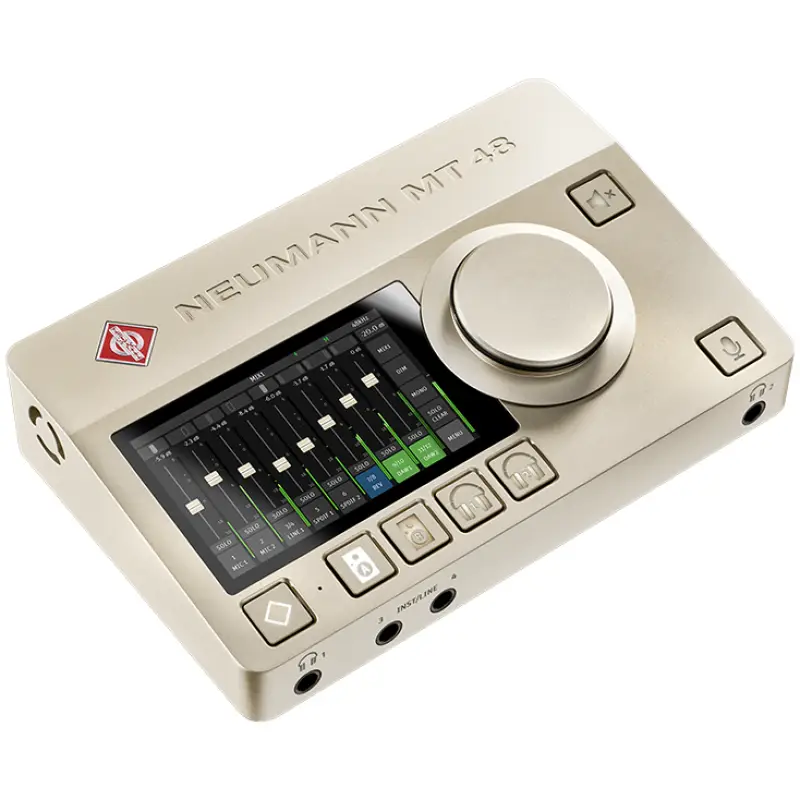

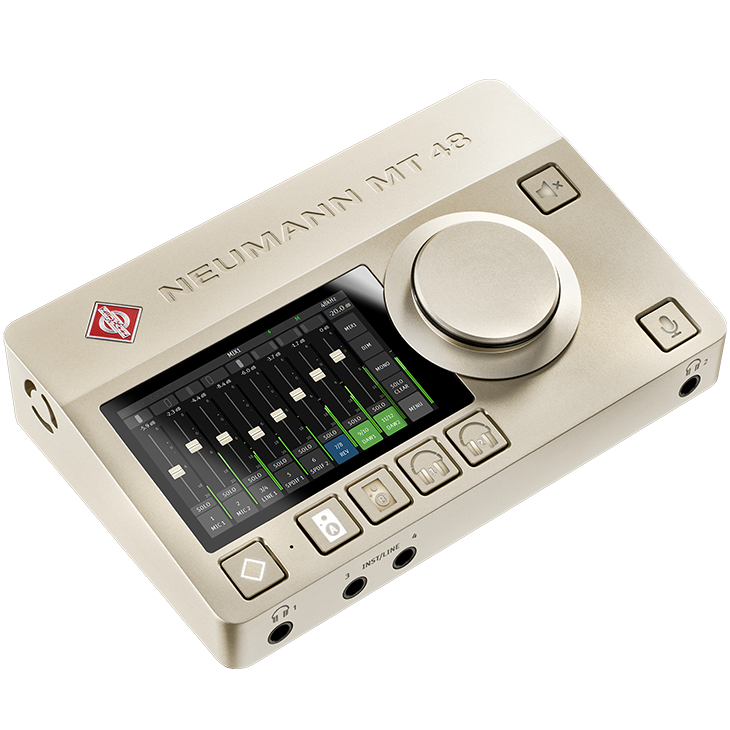

The Neumann MT 48 U is a high-resolution USB audio interface that brings Neumann’s reference-grade studio quality to recording, mixing, and monitoring.
Co-developed with Merging Technologies, it provides ultra-low-noise preamps, dual-converter architecture, and DSP-based mixing & processing.

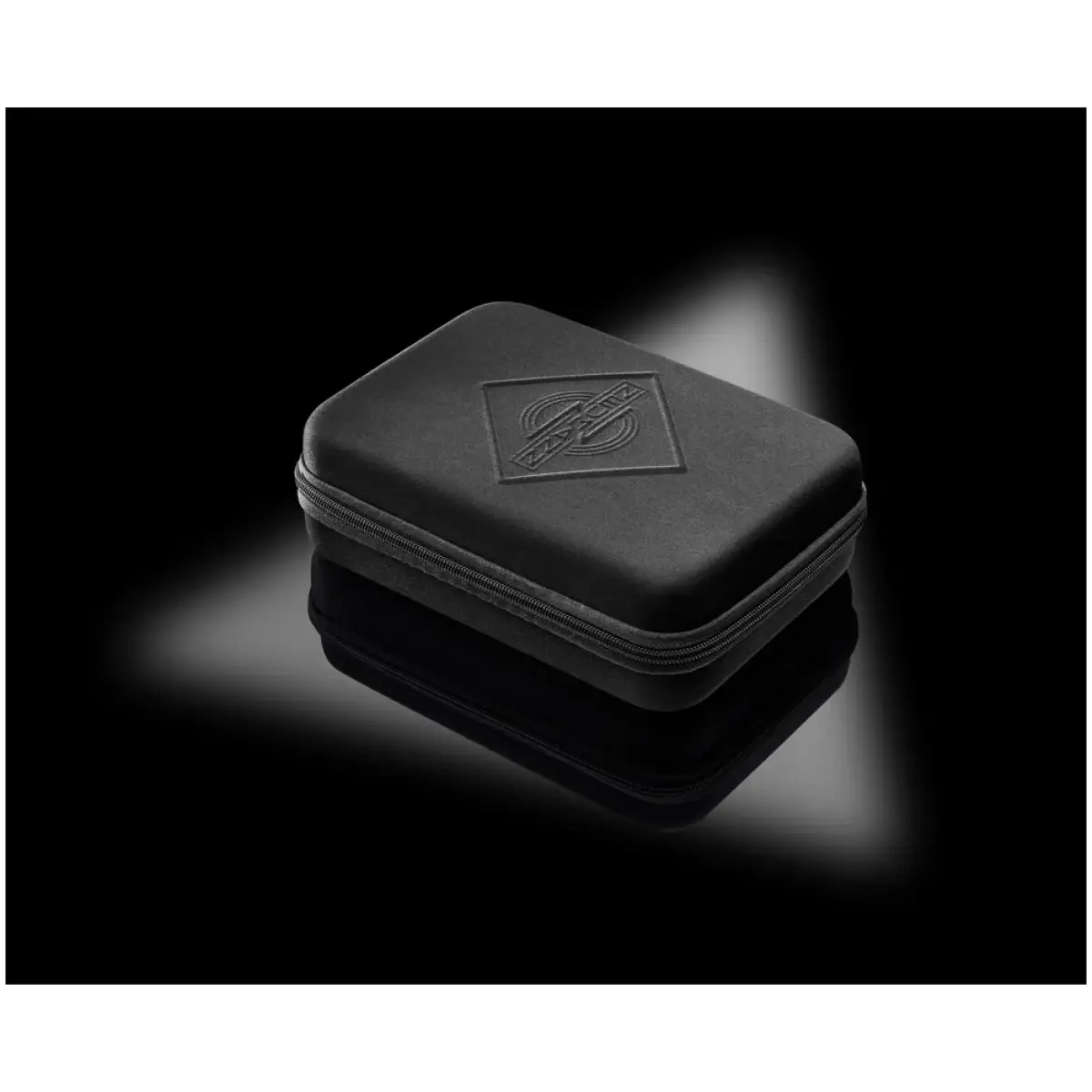

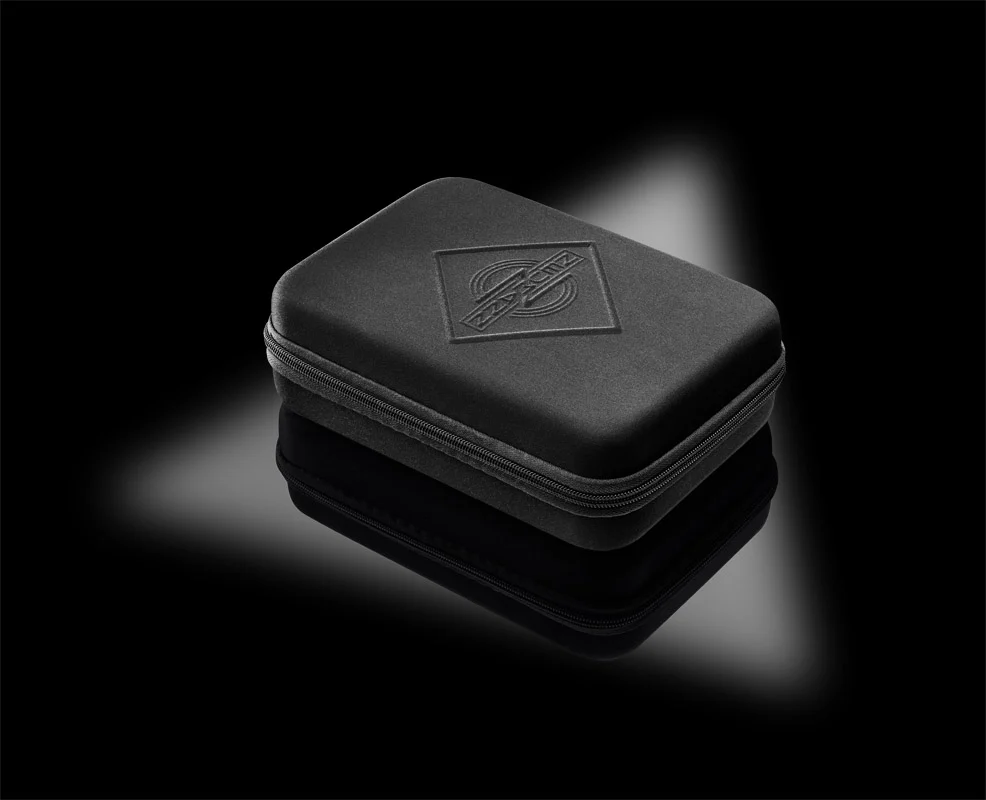

The “U” version connects via both USB-A and USB-C, offering broad compatibility with computers and mobile devices, and includes a protective softcase and both data cables.
Key Features
-
32-bit / 192 kHz conversion for pristine audio fidelity
-
Dual A/D converter topology for up to 136 dB dynamic range on inputs
-
4 analog inputs (2 mic/line + 2 instrument/line) and 4 analog outputs (2 monitor + 2 line / phones)
-
2 headphone amplifiers with independent stereo mixes
-
2 ADAT I/O ports (8 channels each at 48 kHz; 4 channels at 96 kHz)
-
AES/EBU I/O for digital connectivity
-
Word Clock I/O and GPIO for studio integration
-

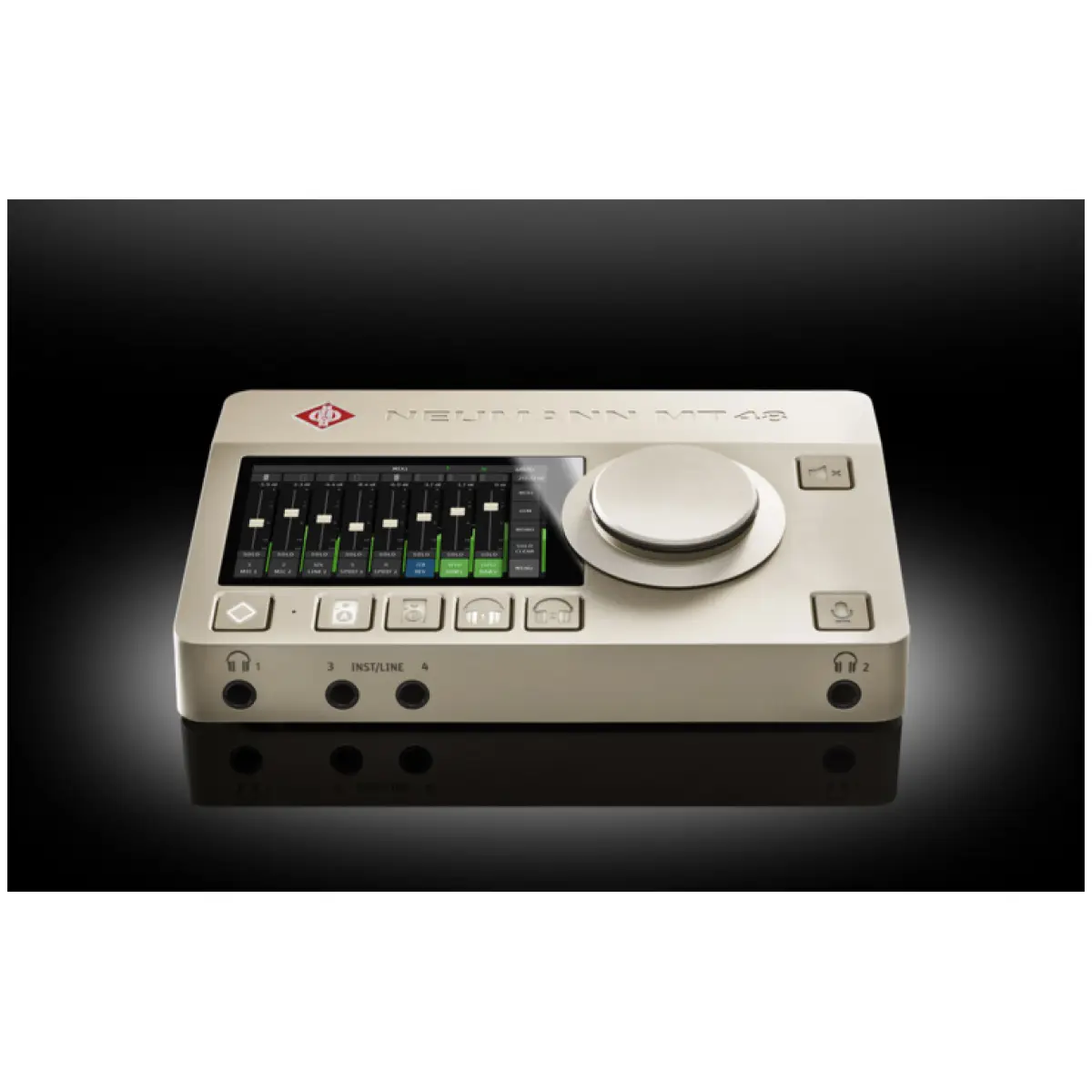

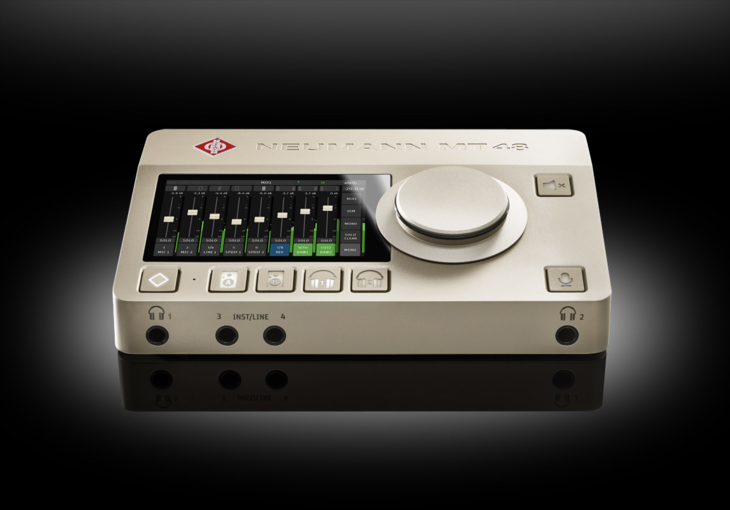

Built-in DSP mixer with touch display for EQ, compressor, limiter, reverb, and delay
-
Integrated Neumann Monitor Alignment control for KH-series monitors and KH 750 DSP subwoofer
-
Network-ready (AES67 / Dante compatible via optional expansion)
-

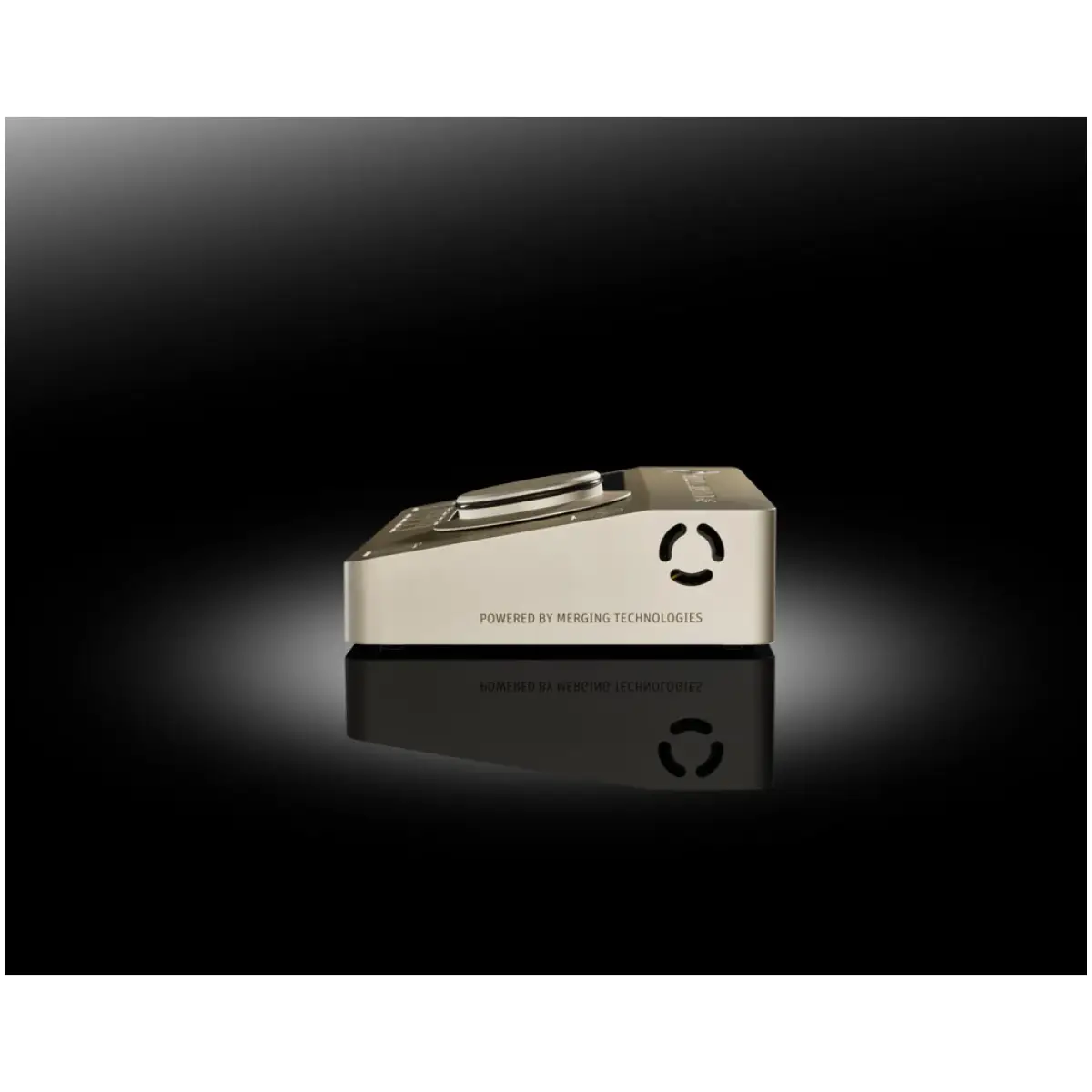

Compact, durable chassis for studio or location work
-
Ships with USB-A and USB-C cables and Neumann softcase
Technical Specifications
Analog Inputs:
• 2 × mic/line (XLR/TRS combo) with 136 dB dynamic range, EIN –129 dBu, gain +78 dB
• 2 × instrument/line (TRS) with 123 dB dynamic range

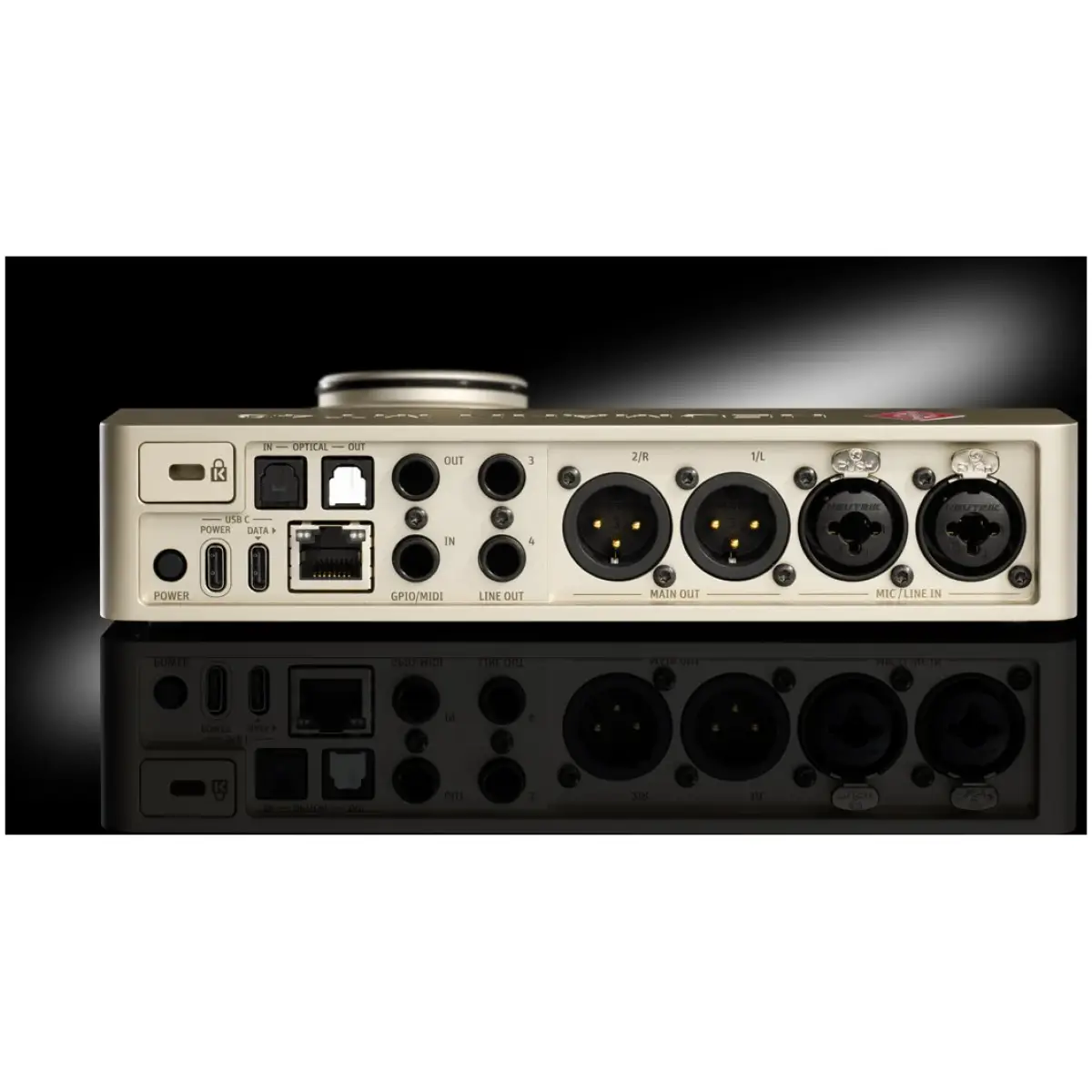

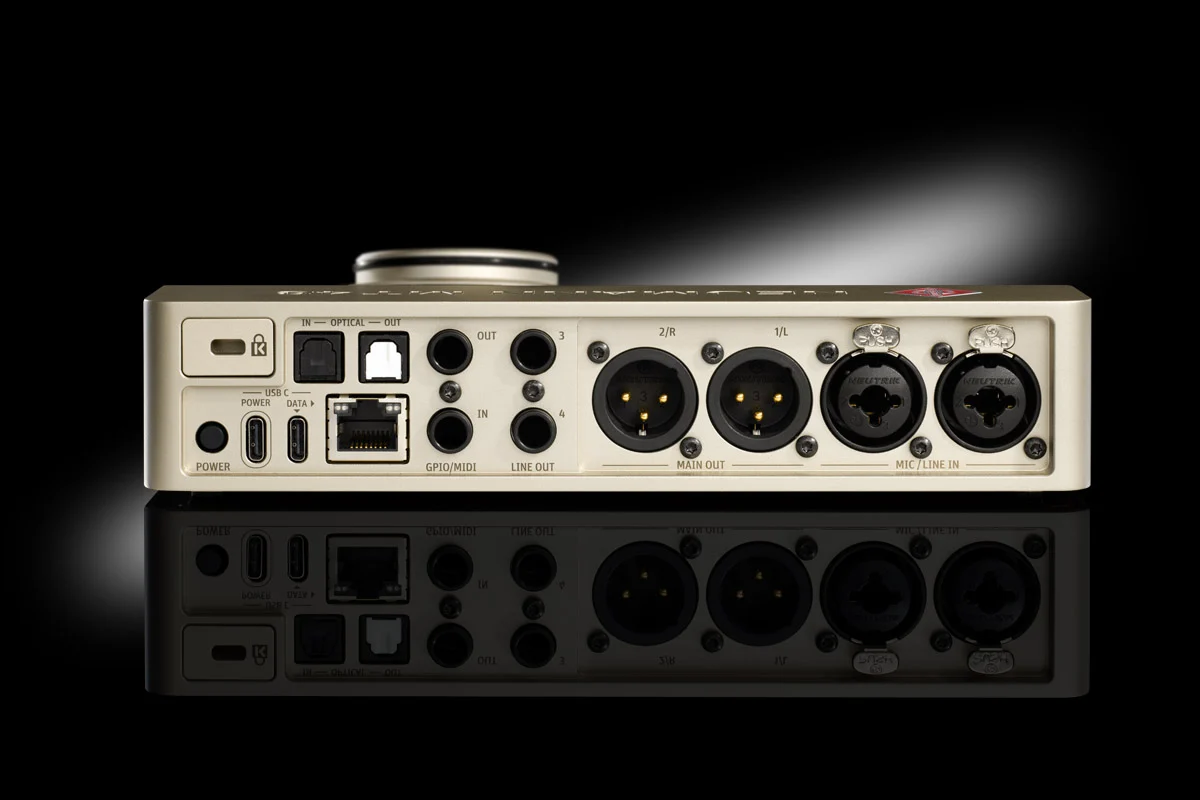

Analog Outputs:
• 2 × monitor (XLR), 2 × line/phones (TRS), 2 × headphones (6.3 mm / 3.5 mm)
Digital I/O:
• ADAT In + Out (TOSLINK, 8 ch @ 48 kHz)
• AES3 In + Out (XLR, 2 ch)
• Word Clock In + Out (BNC)
Resolution / Sample Rate: 24- or 32-bit, 44.1 – 192 kHz
Dynamic Range: Up to 136 dB (A-weighted)
THD+N: < –120 dB
Phantom Power: +48 V switchable on mic inputs
Power Supply: USB-bus or external 12 V DC adapter (included)
Latency: < 1 ms (analog in to analog out)
