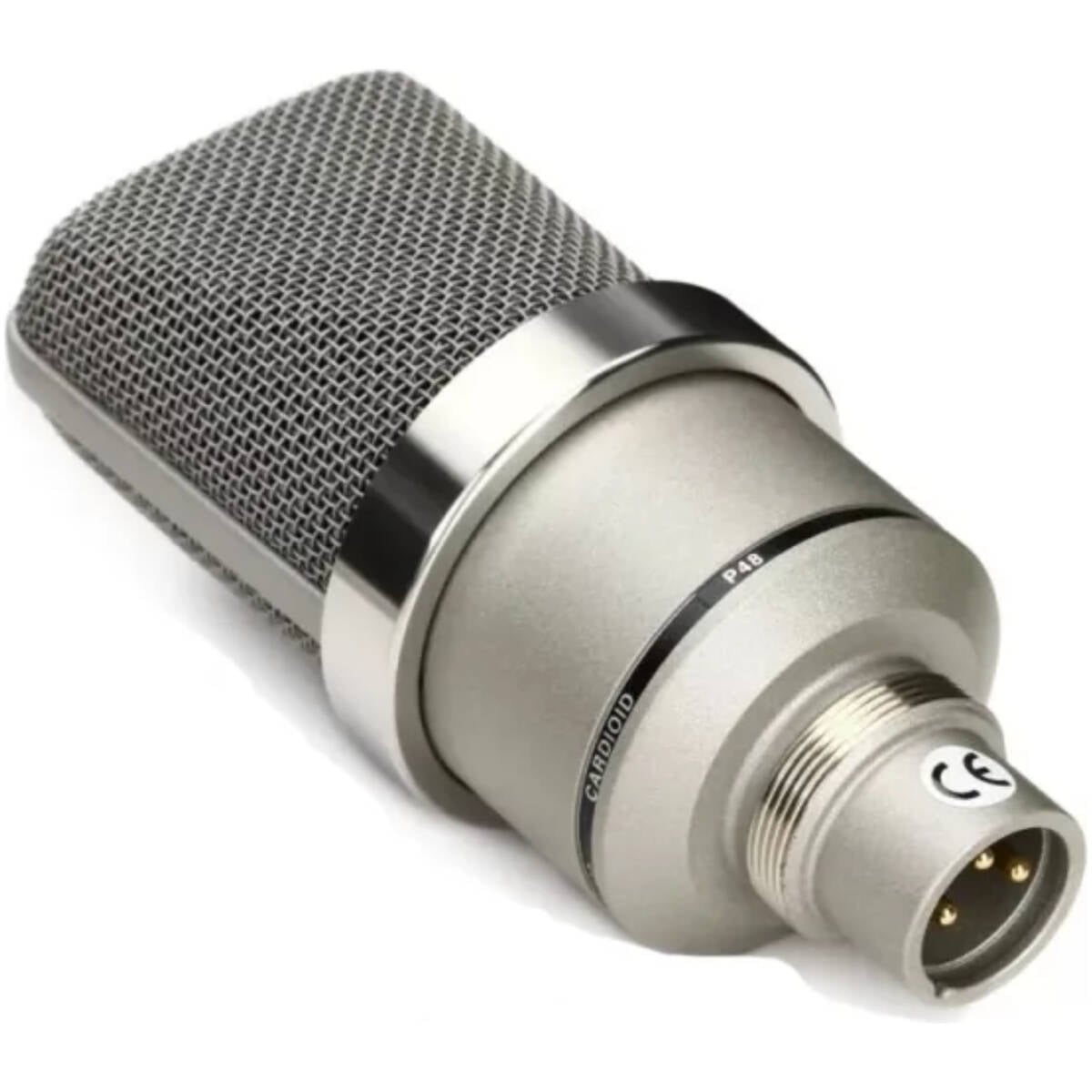

Neumann TLM 102 Studio Set Large Diaphragm Microphone

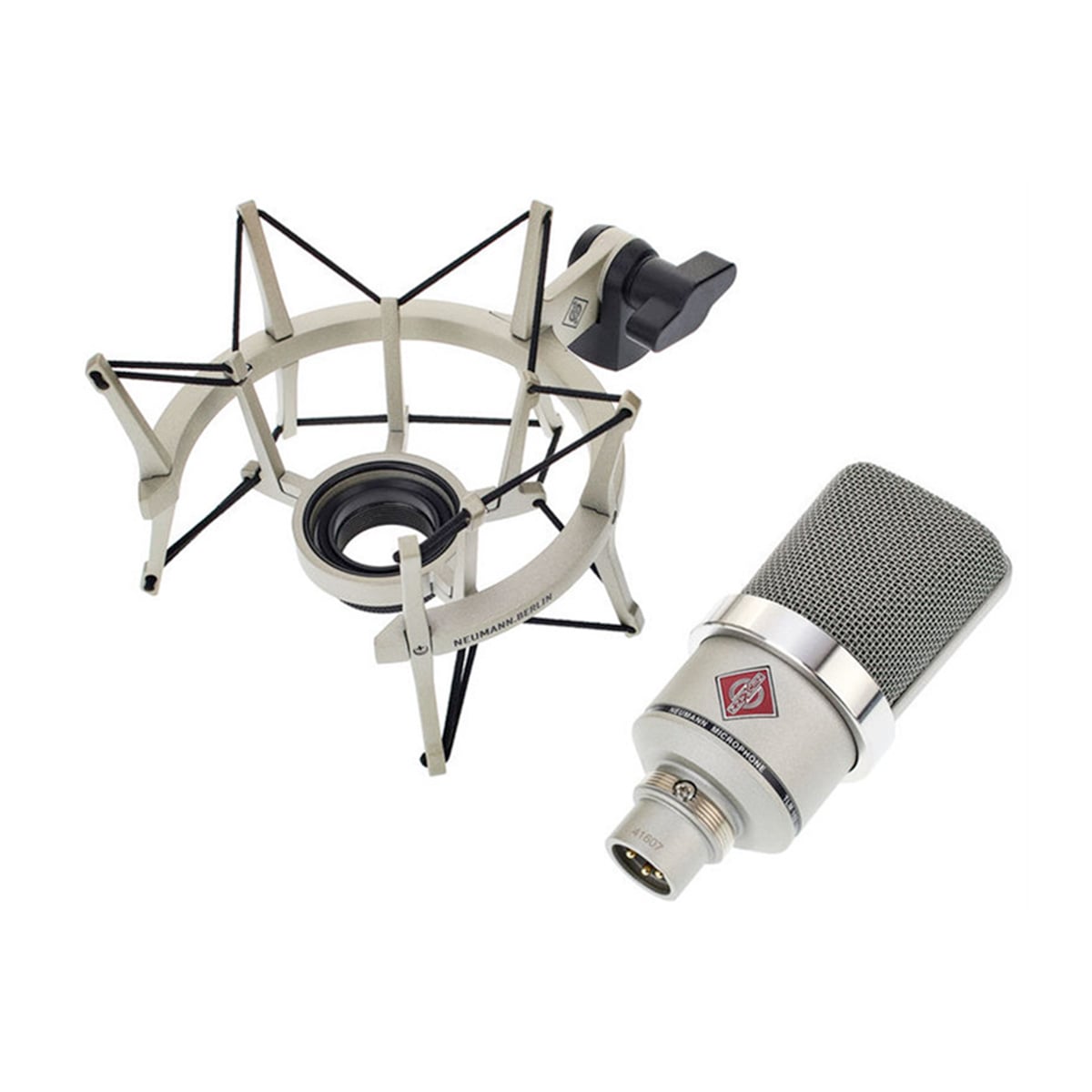

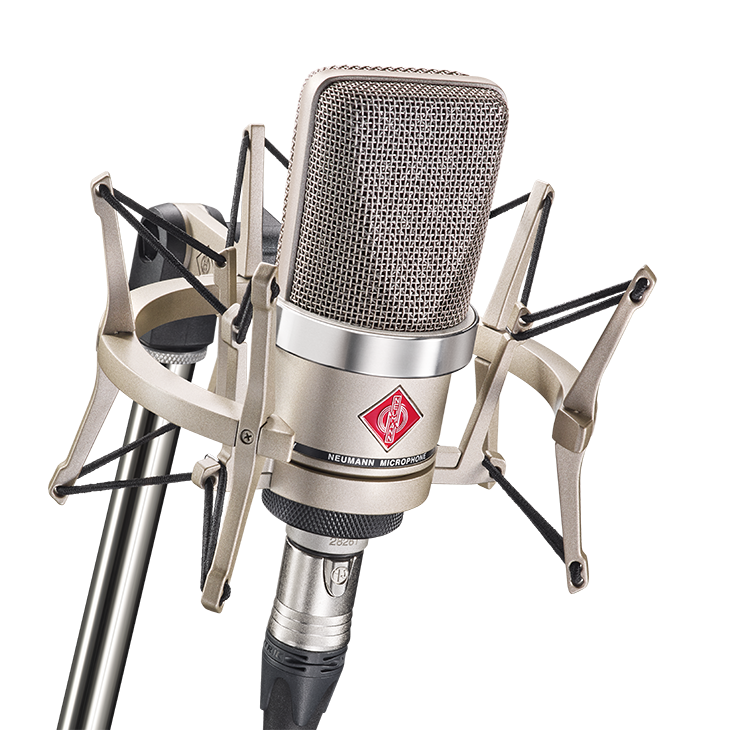

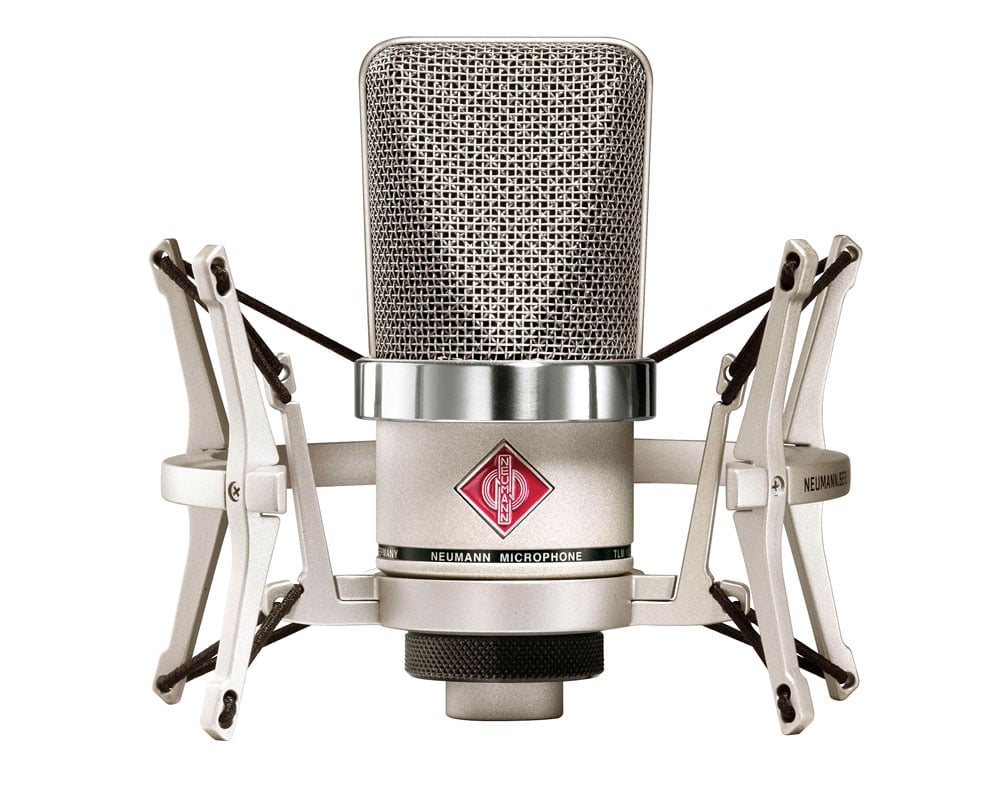

The Neumann TLM 102 Studio Set combines the TLM 102 large-diaphragm condenser microphone with Neumann’s EA 4 elastic suspension (shockmount). This set provides a complete, professional recording solution with improved isolation from handling noise and vibration. The TLM 102 uses a newly developed cardioid capsule with a smooth, natural sound and a slight high-frequency presence boost, ideal for vocals and a wide range of instruments. Its compact size, high SPL handling, and low self-noise make it suitable for modern studios, broadcast setups, and home recording rooms requiring premium Neumann performance.

Key Features

• Large-diaphragm condenser capsule with cardioid pickup pattern

• Nickel finish with Neumann’s iconic studio aesthetic

• Includes EA 4 elastic suspension for vibration isolation

• High SPL handling for loud sources such as drums and guitar amps

• Low self-noise for clean, detailed vocal and instrument recordings

• Transformerless output for transparent, distortion-free audio

• Compact and lightweight design for easy placement

• Ideal for professional studios, home studios, streaming and voice-over

Technical Specifications

• Operating Principle: Pressure gradient transducer

• Polar Pattern: Cardioid

• Frequency Response: 20 Hz – 20 kHz

• Sensitivity: 11 mV/Pa

• Rated Impedance: 50 ohms

• Equivalent Noise Level: 12 dB(A)

• Signal-to-Noise Ratio: 82 dB

• Maximum SPL (0.5% THD): 144 dB

• Dynamic Range: 132 dB

• Max Output Level: 13 dBu

• Powering: 48 V ± 4 V phantom power (IEC 61938)

• Current Consumption: 3.5 mA

• Connector: XLR3F
