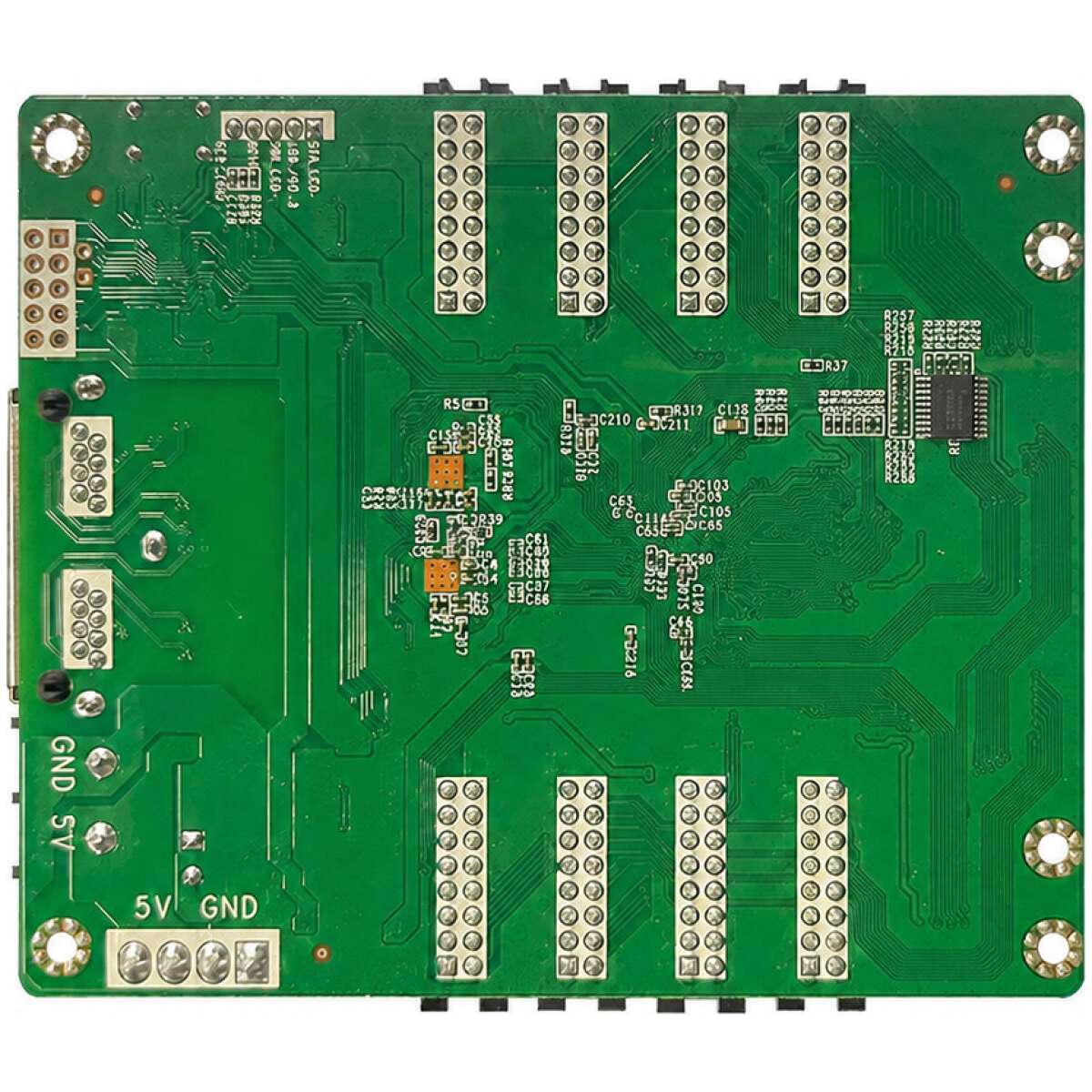

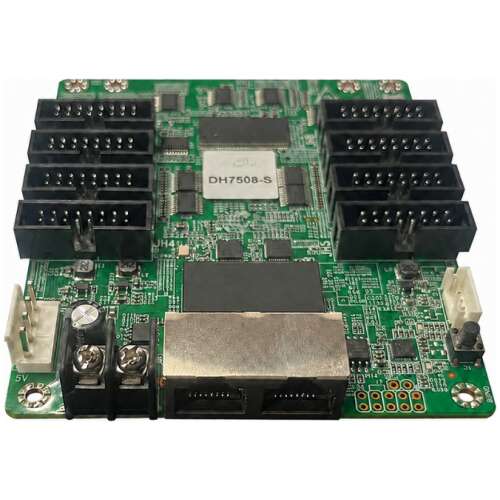

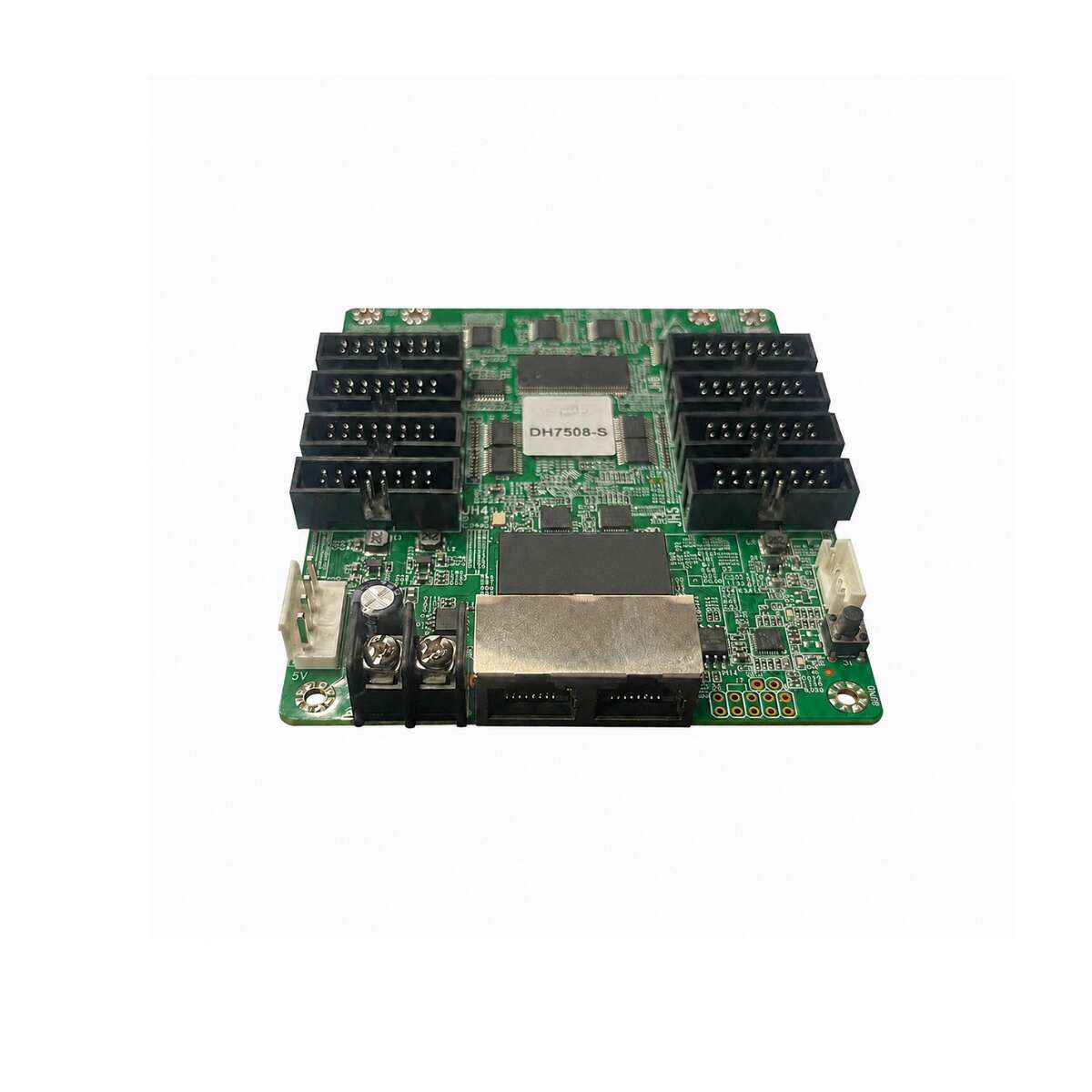

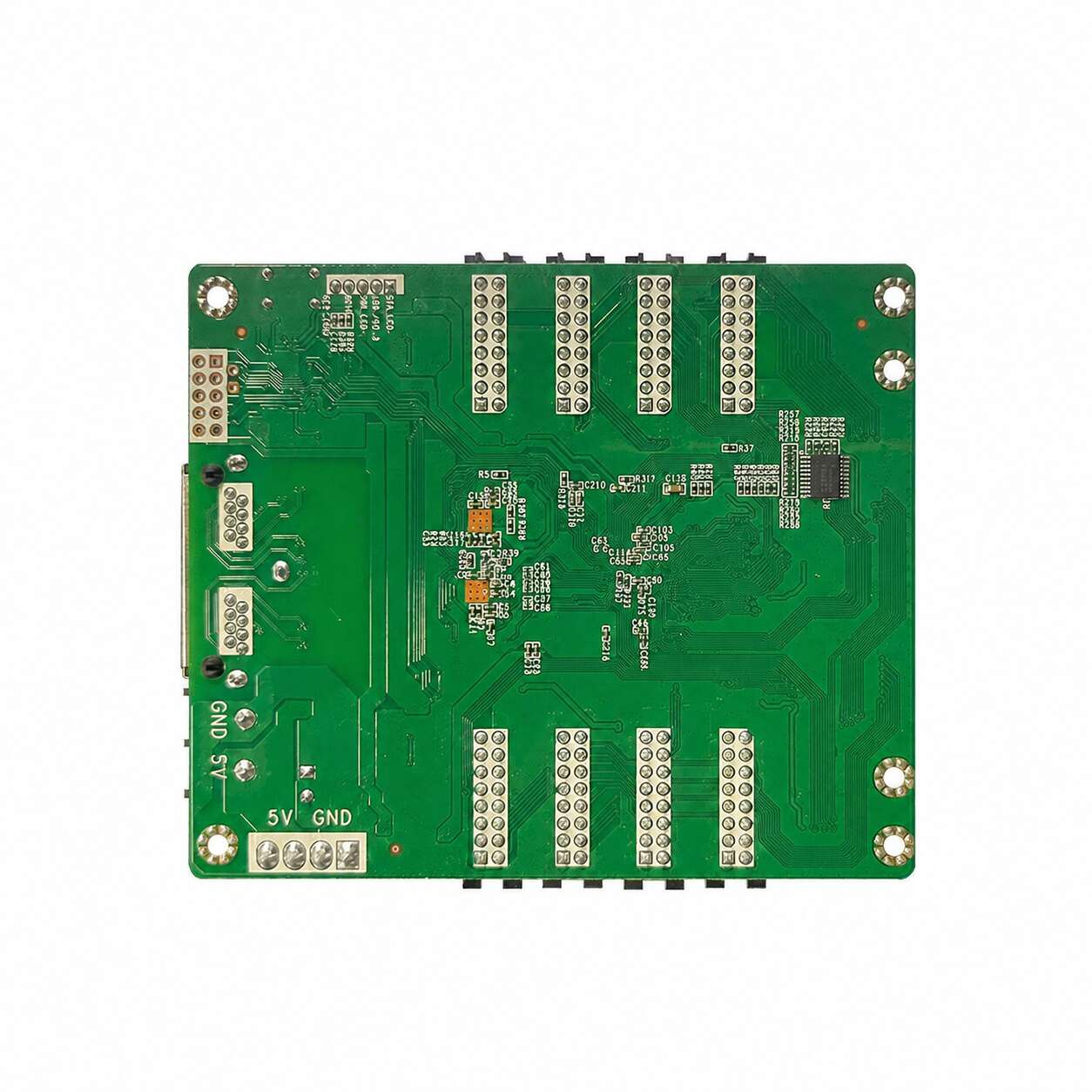

Novastar LED Receiving Card

The NovaStar is a high-performance receiving card designed for indoor and outdoor LED display systems. It provides stable data transmission, advanced display calibration and reliable backup functions for professional LED screens.

Key Features

• Maximum loading capacity: 512 × 384 pixels at 60Hz
• 8 × standard HUB75E output interfaces
• Supports up to 16 groups of parallel RGB data
• 2 × Gigabit Ethernet ports for input and cascading
• Pixel-level brightness and chroma calibration
• Supports 3D output
• Independent RGB gamma adjustment
• Quick correction of dark or bright module-joining lines
• Supports 90° screen rotation
• Receiving-card mapping and cabinet-position identification
• Temperature and voltage monitoring
• Ethernet communication error detection
• Pre-stored image display when the video signal is lost
• Firmware and configuration readback
• Loop backup, dual-program backup and configuration backup
• Compatible with NovaLCT
• RoHS and EMC Class A compliant
