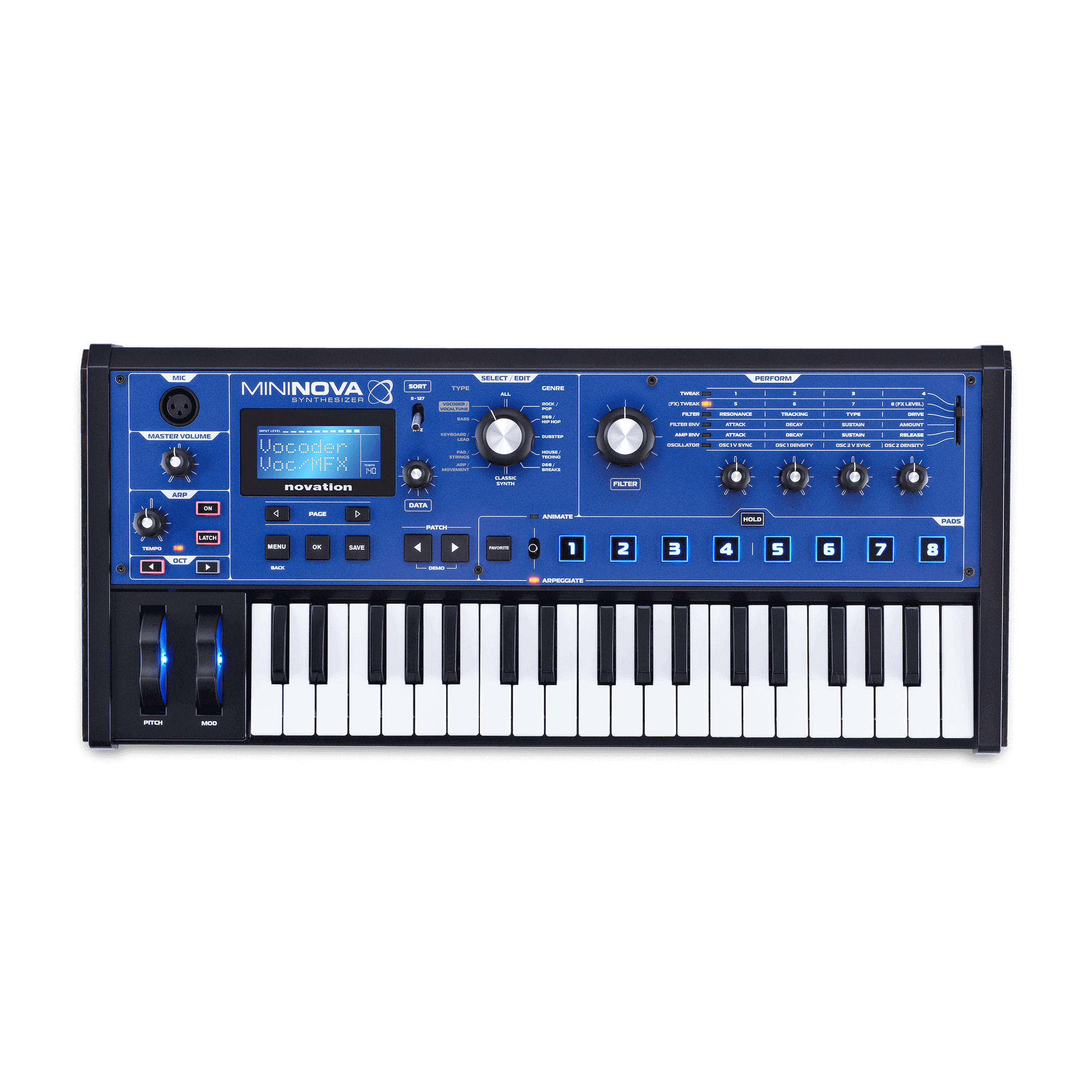

Overview
-

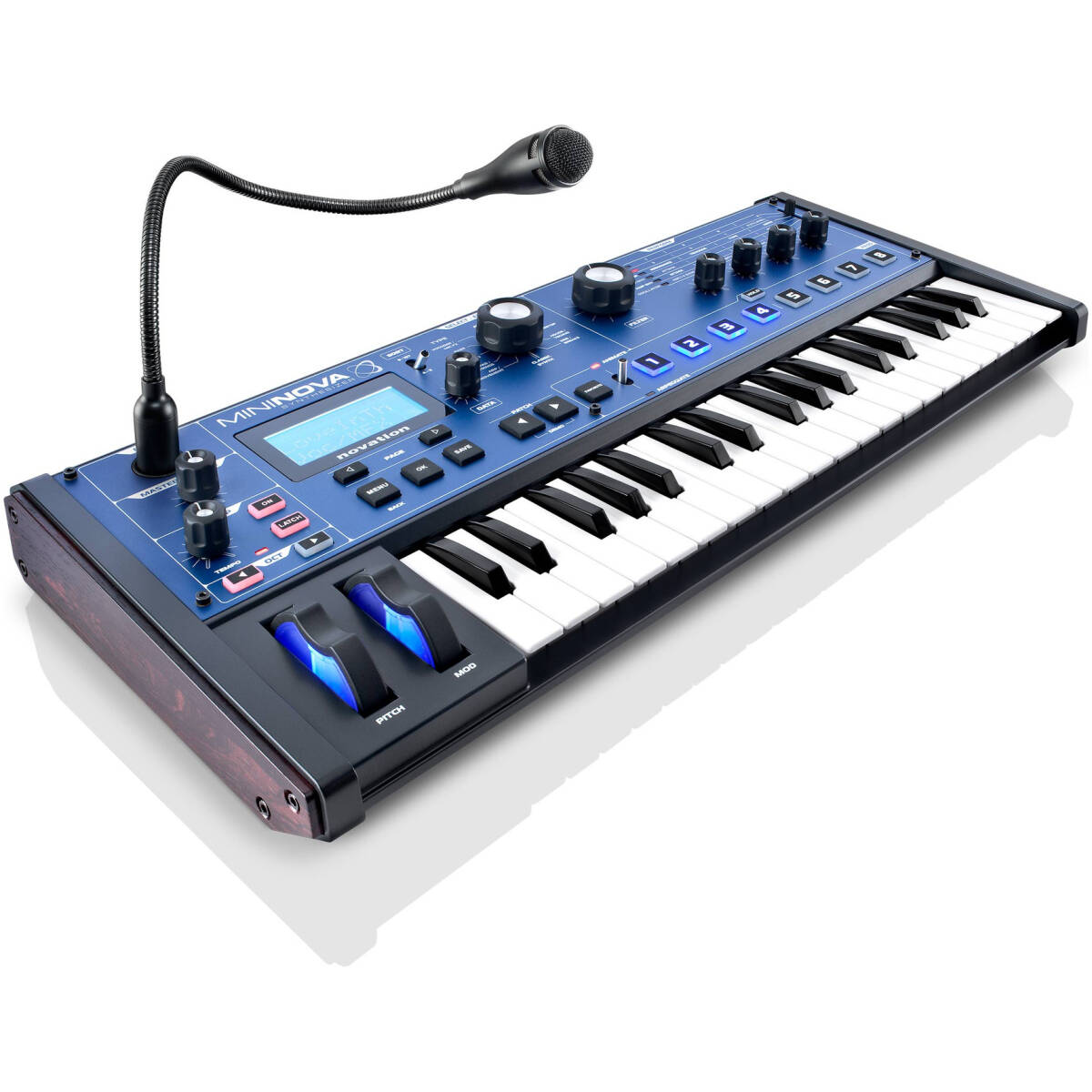

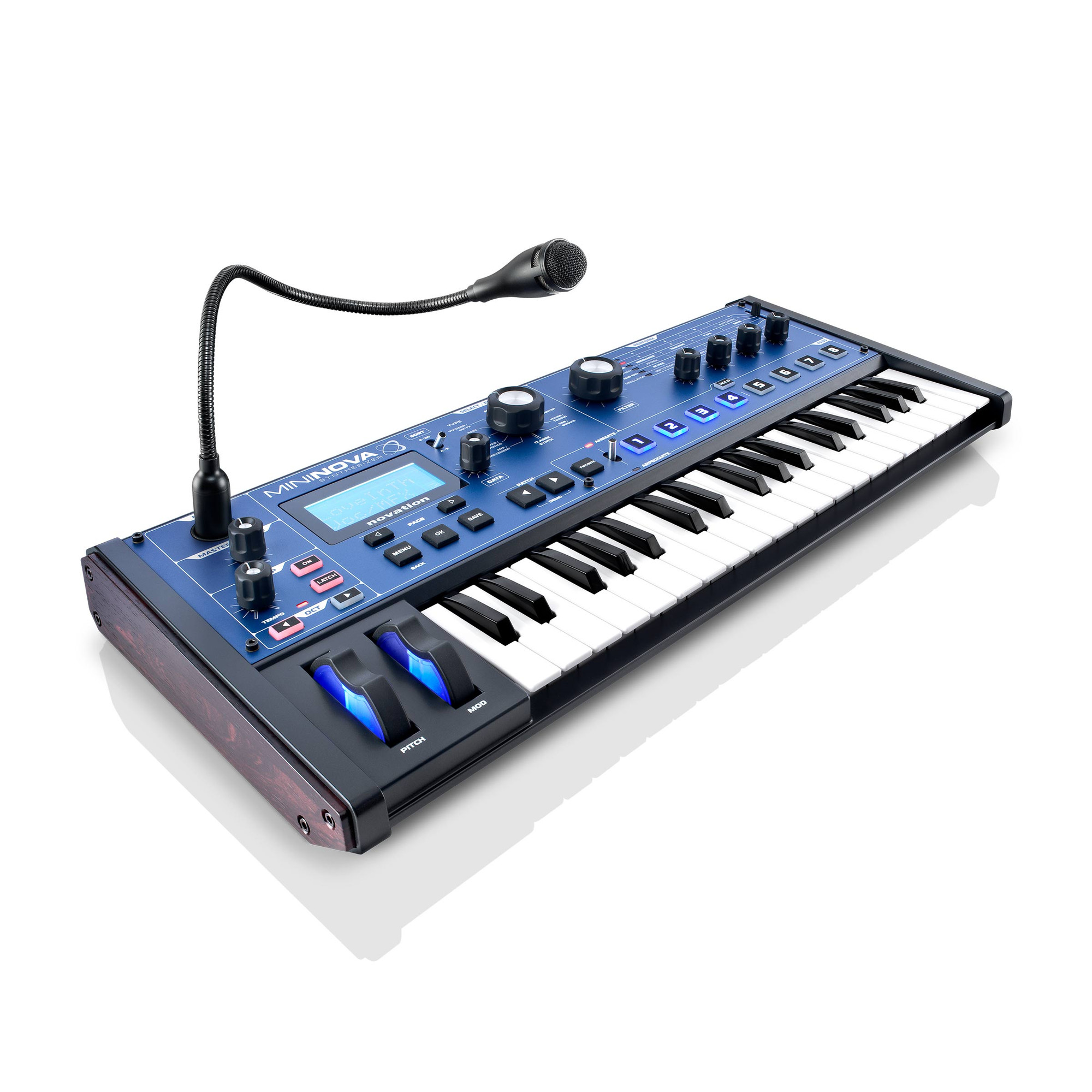

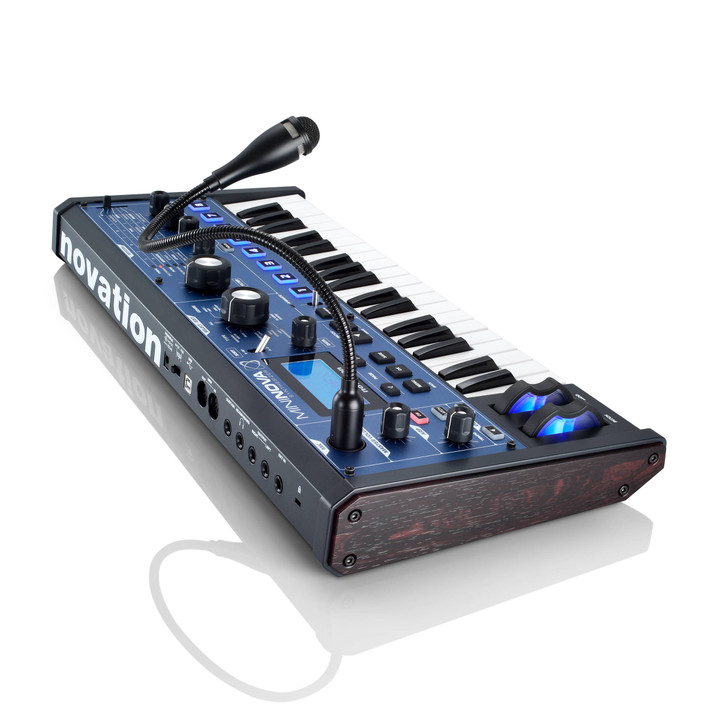

- 12-band Vocoder with dynamic gooseneck microphone
-

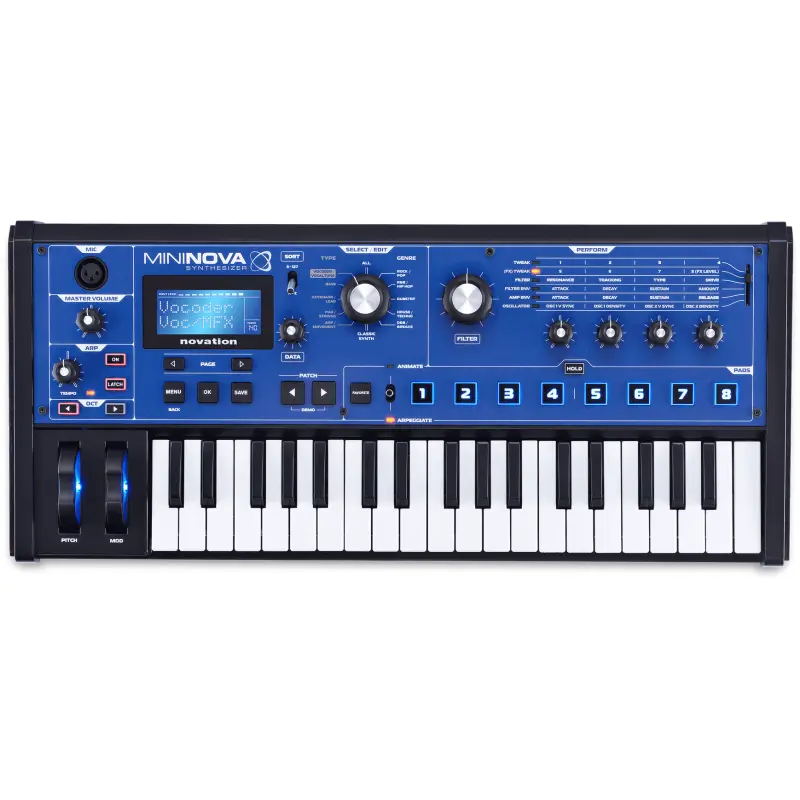

- Utility, display and patch select controls
-
- 16 character custom LCD
-
- 1x large detented patch select encoder
-
- 1x patch sort switch
-
- 1x volume dial
-
- 1x detented data encoder
-
- 5x navigation/utility buttons
-
- 2x patch navigation buttons
-
- Keyboard/performance controls
-
- Pitch wheel (LED lit)
-
- Modulation wheel (LED lit)
-
- 37 note keyboard with velocity
-
- 4x smooth edit/performance pots
-
- 1x large smooth filter pot
-
- 1x six position parameter selector switch
-
- 6x parameter indicator LEDs
-
- 8x three-colour, back-lit animate/arpeggiator/favourite patch-select buttons
-
- 2x animate/arpeggiate LED indicators
-
- 1x back-lit ‘hold’ button
-
- 1x animate/arpeggiator/favourite patch toggle switch
-
- 1x ‘favourite’ patch select button
-
- 1x arpeggiator tempo control pot
-
- 1x arpeggiator tempo indicator LED
-
- 2x back-lit arpeggiator control encoders
-
- 2x back-lit octave select buttons
-

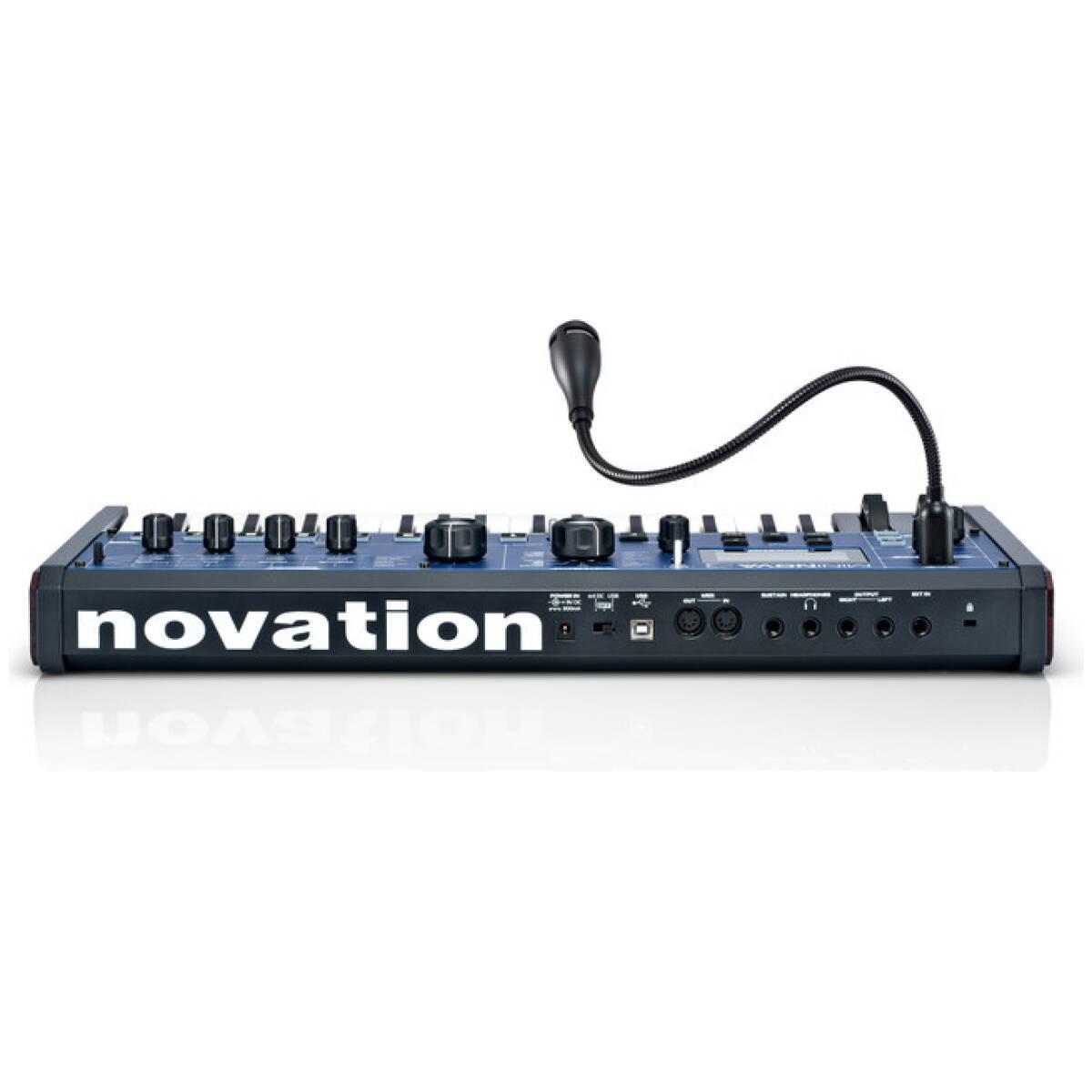

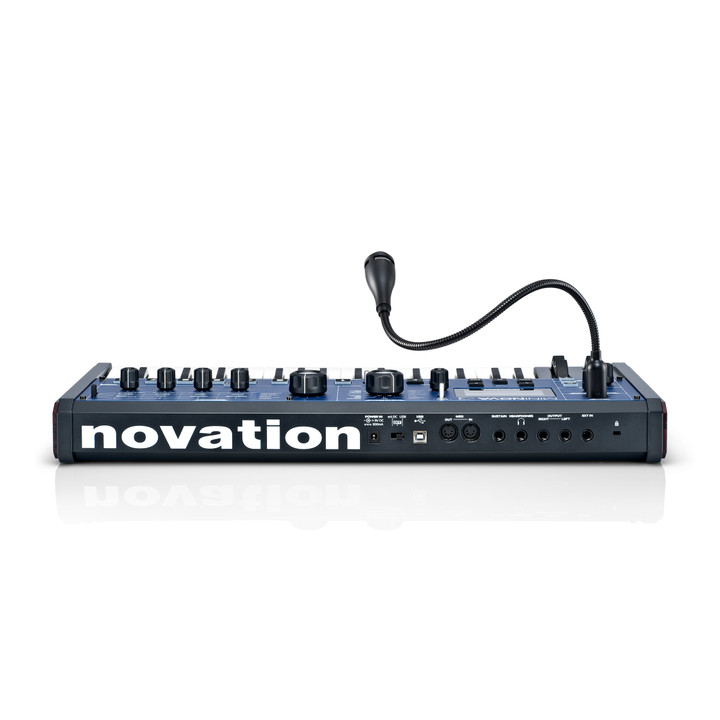

- XLR dynamic mic input
-
- 1x ¼” jack inputs
-
- 2x ¼” jack outputs
-
- 1x ¼” jack headphone output
-
- Sustain pedal on ¼” jack input
-
- MIDI in/out
-
- 12 volt power input
-
- USB/DC/off power switch
-
- USB B 2.0 (MiniNova can be powered via USB)
- Kensington security slot
Dimensions
- Length560mm
- Depth250mm
- Height75mm
Power requirements
-
- USB bus powered
-
- 9V DC power supply included
- Maximum power consumption 9V DC 300mA
