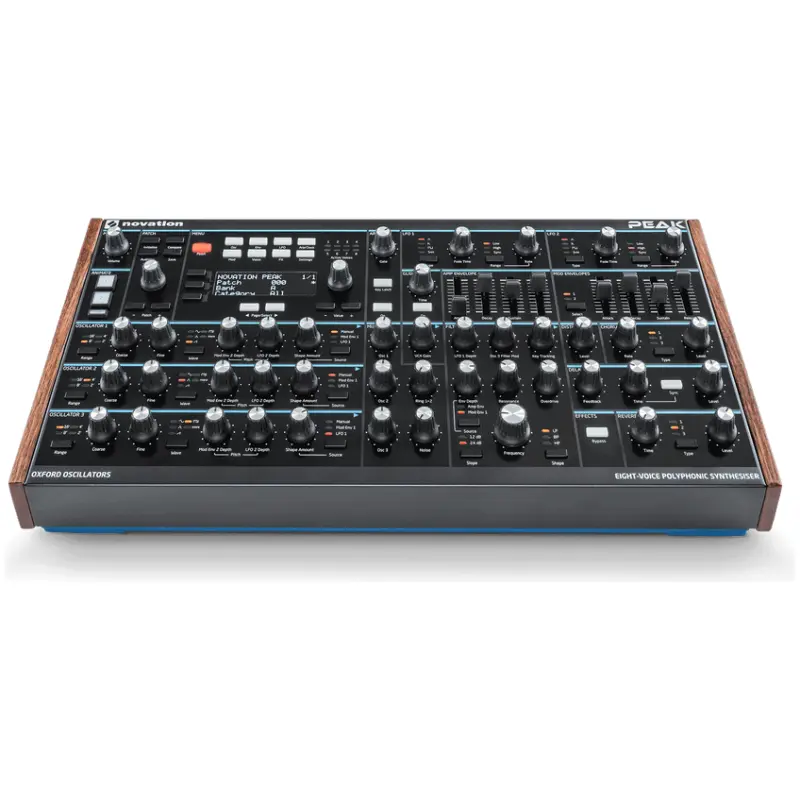

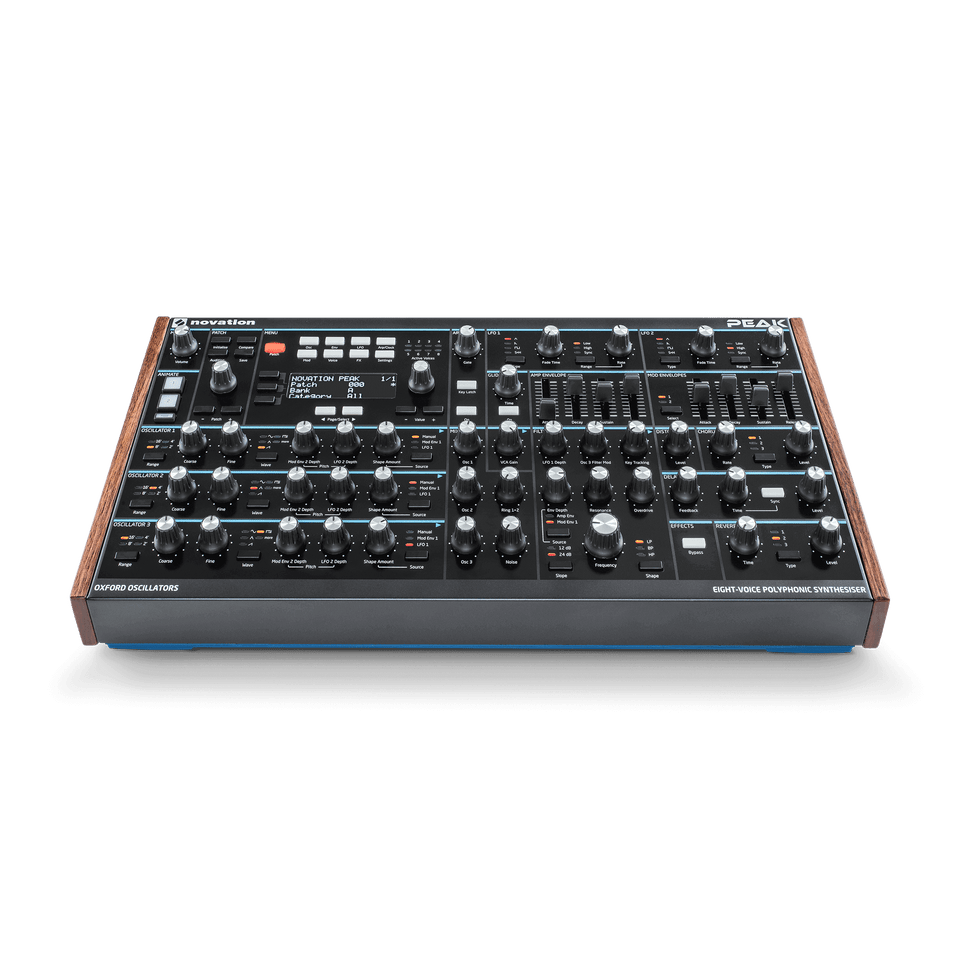

The Novation Peak is an award-winning 8-voice polyphonic synthesizer that fuses the warmth of analog circuitry with the precision of digital control. Built around Novation’s Oxford Oscillator technology, Peak delivers an incredibly rich and expressive tone palette for sound designers, producers, and live performers — all within a compact desktop module.
Key Features
-
8-Voice Polyphonic Synthesizer – Each voice features three Oxford oscillators, one noise generator, and one ring modulator.
-
FPGA Oscillator Technology – High-resolution digital oscillators capable of analog-style waveforms, wavetables, and FM synthesis.
-
Analog Signal Path – True analog multimode filters, VCAs, and distortion circuits per voice for authentic warmth and drive.
-
Extensive Modulation Matrix – 16 modulation slots, 16 sources, and 37 destinations for complex sound shaping.
-
Built-In Effects – Reverb, delay, chorus, and distortion with dedicated controls.
-
Powerful Arpeggiator – Programmable patterns with sync and latch modes for evolving textures.
-
Patch Memory – 512 factory + 512 user slots for storing your favorite sounds.
-
Hands-On Control – Over 45 knobs for real-time tweaking and performance.
-
High-Resolution OLED Display – Provides detailed visual feedback for editing and navigation.
-
Comprehensive Connectivity – Stereo outputs, headphone out, MIDI I/O, CV modulation input, USB, and external audio input for signal processing.
-
Software Integration – Compatible with Novation Components for patch management and firmware updates.
Technical Specifications
-
Voices: 8
-
Oscillators: 3 per voice (Oxford FPGA)
-
Filter: Analog multimode per voice (LP, BP, HP)
-
Envelopes: 3 ADSRs per voice
-
LFOs: 2 per voice + global LFO
-
Polyphony: 8 voices
-
Effects: Reverb, Delay, Chorus, Distortion
-
Arpeggiator: Yes
-
Patch Memory: 1,024 total (512 user + 512 factory)
-
Audio Outputs: 2 × ¼″ TRS (stereo L/R), 1 × ¼″ TRS headphone
-
Audio Inputs: 1 × ¼″ TRS (external audio)
-
MIDI: In, Out, Thru (DIN), USB MIDI
-
CV Input: 1 × 3.5 mm
-
Power Supply: 12 V DC (included)
