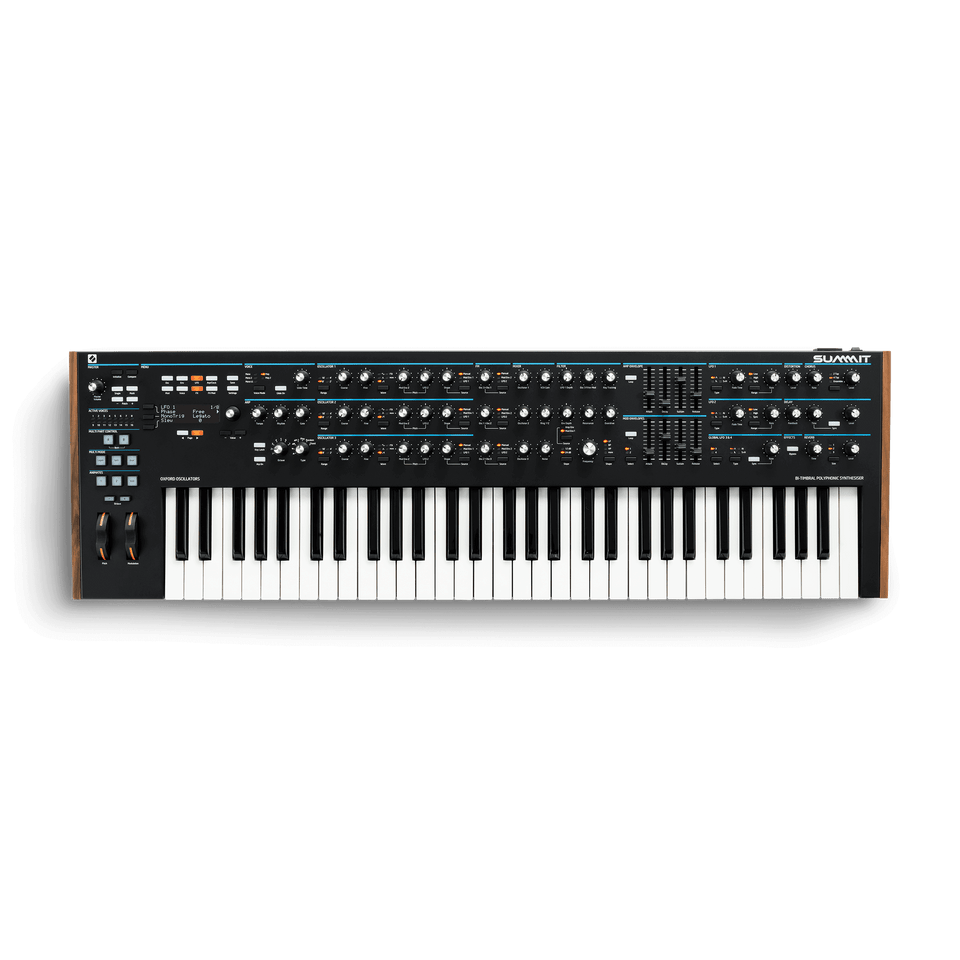

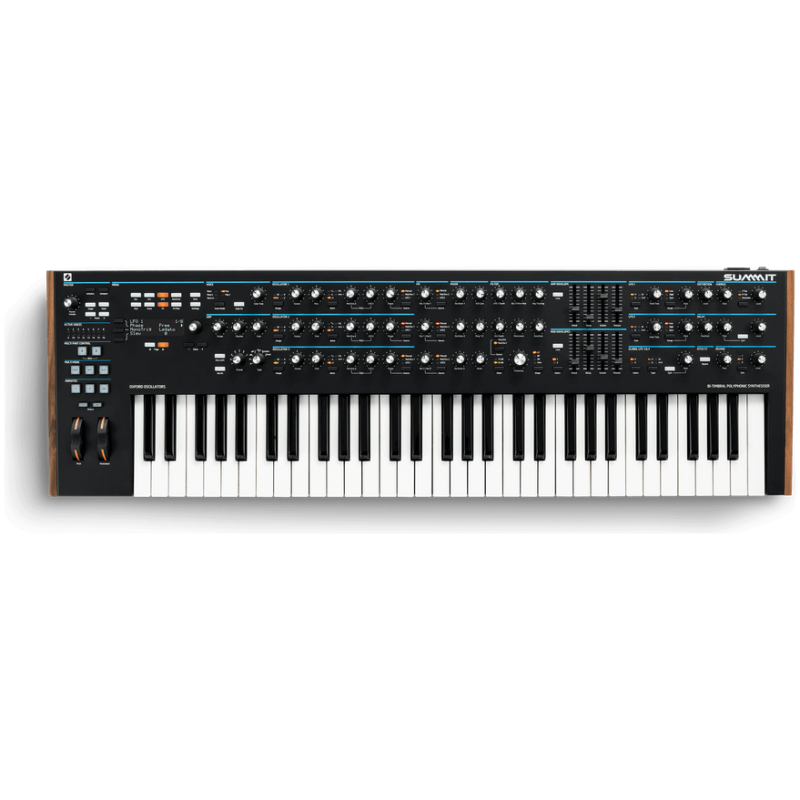

The Novation Summit is a flagship 16-voice, bi-timbral polyphonic synthesizer that combines the power of two Novation Peak engines into a premium 61-key performance keyboard. Built for sound designers, producers, and performers, the Summit delivers deep synthesis, warm analog tone, and extensive modulation options — making it a true centerpiece for any modern studio or live setup.
Key Features
-
16-Voice Polyphony / Bi-Timbral Engine – Essentially two Peaks in one, capable of layering or splitting two patches.
-
Three Oxford Oscillators Per Voice – Per-voice digital FPGA oscillators for ultra-high-resolution waveform generation and FM synthesis.
-
Analog Dual Filters – Classic analog multimode filters per voice for rich, warm tone shaping.
-
Analog VCAs and Distortion – True analog signal path for overdrive and saturation.
-
Powerful Modulation Matrix – 16-slot modulation matrix with 22 sources and 54 destinations.
-
Comprehensive Effects Section – Studio-grade reverb, delay, chorus, and distortion with dedicated knobs.
-
61-Note Semi-Weighted Keyboard with Aftertouch – Premium keybed ideal for expressive playing.
-
Dual / Split / Layer Modes – Play two patches at once or create complex layered textures.
-
Arpeggiator and Animator – Add evolving movement and performance dynamics.
-
Full Hands-On Control – Over 50 physical knobs and buttons for real-time editing.
-
Deep Connectivity – MIDI In/Out/Thru, USB, CV modulation input, two pedal inputs, stereo outputs, and auxiliary audio input.
-
Patch Storage: 512 onboard user slots (plus factory presets).
Technical Specifications
-
Polyphony: 16 voices
-
Oscillators: 3 per voice (Oxford digital FPGA)
-
Filters: 2 analog multimode filters per voice (LP, BP, HP)
-
LFOs: 2 per part + dedicated amp envelope
-
Keyboard: 61-key semi-weighted with aftertouch
-
Arpeggiator: Yes, programmable
-
Effects: Reverb, Delay, Chorus, Distortion
-
Outputs: 2 × stereo outputs, 1 × headphone output
-
Inputs: External audio input for signal processing
-
MIDI I/O: In, Out, Thru
-
USB: Class-compliant MIDI over USB
-
CV Input: 1 × 3.5 mm
-
Power Supply: External 12V DC (included)
