Features
- Compact sized wooden cabinet
- Portrait or landscape mounting options
- Rotatable high-frequency horn
- 65Hz – 20kHz frequency response ±3dB
- Maximum SPL 120dB (continuous), 126dB (peak)
- 90° horizontal x 50° vertical coverage

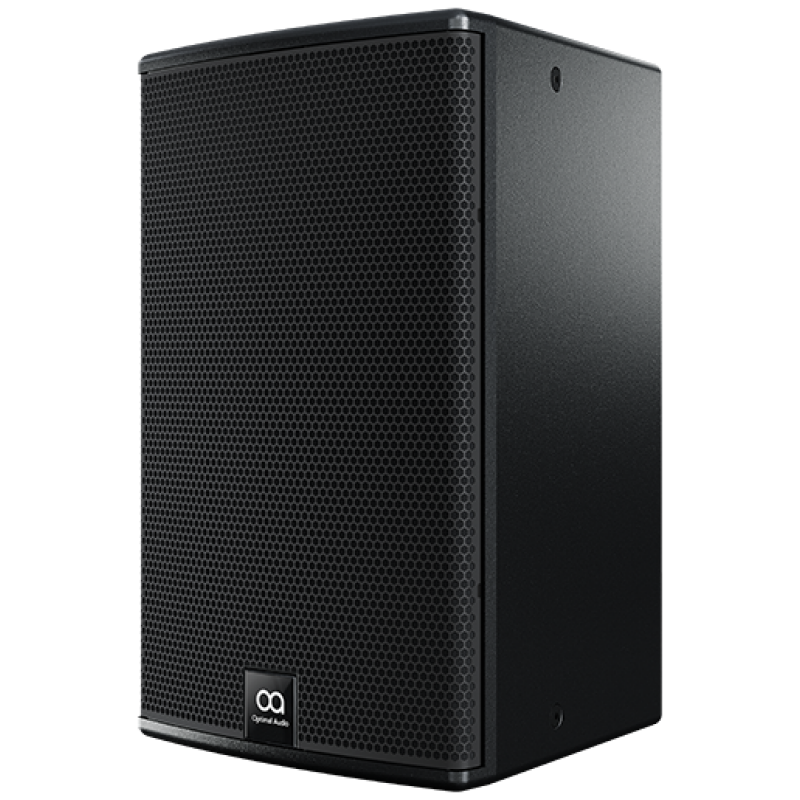

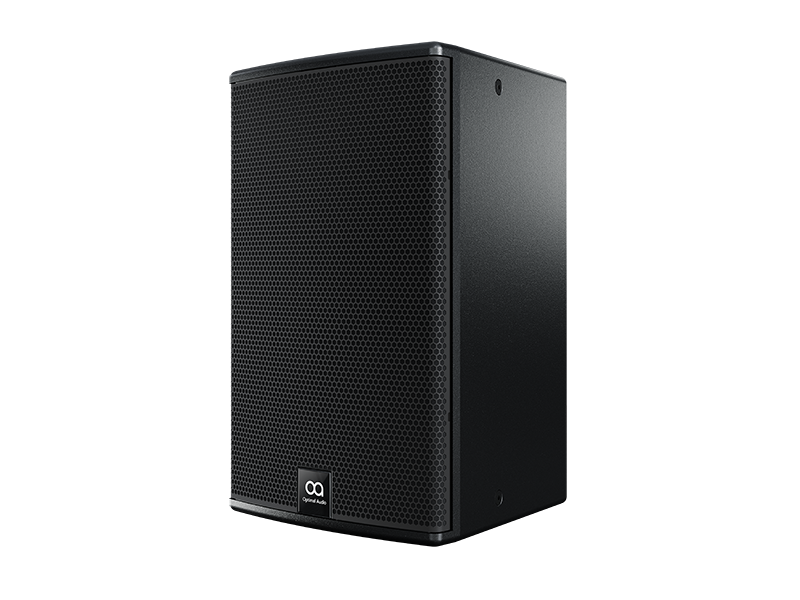

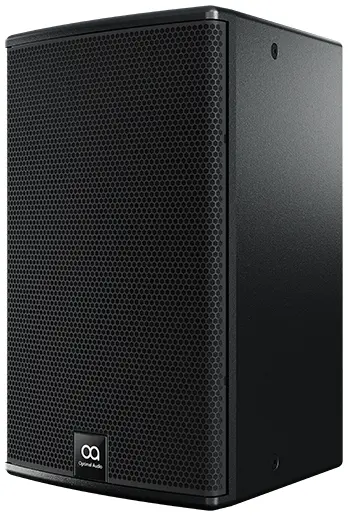

Cuboid 10 is a full range, two-way, passive, 10” loudspeaker designed to outperform its compact size. For short to medium throw distances, it effortlessly delivers rich and detailed sound with punch and precision.
With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 10 can be fixed in either portrait or landscape mode for a flexible, simple installation.
Cuboid 10 features a 10” (250mm) low frequency (LF) driver for impressive bass and midband with a 1″ (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.
For enhanced bass performance, Cuboid 10 can be teamed with Sub 15.
SmartAmp will provide amplification, optimal sound settings as well as limiters to protect the drivers when playing at louder sound levels.
When teamed with Zone and WebApp, system set up and end user control is effortless, and can be further supplemented by ZonePad wall controllers.
| TYPE | Two-way, full range, passive loudspeaker |
| FREQUENCY RESPONSE (with preset) |
65Hz – 20kHz ± 3dB -10dB @ 49Hz |
| DRIVERS |
LF: 10” (254mm), ferrite motor system HF: 1” (25mm) exit/1.4” (36mm) voice coil, polymide dome compression driver |
| RATED POWER | 250W (AES) 1000W (Peak) |
| NOMINAL IMPEDANCE | 8 Ohms |
| SENSITIVITY (1W/1m) | 96dB |
| MAXIMUM SPL | 120dB (cont), 126dB (peak) |
| CROSSOVER | 2.8kHz passive |
| DISPERSION (-6dB) | 90˚ H x 50˚ V (user-rotatable) |
| ENCLOSURE | Trapezoid wooden cabinet |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| FITTINGS | 21 x M8, inset bolts |
| DIMENSIONS |
(W) 322mm x (H) 524mm x (D) 326mm (W) 12.68ins x (H) 16.61ins x (D) 10.28ins |
| WEIGHT | 16kg (35.27lbs) |
