Features
- Wooden cabinet
- Portrait or landscape mounting options
- Rotatable high-frequency horn
- 62Hz – 20kHz frequency response ±3dB
- Maximum SPL 123dB (continuous), 129dB (peak)
- 80° horizontal x 50° vertical coverage

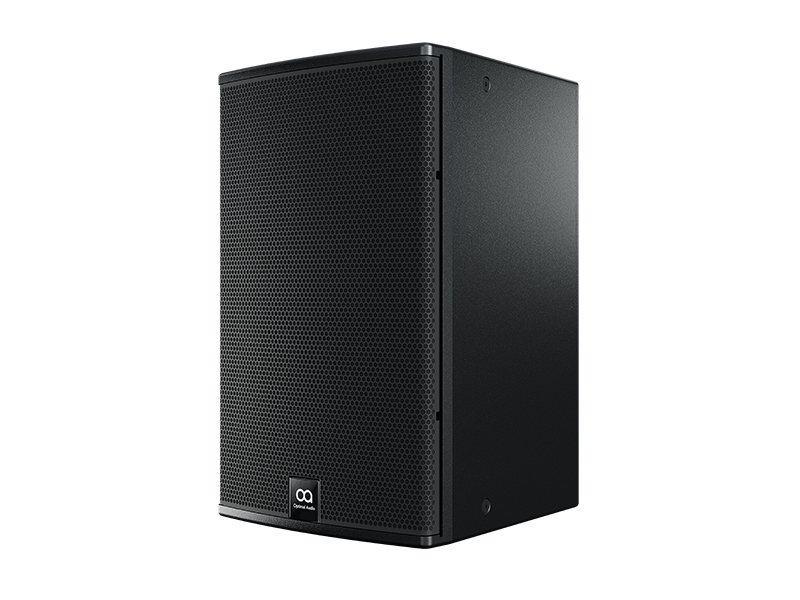

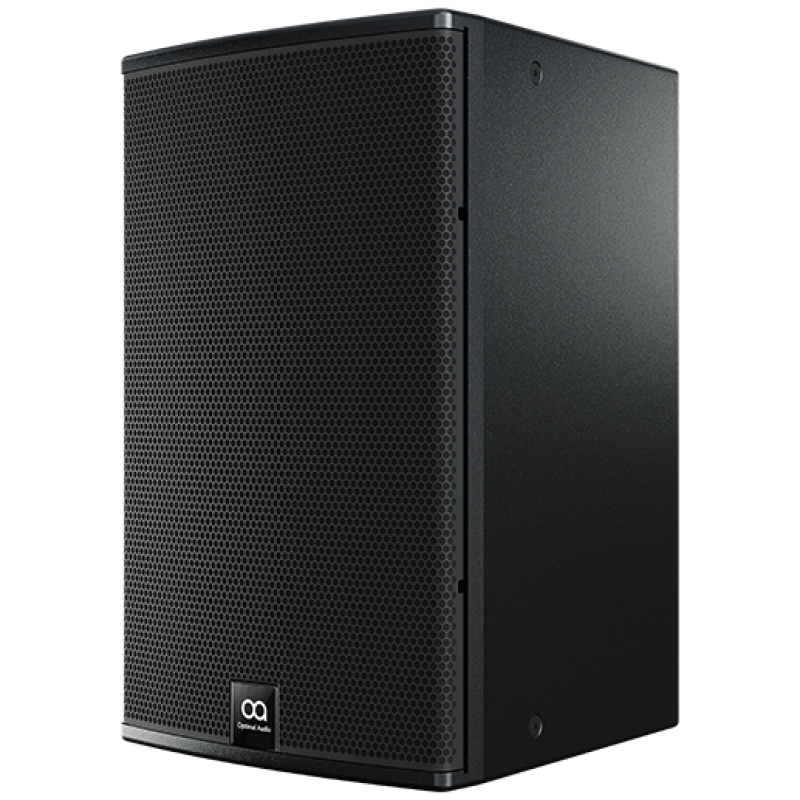

Cuboid 12 is a full range, two-way, passive, 12” loudspeaker designed to perform. For applications requiring that extra power and performance, it effortlessly delivers rich and detailed sound with punch and precision.
With its wooden cabinet, steel grille and optional mounting hardware the professionally presented Cuboid 12 can be fixed in either portrait or landscape mode for a flexible, simple installation.
Cuboid 12 features a 12” (300mm) low frequency (LF) driver for added bass and midband with a 1″ (25mm) exit high frequency (HF) compression driver for clarity of vocal and high frequency projection. The HF section delivers consistent coverage in either plane from a user-rotatable horn.
For enhanced bass performance, Cuboid 12 can be teamed with Sub 15.
When teamed with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further complemented by ZonePad wall controllers.
| TYPE | Two-way, full range, passive loudspeaker |
| FREQUENCY RESPONSE (with preset) |
62Hz – 20kHz ± 3dB -10dB @ 47Hz |
| DRIVERS |
LF: 12” (300mm), ferrite motor system HF: 1” (25mm) exit/1.4” (25mm) voice coil, polymide dome compression driver |
| RATED POWER | 300W (AES) 1200W (Peak) |
| NOMINAL IMPEDANCE | 8 Ohms |
| SENSITIVITY (1W/1m) | 98dB |
| MAXIMUM SPL | 123dB (cont), 129dB (peak) |
| CROSSOVER | 2.5kHz passive |
| DISPERSION (-6dB) | 80˚ H x 50˚ V (user-rotatable) |
| ENCLOSURE | Trapezoid wooden cabinet |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| FITTINGS | 21 x M8, inset bolts |
| DIMENSIONS |
(W) 360mm x (H) 575mm x (D) 392mm (W) 14.17” x (H) 22.64” x (D) 15.43” |
| WEIGHT | 20kg (44.09lbs) |
