Features
- 4” coaxial driver
- Discreet size
- Unobtrusive design
- 8 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
- Pendant and bezel-less grille accessory available

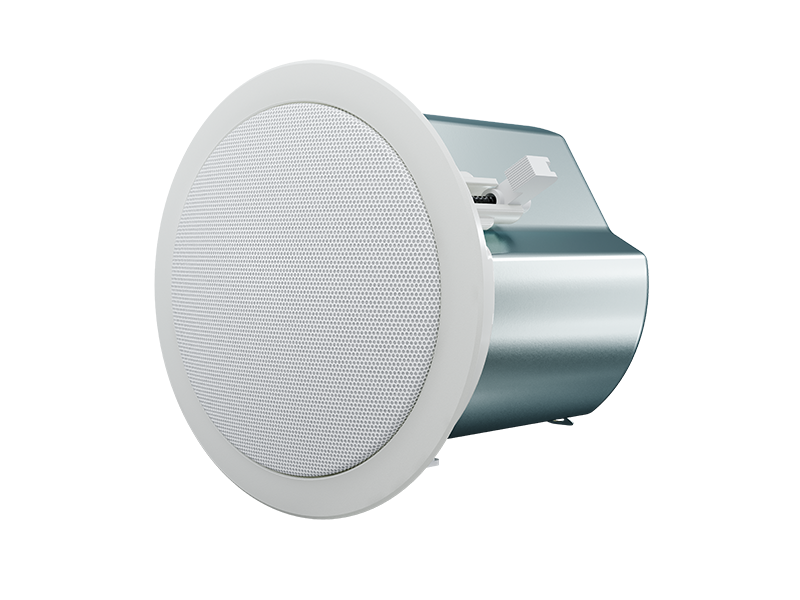

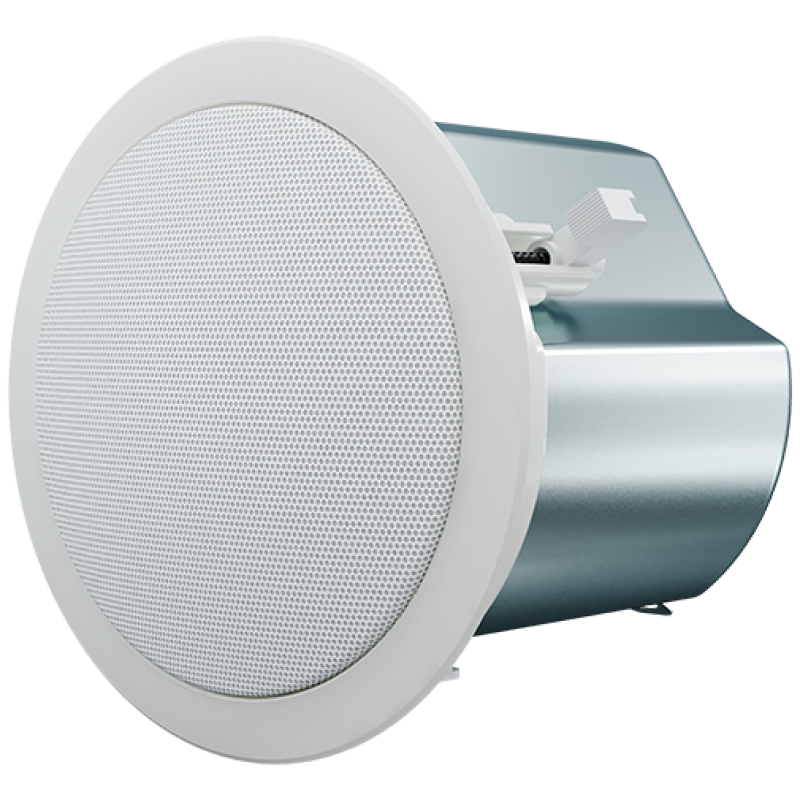

Up 4 is a discreet, two-way 4” ceiling speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.
An integral fixing system is included to achieve a simple and clean installation. Up 4 has a steel backcan and perforated steel grille and is finished in neutral white.
The Pendant 1 and Grille 1 accessories offer further flexibility in installation and applications, allowing you to either elegantly suspend Up 4 speakers as stylish pendants or achieve a sleek, bezel-less grille appearance. These accessories are available in both black and white, helping to blend into any architectural environment.
Up 4 features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction. A conical 120° coverage pattern delivers consistent sound where it needs to go.
Each Up 4 can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.
A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via presets. When coupled with a Zone and WebApp, system set up and end user control is easy, and can be further supplemented by ZonePad wall controllers.
| TYPE | Two-way, full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) | 100Hz – 18kHz ± 3dB -10dB @ 74Hz |
| DRIVERS | LF: 4” (105mm), Coated paper HF: 0.7″ (20mm) Silk Dome |
| RATED POWER | 30W (AES) 60W (Peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 87dB |
| MAXIMUM SPL | 102dB (cont), 105dB (peak) |
| CROSSOVER | 3.5kHz passive |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 90Hz |
| TRANSFORMER TAPS @ 70V | 25, 12.5, 6.3, 3.2W |
| TRANSFORMER TAPS @ 100V | 25, 12.5, 6.3W |
| DISPERSION (-6dB) | 120˚ conical |
| BACK CAN | Zinc-plated Steel |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel with cloth backing |
| FIRE RATING | UL94-V0 UL94-5VB |
| CONNECTORS | 4 Pin Euroblock with link out |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS | (Ø) 202mm x (D) 227.5mm (Ø) 7.95” x (D) 8.96” |
| CUT-OUT DIAMETER | 178mm (7.01”) |
| WEIGHT | 2.2kg (4.9lbs) |
