Features
- 4” full range driver
- Discreet size without back can
- Unobtrusive design
- 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
- Bezel-less grille accessory available

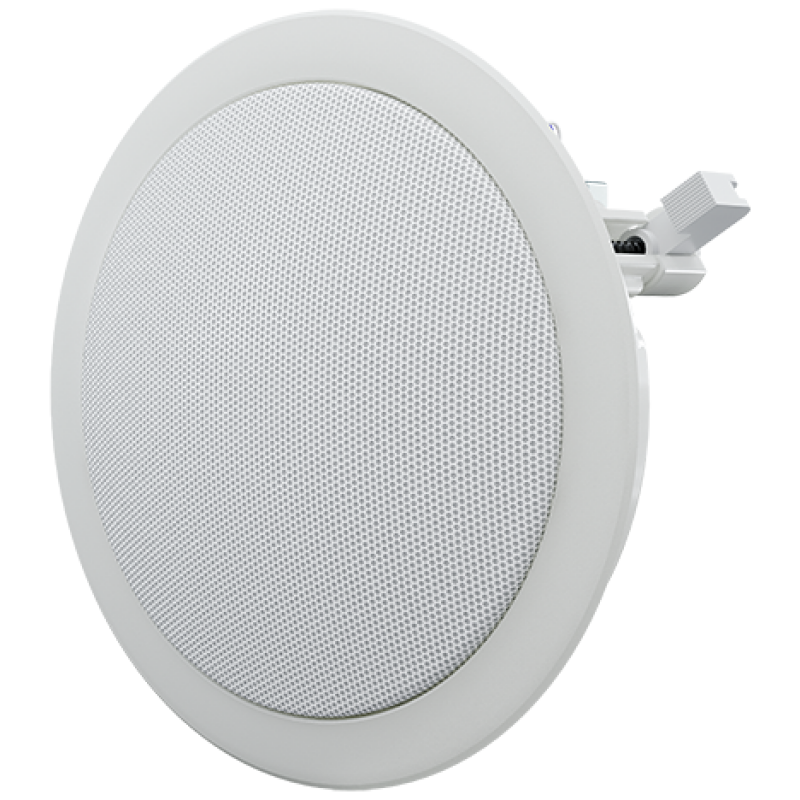

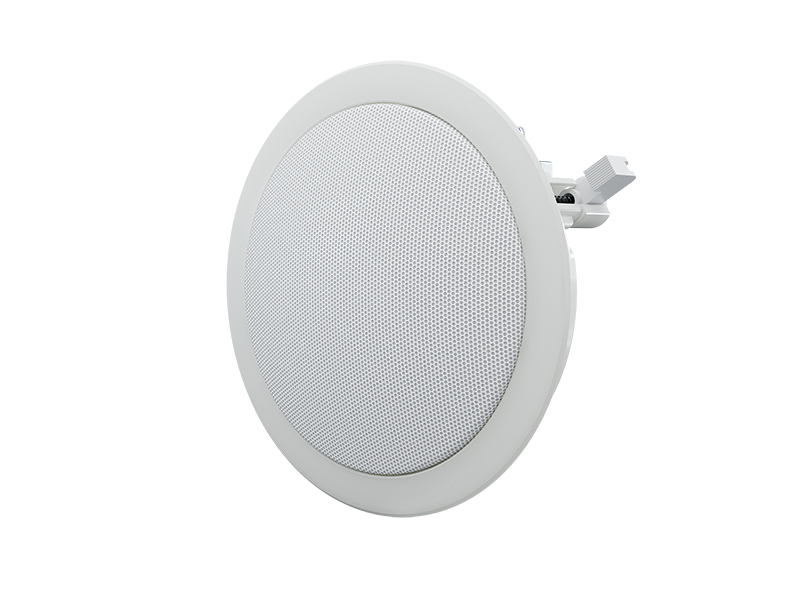

Up 4O is a discreet 4” ceiling speaker delivering consistent coverage and crisp, clear sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.
Up 4O is supplied without a back can for ceilings with a minimum cavity depth, while an integral fixing system is included to achieve a simple and clean installation. The steel perforated grille is finished in neutral white.
With the addition of the Grille 1 accessory, Up 4O can be easily enhanced with a bezel-less grille appearance and is available in both black and white, helping to blend into any architectural environment.
Up 4O features a 4” (105mm) driver which is ideal for both music and speech reproduction. A 130° conical coverage pattern ensures the system is delivering sound where it needs to go.
Each Up 4O has been specifically designed to run on 70 or 100 volt line systems via a series of transformer taps.
A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via onboard presets. When combined with Zone and WebApp, system set up and end user control is simple and intuitive, and can be further augmented by ZonePad wall controllers.
| TYPE | Full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) | 87Hz – 15kHz ± 3dB -10dB @ 60Hz |
| DRIVERS | 4” (105mm), Coated paper |
| RATED POWER (AES) | 10W |
| NOMINAL IMPEDANCE | Tap Dependent |
| SENSITIVITY (1W/1m) | 93dB |
| MAXIMUM SPL | 100dB (cont) |
| RECOMMENDED HIGH-PASS FILTER | 24dB/Octave @ 80Hz |
| TRANSFORMER TAPS @ 70V | 6, 3, 1.5, 0.75W |
| TRANSFORMER TAPS @ 100V | 6, 3, 1.5W |
| DISPERSION (-6dB) | 130˚ conical |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel with cloth backing |
| CONNECTORS | Bare wires |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS (inc. Grille) | (Ø) 202mm x (D ) 117mm
(Ø) 7.95” x (D ) 4.62” |
| CUT-OUT DIAMETER | 178mm (7.01”) |
| WEIGHT | 1.3kg (2.9lbs |
