Features
- 4” coaxial driver
- Discreet size with shallow back can
- Unobtrusive design
- 8 ohm or 70/100V line operation
- Range of power taps
- Wide conical coverage pattern
- Integrated mounting hardware
- Pendant and bezel-less grille accessory available

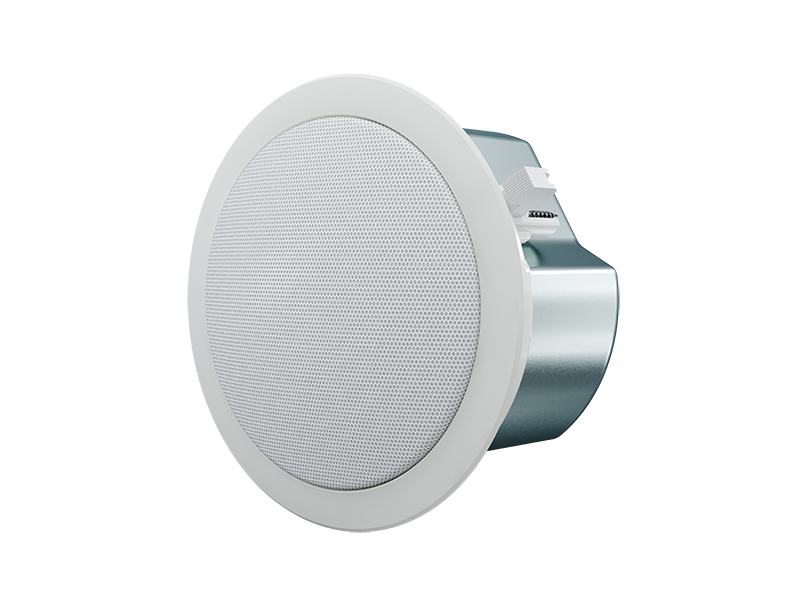

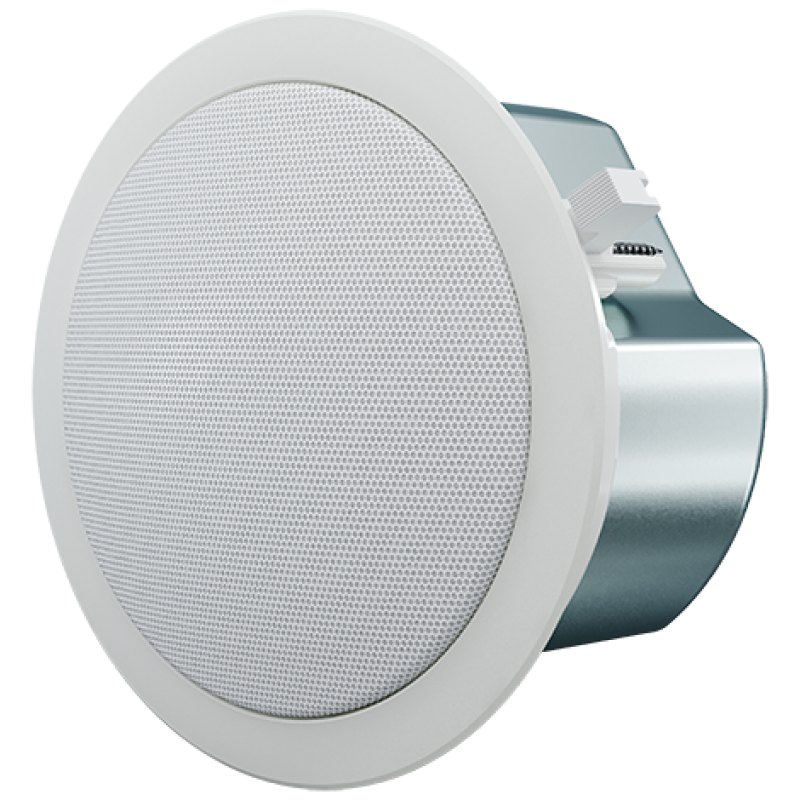

Up 4S is a discreet, two-way, passive 4” speaker delivering consistent coverage and full frequency sound to a wide range of cost conscious, commercial environments from hotels and concourses to retail outlets, bars and restaurants.
Up 4S features a 4” (105mm) low frequency driver paired with a 0.7” (20mm) silk dome tweeter. It is suitable for both high quality speech and music reproduction.
The Pendant 1 and Grille 1 accessories offer further flexibility in installation and applications, allowing you to either elegantly suspend Up 4S speakers as stylish pendants or achieve a sleek, bezel-less grille appearance. These accessories are available in both black and white, helping to blend into any architectural environment.
The wide 150° conical coverage of Up 4S makes it particularly suitable for low ceilings and reduces the number of speakers required for even coverage leading to a reduction in installation cost. A shallow steel back can allows installation in ceilings with minimal cavity depth. An integral fixing system is included to achieve a simple and clean installation. Up 4S has a steel back, perforated steel grille and finished in neutral white.
Each Up 4S can be run on a series of 70 or 100 Volt taps or at low impedance. Tap selection is via a rotary switch behind the removable grille.
A SmartAmp or powered Zone will provide amplification, optimal sound performance and loudspeaker protection via presets. When coupled with a Zone and WebApp, system set up and end user control is straight forward, and can be further supplemented by ZonePad wall controllers.
| TYPE | Two-way, full range, passive, ceiling speaker |
| FREQUENCY RESPONSE (with preset) | 110Hz – 18kHz ± 3dB -10dB @ 85Hz |
| DRIVERS | LF: 4” (105mm), Polypropylene injection moulded HF: 0.7″ (20mm) Silk Dome |
| RATED POWER | 15W (AES) 30W (Peak) |
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY (1W/1m) | 86dB |
| MAXIMUM SPL | 98dB (cont), 101dB (peak) |
| CROSSOVER | 3.5kHz passive |
| RECOMMENDED HIGH-PASS FILTER | 24dB/octave @ 85Hz |
| TRANSFORMER TAPS @ 70V | 8,4,2,1,0.5W |
| TRANSFORMER TAPS @ 100V | 8,4,2,1W |
| DISPERSION (-6dB) | 150˚ conical |
| BACK CAN | Zinc-plated Steel |
| BAFFLE | ABS |
| PROTECTIVE GRILLE | Perforated steel with cloth backing |
| UL94-V0 UL94-5VB | |
| CONNECTORS | 4 Pin Euroblock with link out |
| FITTINGS | C-ring support backing plate |
| DIMENSIONS (inc. Grille) | (Ø) 202mm x (D) 144mm (Ø) 7.95” x (D) 5.67” |
| CUT-OUT DIAMETER | 178mm (7.01”) |
| WEIGHT | 2.2kg (4.9lbs) |
