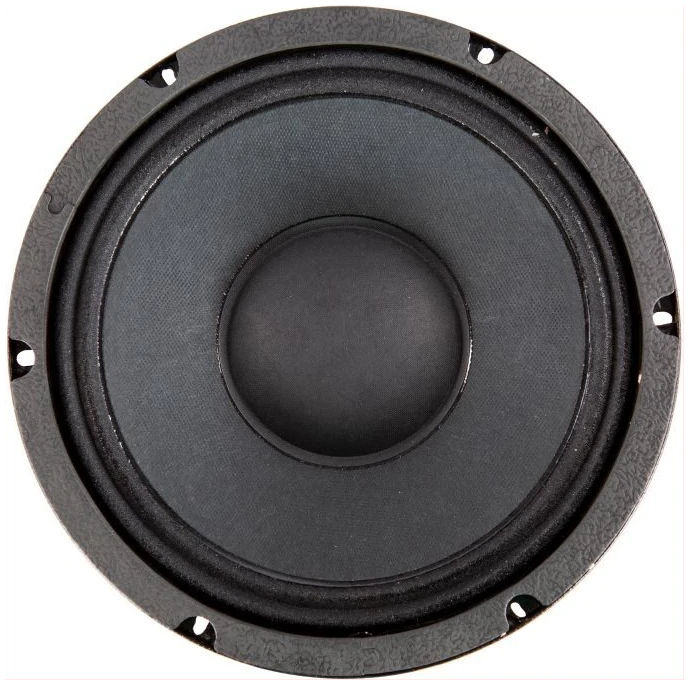

GENERAL SPECIFICATIONS
| Nominal diameter | 203 mm/8 in |
| Power rating | 150 W(AES) |
| Nominal impedance | 8Ω |
| Sensitivity | 93 dB |

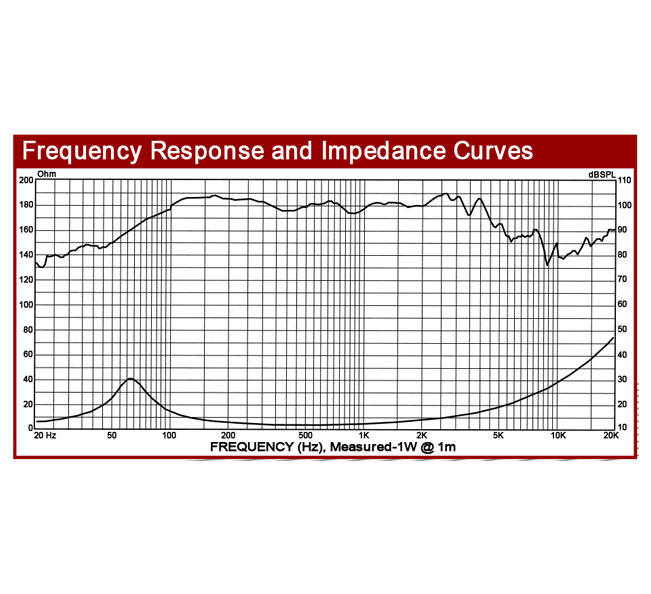

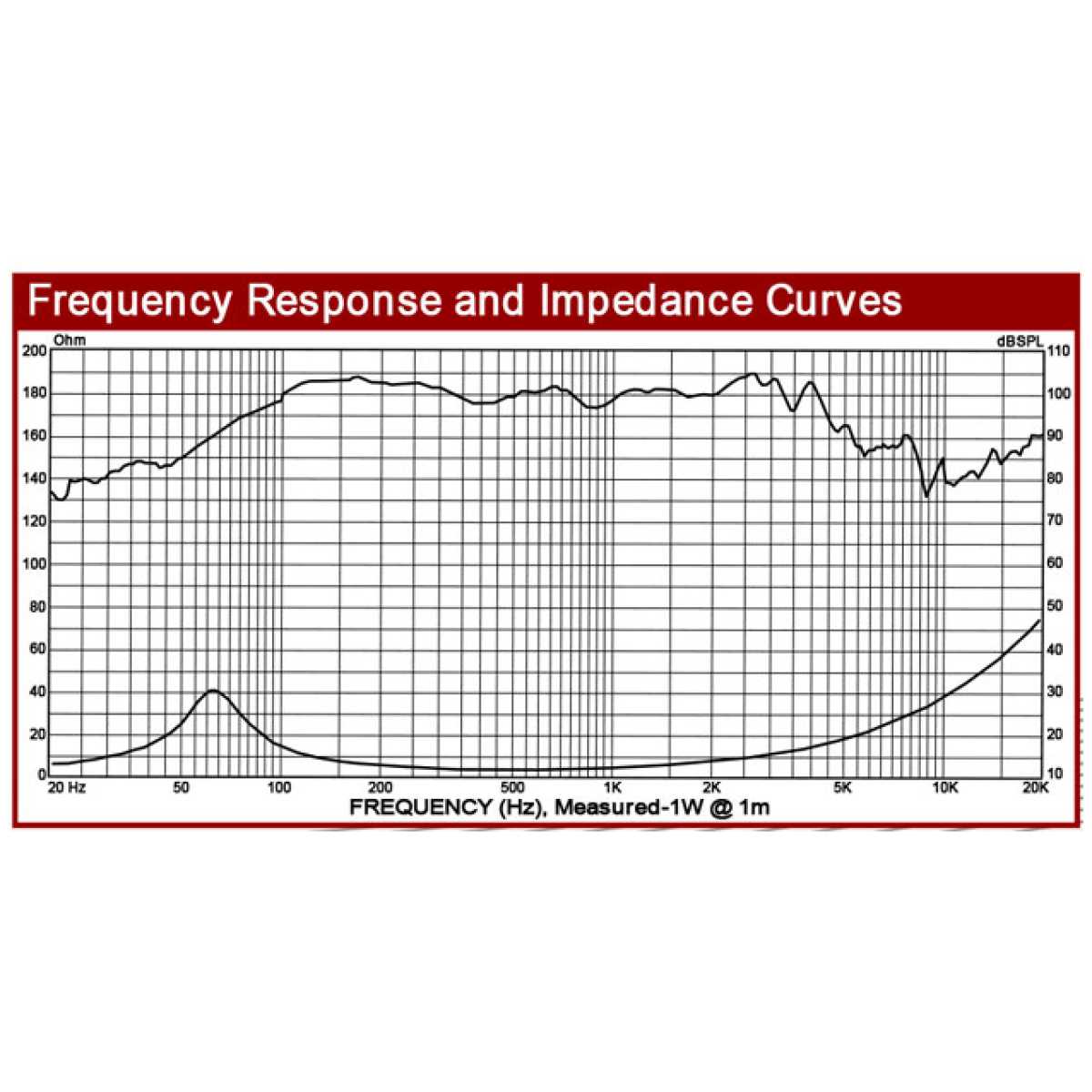

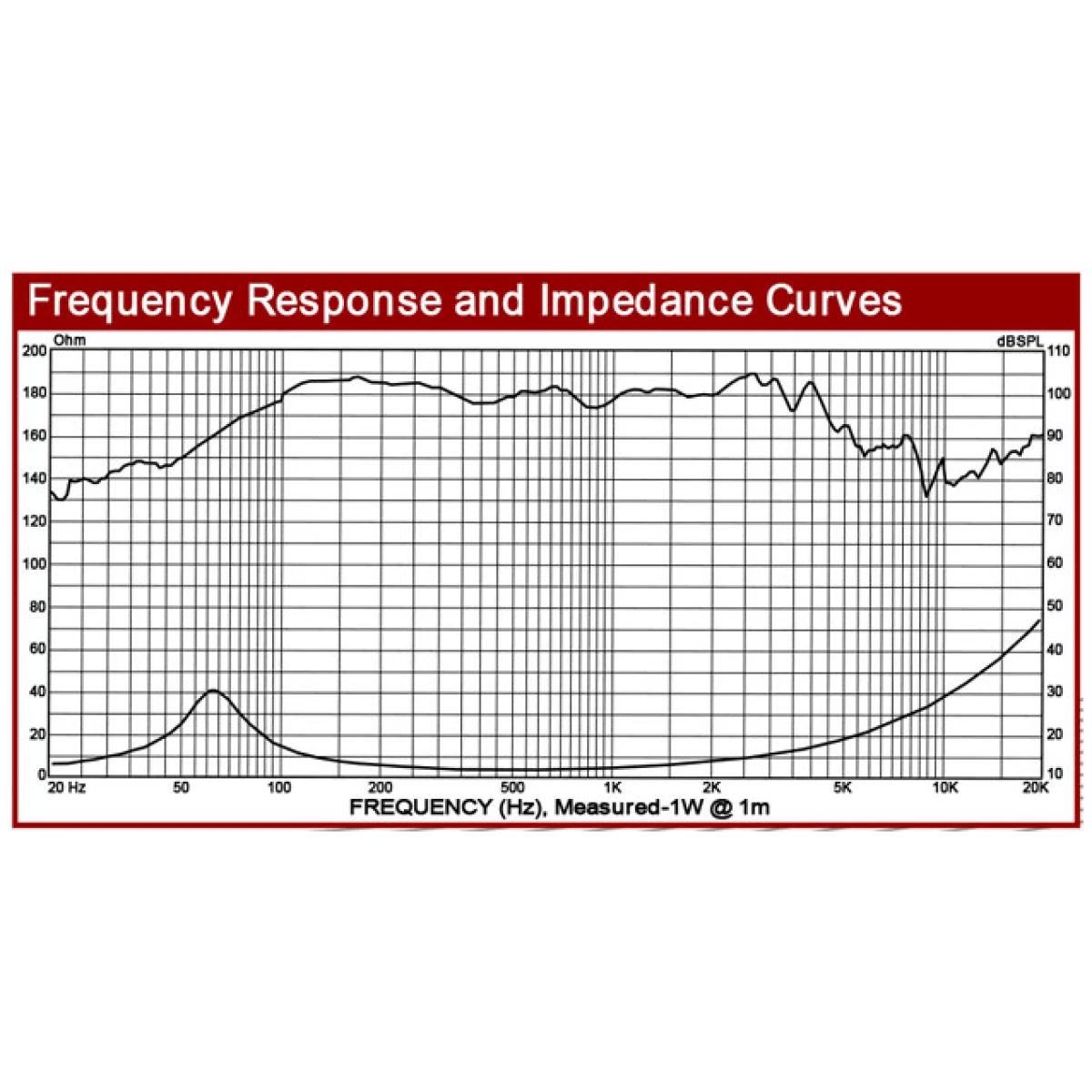

| Frequency range | 60-3000 Hz |
| Chassis type | Heavy Duty Stamp Steel |
| Magnet type | Ferrite |
| Magnet weight | 0.88 kg/31.2 oz |
| Voice coil diameter | 51.3 mm/2 in |
| Coil material | SV-W |
| Former material | Kapton |
| Cone material | Paper |
| Surround material | Cloth |
| Suspension | Single |
| X-max | 3.75 mm/0.15 in |
| Gap depth | 8 mm/0.31 in |
| Voice coil winding width | 15.5 mm/0.61 in |
| Packing dimension WxDxH | 225 x 225 x 120 mm |
| Net weight | 2.8 kg/6.2 lb |
| Shipping weight | 3.3 kg/7.3 lb |
