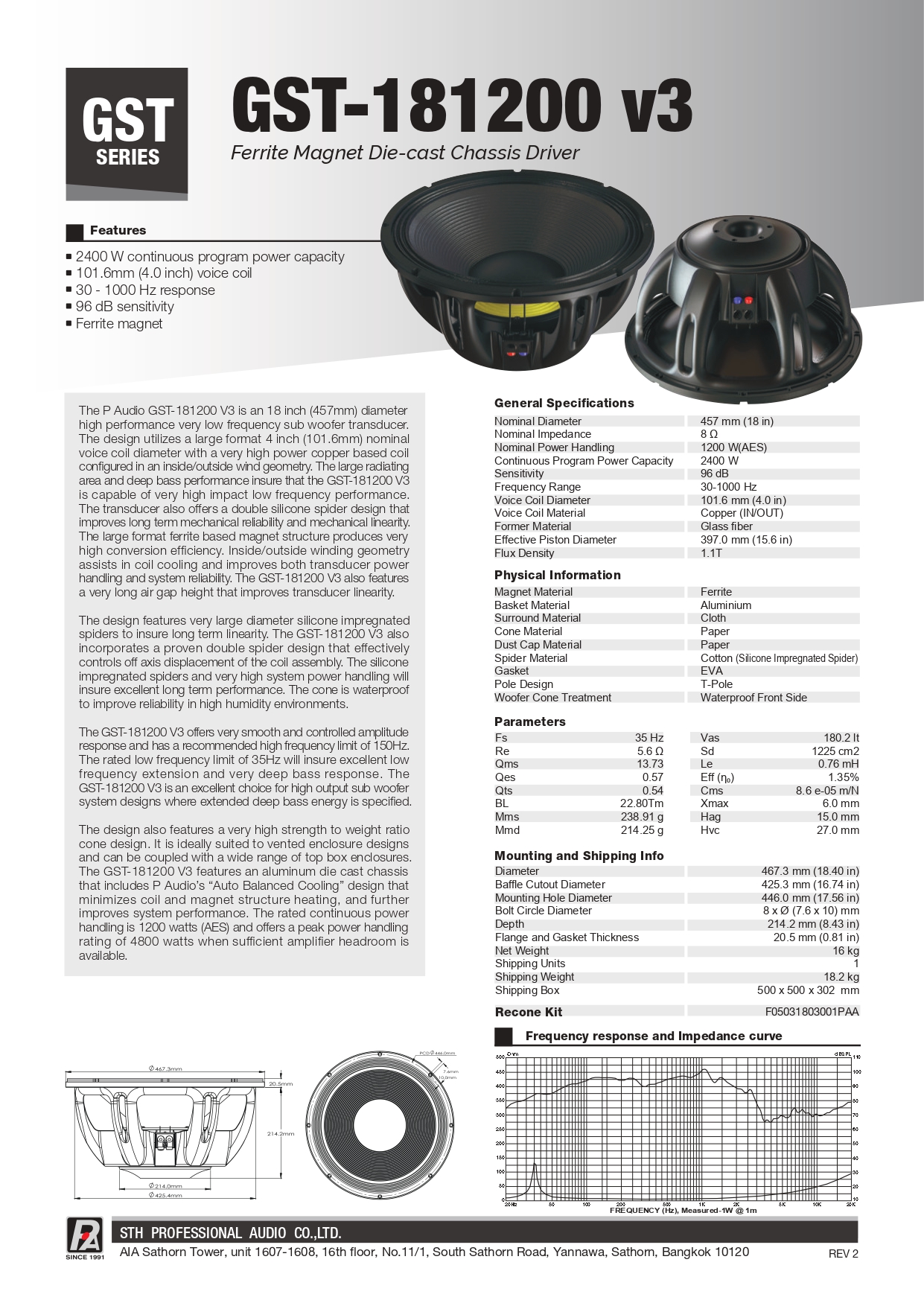

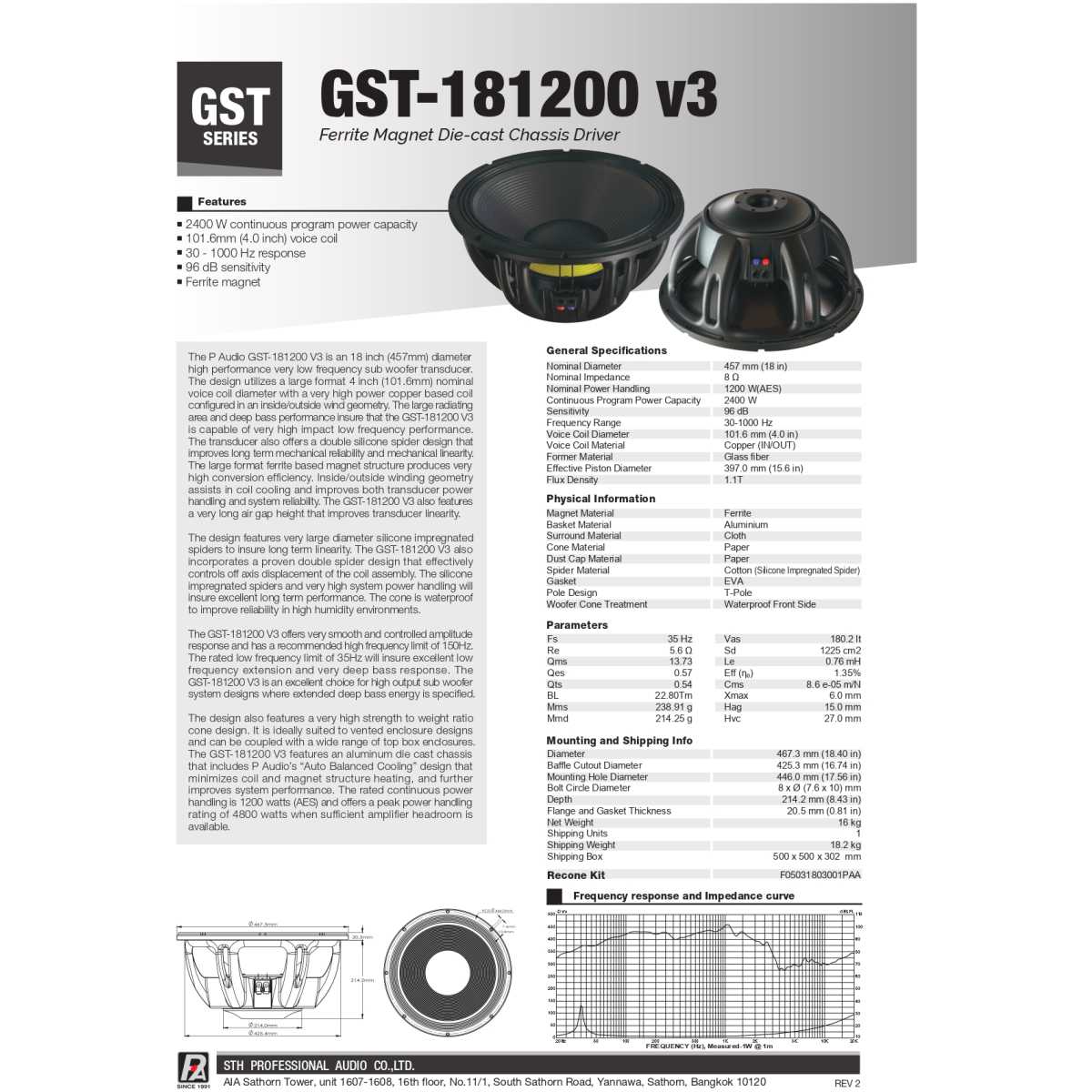

GENERAL SPECIFICATIONS
| Nominal diameter | 457 mm/18 in |
| Power rating | 1200 W(AES) |
| Nominal impedance | 8Ω |
| Sensitivity | 96 dB |
| Frequency range | 30-1000 Hz |
| Chassis type | Cast aluminum |
| Magnet type | Ferrite |
| Magnet weight | 4.3 kg/150.8 oz |
| Voice coil diameter | 101.6 mm/4 in |
| Coil material | Copper Wire |
| Former material | Glass fiber |
| Cone material | Paper |
| Surround material | Cloth |
| Suspension | Double |
| X-max | 6 mm/0.24 in |
| Gap depth | 15 mm/0.59 in |
| Voice coil winding width | 27 mm/1.06 in |
| Packing dimension WxDxH(mm) | 505 x 505 x 290 |
| Net weight | 16 kg/35.3 lb |
| Shipping weight | 18.2 kg/40.1 lb |
