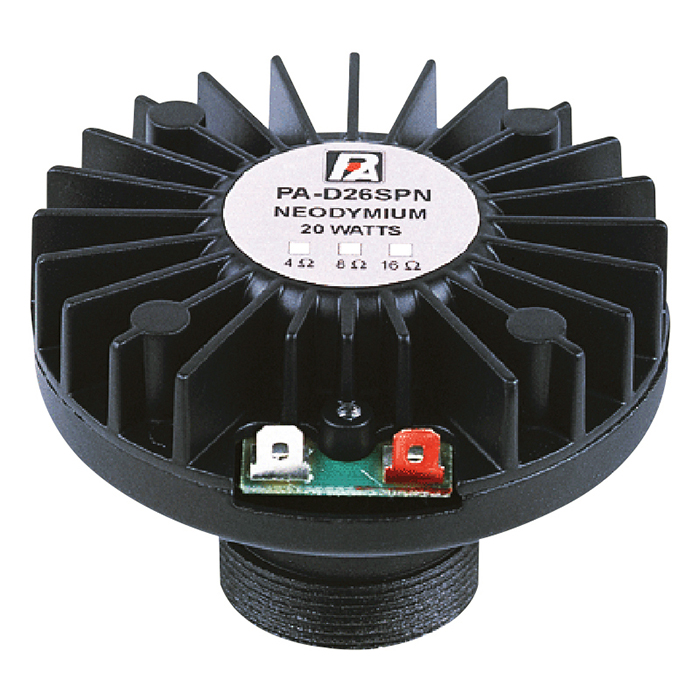

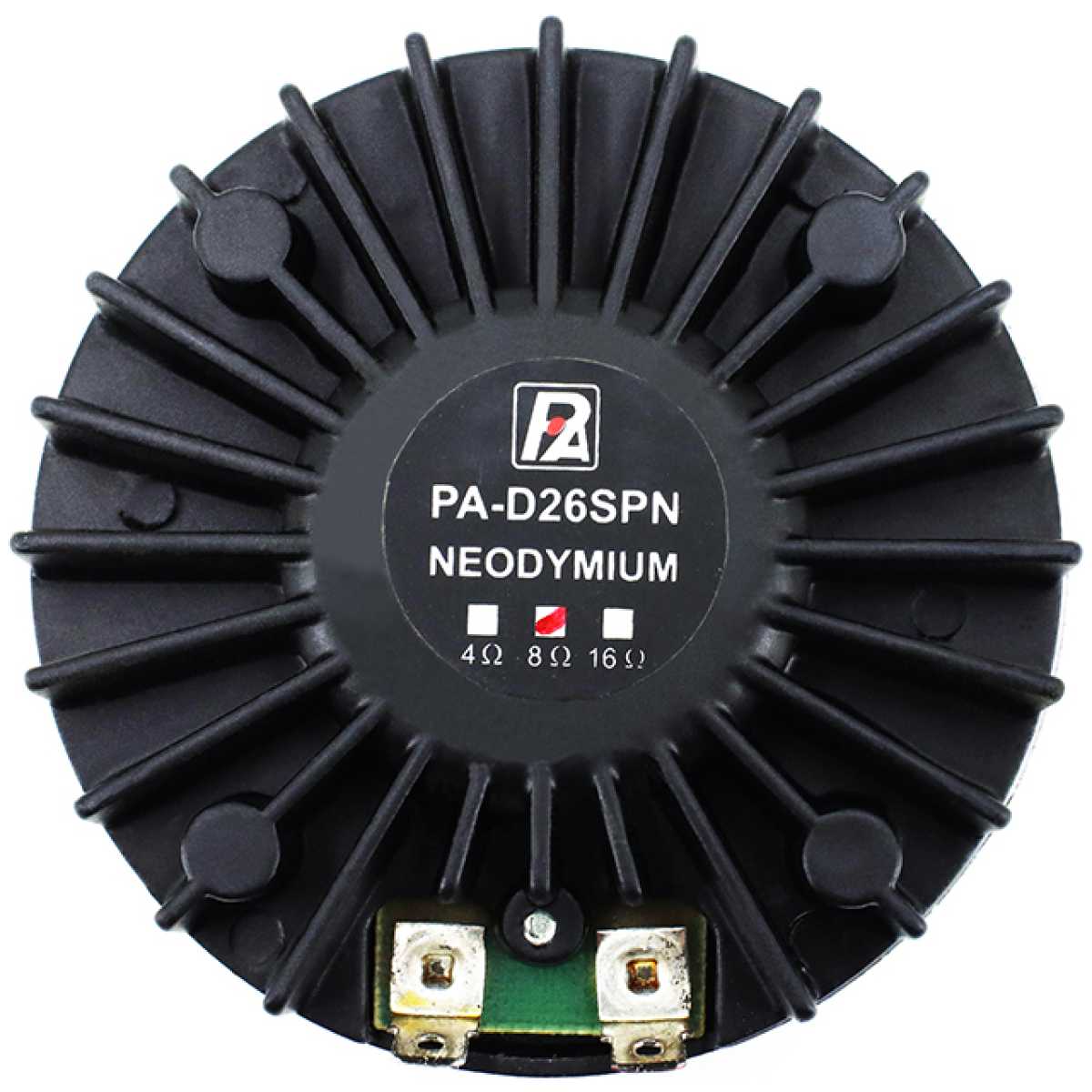

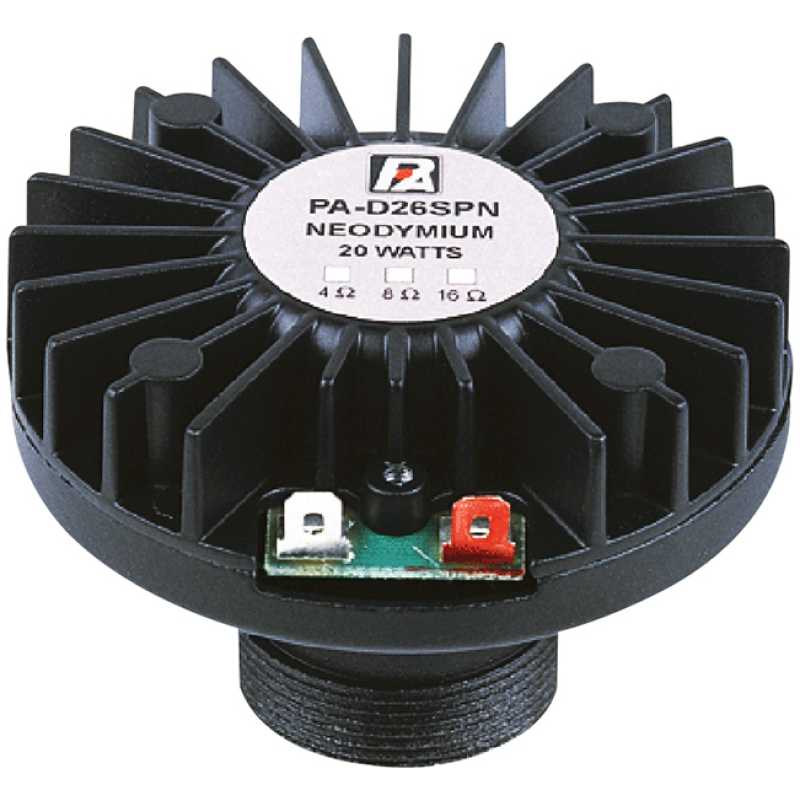

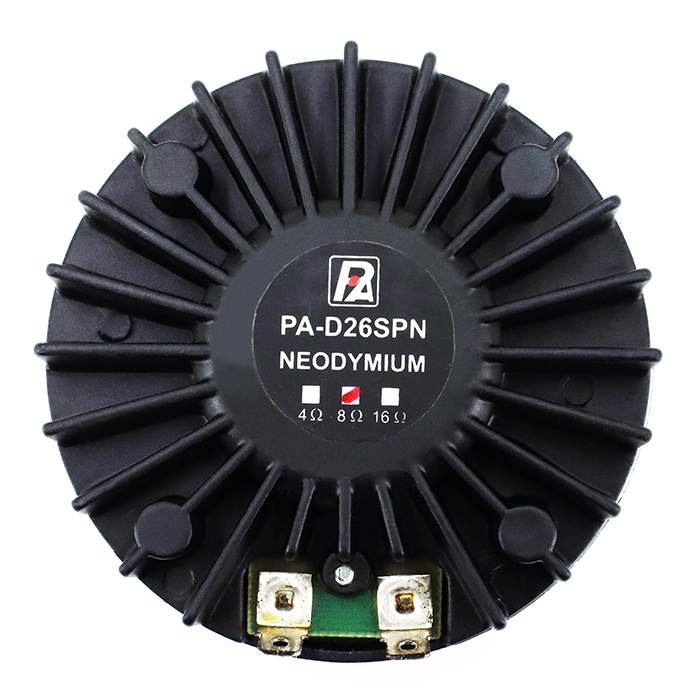

P Audio PA-D26SPN

The P Audio PA-D26SPN is a small format diaphragm compression driver designed for mid range and extended high frequency applications in two way professional sound reinforcement systems. The small format design is excellent for wide bandwidth applications and is ideal for medium sized sound reinforcement systems using 8 inch (203mm) and 10 inch (254mm) woofers. The driver has a rated bandwidth of 2kHz to beyond 20kHz.

The PA-D26SPN is a Neodymium based permanent magnet system that features a 1.0 inch (25.4mm) diameter polyimide diaphragm assembly. The high output neodymium magnetic system features a mid band sensitivity rating of 110dB. This design features P Audio�s legendary high temperature systems to insure both high power handling and high reliability.

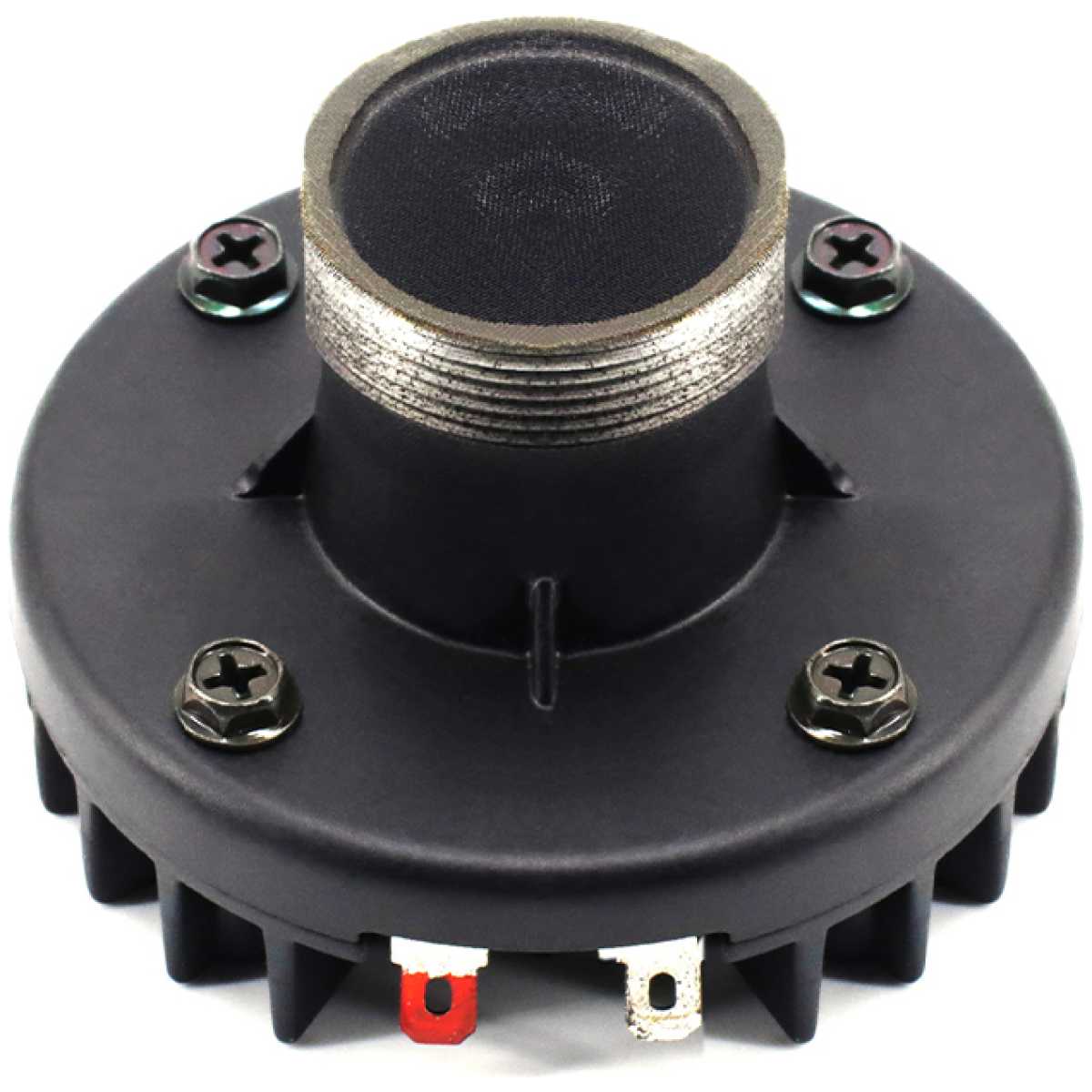

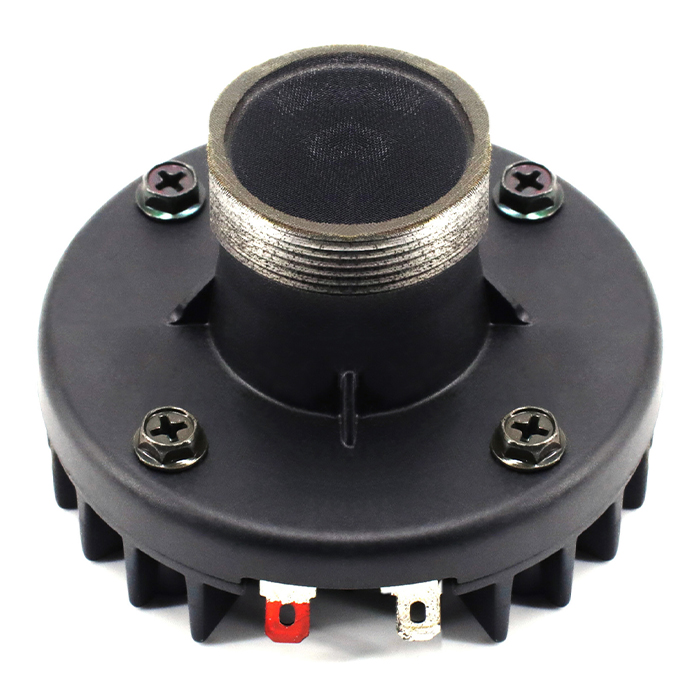

The PA-D26SPN features an industry standard screw on style exit that allows the driver to easily mate to any high frequency horn with a standard 1.0 inch screw on mounting.
