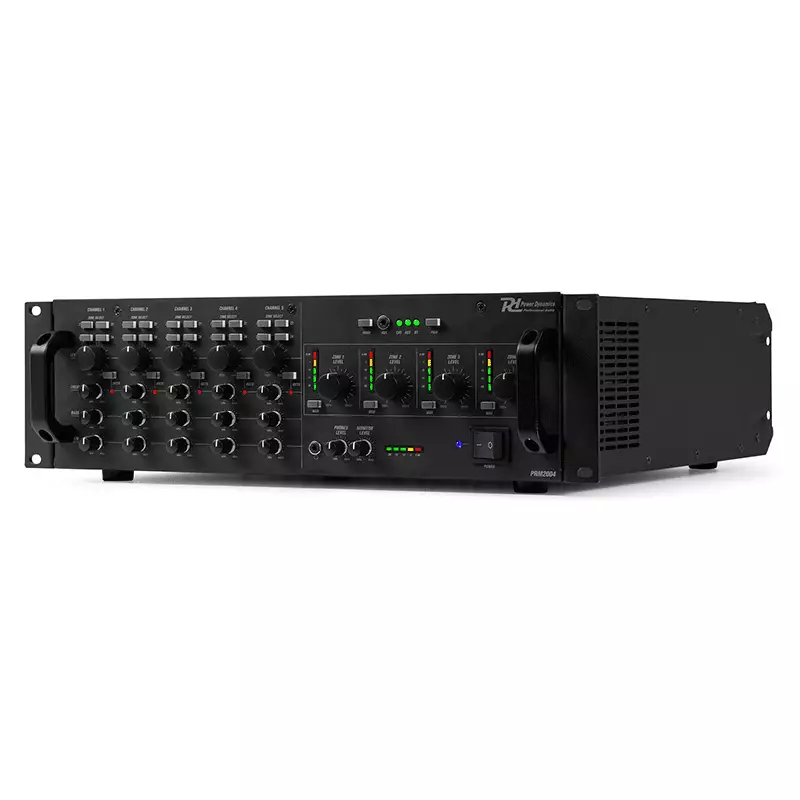

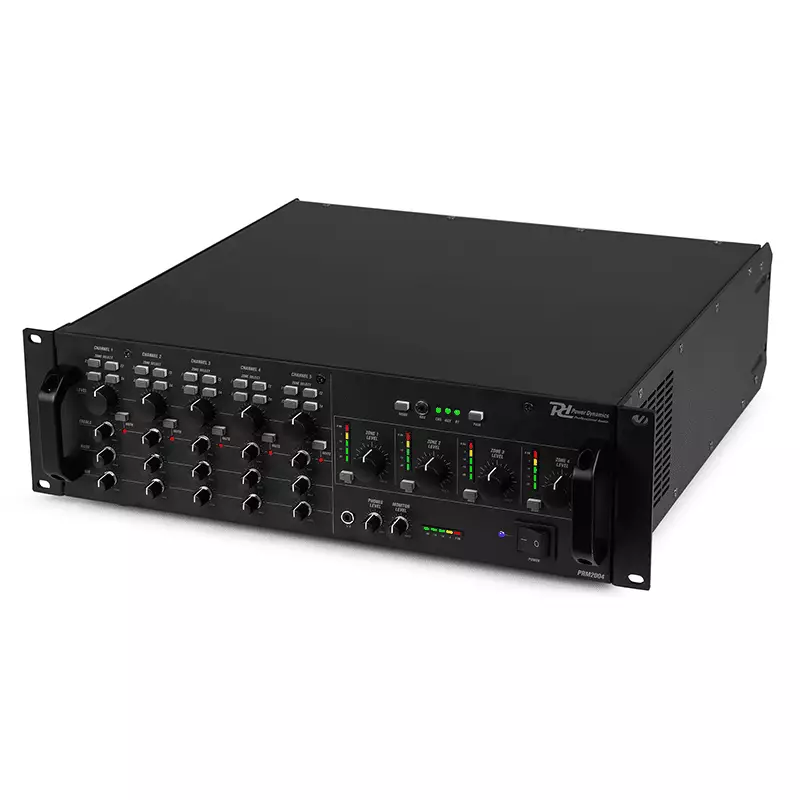

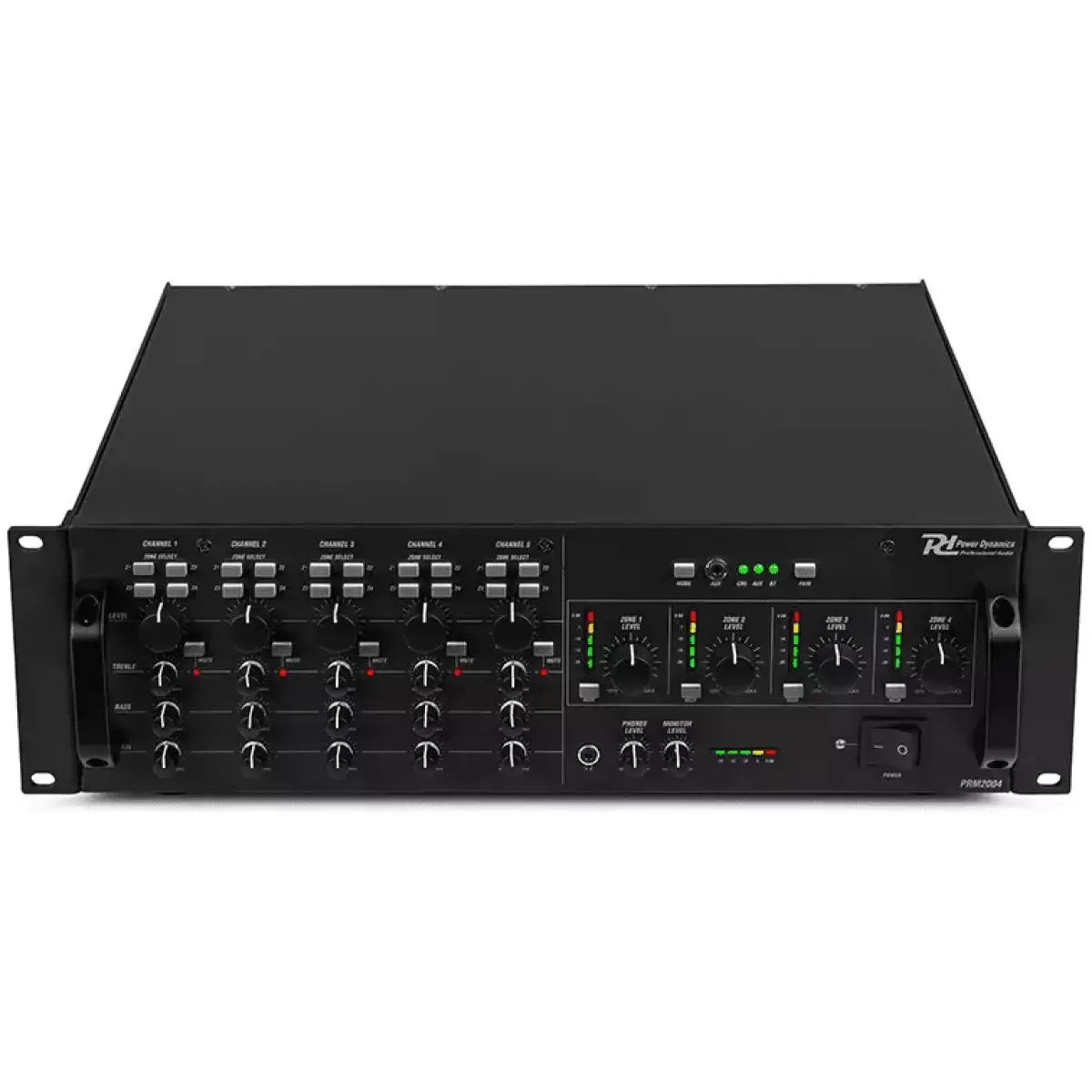

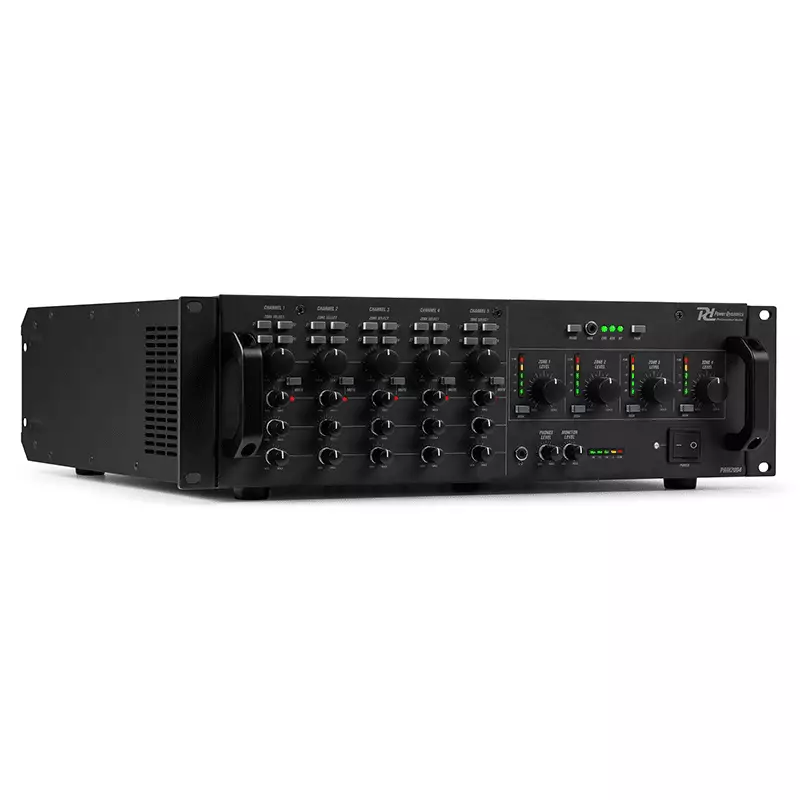

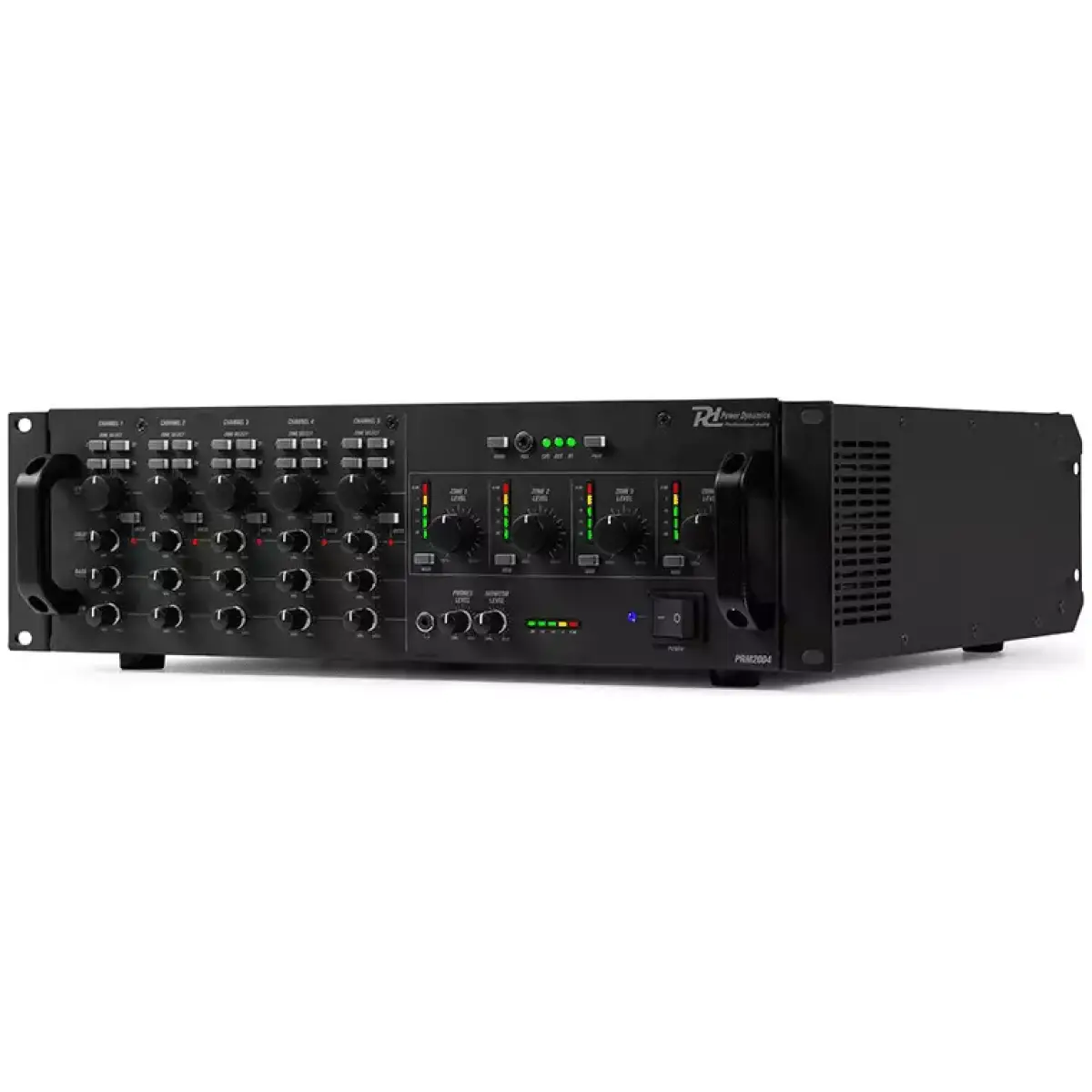

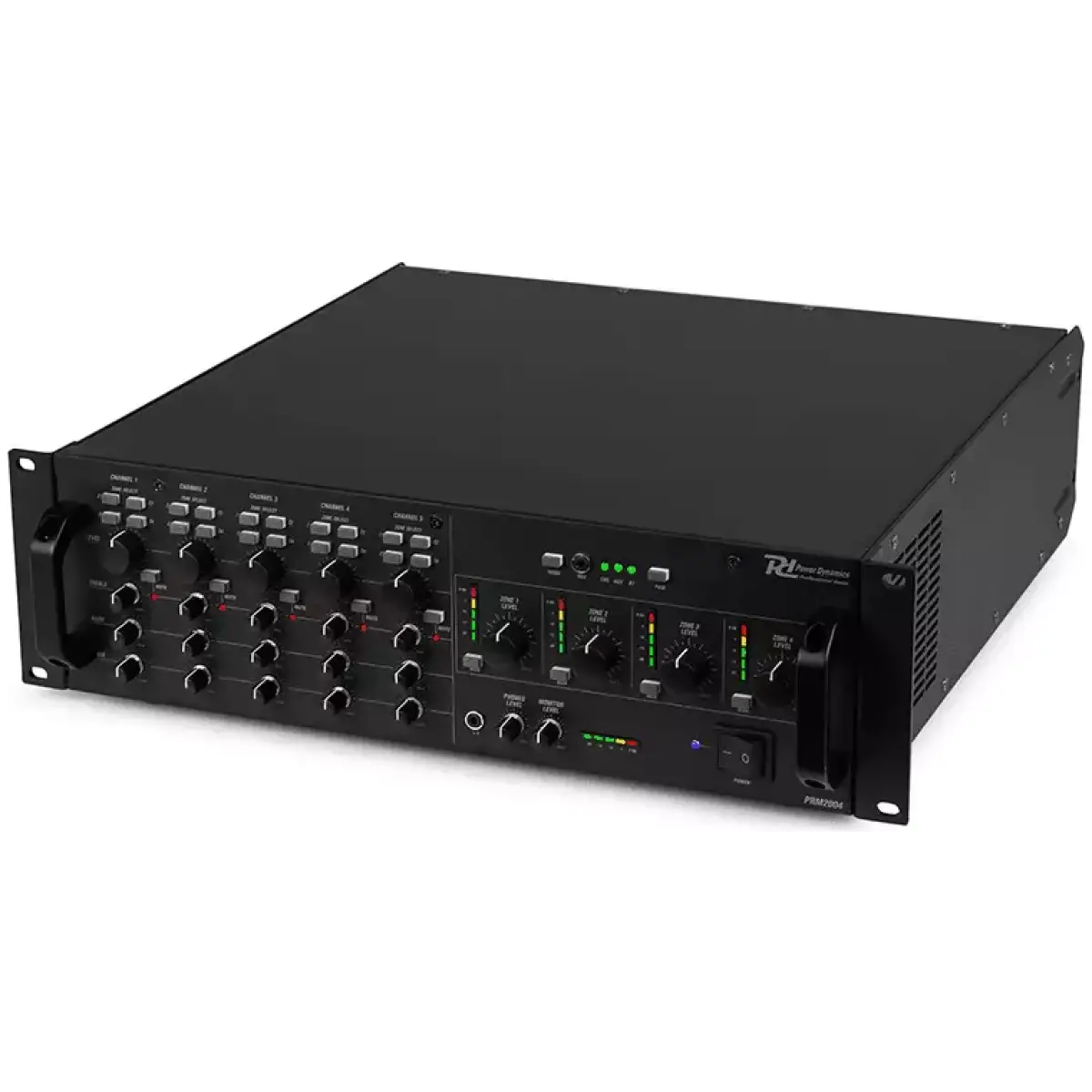

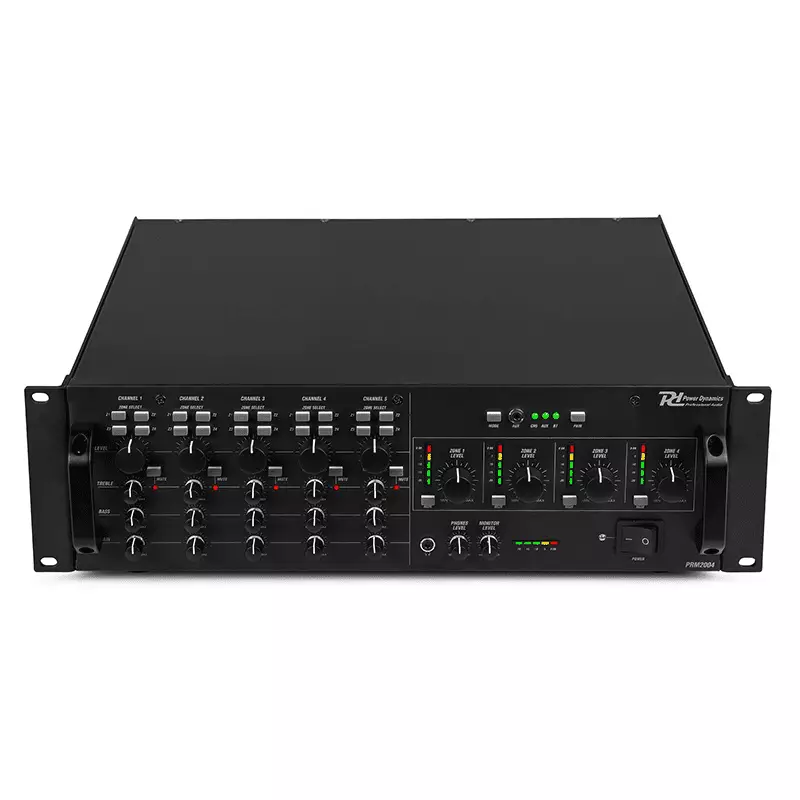

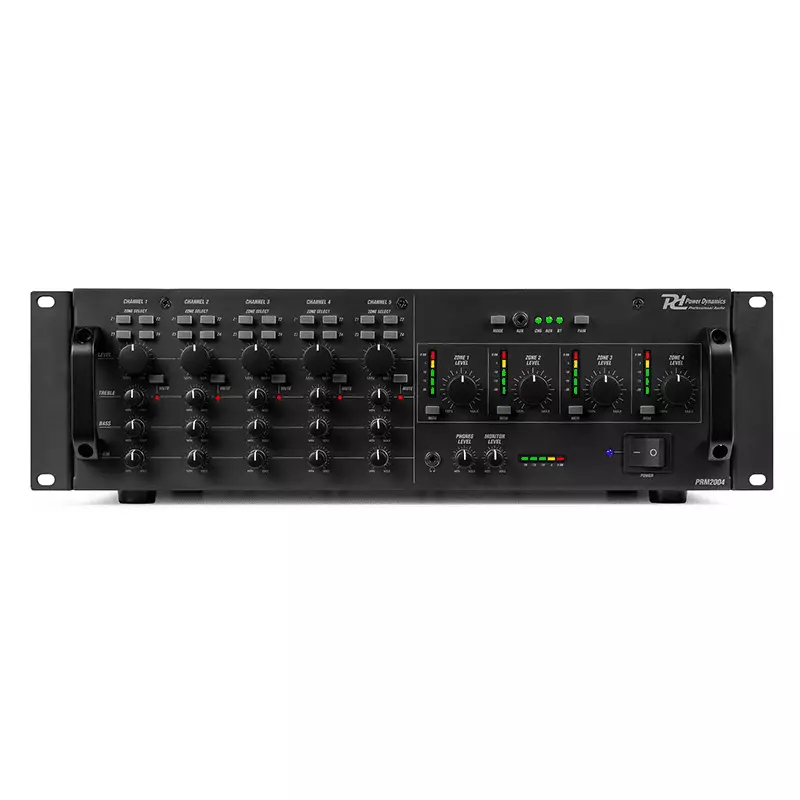

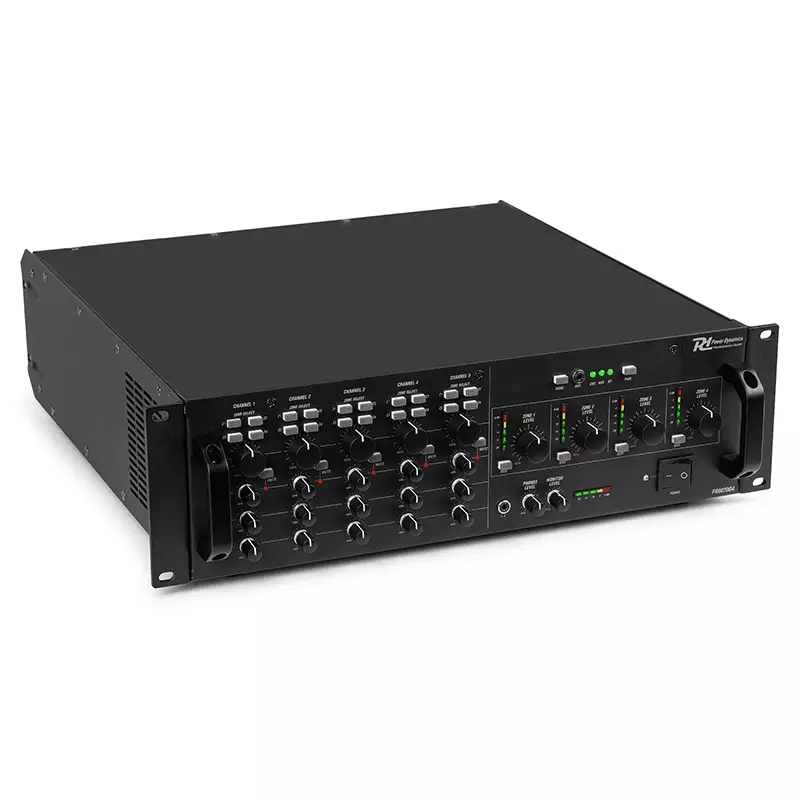

The PAM2004 is a ultimate 4-channel mixer amplifier designed for commercial installations with up to 4 zones. Whether you’re looking to upgrade your restaurant, retail store, or any other commercial space, this powerful amplifier delivers exceptional performance and versatility. With 4 mono channels, the PAM2004 allows you to connect a wide range of audio sources, from microphones, tuners and CD players to MP3 players and smartphones. Each channel has its own volume control, so you can adjust the sound levels for each zone to suit your needs.
The PAM2004 comes equipped with a powerful built-in amplifier, providing up to 200 watts of power to each of the 4 output zones. Additionally, the PAM2004 features a range of advanced features to help you fine-tune your sound, including bass and treble controls, a built-in limiter to prevent distortion, and a priority function that mutes other channels when a higher priority channel is activated.
Features:
- 100V matrix amplifier with 4 independent output zones
- 4x 200W power Section
- Using BT wireless technology for audio streaming
- 4x Mic/line inputs Combi 6.3mm Jack/XLR, 1x RCA line input
- XLR Microphone inputs with switchable phantom power
- Priority function on channel 1
- Integrated limiter
- 100V or 4/8 Ohm speaker output

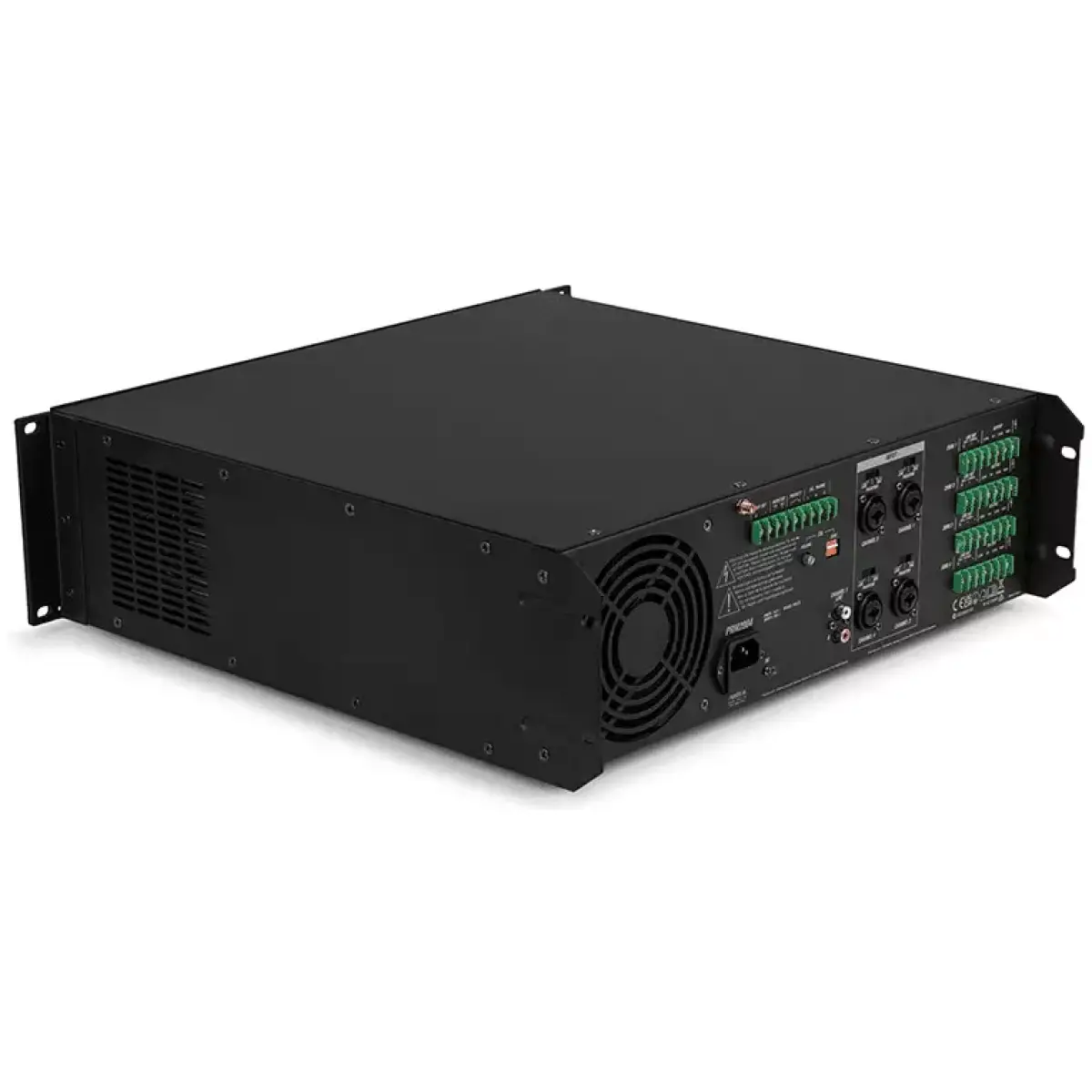

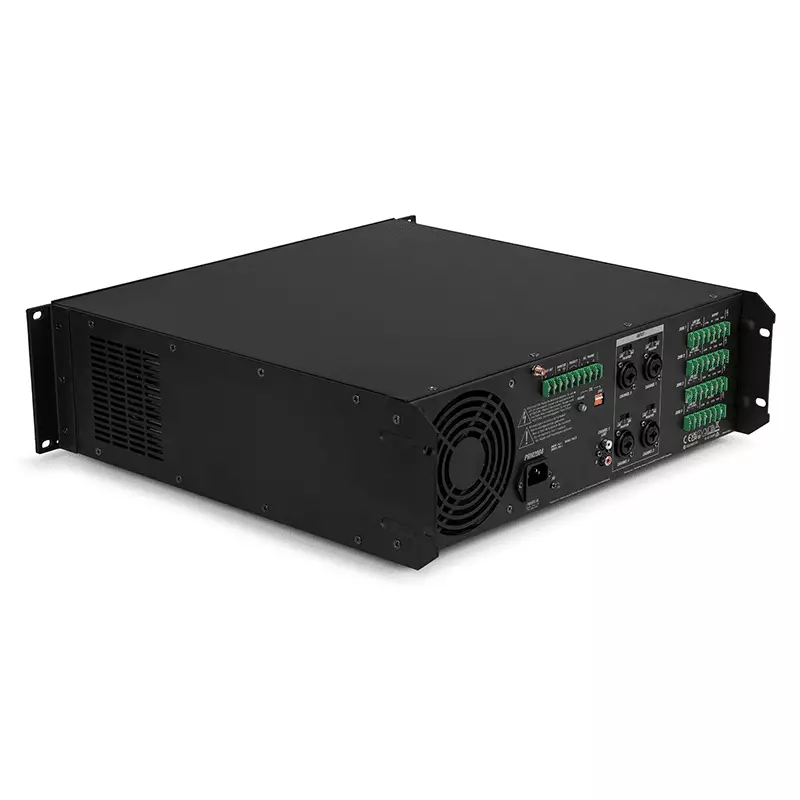

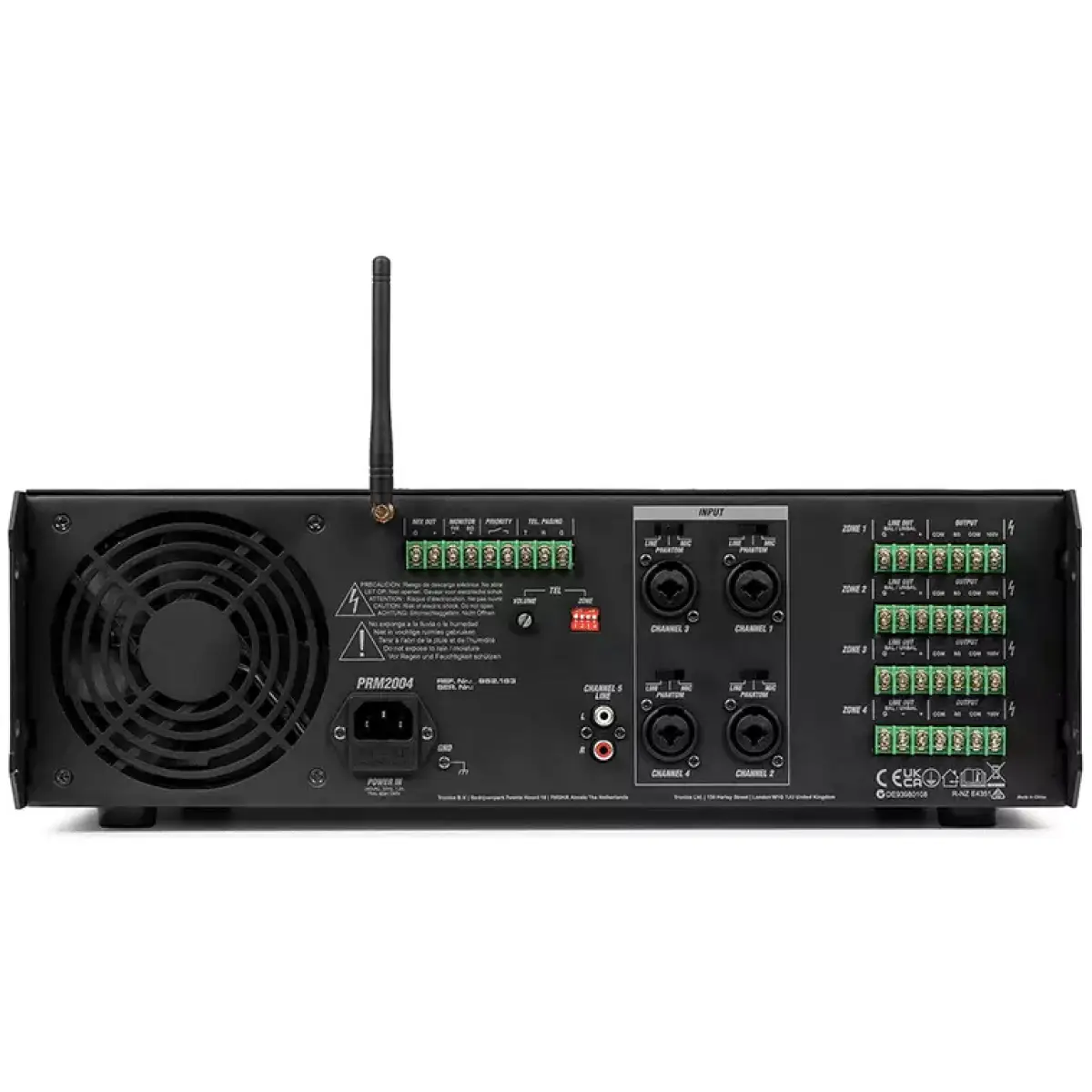

- Zone connections: 4x Speaker Terminal (100V / 4Ohm / 8Ohm / Com)
- Bass and treble controls
- Independent paging input, can be routed to all zones
- Level control via VU meters
- Adjustable headphone connection
- 19" Rack mountable
- Protections: Overheat, short circuit and power on delay
Specifications:
- Product colour: Black
- Playback options: BT streaming
- Output channels: 4
- Output power: RMS: 800W
- Impedance: 4 Ohm, 8 Ohm, 100V
- Frequency response: 50Hz – 17.000Hz
- THD: <1%
- Signal-to-noise ratio: Line: >75dB
- Signal-to-noise ratio: Mic: >65dB
- Input level: Line: 100mV, 30 kOhm
- Input level: Mic: 40mV, 5 kOhm (tel. paging)
- Power supply: 220-240VAC 50Hz
- Dimensions (L x W x H): 490 x 485 x 140mm
- Weight (kg): 26.3
- Included accessories Mounting bracket, Power cable
