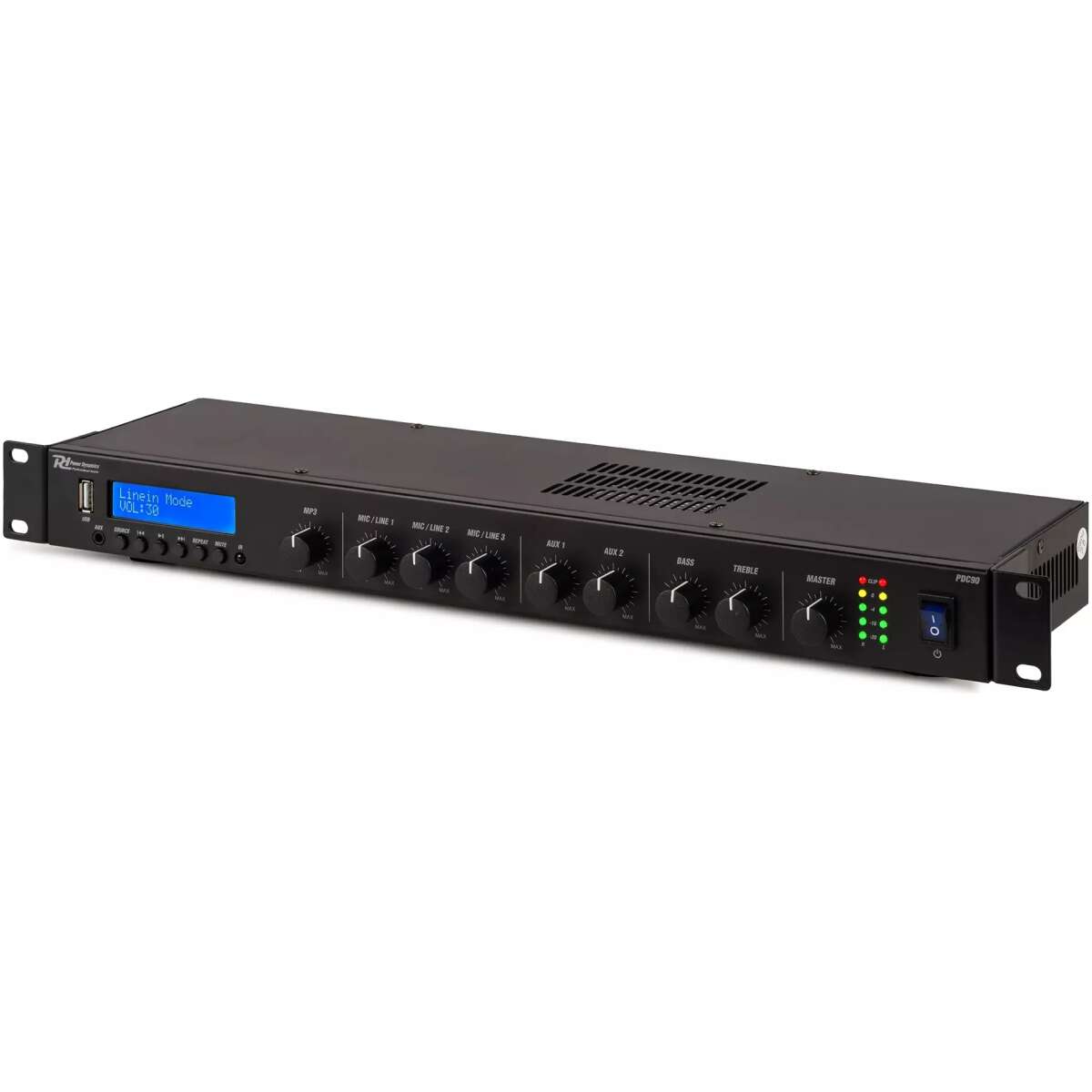

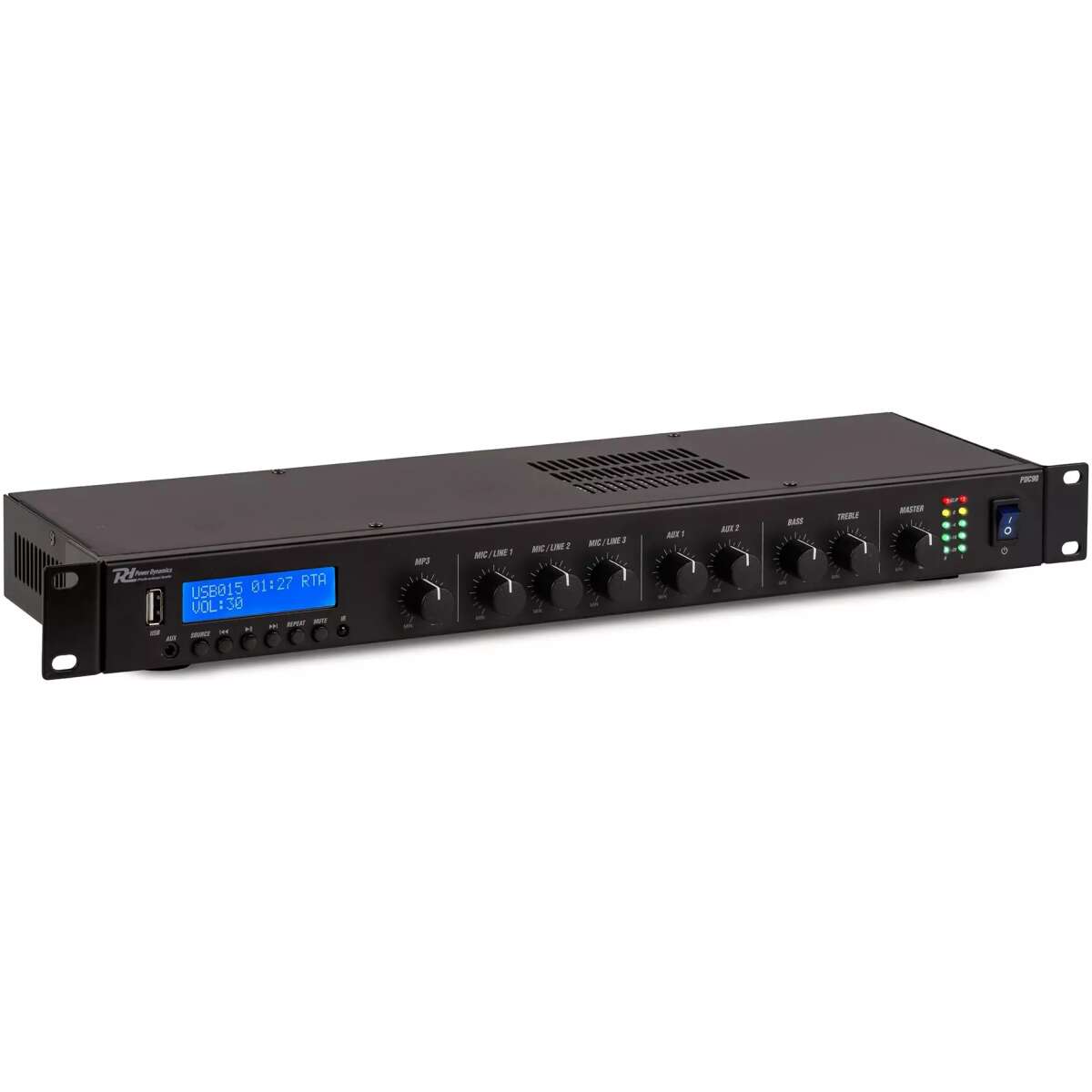

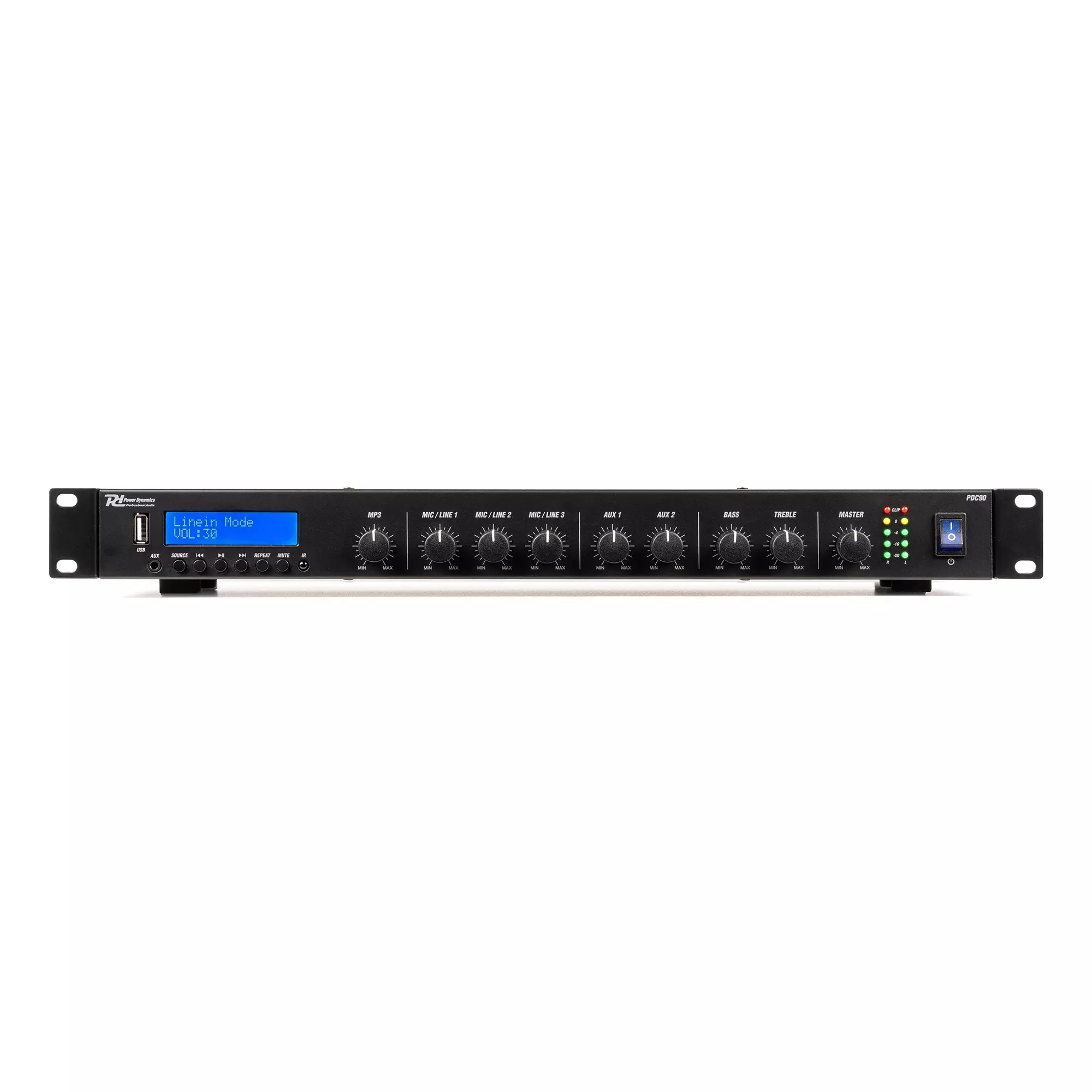

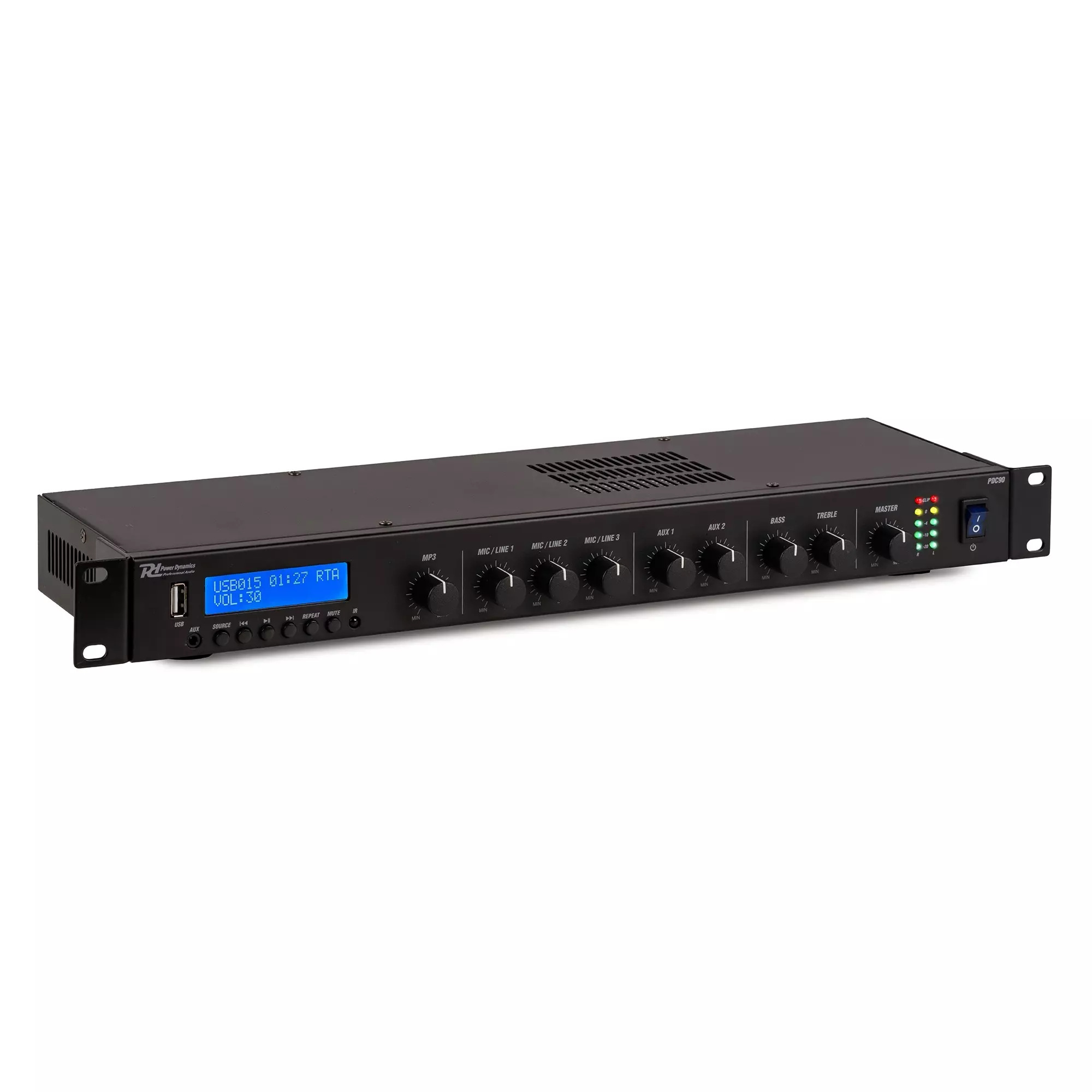

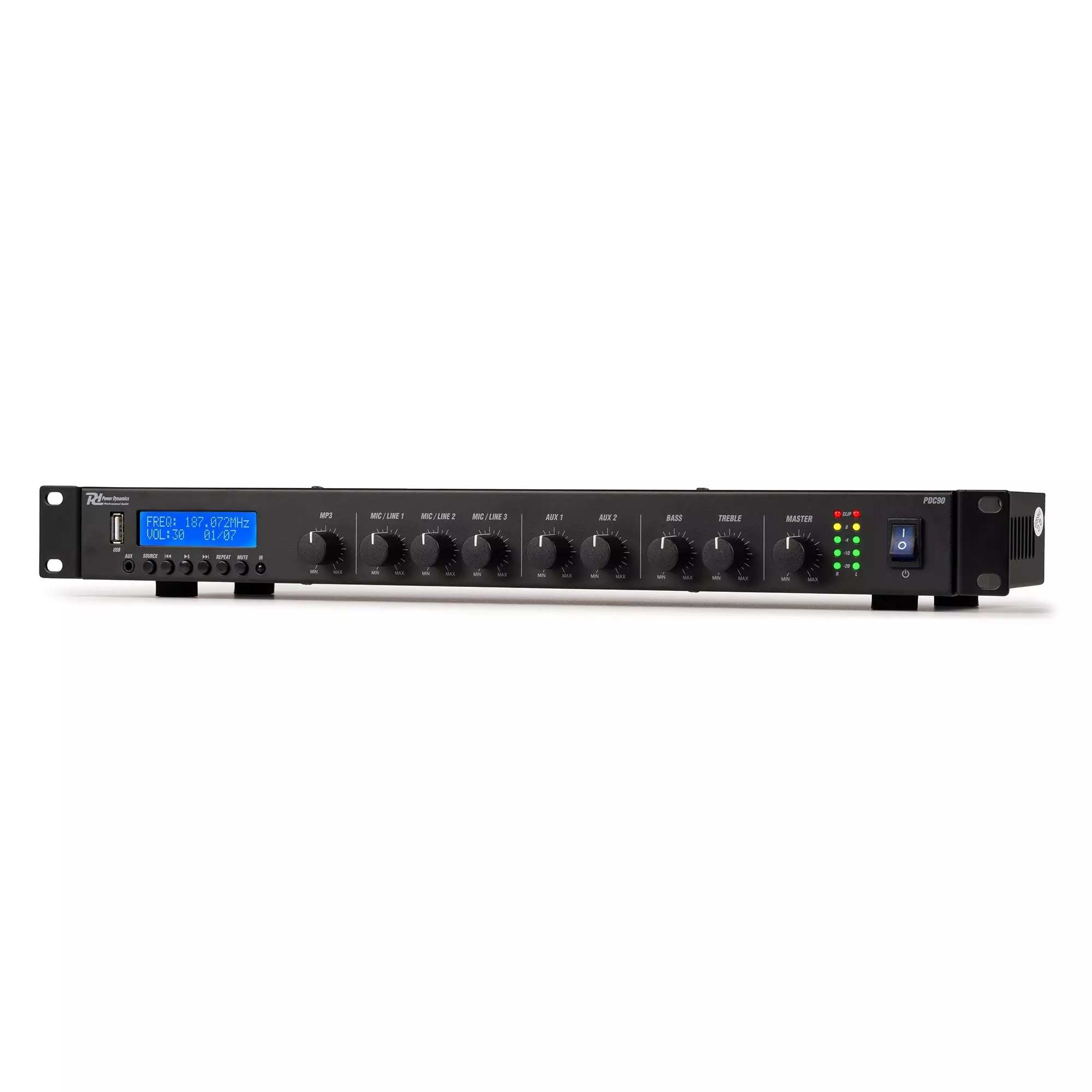

Pdm PDC90 Mixer Amplifier 1U 2X 60W Usb/bt/dab+

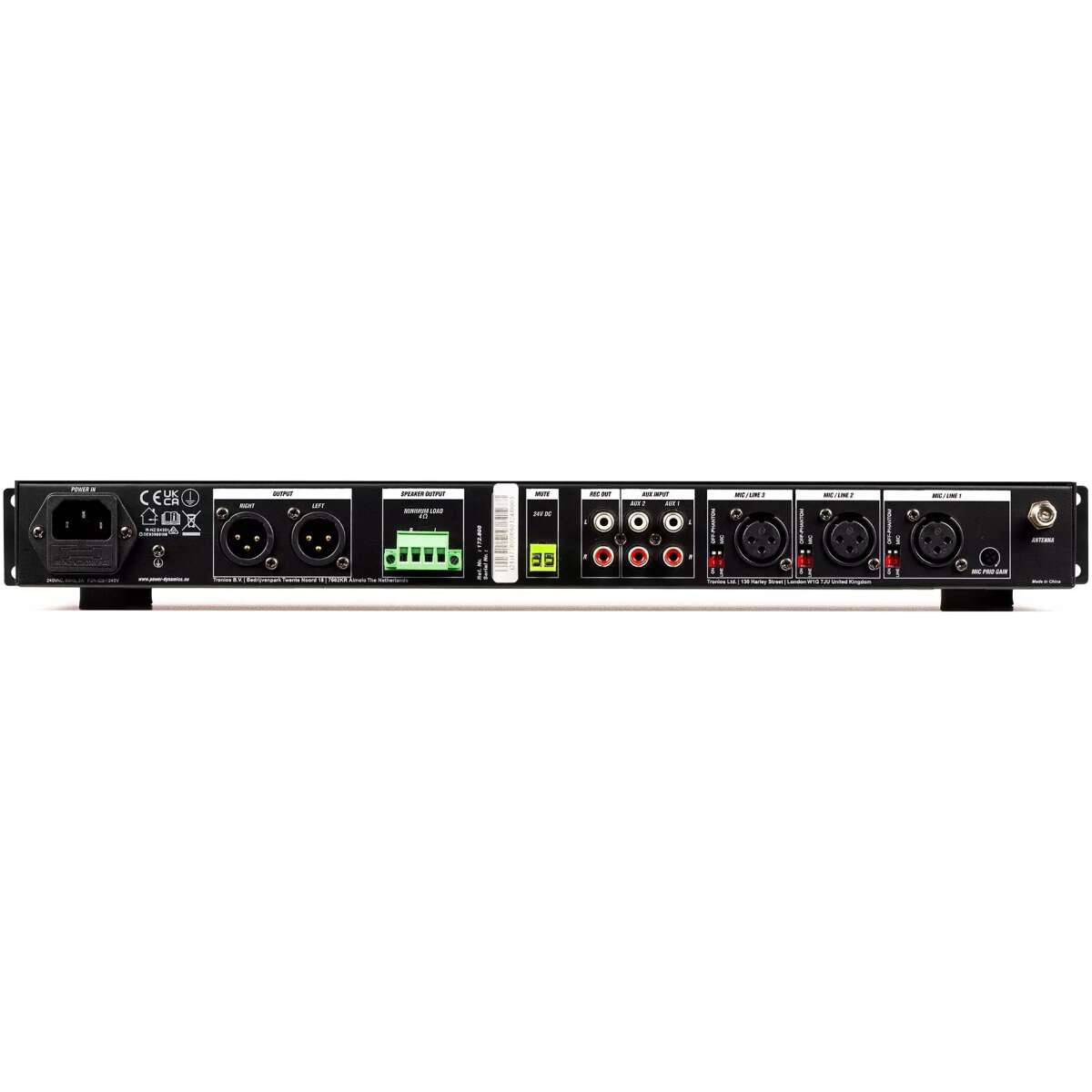

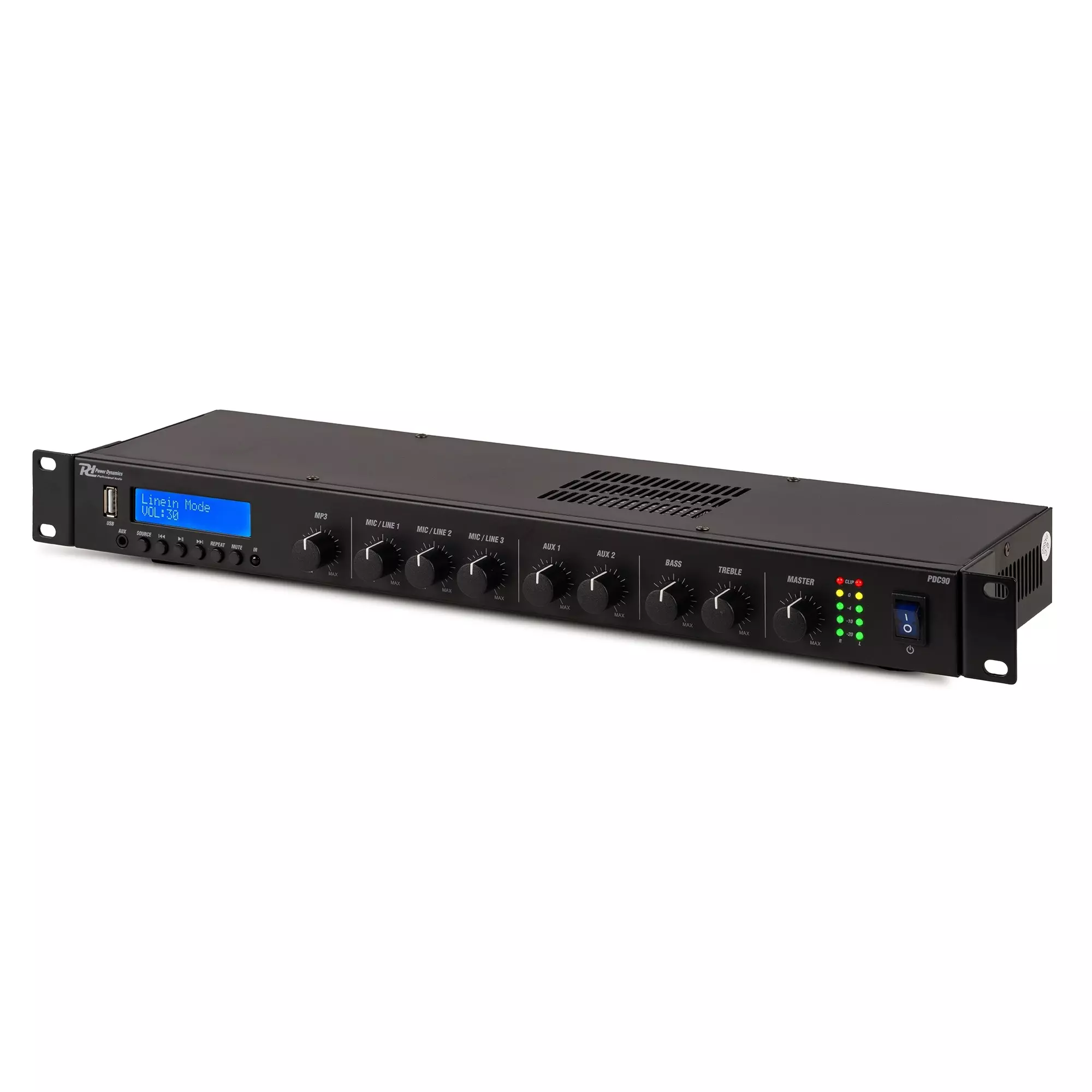

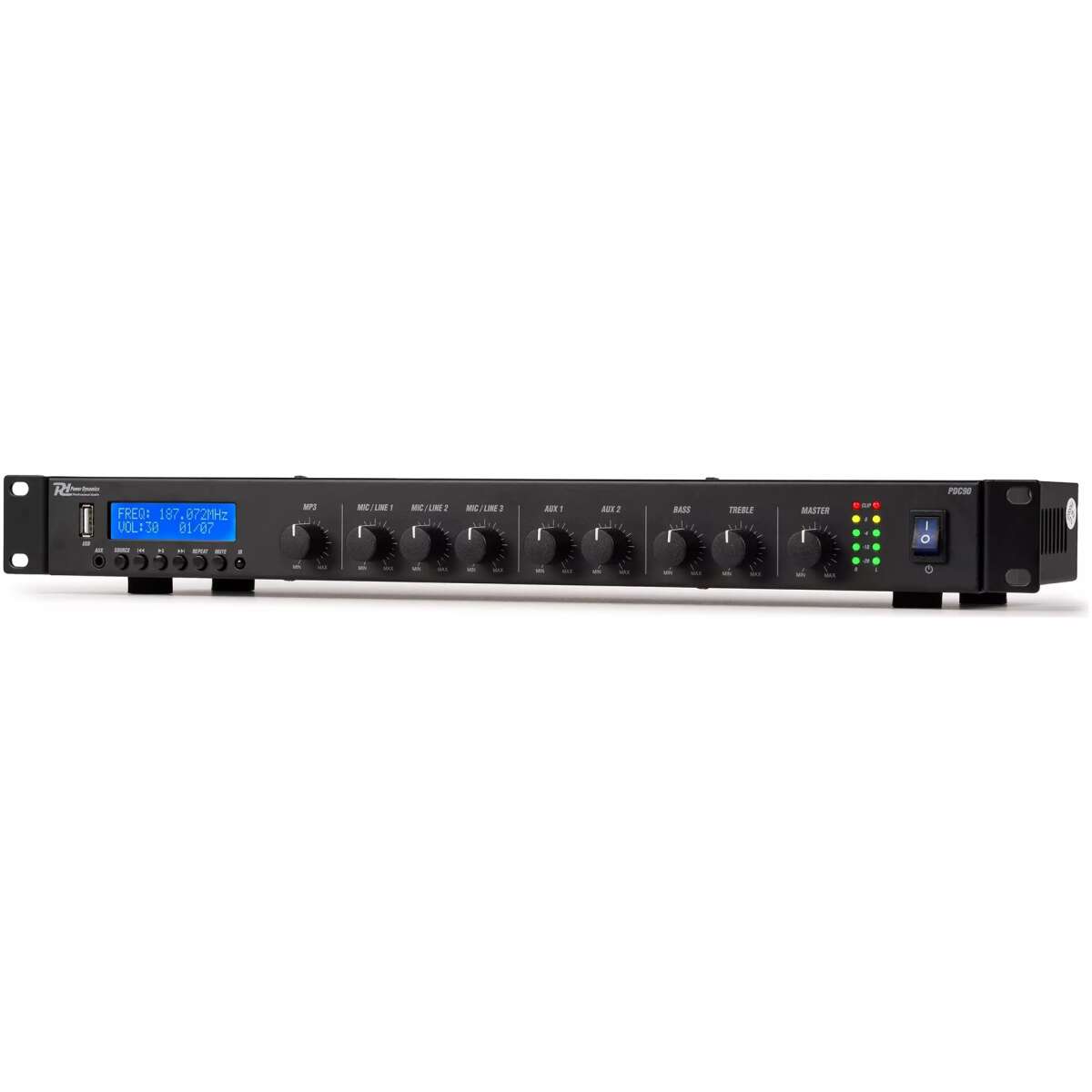

The PDC90 is a compact 1U mixer-amplifier that includes a built-in media player with DAB+, FM radio, and Bluetooth functionality. It features three mono inputs with switchable XLR microphone or line connections, along with two stereo auxiliary line inputs on RCA and a stereo line output. The integrated media player supports multiple playback modes, including a 3.5mm aux input, USB audio, DAB+/FM radio tuner, and Bluetooth streaming from smartphones or tablets. Left and right speaker outputs are provided via standard Phoenix connectors, allowing connection of 2 or 4 speakers. This makes the unit ideal for both permanent music and voice installations, as well as portable PA setups for conferences, events, and fitness classes.

Features:

• Class-D amplifier with Multifunctional media player
• Integrated DAB+ tuner
• BT-receiver for streaming audio

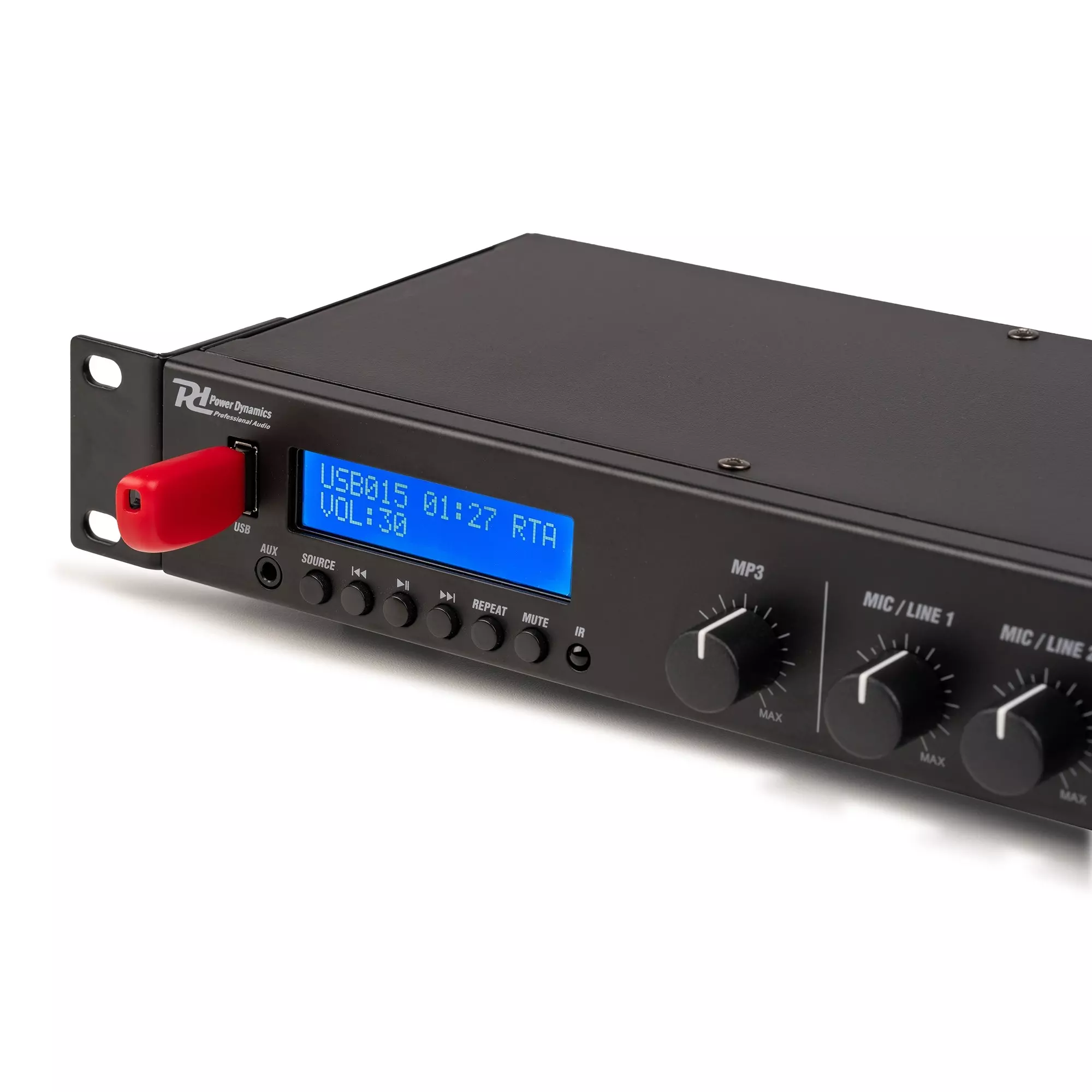

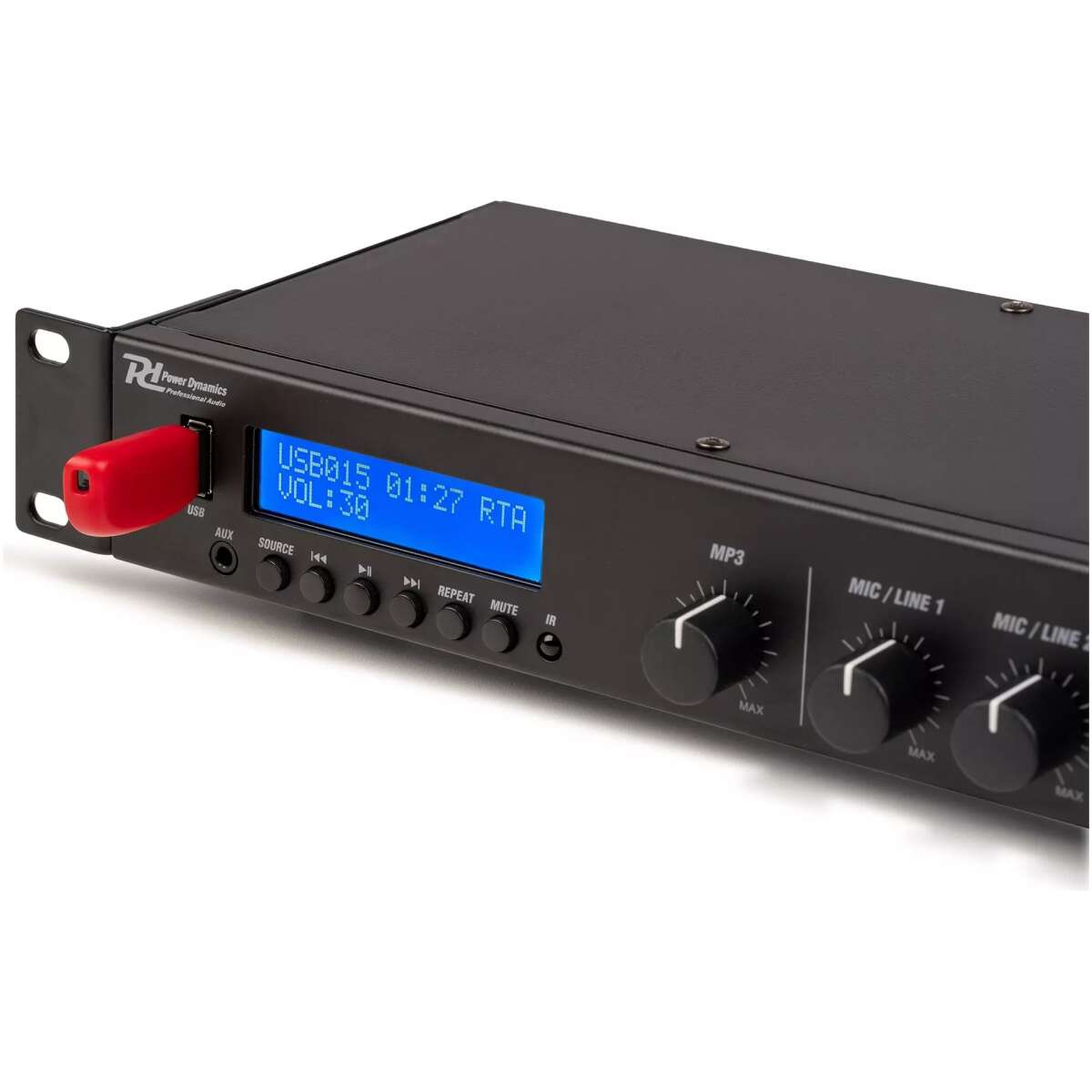

• USB media player with display
• 1x 3.5mm Aux input
• 3x Mic/Line inputs (XLR) with phantom power
• VOX priority on Mic/Line1 with mute level control
• Mix output balanced XLR
• RCA pre-amplifier output
• 24V DC Mute control input
• Separate level control per input
• Treble and bass control

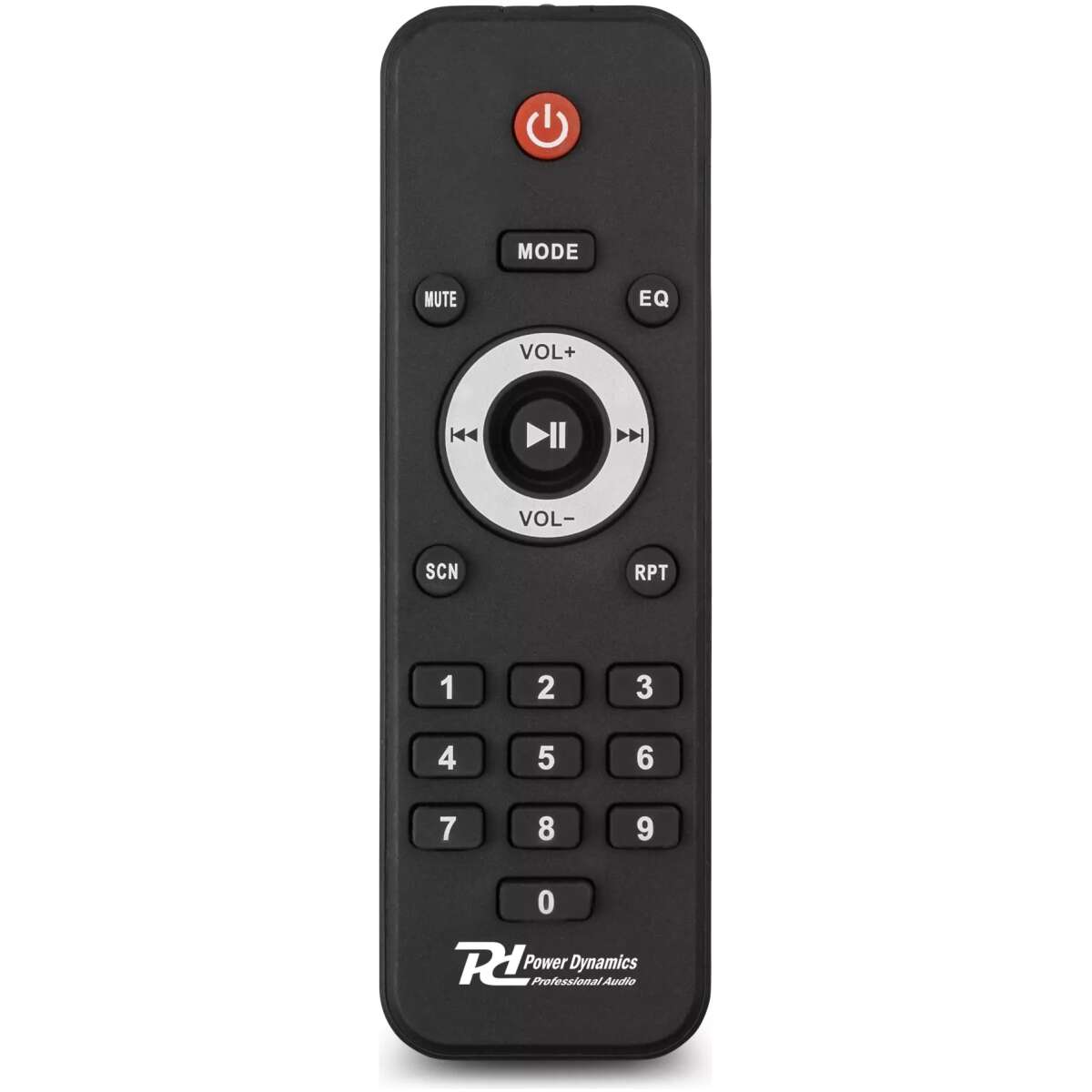

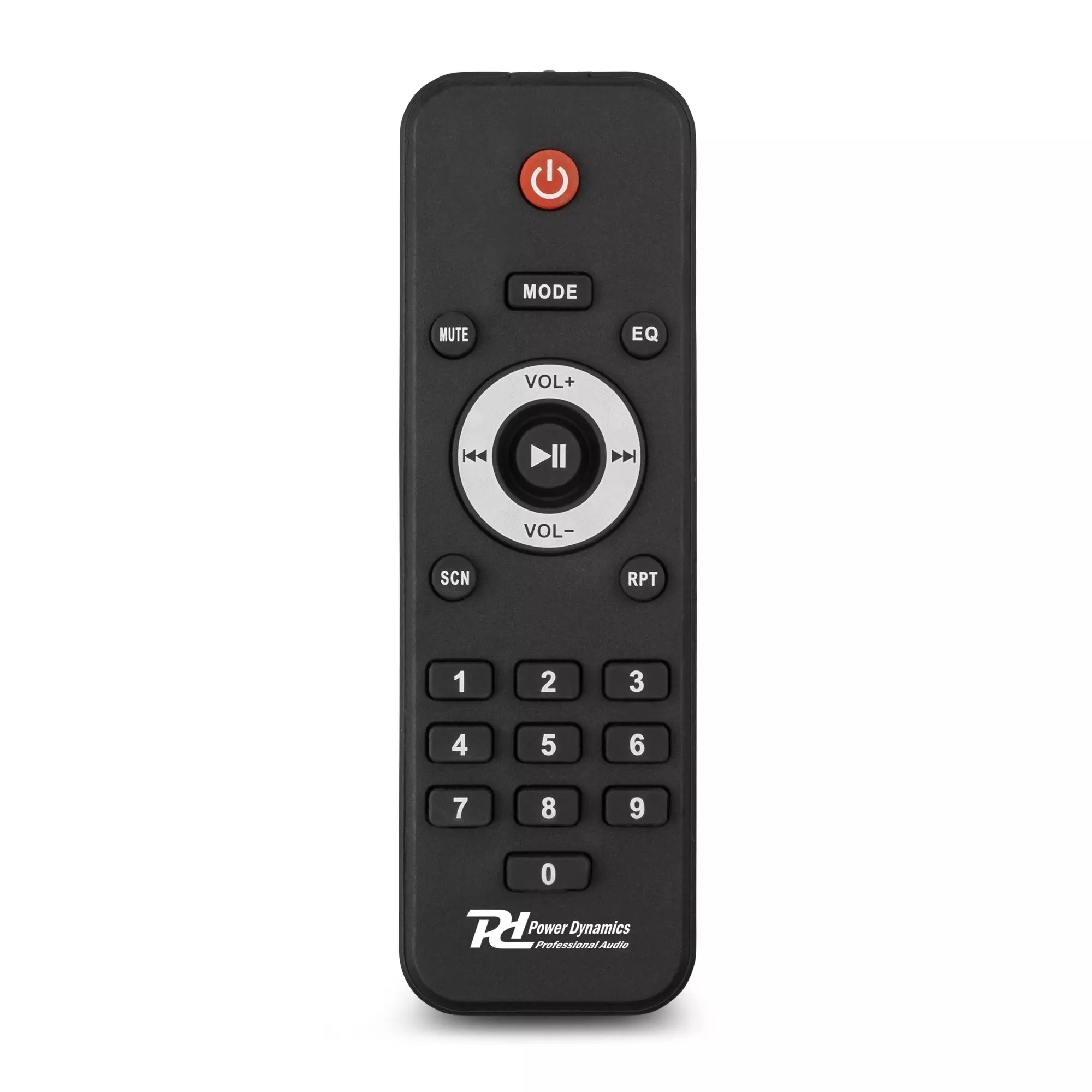

• Remote control for MP3 player

Specifications:

• Product colour: Black
• Playback options: BT 5.0 streaming, USB, DAB+ radio, Line input, Microphone
• Frequency response: 100Hz – 20,000Hz
• THD: <2%
• Signal-to-noise ratio (Mic): >80dB
• Signal-to-noise ratio (Line): >80dB
• Output level (Nominal): 0dBV
• Input connections: 3.5mm Jack, RCA, USB, XLR (3-pin)

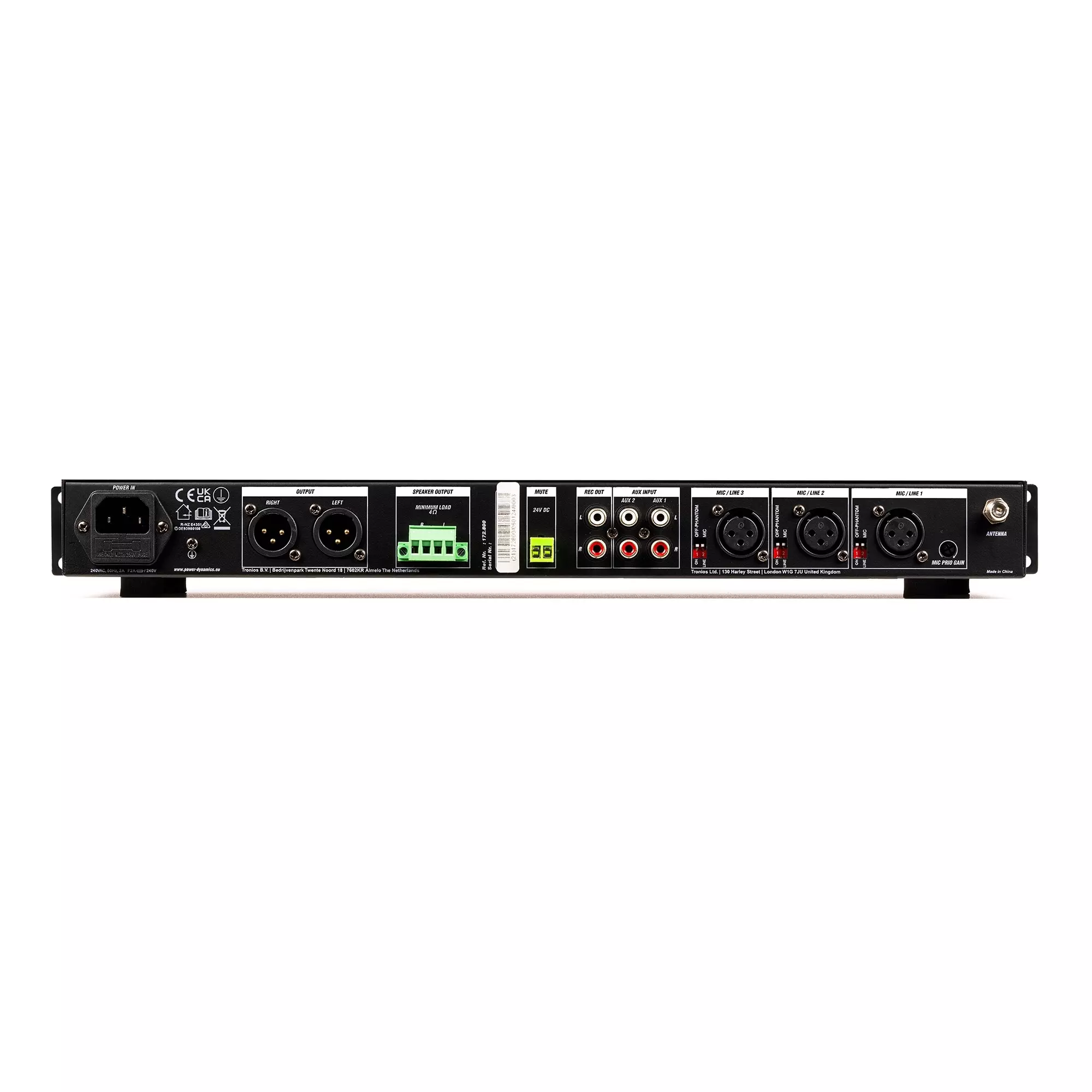

• Output connections: RCA, Screw terminal, XLR (3-pin)
• Output channels: 2
• Output power (RMS): 60W
• Power supply: 100–240VAC, 50/60Hz
• 19 Inch Rack Mount: Yes
• Dimensions (L × W × H): 135 × 483 × 45mm
• Weight: 1.9kg

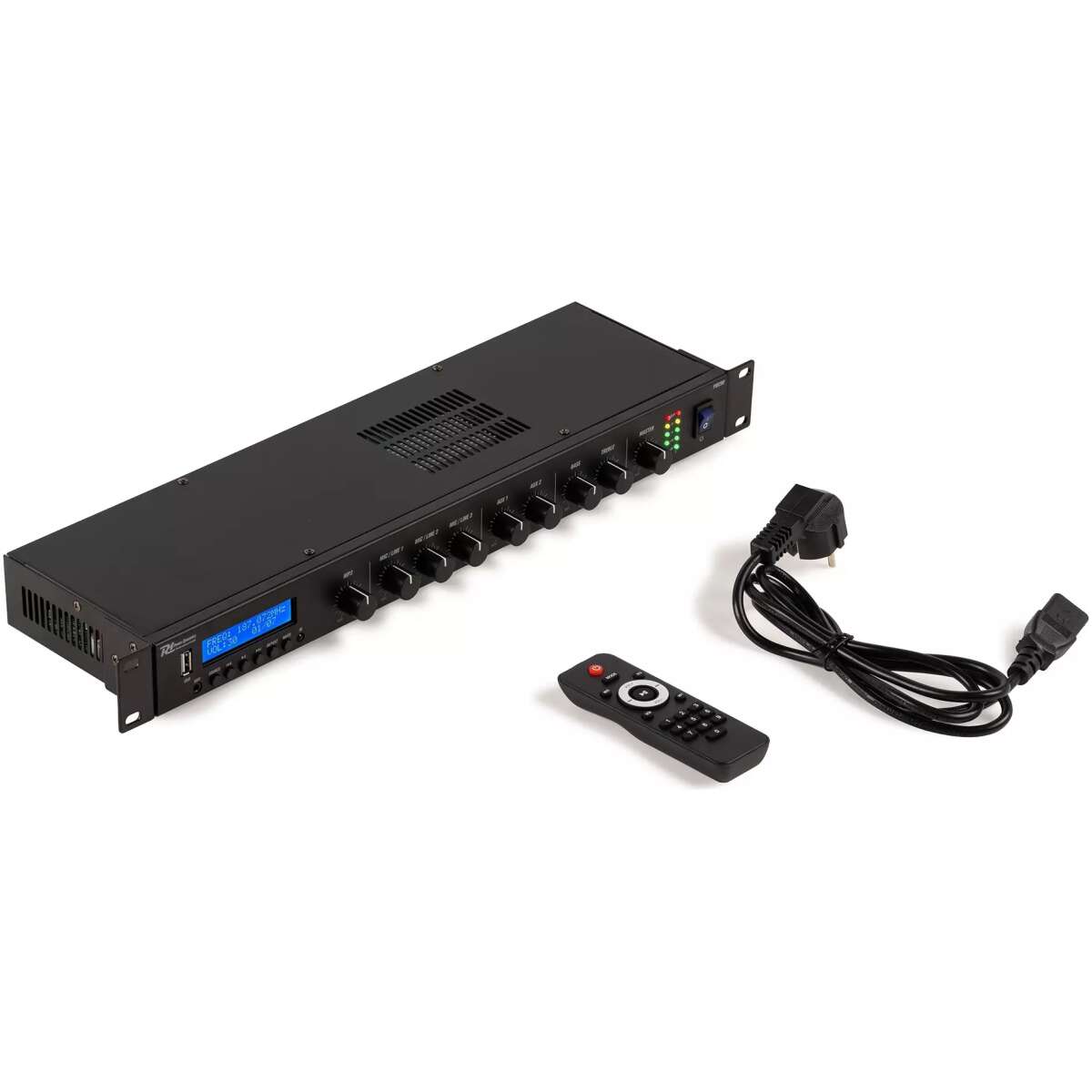

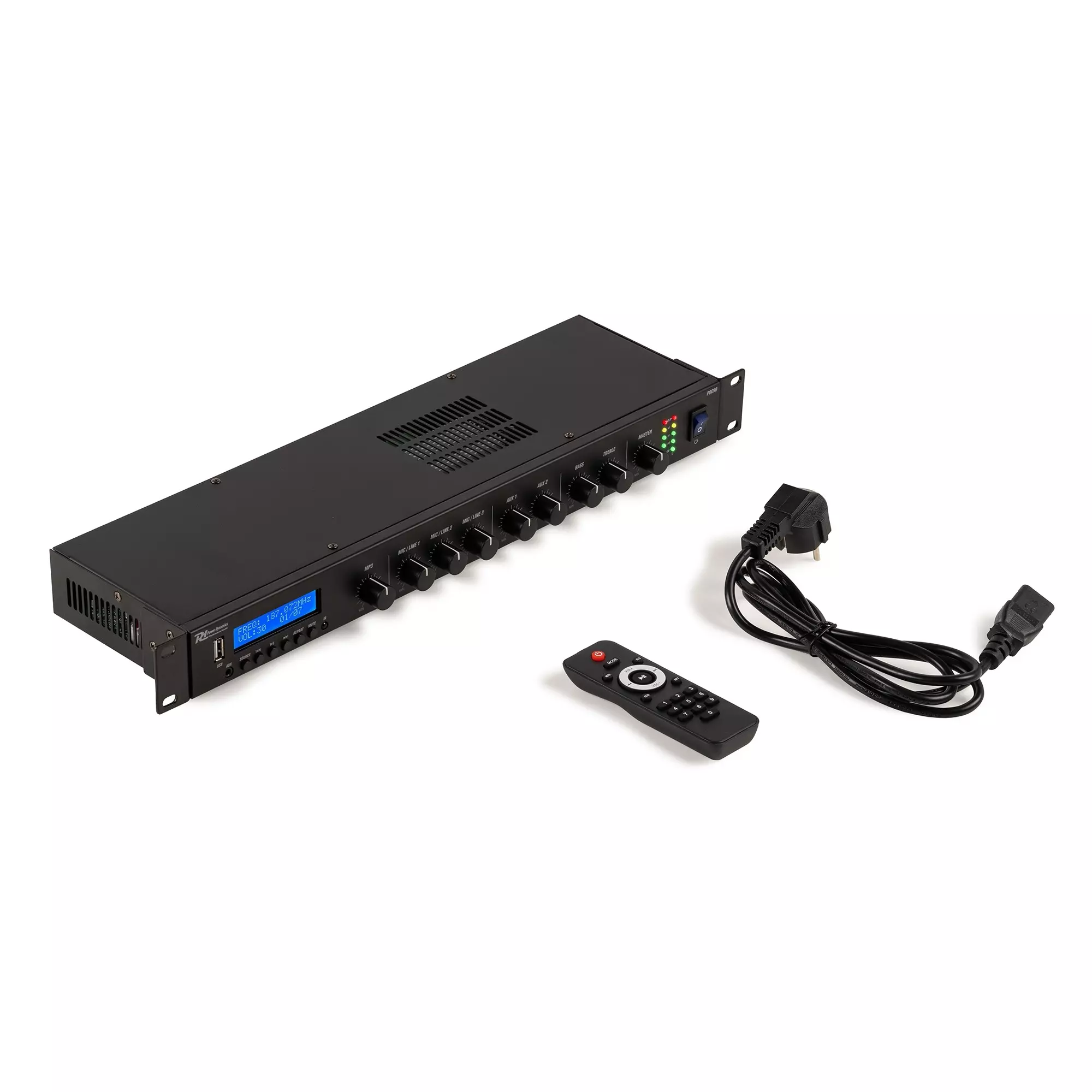

• Included accessories: Wireless remote control, Power cable
