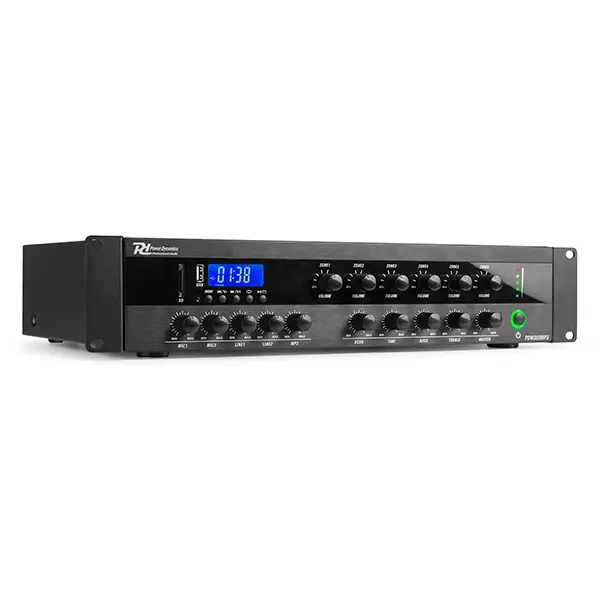

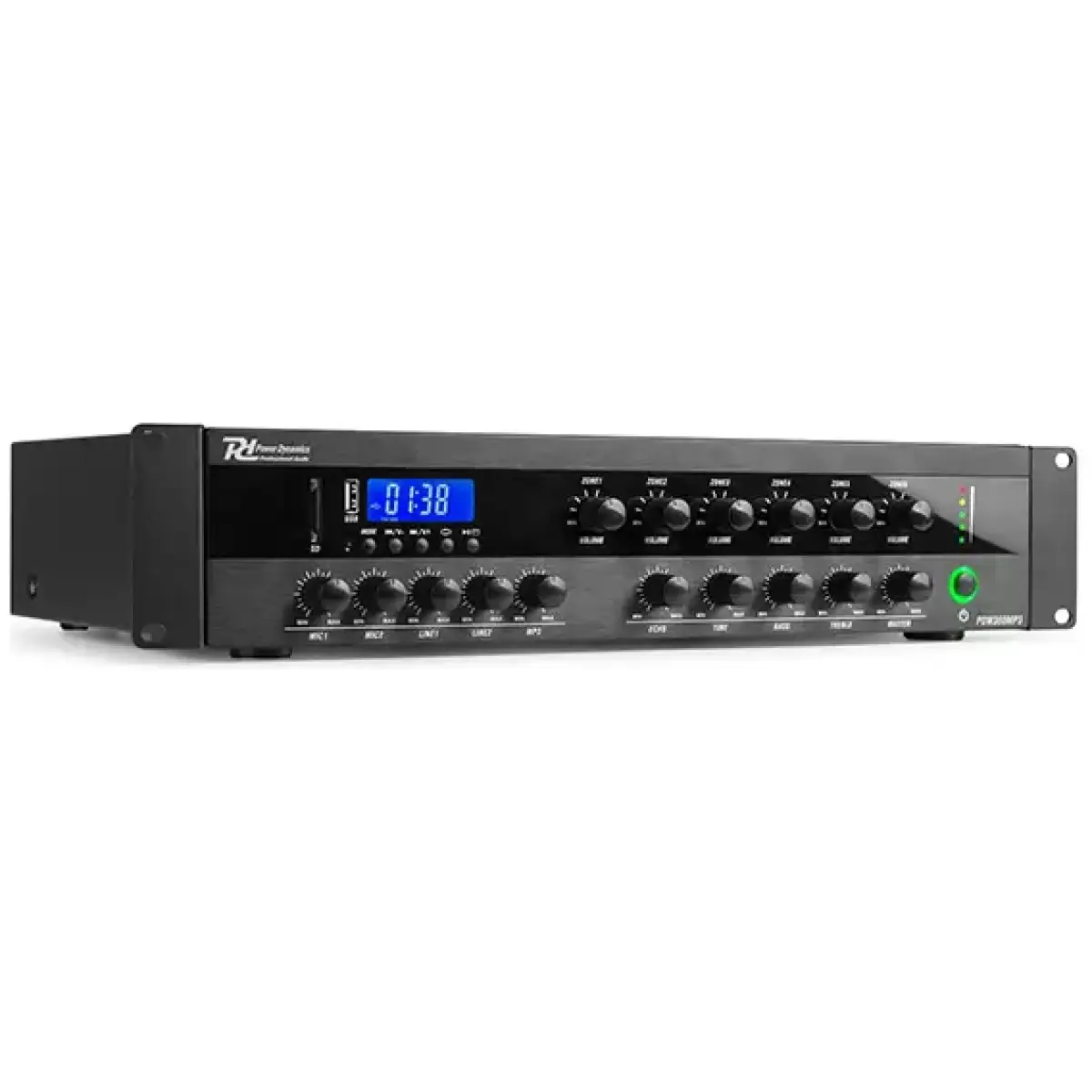

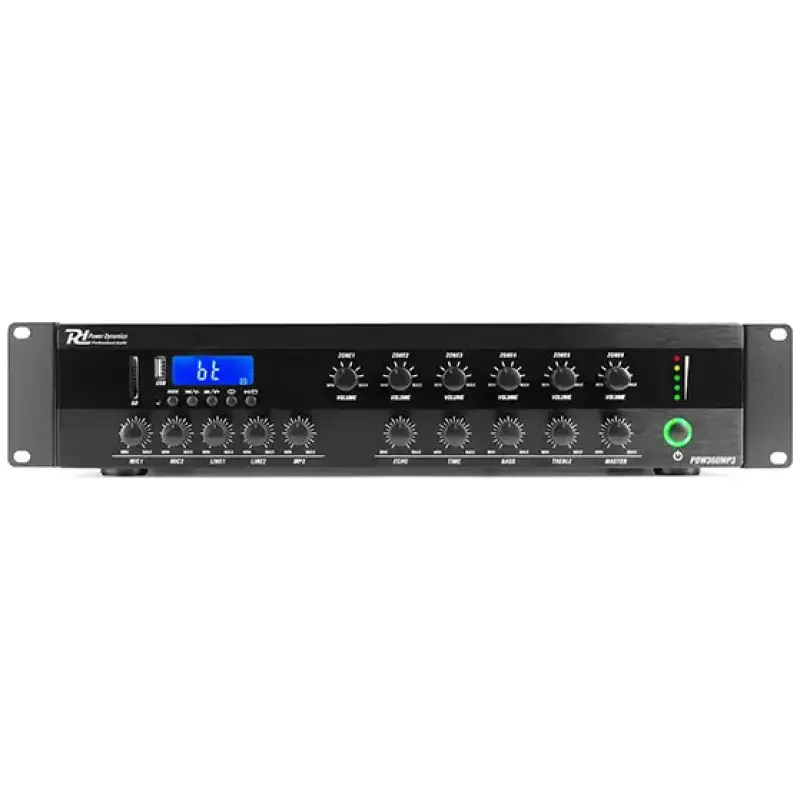

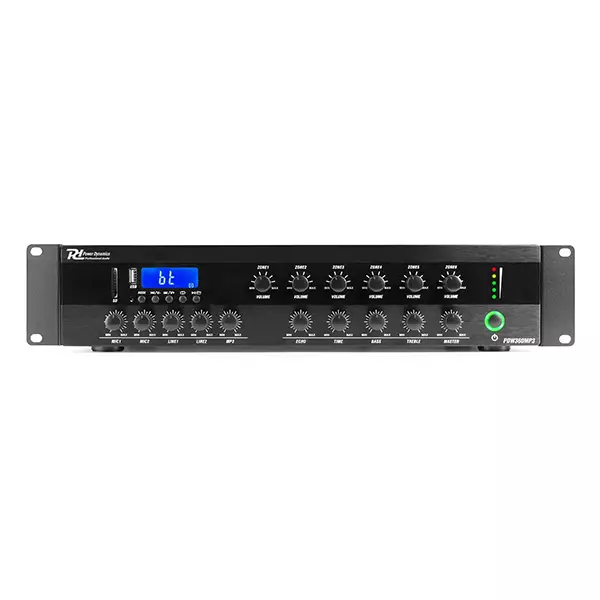

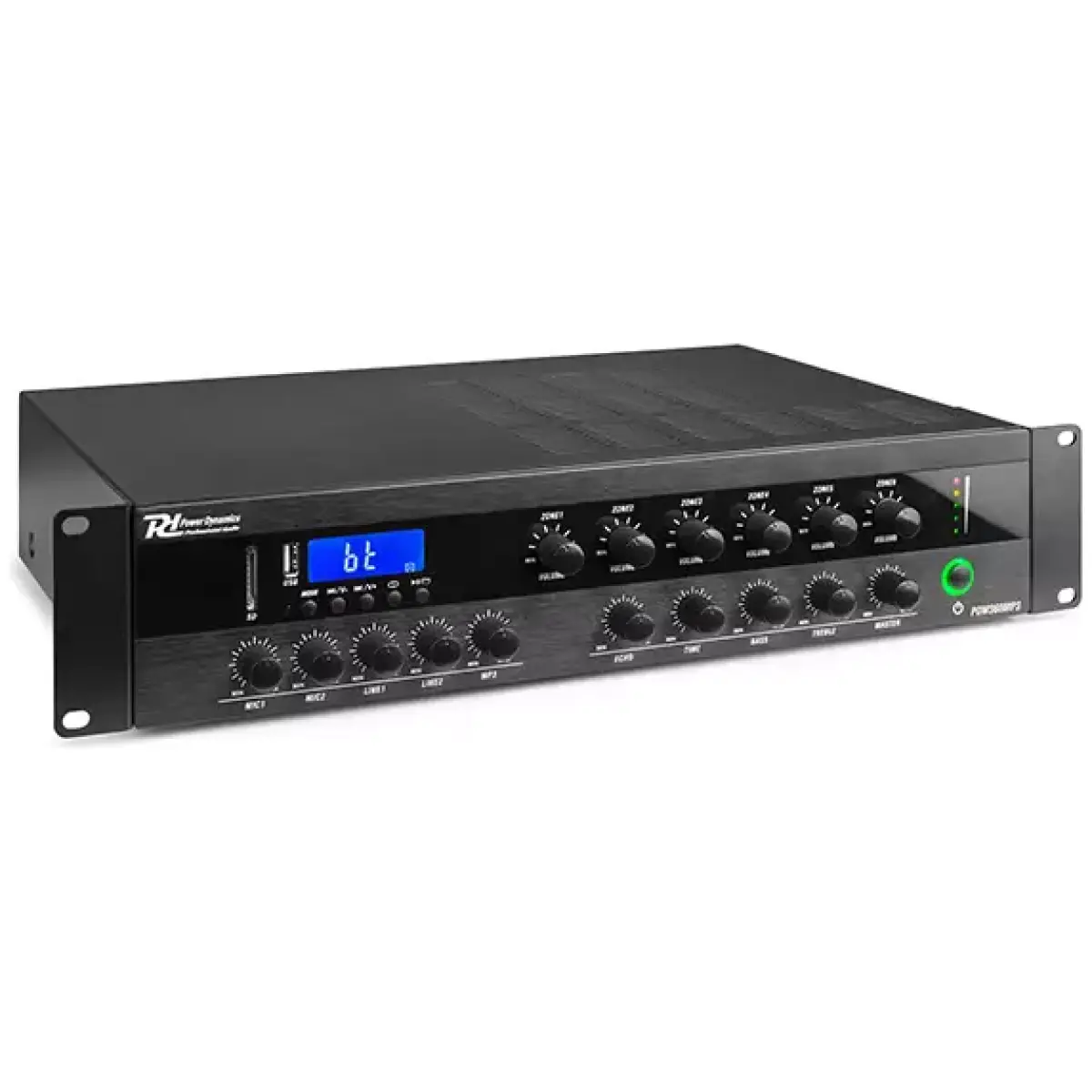

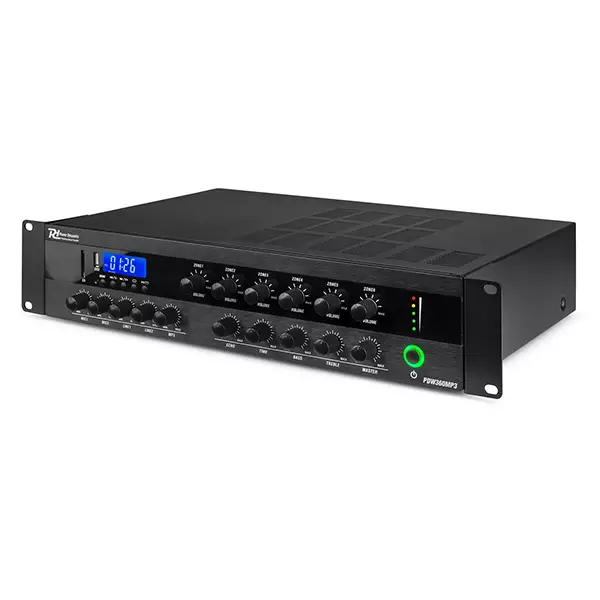

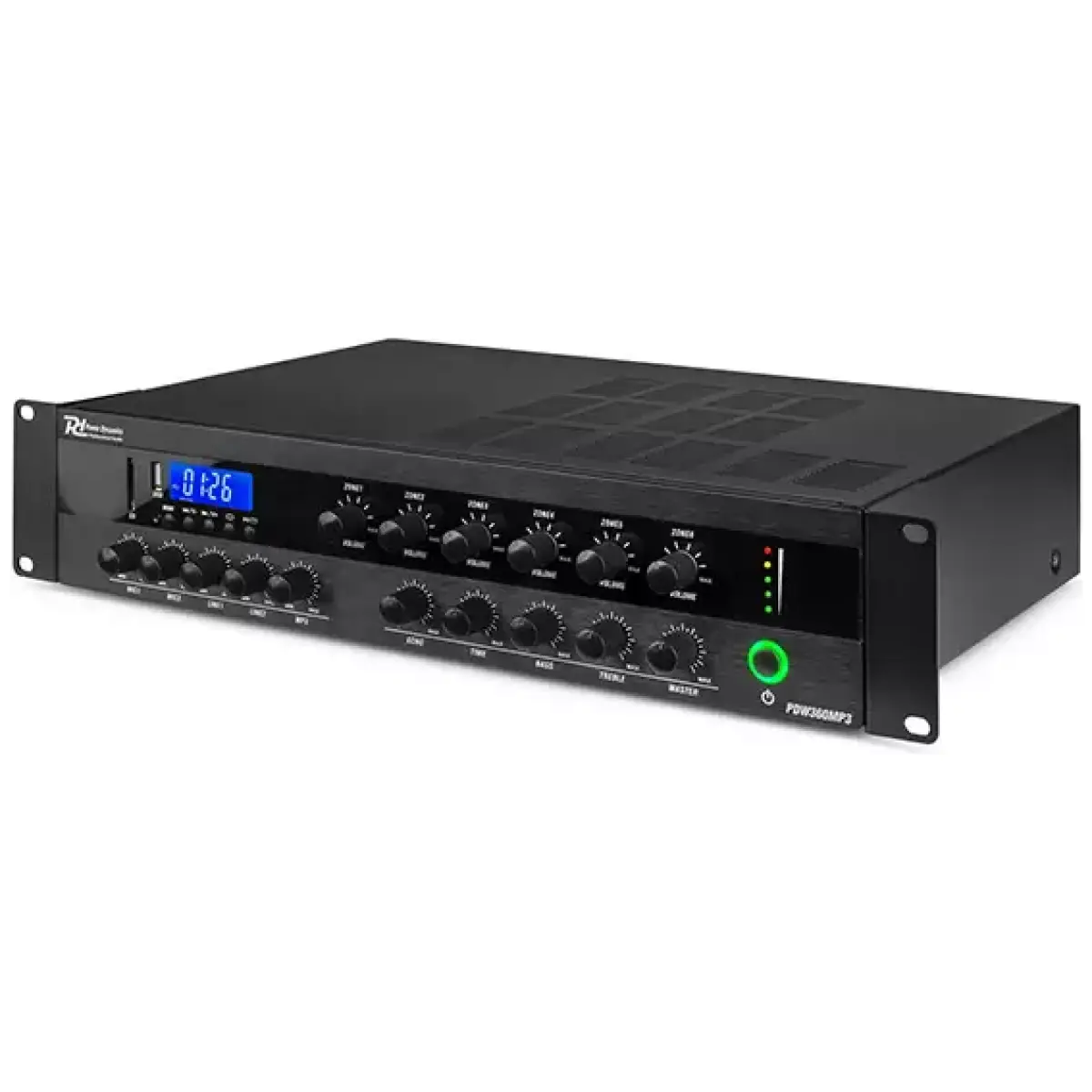

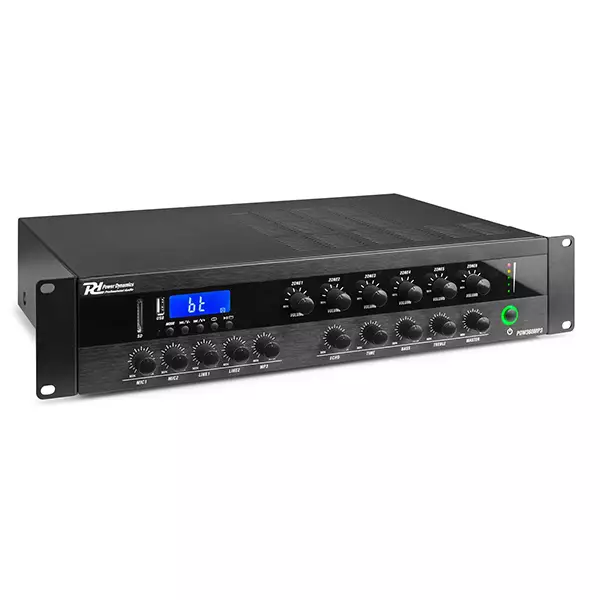

The PDW series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These fully featured, high power mixer amplifiers with 6 zone outputs are equipped with separate volume controls and features an integral MP3 module with USB and SD Card slot, a FM tuner and internal BT receiver. All PDW amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. This series of amplifiers is suitable for applications in a bank, town hall, supermarket, school, hotel, restaurant, shopping center or any other public space.
Features:
- PA amplifier with 6 zones and separate volume controls

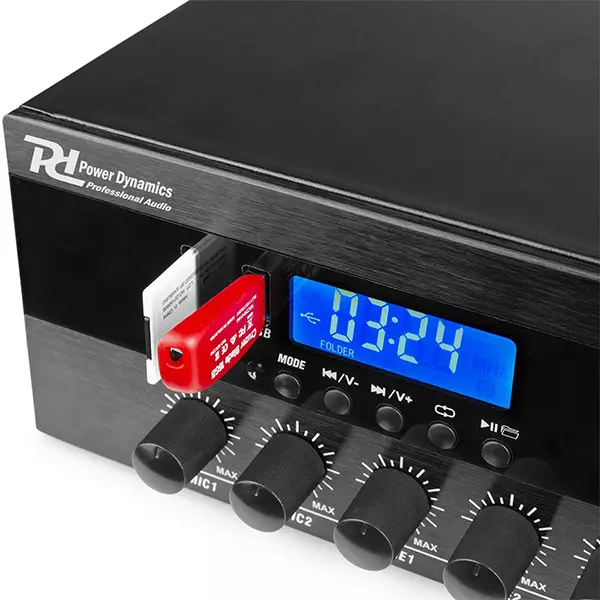

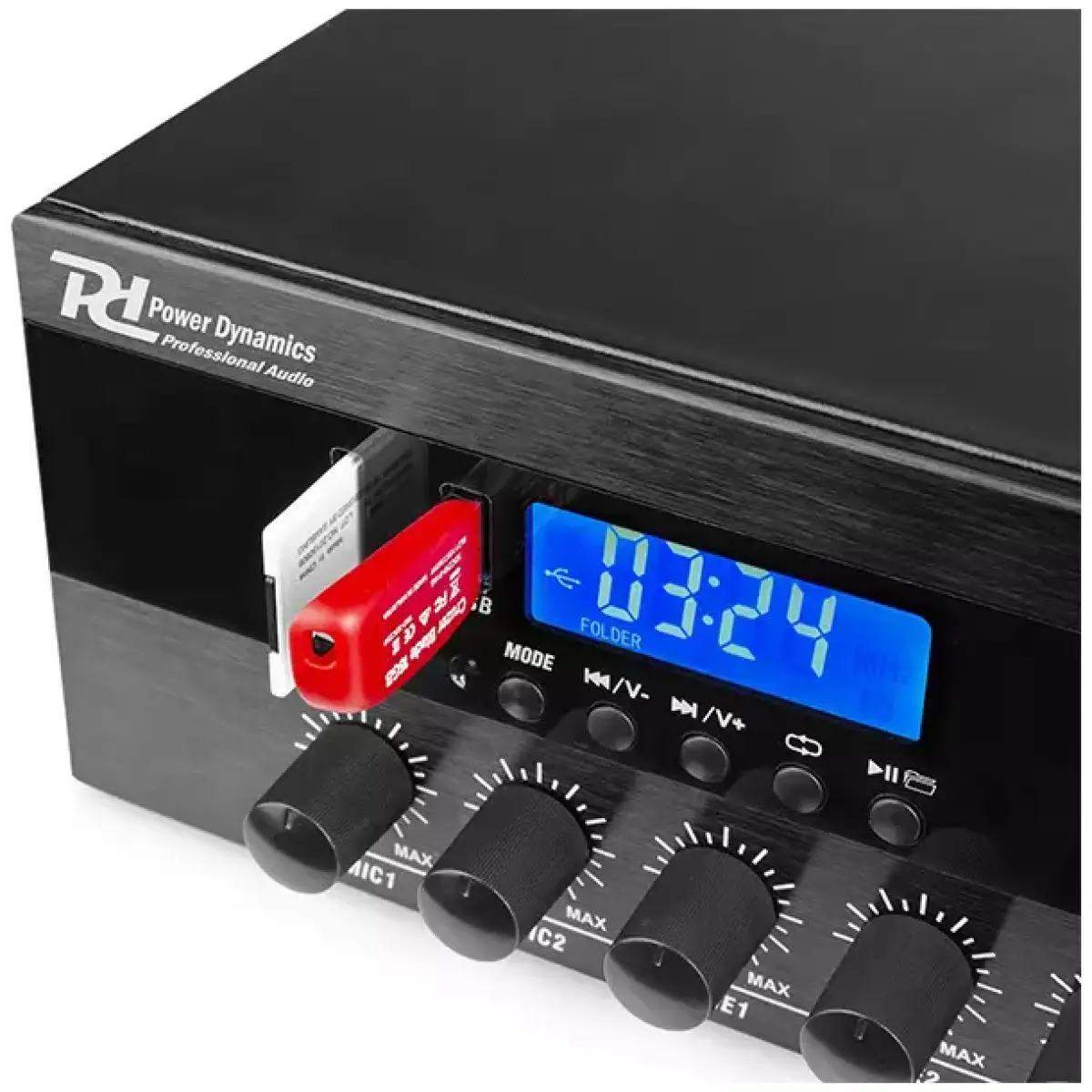

- Media player with FM Tuner, USB and SD slot
- BT receiver for audio streaming
- 360W Class-D amplifier
- 100V/70V or 16, 8, 4 Ohm
- Zone volume control
- Bass/Treble/Echo control
- Digital LCD display
- XLR microphone input with switchable phantom power (24V)
- 6.3 mm microphone input with priority

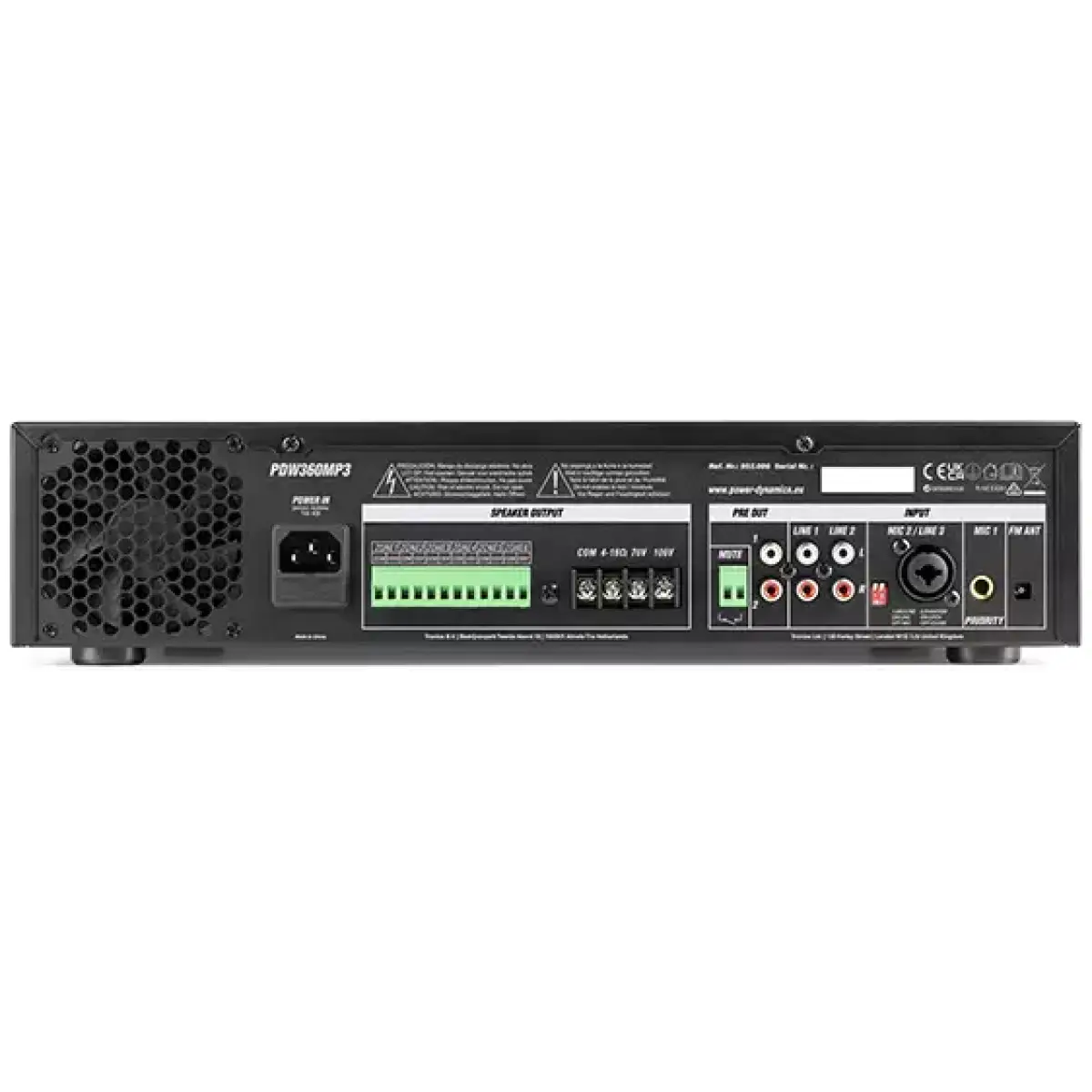

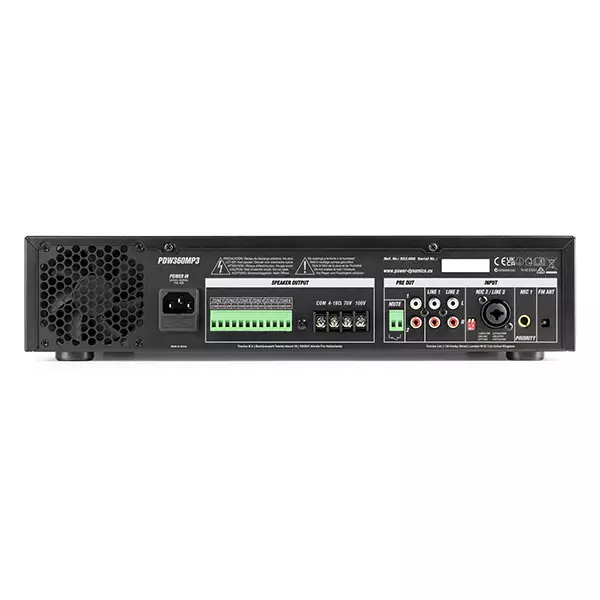

- 2x RCA line inputs and 1x RCA line output
- 19" rack mountable (2U)
Specifications:
- Playback options – BT streaming, FM radio, SD, USB
- Output power: Max – 360W
- Output power: RMS – 200W
- Impedance – 100V, 16 Ohm, 4 Ohm, 70V, 8 Ohm
- Frequency response – 100Hz – 19.000Hz
- Signal-to-noise ratio: Line – >85dB
- Signal-to-noise ratio: Mic – >80dB
- Power supply – 100-240VAC 50/60Hz
- Input level: Line – 400mV
- Input level: Mic. – 10mV
- THD – <1%
- Dimensions – (L x W x H) 310 x 420 x 95 mm (with rack ears: 480 mm)
- Weight – 8.75kg

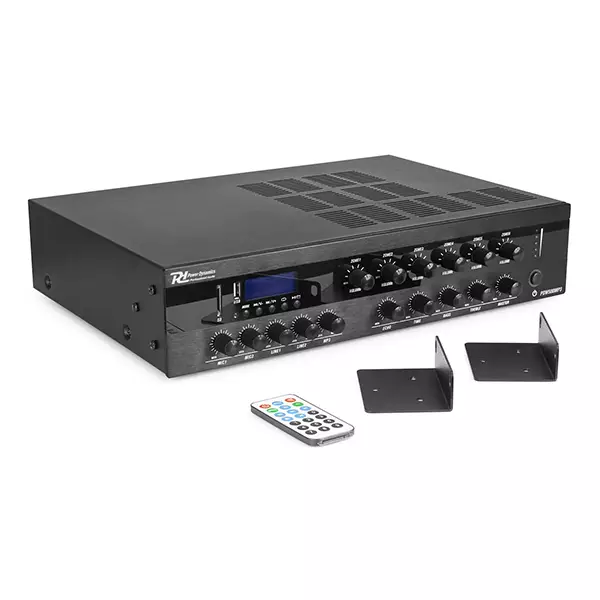

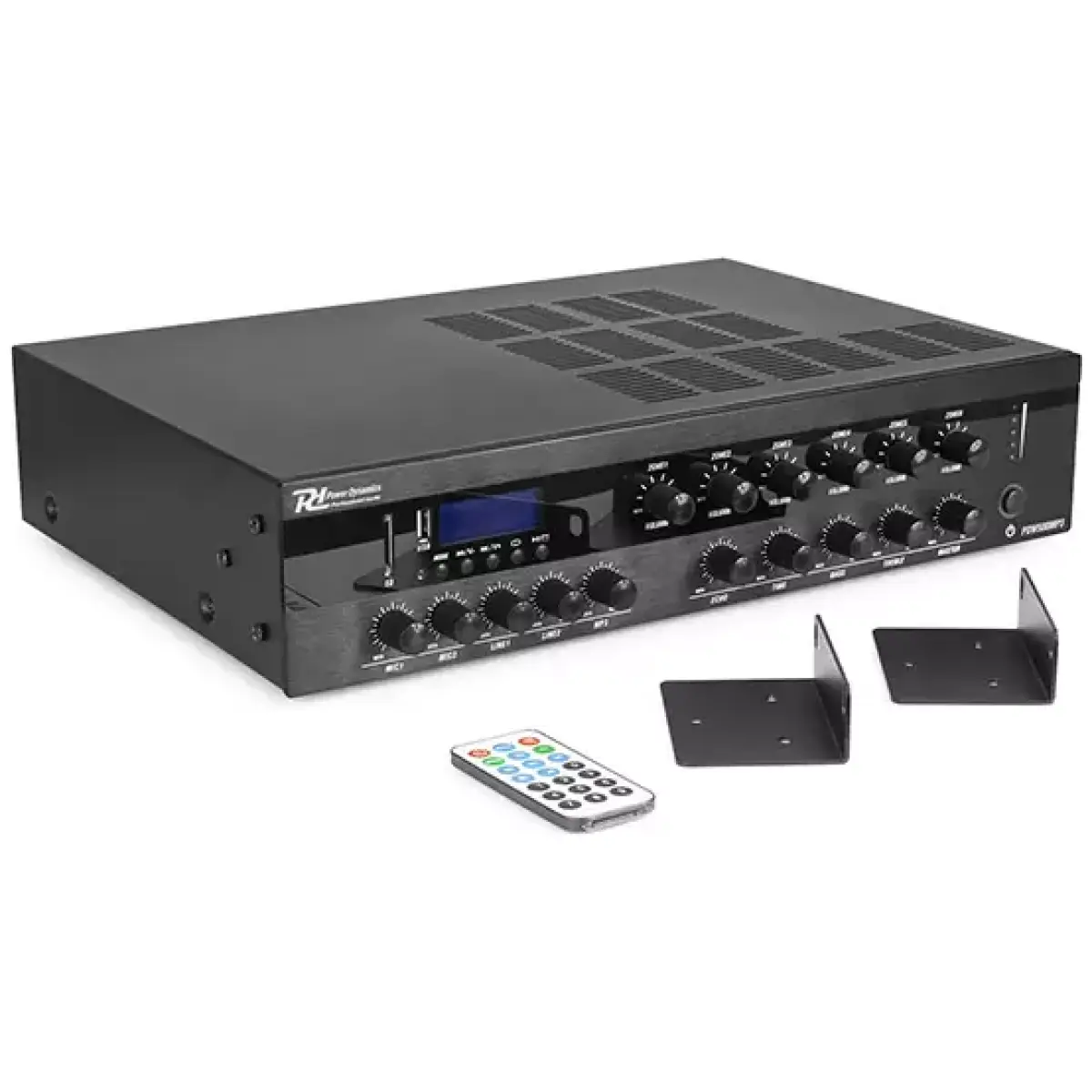

- Accessories – Mounting bracket, Power cable
