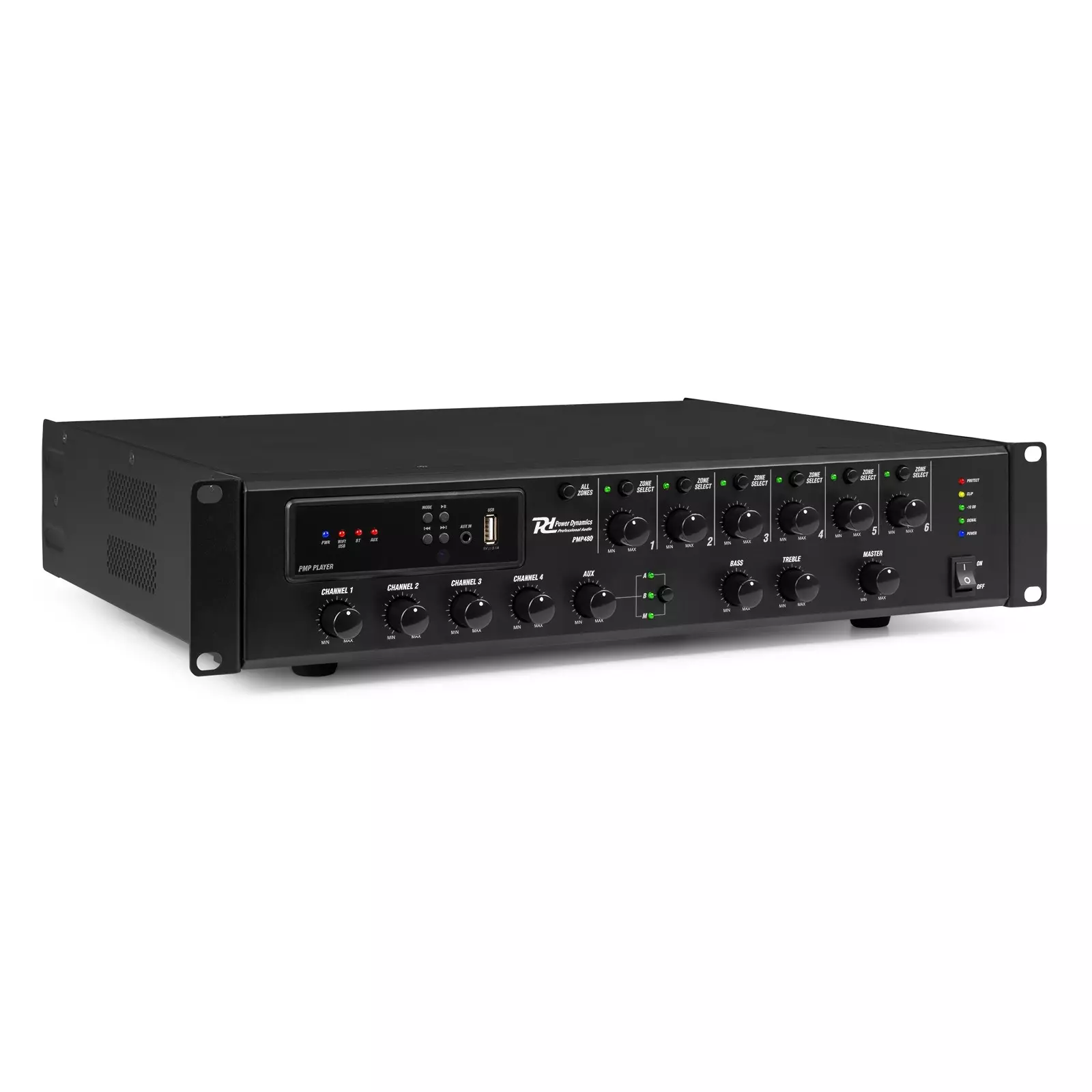

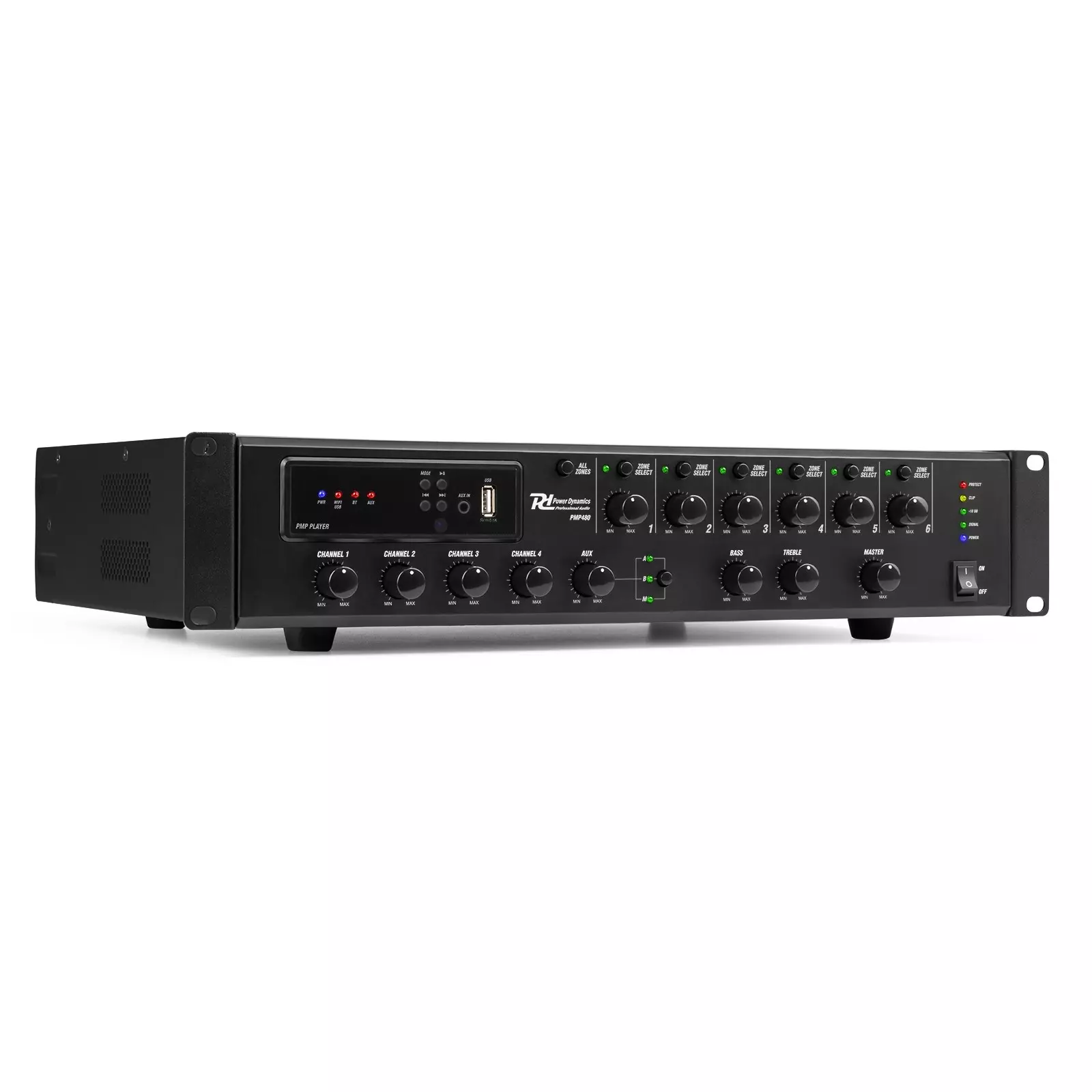

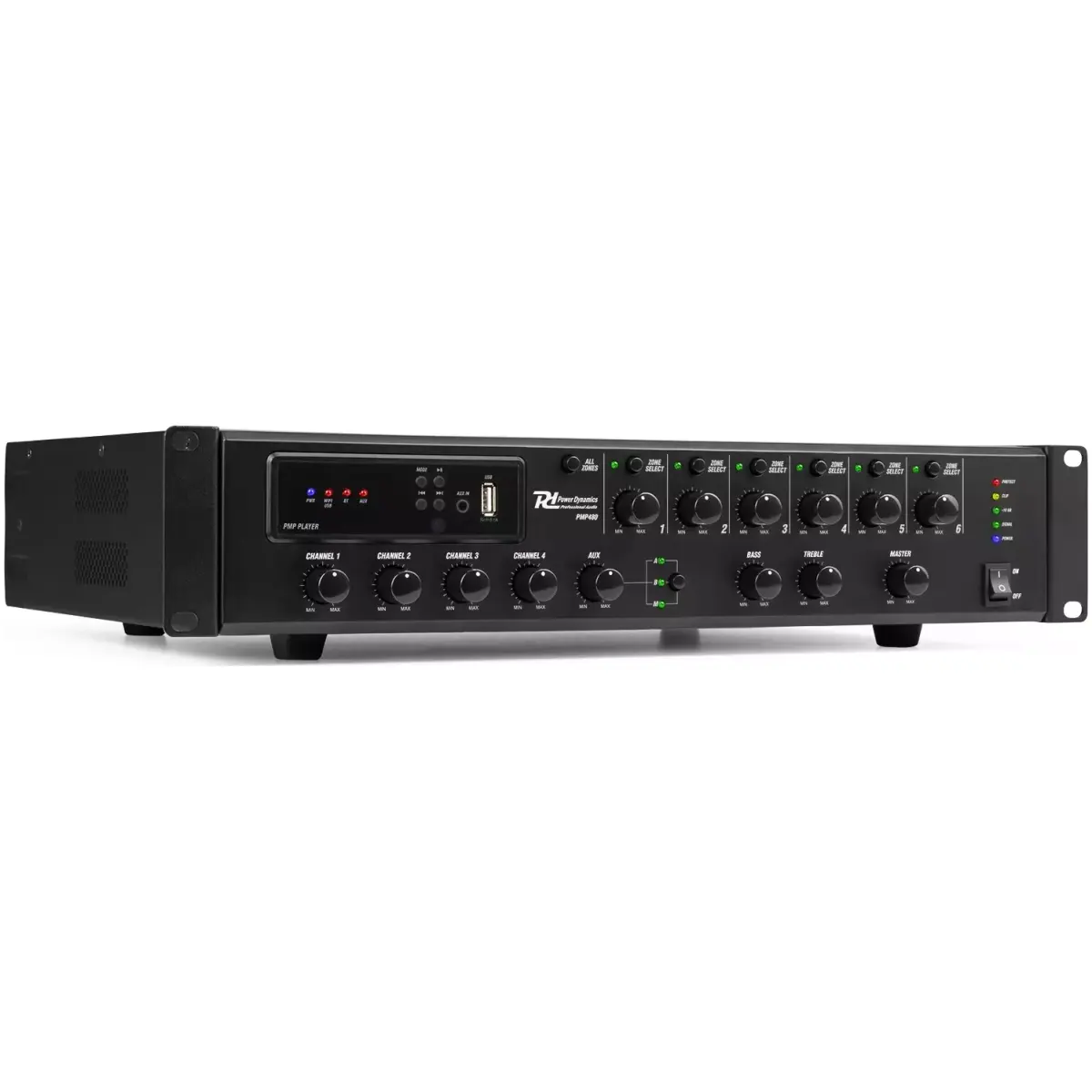

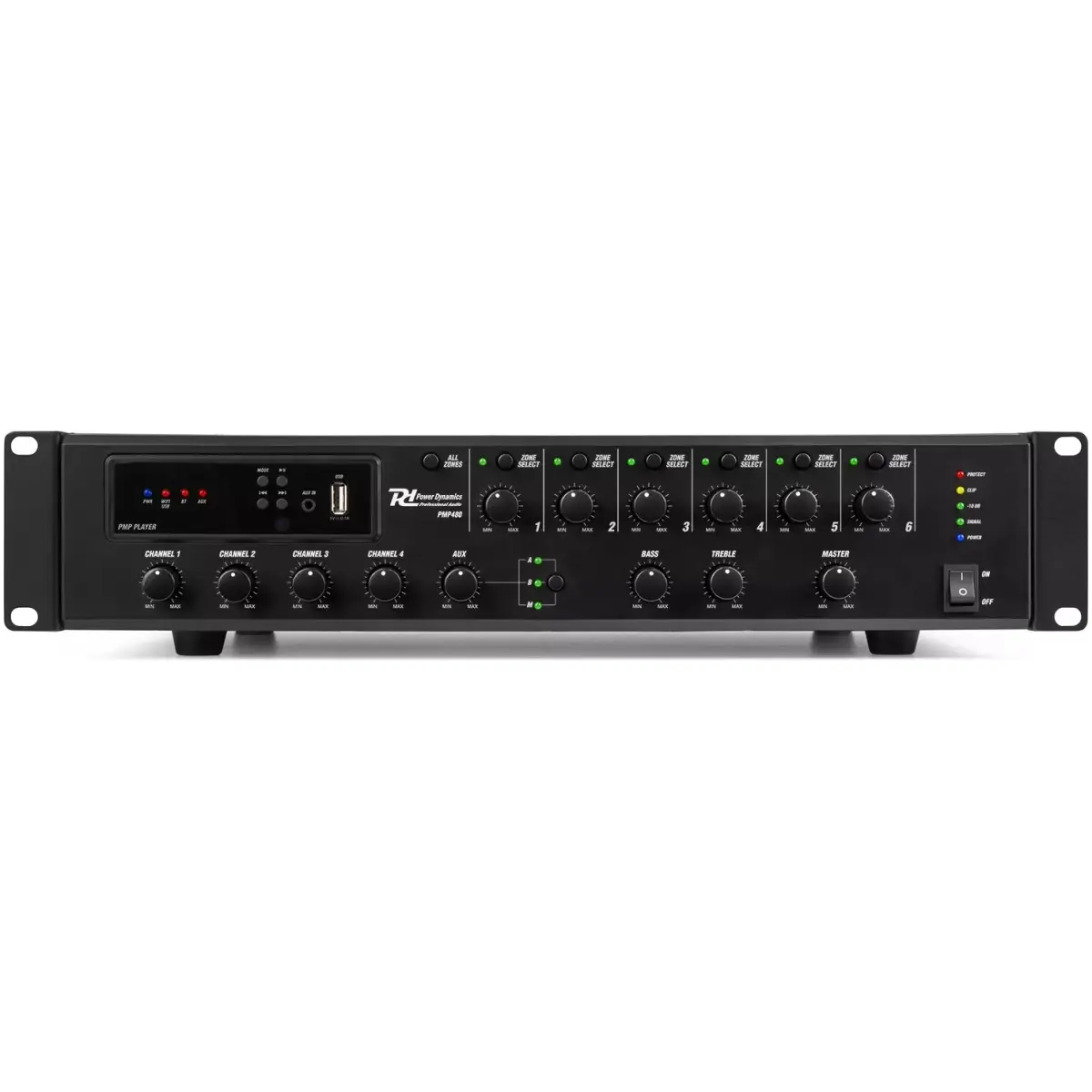

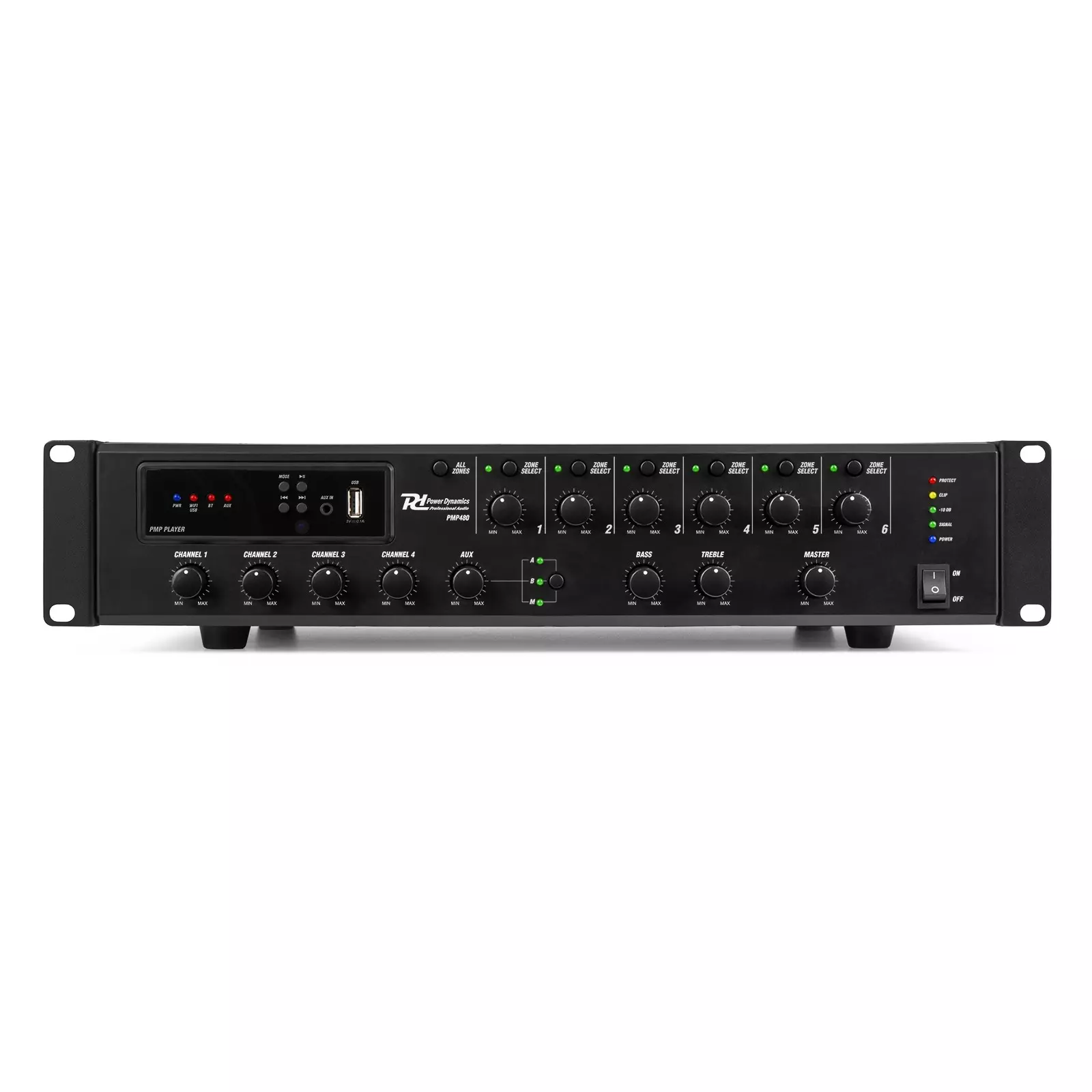

Pdm PMP480 Mixer Amplifier 480W Bt/usb/wifi 100V 6 Zone

The PMP 6 Zones Mixer Amplifier is an all-in-one public address system suitable for various environments such as shops, factories, schools and hospitals. Its no-nonsense design and exceptional performance make this amplifier ideal for broadcasting messages and background music, while offering perfect adaptability and unmatched reliability. Whether you require a 70V/100V or 4-16 ohm output, or mic/telephone priority muting, this series provides maximum flexibility. Additionally, the amplifier delivers crystal clear, high-quality sound and includes a priority function, volume control, chime function and more, making it user-friendly yet feature-packed.

Features:

• Public Address Amplifier for commercial and industrial use
• 6 Zone Speaker Selector with 6-step attenuator
• Four microphone or line inputs with Euro block screw terminals
• Two AUX input with RCA jacks
• Bass and Treble controls
• Remote microphone input with RJ45 terminal
• 48V Phantom power and VOX control
• Three layer priority muting with EMC (external evacuation message control) input
• Built in user selectable pre-announce chime and siren for evacuation
• Alarm message recording and playback
• Advanced protection system includes current limiting, over current and thermal protection
• Desktop and 19-inches rack mountable

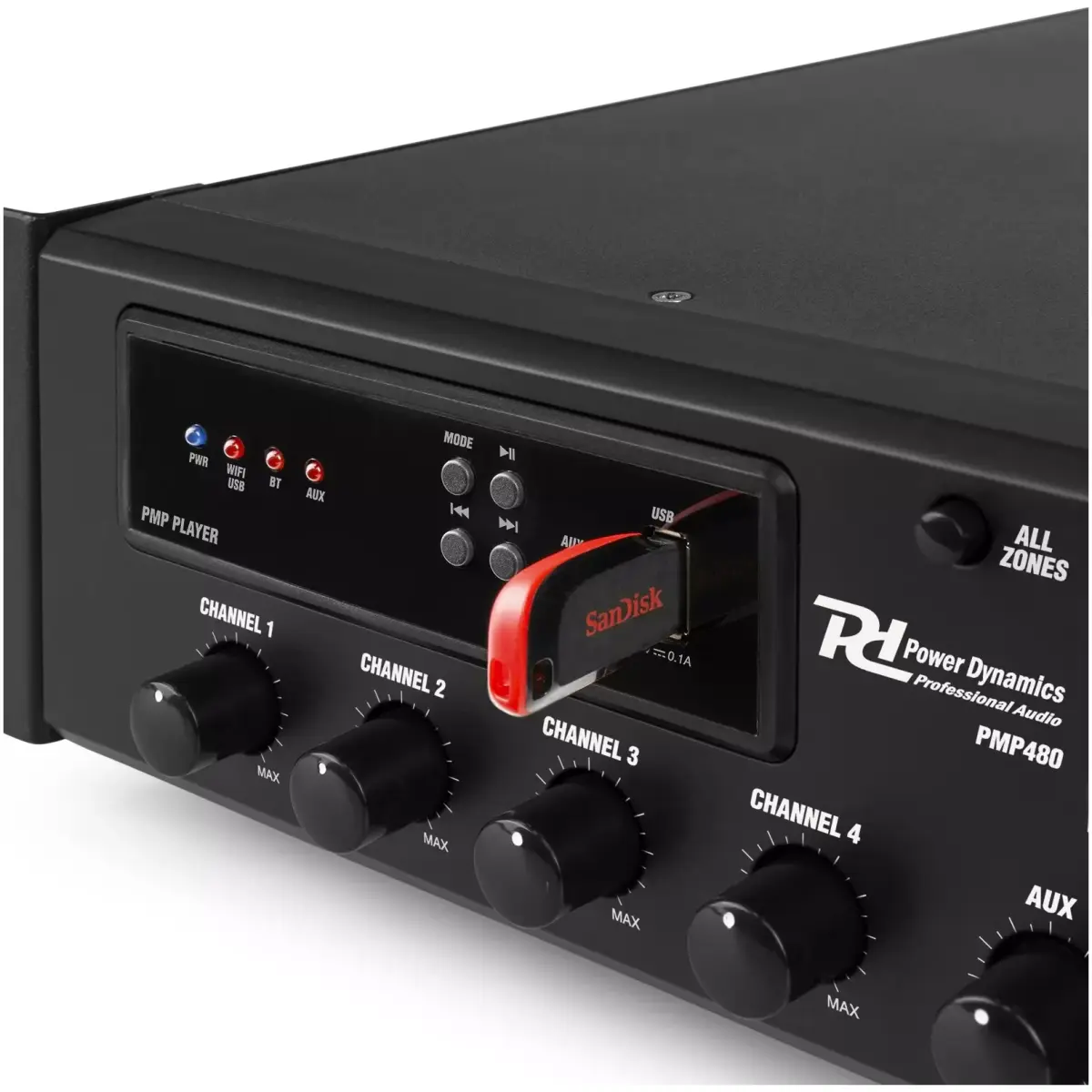

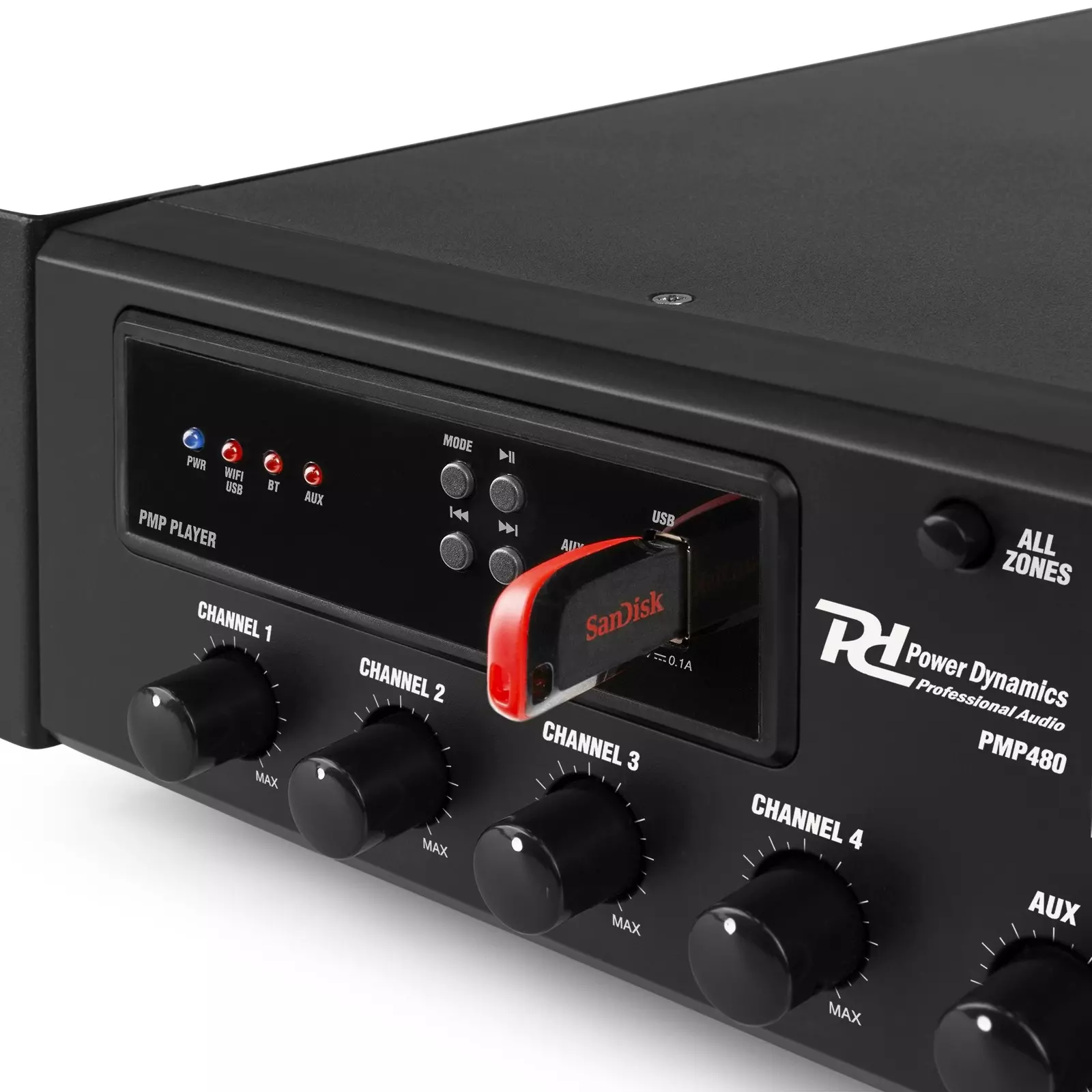

• USB Media player
• BT playback receiver
• Internet radio (WiFi or RJ45 via Legacy Player APP)
• Aux 3.5mm jack input

Specifications:

• Product colour: Black
• Playback options: BT 5.0 streaming, USB, WiFi play, RJ45 ethernet play, Line input, Microphone (input)
• Output power RMS total: 480W
• Output power 10V zones: 240W (max. per zone)
• Impedance: 4 Ohm, 8 Ohm, 16 Ohm, 70V, 100V
• Frequency response ±3dB: 65Hz – 18kHz
• Frequency response -10dB: 55Hz – 20kHz
• Equalizer bass: ±10dB (100Hz)
• Equalizer treble: ±10dB (10kHz)
• Signal-to-noise ratio: >80dB
• THD: <1%
• Signal-to-noise ratio line: >88dB
• Signal-to-noise ratio mic: >75dB
• THD line: <0.2%
• THD mic: <0.3%
• Power consumption: 0.253 – 0.216A
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 370 x 482 x 90mm
• Weight (kg): 12.3
• Included accessories: Mounting bracket, Power cable
