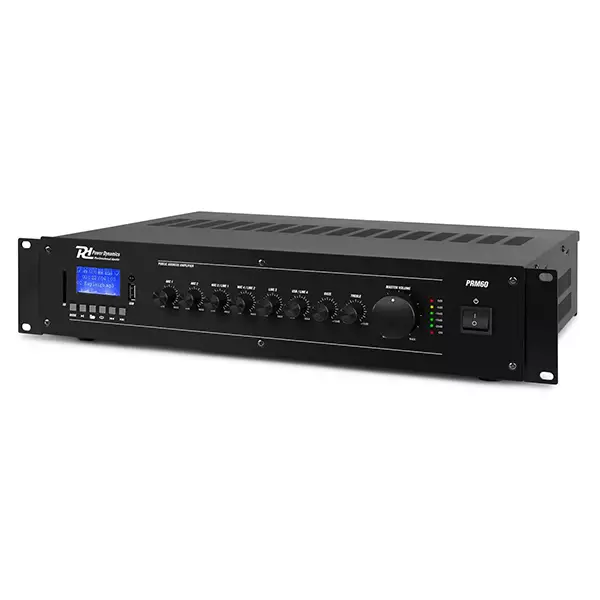

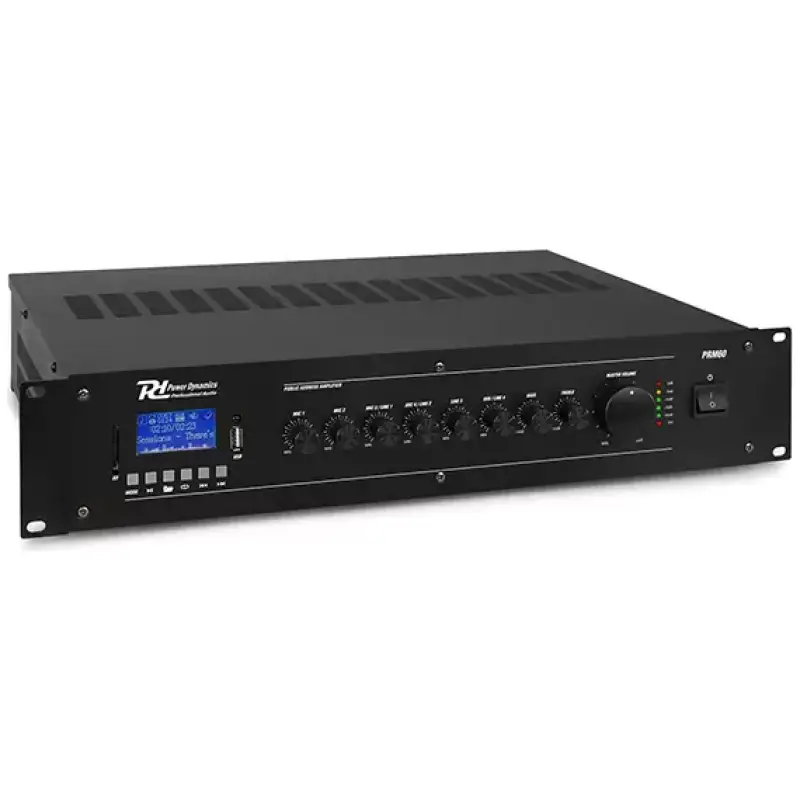

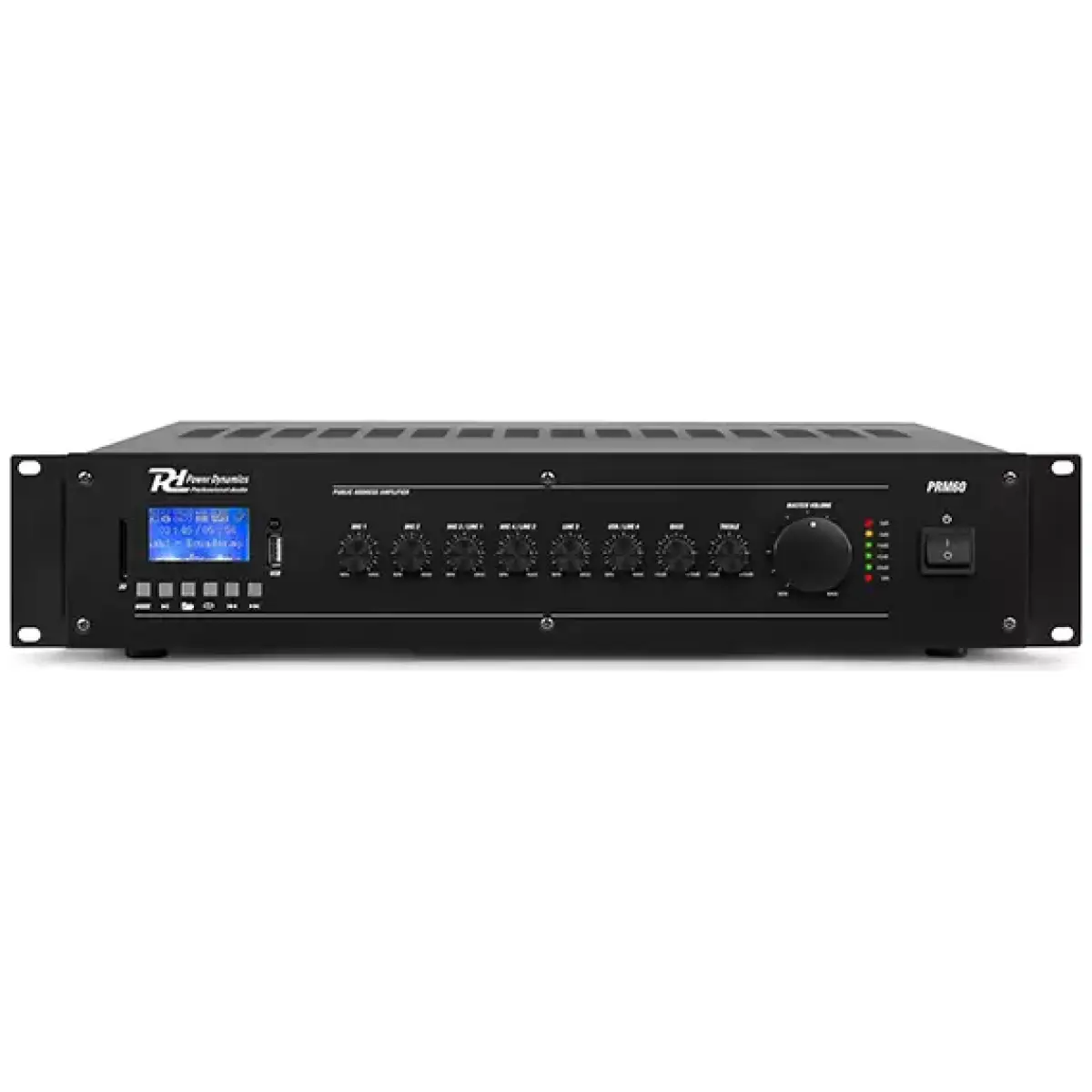

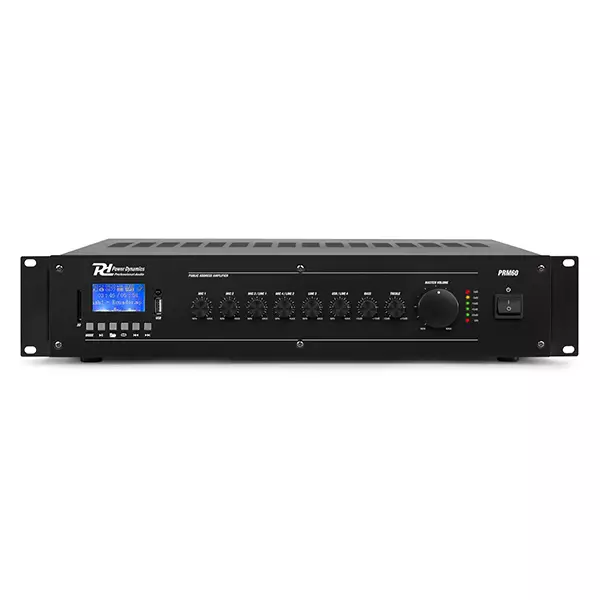

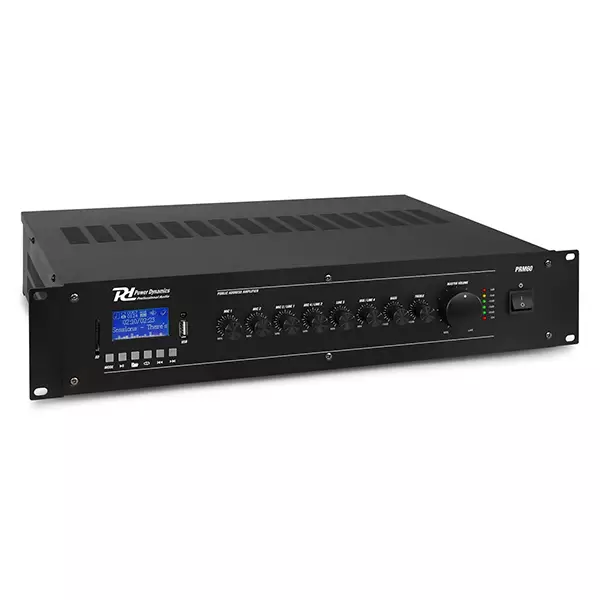

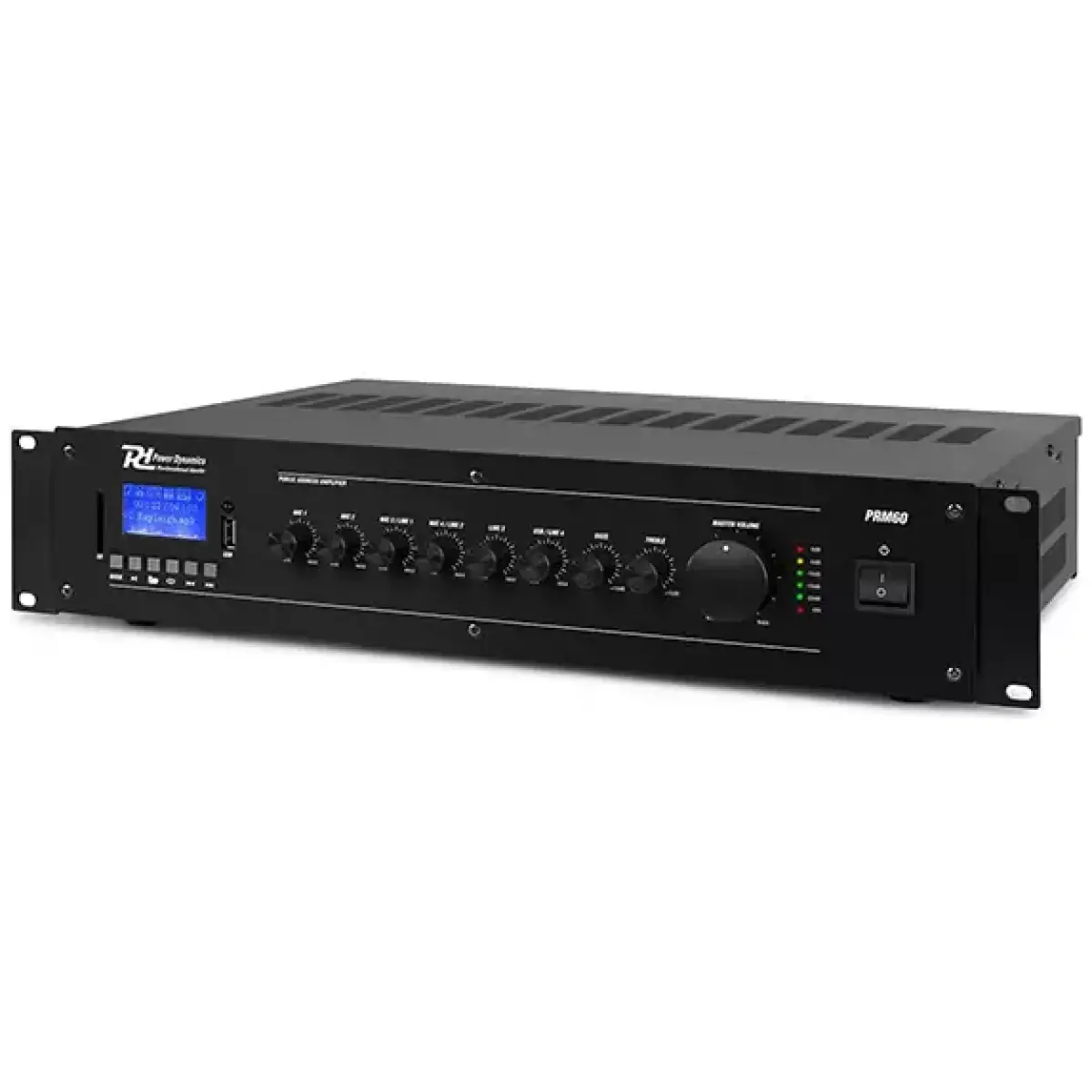

The PRM series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These amplifiers are equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. All PRM amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.
Features:
- 60W 100V 6-Channel mixer amplifier
- MP3 Player with USB/SD slots
- Using BT wireless technology for audio streaming

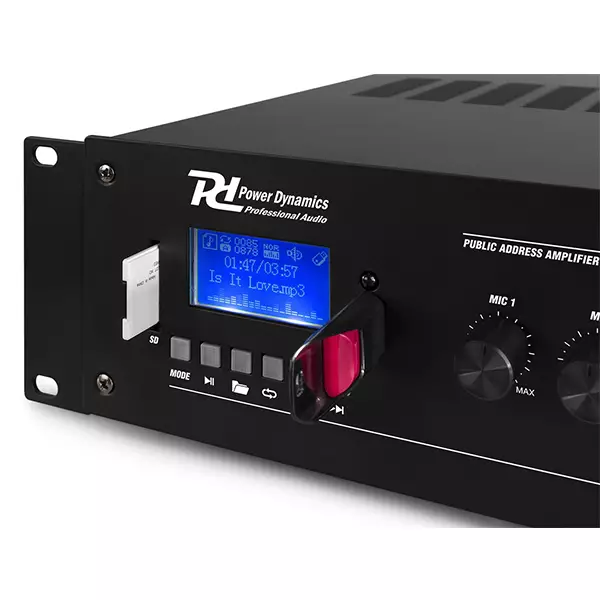

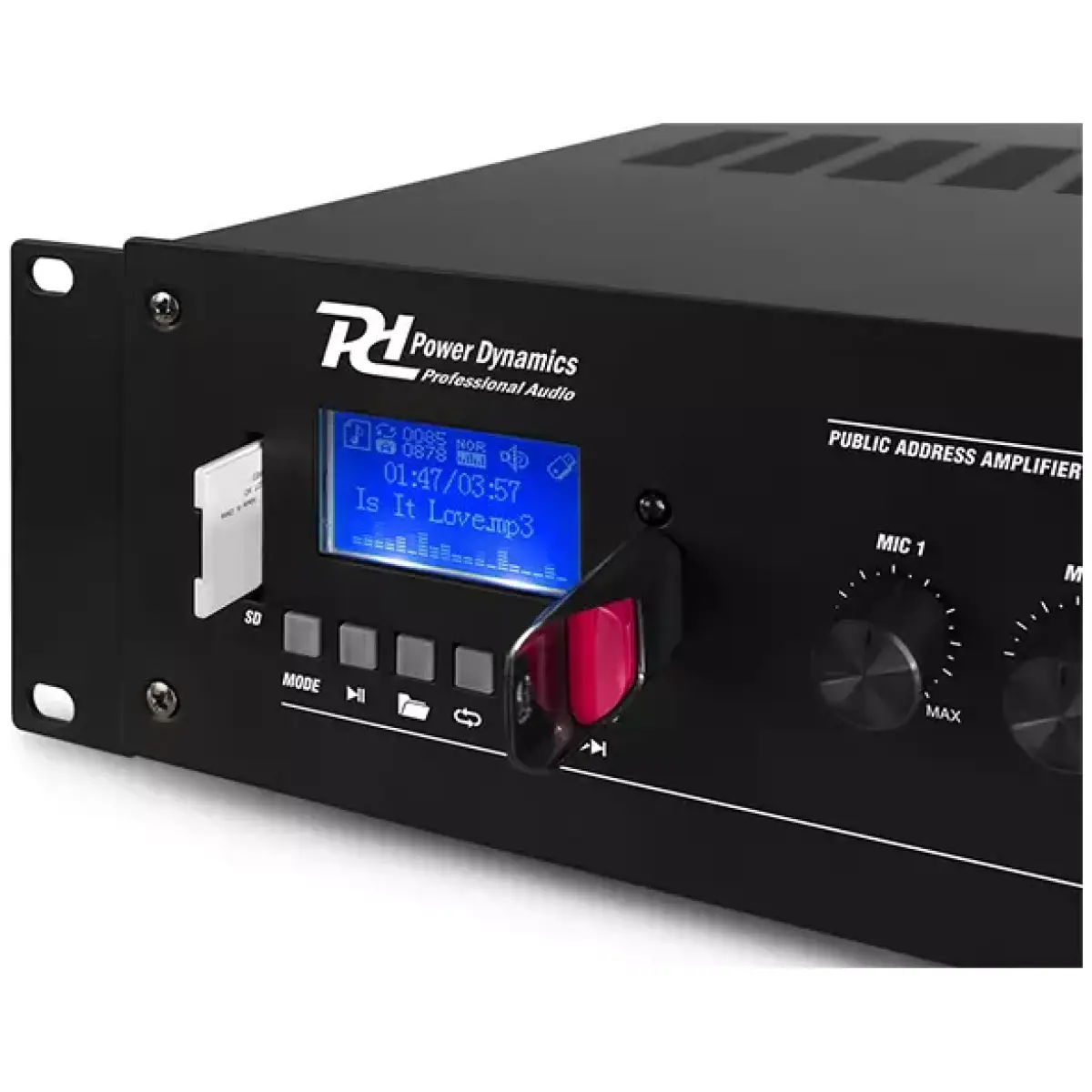

- LCD control panel with ID3 tag

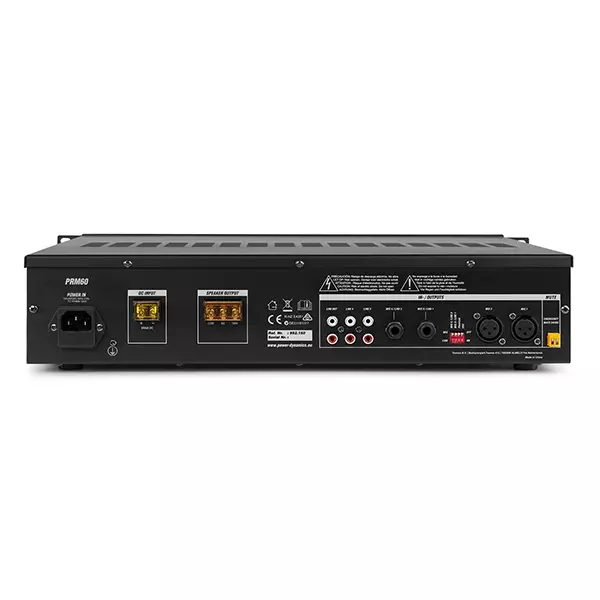

- 2x Mic/line inputs 6.3mm Jack, 2x RCA line inputs and 1x RCA line output

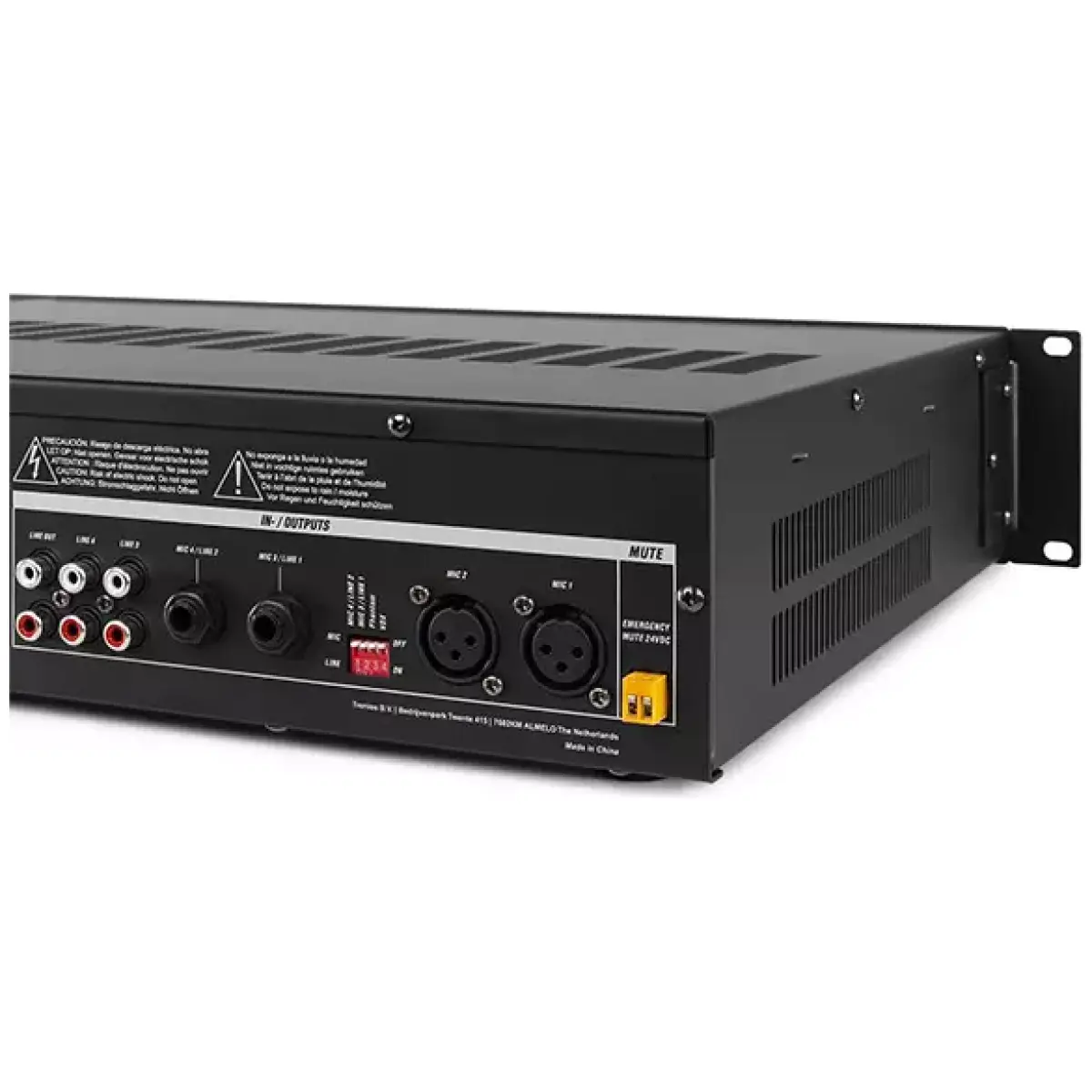

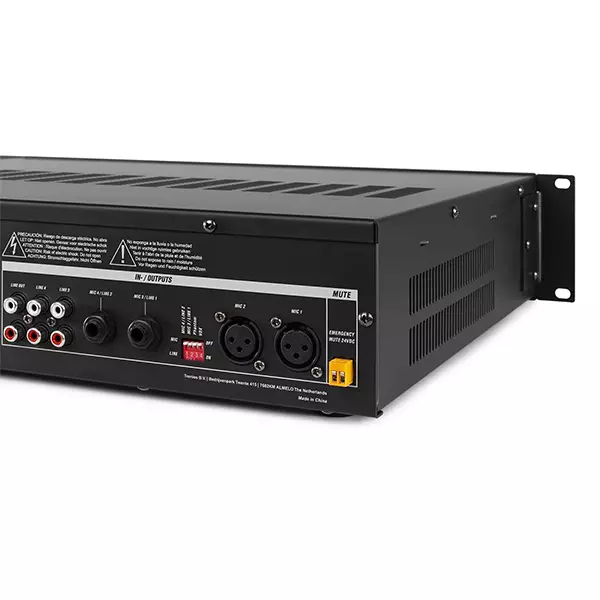

- 2x XLR microphone inputs with switchable phantom power (24V) and VOX priority

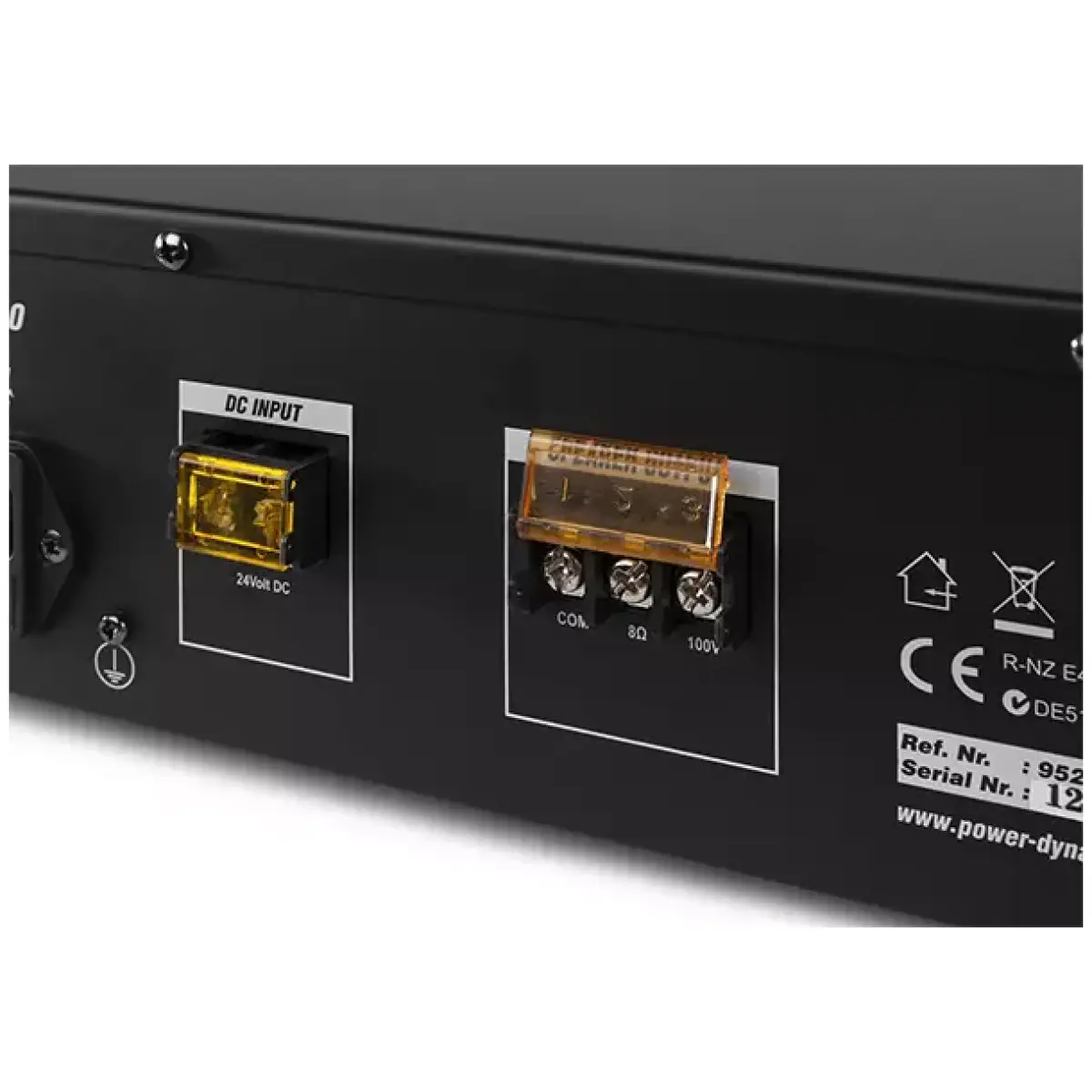

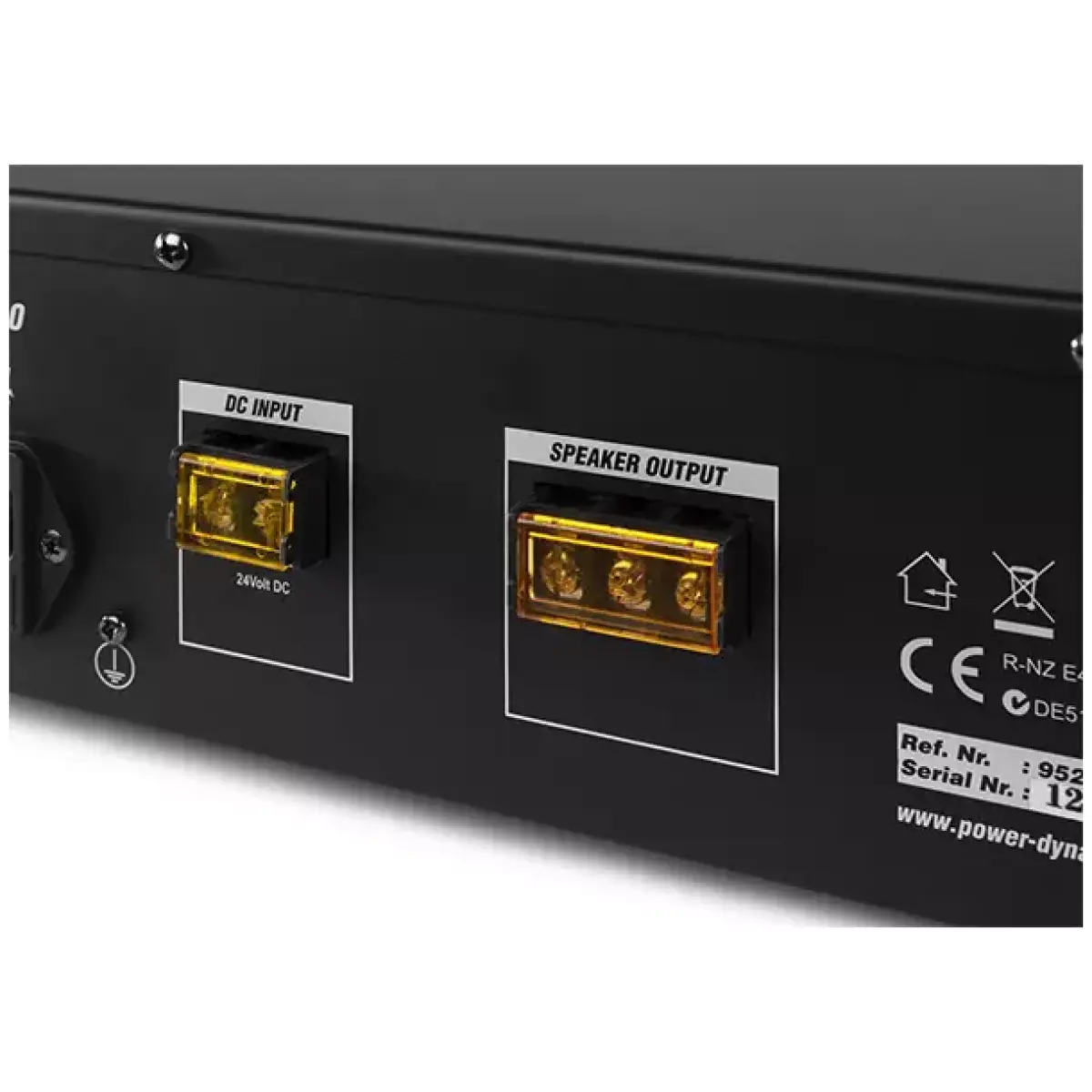

- 100V or 8 Ohm speaker output
- Bass and treble controls

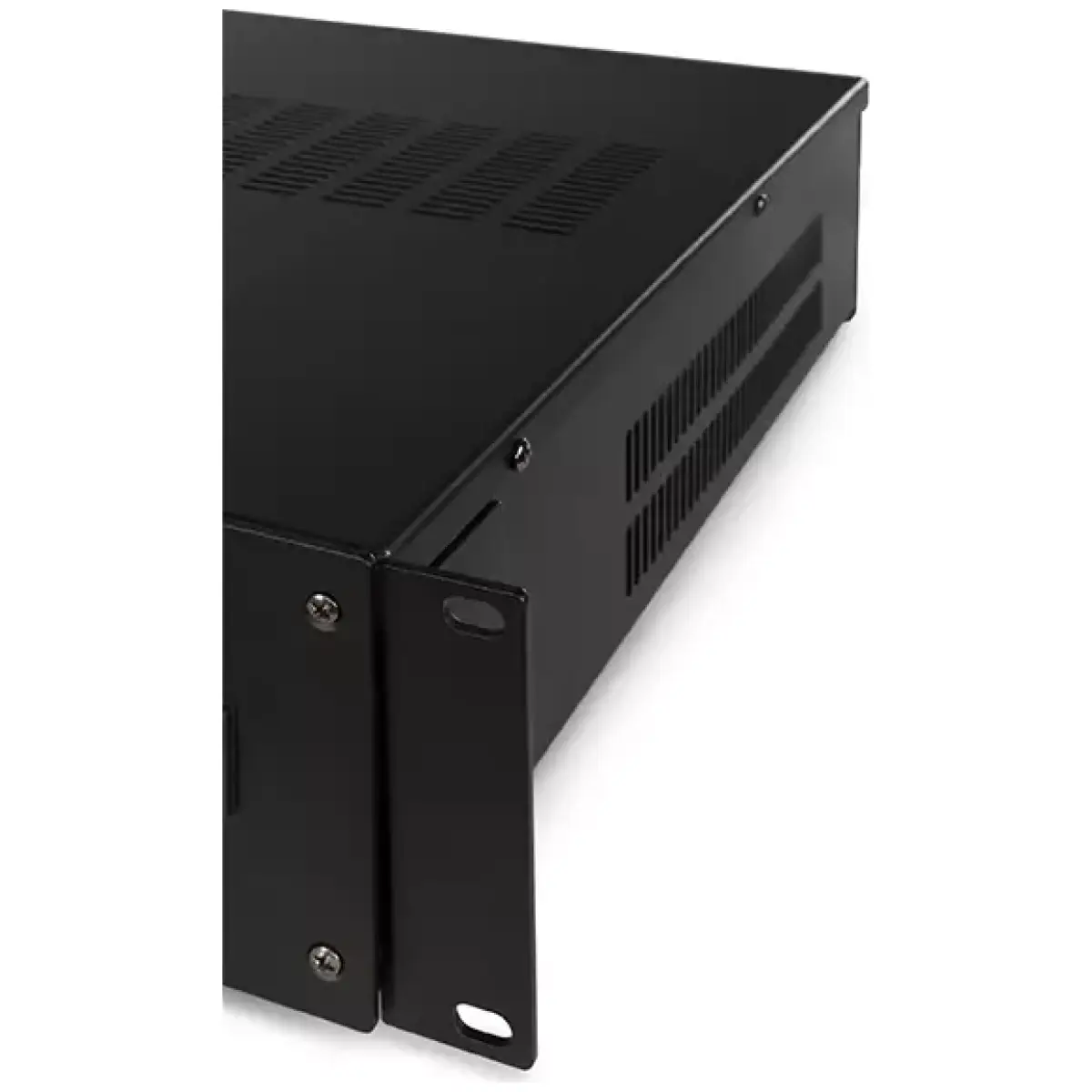

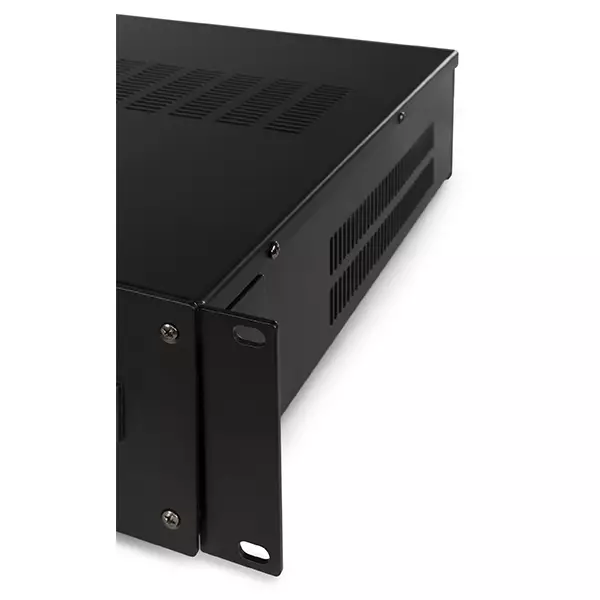

- 19" Rack mountable (2U)

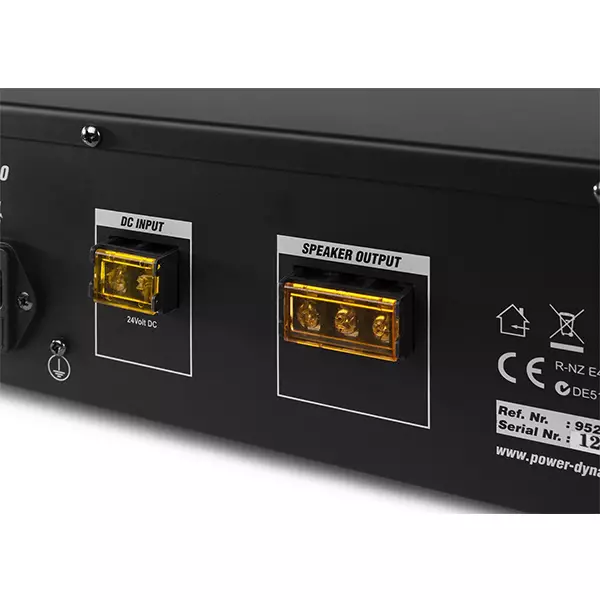

- Emergency operation by 24V battery (not supplied)
- Protections: Overheat, short circuit and power on delaybr]
- Emergency mute input

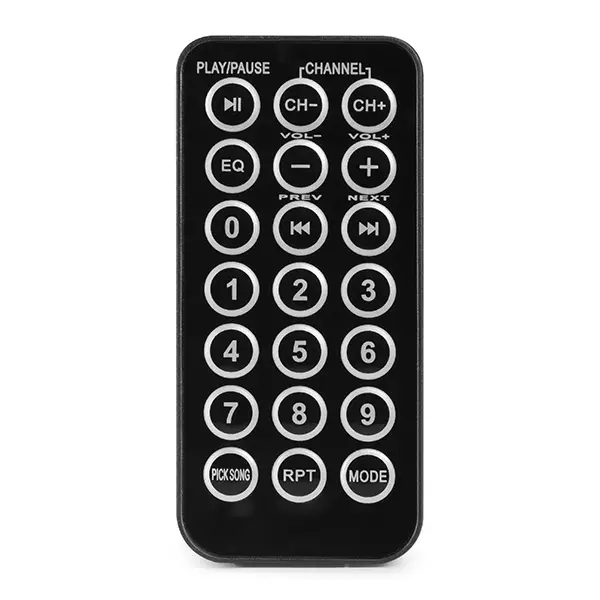

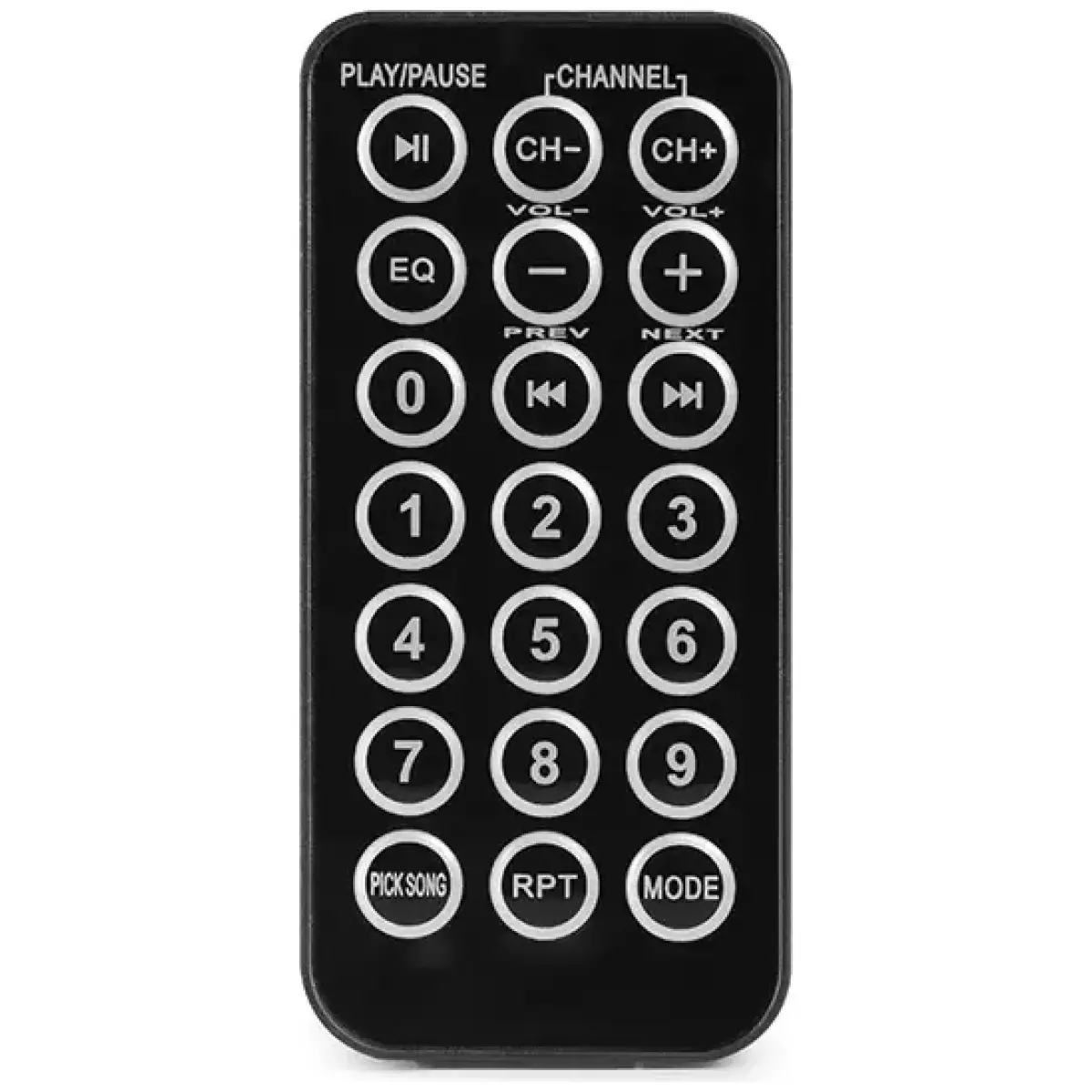

- Including remote control
Specifications:
- Playback options: BT Streaming, SD-Card, USB
- Output power:: RMS 60W
- Impedance: 100V, 8ohm
- Frequency Response: 50Hz – 18.000Hz
- Signal-to-noise ratio: >75dB
- Signal-to-noise ratio:Line: >85dB
- Signal-to-noise ratio:Mic: >72dB
- Power Supply: 100-240VAC 50/60Hz
- Input level:: Line 150-470mV, 10kOhm
- Input level:: Mic. 5-8mV, 600Ohm
- THD: <0,5%
- Dimensions (L x W x H): 432 x 88 x 345mm
- Weight (kg): 7.9
- Accessories: Power Cable
