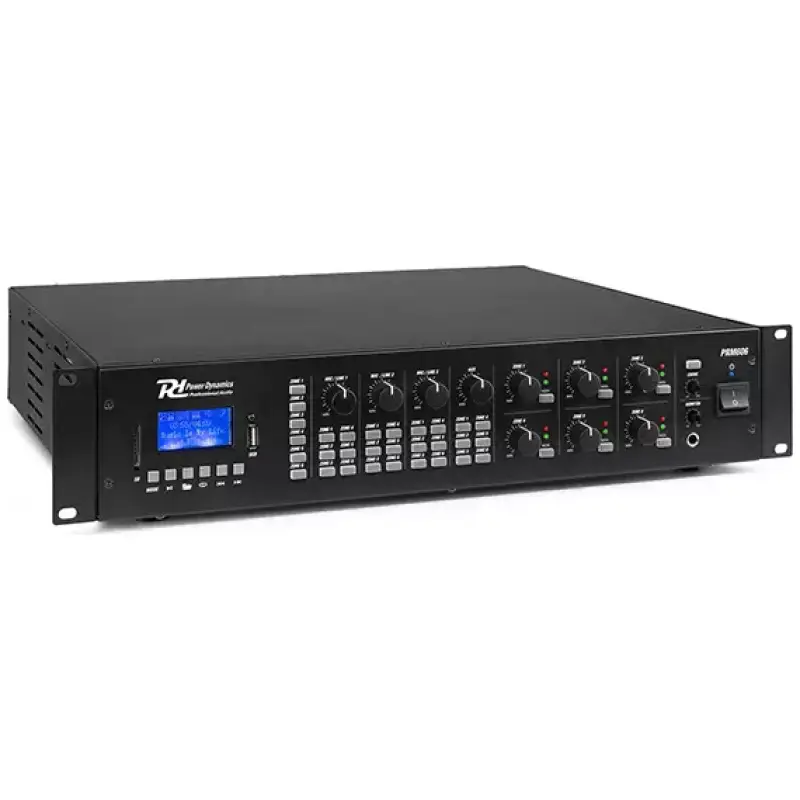

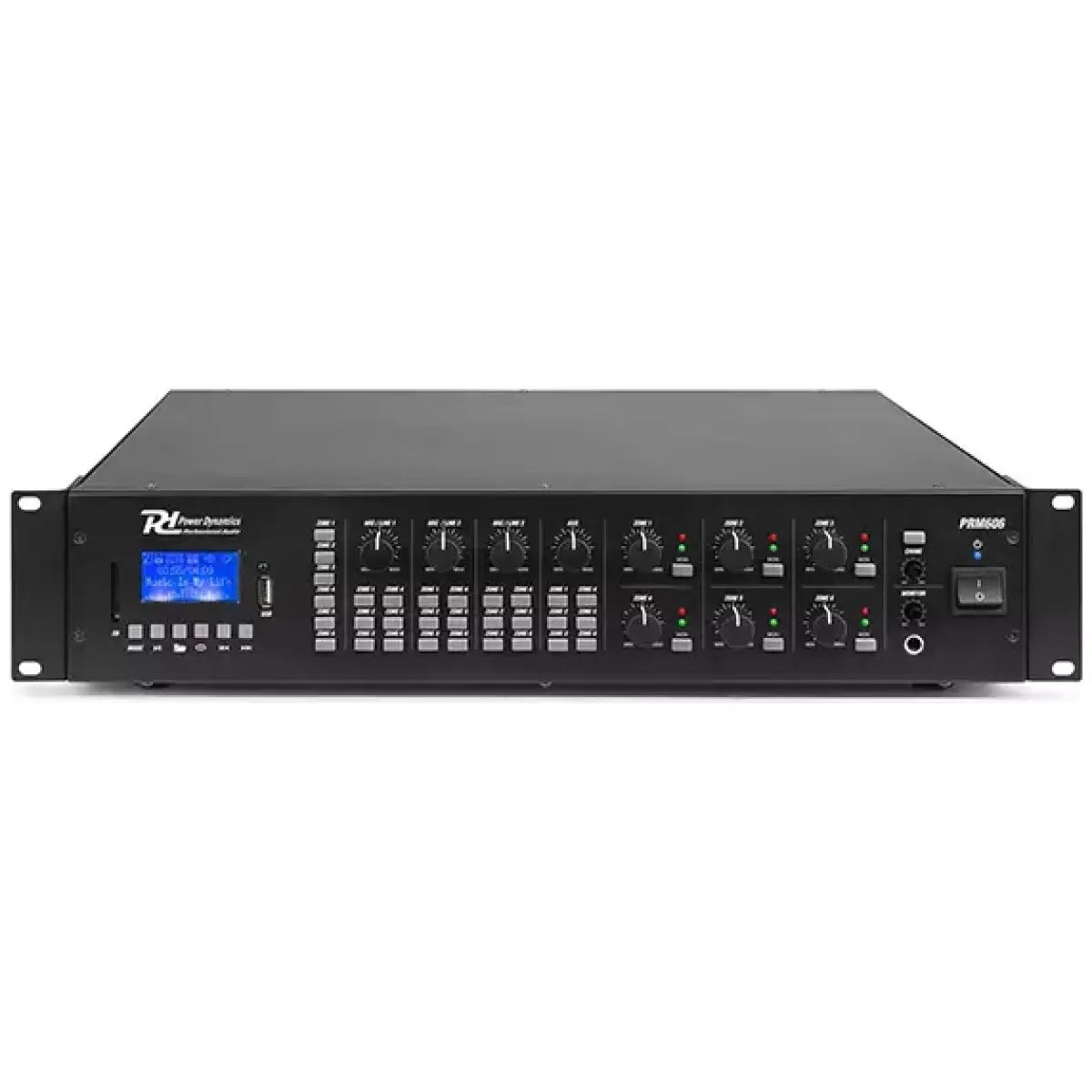

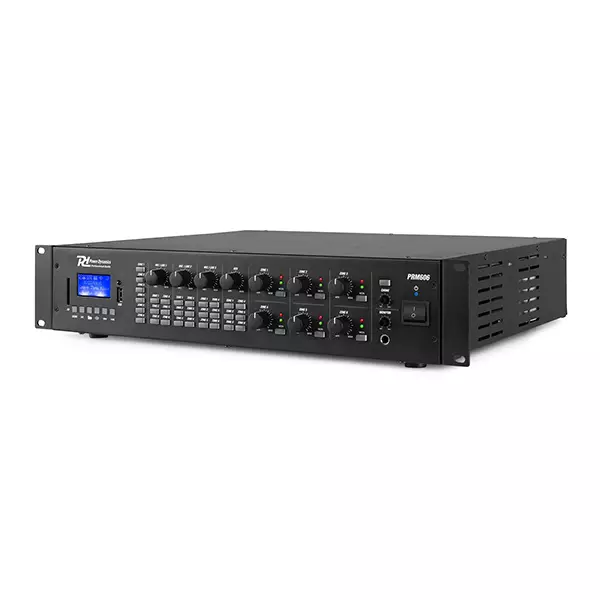

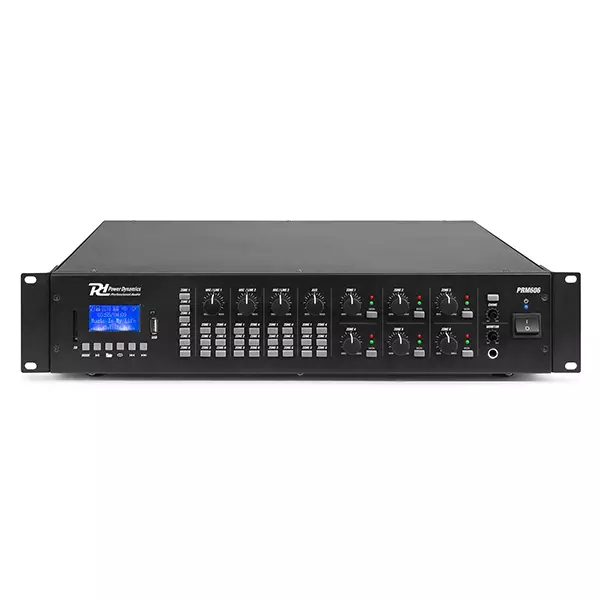

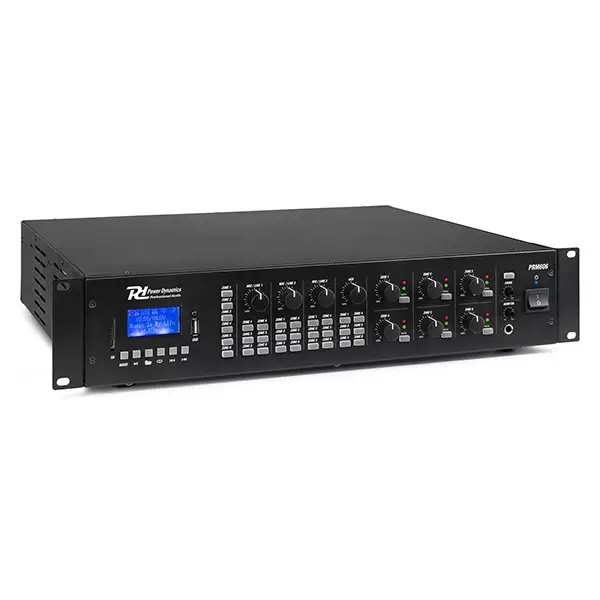

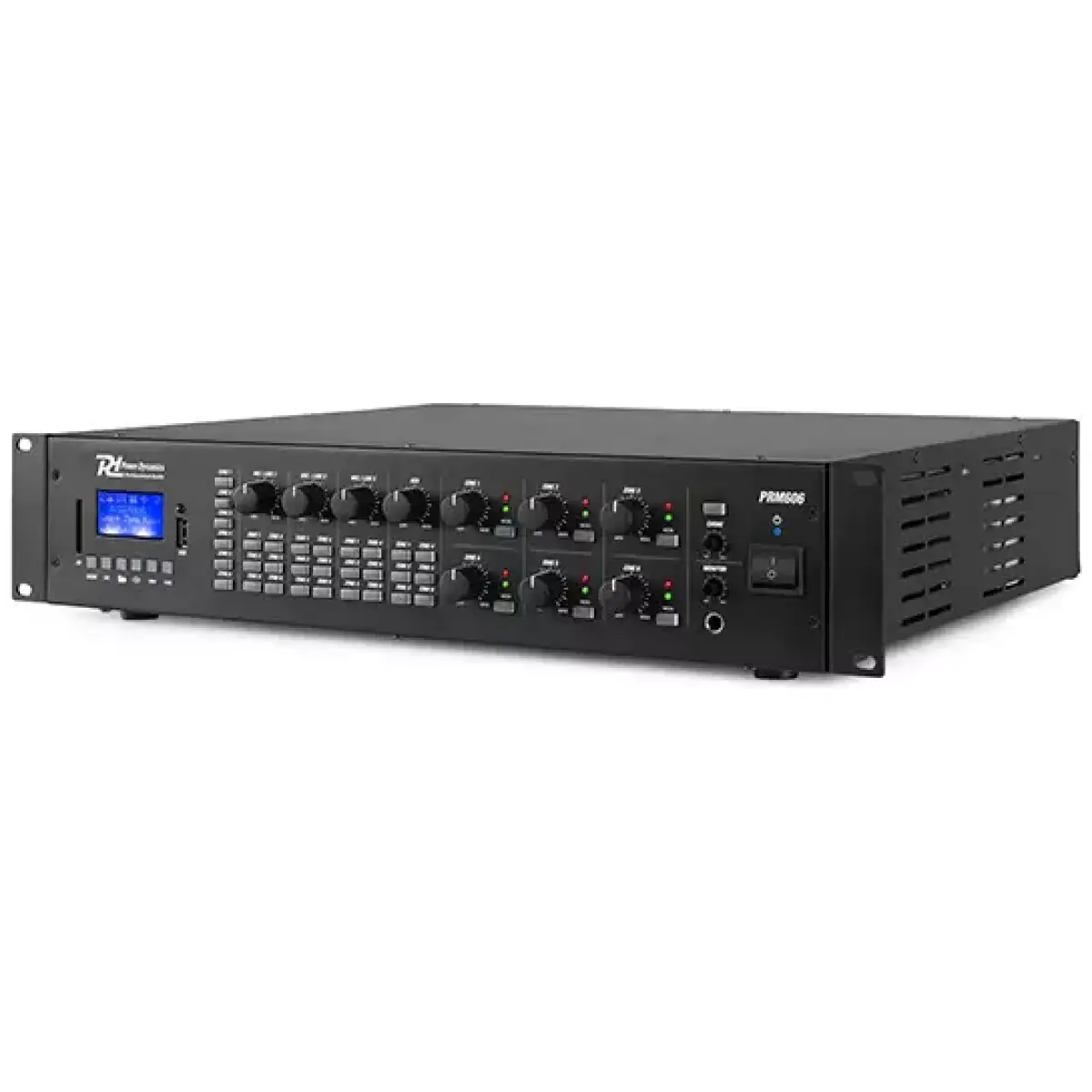

The PRM606 is a rack-mountable amplifier that can either be used as 100V amplifier or as a standard low-impedance amplifier. This 6 zone amplifier is designed for multi-room systems requiring different audio sources. It’s equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. The PRM606 is provided with switchable XLR inputs with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.
Features:
- 100V matrix amplifier with 6 independent output zones
- 6x 60W Class D power Section

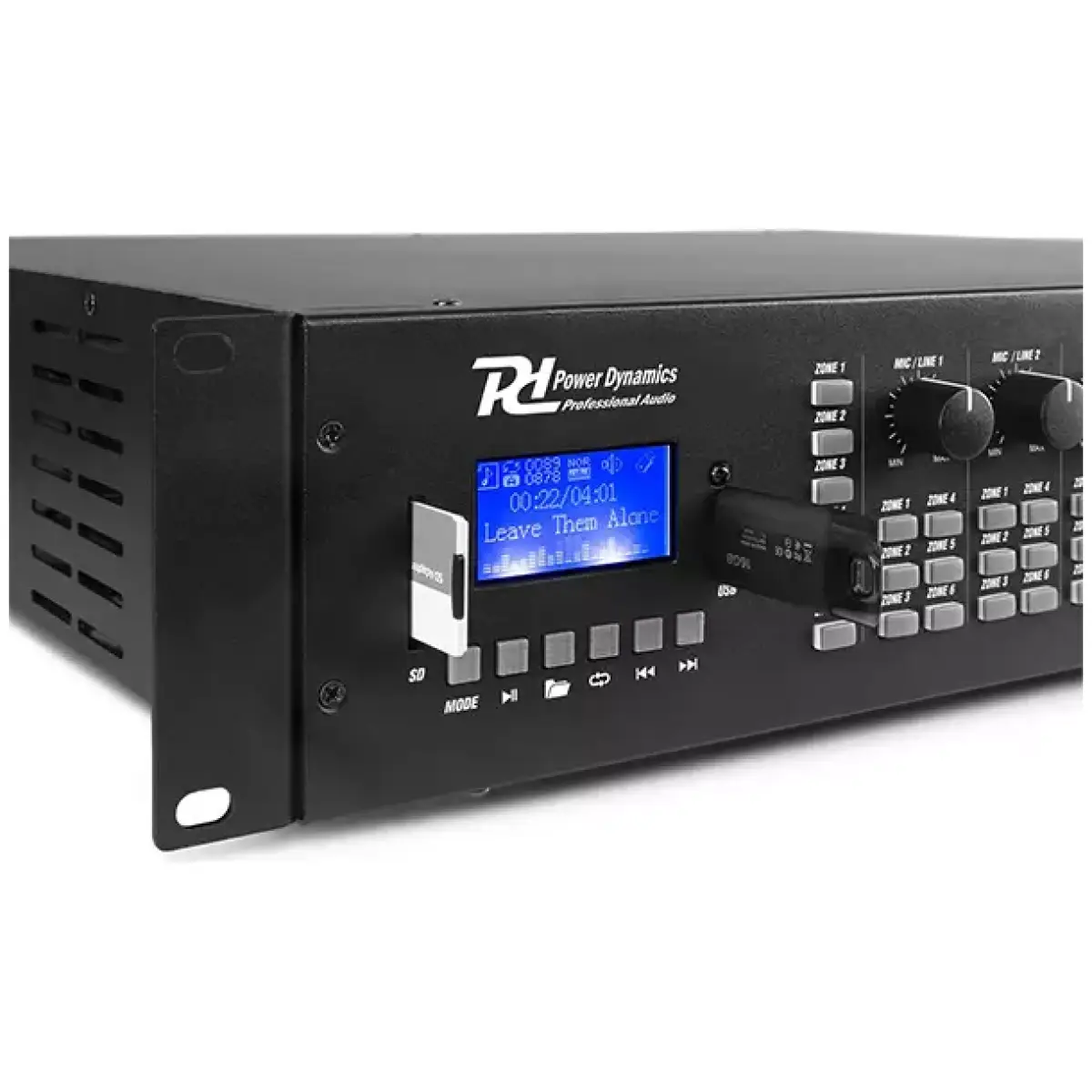

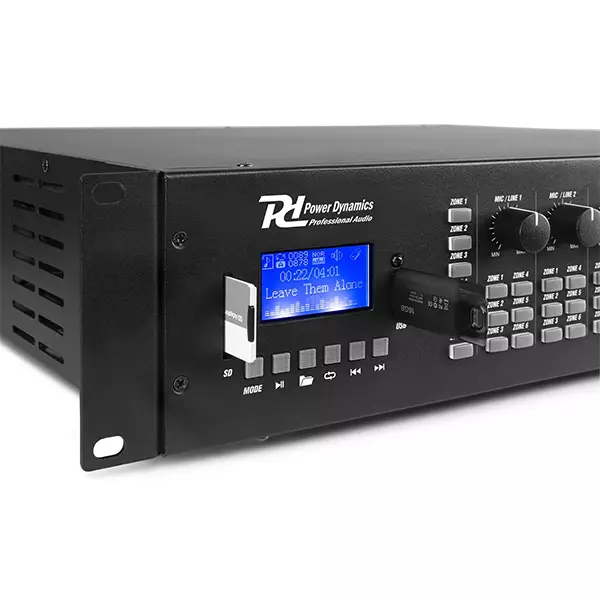

- MP3 Player with USB/SD slot
- Using BT wireless technology for audio streaming

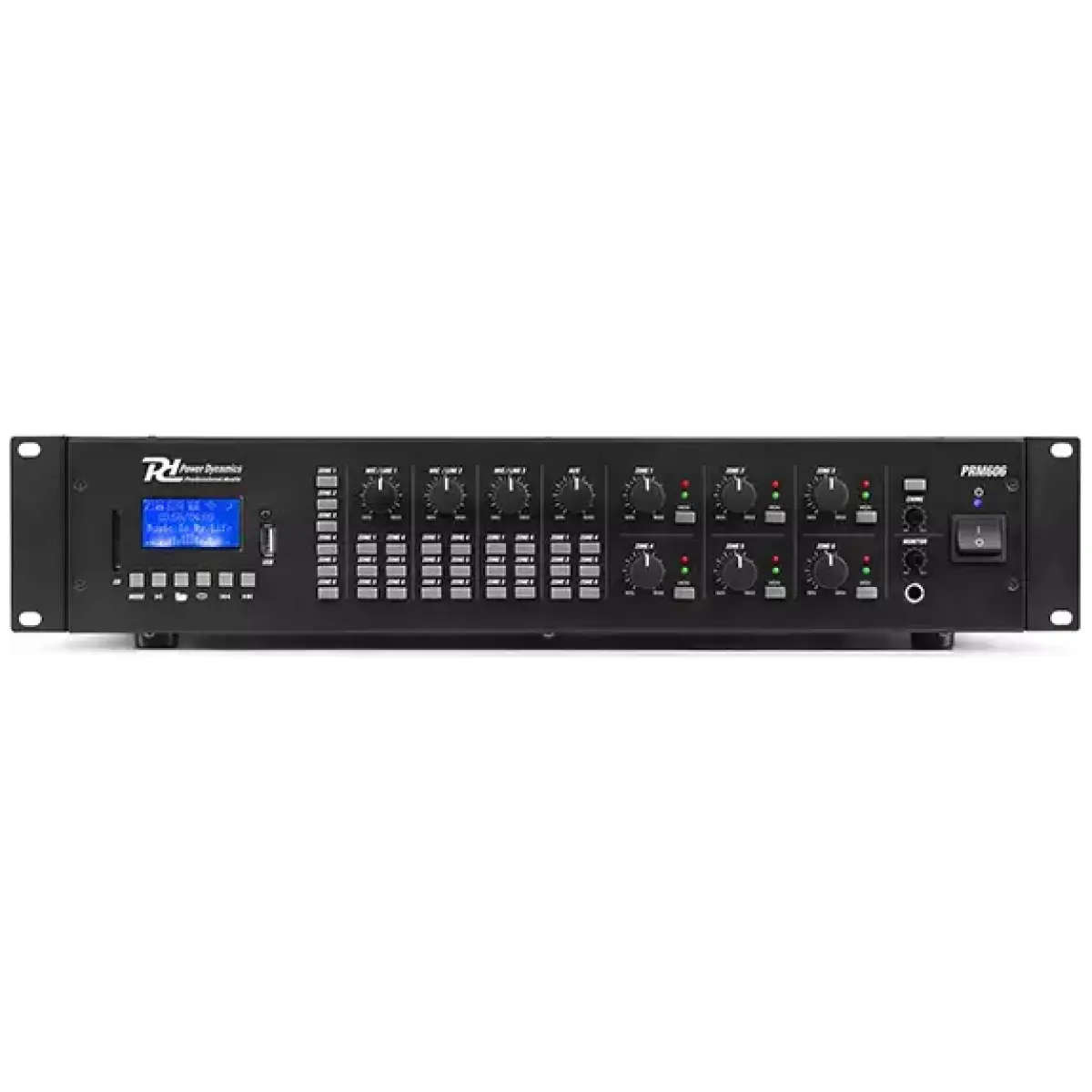

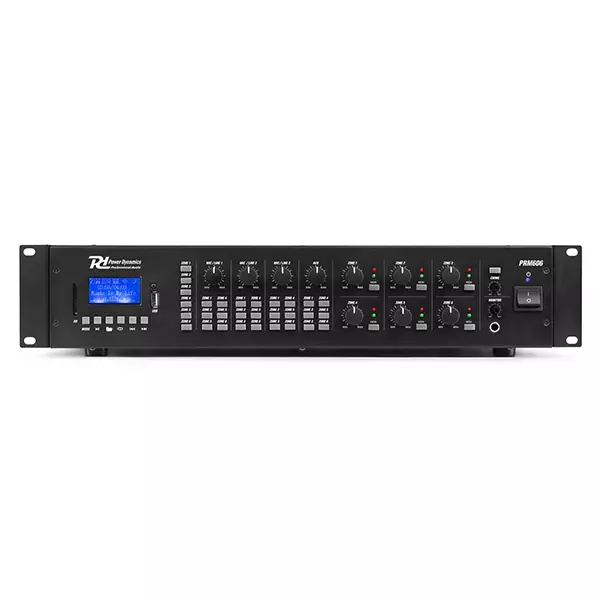

- LCD control panel with ID3 tag
- 3x Mic/line inputs Combi 6.3mm Jack/XLR, 1x RCA line input and 1x RCA line output
- XLR Microphone inputs with switchable phantom power (24V) and VOX priority
- 100V or 4/8 Ohm speaker output

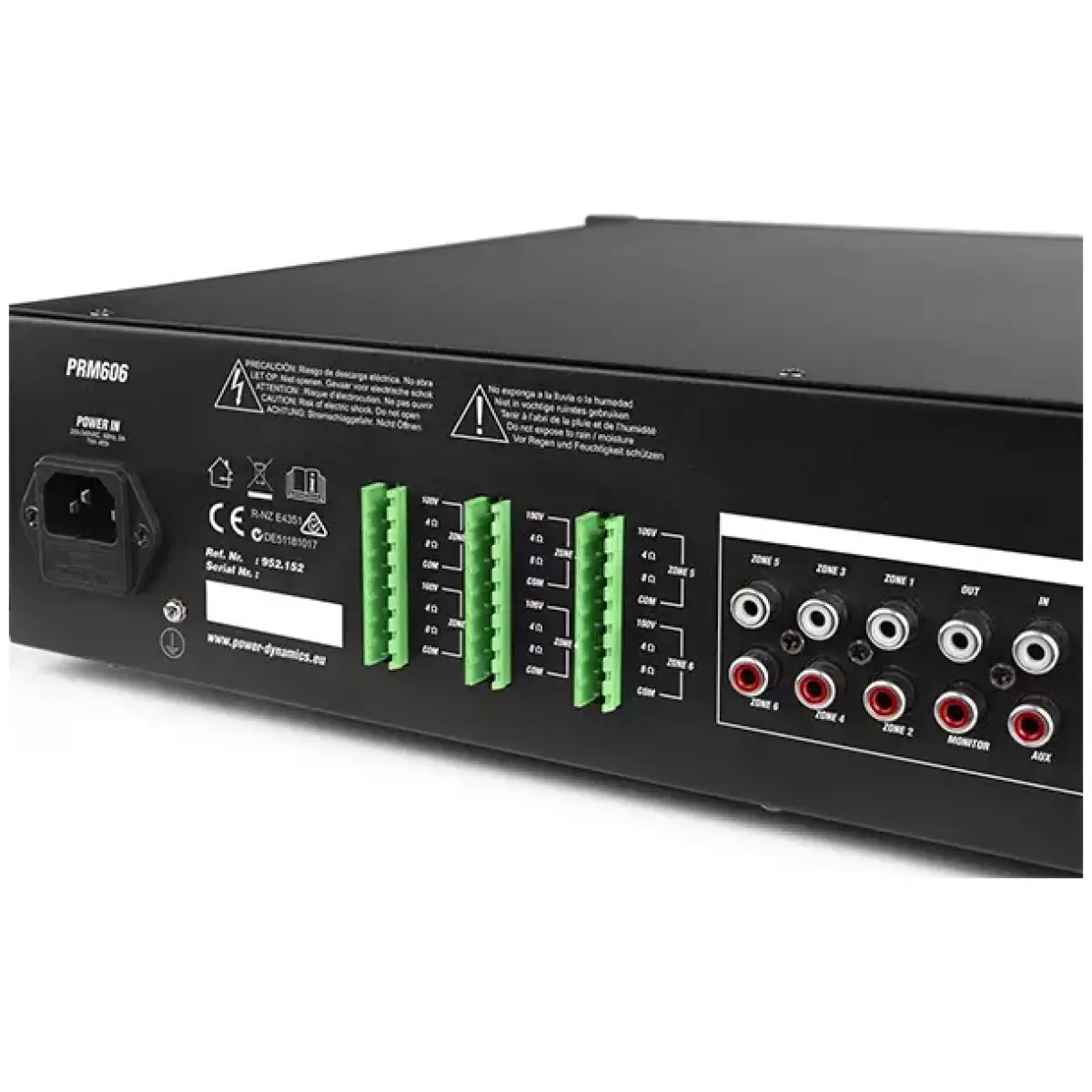

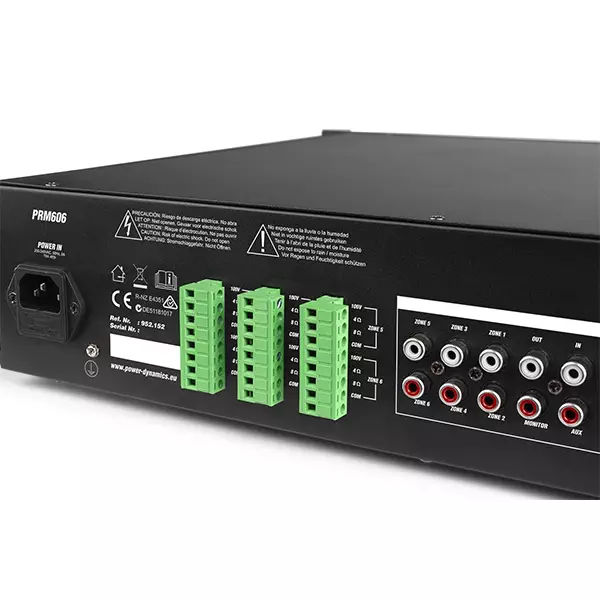

- Zone outputs: 6x Line (RCA Mono)

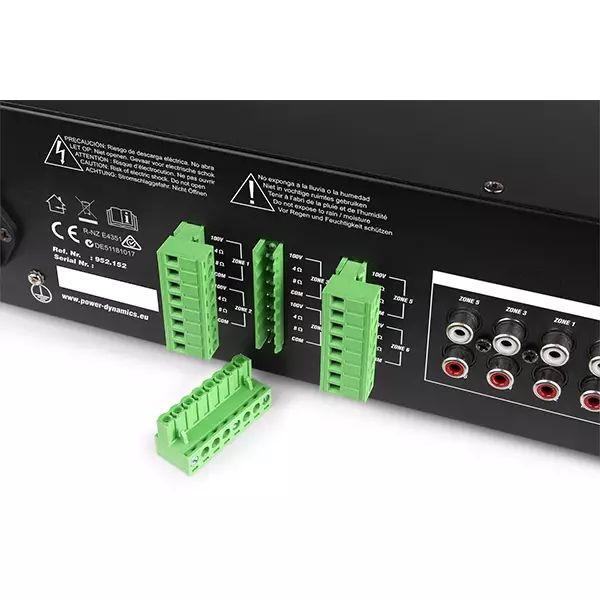

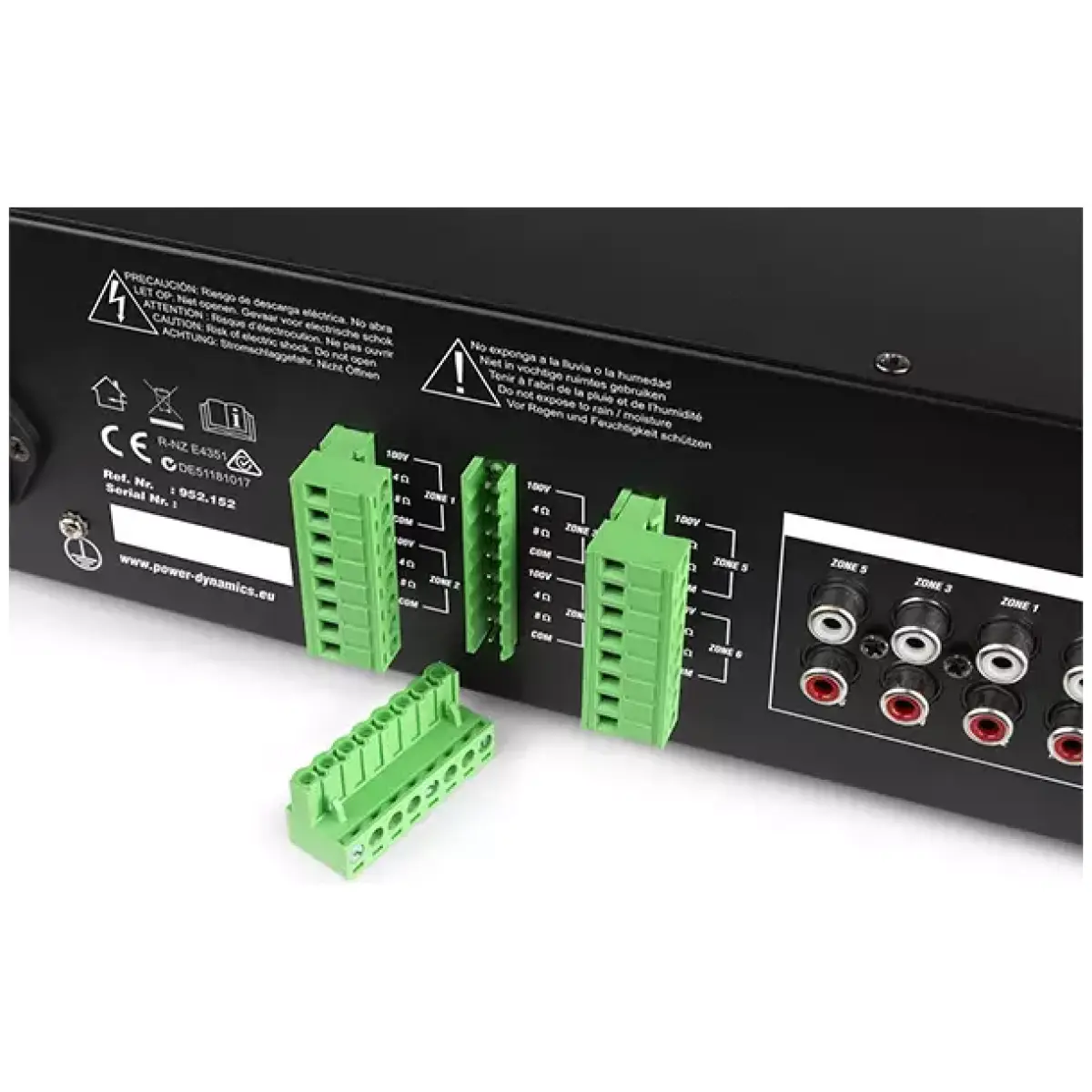

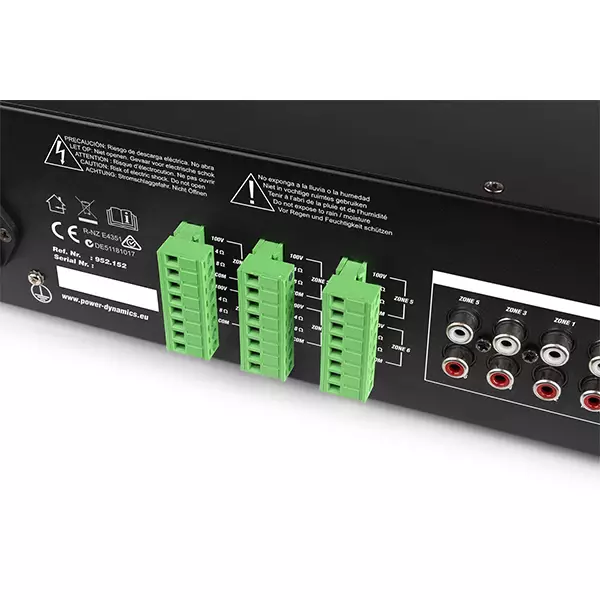

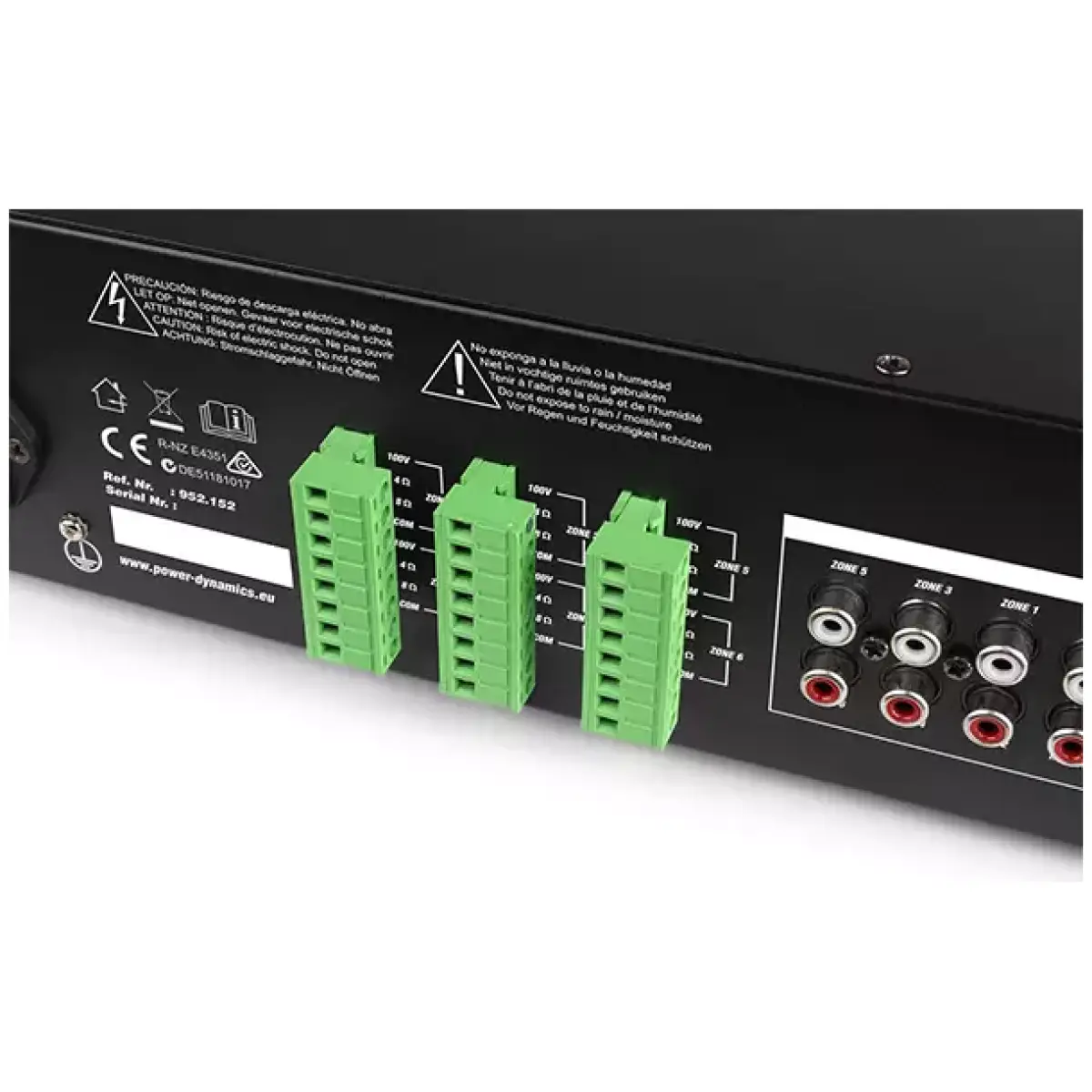

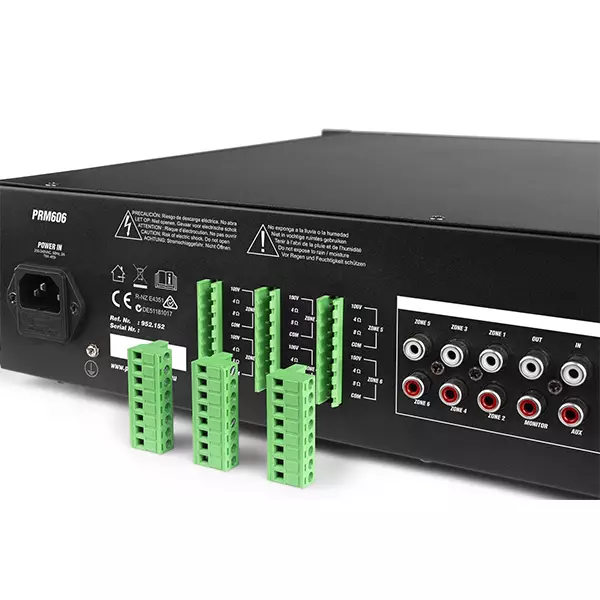

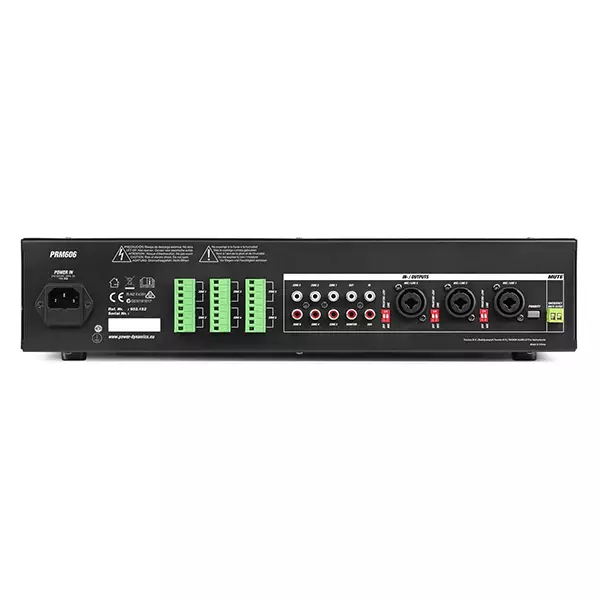

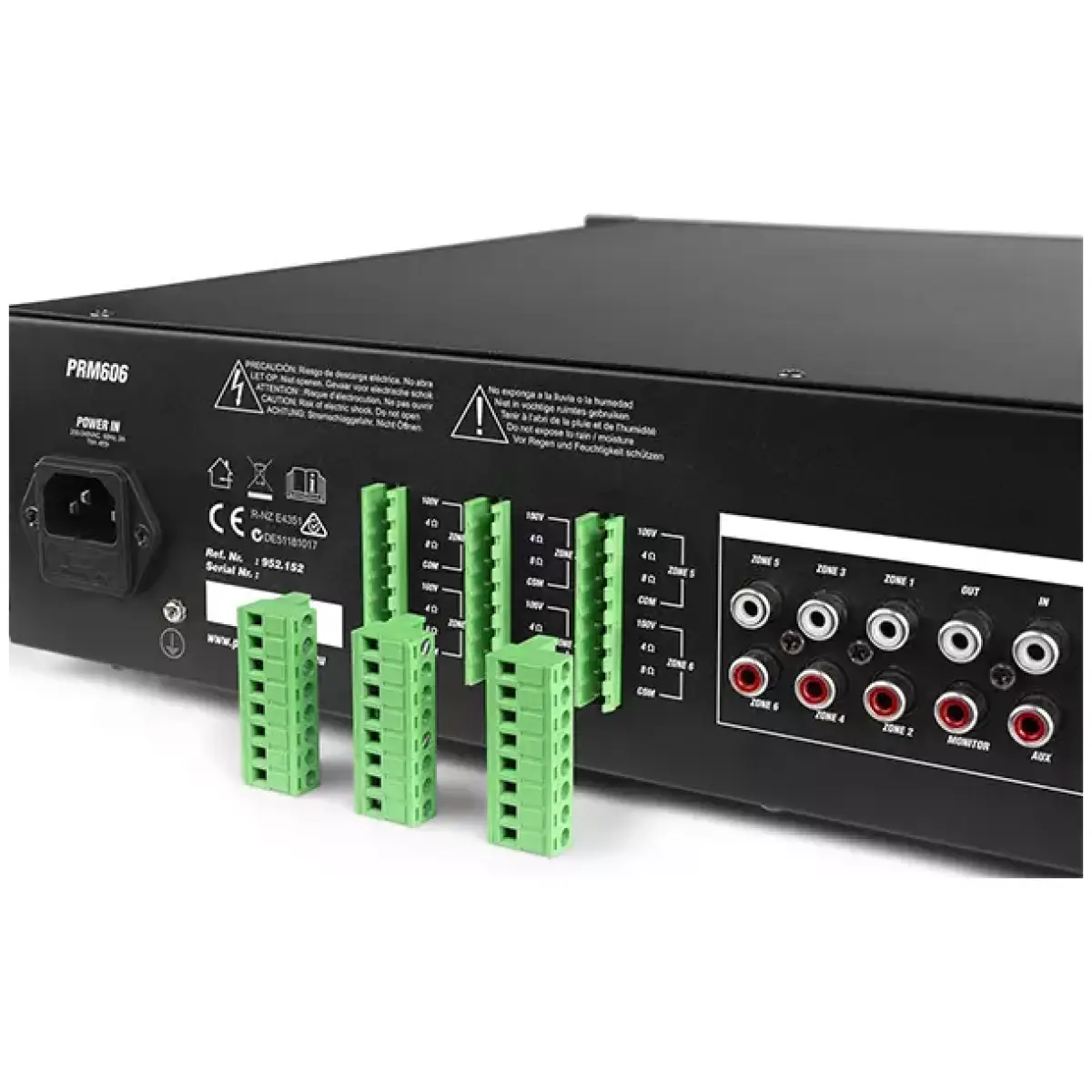

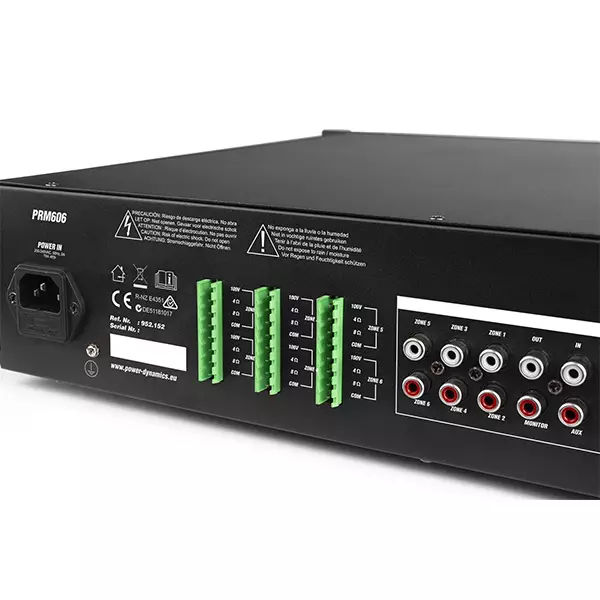

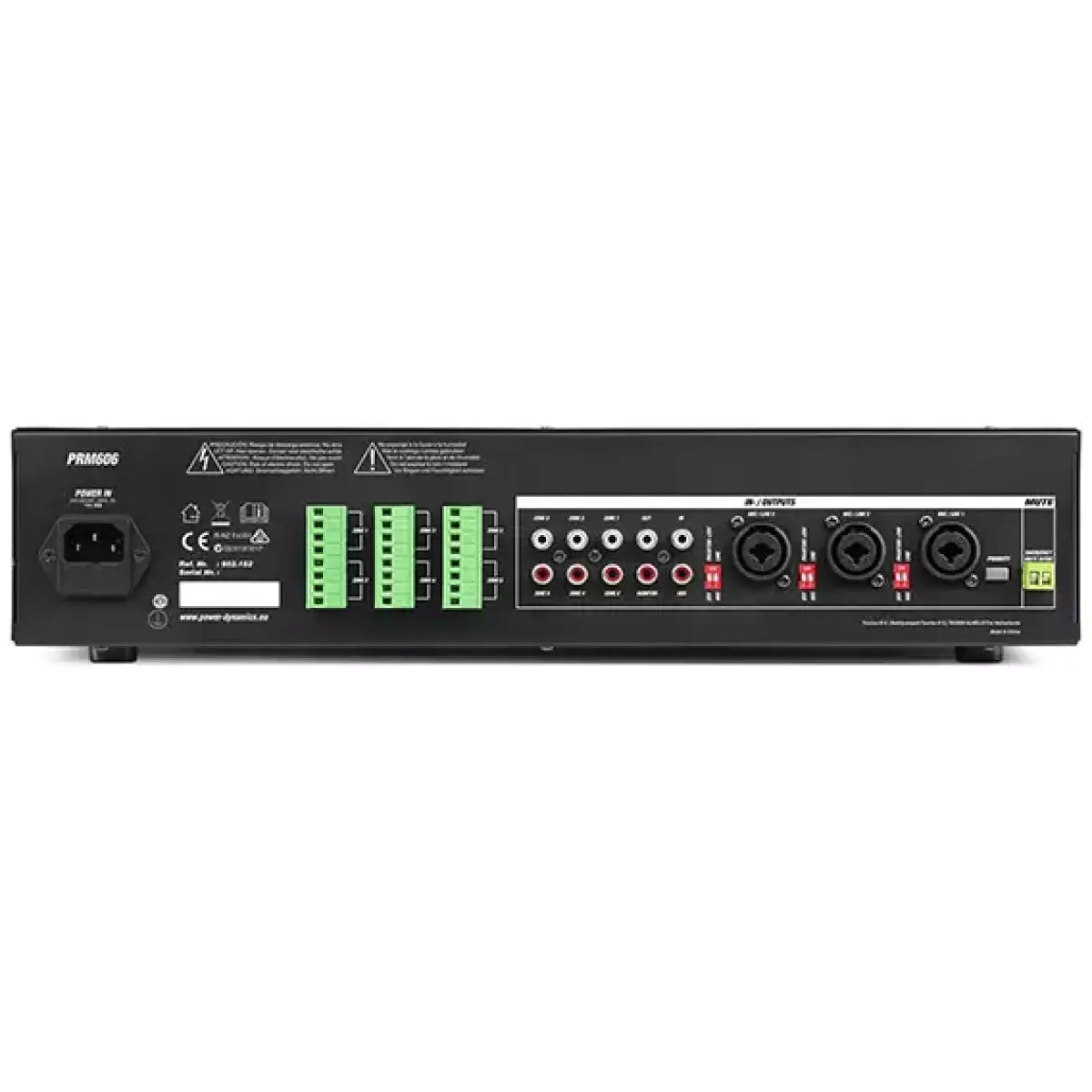

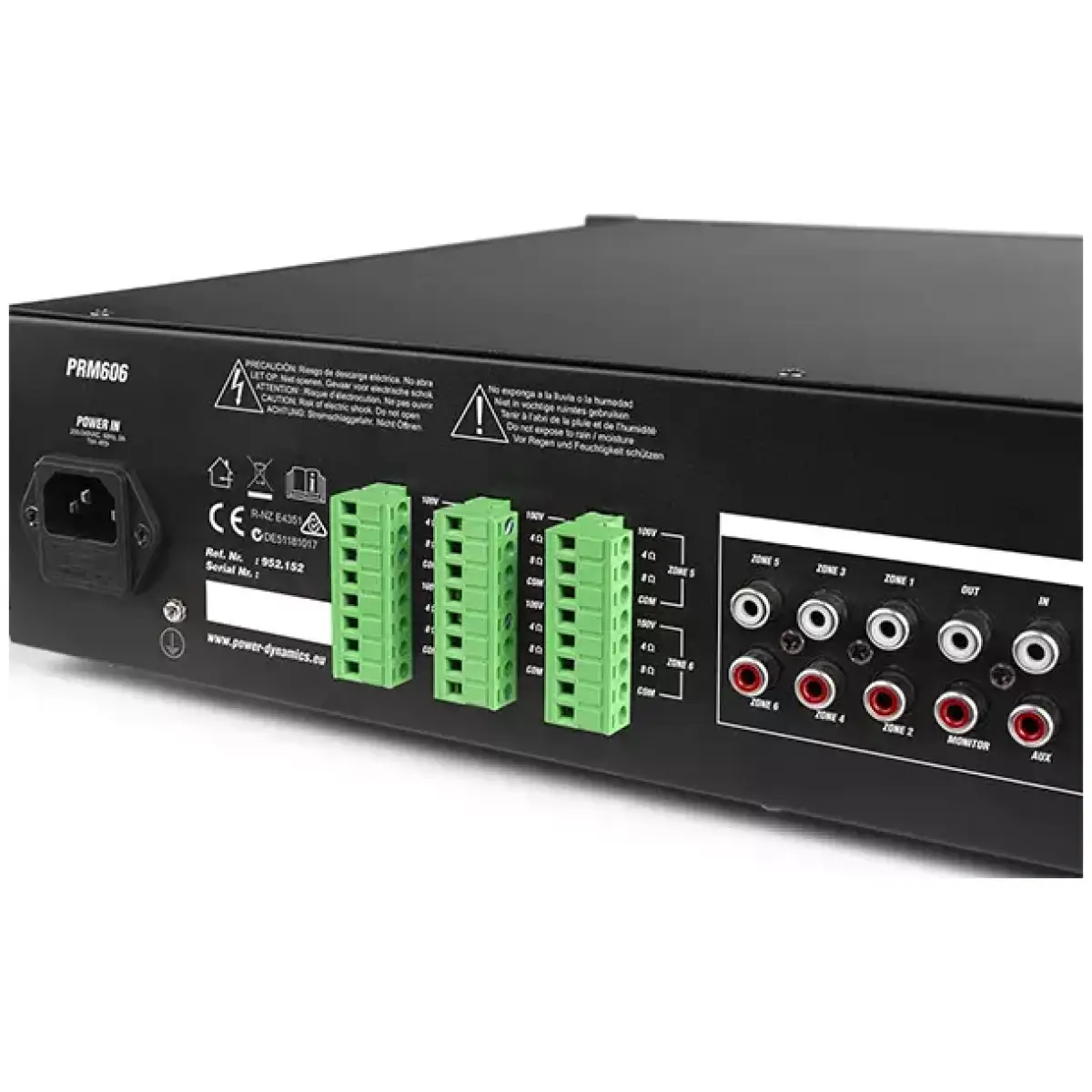

- Zone outputs: 6x Speaker Terminal (100V / 4Ohm / 8Ohm / Com)
- Bass and treble controls
- Chime with level control
- 19" Rack mountable (2U)
- Emergency operation by 24V battery (not supplied)
- Protections: Overheat, short circuit and power on delay
- Emergency mute input

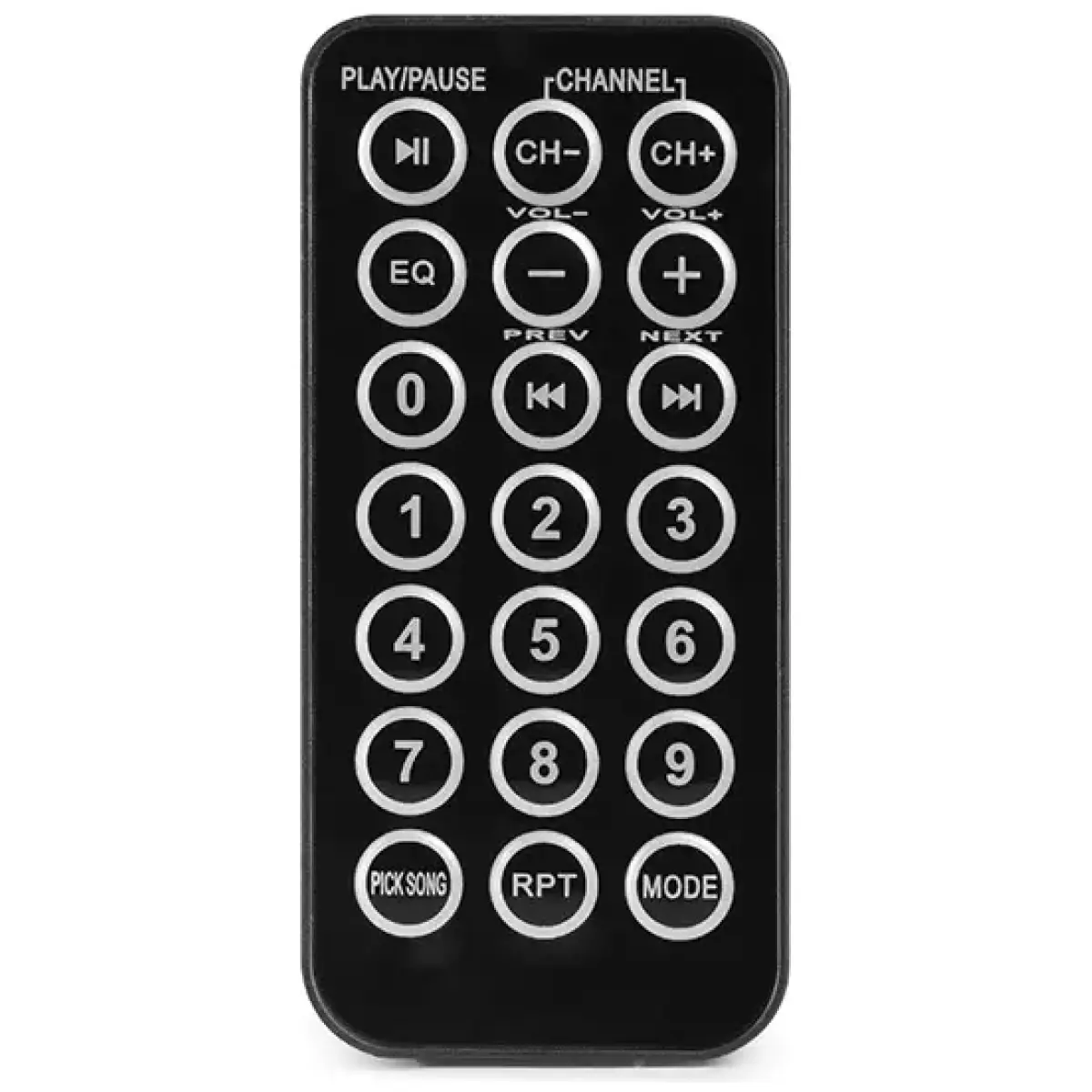

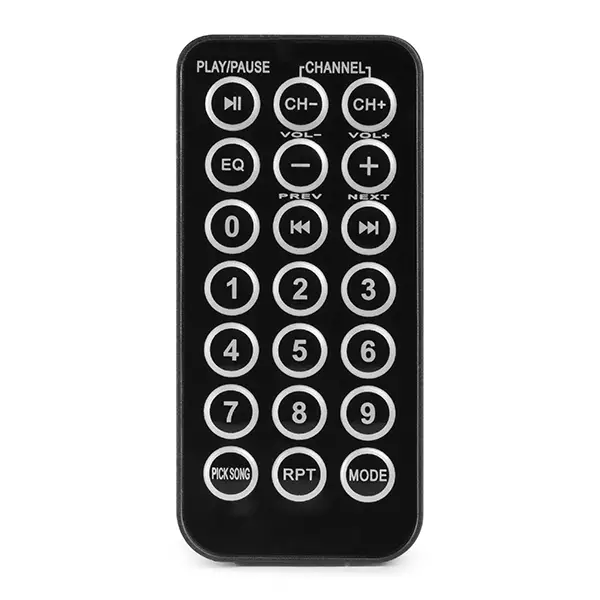

- Including remote control
Specifications:
- Playback options: BT streaming, SD, USB
- Output power: RMS: 360W
- Impedance: 100V, 4 Ohm, 8 Ohm
- Frequency response: 100Hz – 24.000Hz
- Power supply: 220-240VAC 50Hz
- Power consumption: 2A
- Dimensions (L x W x H): 390 x 483 x 95mm (without feet 88mm)
- Weight: 11.85kg
- Accessories: Mounting bracket, Power cable, Remote control
