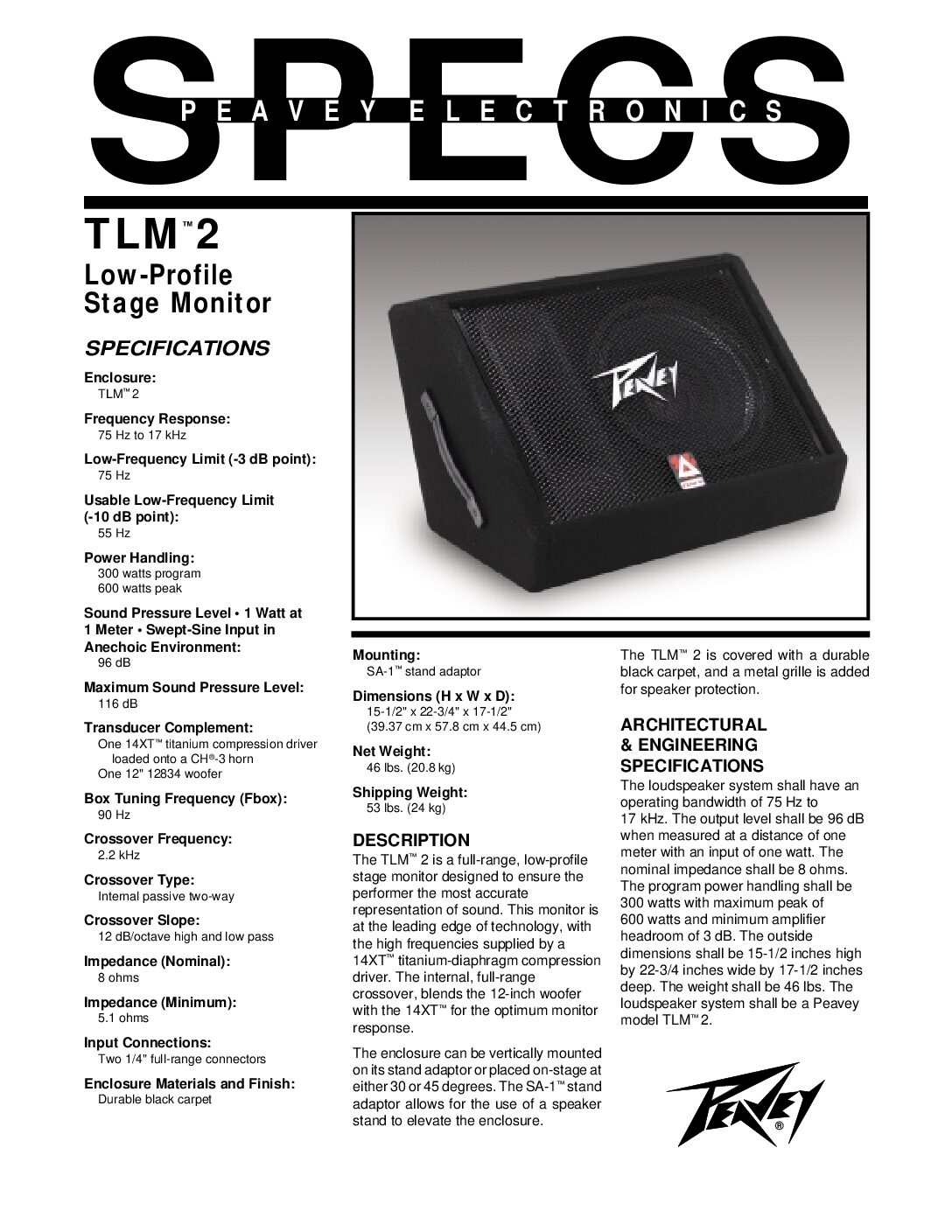

SPECIFICATIONS

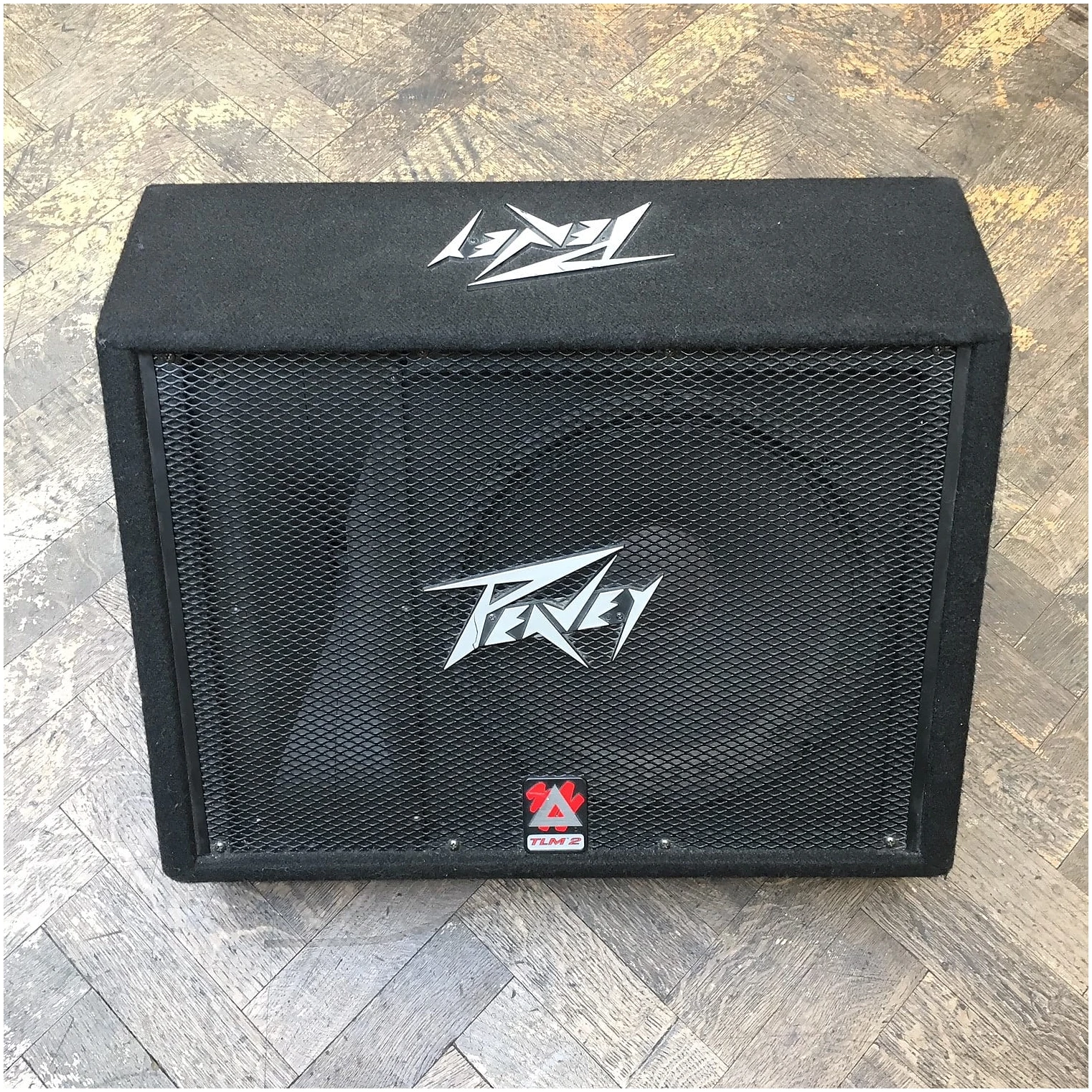

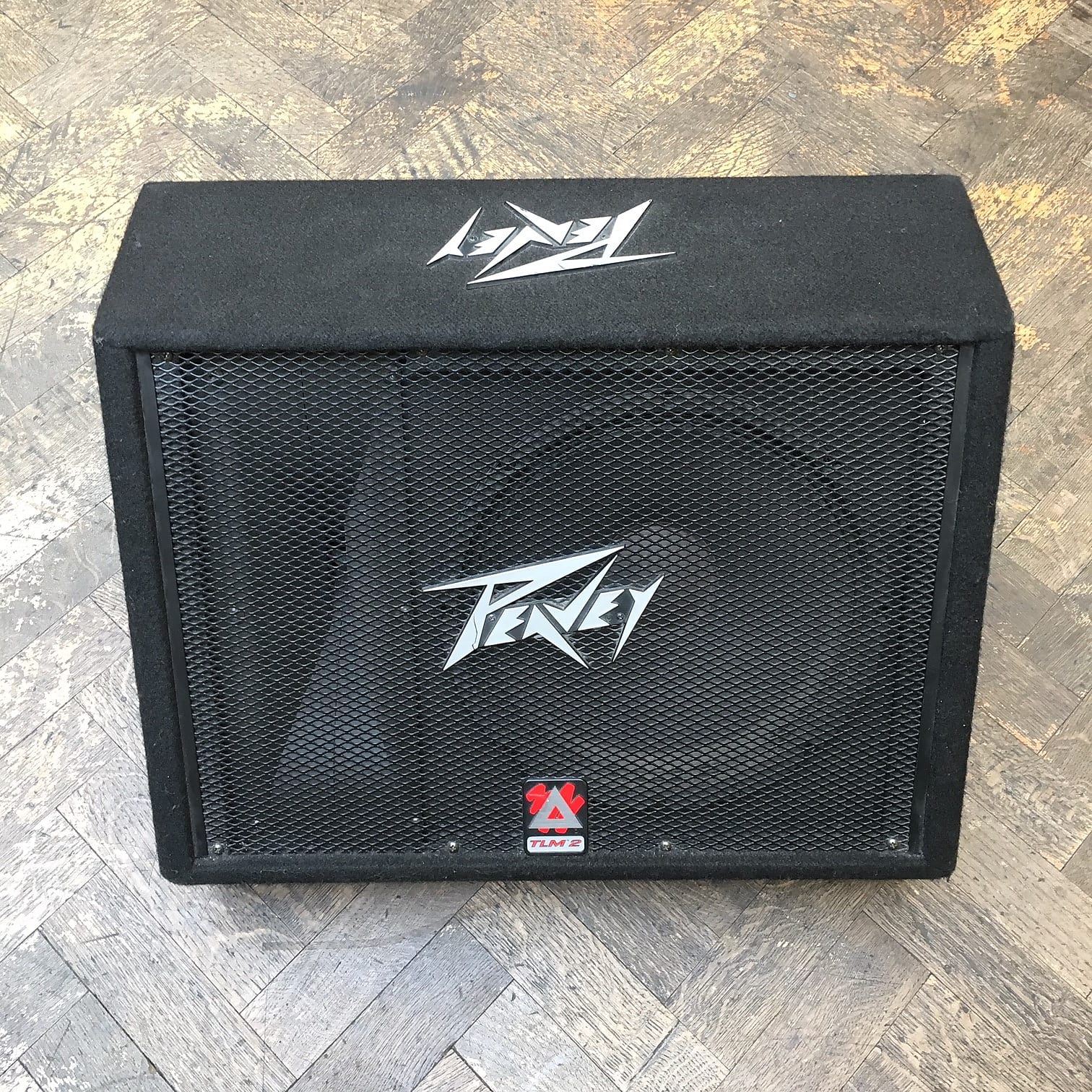

Enclosure: TLM™ 2
Frequency Response: 75 Hz to 17 kHz
Low-Frequency Limit (-3 dB point): 75 Hz
Usable Low-Frequency Limit (-10 dB point): 55 Hz
Power Handling: 300 watts, program 600 watts peak
Sound Pressure Level • 1 Watt at 1 Meter • Swept-Sine Input in Anechoic Environment: 96 dB
Maximum Sound Pressure Level: 116 dB
Transducer Complement: One 14XT™ titanium compression driver loaded onto a CH®-3 horn, One 12″ 12834 woofer
Box Tuning Frequency (Fbox): 90 Hz
Crossover Frequency: 2.2 kHz
Crossover Type: Internal passive two-way
Crossover Slope: 12 dB/octave high and low pass
Impedance (Nominal): 8 ohms
Impedance (Minimum): 5.1 ohms
Input Connections: Two 1/4″ full-range connectors
Enclosure Materials and Finish: Durable black carpet
Mounting: SA-1™ stand adaptor
Dimensions (H x W x D): 15-1/2″ x 22-3/4″ x 17-1/2″ (39.37 cm x 57.8 cm x 44.5 cm)
Net Weight: 46 lbs. (20.8 kg)
Shipping Weight: 53 lbs. (24 kg)
