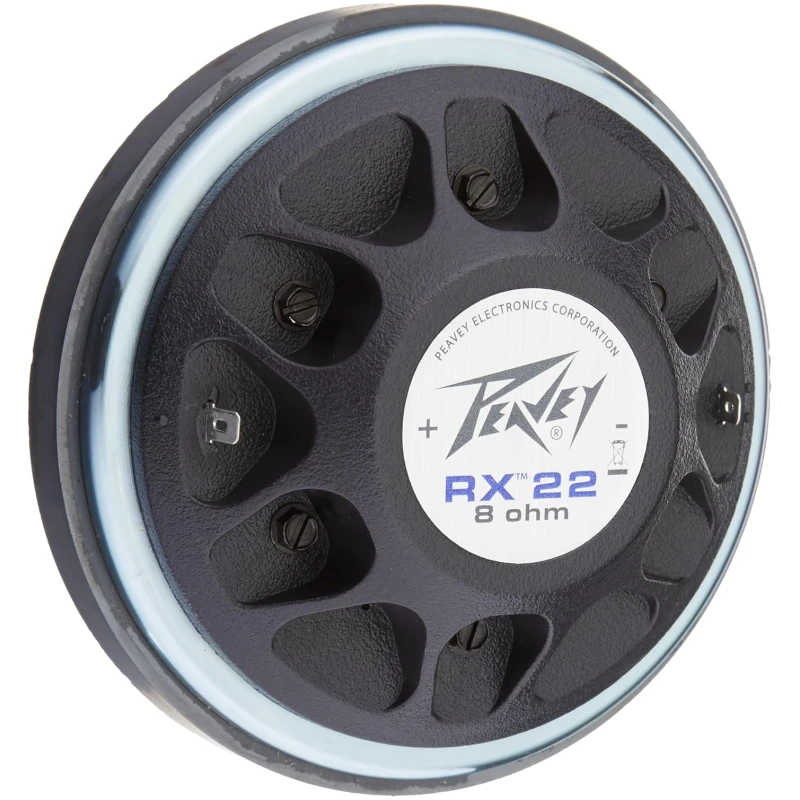

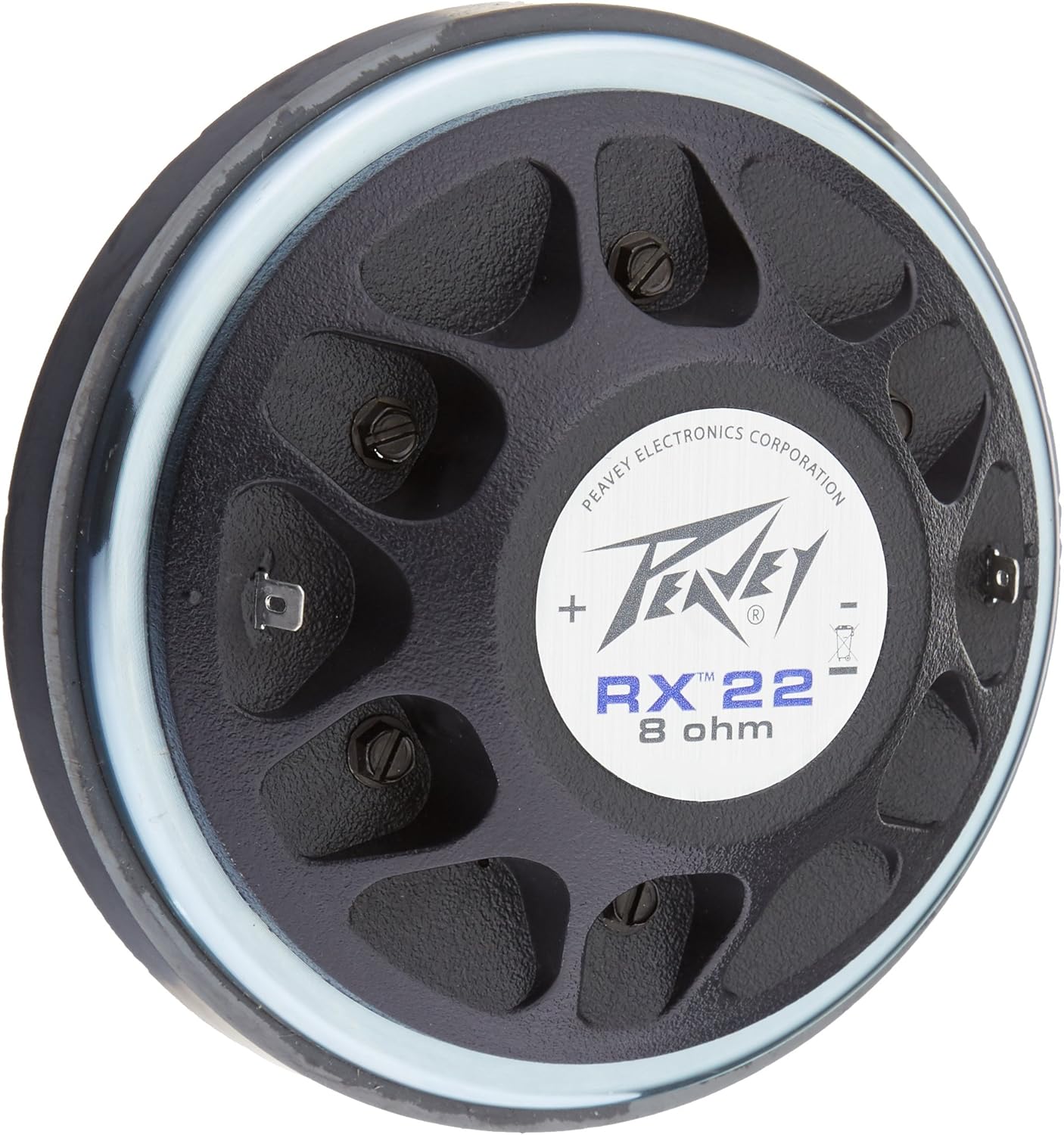

Peavey RX22 1-Inch Tweeter/ Compression Driver

Name: Peavey RX22 1-Inch Tweeter/ Compression Driver - A1 Sound
Brand: Peavey
SKU: RX22D
Price: 807.01 ZAR
Availability: InStock

SKU: RX22D Brand: Peavey

R807,01

20 People watching this product now!

PEAVEY RX22 IS A 1″ EXTENDED HIGH FREQUENCY DRIVER
HANDLES A POWERFUL 70 WATTS RMS, 140 WATTS PROGRAM & 280 WATTS PEAK
DURABLE PURE ONE-PIECE TITANIUM DIAPHRAGM
NEW PATENTED PHASE PLUG DELIVERS A SMOOTHER SOUND W/ LESS DISTORTION THEN PREVIOUS MODELS

H.F. DRIVER	RX22

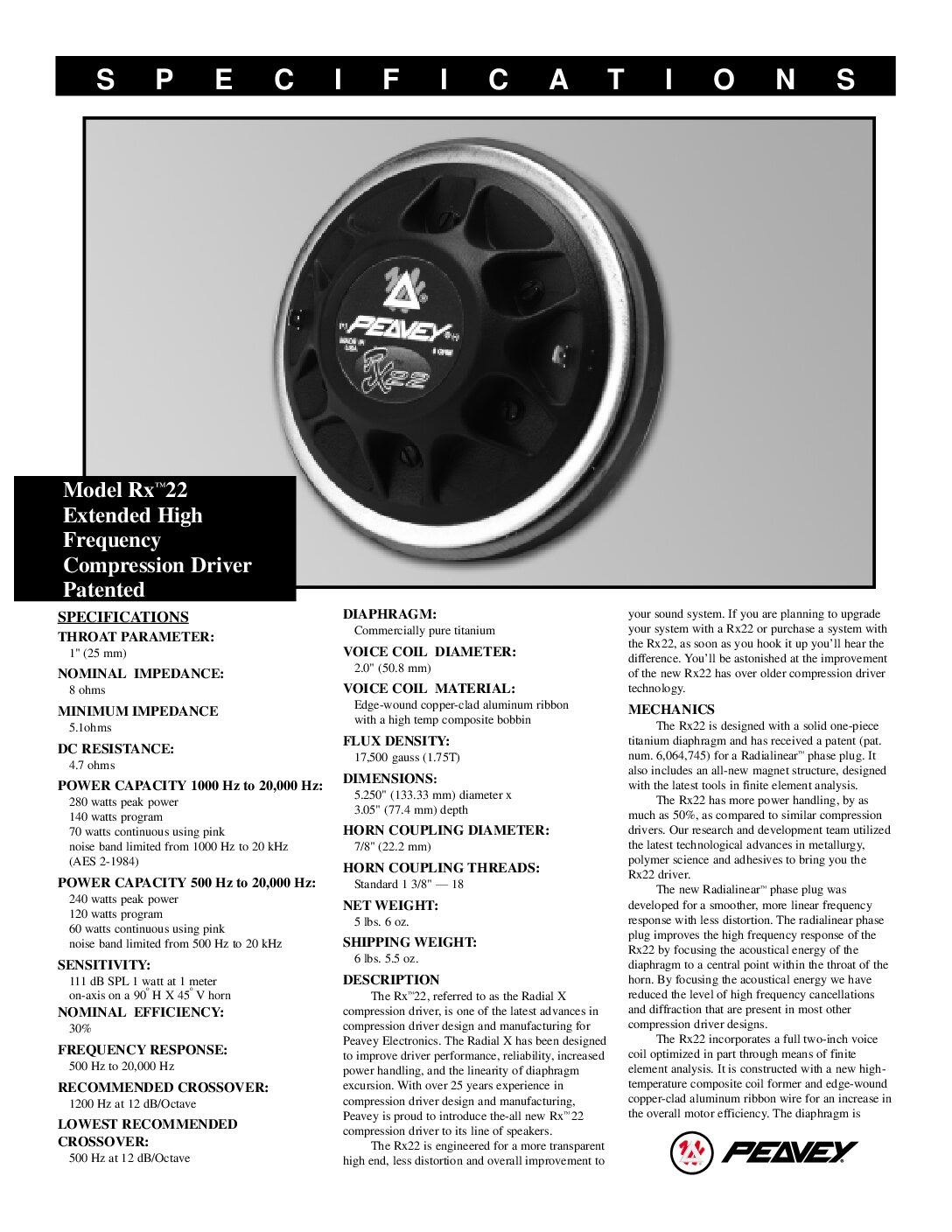

SPECIFICATIONS
Horn Throat Exit Diameter	1” / 25mm
Impedance	8 ohms
Minimum Impedance	5.1 ohms
DC Resistance	4.7 ohms
Frequency Response	500 Hz – 20kHz
RMS Power Rating	70 Watts above 1kHz
Program Power Rating	140 Watts above 1kHz
Peak Power Rating	280 Watts above 1kHz
Lowest Recommended Crossover	500 Hz @ 12dB/octave
Recommended Crossover	1.2kHz @ 12dB/octave
Sensitivity (SPL)	111dB
Diaphragm Material	Pure Titanium
Voice Coil Diameter	2” / 50.8mm
Voice Coil Material	Edgewound Copper-Clad Aluminum
Nominal Efficiency	30%
Flux Density	1.75 Tesla
Net Weight	5.0 lbs.
MOUNTING INFORMATION

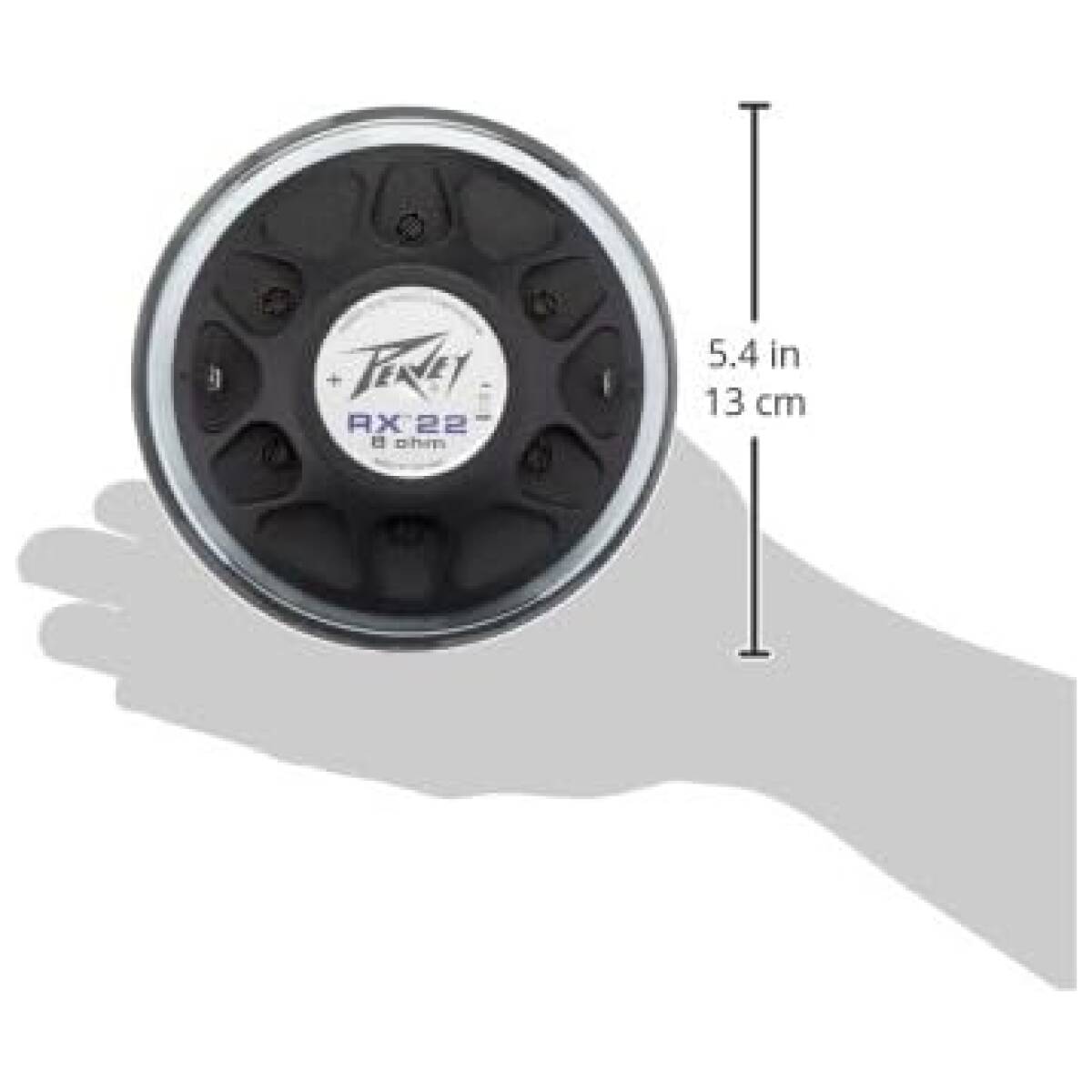

Overall Diameter	5.25” / 133.35 mm
Overall Depth	3.05″ / 77.5mm

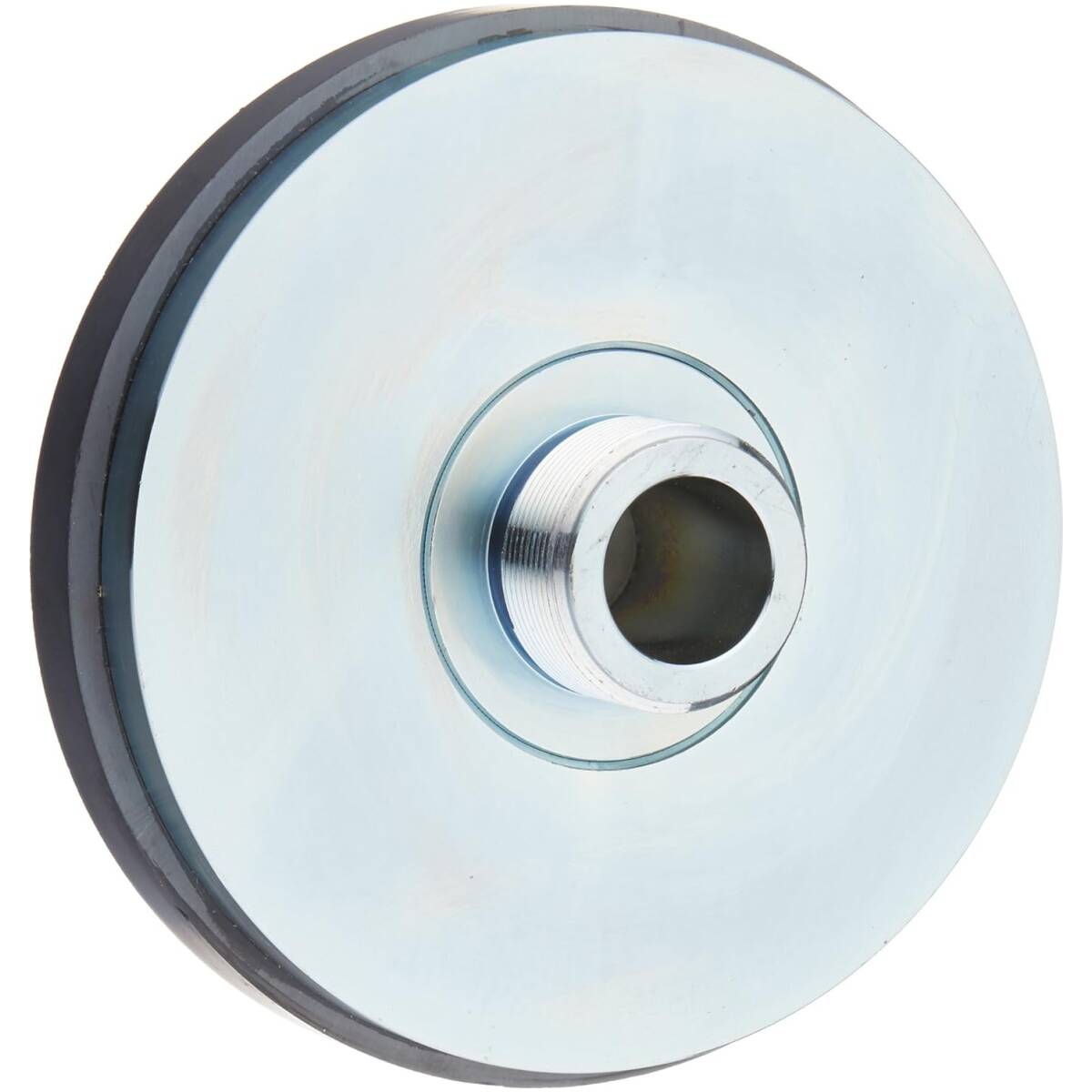

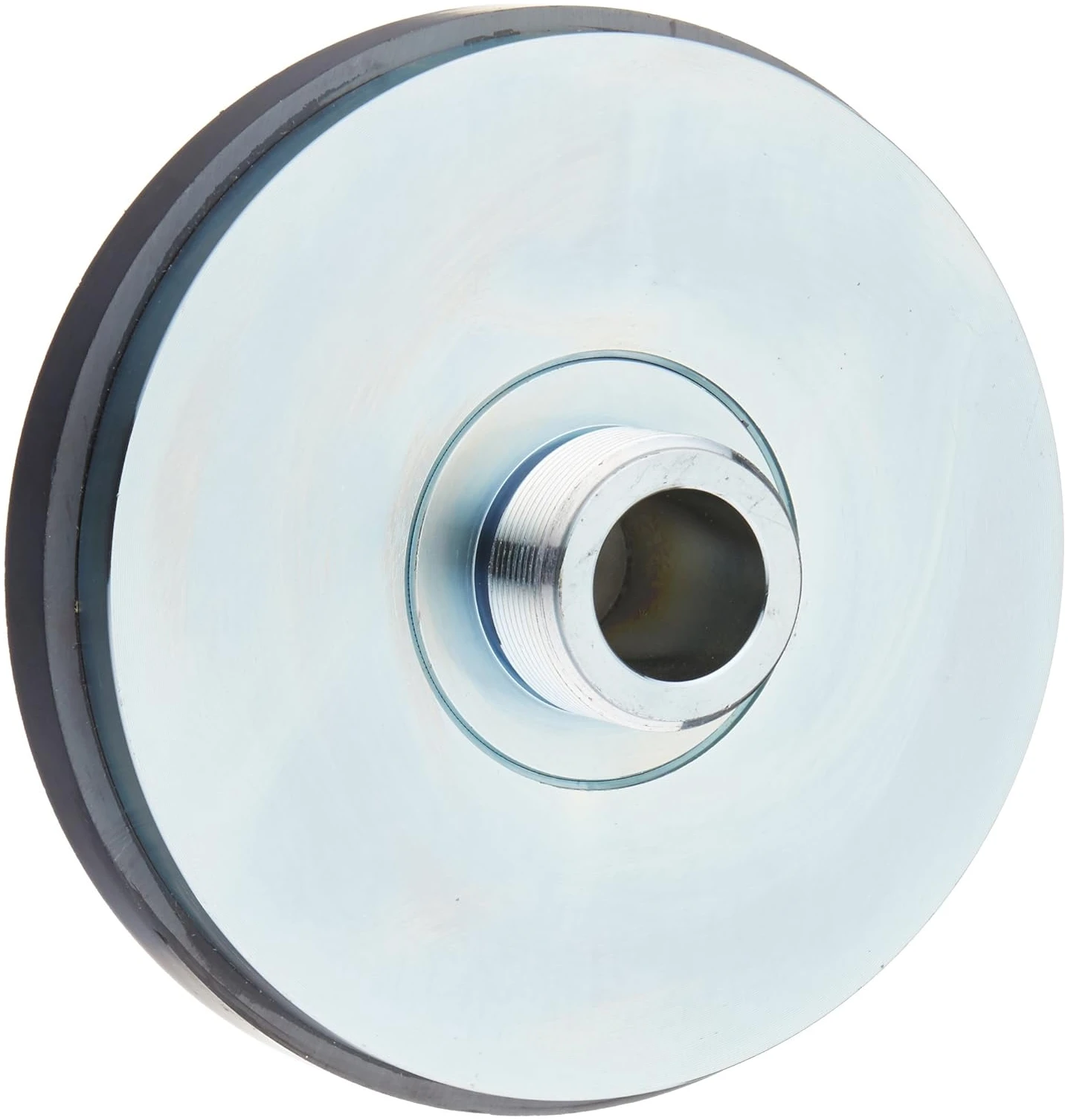

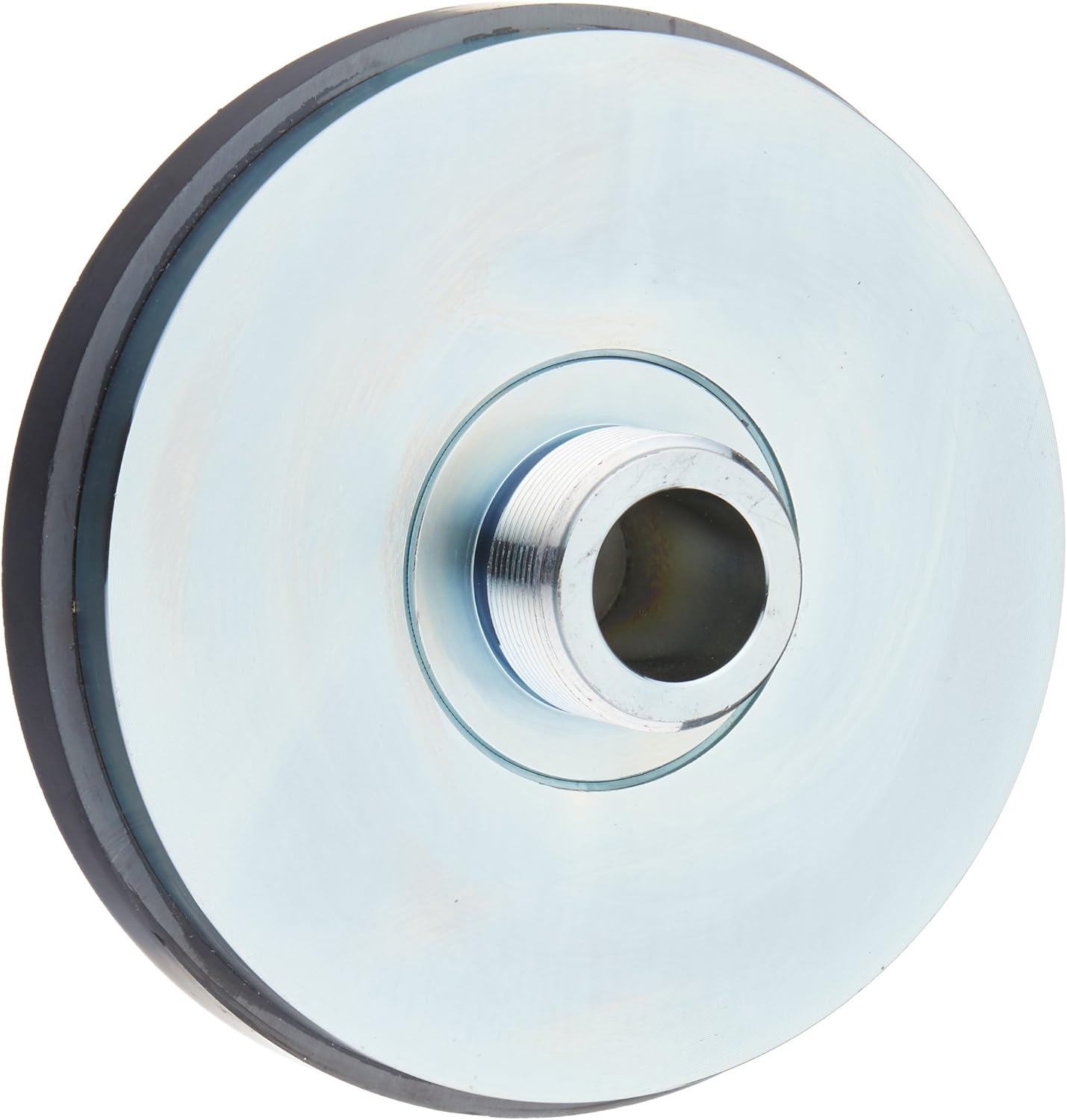

Horn Coupling Diameter	7/8″ / 22.2mm
Horn Coupling Thread	Standard 1.375″-18
