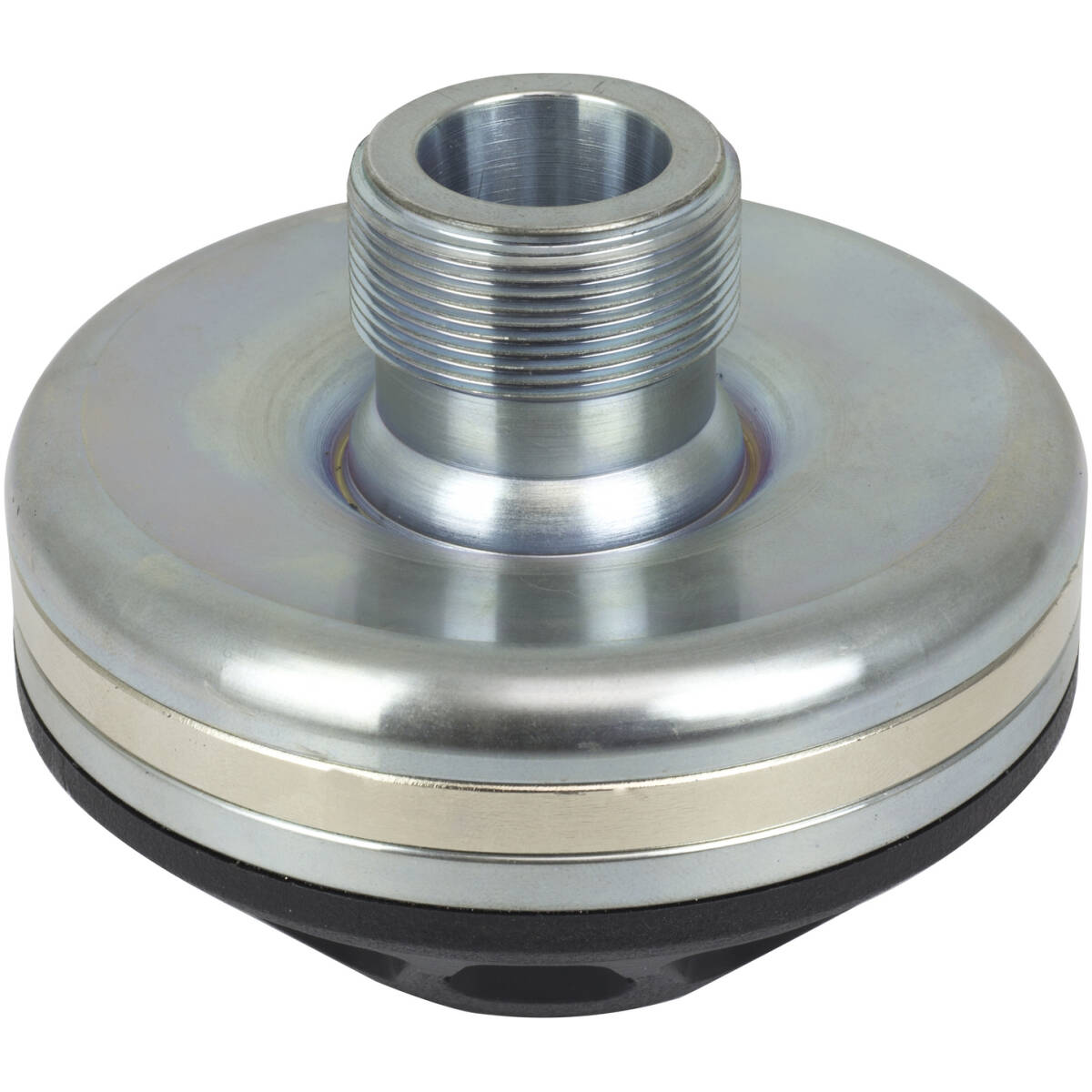

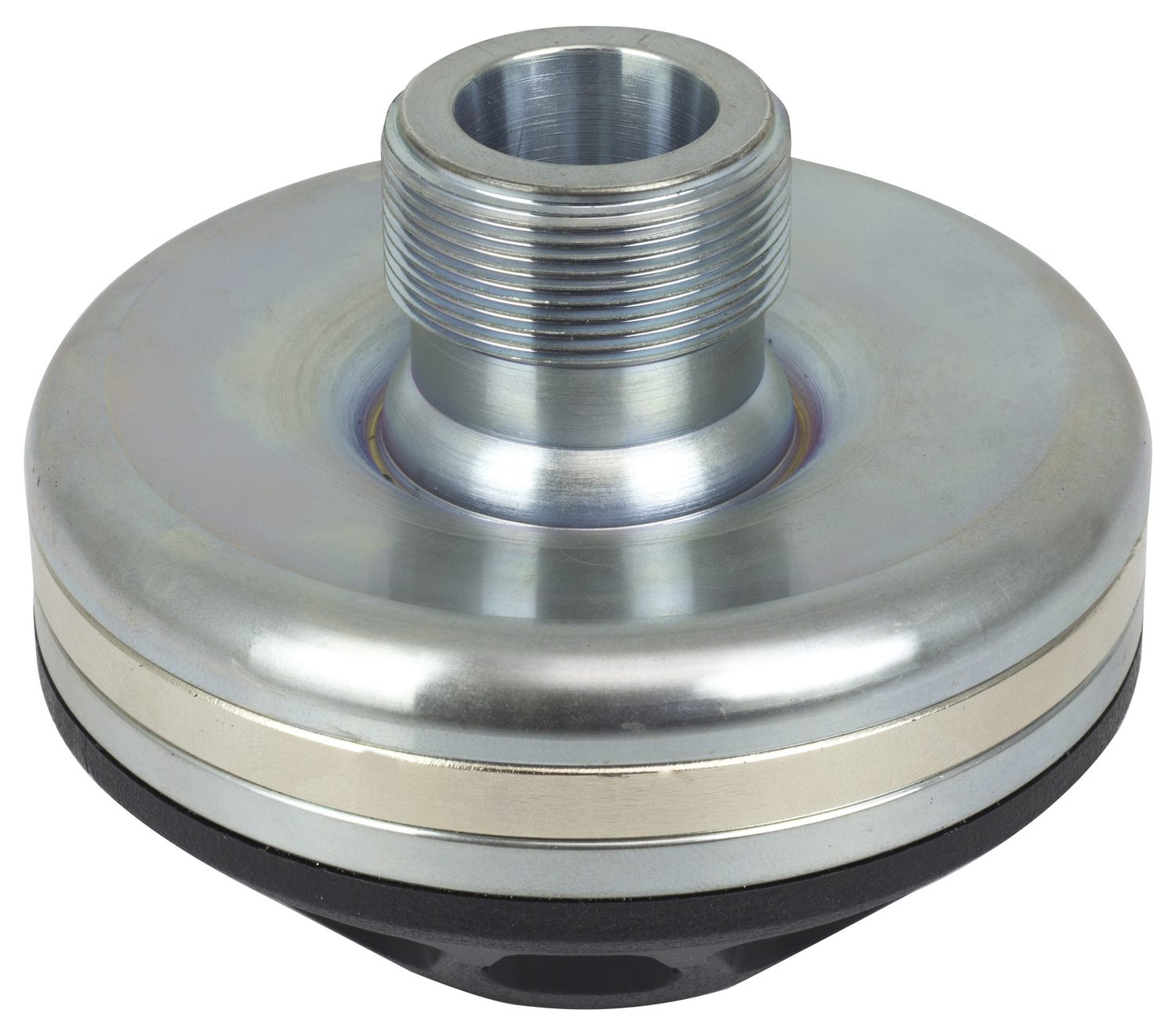

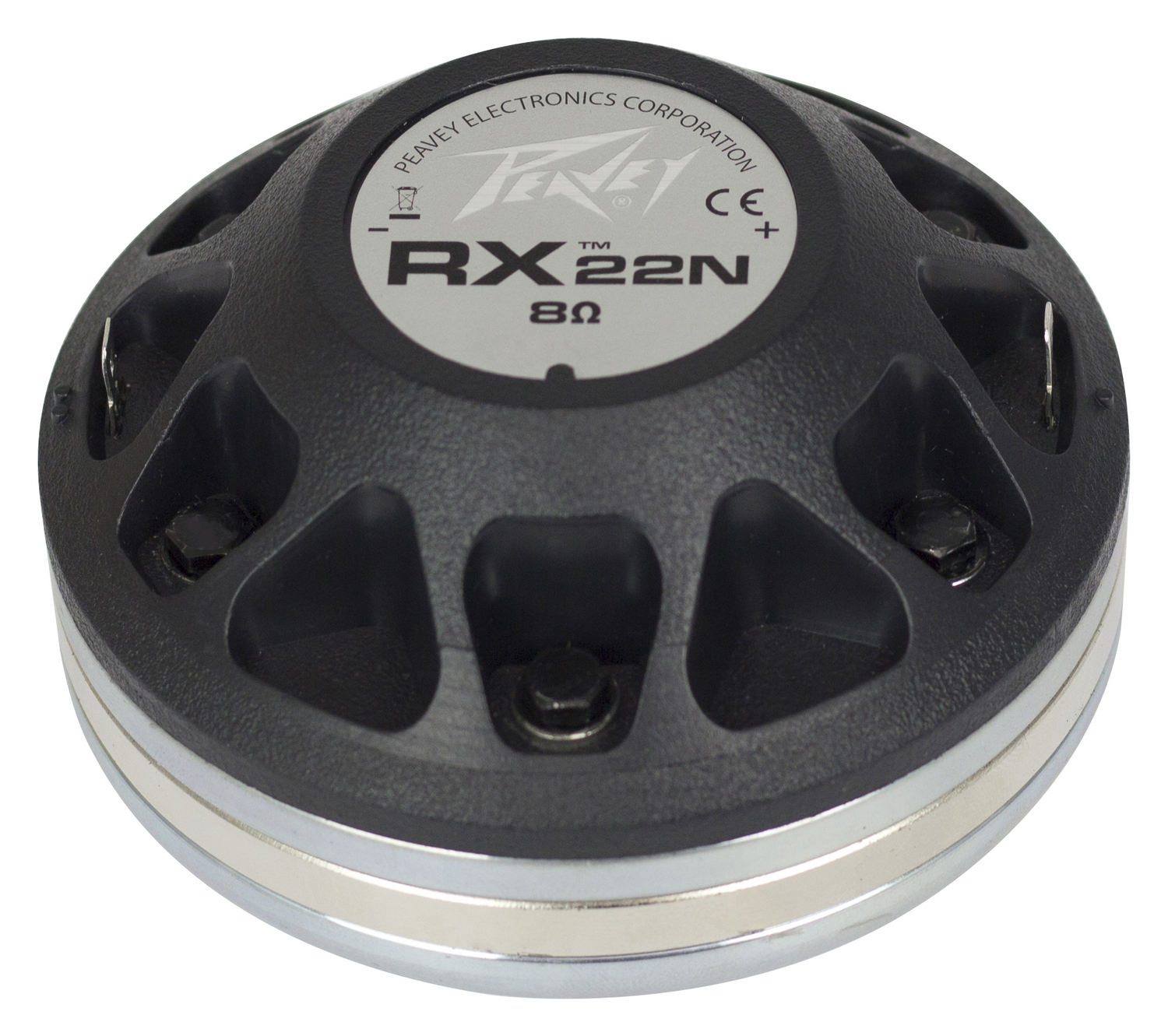

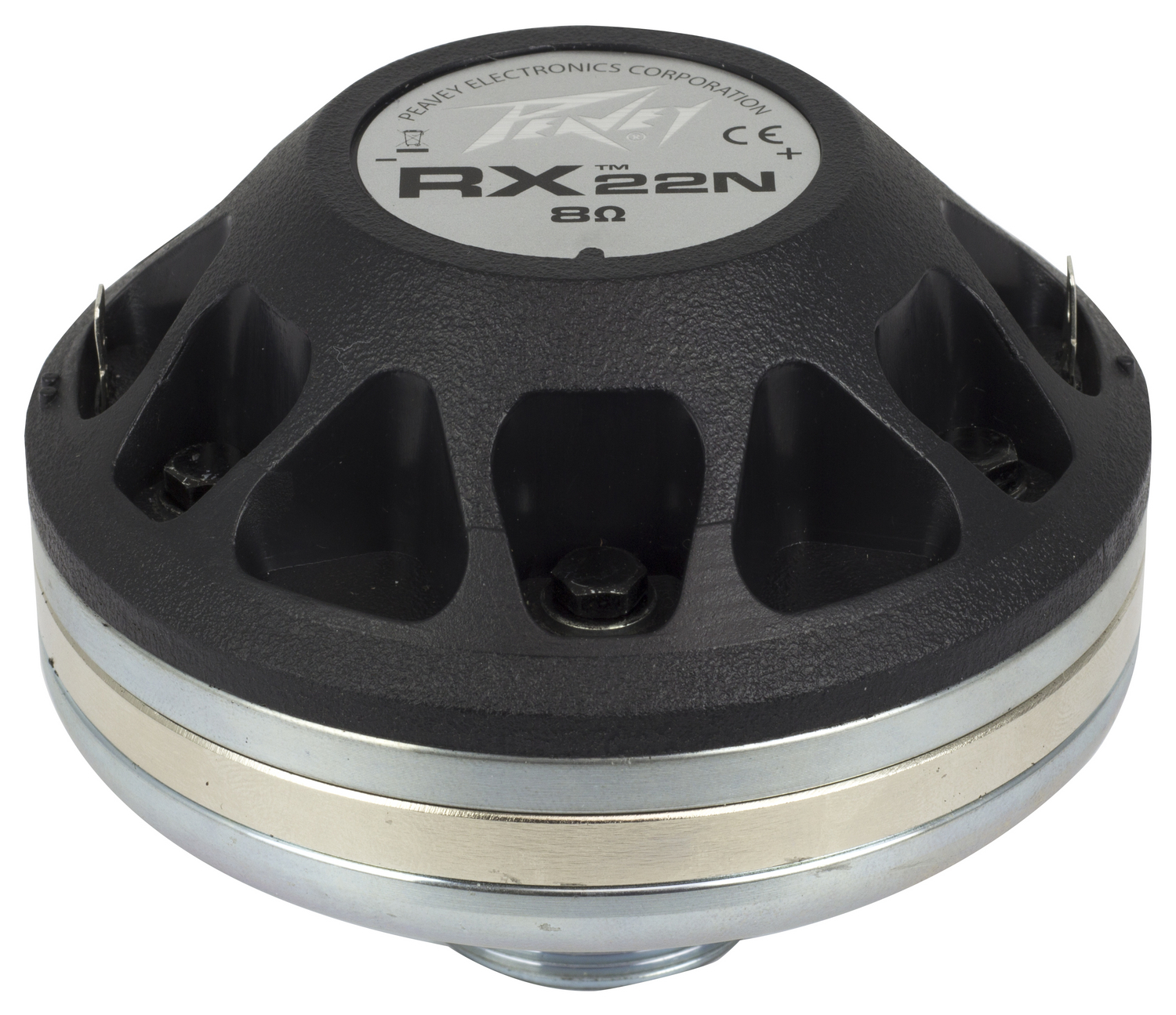

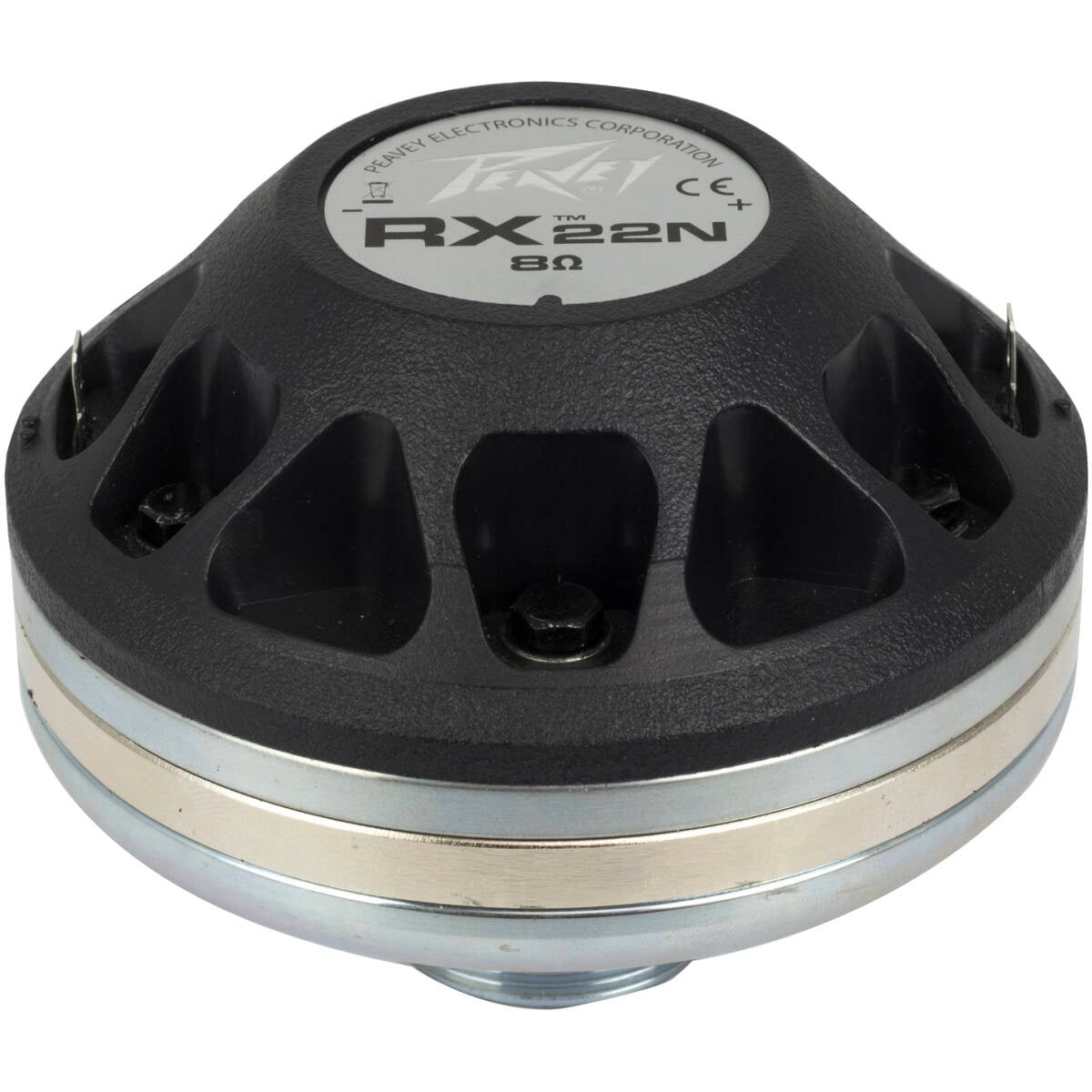

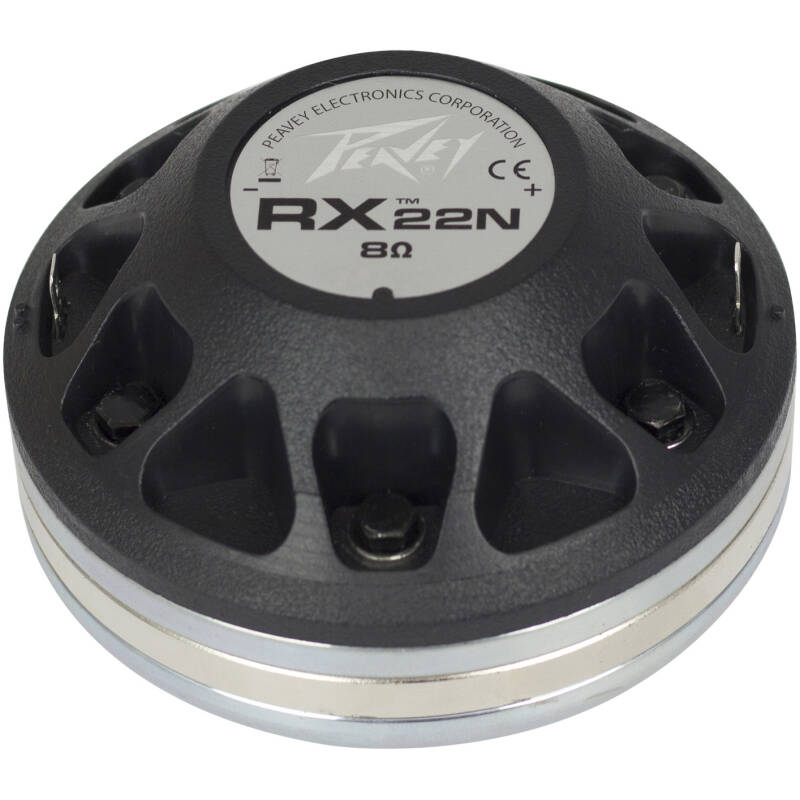

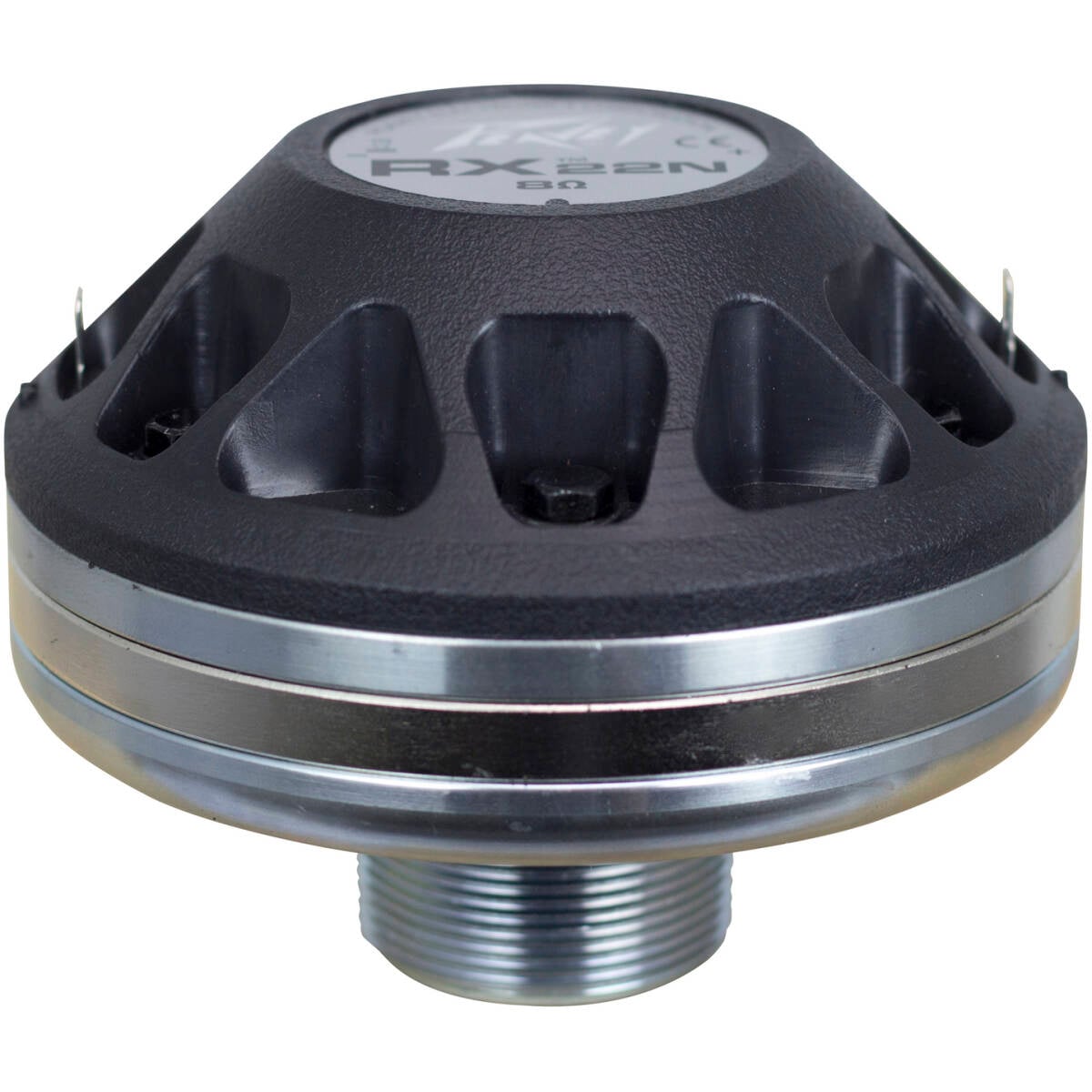

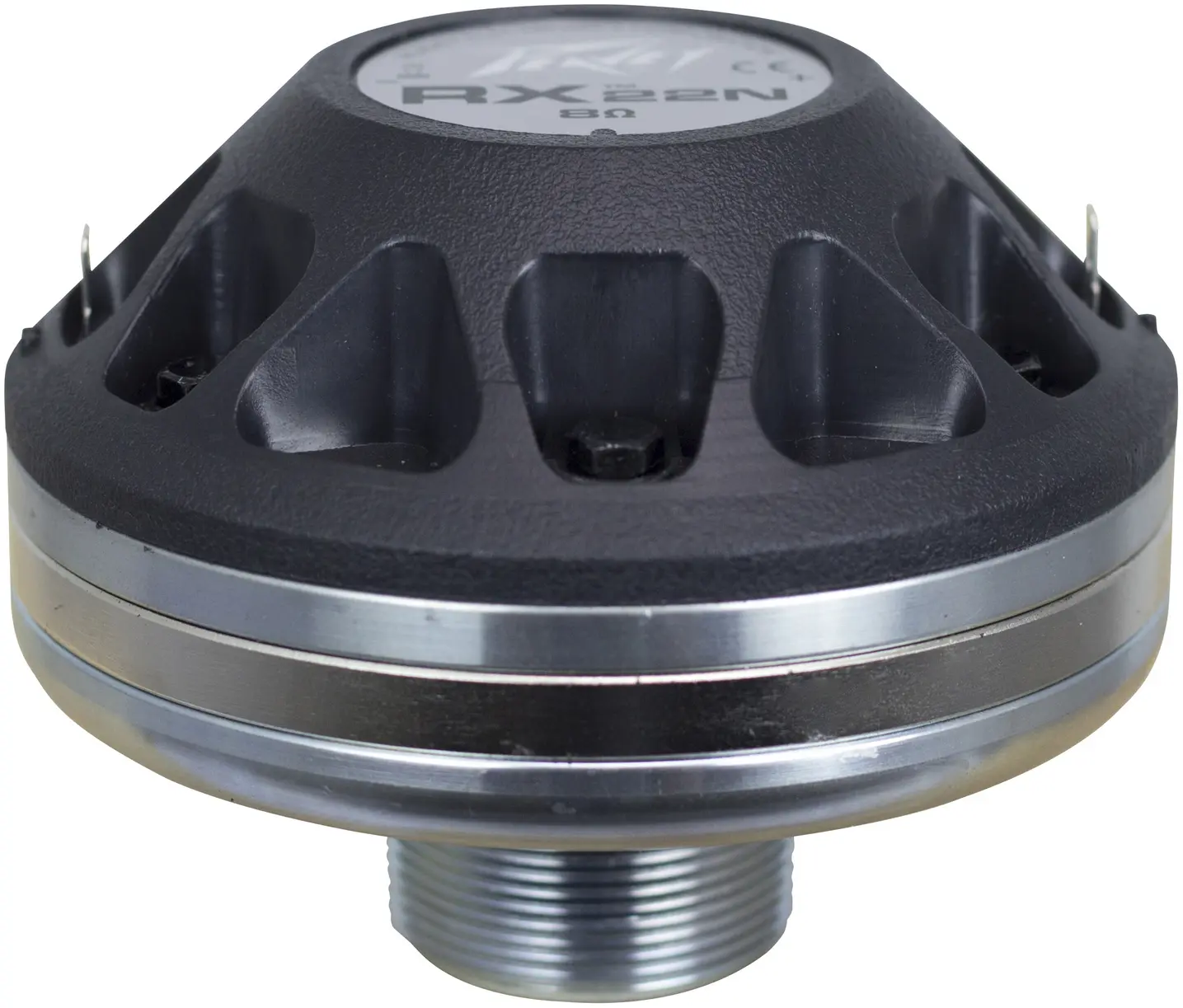

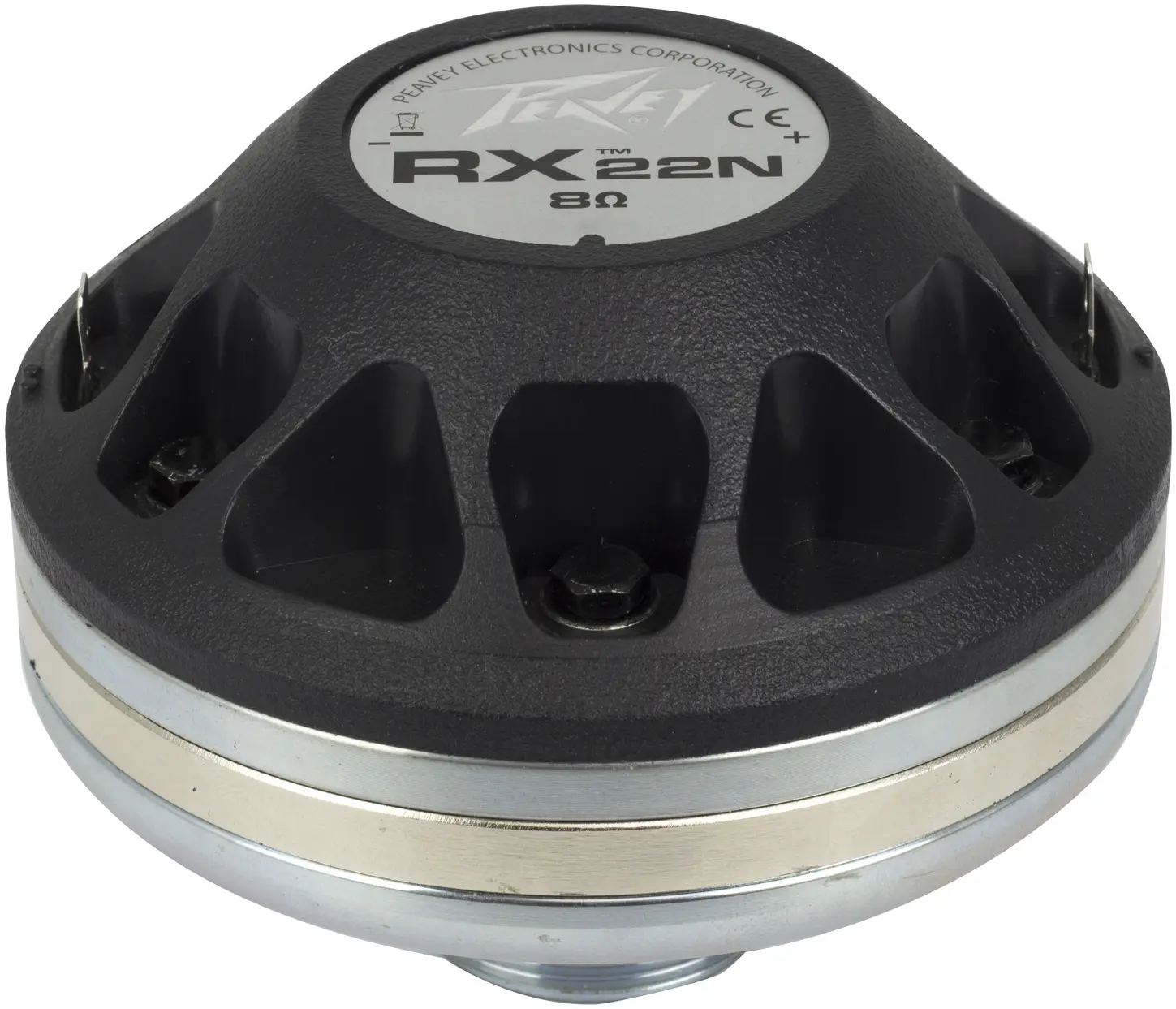

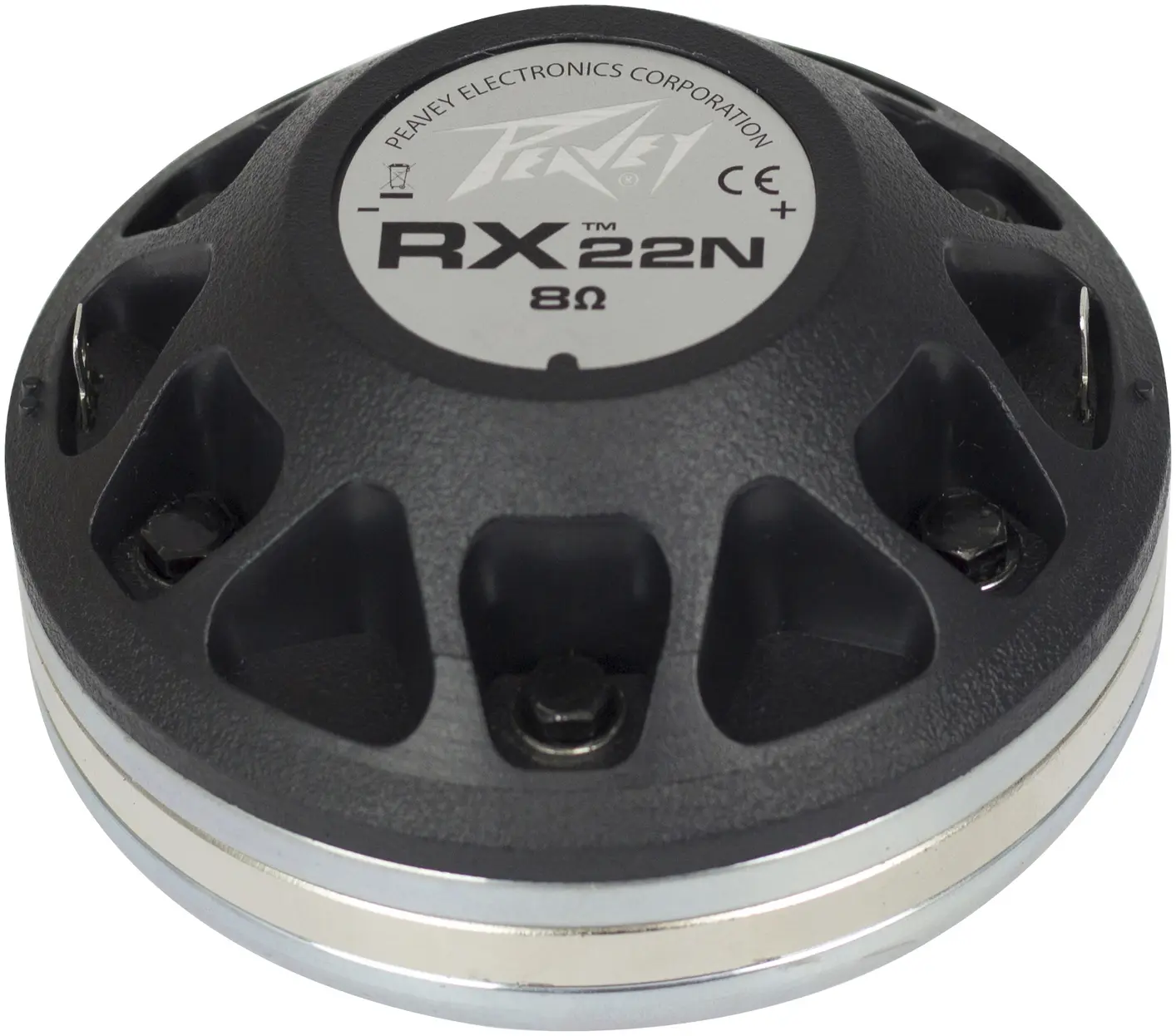

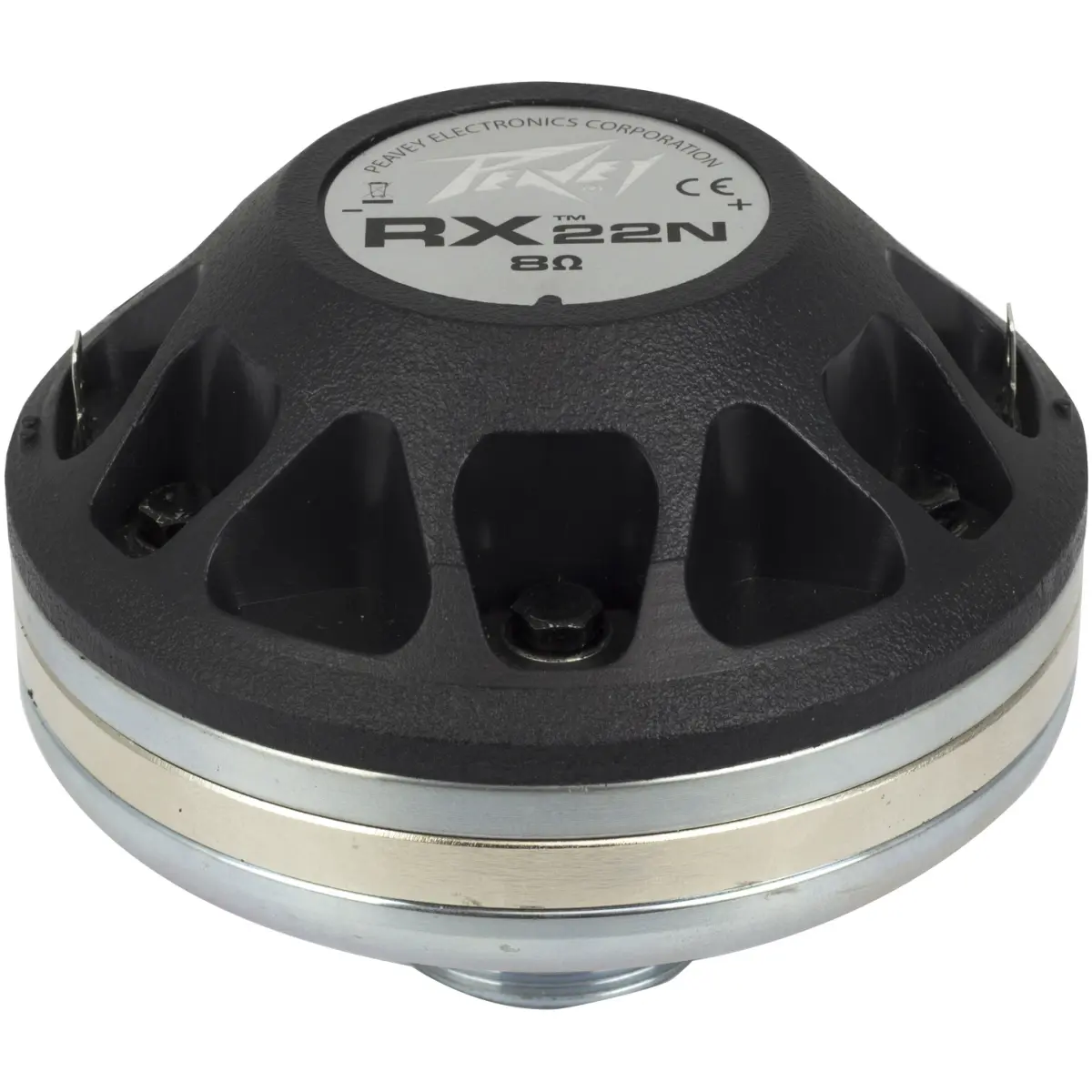

Peavy RX™ 22N Neo HF Driver

R3 810,00

In stock (can be backordered)

In stock (can be backordered)

×

Beat The Price Request

Got a lower price elsewhere? Share the link or an official quote with us, and we'll do our best to match or beat it!

AttributeValue
Power RatingNot Specified
Nominal Impedance8
Magnet TypeFerrite
17 People watching this product now!

Description

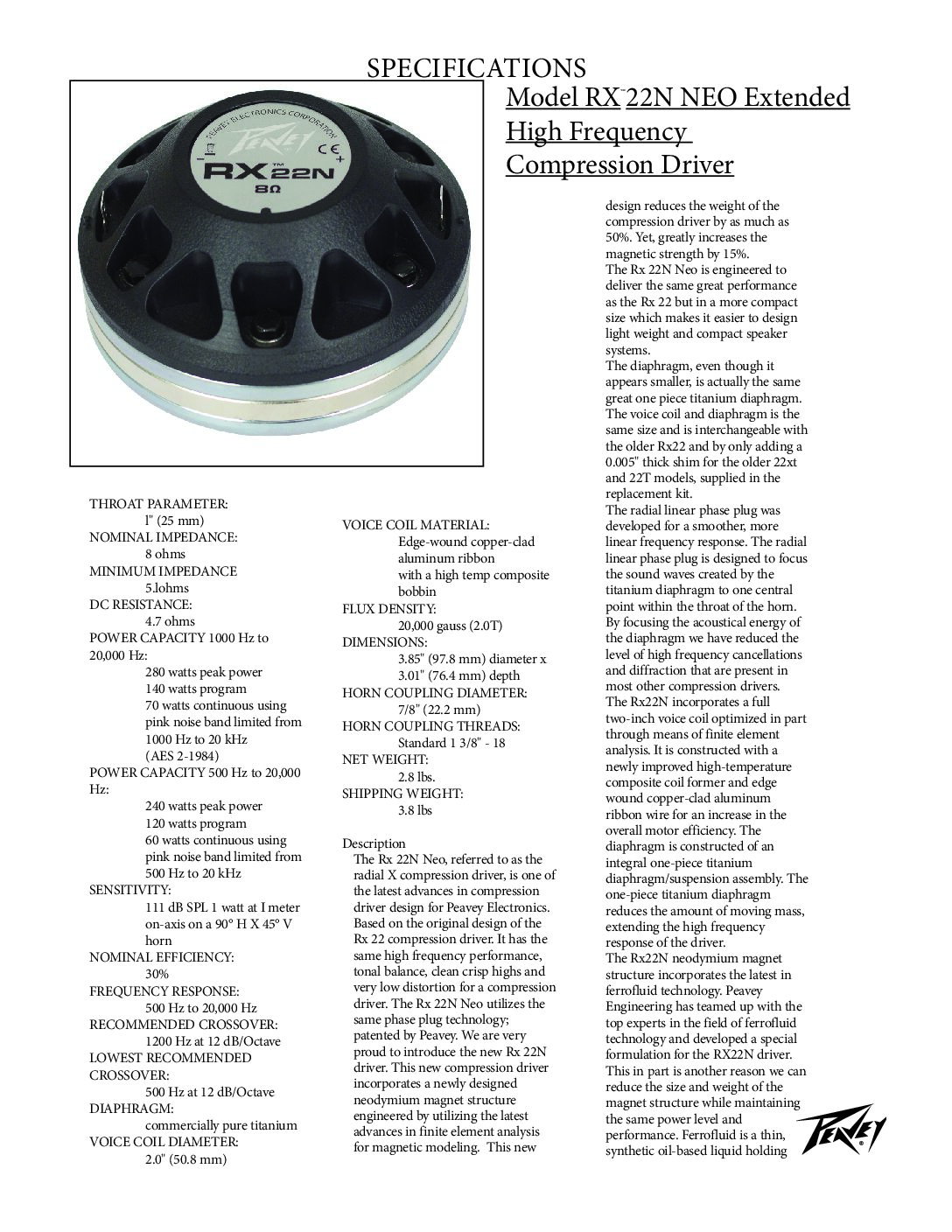

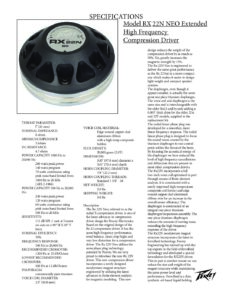

Features

  • 2″
  • Throat Parameter: 0.875″ / 22 mm
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 5.2 Ohms
  • DC Resistance: 5.1 Ohms
  • Power Capacity 1000 Hz to 20,000 Hz: 280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
  • Sensitivity: 111 dB / 1W 1m On-axis on 90º H x 45º V horn
  • Nominal Efficiency: 30%
  • Frequency Response: 500 Hz to 20,000 Hz
  • Recommended Crossover: 1,200 Hz at 12 dB / Octave
  • Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
  • Diaphragm: Commercially pure titanium
  • Voice Coil Diameter: 2.0″ / 50.8 mm
  • Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
  • Voice Coil Cooling: Ferrofluid
  • Flux Density: 20,500 gauss (2T)
  • Dimensions: 3.858″ (98 mm) diameter x 3.01″ (76.4 mm) depth

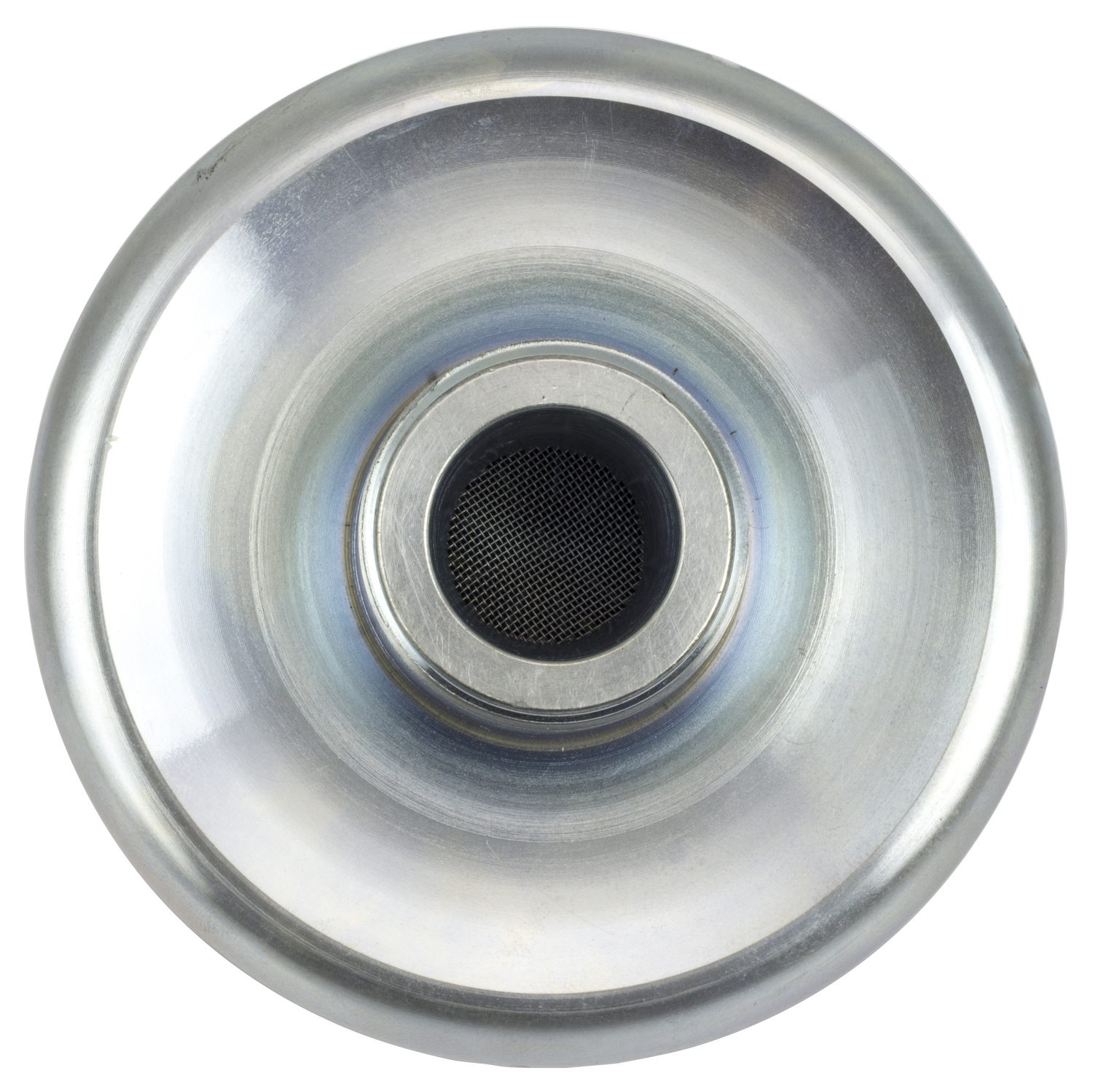

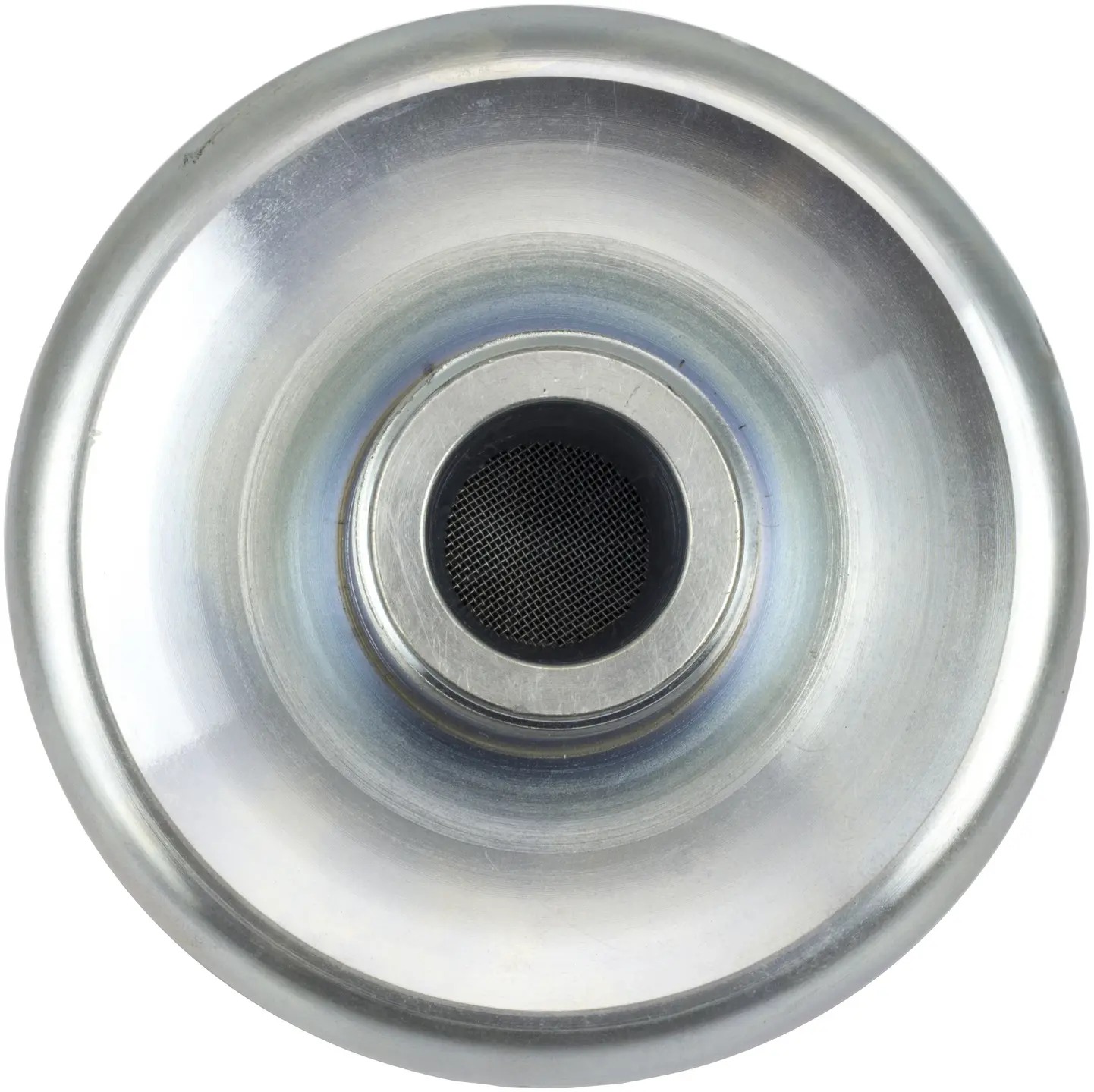

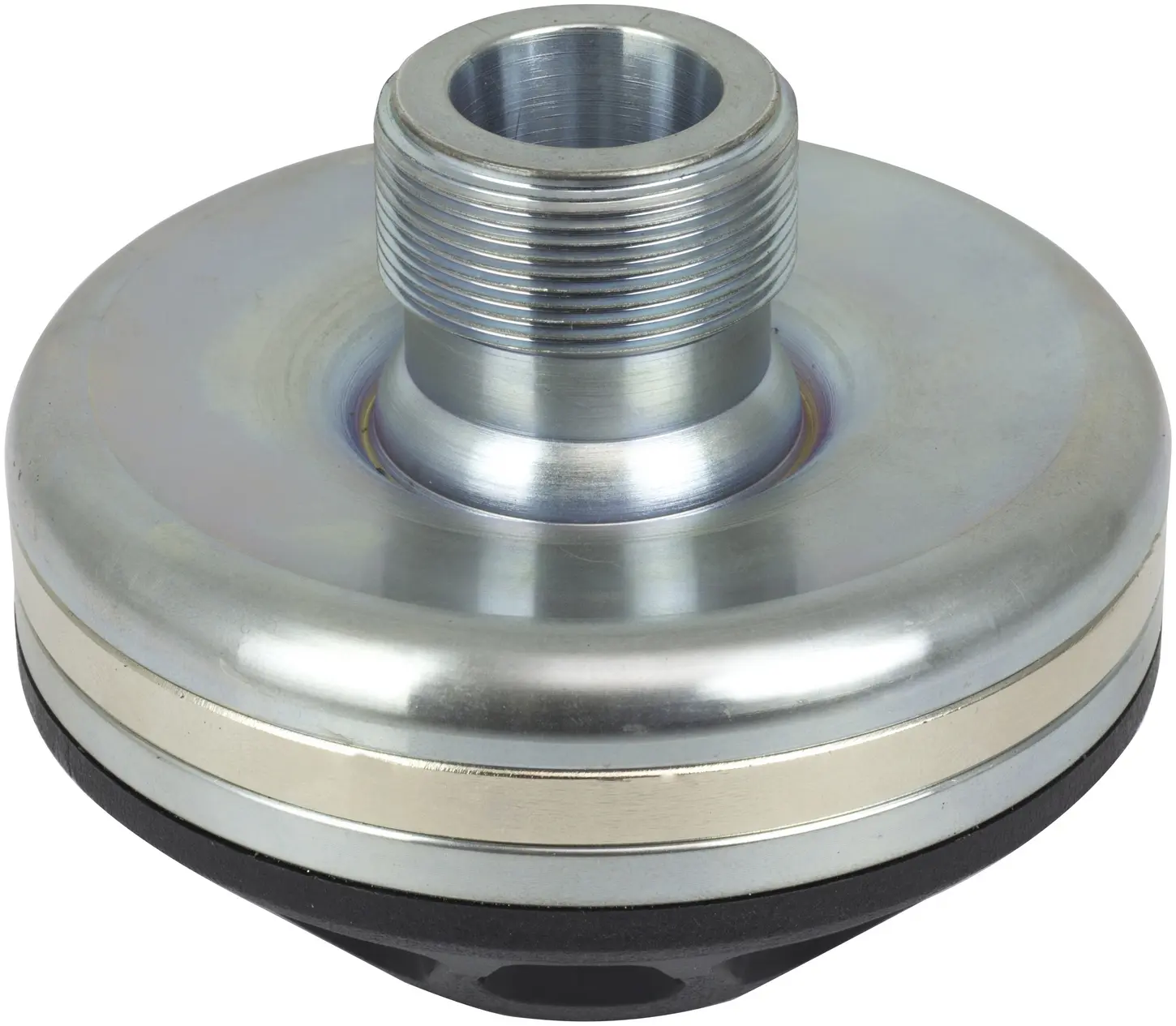

  • Horn Coupling Diameter: 7/8″ (22.2 mm)
  • Horn Coupling Threads: Standard 1 3/8″ – 18″
  • Net Weight: 2 lbs. 12 oz.
  • Shipping Weight: 3 lbs. 11.5 oz.
  • Diaphragm Kit: 03617300
  • Packed Weight: 2.98 lb (1.35 kg)
  • Packed Length: 4.725″ (12 cm)
  • Packed Width: 4.5″ (11.43 cm)
  • Packed Height: 3.55″ (9.02 cm)
Shipping Weight 1.35 kg
Shipping Dimensions 4.725 × 4.5 × 3.55 in
