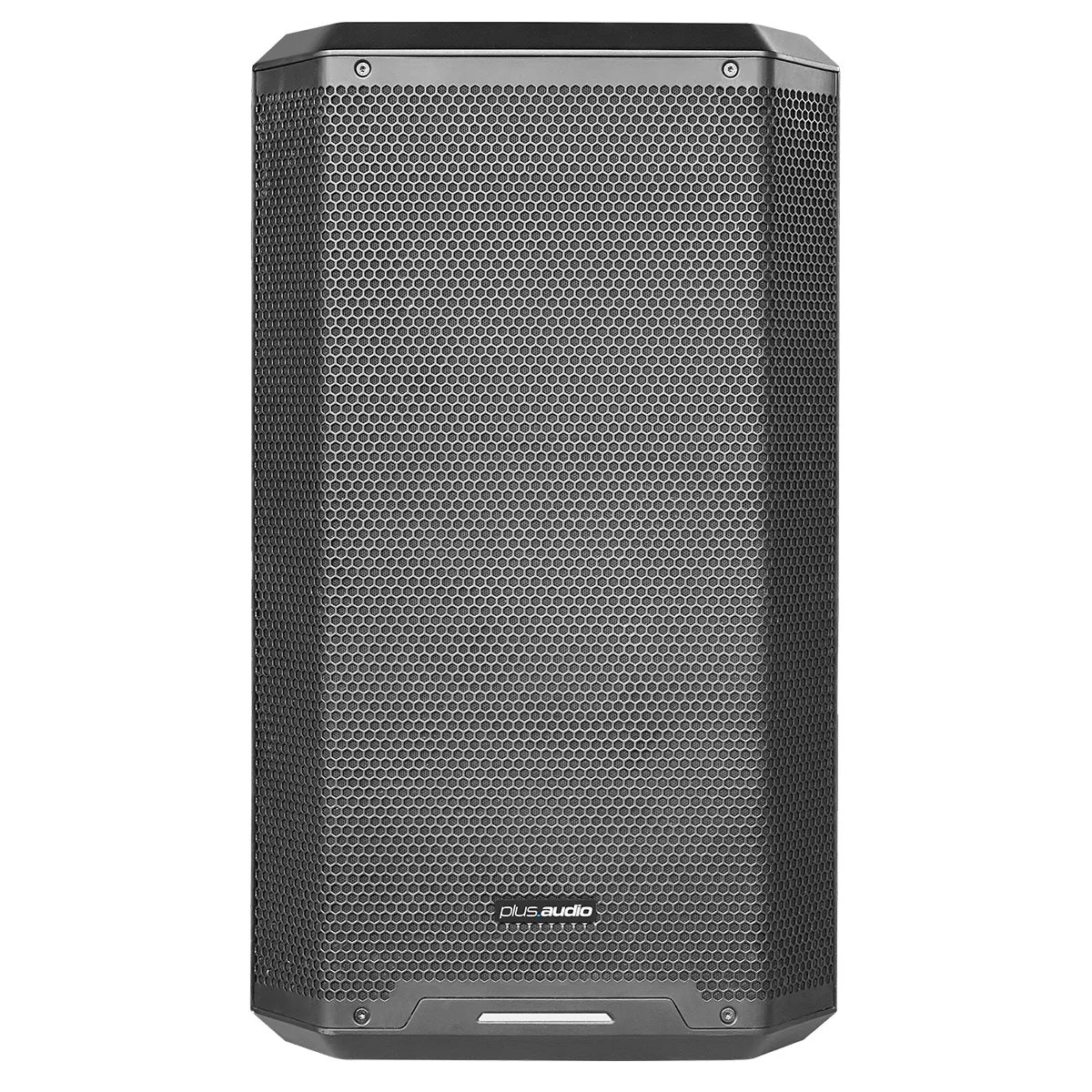

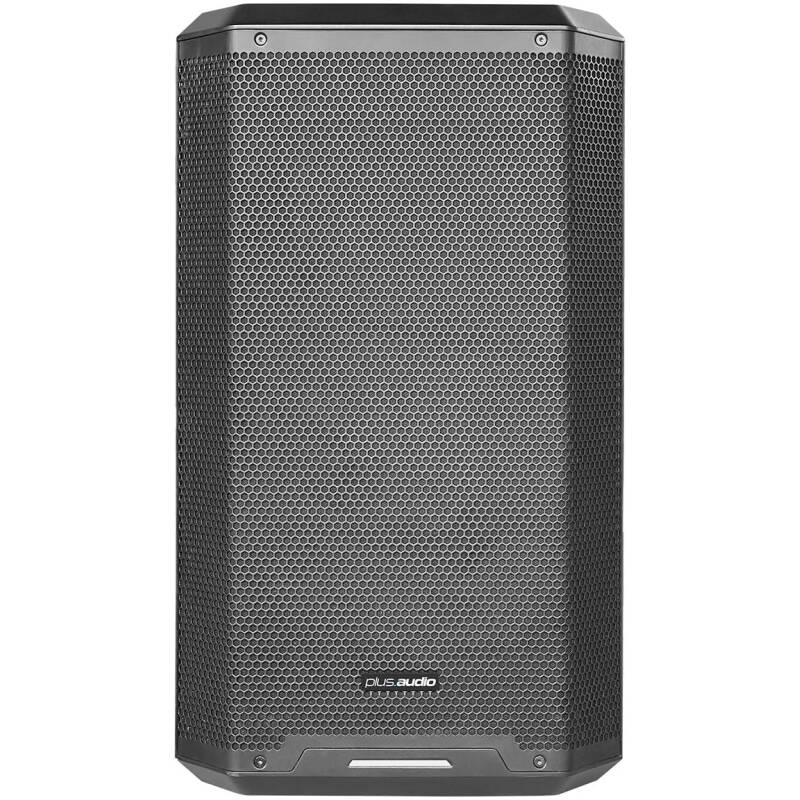

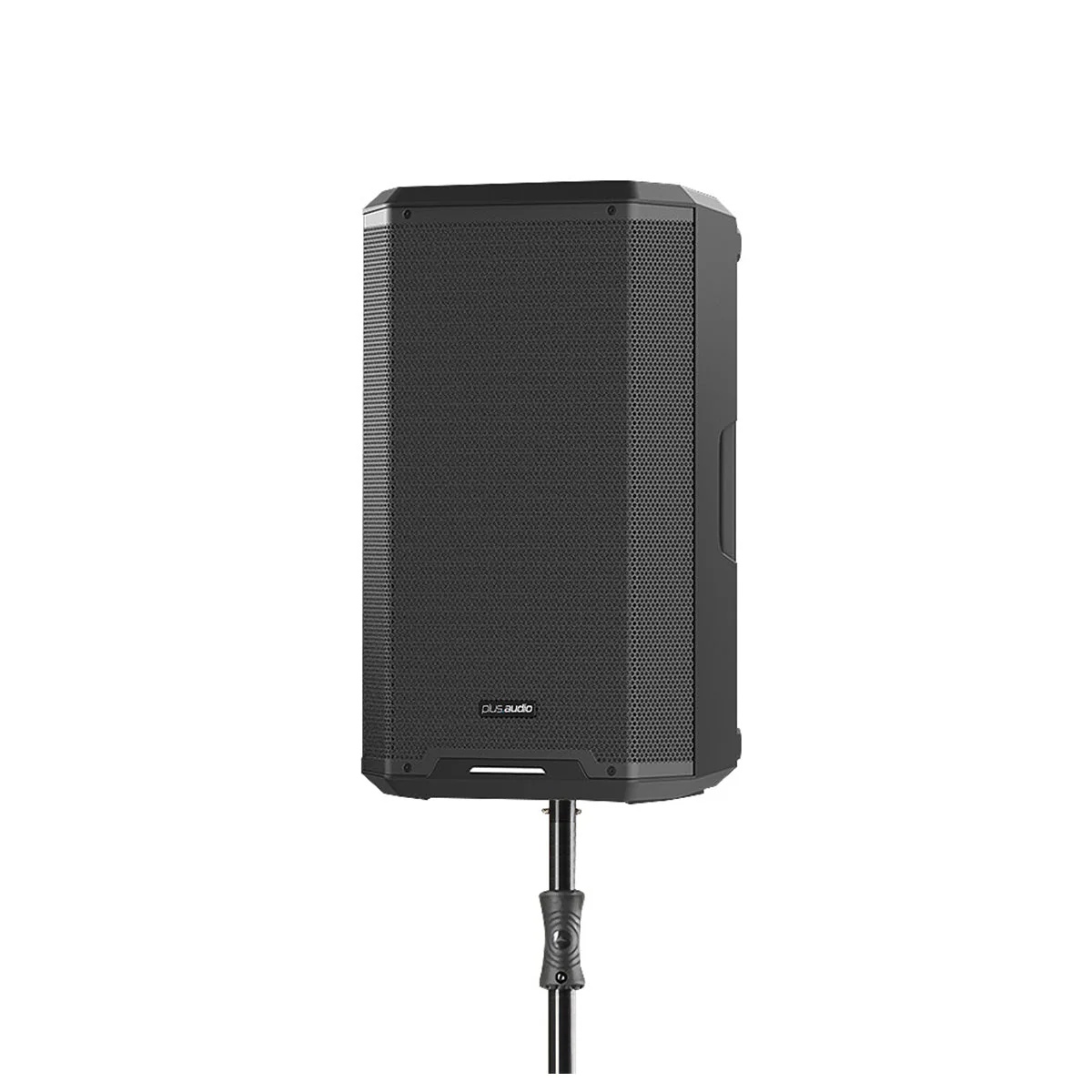

Plus Audio MPS12A Professional Active Loudspeaker
The Plus Audio MPS12A is a high-performance multipurpose point source loudspeaker, designed for versatile applications where clarity and durability are paramount. Ideal for live sound, installations, and mobile use, it features a sleek, injection-moulded cabinet that enhances rigidity and strength by 20%, ensuring durability and consistent performance.
The MPS12A combines advanced technology and robust build quality, providing a reliable solution for professional audio applications.
Features at a Glance:
- Powerful Output: With a peak power of 2000W, the MPS12A delivers robust audio performance, making it suitable for a range of demanding environments.
- Advanced Driver Technology: Equipped with a high polymer diaphragm compression driver offering superior high-frequency clarity and transparency compared to traditional titanium diaphragm tweeters.

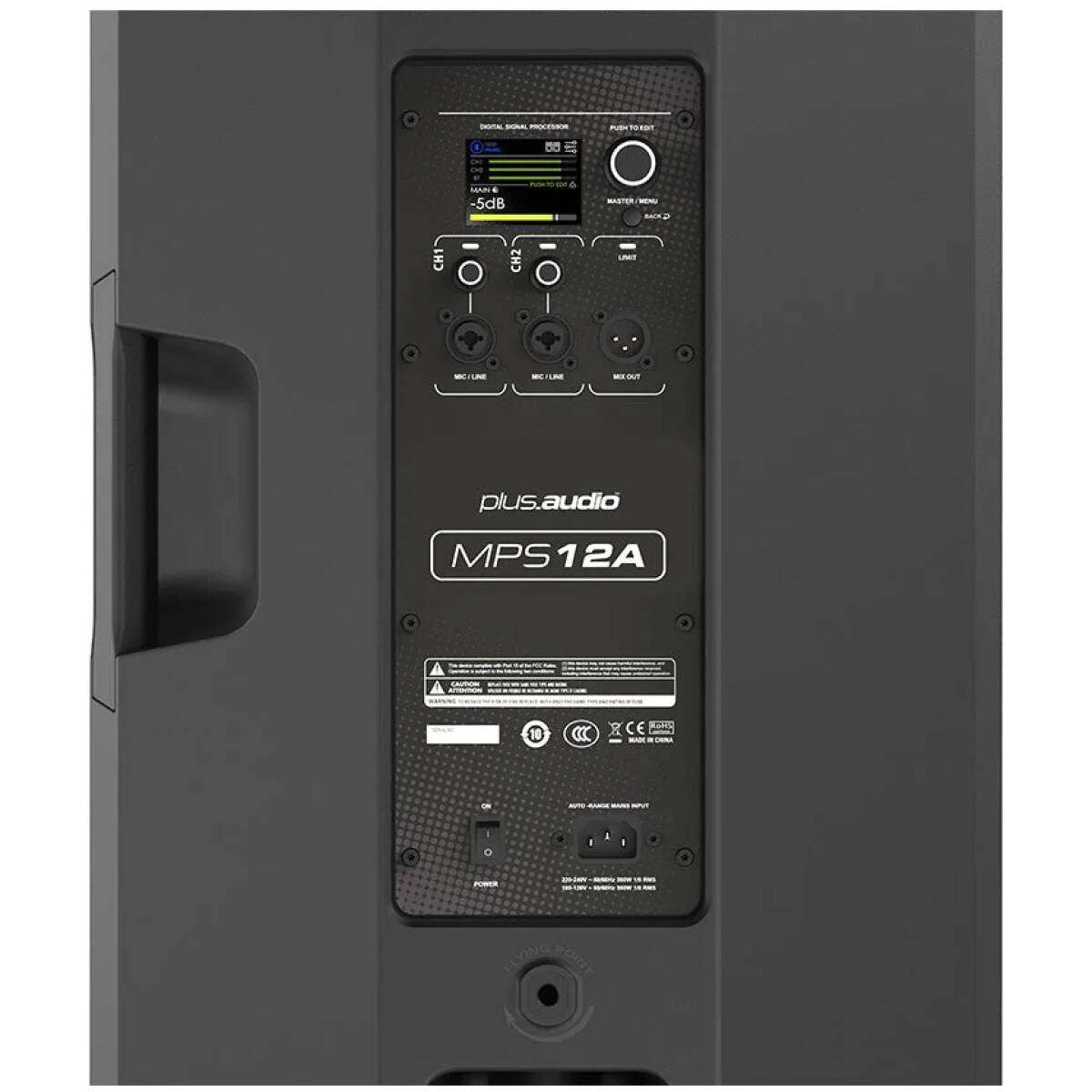

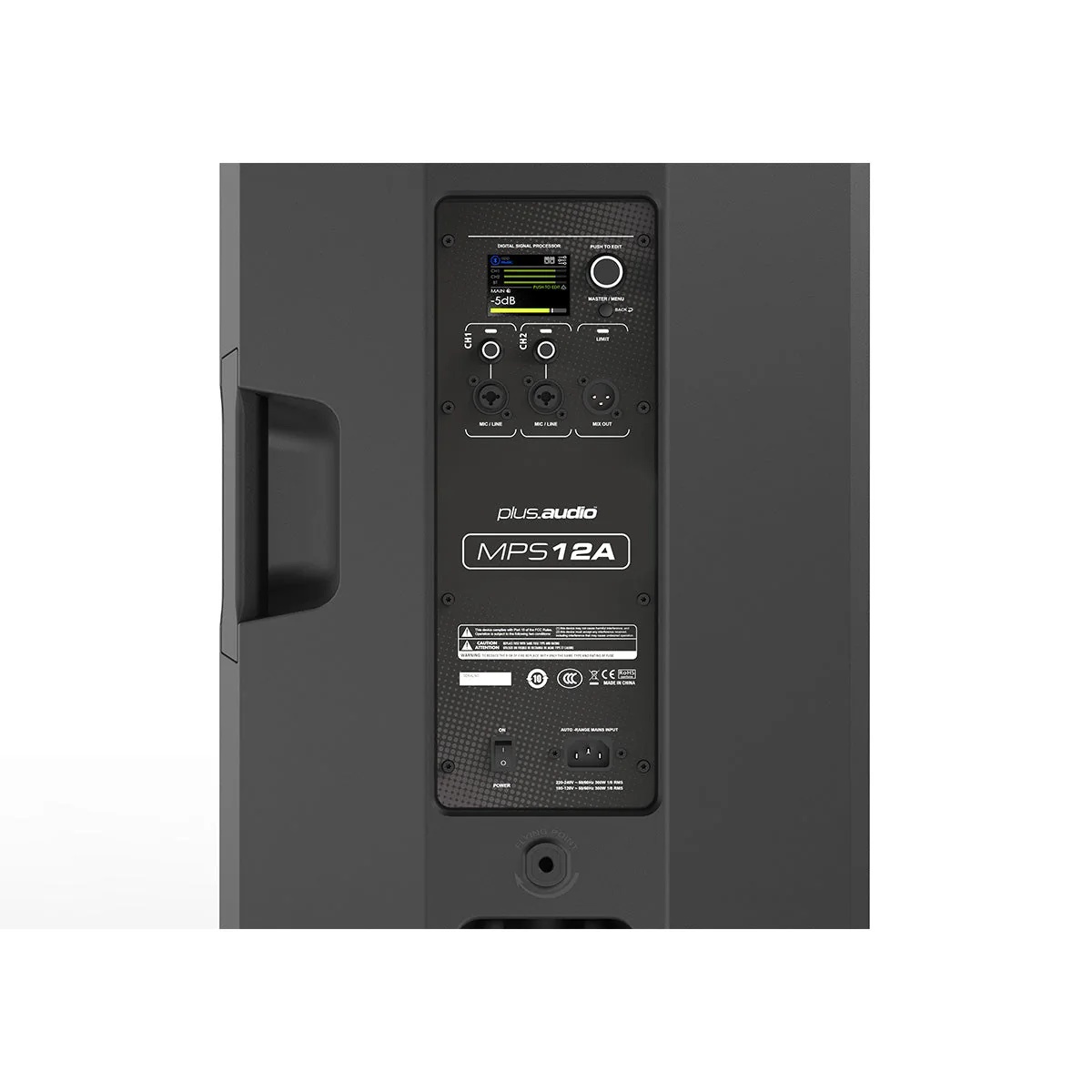

- Flexible Connectivity: Includes Bluetooth™ audio input with True Wireless Stereo (TWS) functionality, and 2 balanced combo XLR inputs and an XLR output for versatile integration.
- Efficient Amplification: Utilizes lightweight, Class D amplification for quiet, fanless operation, while 4-band parametric EQ on the XLR channel allows for precise audio tuning.
- Intuitive Control: An Android and iOS app provides remote control capabilities via Bluetooth, while a 2.4-inch colour LCD screen offers comprehensive DSP feature access including ducking, speaker location presets, bass and treble shelving EQ, 4-band parametric EQ on the analog inputs and 100 meters of delay for precise time alignment.

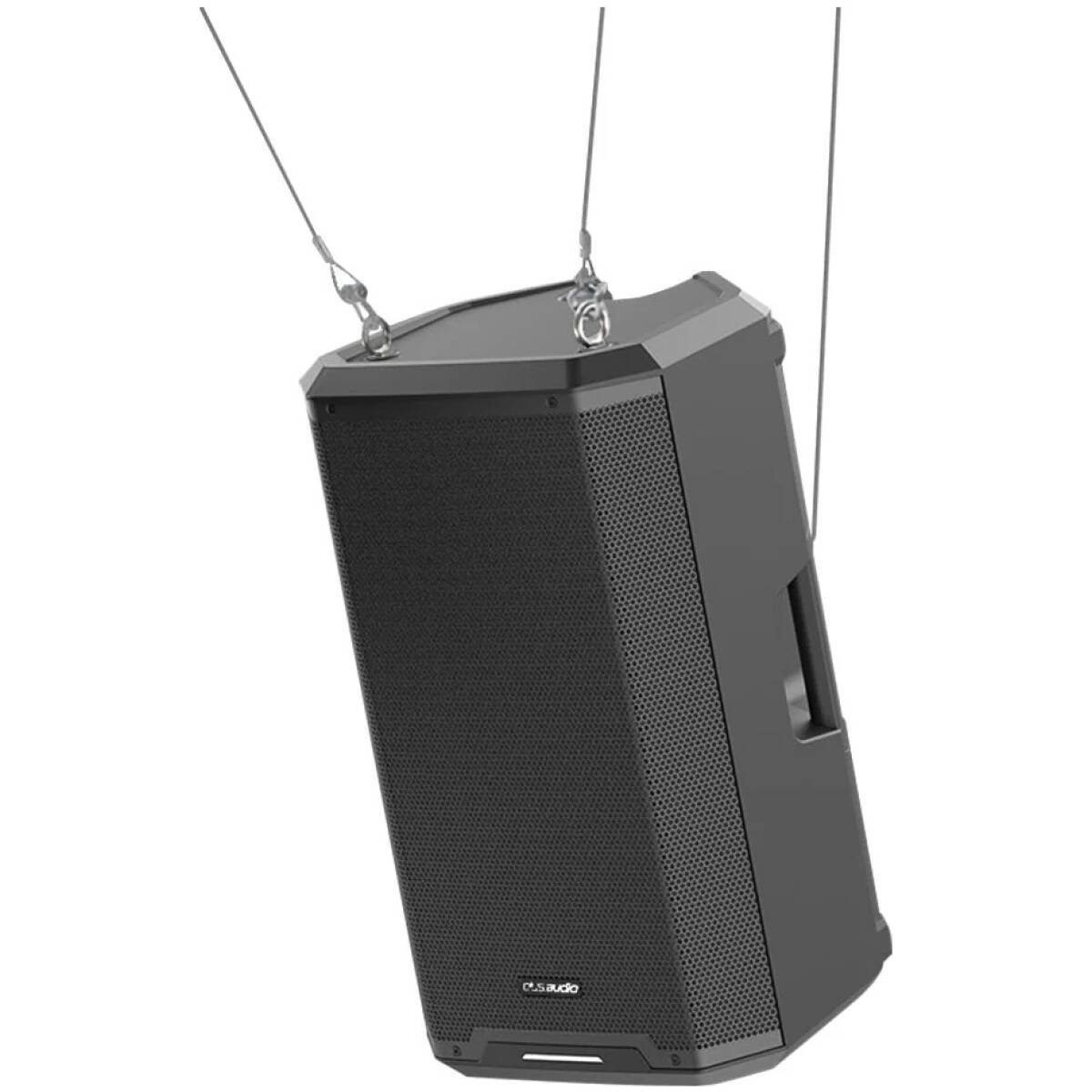

- Coverage and Mounting: Offers a 90° x 70° coverage pattern and features a 35mm pole socket along with three M10 suspension points for flexible mounting options.
Specifications:
| Max. SPL | 129dB |
| Frequency response | 50 Hz – 20 kHz |
| Power | 1000W (RMS) / 2000W (Peak) |
| Amp type | Class D |
| Low-/mid speaker | 12” |
| HF driver | 1.35” |
| Analog inputs | 2x Combo XLR |
| Analog outputs | 1x XLR-M |
| Connectivity | Bluetooth Operating Frequency: 2402 – 2480MHz |
| Display | 2.4″ colour display |
| DSP functions | Master / channel volume and mute, 2-band shelving EQ
4-band PEQ, low-cut filter 20-150hz, front LED (on/off/limit), delay, ducking. |
| Sound modes | Live/Club/Speech/Flat |

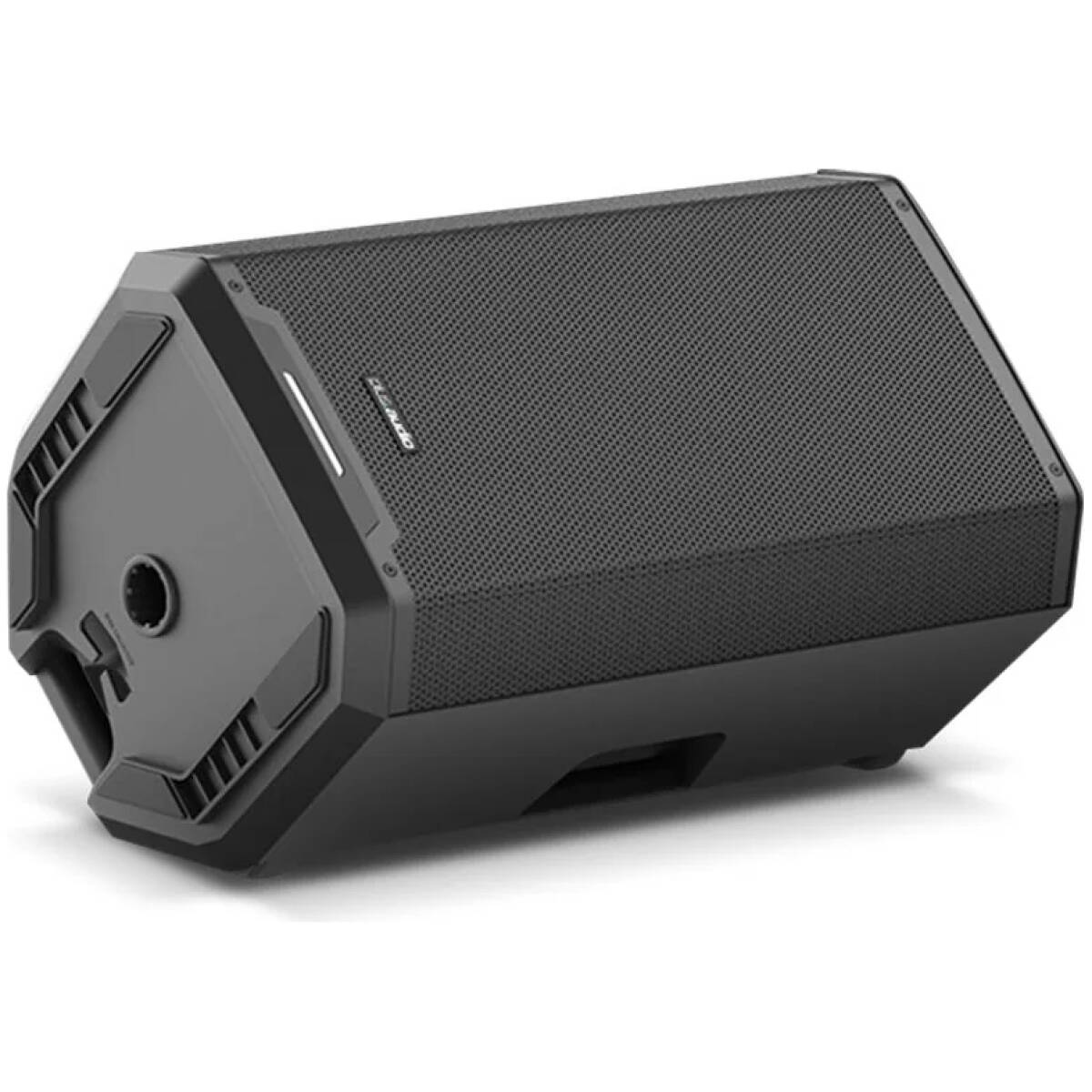

| Setup modes | Pole/Monitor/Bracket |
| Delay | 0 – 100m |
| Analog output modes | Mix / Link includes Bluetooth™ pass-through |
| Bluetooth features | Audio streaming with stereo linking and remote control for 2 speakers |

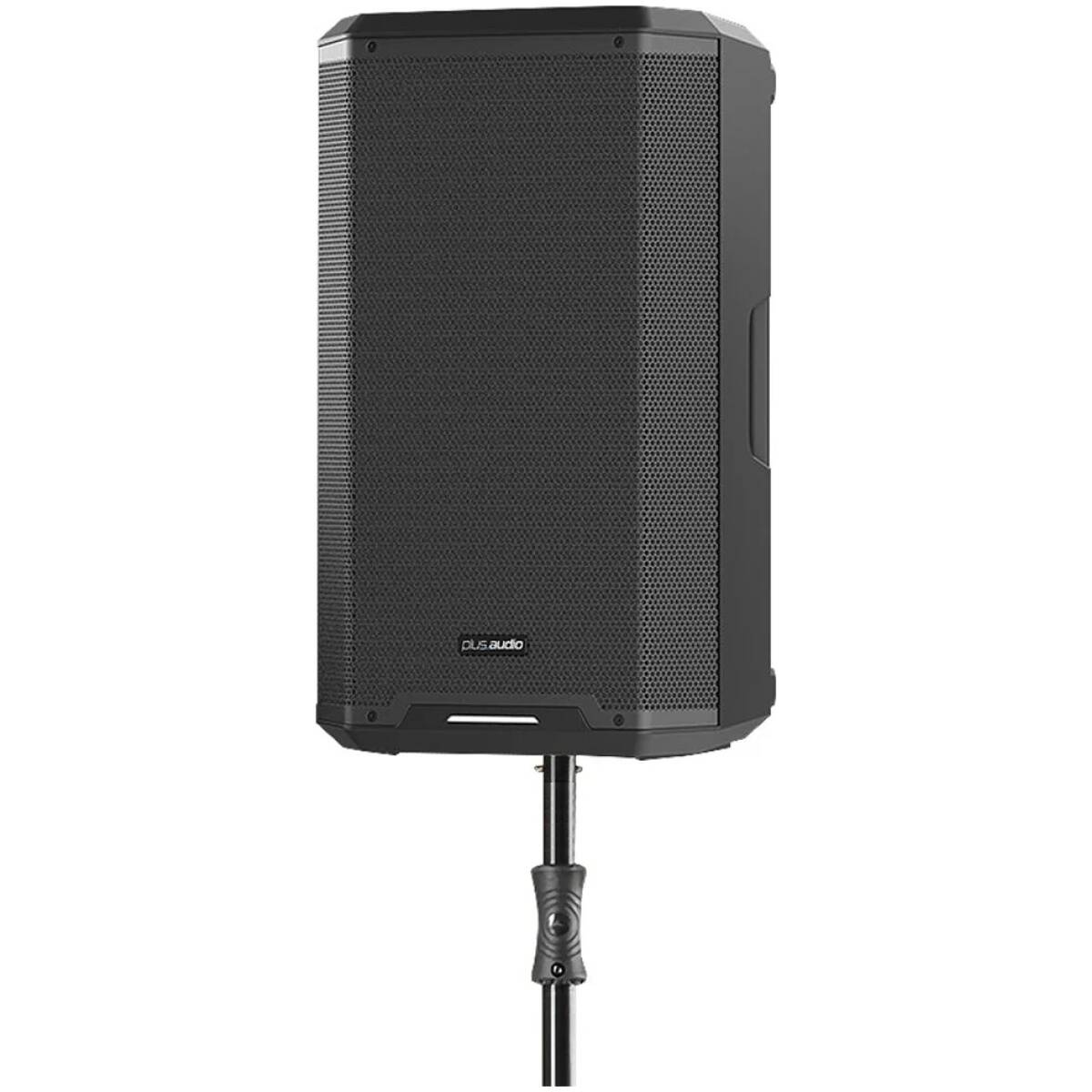

| Pole mount | 35mm mounting pole |
| Rigging points | 3x M10 |
| Power consumption | 800W |
| Dimensions (HxWxD) | 628 x 359 x 353 mm |
| Weight | 16.9kg |
