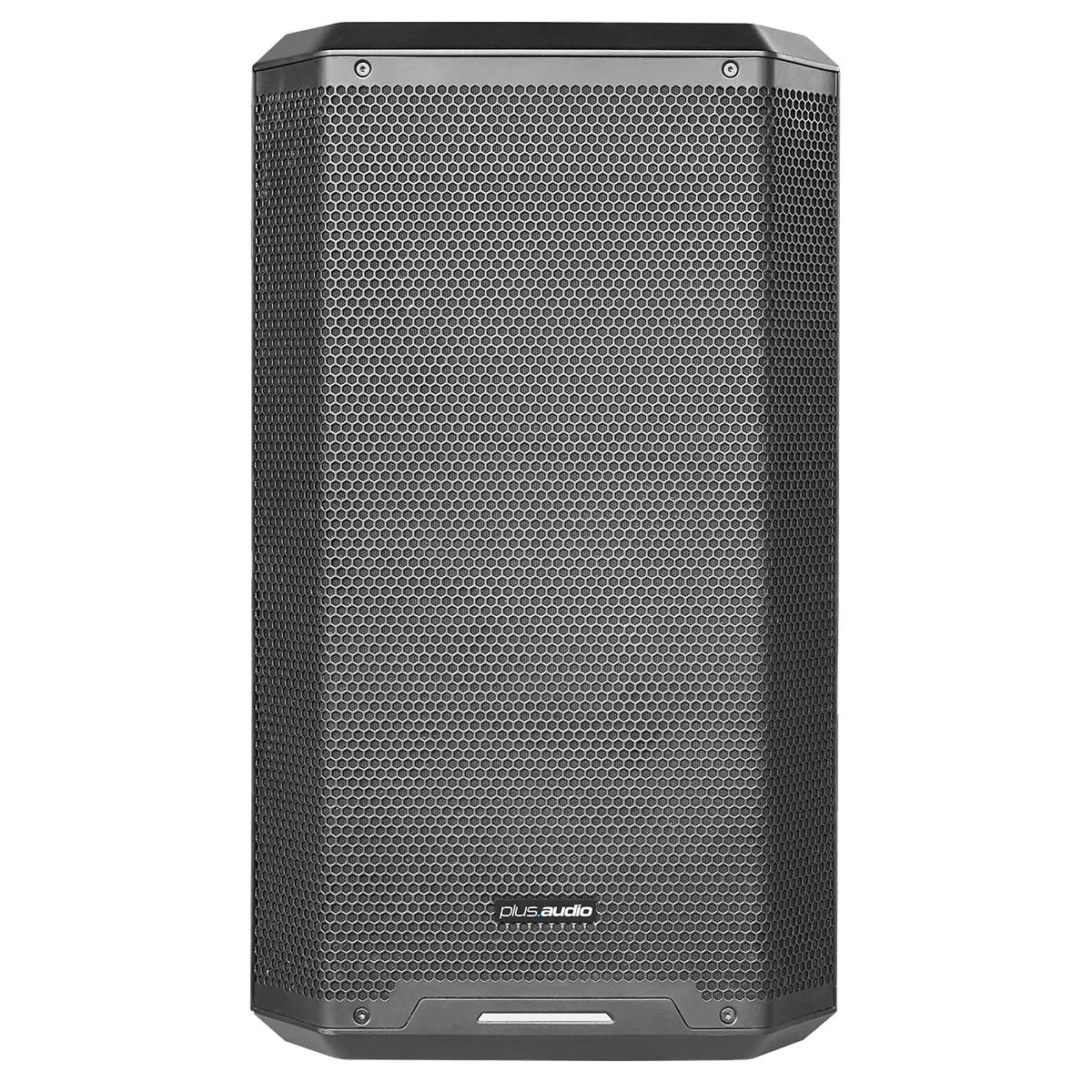

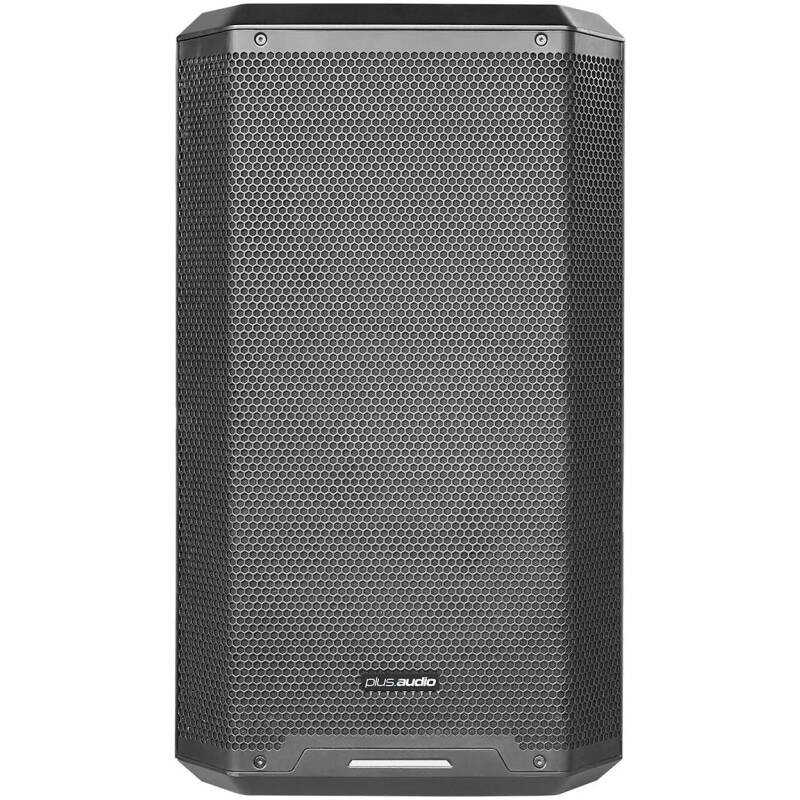

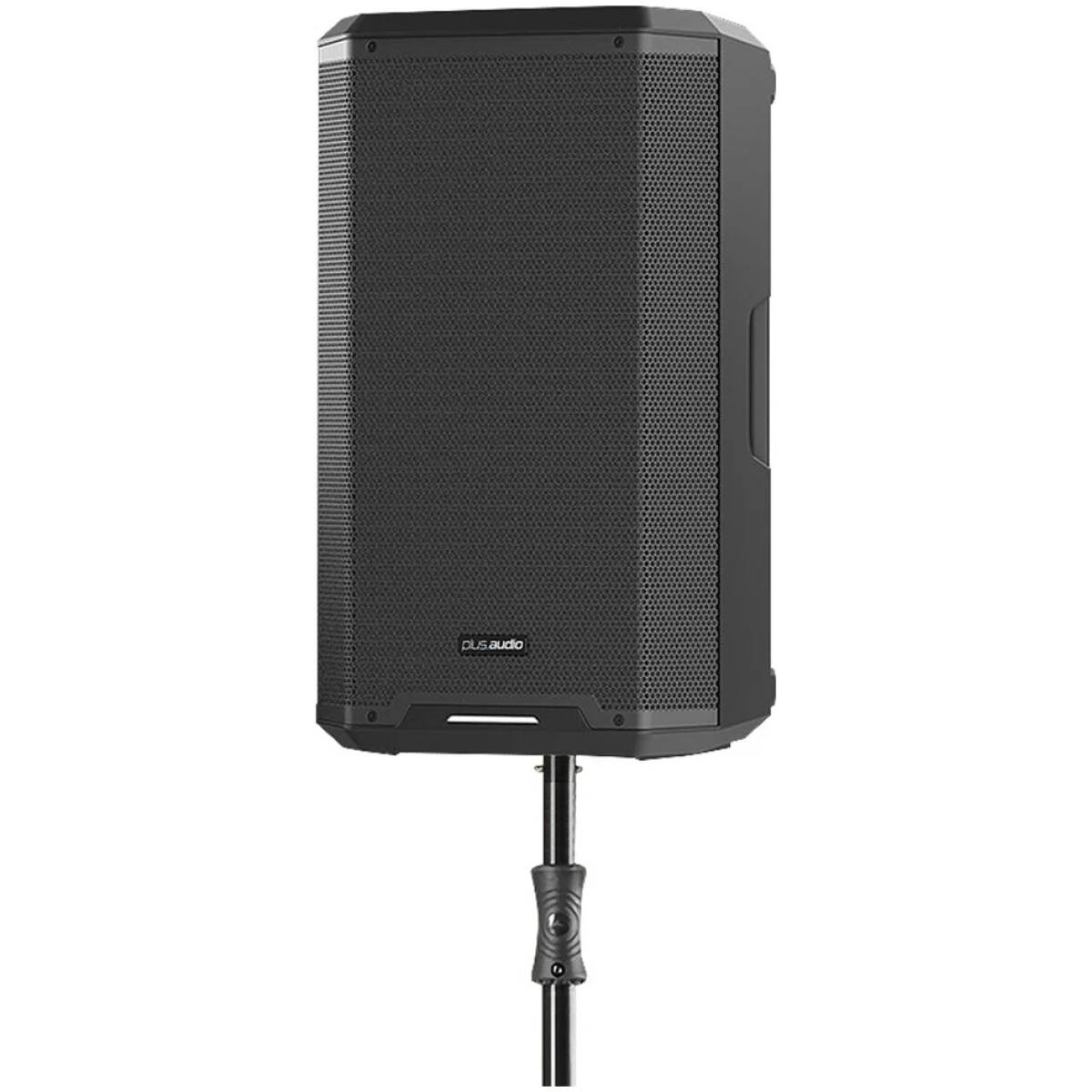

The Plus Audio MPS15A is an advanced multipurpose point source loudspeaker, crafted to deliver exceptional sound quality and durability for a variety of audio applications. Its injection-moulded cabinet is engineered to be 20% more rigid, offering enhanced strength and longevity.
The MPS15A by Plus Audio represents a blend of cutting-edge technology and durable construction, designed to meet the needs of diverse audio applications with precision and reliability.
Features at a Glance:
- High Power Handling: Capable of delivering 2000W peak power, the MPS15A ensures powerful, clear audio output suitable for both large venues and demanding applications.
- Superior HF Performance: Features a high polymer diaphragm compression driver, which provides cleaner and more transparent high-frequency sound compared to conventional titanium diaphragm drivers.

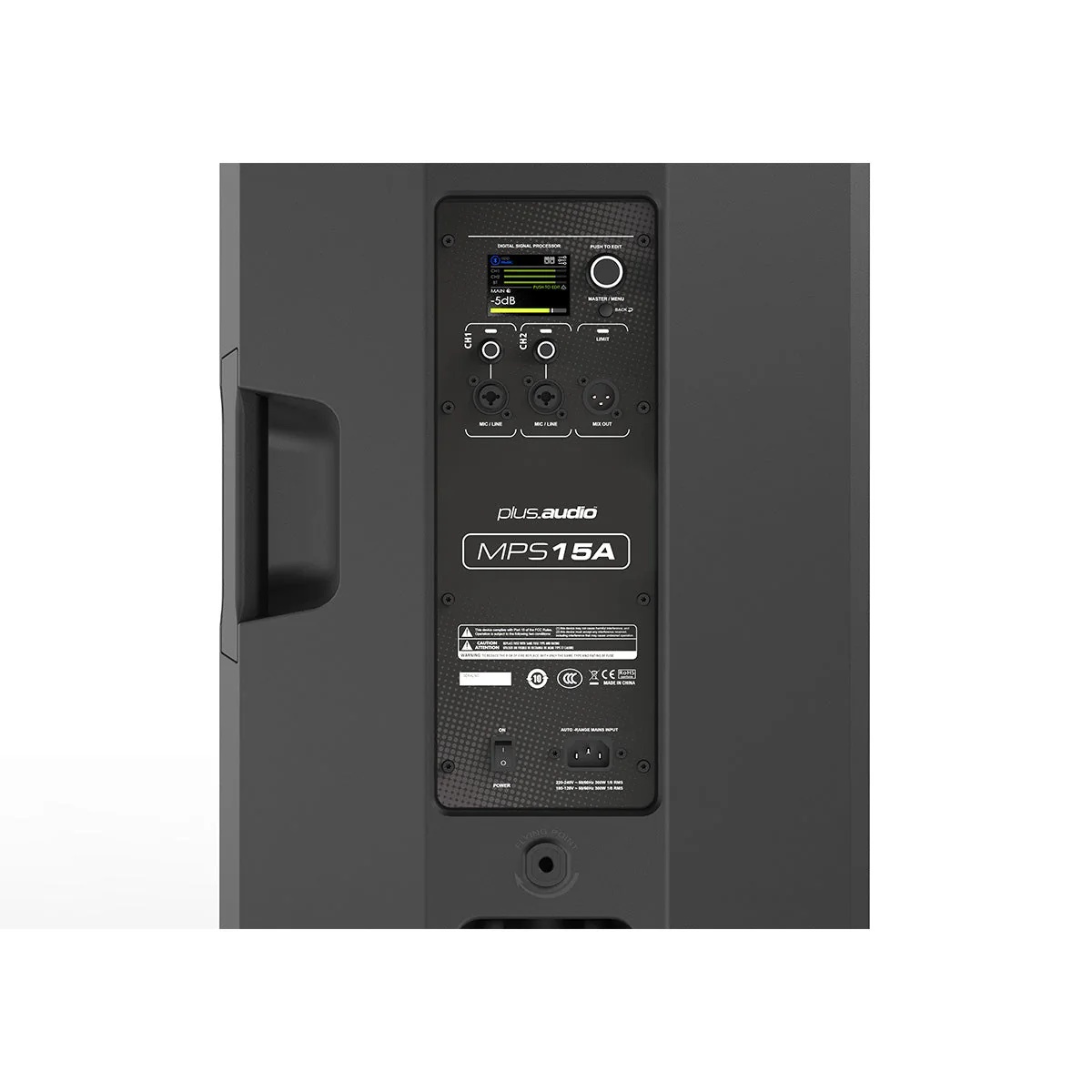

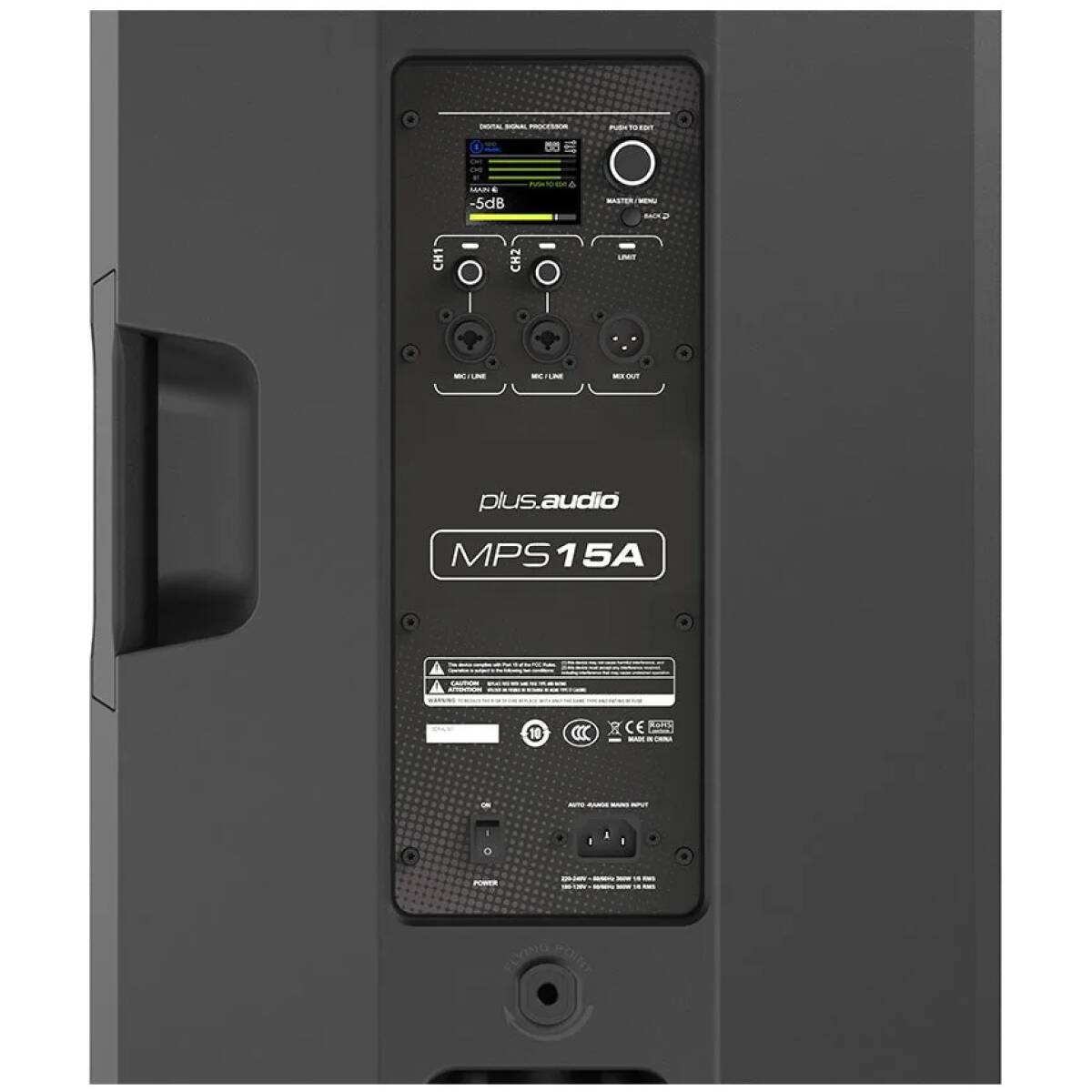

- Versatile Connectivity: Includes Bluetooth™ with TWS for seamless wireless audio streaming, 2 balanced combo XLR inputs and an XLR output for versatile integration.
- Class D Amplification: Employs efficient, fanless Class D amplification, reducing noise while maintaining high performance. The system also includes 4-PEQ on the XLR channel for tailored sound control.
- User-Friendly Interface: An Android and iOS app provides remote control capabilities via Bluetooth, while a 2.4-inch colour LCD screen offers comprehensive DSP feature access including ducking, speaker location presets, bass and treble shelving EQ, 4-band parametric EQ on the analog inputs and 100 meters of delay for precise time alignment.

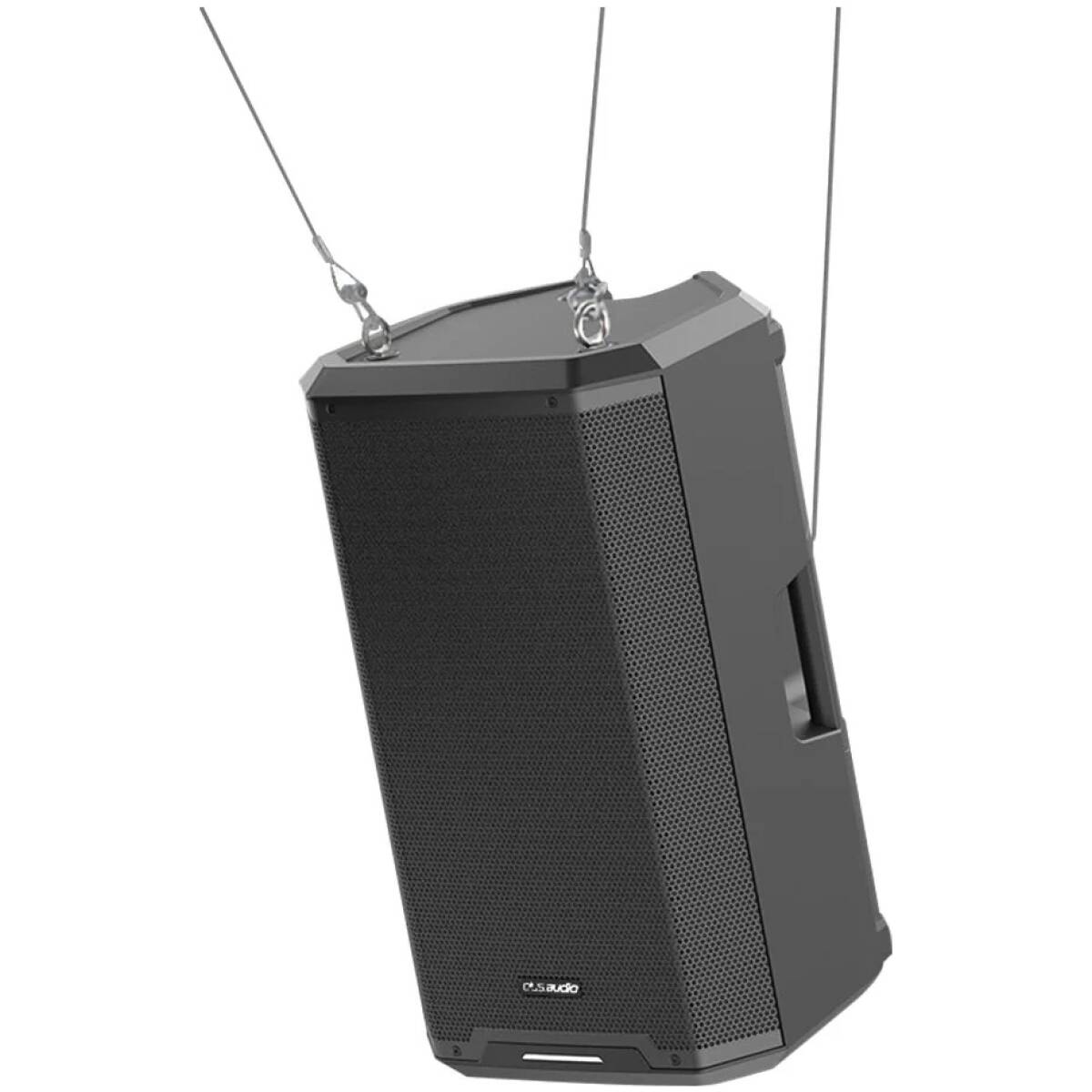

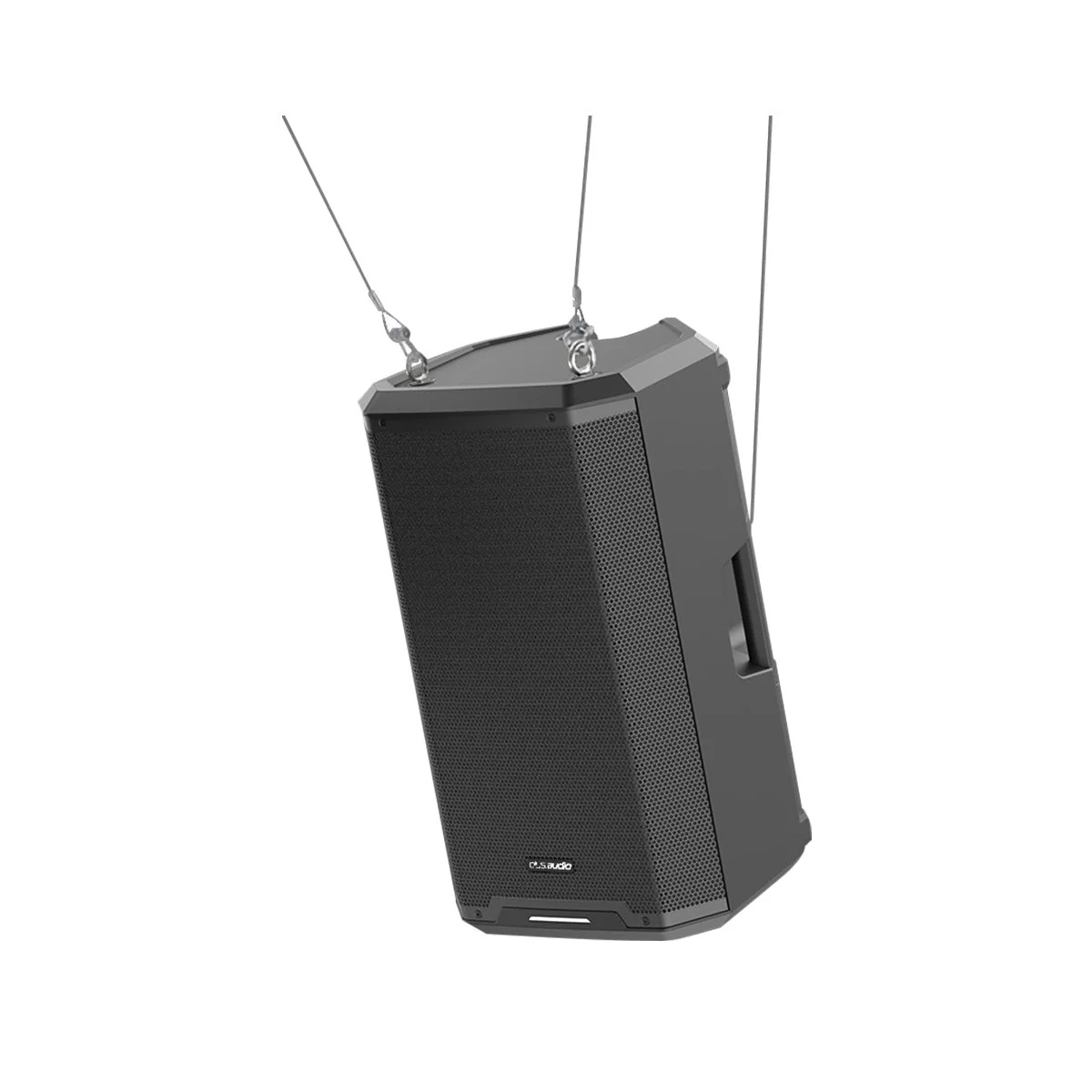

- Flexible Mounting Options: The MPS15A offers a 90° x 70° coverage pattern and includes a 35mm pole socket and three M10 suspension points for versatile rigging and mounting.
Specifications:
| Max. SPL | 130dB |
| Frequency response | 45 Hz – 20 kHz |
| Power | 1000W (RMS) / 2000W (Peak) |
| Amp type | Class D |
| Low-/mid speaker | 15” |
| HF driver | 1.35” |
| Analog inputs | 2x Combo XLR |
| Analog outputs | 1x XLR-M |
| Connectivity | Bluetooth Operating Frequency: 2402 – 2480MHz |
| Display | 2.4″ colour display |
| DSP functions | Master / channel volume and mute, 2-band shelving EQ
4-band PEQ, low-cut filter 20-150hz, front LED (on/off/limit), delay, ducking. |
| Sound modes | Live/Club/Speech/Flat |

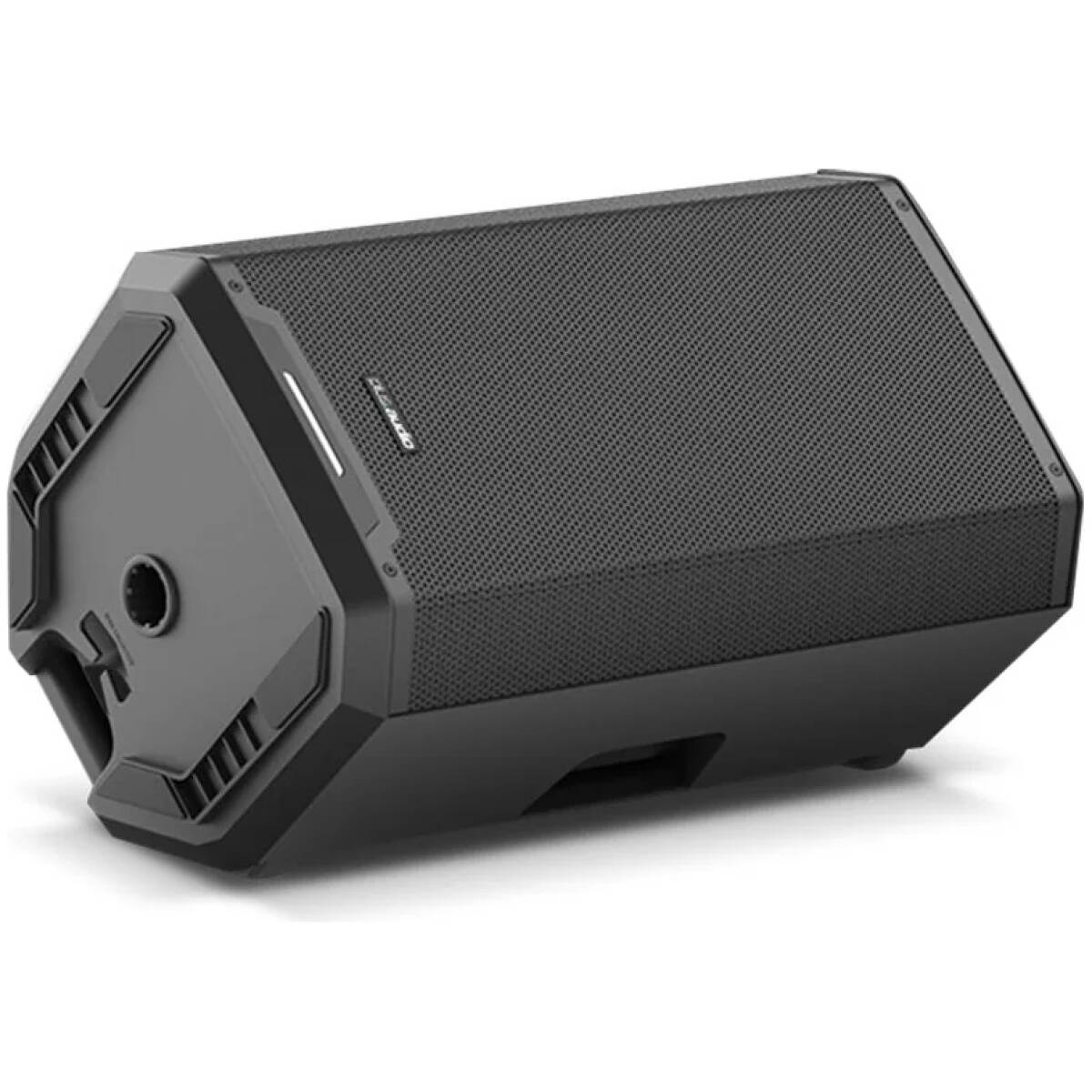

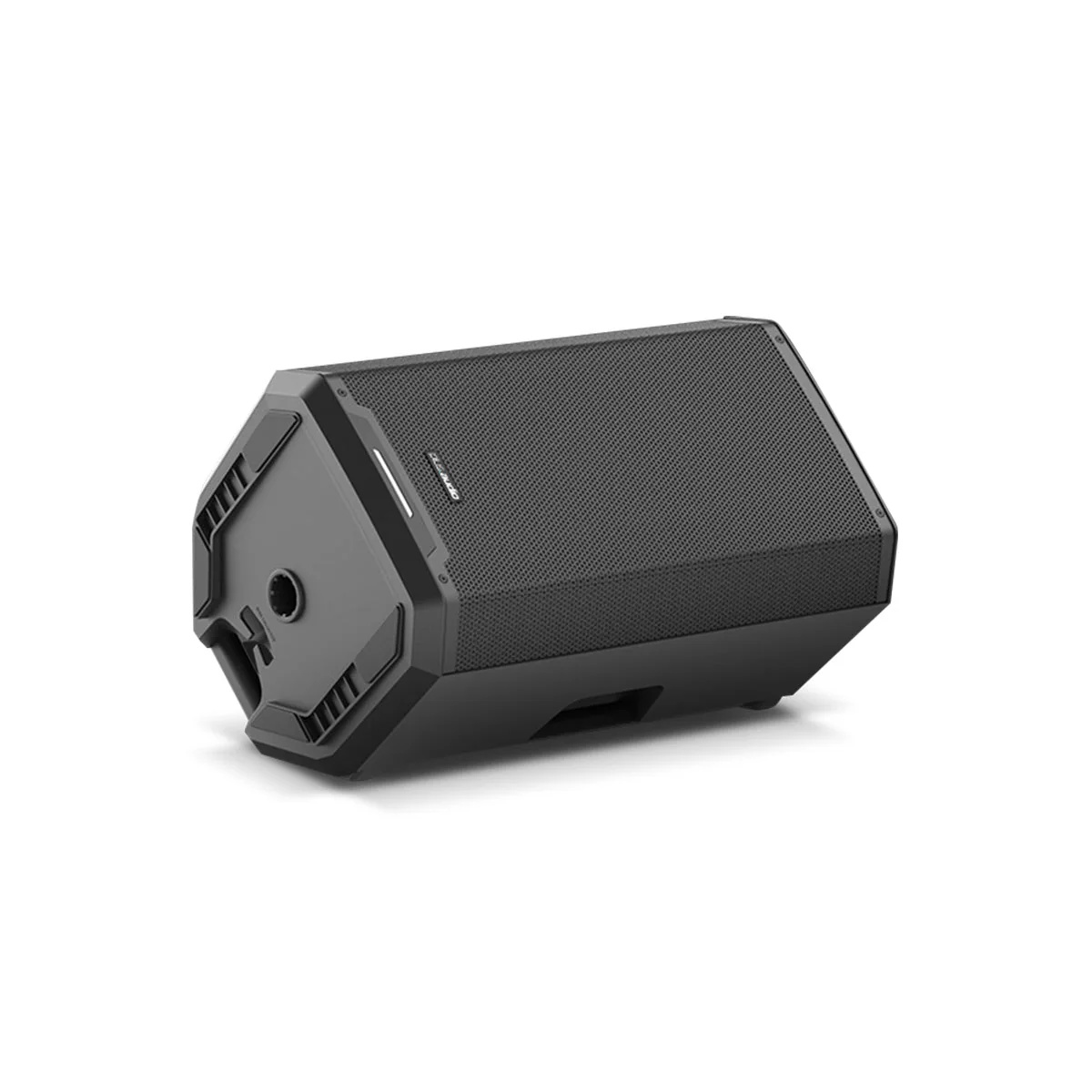

| Setup modes | Pole/Monitor/Bracket |
| Delay | 0 – 100m |
| Analog output modes | Mix / Link includes Bluetooth™ pass-through |
| Bluetooth features | Audio streaming with stereo linking and remote control for 2 speakers |
| Pole mount | 35mm mounting pole |
| Rigging points | 3x M10 |
| Power consumption | 800W |
| Dimensions (HxWxD) | 703 x 430 x 403 mm |
| Weight | 21.5kg |
