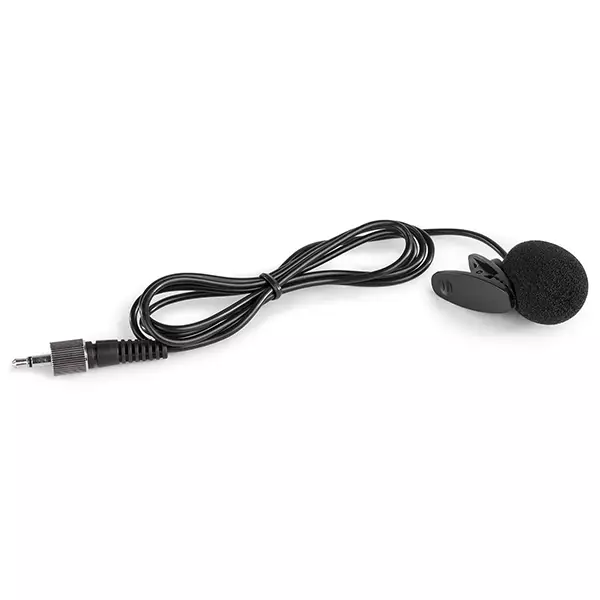

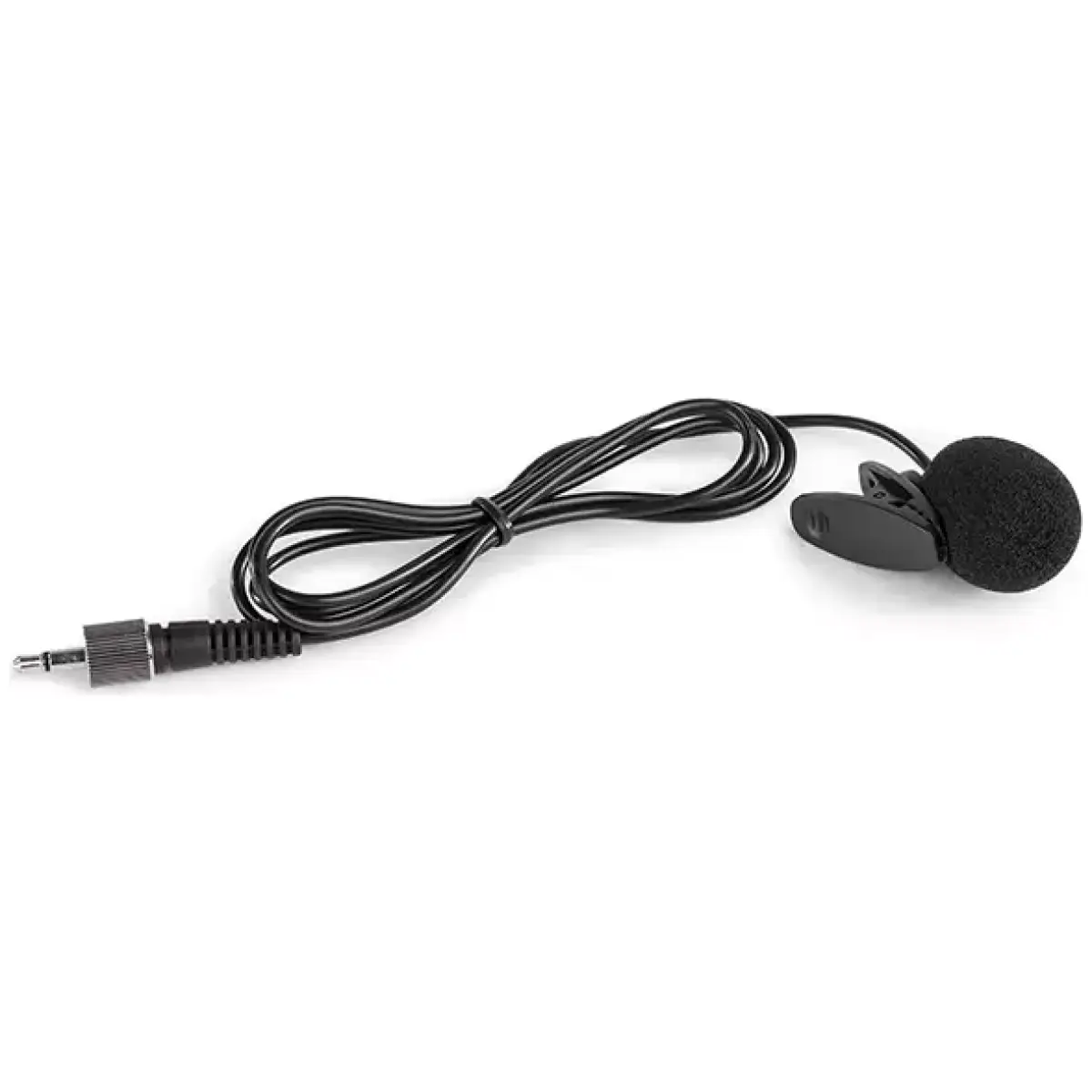

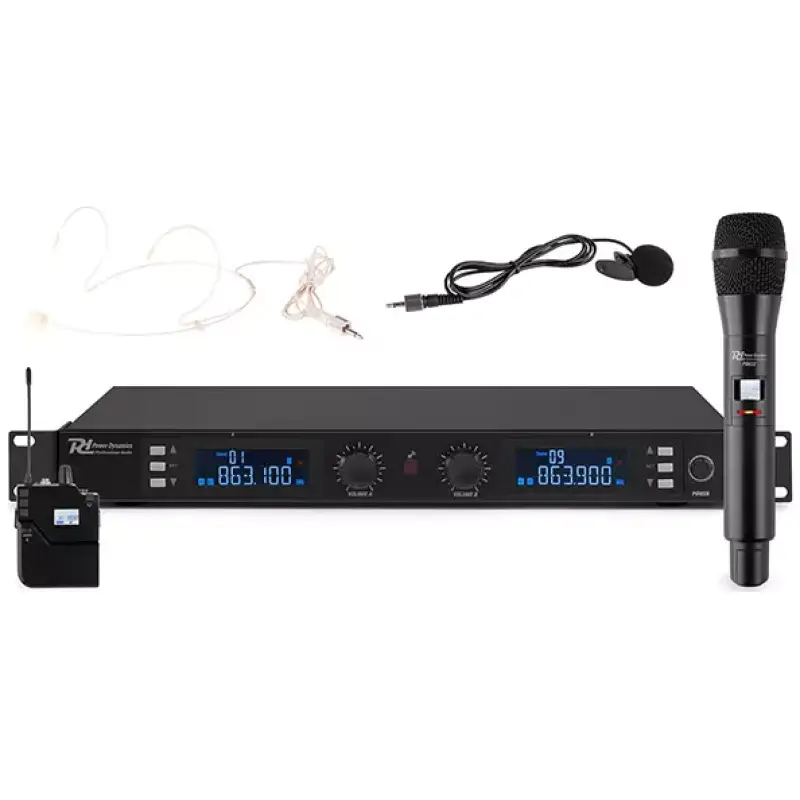

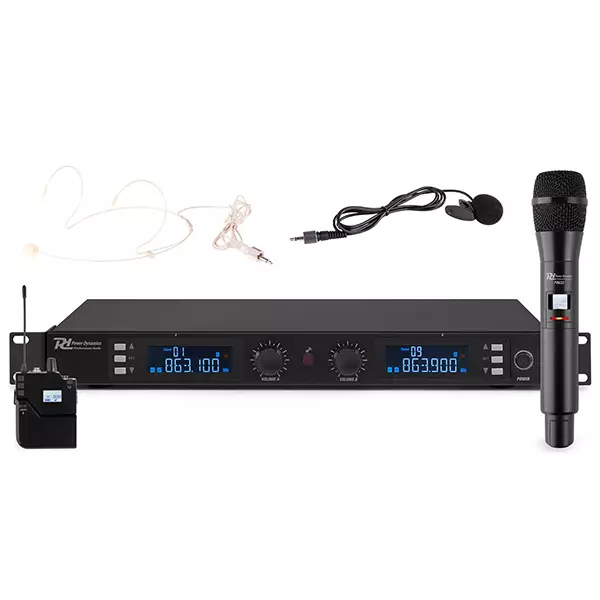

Power Dynamics PD632C Handheld & Lapel Microphone Uhf 863.000 – 865.000MHZ

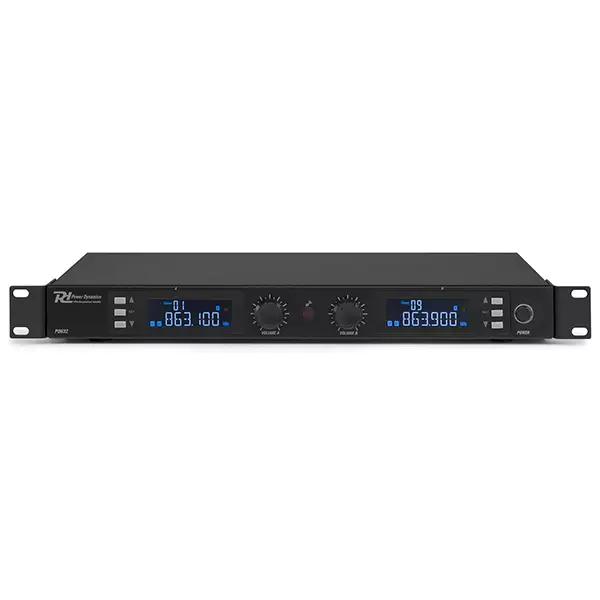

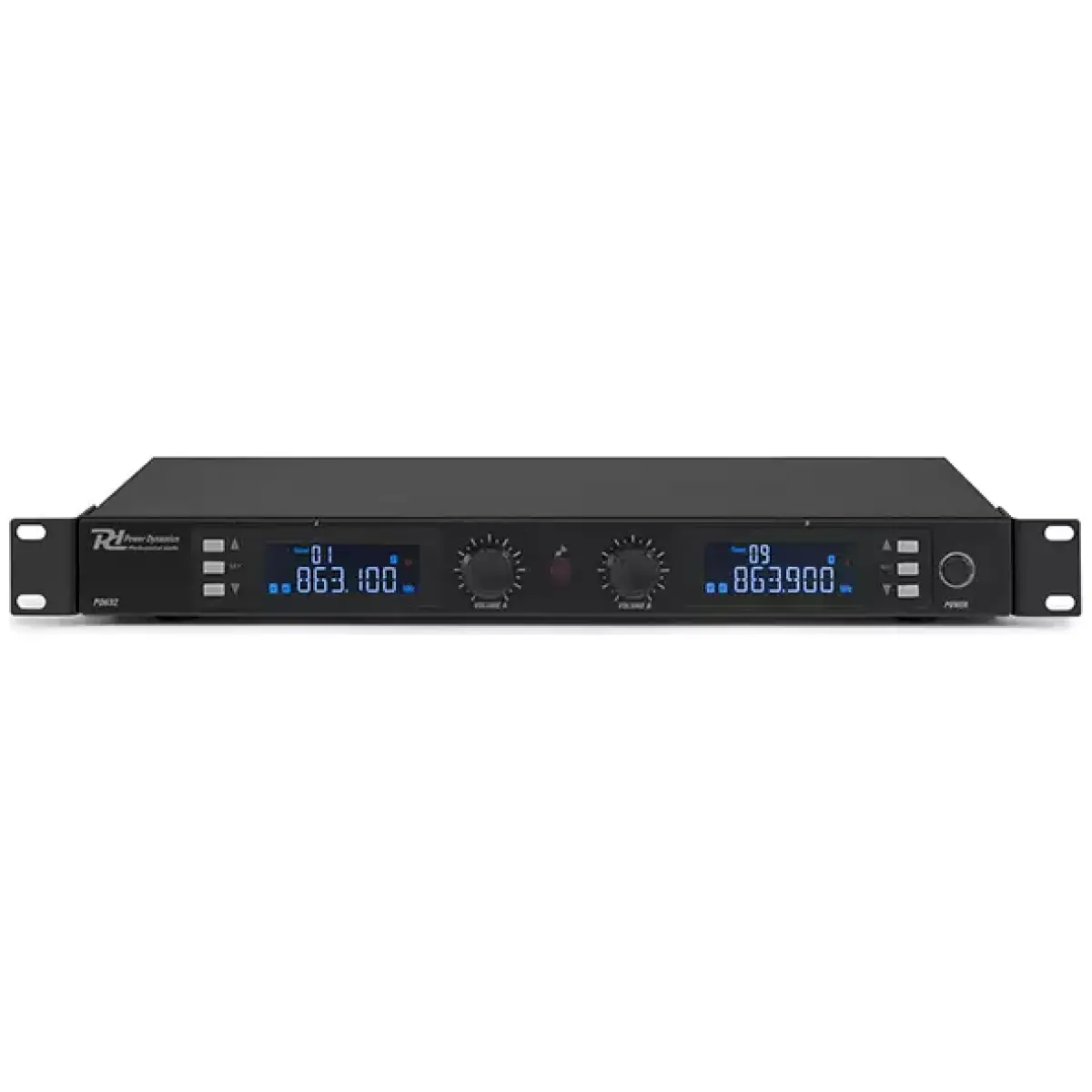

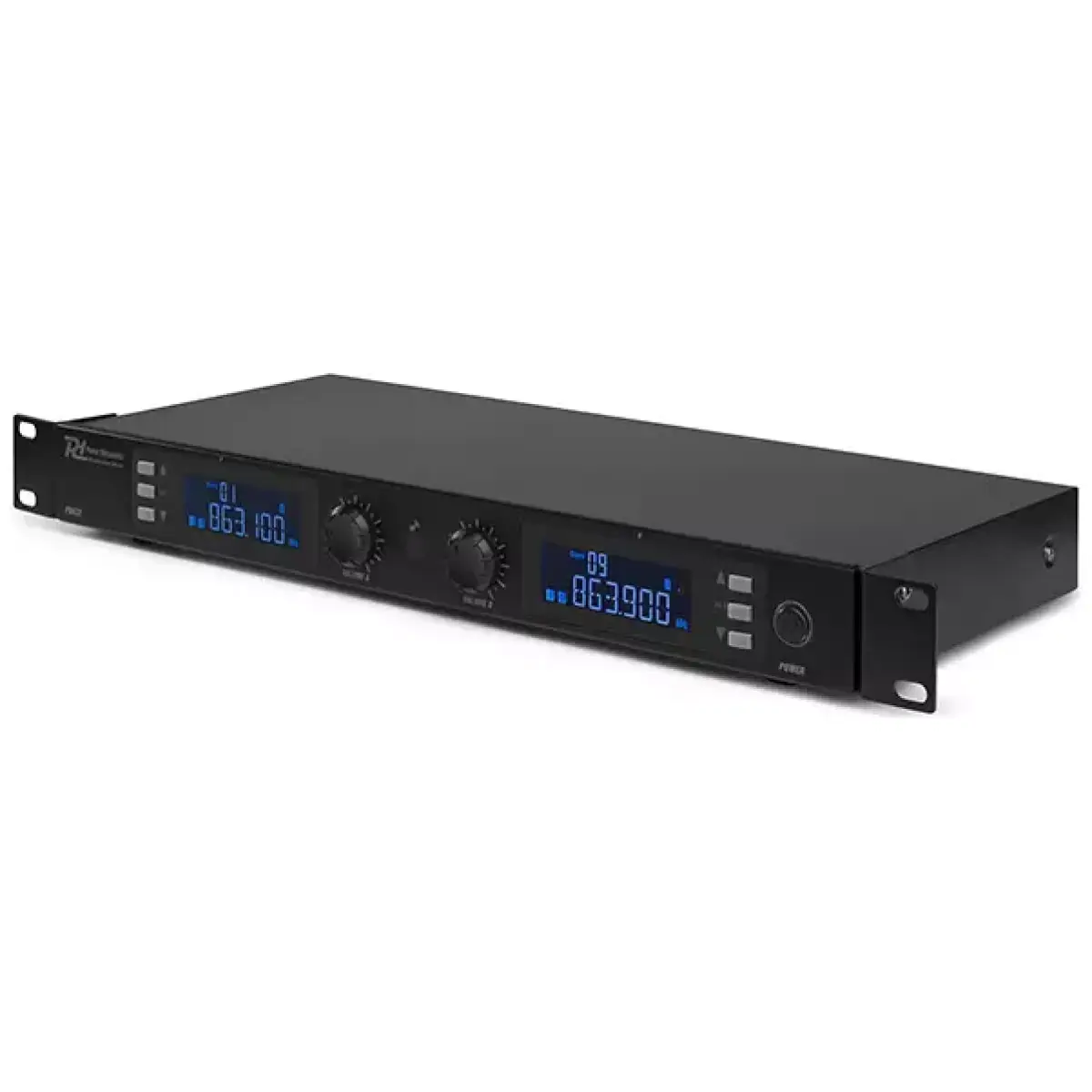

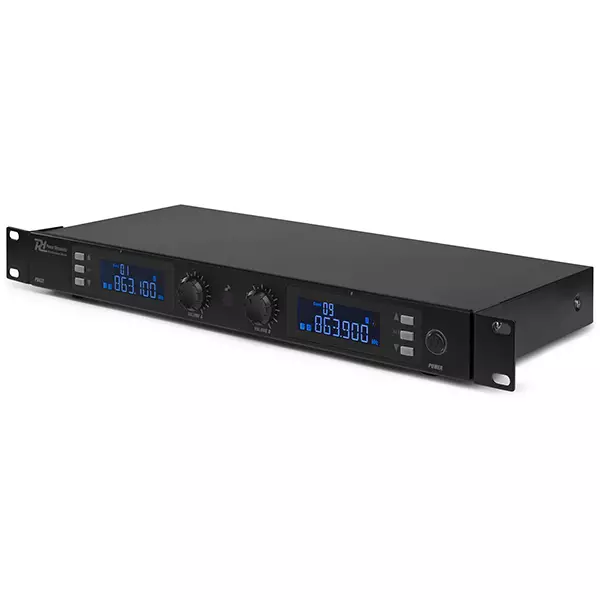

The Power Dynamics PD632C is a powerful 2x 20-Channel UHF wireless system that delivers superior audio transmission, with clarity and definition. The receiver is equipped with a dynamic LCD display, volume control and balanced XLR output. Suitable for vocals, presentations, training and other hands-free activities.

Features:

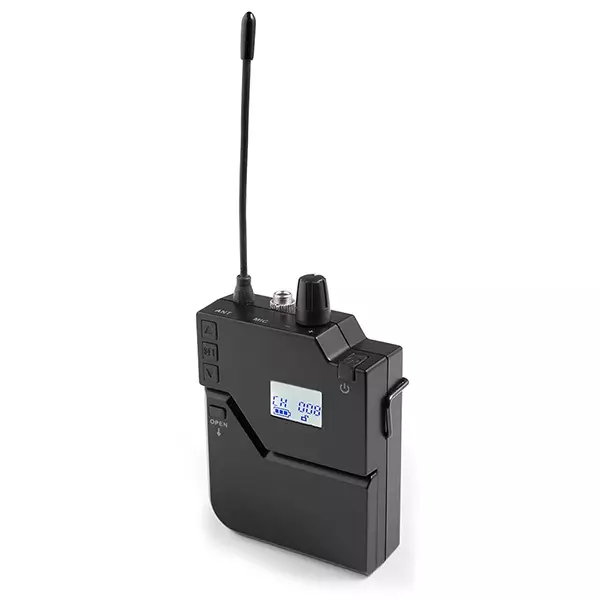

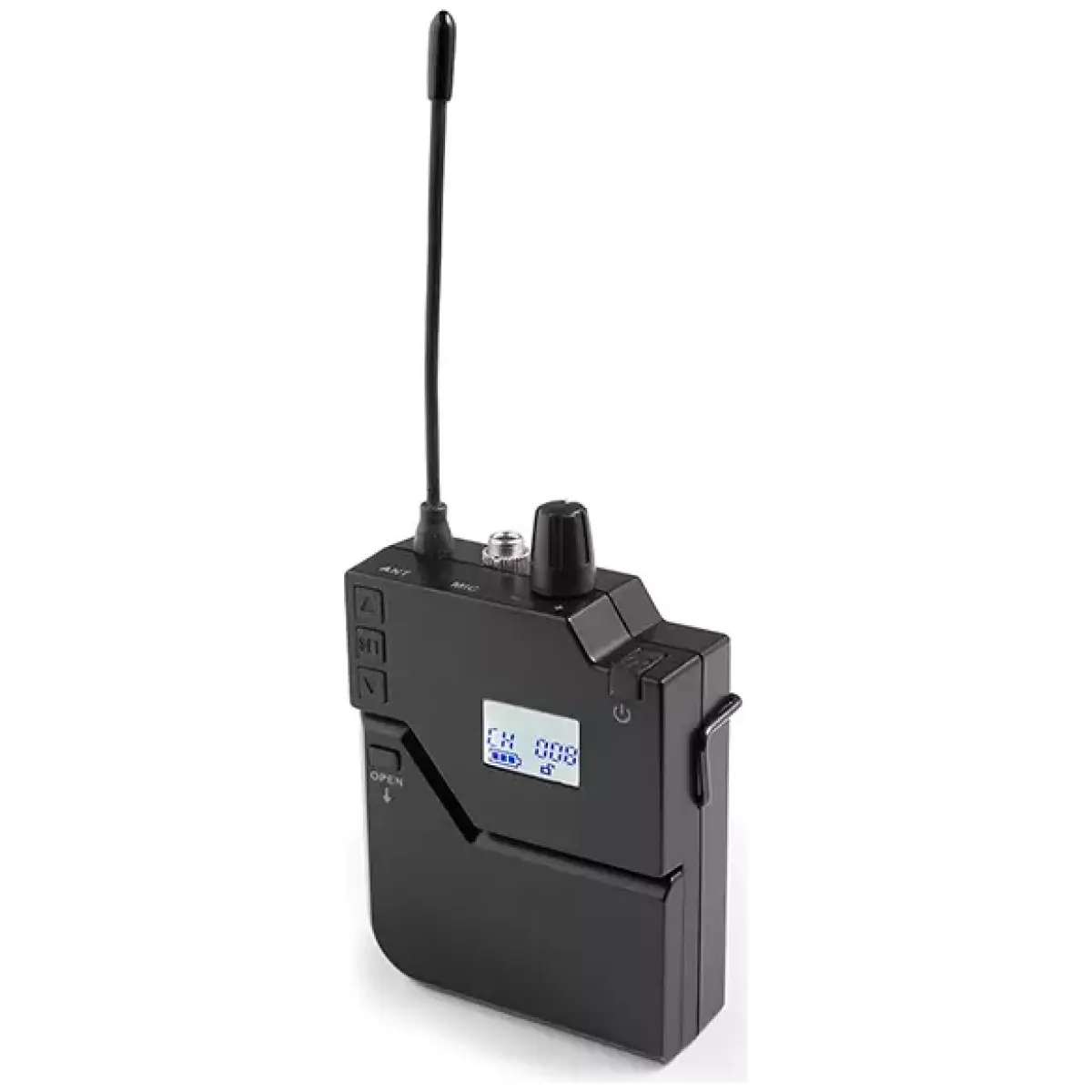

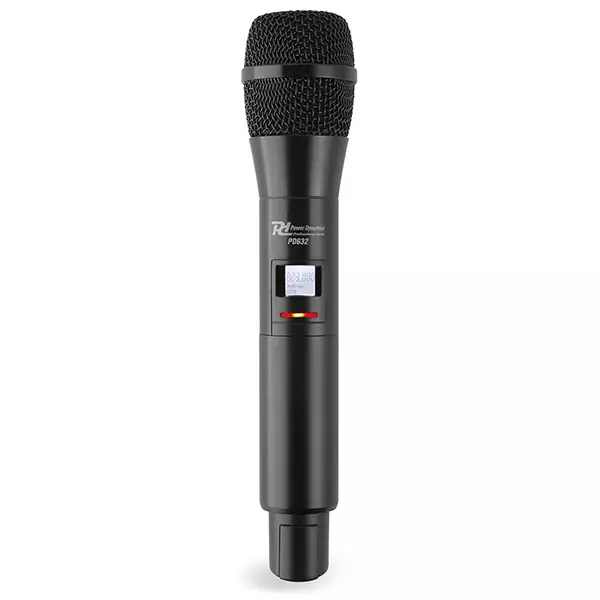

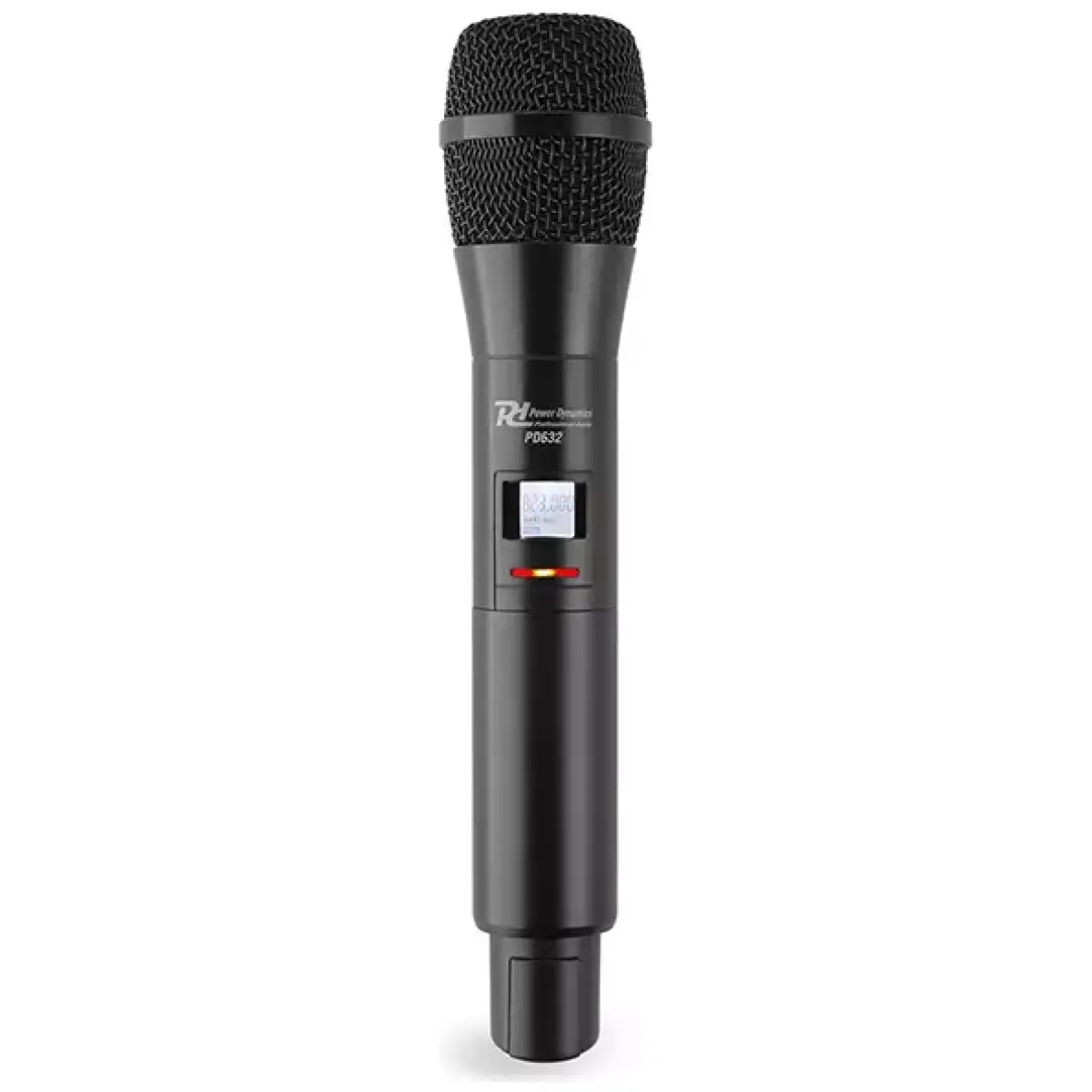

• 1x Handheld microphone and 1x bodypack with mute
• 2x 20 Selectable UHF channels
• IR data transmission for channel selection

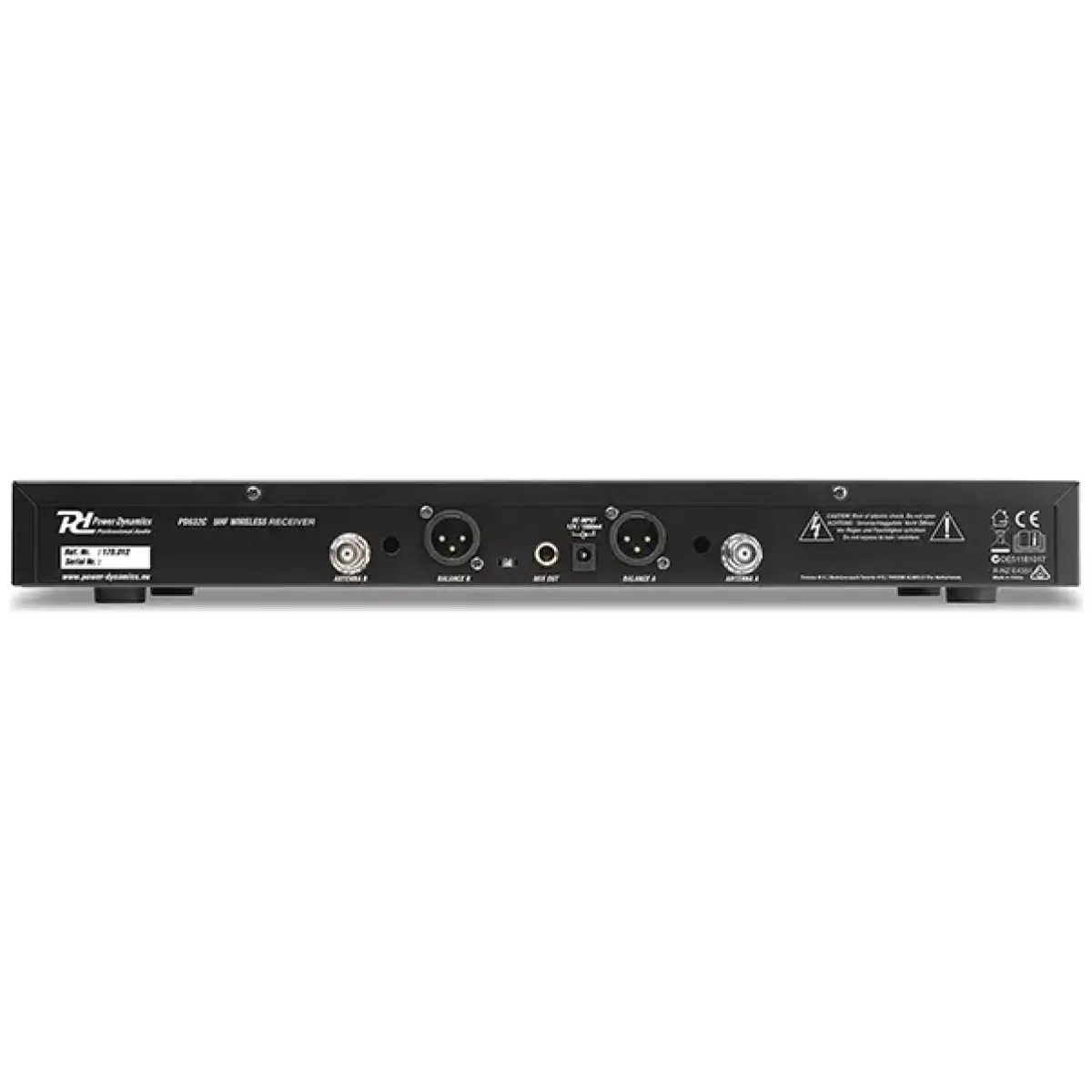

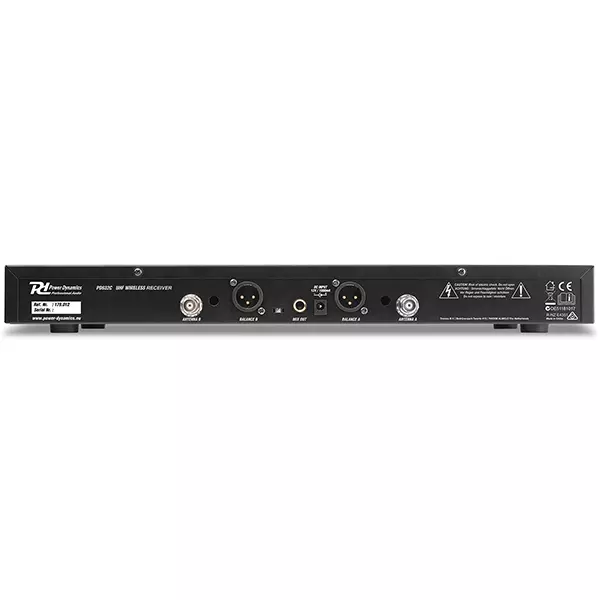

• 2x balanced XLR outputs and a single mix unbalanced 6.3mm output
• CPU controlled
• PLL oscillator
• Transmitters with display showing the frequency and battery low indication
• Equipped with dynamic LCD

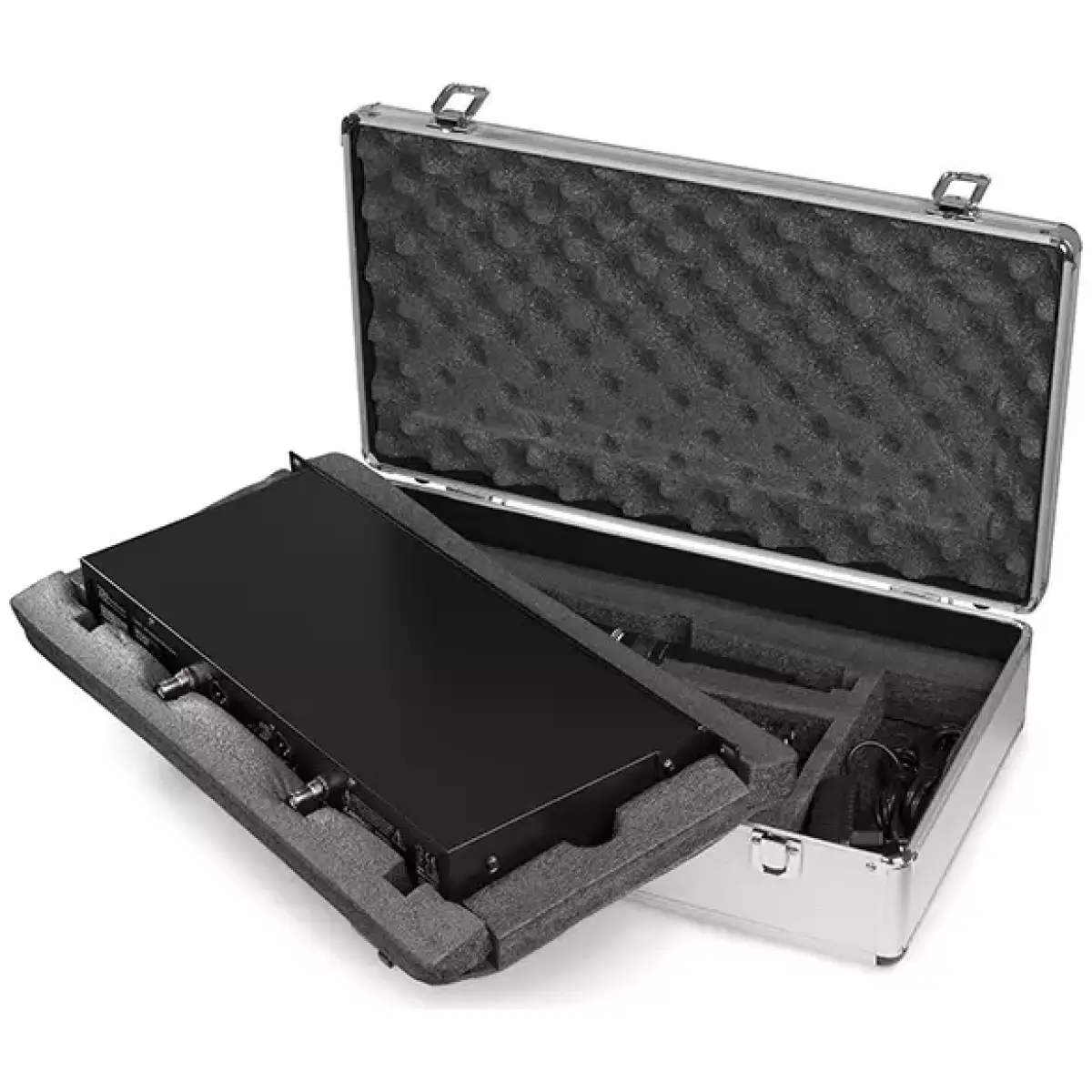

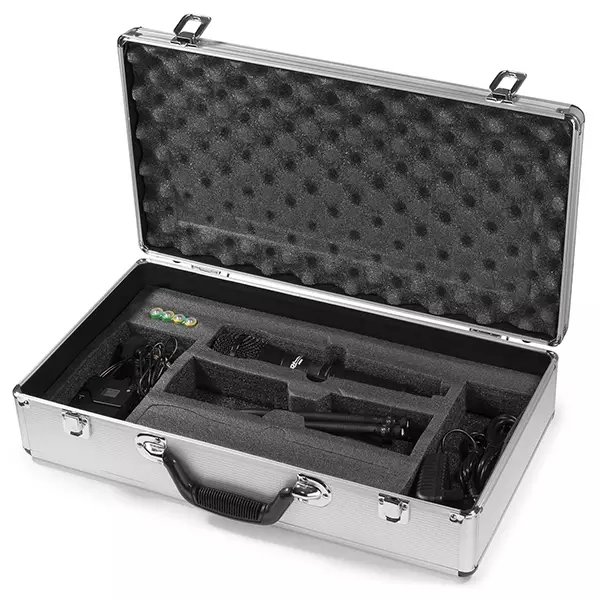

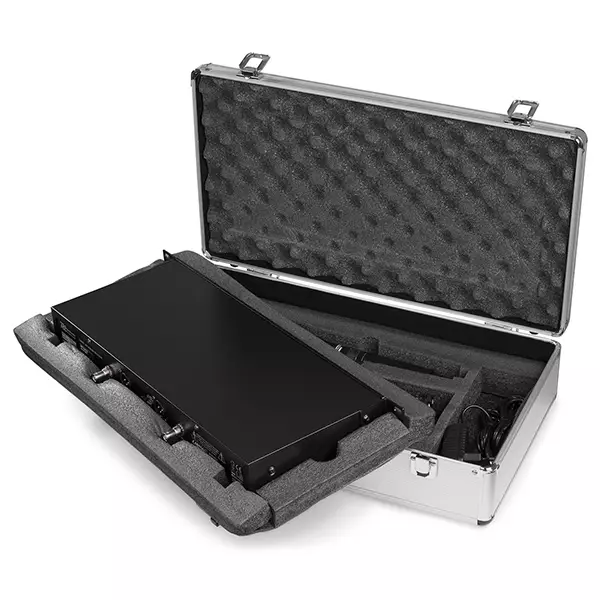

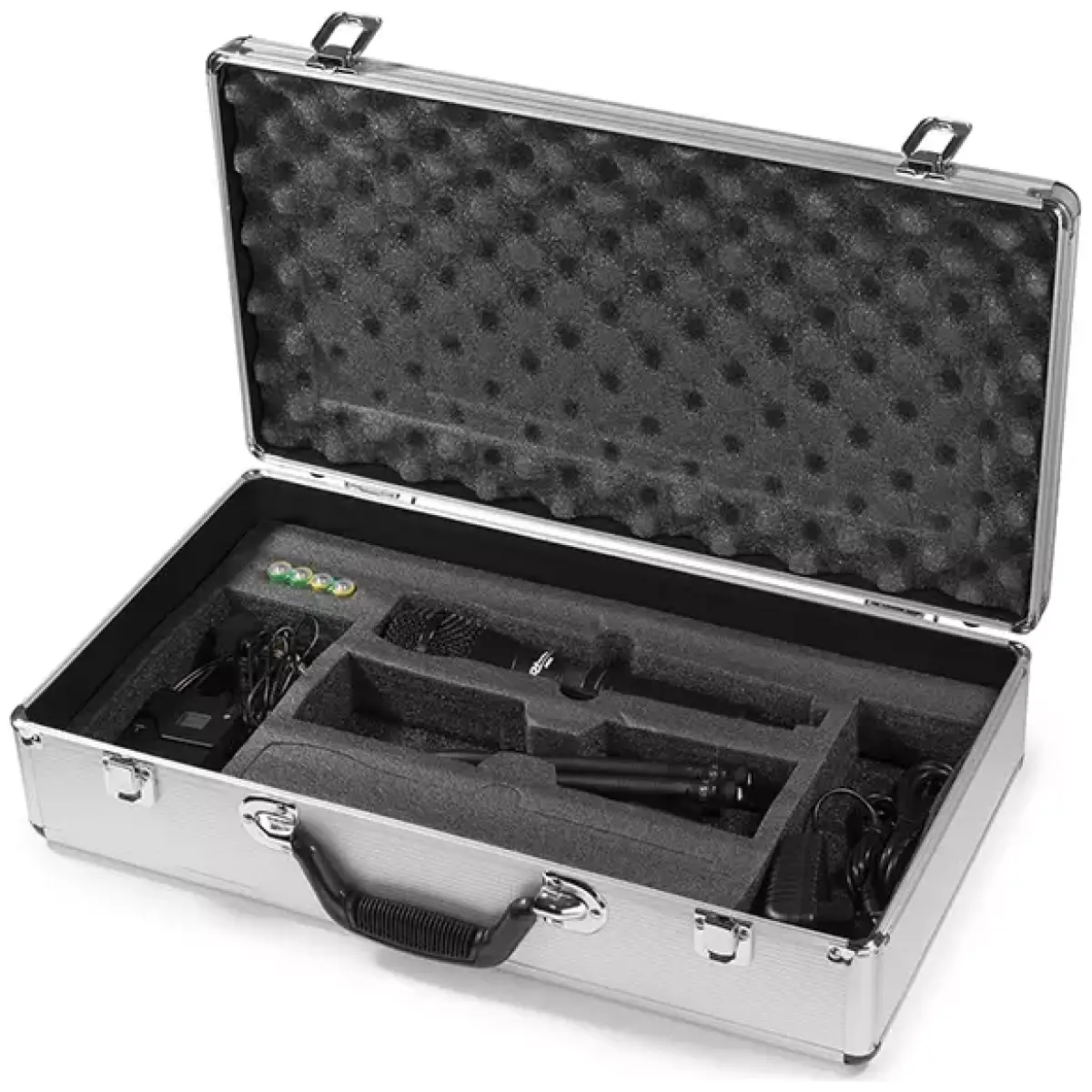

• Supplied in aluminium carrying case
• Suitable for 19 “rack (supplied brackets)

Specifications:

• Output Connections: XLR (3-pin)
• Frequency Range: 863.000 – 865.000 MHz
• Frequency Response: 60 – 18.000 Hz
• Frequency stability: 0.0015%
• RF Output: <10mW
• Signal-to-noise ratio: >97dB
• THD: <1%
• Batteries: 3V (2x AA)
• Power Supply: 100-240VAC 50/60Hz (12V Adapter)
• Dimensions:Receiver: 220 x 420 x 44mm
• Dimensions:Microphone: 51 x 250mm
• Dimensions:Body pack: 75 x 60 x 23mm
• Weight: 4.5kg
• Weight:Receiver: 1.460kg
• Weight:Microphone: 0.4
• Weight:Bodypack: 0.2kg
