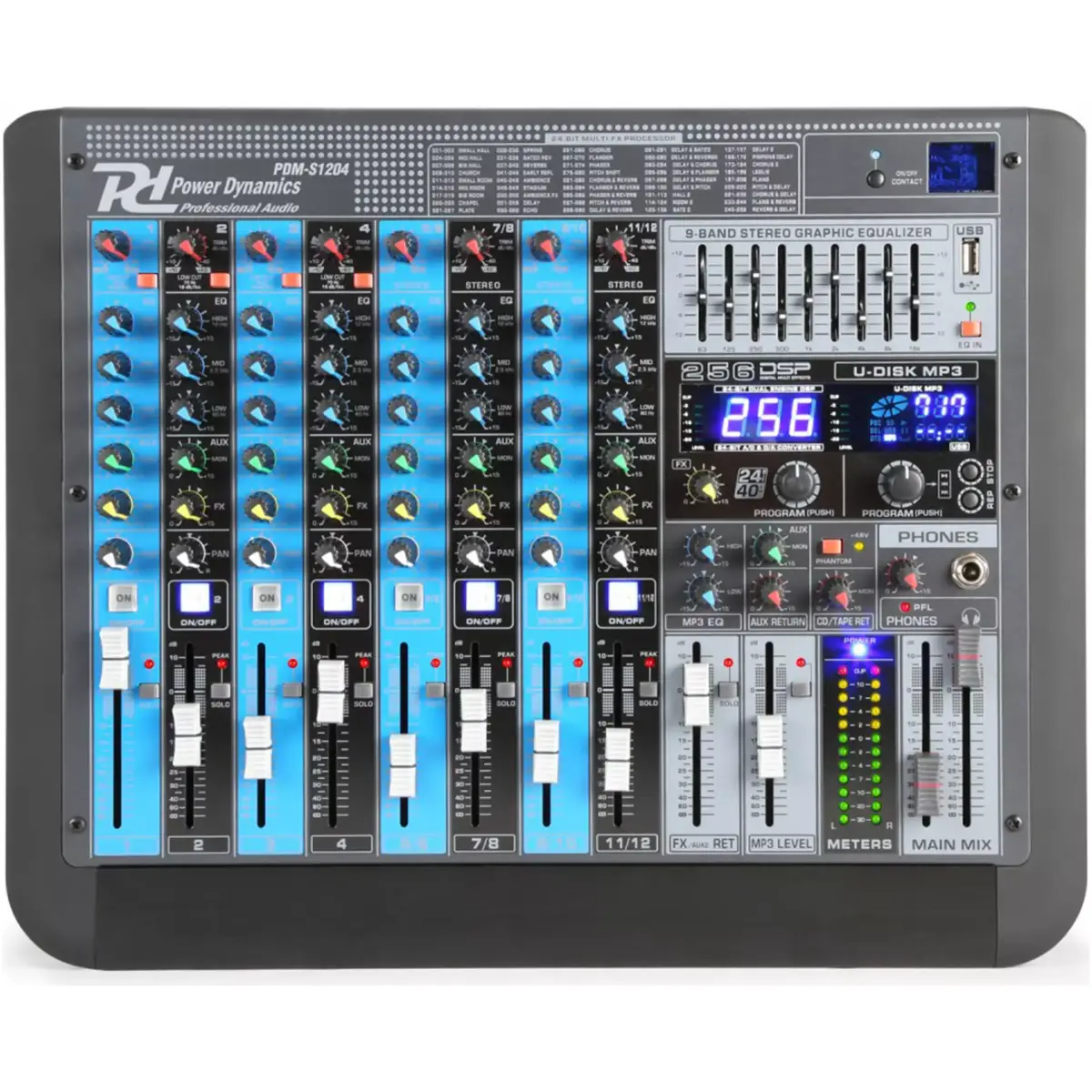

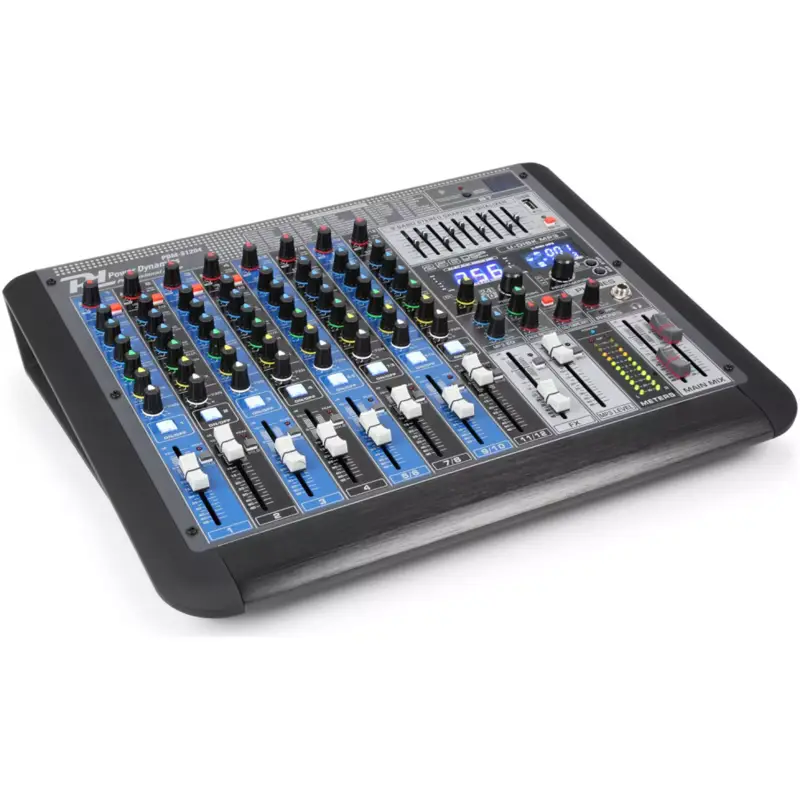

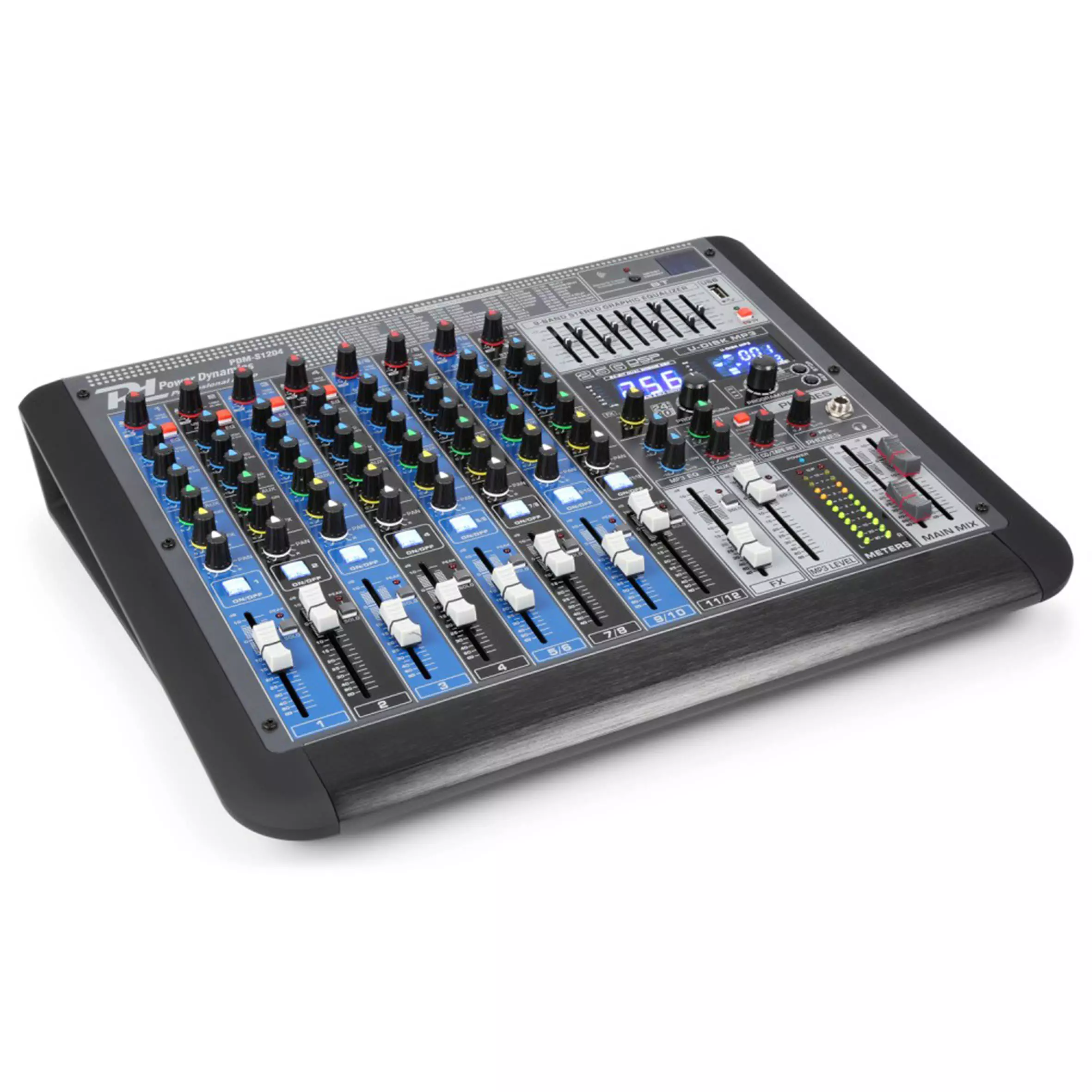

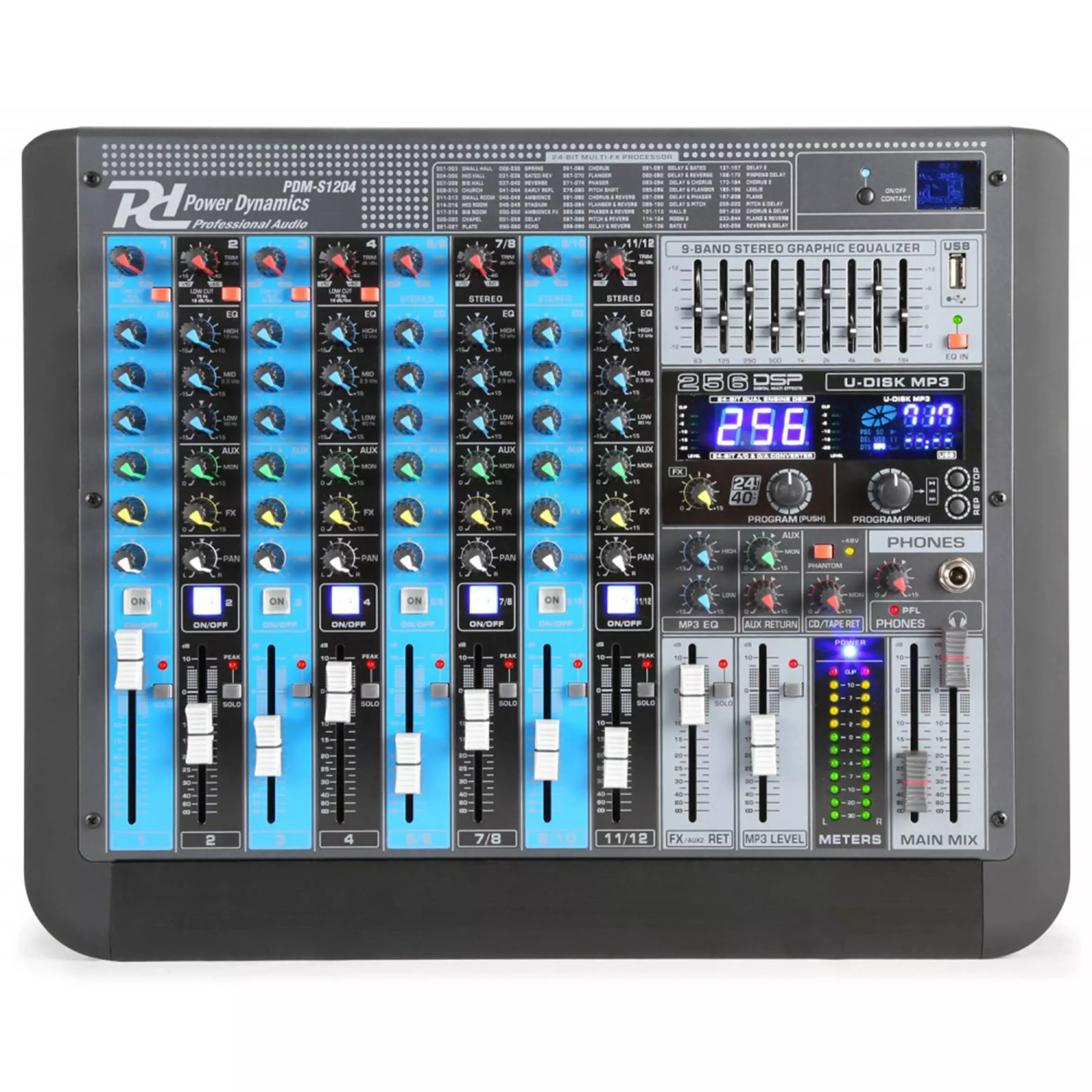

Power Dynamics – Pdm – S1204 Stage Mixer With DSP/BT/USB/MP3

A 12 channel professional mixer with built-in USB player and BT receiver. Perfect for use on live stage setups, houses of worship or other multi-input venues

Features:

• 6 Balanced mono microphone inputs (XLR)
• 4 Balanced mono line inputs (6.3mm Jack)
• 4 Balanced stereo line inputs (6.3mm Jack)
• +48V phantom power
• Stereo line input (RCA)
• 75Hz Low cut filter channel 1-4
• Multi-FX processor with 256 presets

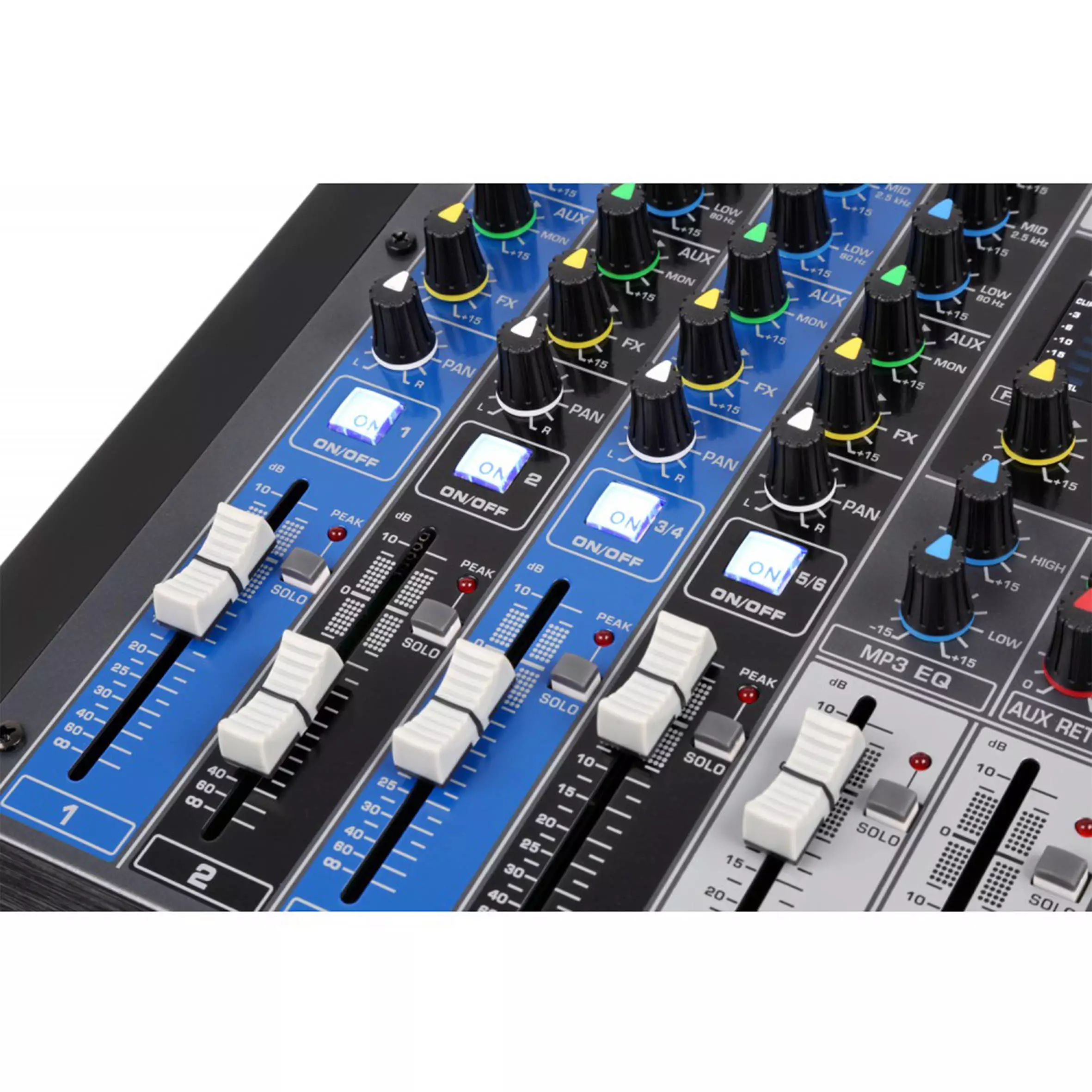

• Solo switch per channel (PFL)
• On/off switch per channel
• Hi, Mid and Low control for each channel
• FX inserts on each channel
• Aux send per channel
• Adjustable Pan per channel
• 9-band Equalizer

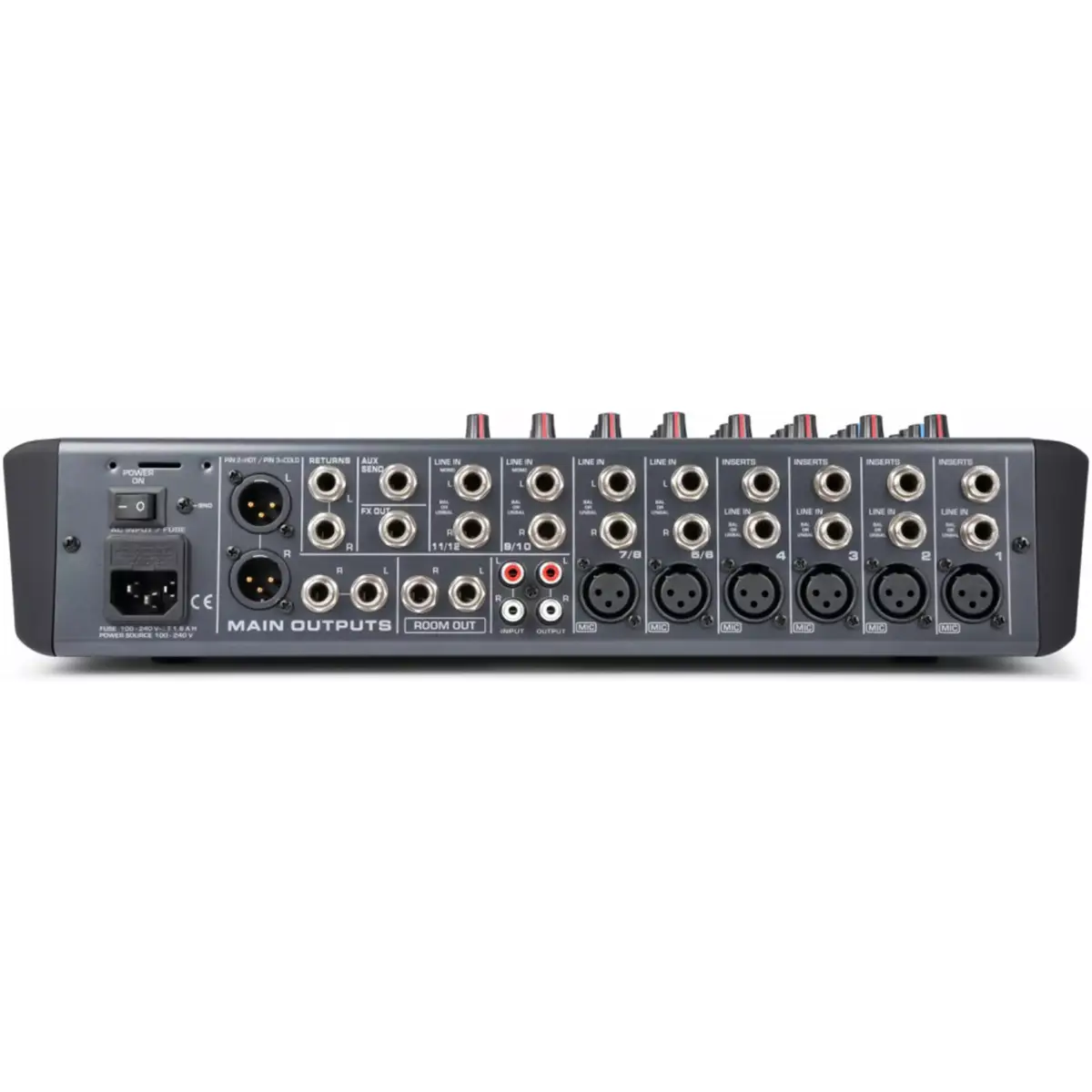

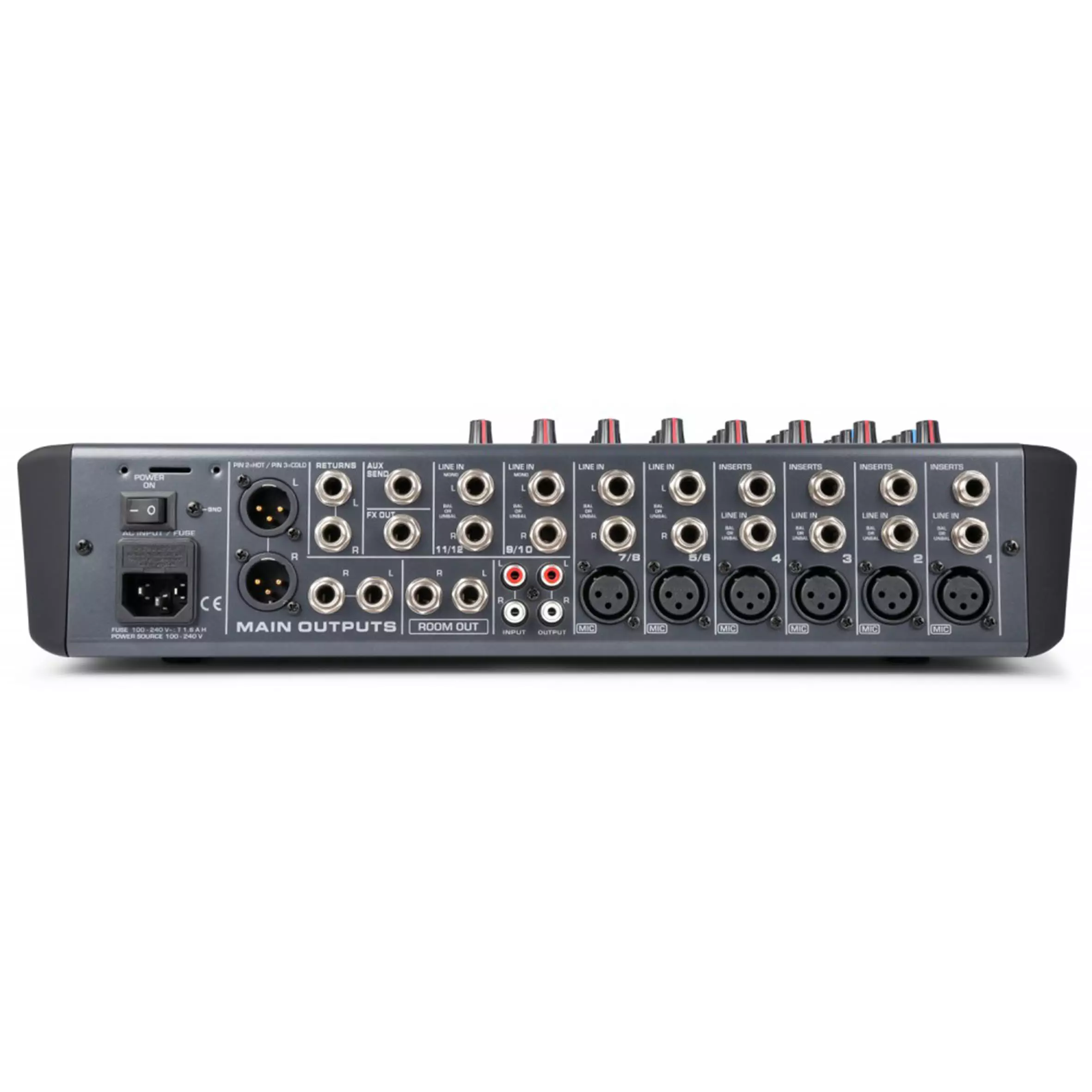

• Stereo balanced main outputs (XLR + 6.3mm Jack)
• Separate control room, headphones and stereo rec outputs

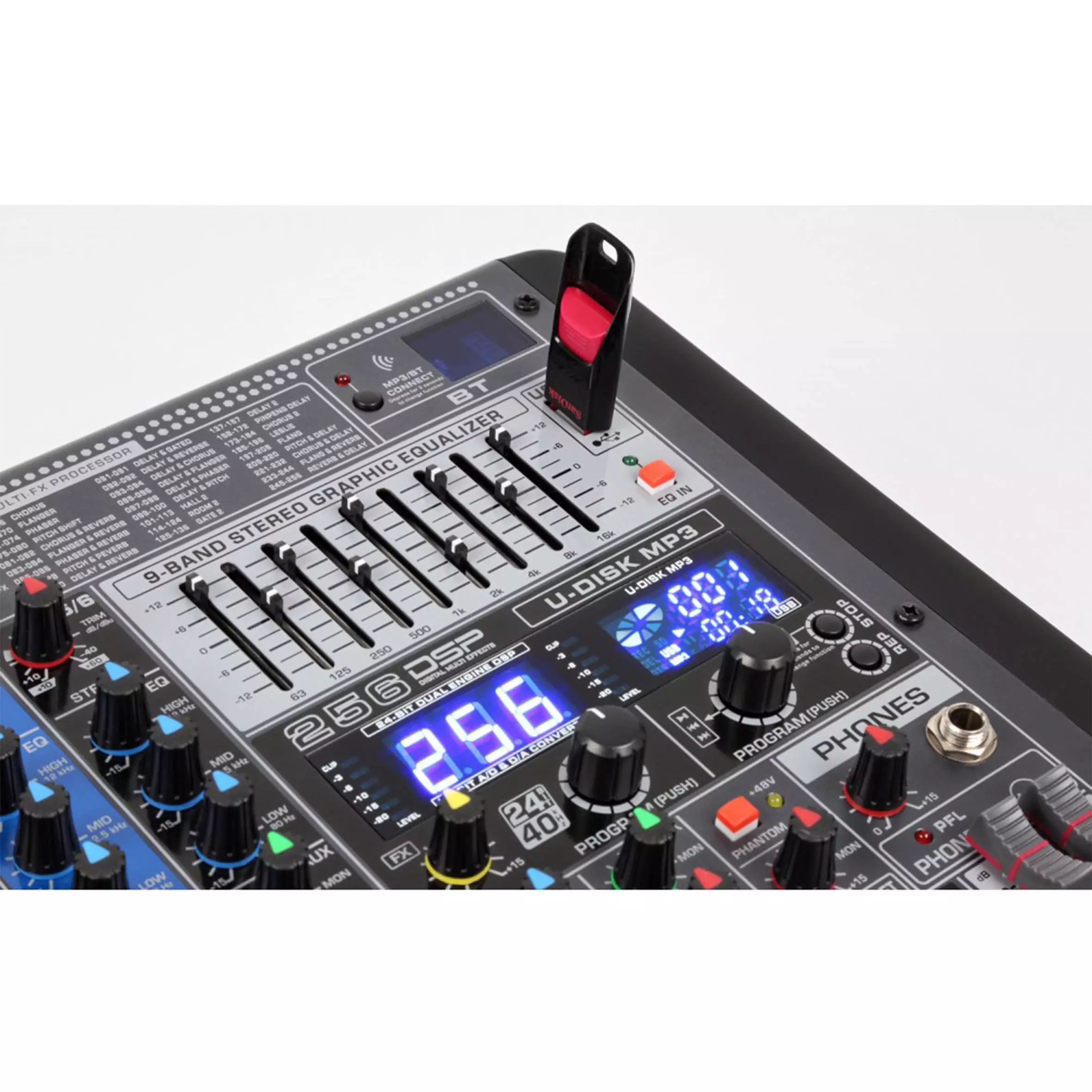

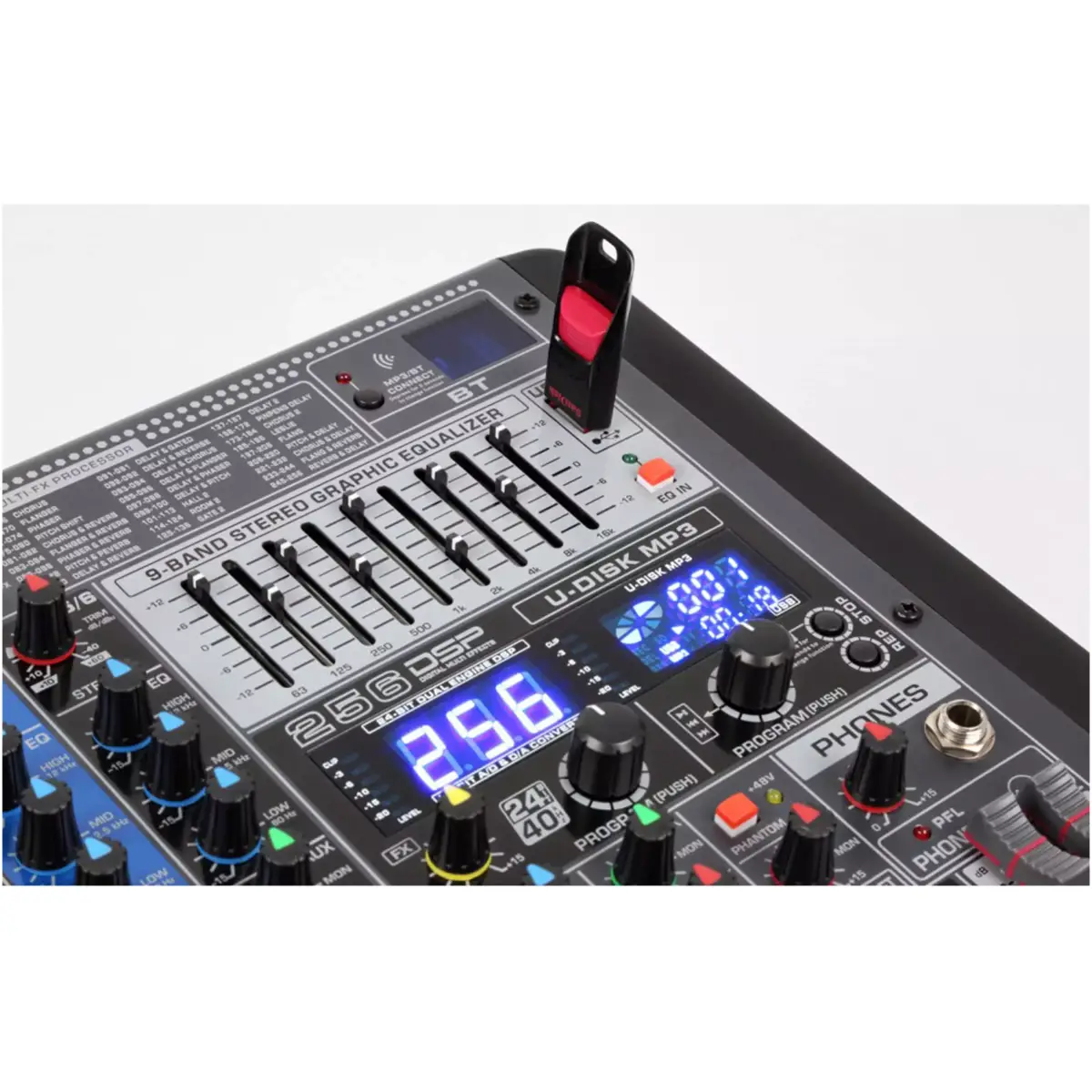

• Built-in USB player with digital display
• BT-receiver for audio streaming

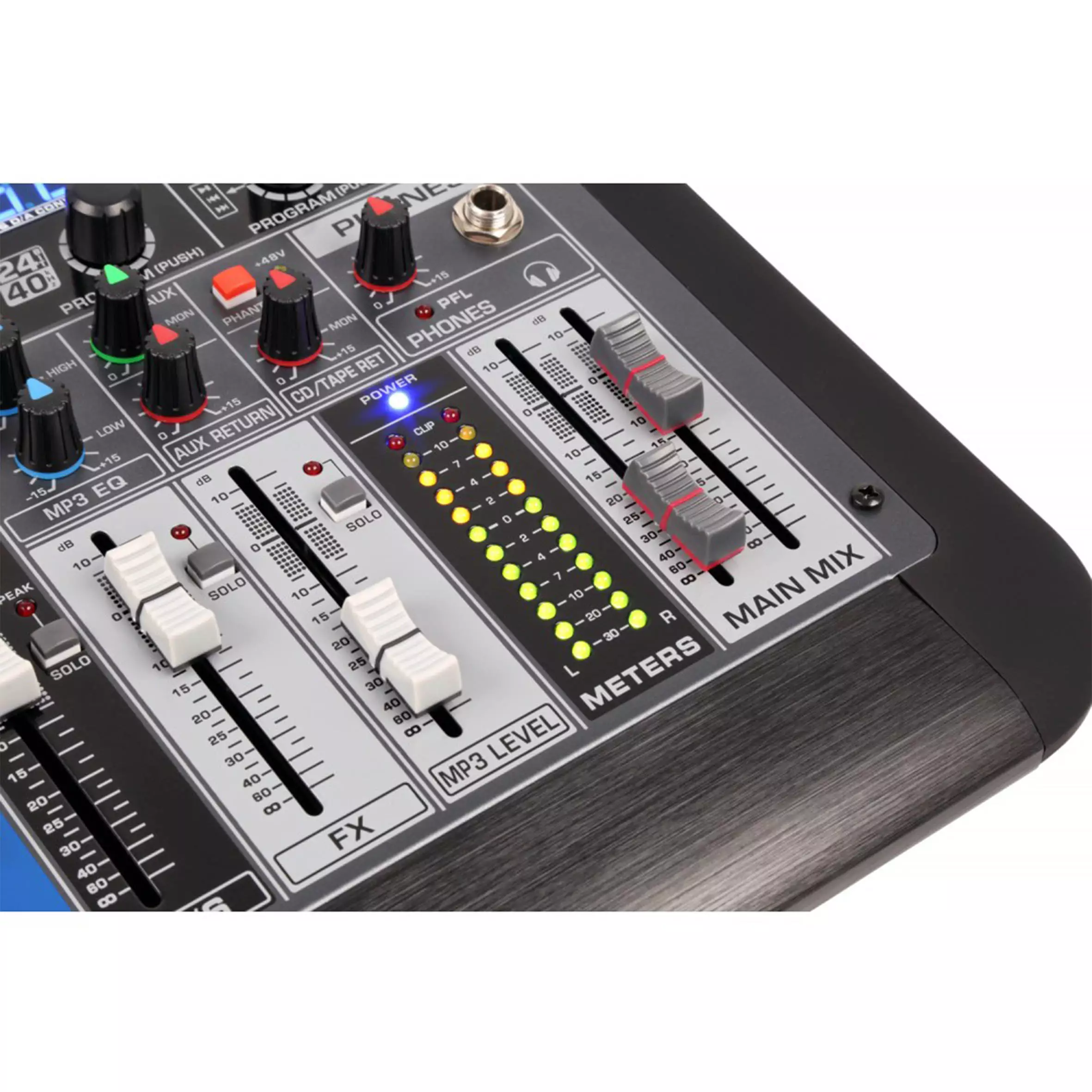

• LED VU meter and Peak LED’s
• Supplied with telephone holder

Specifications:

• Frequency response: 10Hz -45kHz (±3dB)
• THD: <0.01%
• DSP Resolution: 24-bit
• Type of effects: Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay
• Presets: 256
• Signal to noise ratio: >112dB
• Output level: +/- 1V
• Input: Line +/- 150mV
• Input: Mic +/- 1.5mV
• Power supply: 100-240VAC / 50-60Hz
• Dimensions: 335 x 410 x 95mm
• Weight: 4.3kg
