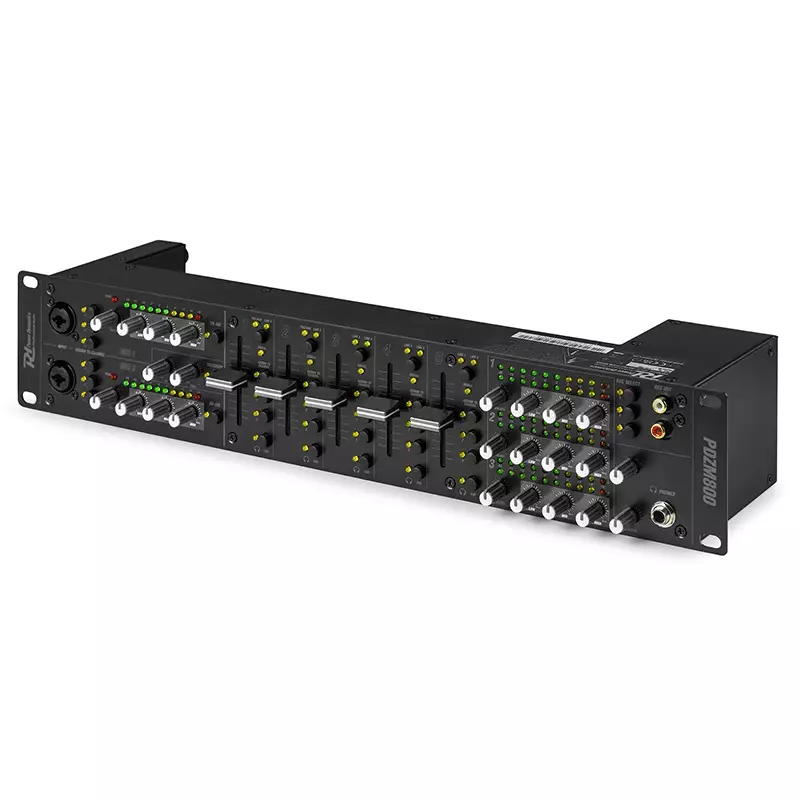

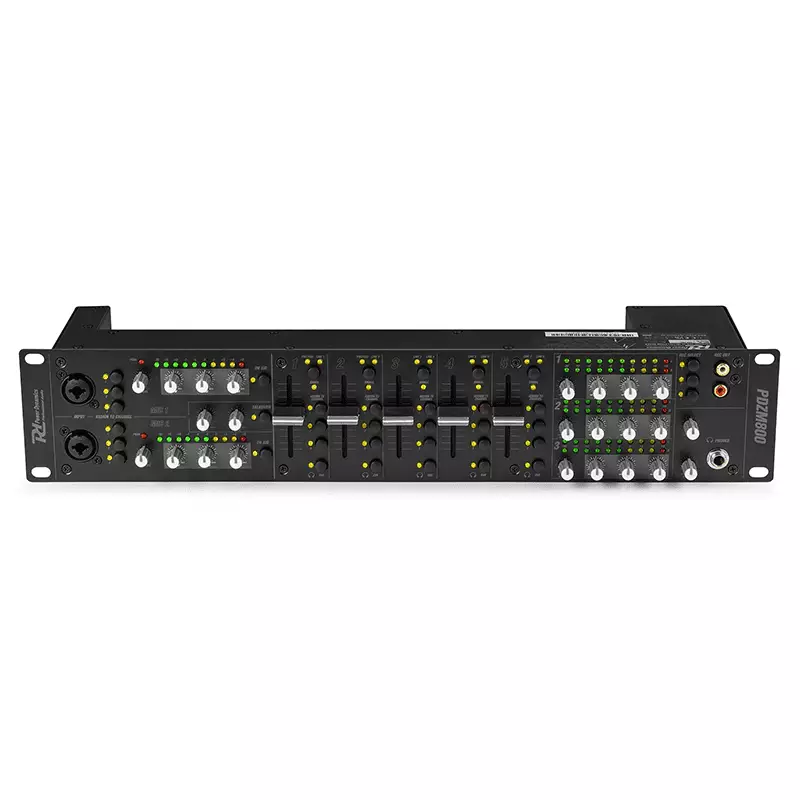

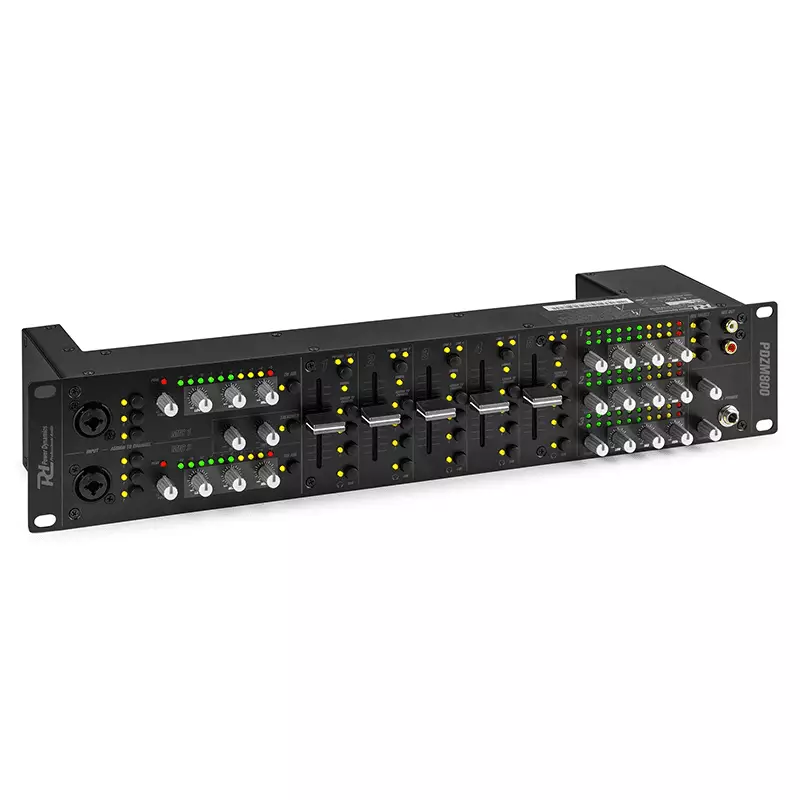

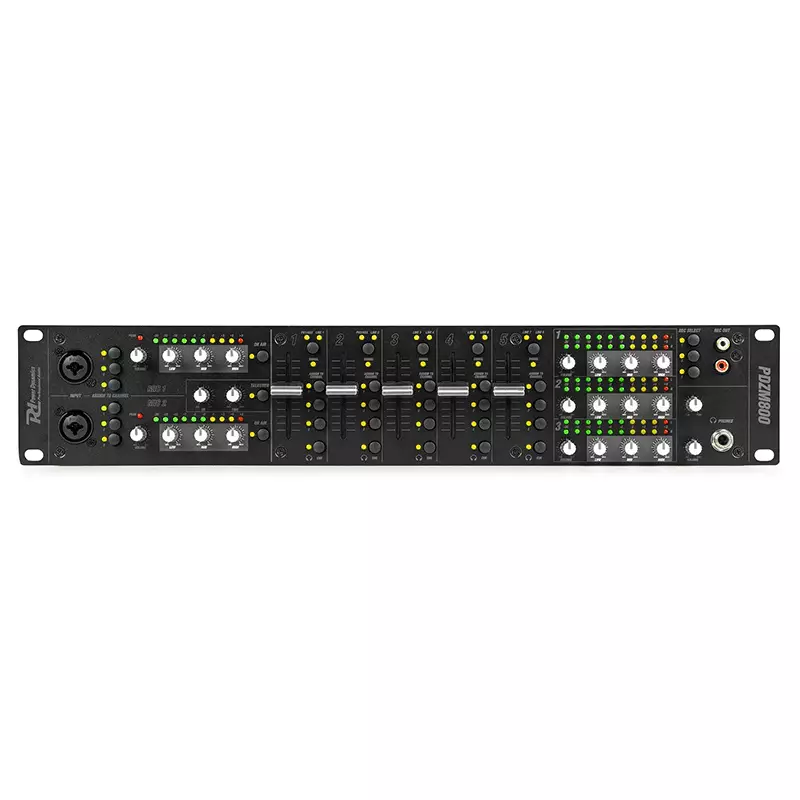

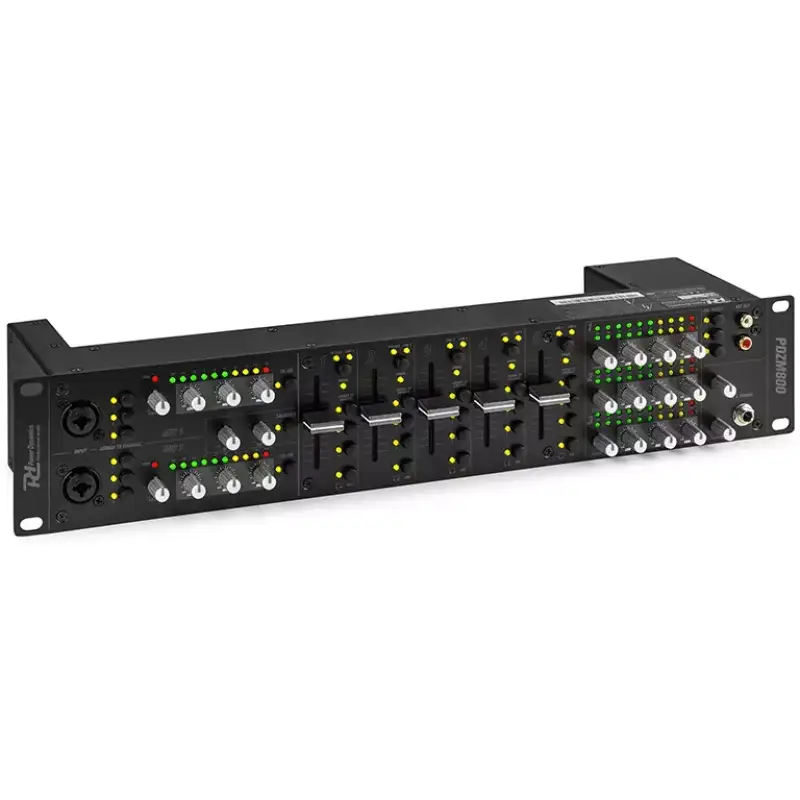

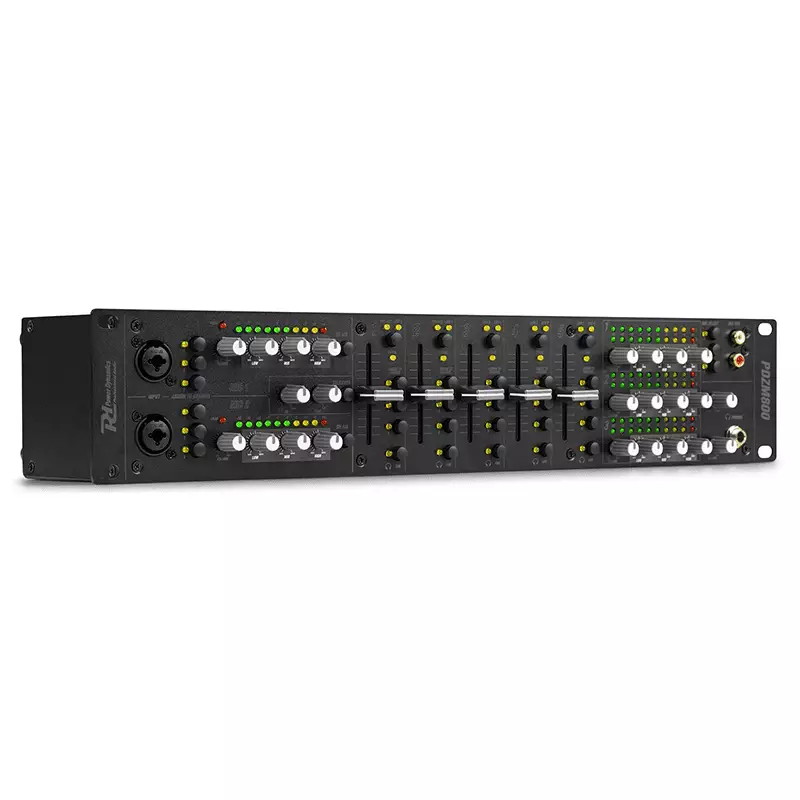

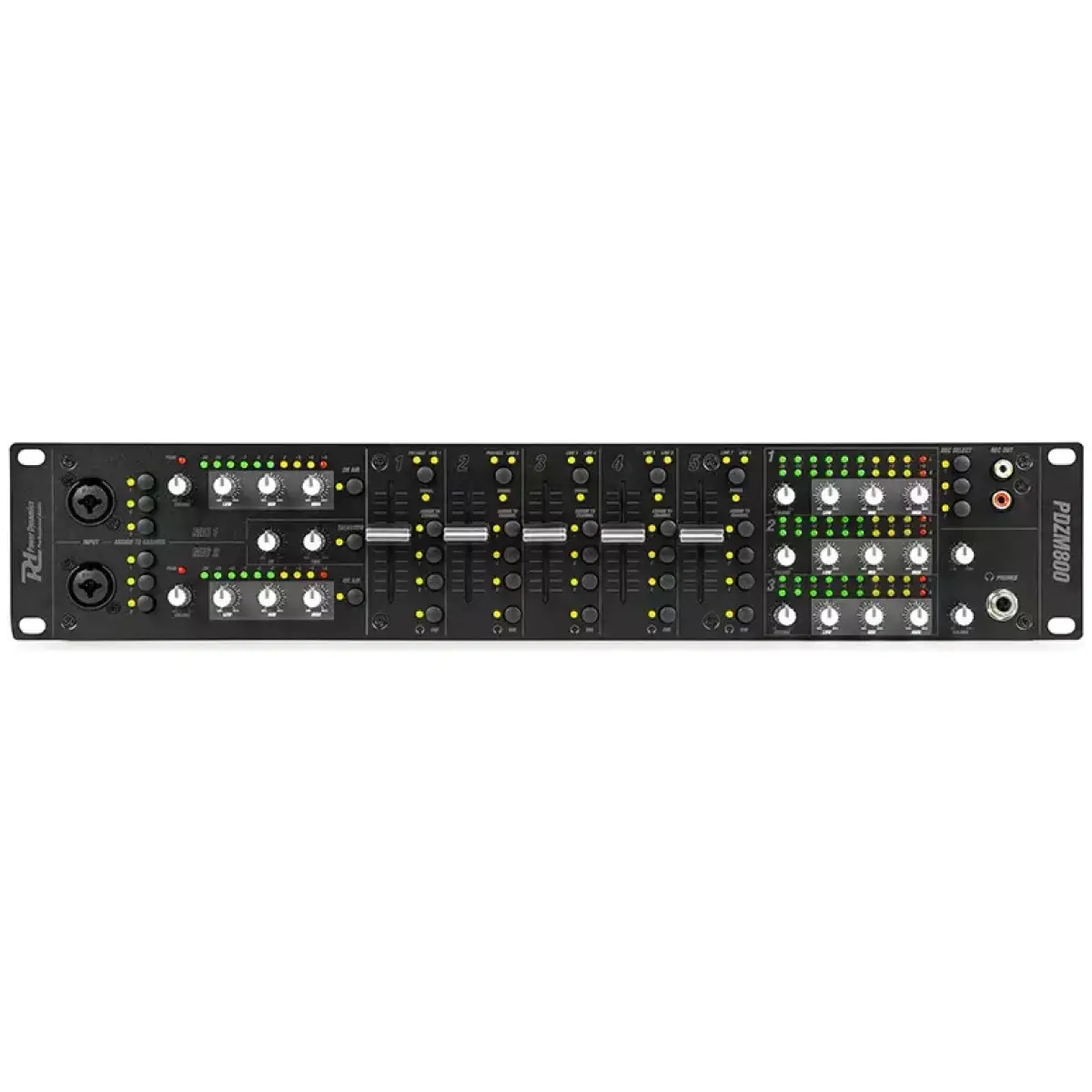

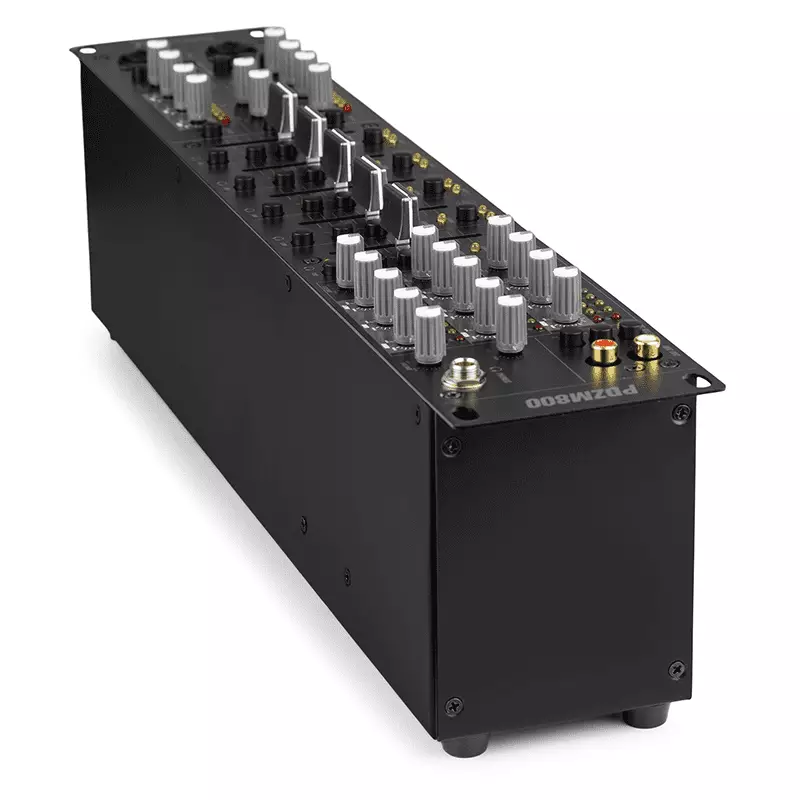

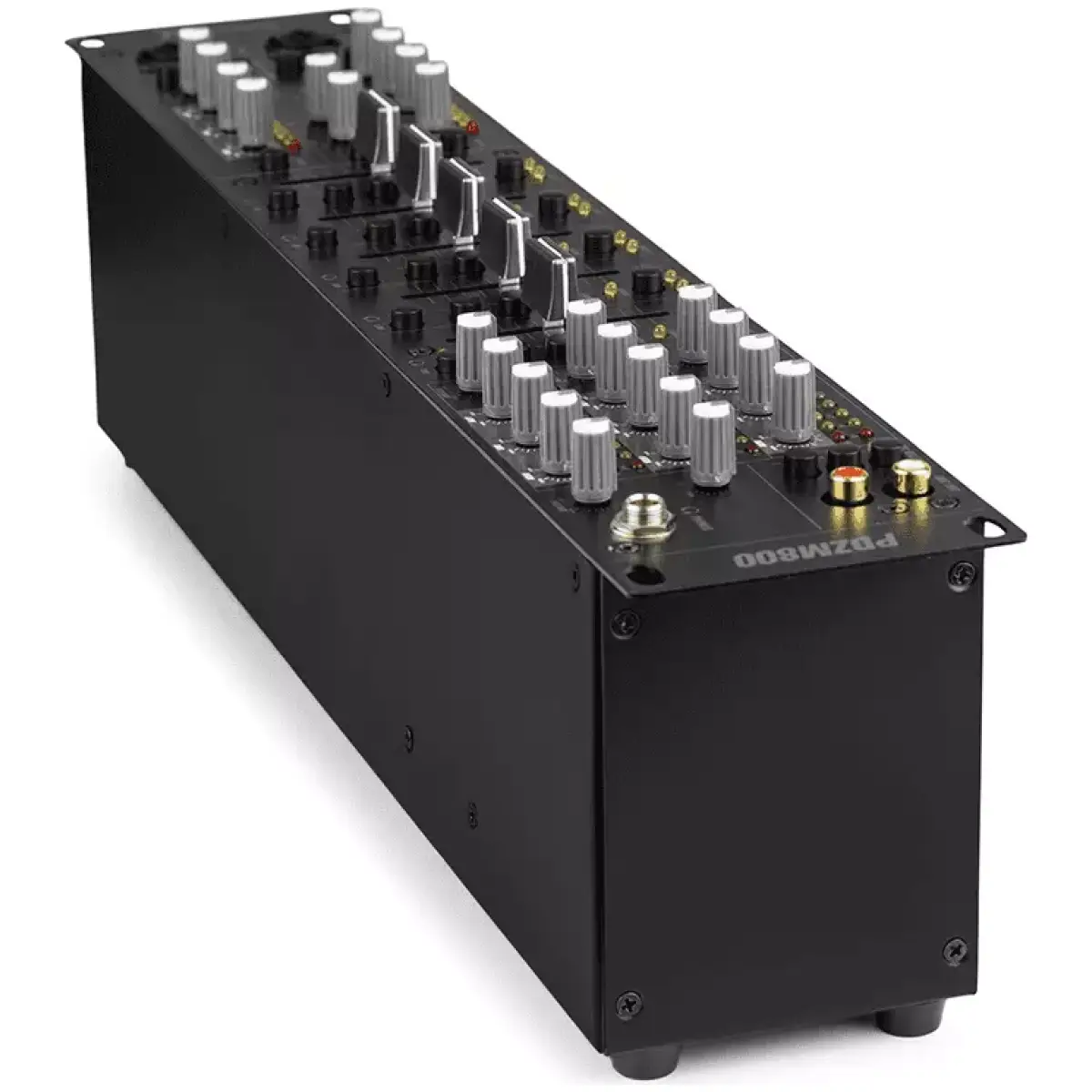

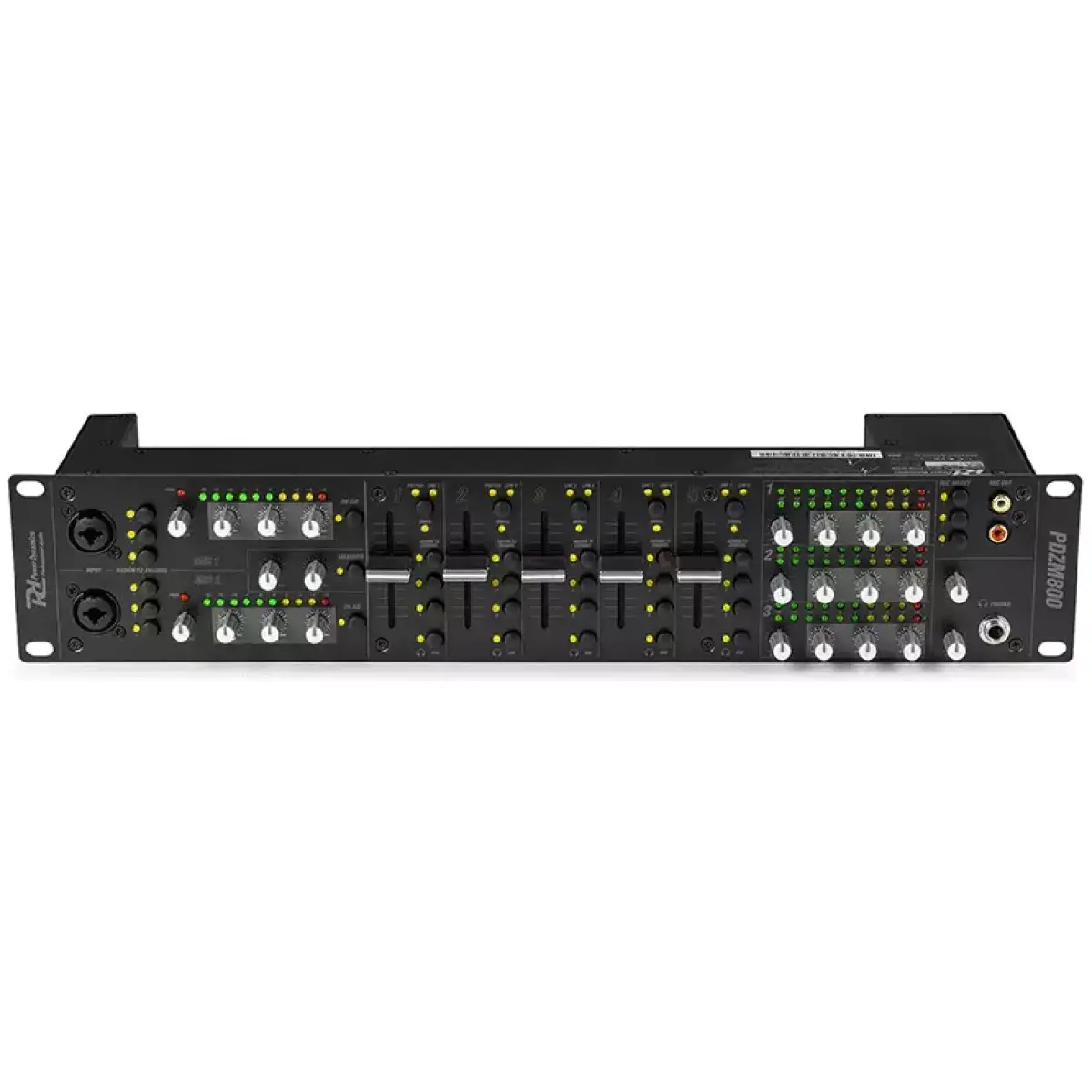

POWER DYNAMICS PDZM800 MIXER 7 – Ch Matrix

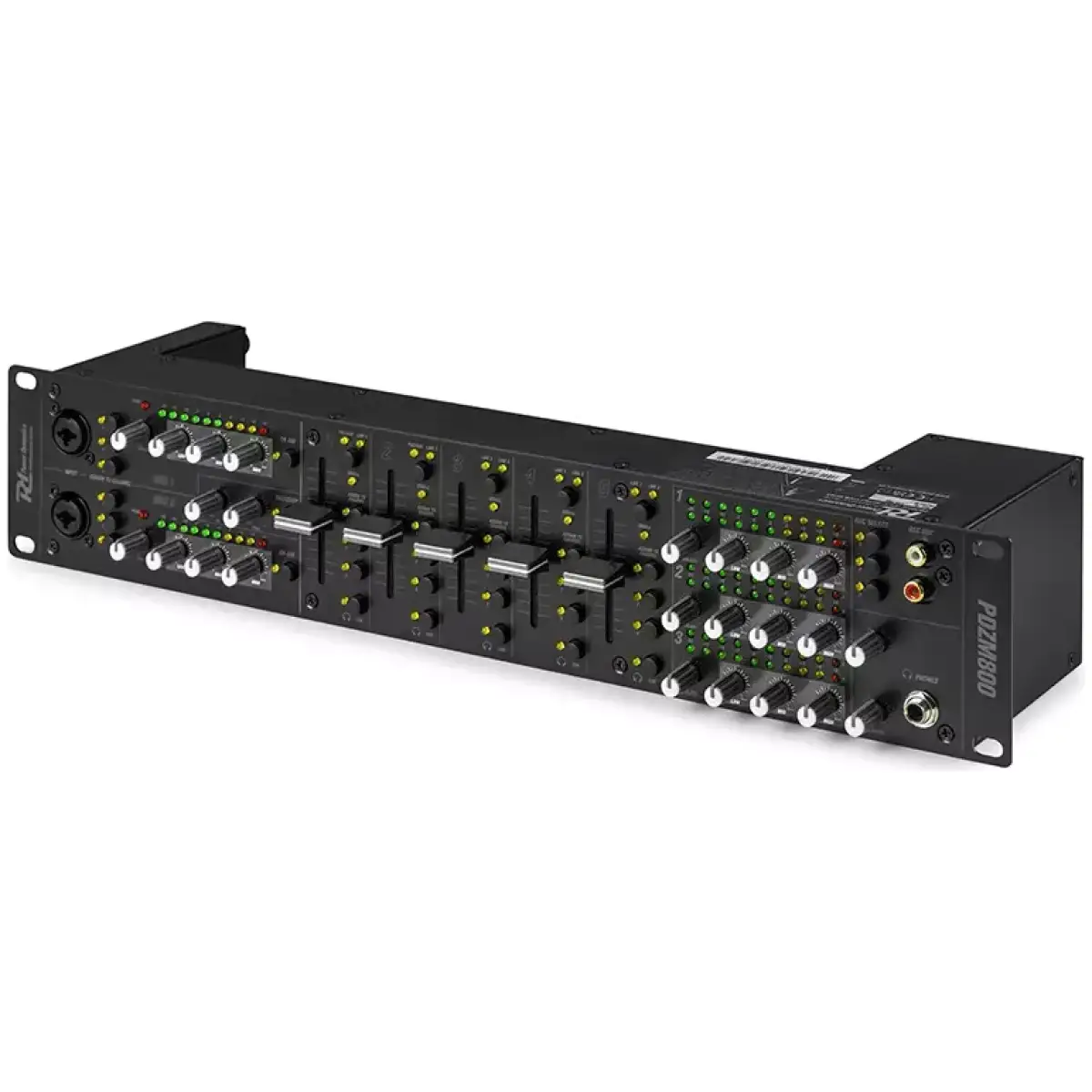

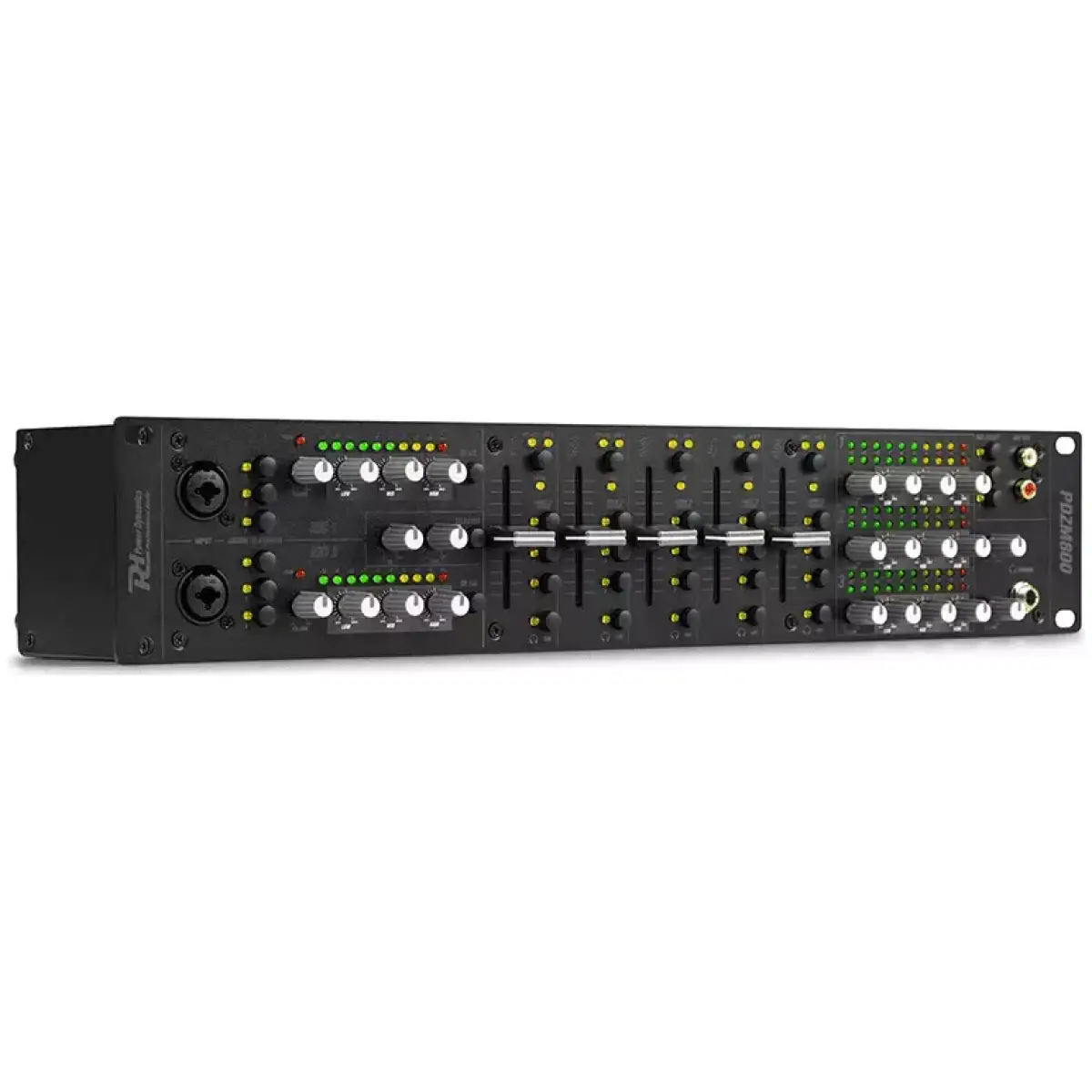

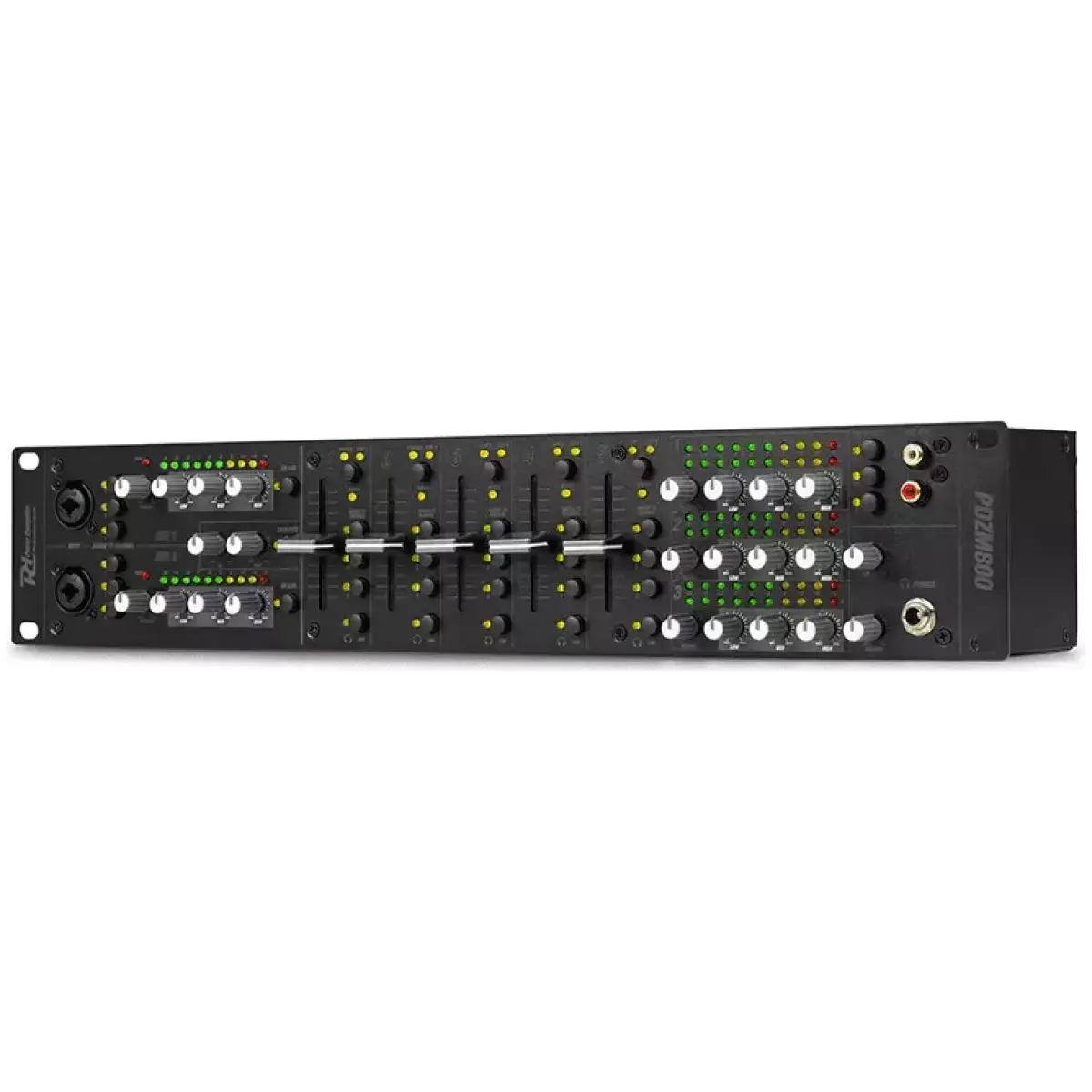

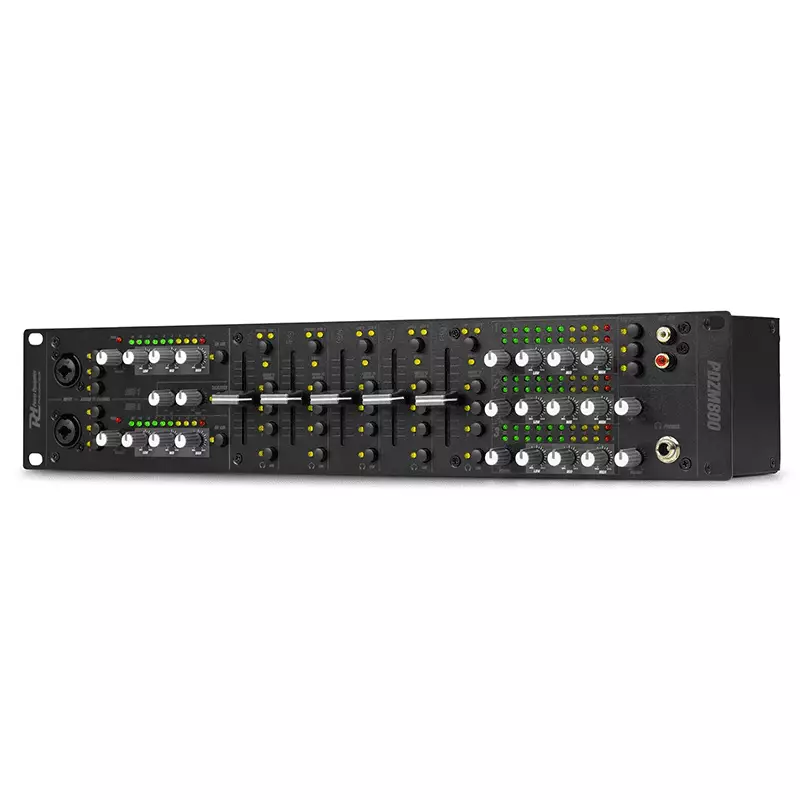

The PDZM800 Installation Mixer offers exceptional versatility for audio management. With 3 different output channels, this mixer allows for customized audio mixes in various locations. Boasting 10 line inputs that can be assigned to specific outputs, each channel can have its unique mix and volume settings. The front-panel features include two XLR combo connectors for microphone input and the RCA input on the right side accommodates turntables and MP3 players, with an adjustable impedance switch. Designed for applications such as party centers, pubs, restaurants, and conference venues.

Features:

• Multifunctional 5+2-channel mixer with 3 zones
• 5 Input channels with recessed gain control
• 2 Microphone inputs via combo jacks (XLR/6.3 mm)
• Routing option per input
• Talkover level and adjustable response time
• Pre-fader listening (CUE) to the stereo input channels
• 2 Record outputs (independent of the master channels)

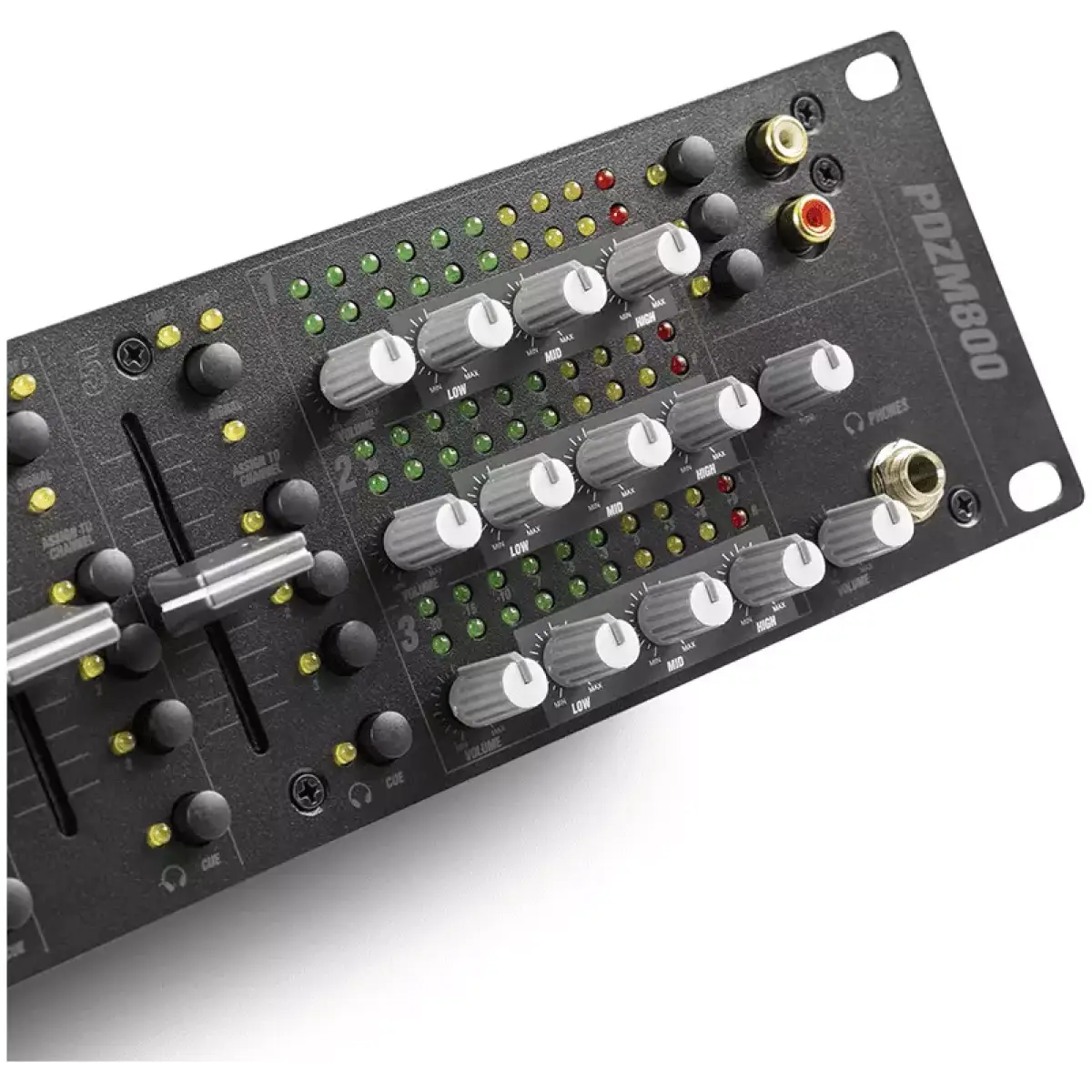

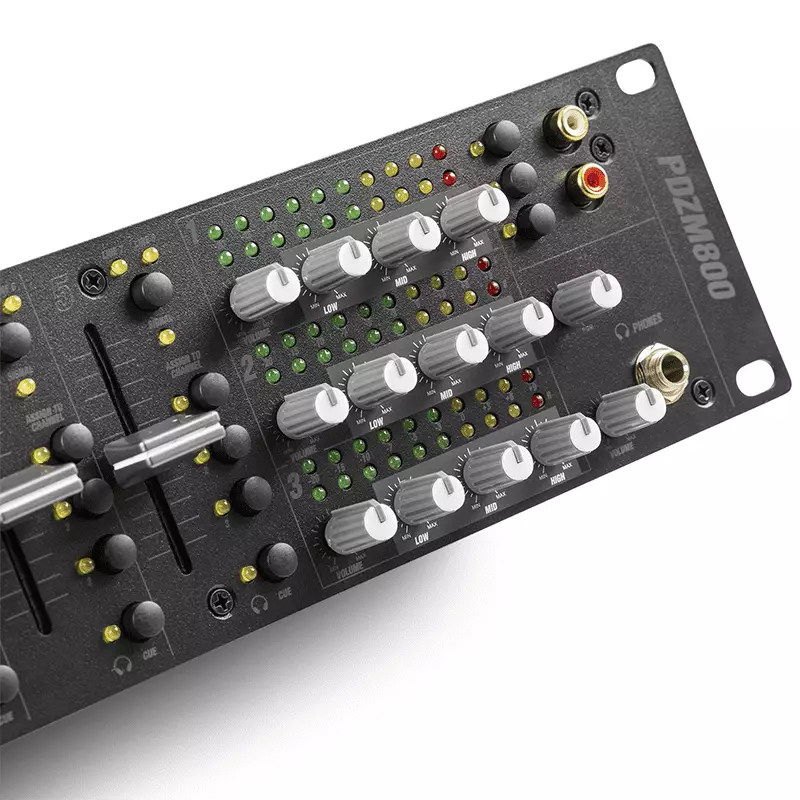

• LED VU meters and tone controls per output
• 8 Line inputs and 2 line/phono inputs via RCA jacks
• Headphone jack

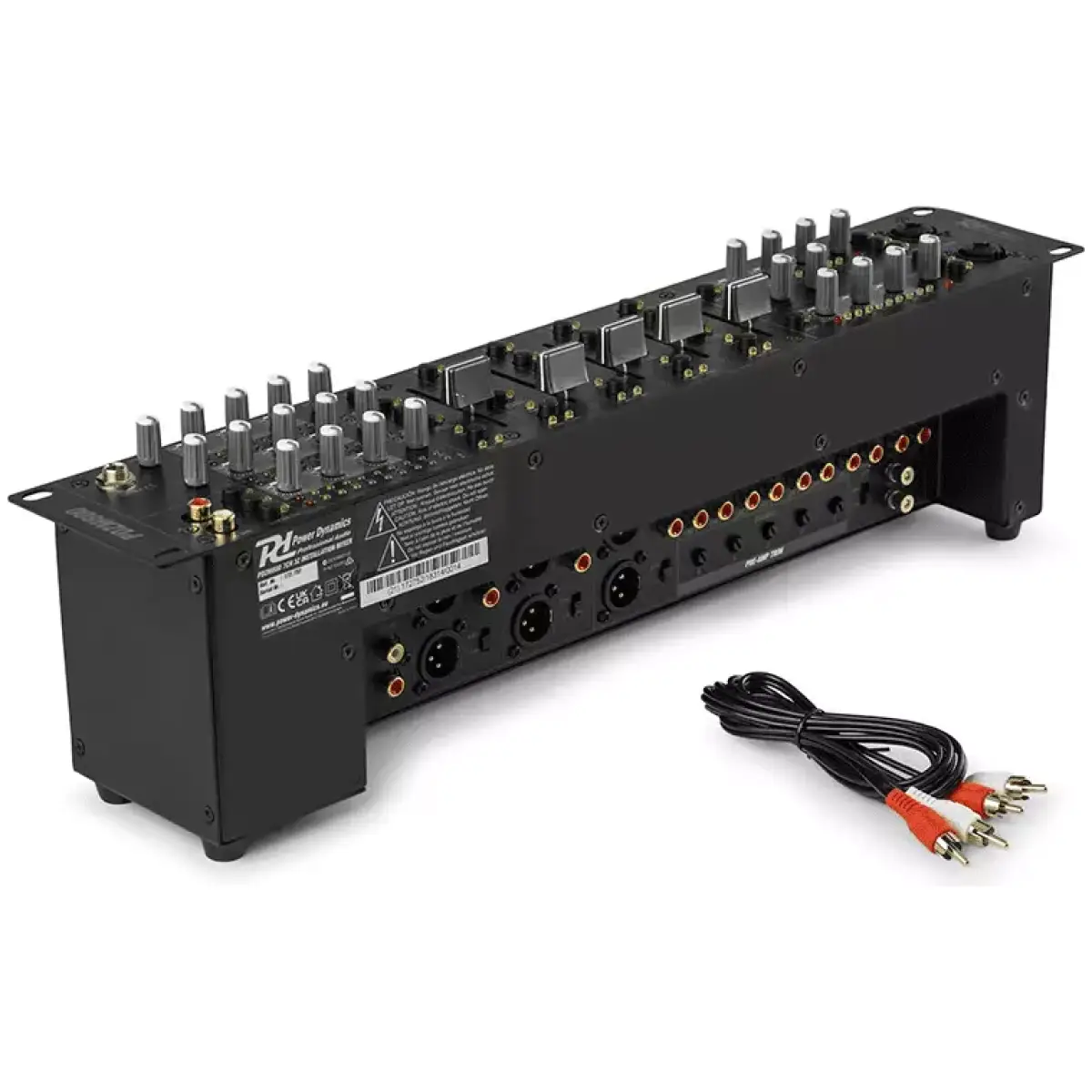

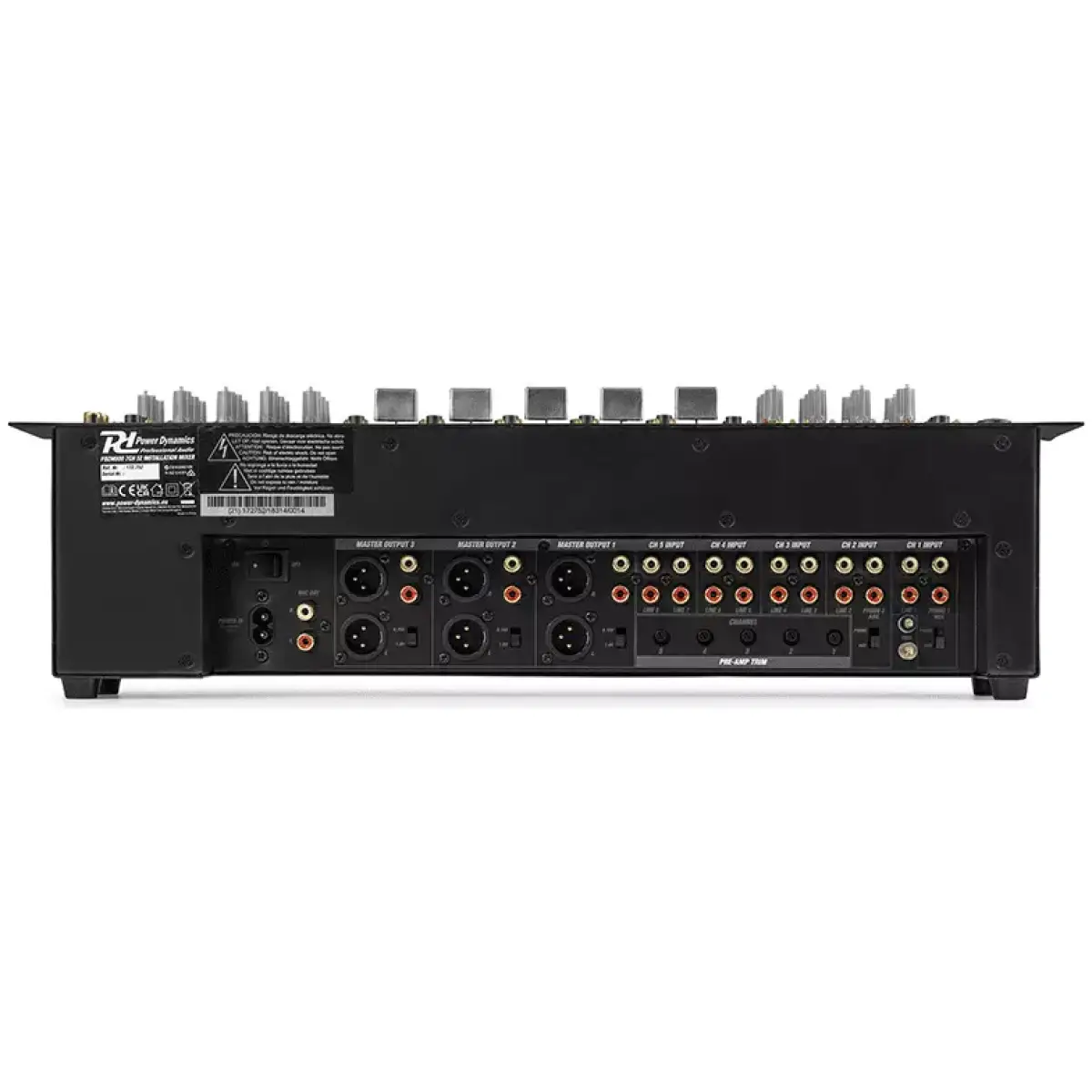

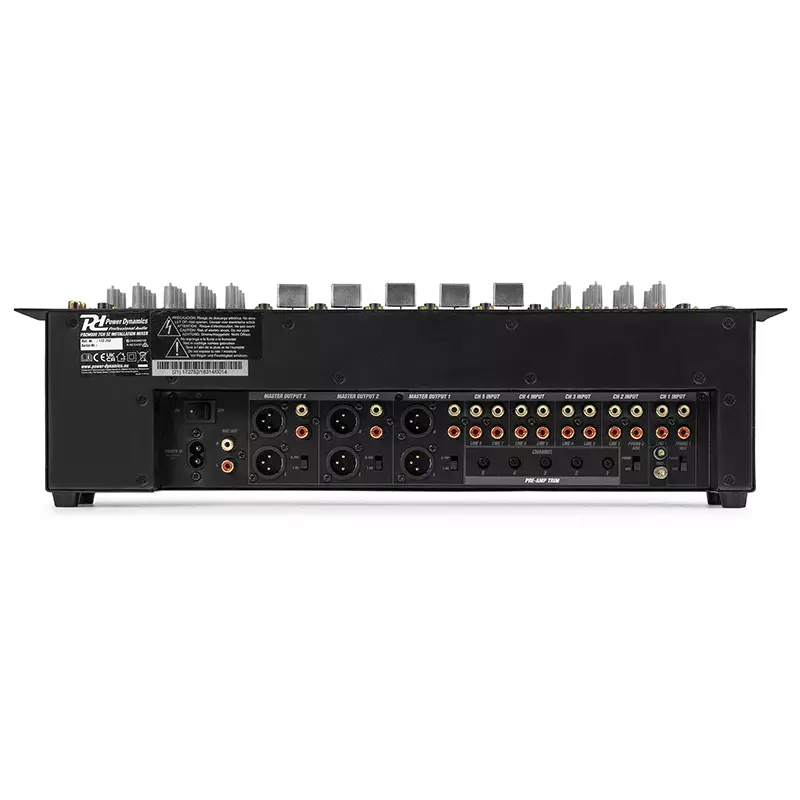

• Settings on the back cannot be changed by unauthorized personnel
• 19” Rack installation (2 U)

Specifications:

• Frequency response: 20Hz – 20.000Hz
• THD: <0,02%
• Signal-to-noise ratio: >60dB
• Input connections: 6.3mm Jack, RCA, XLR (3-pin)
• Output connections: 6.3mm Jack, RCA, XLR (3-pin)
• Output channels: 3
• Power supply: 100-240VAC 50/60Hz
• 19 Inch: Yes
• Dimensions (L x W x H): 145 x 484 x 90mm
• Weight (kg): 3
