Procab PMX422 Dmx-aes Cable – Flex 2 (moq 2 Units)s 0.34 Sq. Mm – 22 Awg – Highflex 300 Meter, Dark Grey

Name: Procab PMX422 Dmx-aes Cable - Flex 2 (moq 2 Units)s 0.34 Sq. Mm - 22 Awg - Highflex 300 Meter, Dark Grey - A1 Sound
Brand: Procab
Price: 24320.00 ZAR
Availability: OutOfStock

Brand: Procab

R24 320,00

Out of stock

Compare

19 People watching this product now!

Description

Procab Dmx-aes Cable – Flex 2 (moq 2 Units)s 0.34 Sq. Mm – 22 Awg – Highflex 300 Meter, Dark Grey

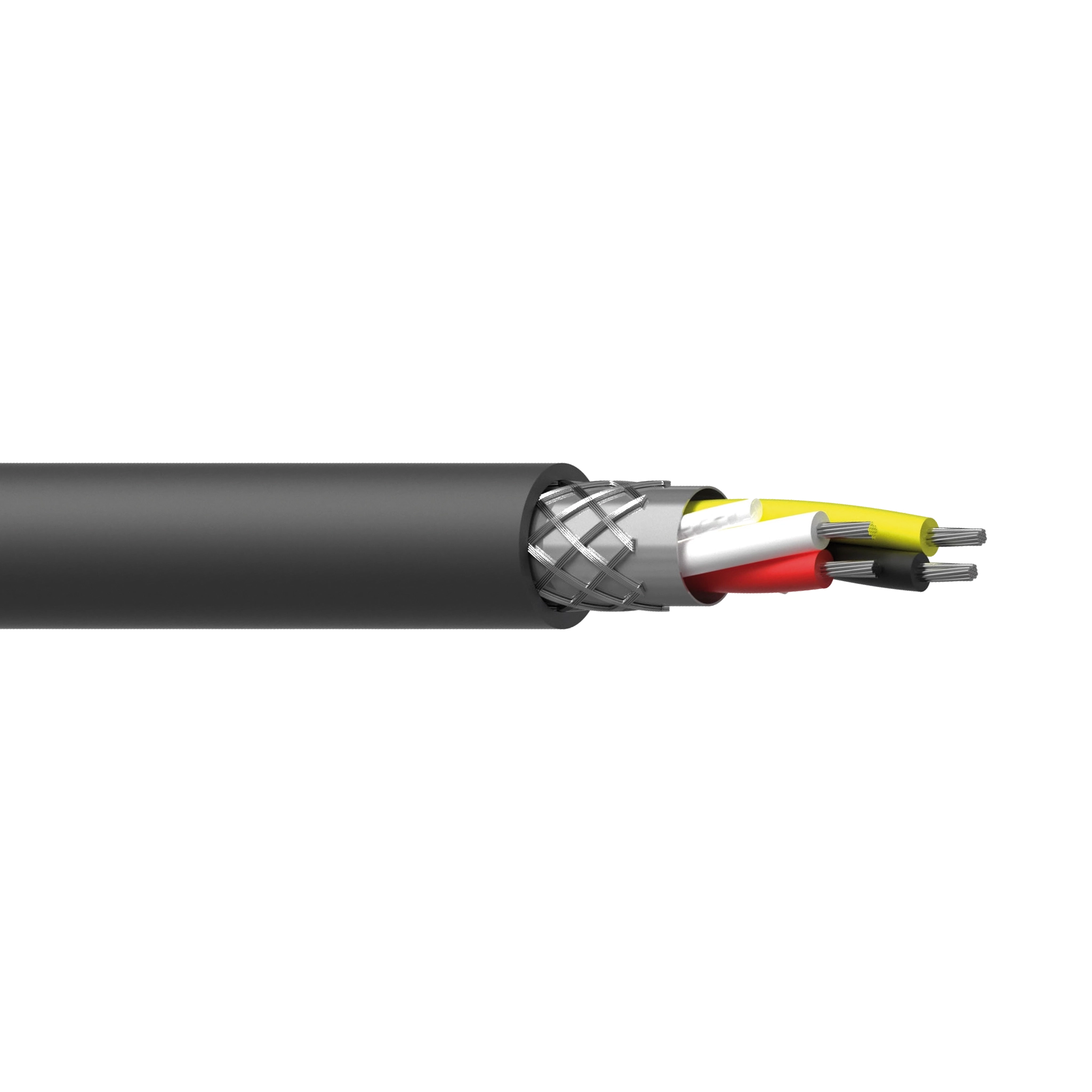

The PMX422 is a 110 Ohm DMX-AES cable which is especially developed for professional use in highly demanding applications. It’s 22 AWG (0.34 mm²) tinned copper conductors surrounded by an Aluminum foil and high coverage tinned copper braiding provide a double layered shielding. This ensures an optimal signal transmission with high immunity against noise and interference caused by external devices. The combination of stranded conductors and the smooth flexible PVC outer jacket provides a great flexibility with a solid feel. The dark grey outer jacket further improves the ease of use by making it easy to distinguish these 110 Ohm cables from standard microphone cables while remaining discrete in installations.

Specifications

Product features

Application	Rental & MI
Series	Bulk & Accessories

Physical characteristics

Inner conductor	Insulation	Colours	Black / White / Red / Yellow
Overall shielding	Aluminium foil		Al-mylar, 100% coverage – 25% Overlap
	Braiding		TC 16 x 8 x 0.1 mm (Ø) (OFC)
Outer jacket	Material		Highflex PVC 6.8 mm (Ø)
	Colours		Dark grey
Type of cable			110 Ω DMX-AES cable
Inner conductor	Material		TC 17 x 0.16 mm (Ø) (OFC)
	Section		0.342 mm²
Filling			Cotton Yarn
Inner conductor	American Wire Gauge		22 AWG
	Number of conductors		4

Mechanical characteristics

Temperature range	Fixed installation	– 40 °C till + 80 °C
	Mobile installation	– 25 °C till + 70 °C
Bending radius	Fixed installation	6 x outer diameter
	Mobile installation	8 x outer diameter
