Qtx – Ha – 40 Headphone Amplifier

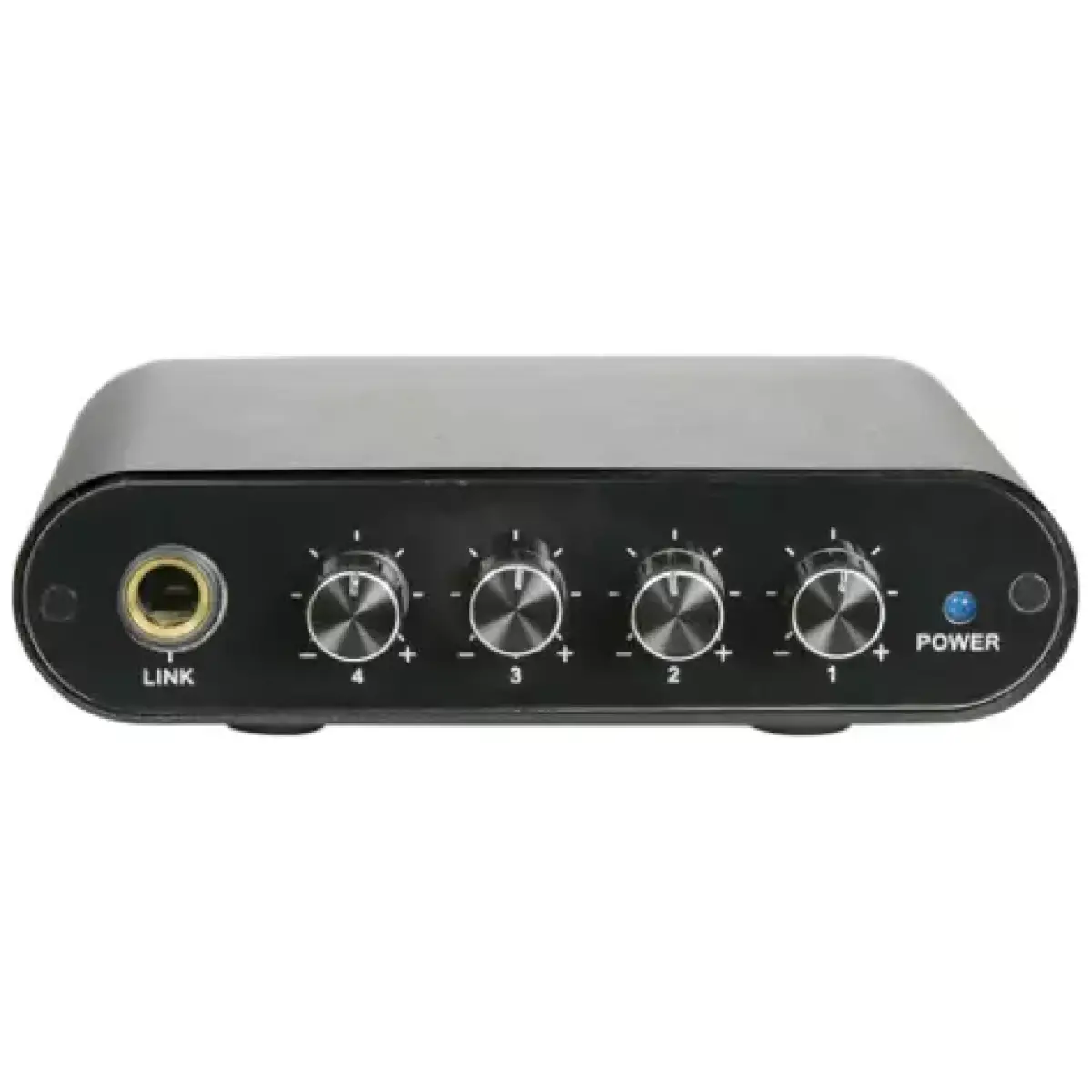

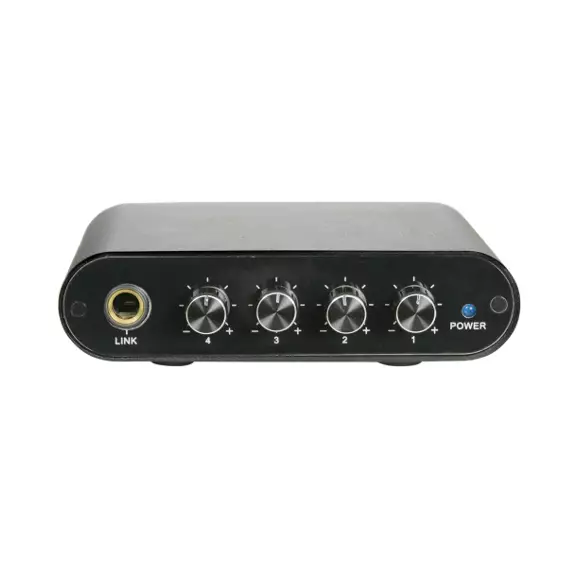

Compact headphone distribution amplifier with stereo input and individual volume control for up to 4 stereo headsets.

Features:

• Headphone or line level input
• Supplied with 12Vdc power adaptor
• LED power indicator
• Input/Outputs via 6.3mm stereo jacks

Specifications:

• Power supply: 12 – 16Vdc, 200mA (mains adaptor supplied)

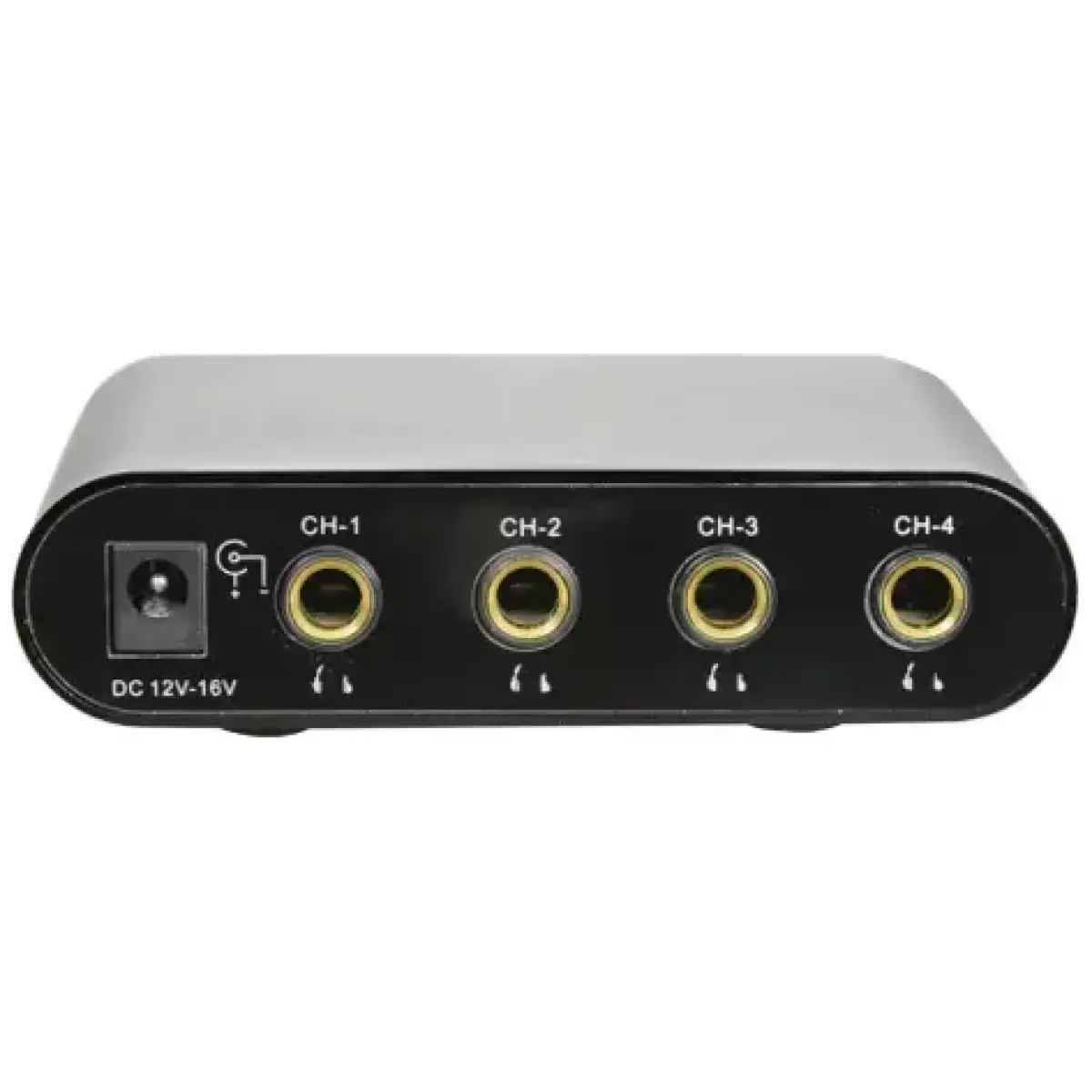

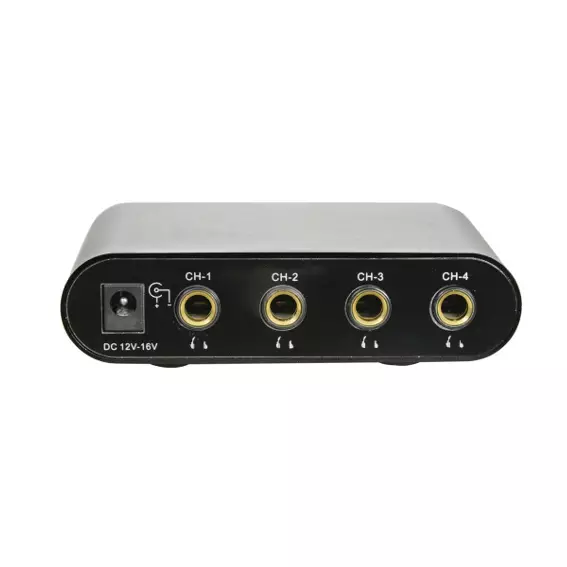

• Outputs: 4 x stereo TRS 6.3mm jack
• Input: 1 x stereo TRS 6.3mm jack
• Dimensions: 107 x 83 x 30mm
• Weight: 194g
• Input impedance: 1k Ohm (unbalanced)
• Output impedance: 10k Ohm per channel (max.)
• Max. output: 22dB per channel
• S/N ratio: >98dB
• THD: <0.007%
