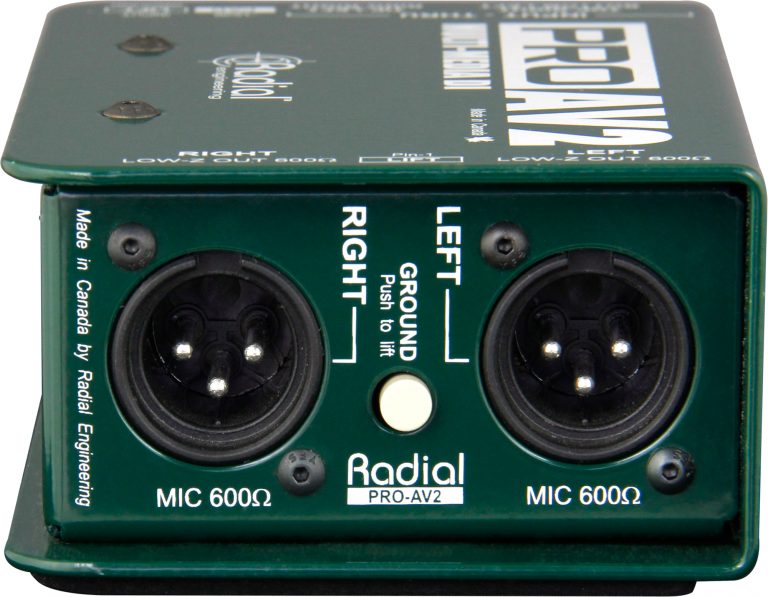

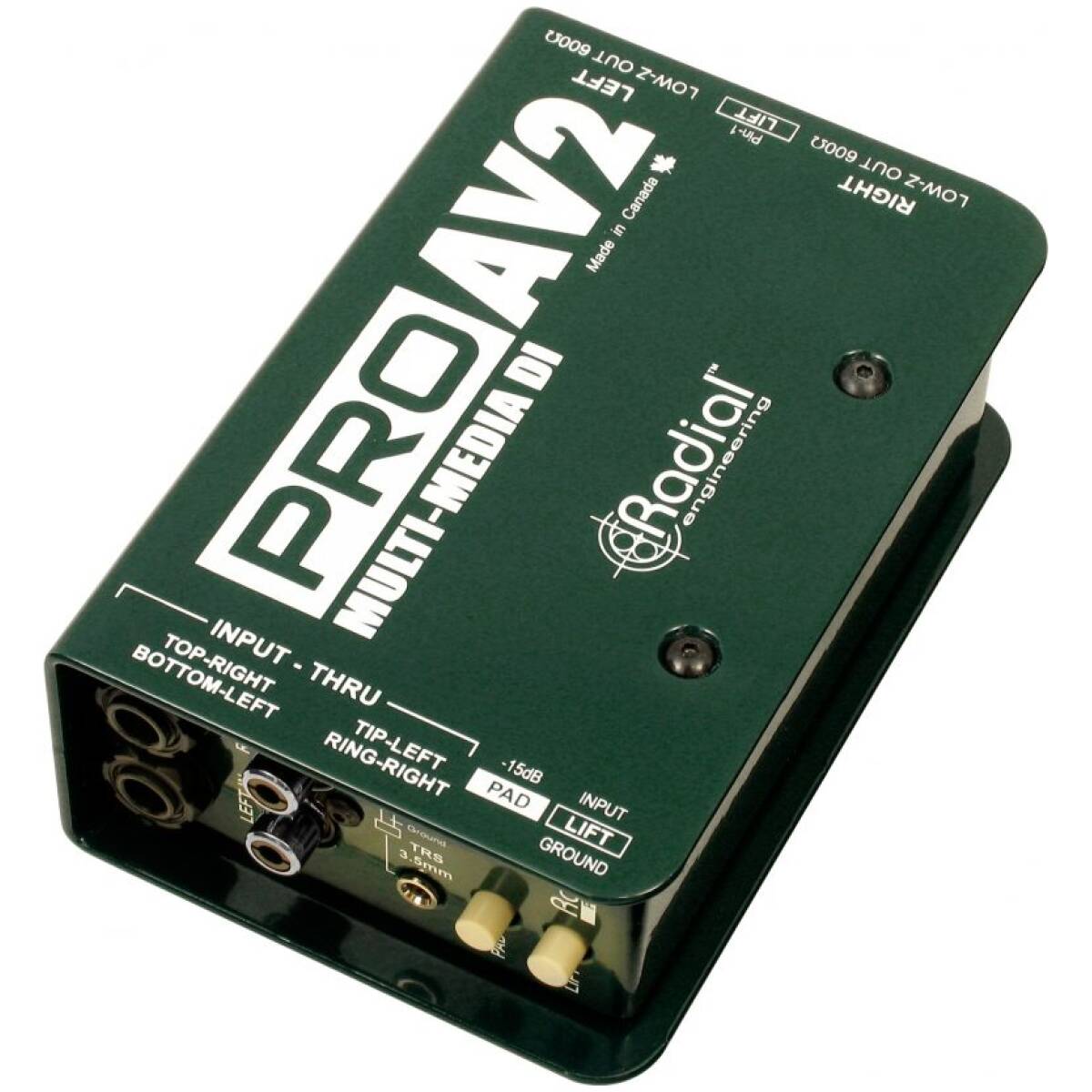

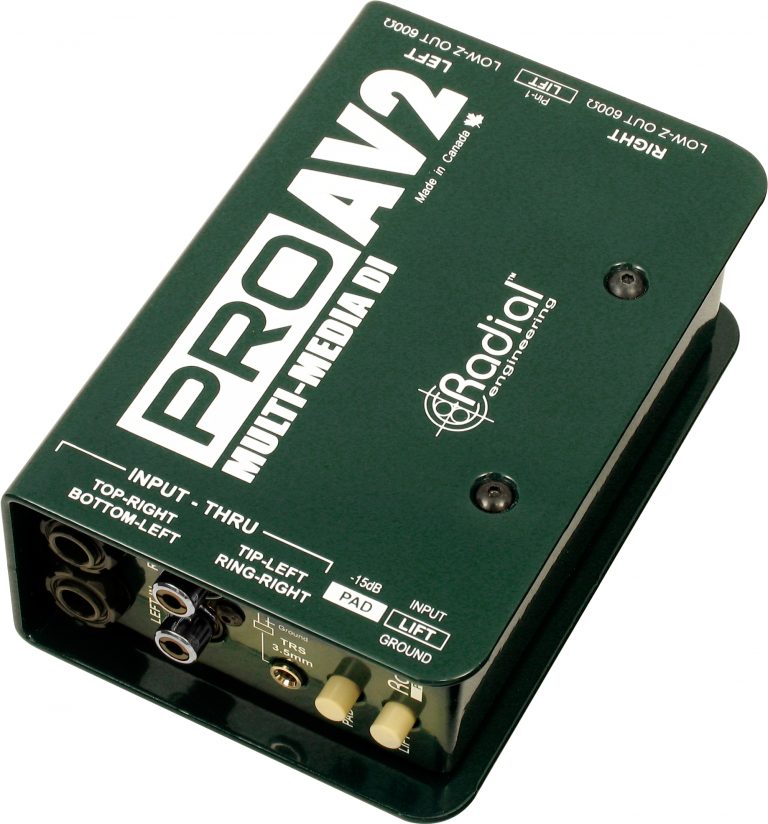

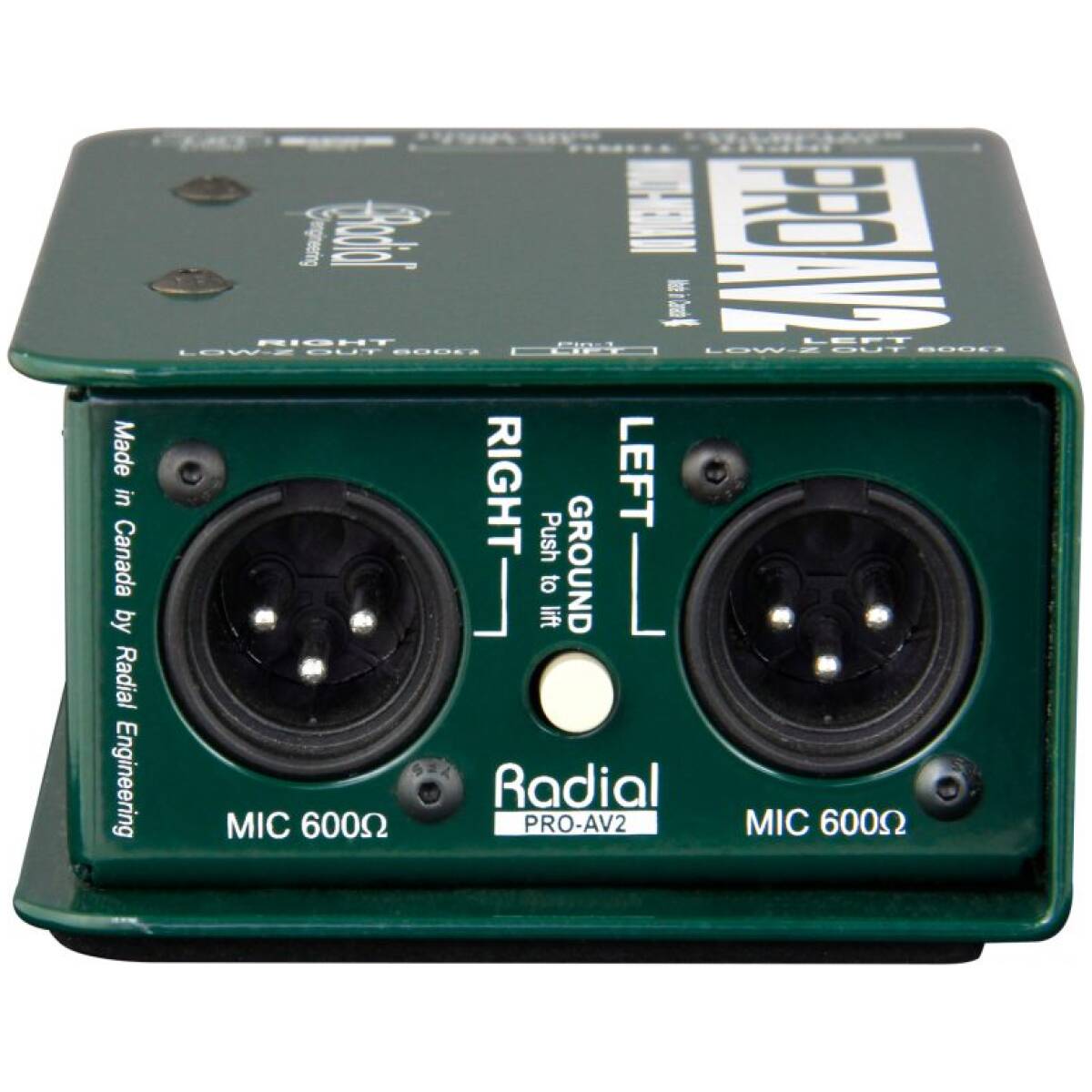

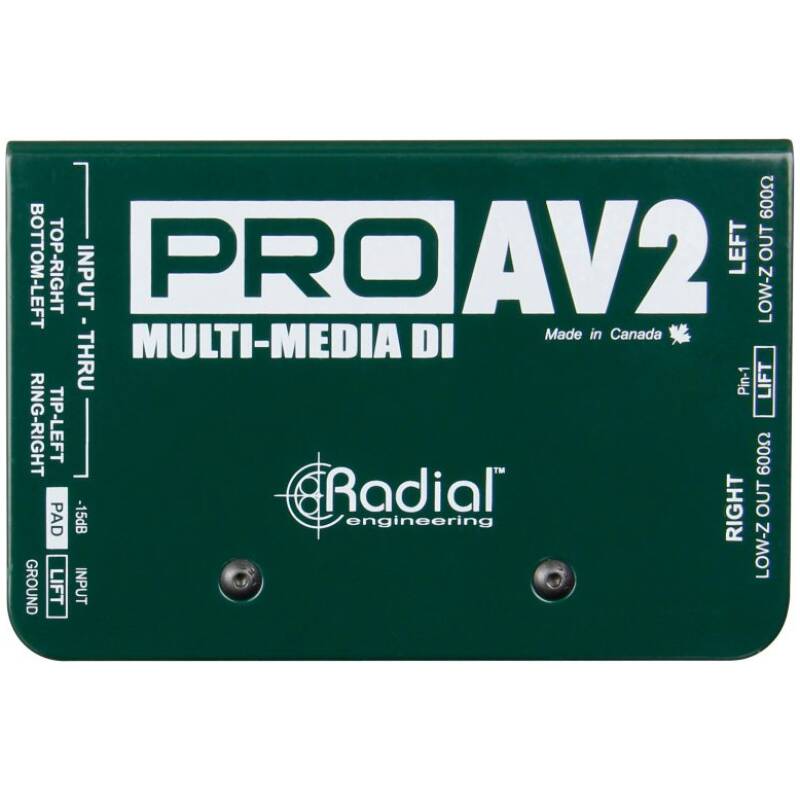

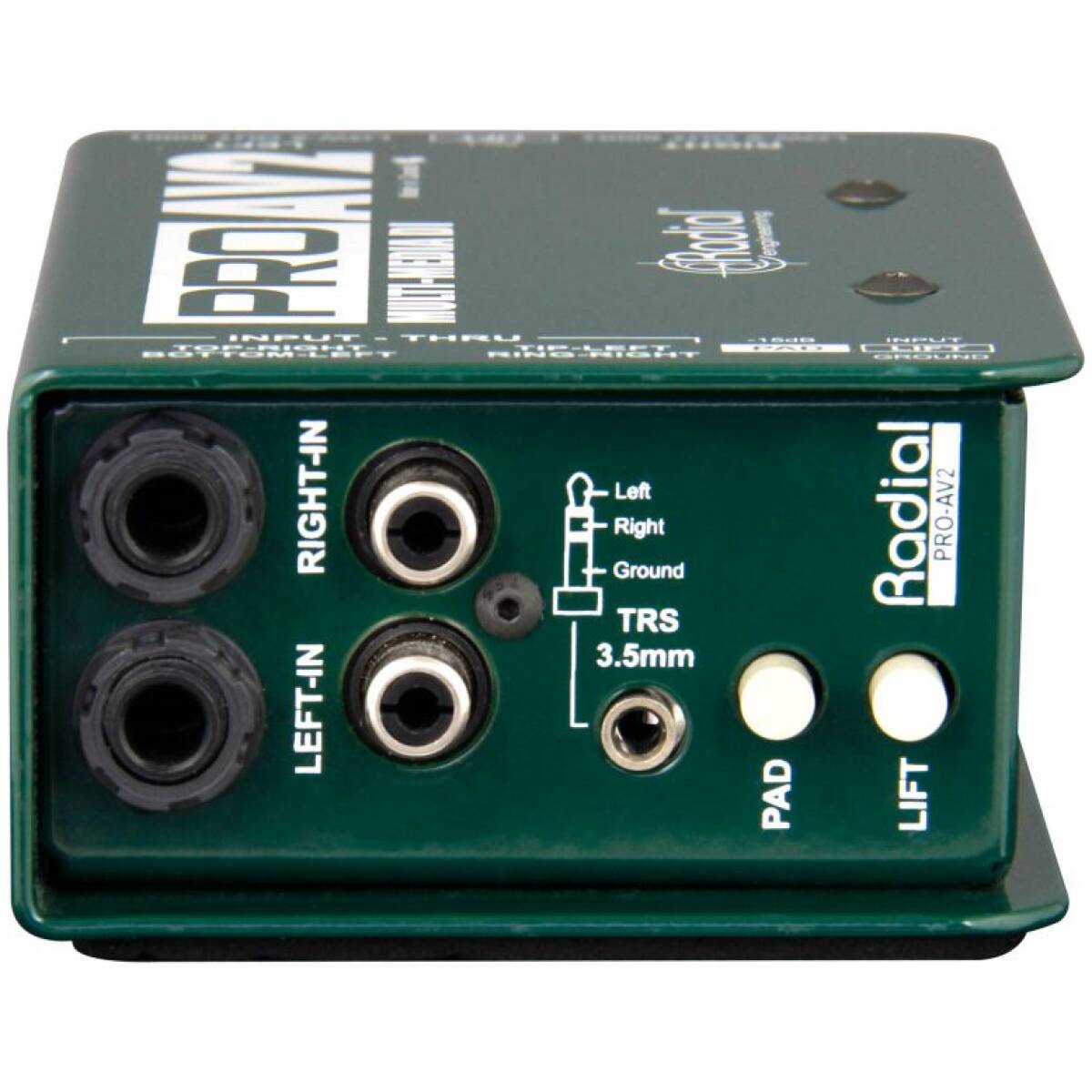

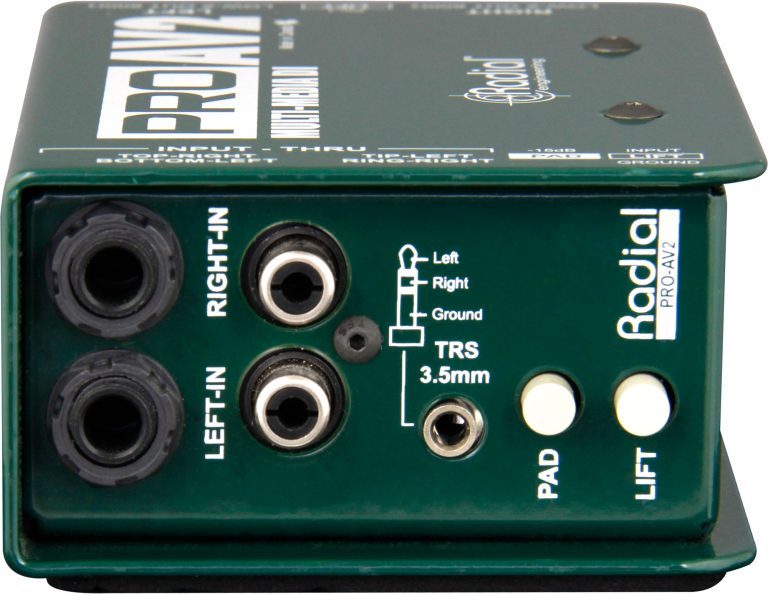

The Radial ProAV2 is a professional dual-channel passive AV direct box designed to connect consumer and professional audio sources to PA systems and mixing consoles. With support for multiple input formats and stereo operation, it is ideal for AV, corporate, education, houses of worship, and live sound applications.
Key Features
-
Passive AV DI – no power or batteries required
-
Dual-channel (stereo) operation
-
Accepts multiple input types:
-
RCA (Left / Right) for consumer audio devices
-
3.5 mm TRS for laptops, tablets, and phones
-
XLR for professional line-level sources
-
-
Converts unbalanced signals to balanced XLR outputs
-
Transformer isolation reduces hum and ground loops
-
Ground lift switches for additional noise control
-
Rugged steel enclosure for touring, rental, and fixed installations
Specifications
-
Type: Passive AV Direct Box
-
Channels: 2 (stereo)
-
Inputs: RCA (L/R), 3.5 mm TRS, XLR
-
Outputs: 2 × Balanced XLR (Left / Right)
-
Ground lift: Yes
-
Power requirement: None
-
Applications: AV systems, laptops, media players, conference rooms, live sound
Typical Applications
-
Corporate AV and conferencing
-
Education and lecture halls
-
Houses of worship
-
Stereo playback from laptops and media devices
