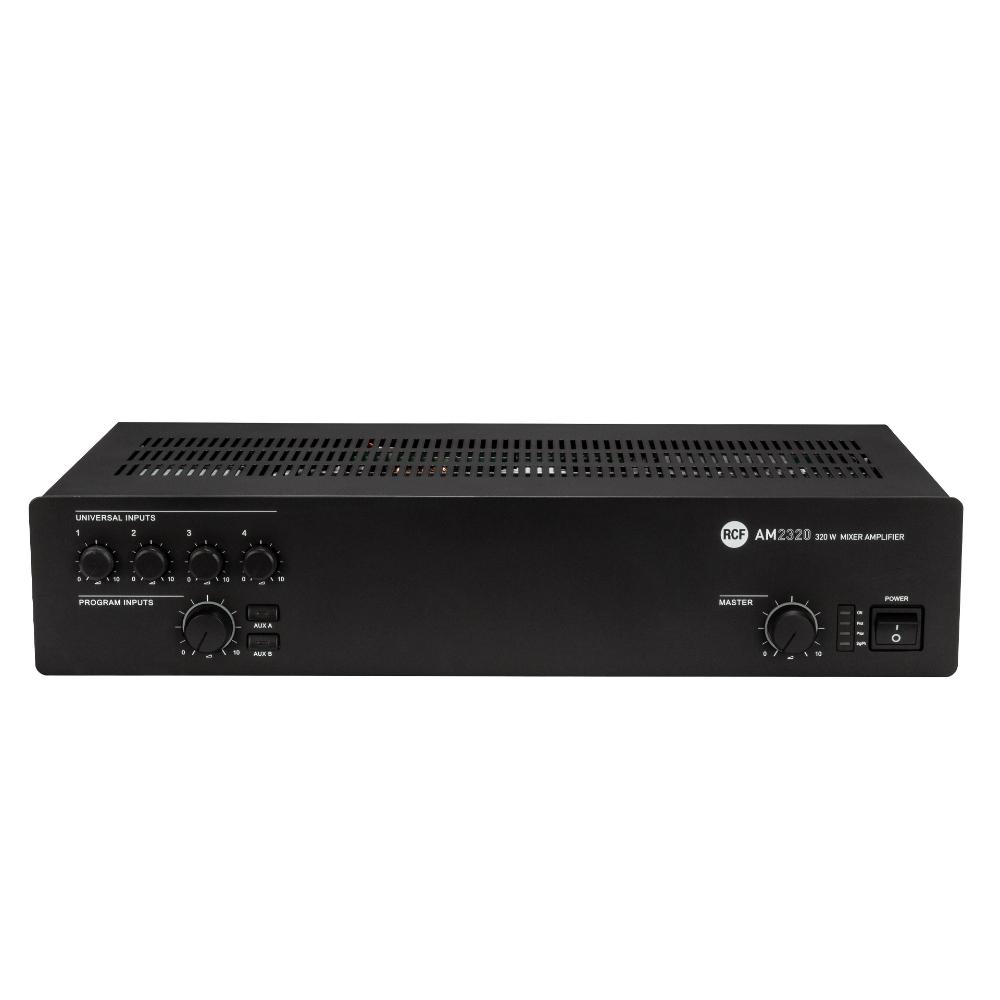

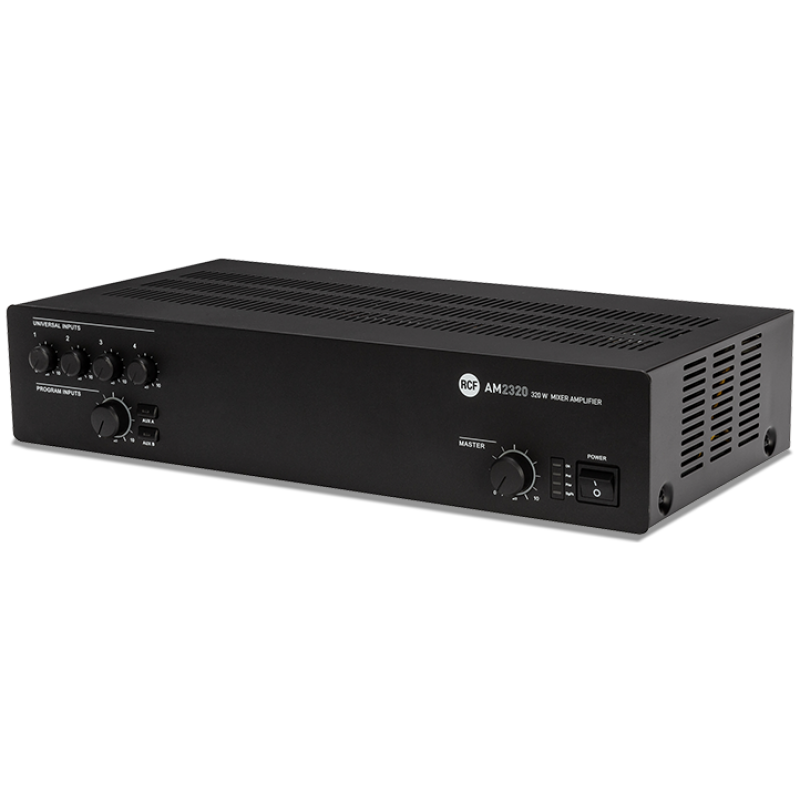

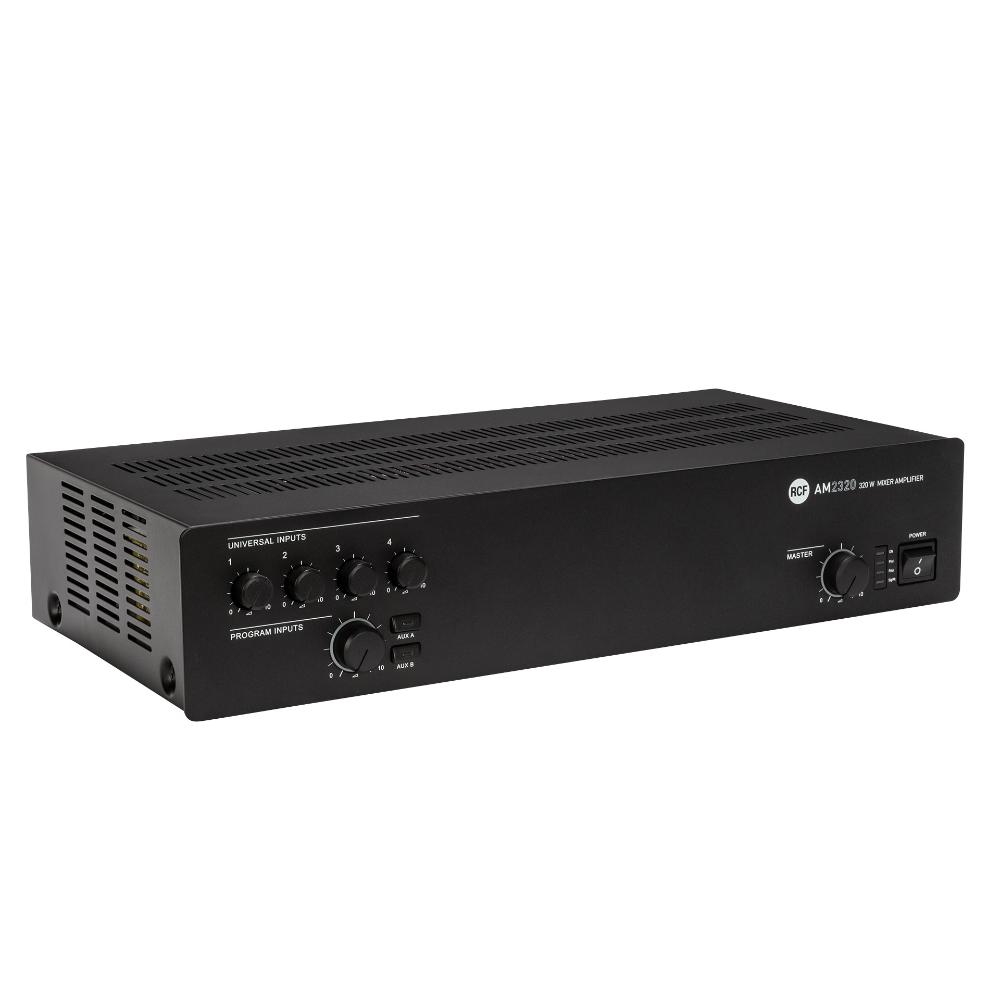

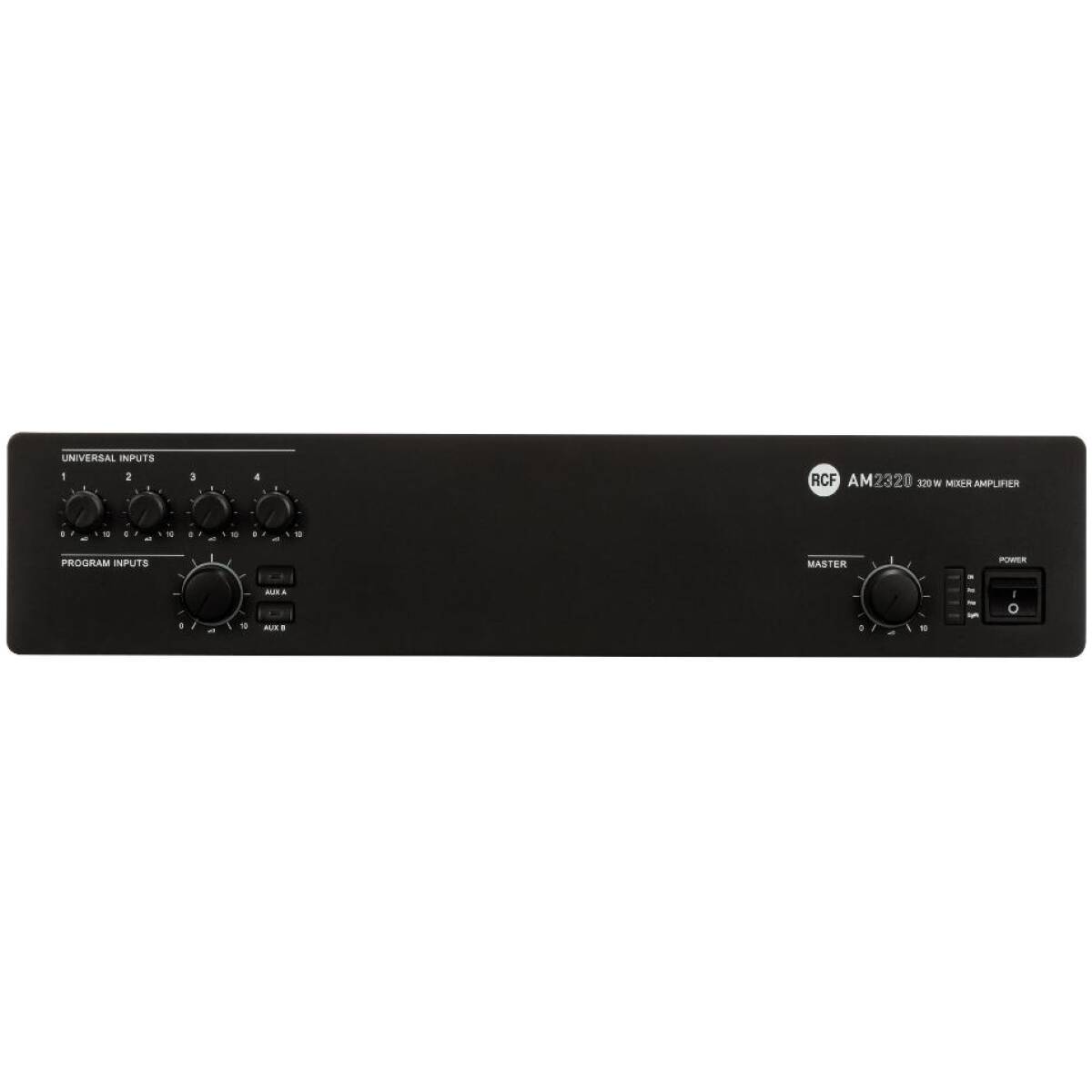

AM 2320
MIXER AMPLIFIER
- Full digital technology Mixer Amplifier 320 W RMS
- 100 V – 70 V and 4 Ohm outputs
- 4 universal inputs with phantom facility on screw terminal connections
- Presence Control and per-channel High-Pass filters
Features
- Full digital technology Mixer Amplifier 320 W RMS
- 100 V – 70 V and 4 Ohm outputs
- 4 universal inputs with phantom facility on screw terminal connections
- Presence Control and per-channel High-Pass filters
- XLR connector on input 1
- RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- DigMusic On Hold and PRE outputs
AM 2320 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 320 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line.
Part number:
12135059
AM 2320
EAN 8024530006464
SPECIFICATIONS
Amplifier specifications
Output Power
1 x 320 W @ 4 ohm
Frequency Response (-3dB)
50 Hz ÷ 14 Hz
Distortion (THD+N) @ 1 kHz nominal power
<0.3 %
Input section
Total number of inputs
8
Balanced
7
Unbalanced
2
Mono
7
Stereo
2
Line inputs
2
Line connectors
RCA
Mic+Line inputs
4
Mic+Line connectors
Euroblock, XLR
Mic+Line Phantom
32 V DC
VOX
Yes
Paging inputs
2
Paging connectors
RJ45
Paging command
Contact
General Purpose Inputs (GPI)
2
Output section
Signal output number
2
Signal output connectors
RCA
Power output connectors
Euroblock
Processing
Tone controls
Yes
High-pass filter
150 Hz
Configuration and control
Configuration
DIP switch, Front panel
Priority
Yes
Music on hold
Yes
Chime tone
Yes
Protections
Cooling
Convection
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Voltage selection
Internal
Power consumption (MAX)
600 W
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Metal
Color
Black
Rack mounting
19″, 2U
Size / Weight
Height
88 mm / 3.46 inches
Width
442 mm / 17.4 inches
Depth
230 mm / 9.06 inches
Weight
5.4 kg / 11.9 lbs
Shipping information
Package Height
200 mm / 7.87 inches
Package Width
500 mm / 19.69 inches
Package Depth
330 mm / 12.99 inches
Package Weight
